1995 ISUZU TROOPER Workshop Manual

B INSTALLATION
To install, follow the removal steps in the reverse
order.

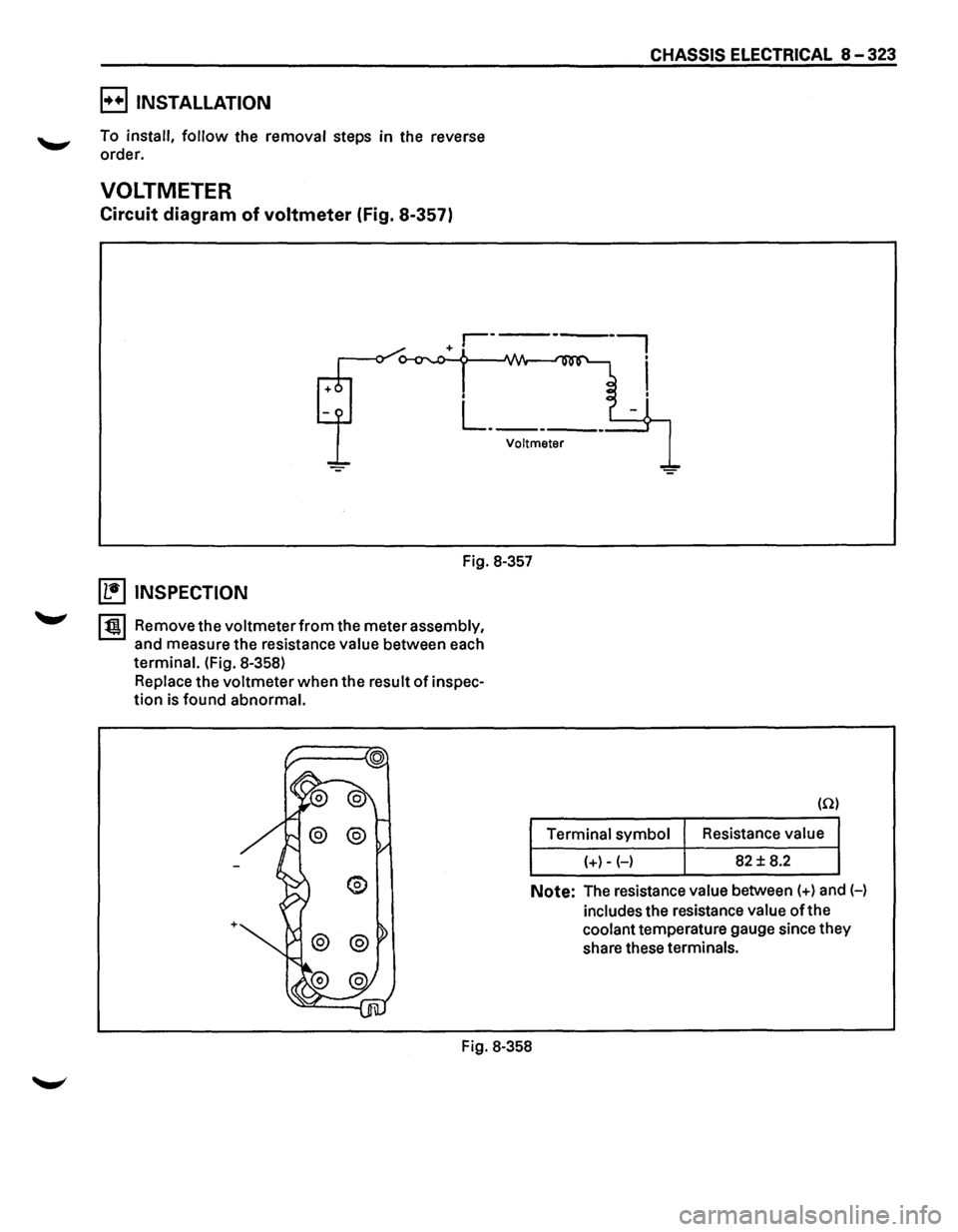

VOLTMETER
Circuit diagram of voltmeter (Fig. 8-357)
CHASSIS ELECTRICAL 8-323
Voltmeter
Fig. 8-357
~ INSPECTION
I t!!.l Remove the voltmeter from the meter assembly,
and measure the resistance value between each
terminal. (Fig. 8-358)
Replace the voltmeter when the result of inspec­
tion is found
abnormal.
+
(Q)
Terminal symbol Resistance value
(+)-(-) 82 ± 8.2
Note: The resistance value between (+) and H
includes the resistance value ofthe
coolant temperature gauge since they
share these
terminals.
Fig. 8-358

8-324 CHASSIS ELECTRICAL

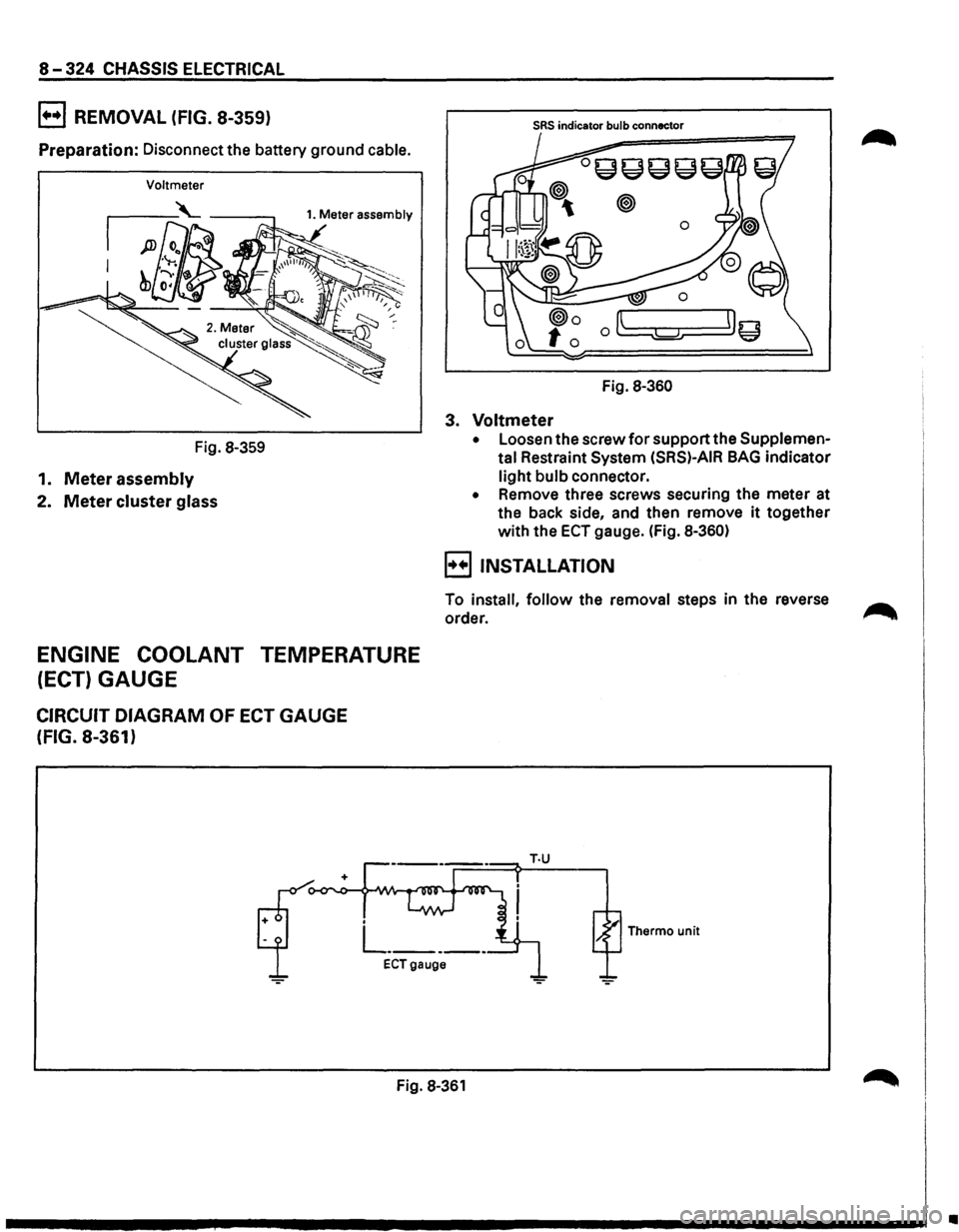

B REMOVAL (FIG. 8-359)
Preparation: Disconnect the battery ground cable.
Voltmeter
Fig. 8-359
1. Meter assembly
2. Meter cluster glass
ENGINE COOLANT TEMPERATURE
(ECT) GAUGE
CIRCUIT DIAGRAM OF ECT GAUGE
(FIG. 8-361)
SRS indicator bulb connector
Fig. 8-360
3. Voltmeter
• Loosen the screw for support the Supplemen­
tal
Restraint System (SRS)-AIR BAG indicator
light bulb connector.
• Remove three screws securing the meter at
the back side, and then remove
it together
with the
ECT gauge. (Fig. 8-360)
B INSTALLATION
To install, follow the removal steps in the reverse ....-...
order. ,........
Thermo unit
ECTgauge
Fig. 8-361
•

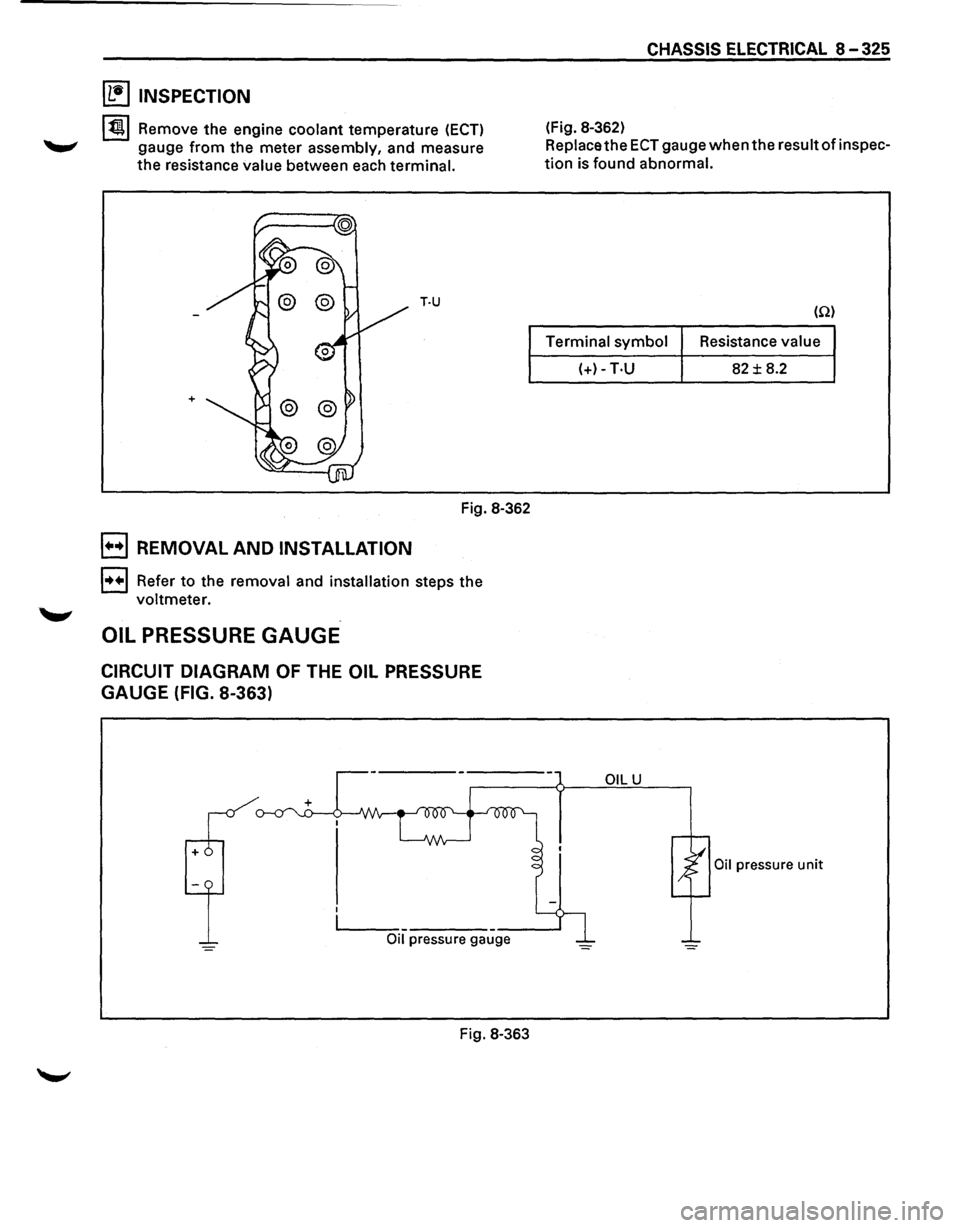

~ INSPECTION
131 Remove the engine coolant temperature (ECT)
gauge from the meter assembly, and measure
the resistance value between each terminal.
T·U
+
Fig. 8-362
E) REMOVAL AND INSTALLATION
1••1 Refer to the removal and installation steps the
voltmeter.
OIL PRESSURE GAUGE
CIRCUIT DIAGRAM OF THE OIL PRESSURE
GAUGE (FIG. 8-363)
CHASSIS ELECTRICAL 8 -325
(Fig. 8-362)
Replace the
ECT gauge when the result of inspec­
tion is found abnormal.
(Q)
Terminal symbol Resistance
value
(+)-T·U 82 ± 8.2
OILU
Oil pressure unit
,______ _ __ ___.
Oil pressure gauge
Fig. 8-363

8-326 CHASSIS ELECTRICAL

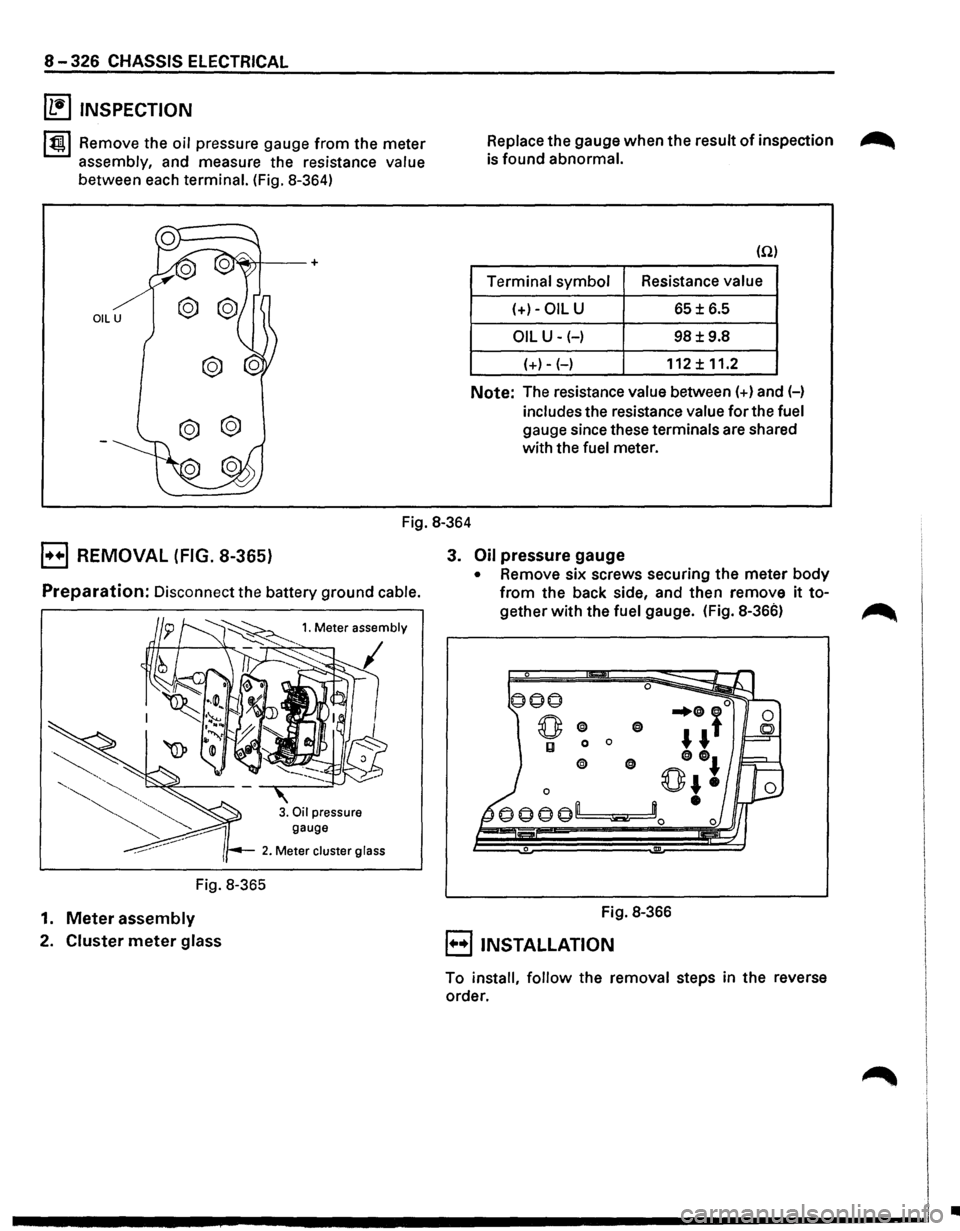

~ INSPECTION
l~l Remove the oil pressure gauge from the meter
assembly, and measure the resistance value
between each terminal. (Fig. 8-364)
Replace the gauge when the result of inspection ~
is found abnormal.
(Q)
Terminal symbol Resistance value
(+)-OIL U 65± 6.5
OIL U-(-) 98±9.8
{+)-{-) 112± 11.2
Note: The resistance value between {+)and(-)
includes the resistance value for the fuel
gauge since these terminals are shared
with the
fuel meter.
Fig. 8-364
B REMOVAL (FIG. 8-365)
Preparation: Disconnect the battery ground cable.
gauge
2. Meter cluster glass
Fig. 8-365
1.
Meter assembly
2. Cluster meter glass
3. Oil pressure gauge
• Remove six screws securing the meter body
from the back side, and then remove it to­
gether with the fuel gauge. (Fig. 8-366)
Fig. 8-366
E) INSTALLATION
To install, follow the removal steps in the reverse
order.
•

CHASSIS ELECTRICAL 8 -327

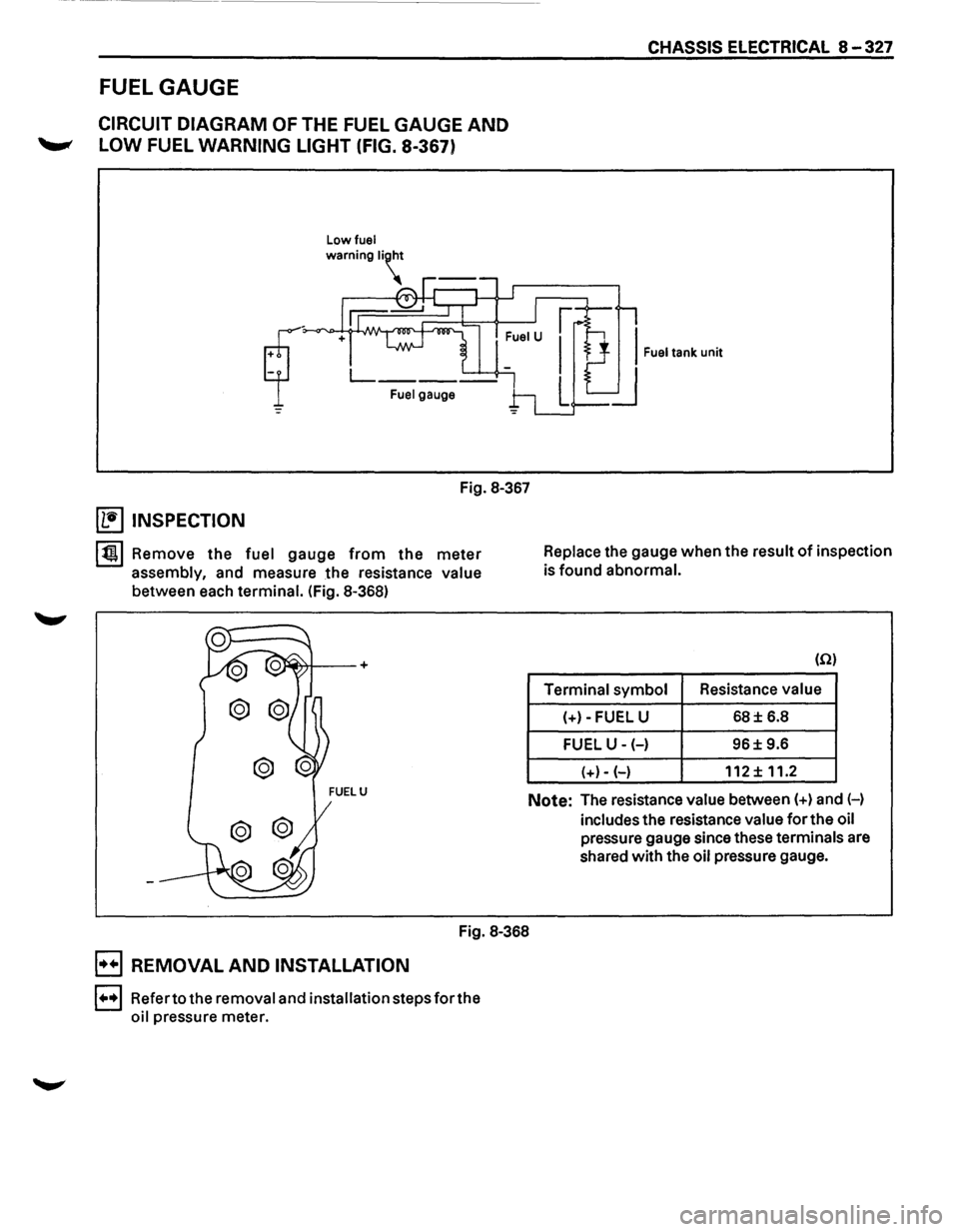

FUEL GAUGE
CIRCUIT DIAGRAM OF THE FUEL GAUGE AND
'--"' LOW FUEL WARNING LIGHT (FIG. 8-367)
Low fuel
Fuel gauge
Fig. 8-367
~ INSPECTION
lt!tl Remove the fuel gauge from the meter
assembly, and measure the resistance value
between each terminal. (Fig. 8-368) Replace
the gauge when the result
of inspection
is found abnormal.
(Q)
Terminal symbol Resistance
value
(+)-FUEL U
68± 6.8
FUEL U-(-) 96± 9.6
(+)- (-)
112 ± 11.2
Note: The resistance value between(+) and H
includes the resistance value
for the oil
pressure gauge since these terminals are
shared with the
oil pressure gauge.
Fig. 8-368
B REMOVAL AND INSTALLATION
1•,.1 Refer to the removal and installation steps for the
oil pressure meter.

8-328 CHASSIS ELECTRICAL

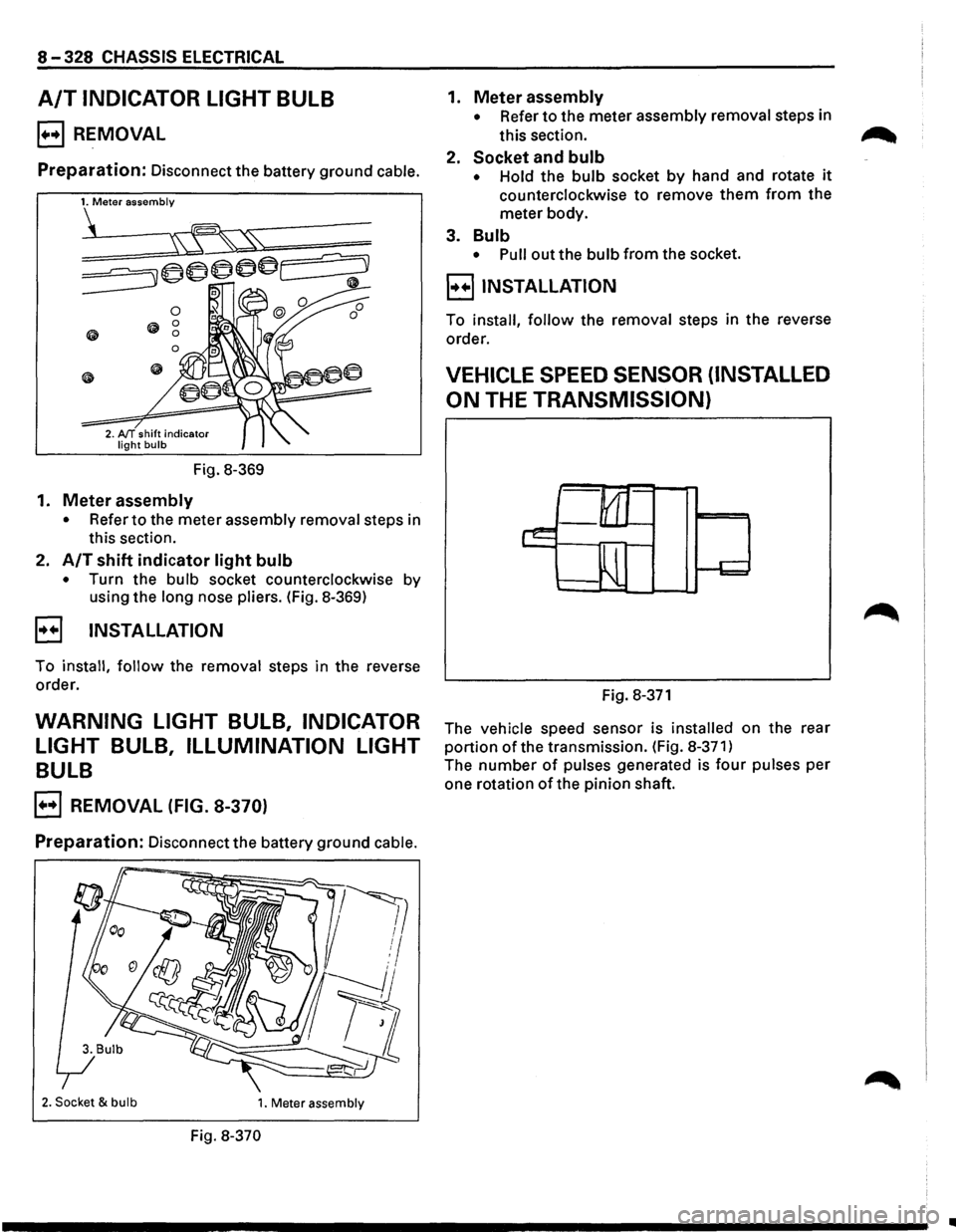

A/T INDICATOR LIGHT BULB
B REMOVAL
Preparation: Disconnect the battery ground cable.
Fig.
8-369
1. Meter assembly
• Refer to the meter assembly removal steps in
this section.
2.
A/T shift indicator light bulb
• Turn the bulb socket counterclockwise by
using the
long nose pliers. (Fig. 8-369)
B INSTALLATION
To install, follow the removal steps in the reverse
order.
WARNING LIGHT BULB, INDICATOR
LIGHT
BULB, ILLUMINATION LIGHT
BULB
B REMOVAL (FIG. 8-370)
Preparation: Disconnect the battery ground cable.
2. Socket & bulb 1. Meter assembly
Fig. 8-370
1. Meter assembly
• Refer to the meter assembly removal steps in
this section.
2.
Socket and bulb
• Hold the bulb socket by hand and rotate it
counterclockwise to remove them from the
meter body.
3.
Bulb
• Pull out the bulb from the socket.
B INSTALLATION
To install, follow the removal steps in the reverse
order.
VEHICLE SPEED SENSOR (INSTALLED
ON
THE TRANSMISSION)
Fig. 8-371
The vehicle speed sensor is installed on the rear
portion of the transmission. (Fig. 8-371)
The number of pulses generated is four pulses per
one rotation
of the pinion shaft.
..

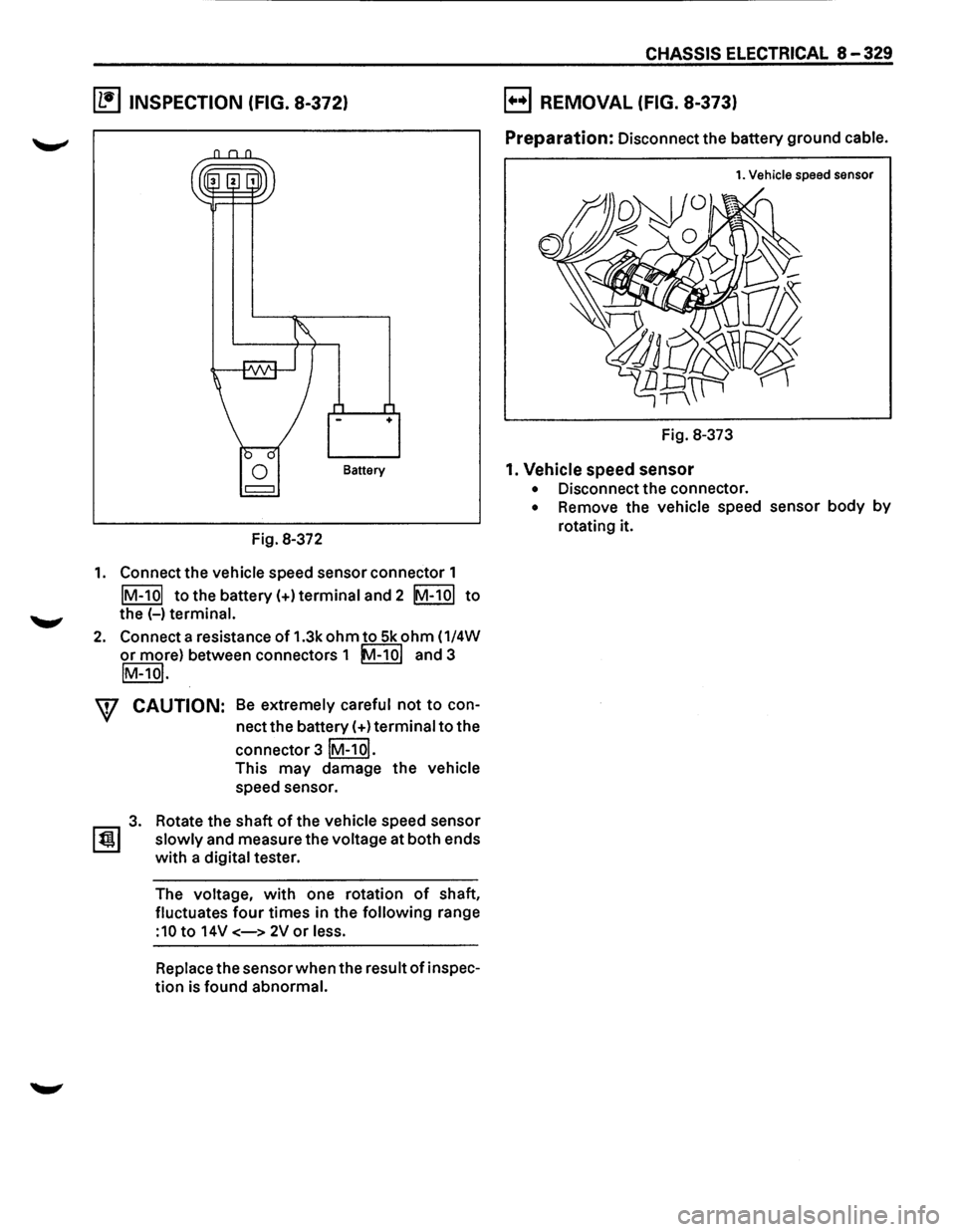

(1!] INSPECTION (FIG. 8-372)
Battery
Fig. 8-372
1. Connect the vehicle speed sensor connector 1
IM-101 to the battery (+)terminal and 2 IM-101 to
the (-)terminal.
2. Connect a resistance of 1.3k ohm to Sk ohm ( 1/4W
or more) between connectors 1 ~ and 3
IM-101.
W CAUTION: Be extremely careful not to con­
nect the battery(+)
terminal to the
connector
3IM-1ol.
This may damage the vehicle
speed sensor.
3. Rotate the shaft of the vehicle speed sensor
1~1 slowly and measure the voltage at both ends
with a digital tester.
The voltage,
with one rotation of shaft,
fluctuates
four times in the following range
:10 to 14V <-> 2Vor less.
Replace the sensor when the resu It of i nspec­
tion is found abnormal.
CHASSIS ELECTRICAL 8-329
B REMOVAL (FIG. 8-373)
Preparation: Disconnect the battery ground cable.
1. Vehicle speed sensor
Fig. 8-373
1. Vehicle speed sensor
• Disconnect the connector.
• Remove the vehicle speed sensor body by
rotating it.
