ILLUSTRATION
'~ ~··
J -
~
. .
"
~
"f'38~
0
~~ '~
--~ S::S.·f
-~; -~b' 4-WHEEL ANTILOCK BRAKE SYSTEM (ABS) 5A4-79

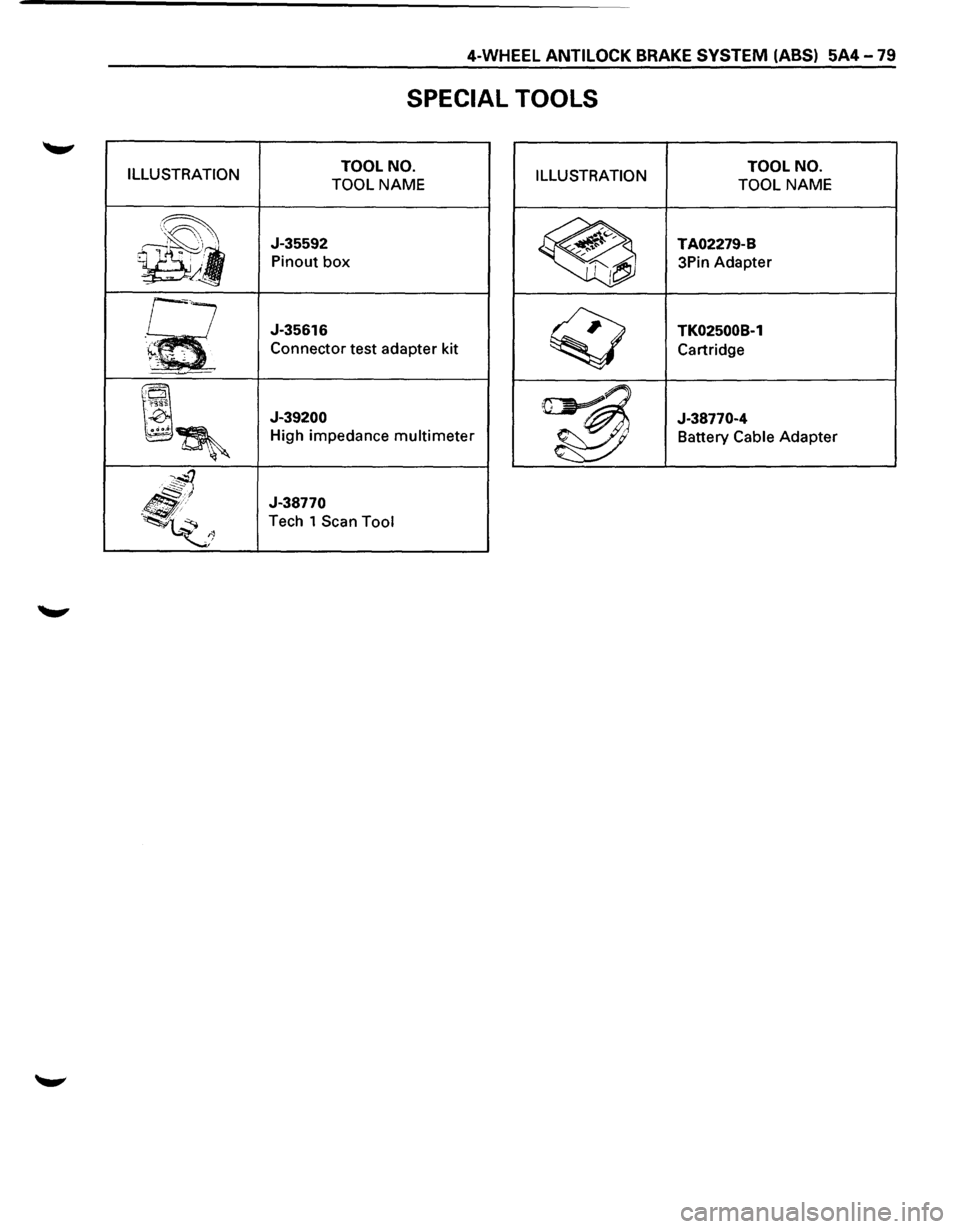

SPECIAL TOOLS
TOOL NO.
TOOL
NAME ILLUSTRATION
J-35592
Pinout box
J-35616
Connector test adapter kit
J-39200
High impedance multimeter
J-38770
Tech 1 Scan Tool
TOOL NO.
TOOL
NAME
TA02279-B
3Pin Adapter
TK02500B-1
Cartridge
J-38770-4 Battery
Cable Adapter

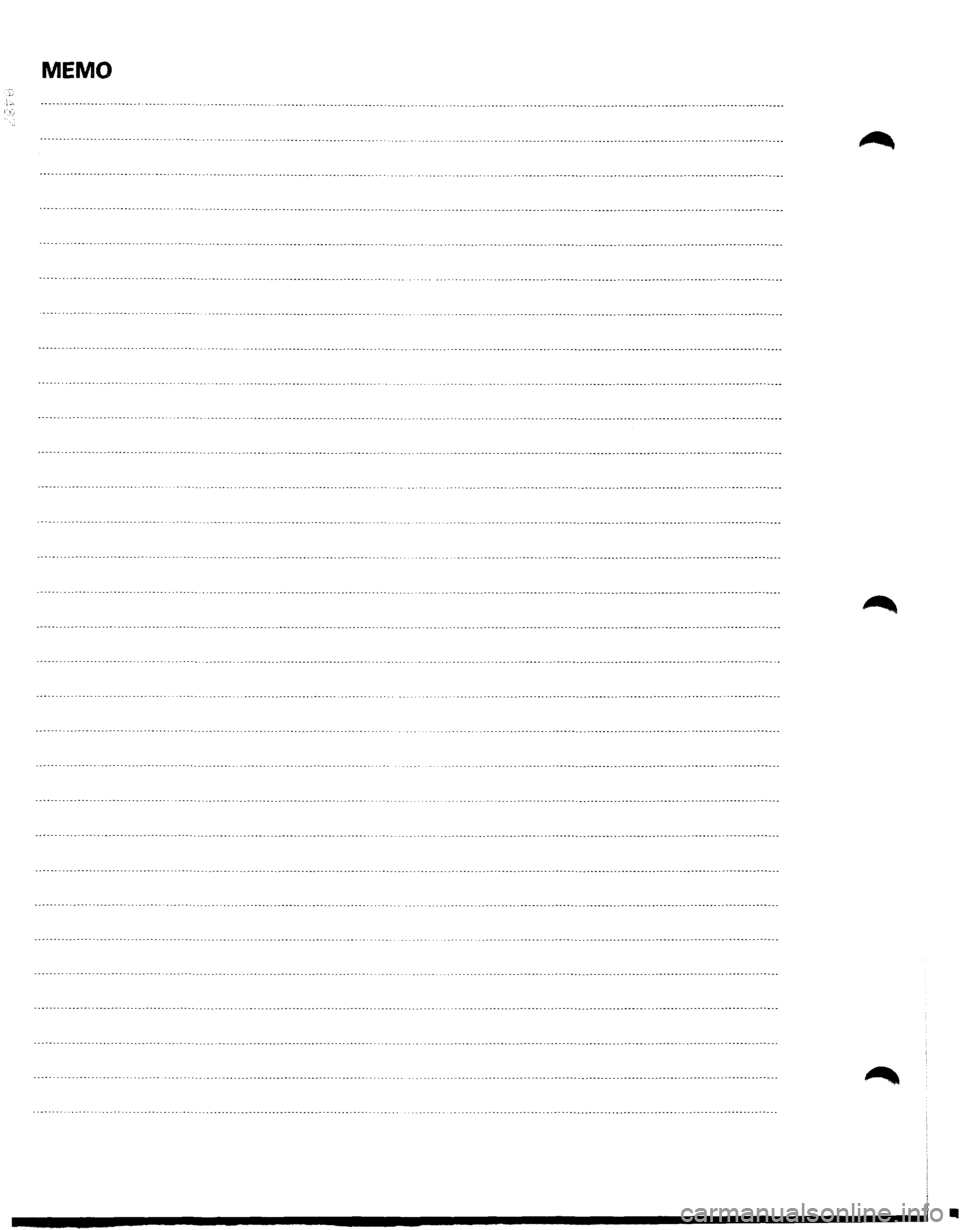

MEMO
. i ~·
•

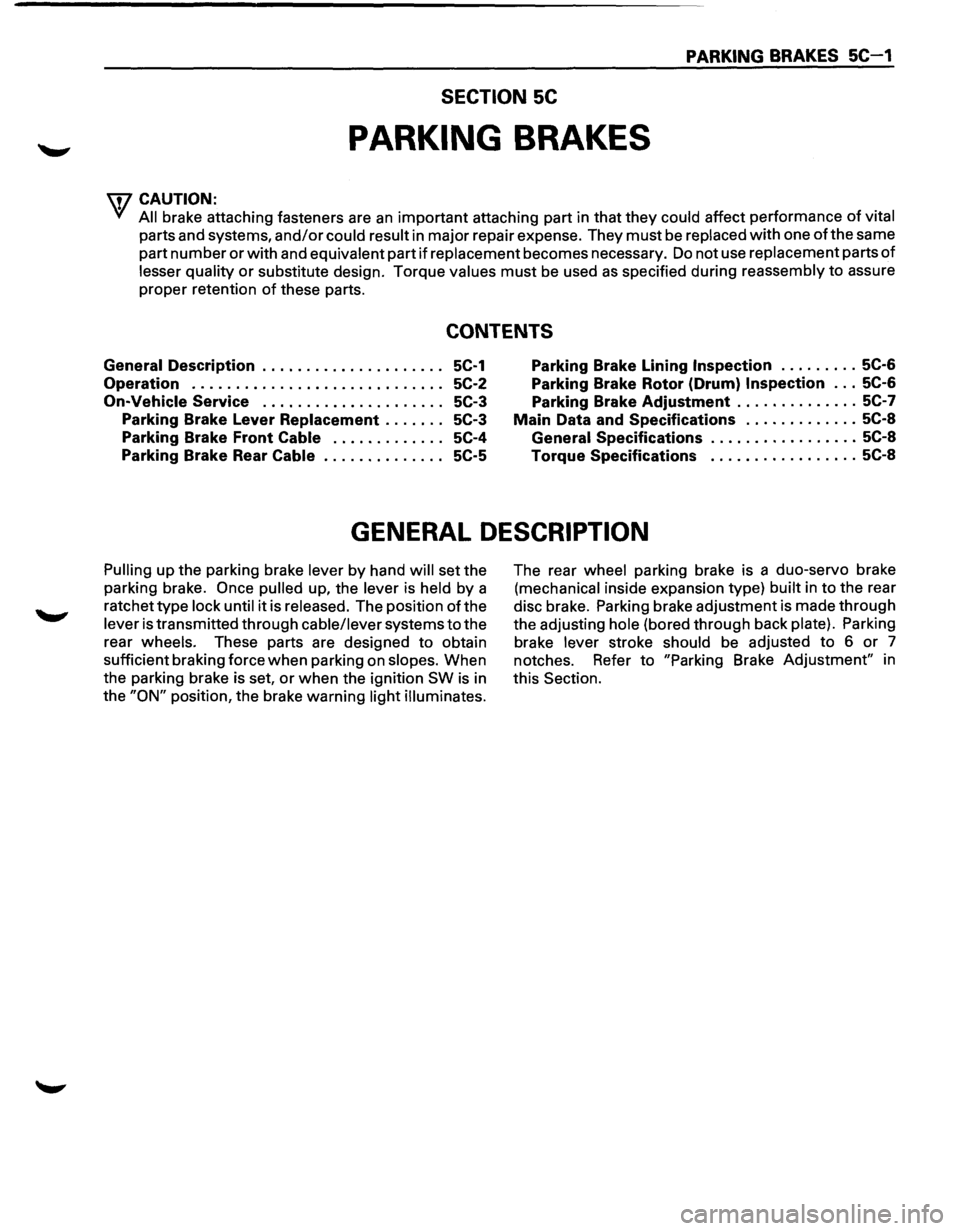

PARKING BRAKES 5C-1
SECTION 5C
PARKING BRAKES
'\f7 CAUTION:
Yf All brake attaching fasteners are an important attaching part in that they could affect performance of vital
parts and systems, and/or could result in major repair expense. They must be replaced with one ofthe same
part number
or with and equivalent part if replacement becomes necessary. Do not use replacement parts of
lesser quality or substitute design. Torque values must be used as specified during reassembly to assure
proper retention
of these parts.
CONTENTS
General Description ..................... 5C-1
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5C-2
On-Vehicle Service
..................... 5C-3
Parking Brake Lever Replacement . .

. . . . .
5C-3
Parking Brake Front Cable . .

. . . . . . . . . . .
5C-4
Parking Brake Rear Cable . .

. . . . . . . . . . . .
5C-5
Parking Brake Lining Inspection ......... 5C-6
Parking Brake Rotor (Drum) Inspection ... 5C-6
Parking Brake Adjustment .............. 5C-7
Main Data and Specifications ............. 5C-8
General
Specifications ................. 5C-8
Torque Specifications ................. 5C-8
GENERAL DESCRIPTION
Pulling up the parking brake lever by hand will set the
parking brake.
Once pulled up, the lever is held by a
ratchet type
lock until it is released. The position of the
lever is transmitted through cable/lever systems to the
rear
wheels. These parts are designed to obtain
sufficient braking force
when parking on slopes. When
the parking brake is set,
or when the ignition SW is in
the
"ON" position, the brake warning light illuminates.
The rear wheel parking brake is a duo-servo brake
(mechanical inside expansion type) built in to the rear
disc brake. Parking brake adjustment is made through
the adjusting
hole (bored through back plate). Parking
brake
lever stroke should be adjusted to 6 or 7
notches. Refer
to "Parking Brake Adjustment" in
this Section.

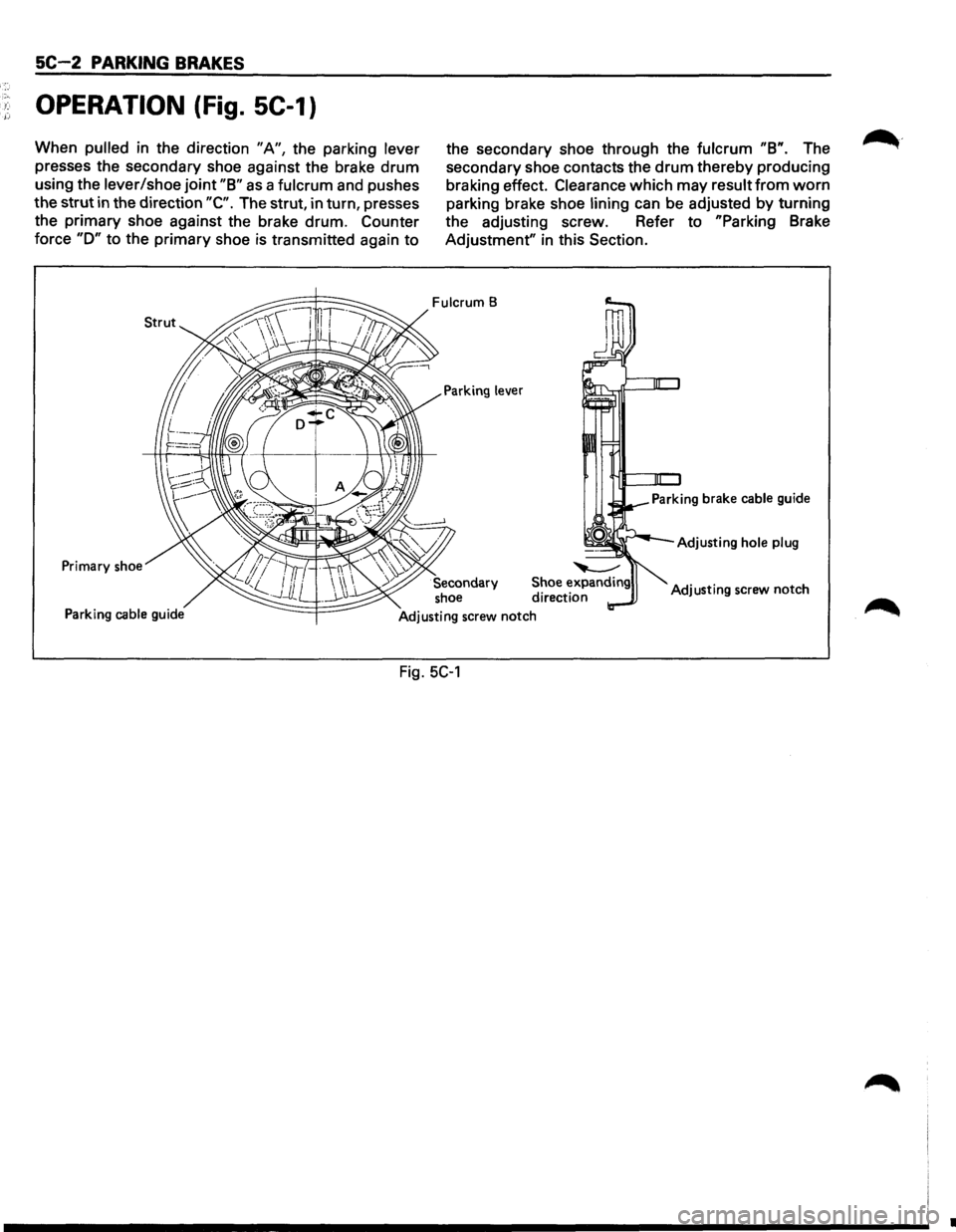

5C-2 PARKING BRAKES
OPERATION (Fig. SC-1)
When pulled in the direction "A", the parking lever
presses the secondary shoe against the brake drum
using the lever/shoe joint "8" as a fulcrum and pushes
the strut in the direction
"C". The strut, in turn, presses
the primary shoe against the brake drum.
Counter
force "D" to the primary shoe is transmitted again to
Primary shoe
Parking cable guide
the secondary shoe through the fulcrum "8". The
secondary shoe contacts the
drum thereby producing
braking effect.
Clearance which may result from worn
parking brake shoe lining can be adjusted by turning
the adjusting screw. Refer to
"Parking Brake
Adjustment"
in this Section.
Fulcrum B
Adjusting hole plug
Adjusting screw notch
Fig. 5C-1
•

~

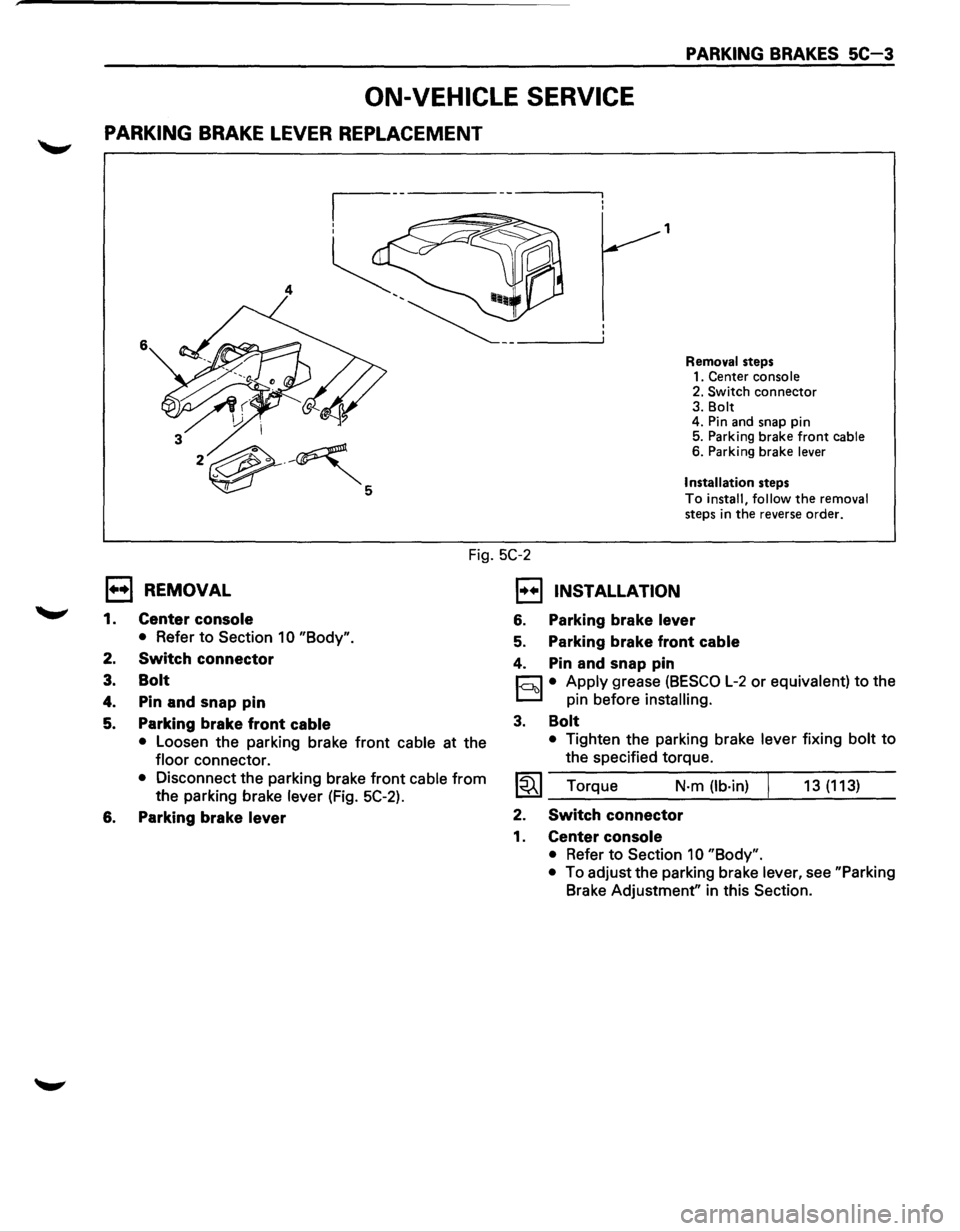

PARKING BRAKES SC-3
ON-VEHICLE SERVICE
PARKING BRAKE LEVER REPLACEMENT
1
4
6
Removal steps
1. Center console
2. Switch
connector 3. Bolt
4. Pin and snap pin
5. Parking brake
front cable 6. Parking brake lever
Installation
steps
To install, follow the removal
steps in the reverse order.
Fig. 5C-2
l••l REMOVAL
1.
2.
3.
4.
5.
Center console
• Refer to Section 1 0 "Body".
Switch connector
Bolt
Pin and snap pin
Parking brake front
cable
• Loosen the parking brake front cable at the
floor connector.
• Disconnect the parking brake front cable from
the parking brake lever (Fig. 5C-2).
6. Parking brake lever
1••1 INSTALLATION
6. Parking brake lever
5. Parking brake front cable
4. Pin and snap pin
r:::J • Apply grease (BESCO L-2 or equivalent) to the
D pin before installing.
3. Bolt
• Tighten the parking brake lever fixing bolt to
the specified torque.
~~~ Torque N·m (lb·in) 13 (113)
2. Switch connector
1. Center console
• Refer to Section 10 "Body".
•
To adjust the parking brake lever, see "Parking
Brake Adjustment" in this Section.

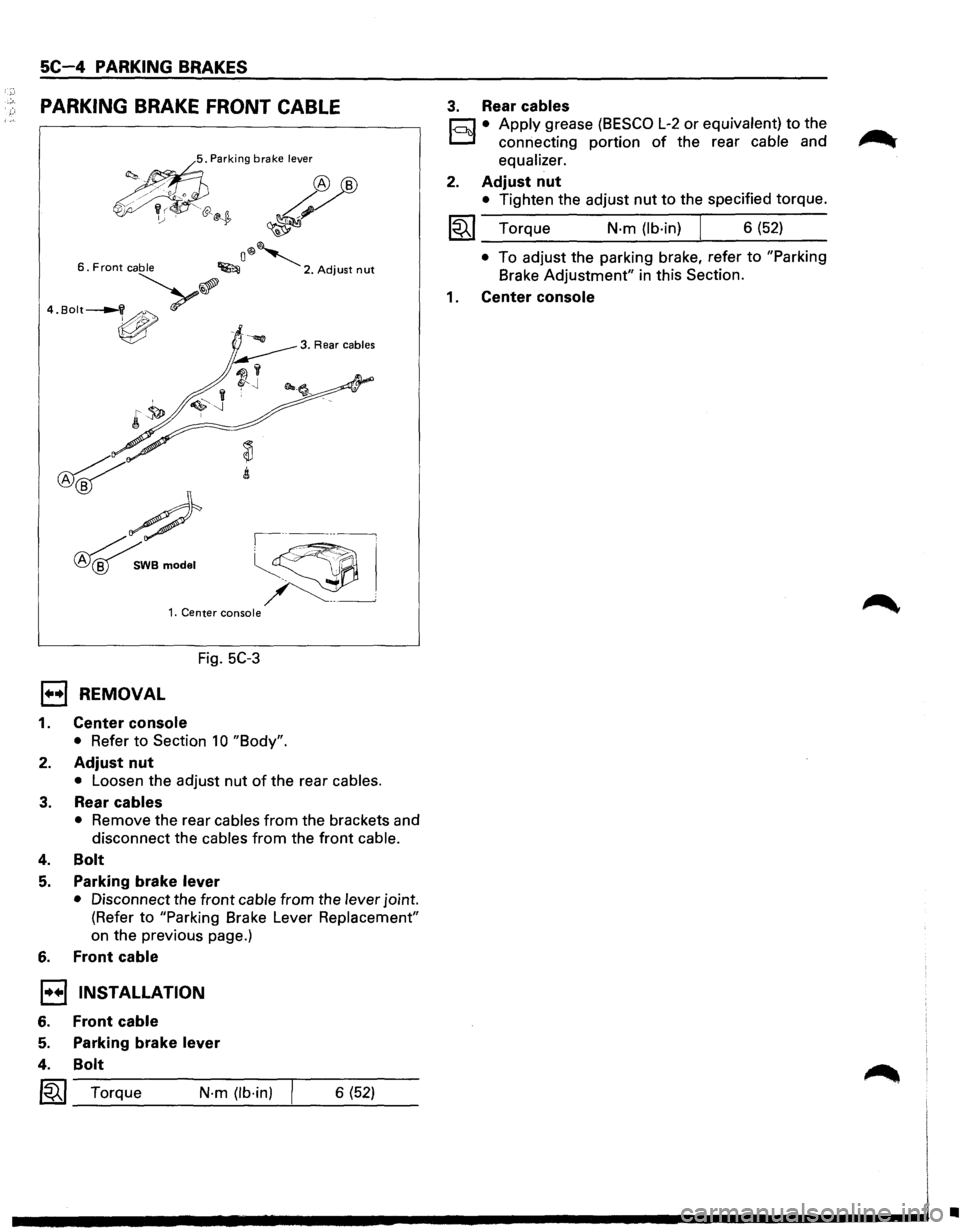

5C-4 PARKING BRAKES
PARKING BRAKE FRONT CABLE
<.~ '"''"' brnke '""" ~
~~~ ~ ~
o®~ 6. Front cable ~ 2. Adjust nut
··"""-v>.?
~
~
#
~WBmodel
,----~
~~
~ ~--___j 1. Center console
Fig. 5C-3
1••1 REMOVAL
1. Center console
• Refer to Section 10 "Body".
2. Adjust nut
• Loosen the adjust nut of the rear cables.
3. Rear cables
• Remove the rear cables from the brackets and
disconnect the cables
from the front cable.
4. Bolt
5. Parking brake lever
• Disconnect the front cable from the lever joint.
(Refer to
"Parking Brake Lever Replacement"
on the previous page.)
6. Front cable
1•+1 INSTALLATION
6. Front cable
5.
4.
Parking brake lever
Bolt
I~I_T_o_rq_u_e ___ N_·_m_(lb_·_in_) --'---6_(_5_2) __
3. Rear cables
r;:::;:] • Apply grease (BESCO L-2 or equivalent) to the
D connecting portion of the rear cable and
equalizer.
2. Adjust nut
• Tighten the adjust nut to the specified torque.
~~~ Torque N-m (lb-in) J 6 (52)
• To adjust the parking brake, refer to "Parking
Brake
Adjustment" in this Section.
1 . Center console
•
