1995 ISUZU TROOPER Workshop Manual

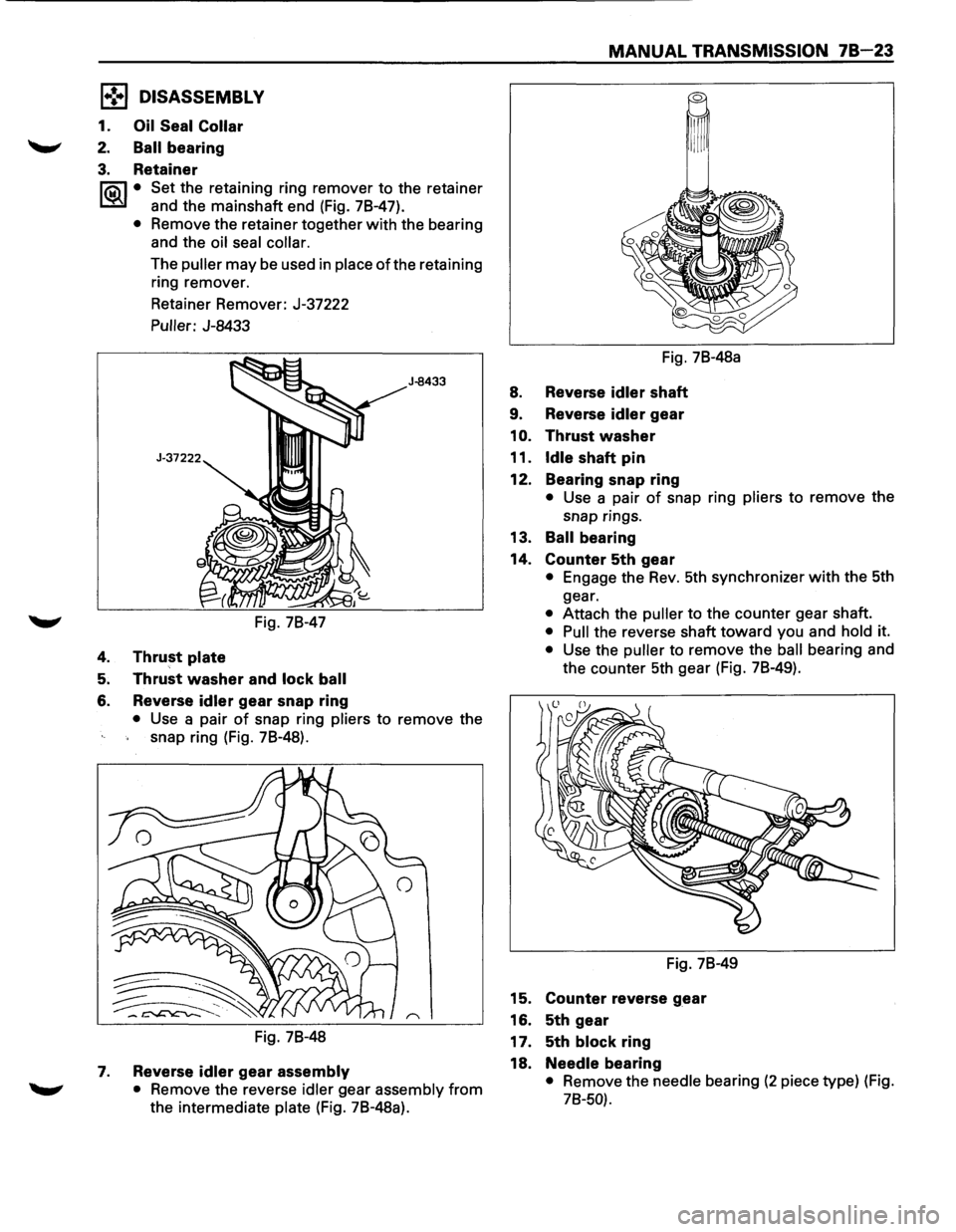

l•!•l DISASSEMBLY
1. Oil Seal Collar
2. Ball bearing
3. Retainer
I®J • Set the retaining ring remover to the retainer
and the mainshaft end (Fig. 78-47).
• Remove the retainer together with the bearing
and the
oil seal collar.
The puller may be used in place ofthe retaining
ring remover.
Retainer Remover: J-37222
Puller: J-8433
Fig. 78-47
4. Thrust plate
5. Thrust washer and lock ball
6. Reverse idler gear snap ring
J-8433
• Use a pair of snap ring pliers to remove the
snap ring (Fig. 78-48).
Fig. 78-48
7. Reverse idler gear assembly
• Remove the reverse idler gear assembly from
the intermediate plate (Fig. 78-48a).
MANUAL TRANSMISSION 78 23
Fig. 78-48a
8. Reverse idler shaft
9. Reverse idler gear
1
0. Thrust washer
11.
Idle shaft pin
12. Bearing snap ring
• Use a pair of snap ring pliers to remove the
snap rings.
13. Ball bearing
14. Counter 5th gear
• Engage the Rev. 5th synchronizer with the 5th
gear.
• Attach the puller to the counter gear shaft.
• Pull the reverse shaft toward you and hold it.
• Use the puller to remove the ball bearing and
the counter 5th gear (Fig. 78-49).
Fig. 78-49
15. Counter reverse gear
16. 5th gear
17. 5th
block ring
18.
Needle bearing
• Remove the needle bearing (2 piece type) (Fig.
78-50).

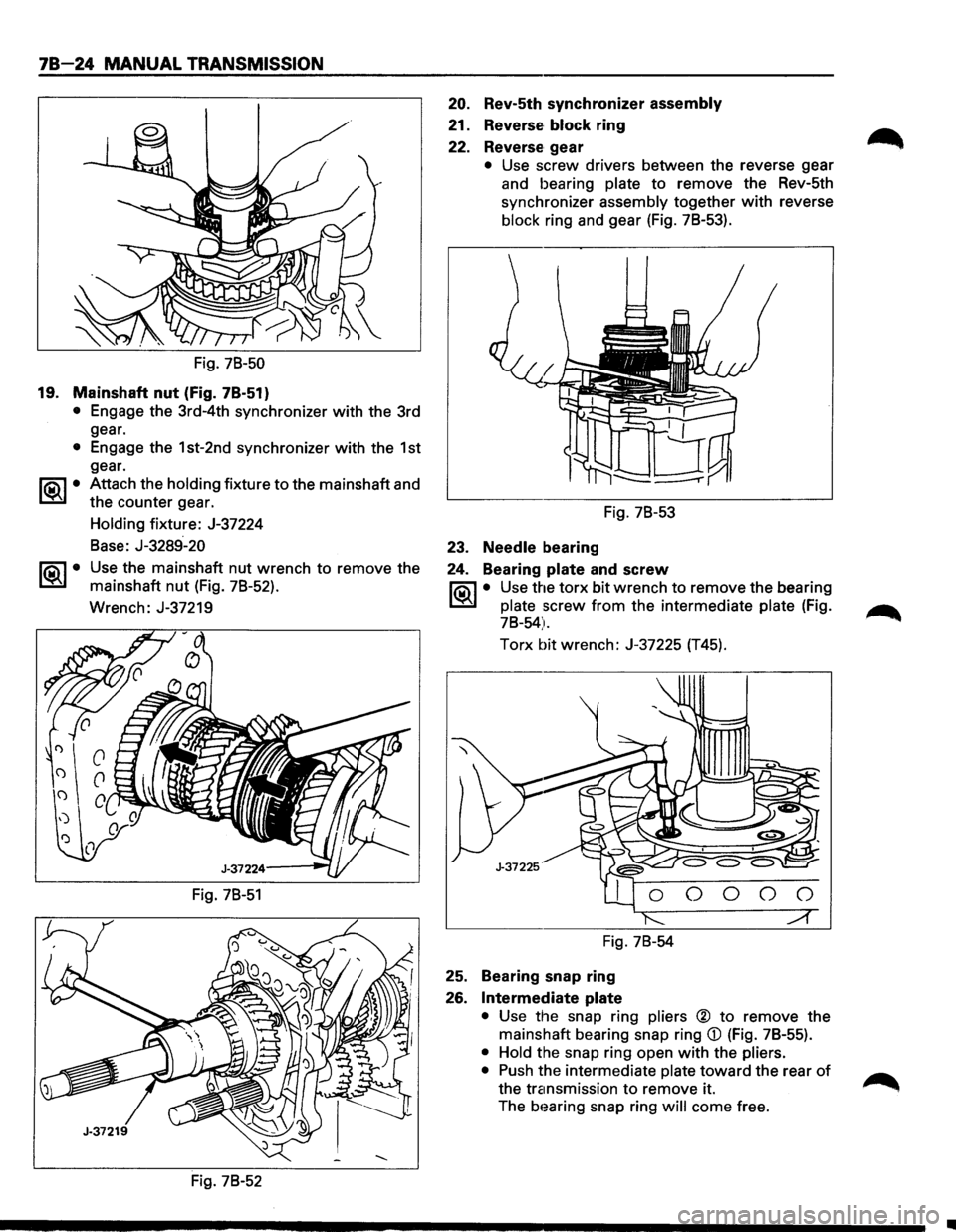

78-24 MANUAL TRANSMISSION
Fig. 78-50
19. Mainshaft nut (Fig. 7B-51)
• Engage the 3rd-4th synchronizer with the 3rd
gear.
• Engage the 1st-2nd synchronizer with the 1st
gear.
~~~· Attach the holding fixture to the mainshaft and
the counter gear.
~·
Holding fixture: J-37224
Base: J-3289-20
Use the mainshaft nut wrench to remove the
mainshaft
nut (Fig. 78-52).
Wrench: J-37219
Fig. 78-51
Fig. 78-52
20. Rev-5th synchronizer assembly
21. Reverse block ring
22. Reverse gear
• Use screw drivers between the reverse gear
and bearing plate to remove the Rev-5th
synchronizer assembly together
with reverse
block ring and gear (Fig. 78-53).
Fig. 78-53
23. Needle bearing
24. Bearing
plate and screw
1'?.3\1 • Use the torx bit wrench to remove the bearing
C::BJ plate screw from the intermediate plate (Fig.
78-54).
Torx bit wrench: J-37225 (T45).
Fig. 78-54
25. Bearing snap ring
26.
Intermediate plate
• Use the snap ring pliers ® to remove the
mainshaft bearing snap ring
CD (Fig. 7B-55).
• Hold the snap ring open with the pliers.
• Push the intermediate plate toward the rear of
the transmission to remove it.
The
b1~aring snap ring will come free.
•

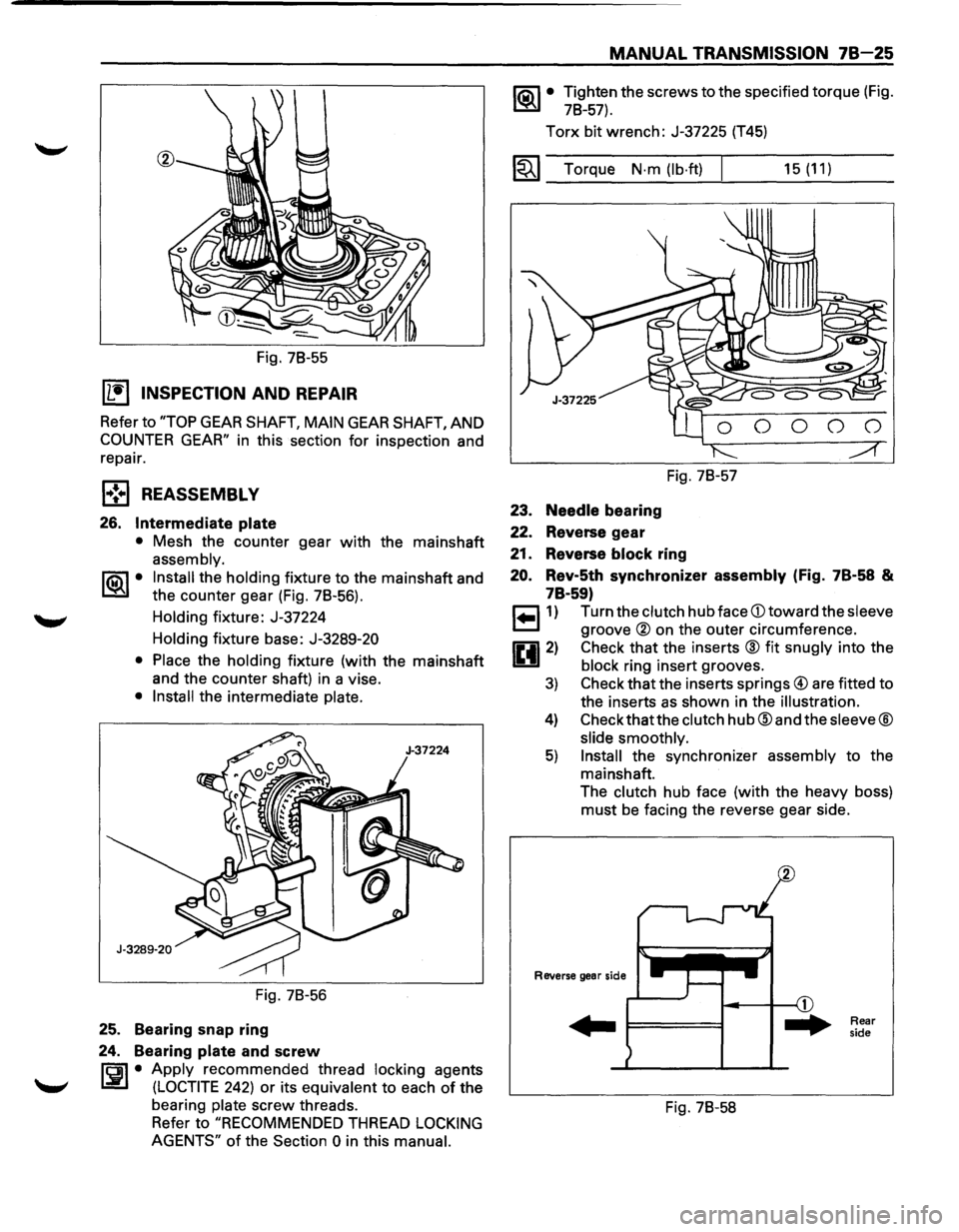

Fig. 78-55
IL•I INSPECTION AND REPAIR

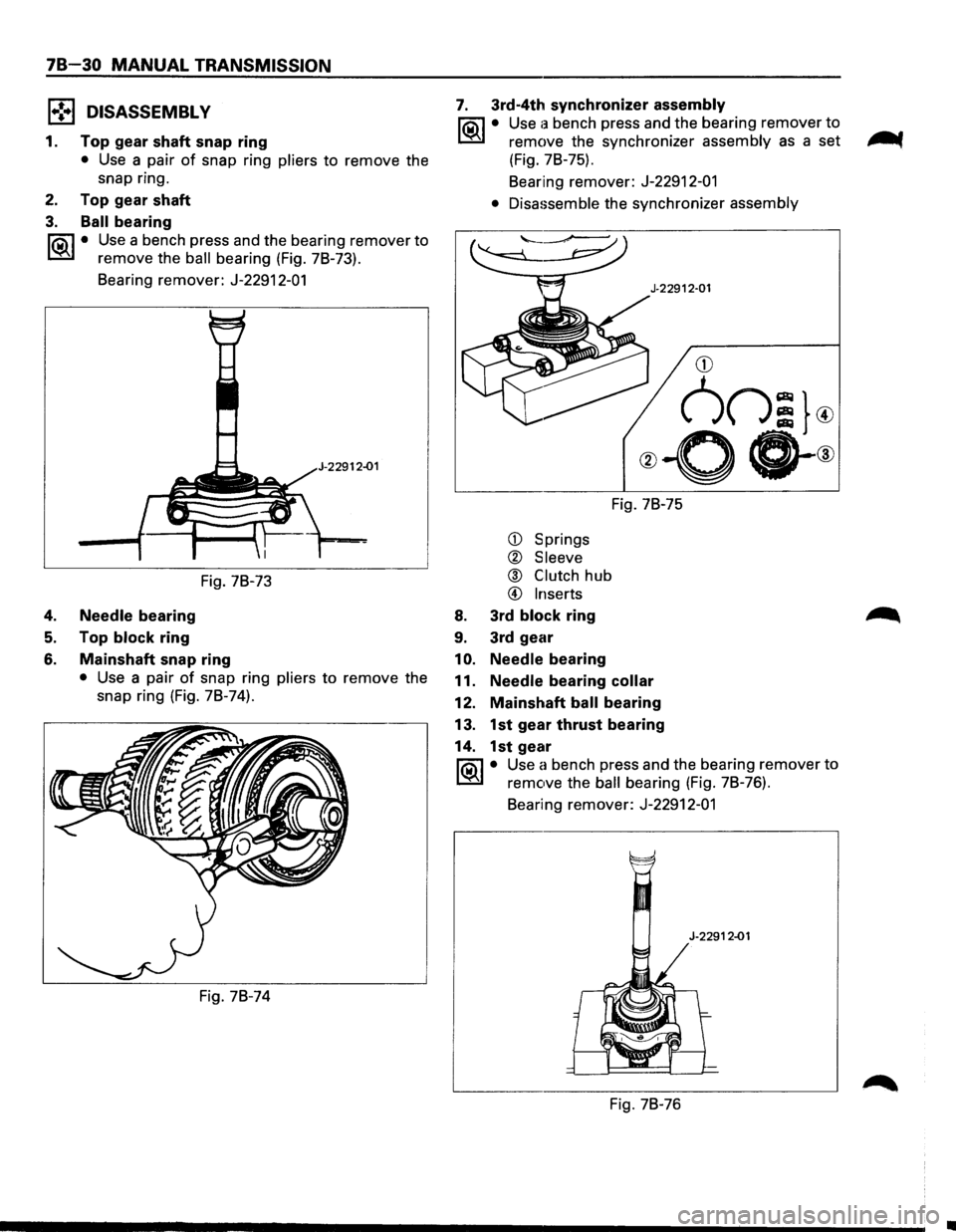

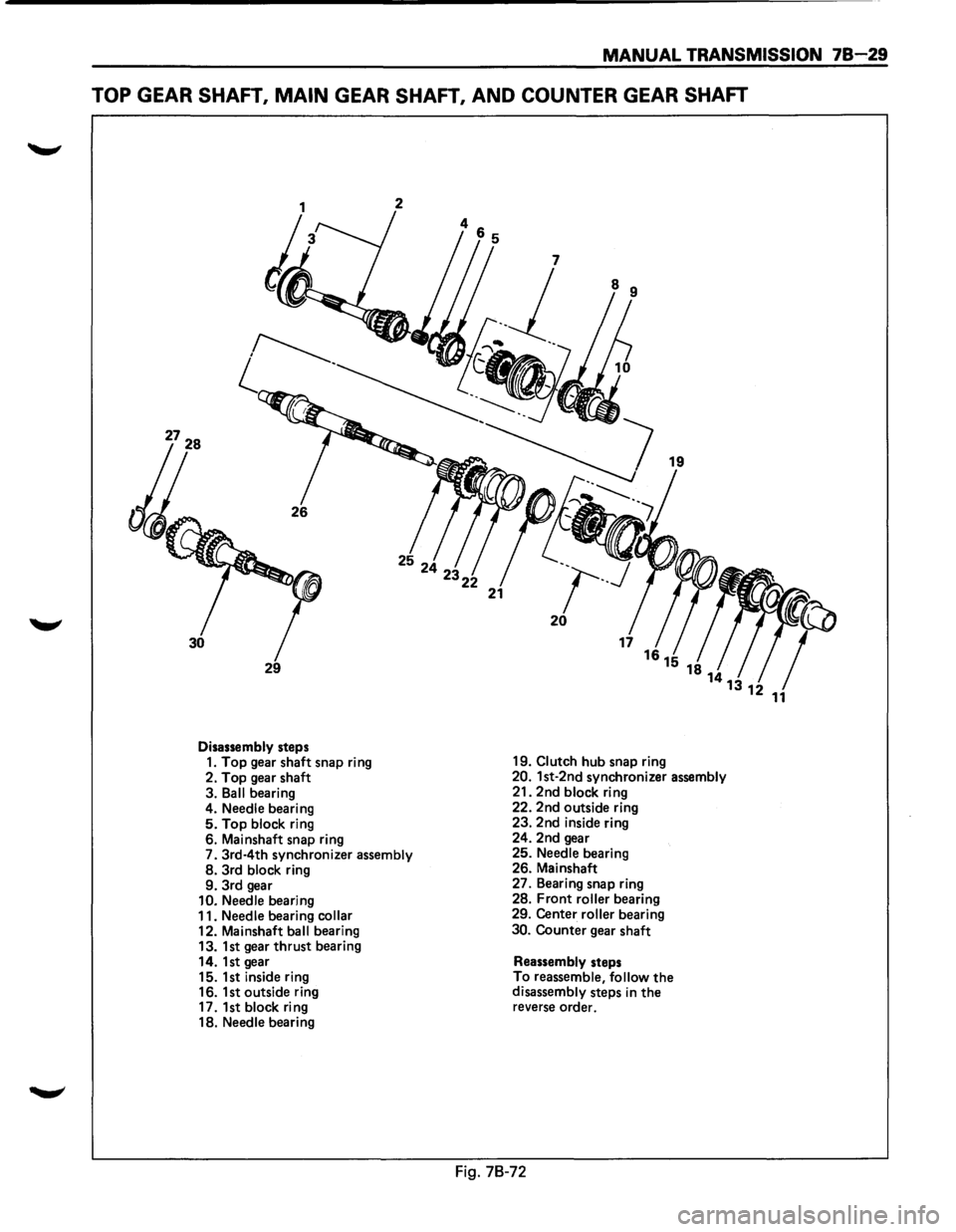

Refer to "TOP GEAR SHAFT, MAIN GEAR SHAFT, AND
COUNTER GEAR" in this section for inspection and
repair.
l•!•l REASSEMBLY
26. Intermediate plate
• Mesh the counter gear with the mainshaft
assembly.
1®.1• Install the holding fixture to the mainshaft and
the counter gear (Fig. 78-56).
Holding fixture: J-37224
Holding fixture base:
J-3289-20
• Place
the holding fixture (with the mainshaft
and the counter shaft) in a vise.
• Install the intermediate plate.
Fig. 78-56
25. Bearing snap ring
24. Bearing
plate and screw
rci1 • Apply recommended thread locking agents
l.:i!.l (LOCTITE 242) or its equivalent to each of the
bearing
plate screw threads.
Refer to
"RECOMMENDED THREAD LOCKING
AGENTS"
of the Section 0 in this manual.
MANUAL TRANSMISSION 78-25
1®.1• Tighten the screws to the specified torque (Fig.
78-57).
Torx bit wrench: J-37225 (T45)
1~1 Torque N·m (lb·ft) I
23. Needle bearing
22. Reverse gear
Fig. 78-57
21. Reverse block ring
15 (11)
20. Rev-5th synchronizer assembly (Fig. 7B·58 &
7B·59)
r=l1) Turn the clutch hub face CD toward the sleeve
~ groove ® on the outer circumference.
0 2) Check that the inserts ® fit snugly into the
1!!.!1 block ring insert grooves.
3) Check that the inserts springs@ are fitted to
the inserts
as shown in the illustration.
4) Check thatthe clutch hub@ and the sleeve®
slide smoothly.
5) Install the synchronizer assembly to the
mainshaft.
The clutch hub face (with the heavy boss)
must be facing the reverse gear side.
Reverse gear side
... F====I
Fig. 78-58
Rear
side

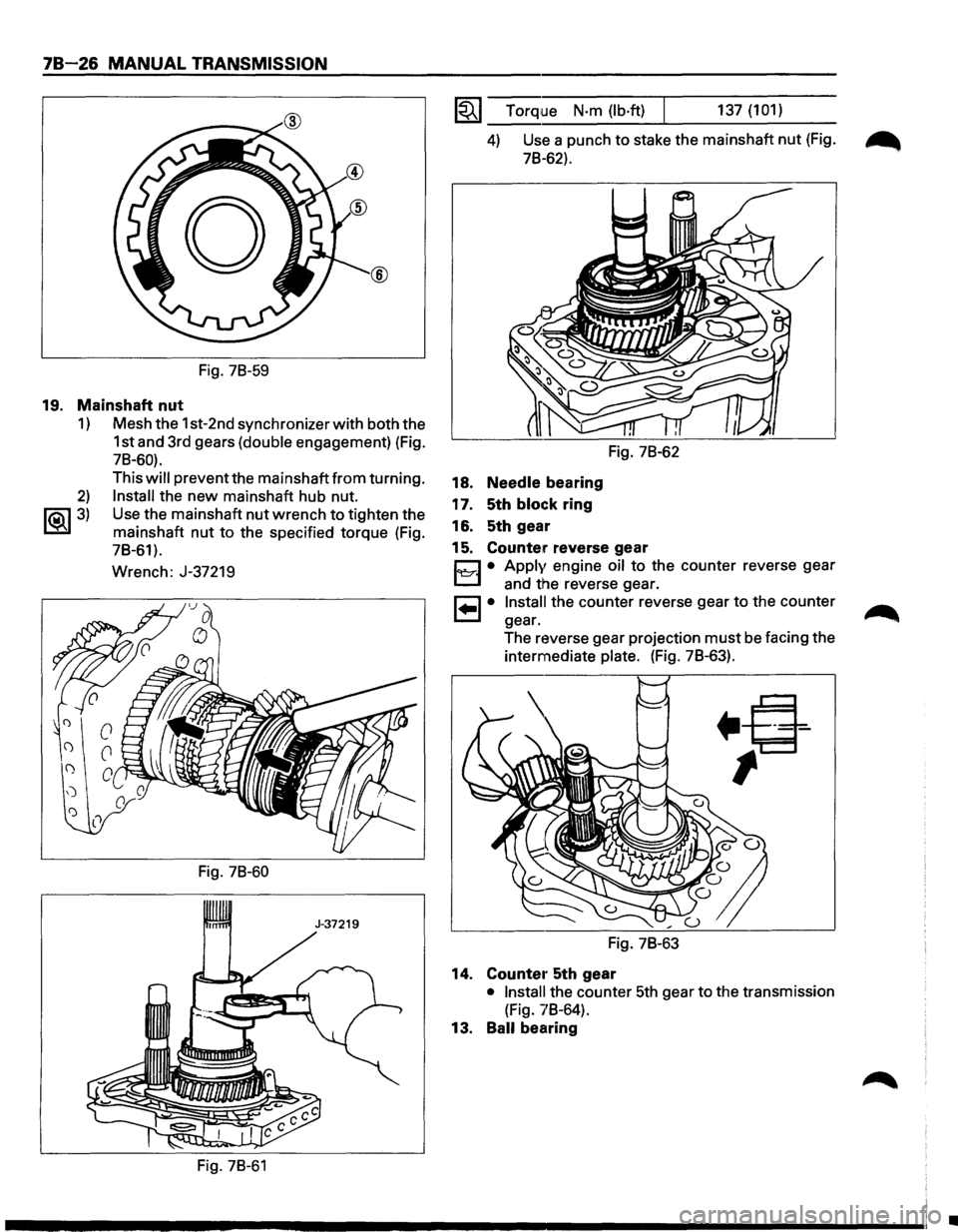

78-26 MANUAL TRANSMISSION
Fig. 78-59
19. Mainshaft nut
1) Mesh the 1st-2nd synchronizer with both the
1st and 3rd gears
(double engagement) (Fig.
78-60).
2)
~3)
This will prevent the mainshaft from turning.
Install the new mainshaft hub nut.
Use the mainshaft
nut wrench to tighten the
mainshaft
nut to the specified torque (Fig.
78-61).
Wrench: J-37219
Fig. 78-60
Fig. 78-61
1~1 Torque N·m (lb·ft) 137 (101)
4) Use a punch to stake the mainshaft nut (Fig. ~
78-62).
18. Needle bearing
17. 5th
block ring
16. 5th gear
Fig. 78-62
15. Counter reverse gear
Cl • Apply engine oil to the counter reverse gear
L.::::::.l and the reverse gear.
8 • Install the counter reverse gear to the counter
gear.
The reverse gear projection
must be facing the
intermediate
plate. (Fig. 78-63).
Fig. 78-63
14. Counte1· 5th gear
• Install the counter 5th gear to the transmission
(Fig. 78-64).
13. Ball bearing
•

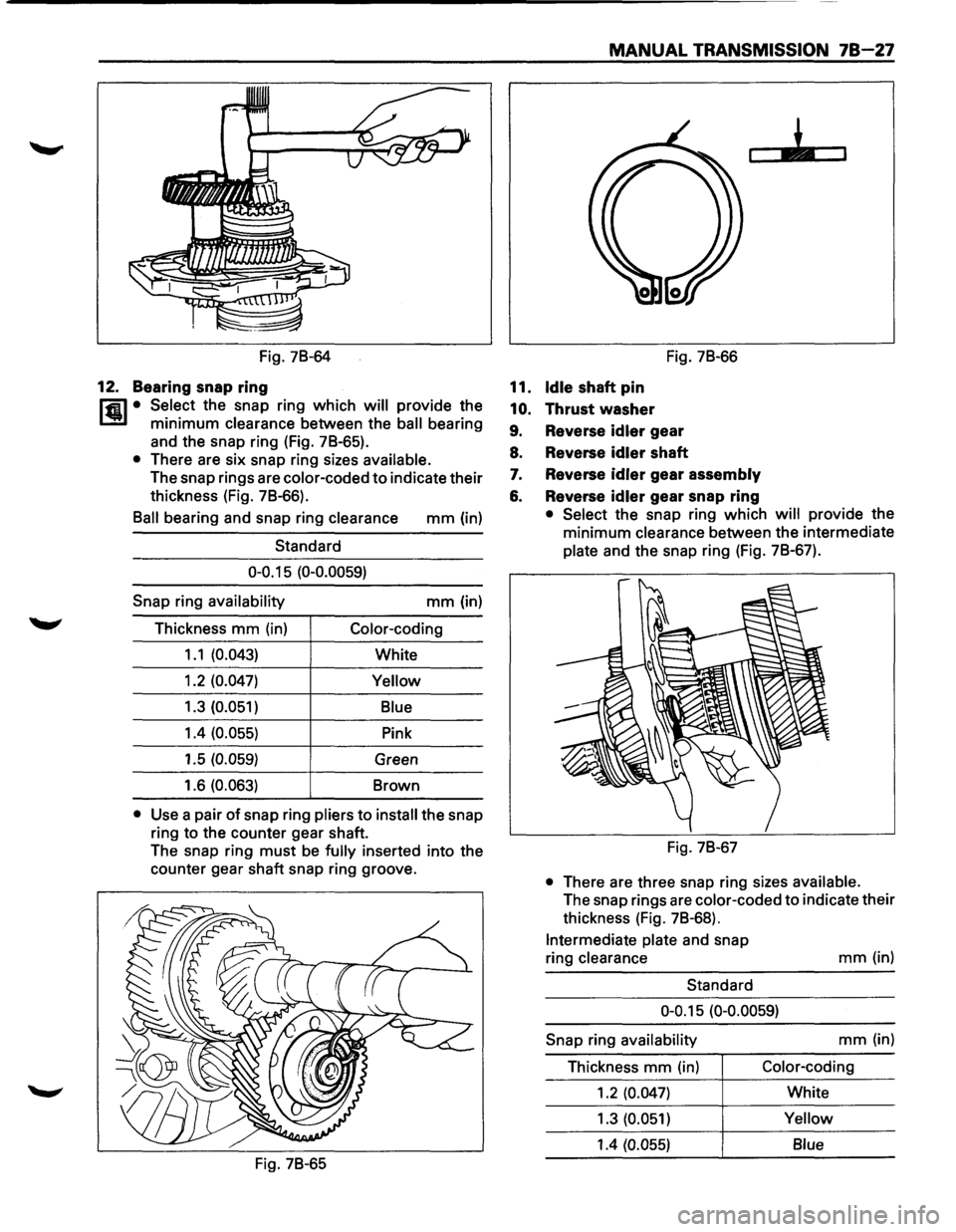

Fig. 7B-64
12. Bearing snap ring
Hi1 • Select the snap ring which will provide the
1..!!1 minimum clearance between the ball bearing
and the snap ring (Fig. 7B-65).
• There are six snap ring sizes available.
The snap rings are color-coded to indicate their
thickness (Fig. 7B-66).
Ball bearing and snap ring clearance mm (in)
Standard
0-0.15 (0-0.0059)
Snap ring availability mm (in)
Thickness
mm (in) Color-coding
1.1 (0.043) White
1.2
(0.047) Yellow
1.3 (0.051)
Blue
1.4 (0.055) Pink
1.5
(0.059) Green
1.6
(0.063) Brown
• Use a pair of snap ring pliers to install the snap
ring to the counter gear shaft.
The snap ring
must be fully inserted into the
counter gear shaft snap ring groove.
Fig. 7B-65
MANUAL TRANSMISSION 78-27
11. Idle shaft pin
10. Thrust washer
Fig. 7B-66
9. Reverse idler gear
8. Reverse
idler shaft
7. Reverse idler gear assembly
6. Reverse idler gear snap ring
• Select the snap ring which will provide the
minimum
clearance between the intermediate
plate and the snap ring (Fig. 7B-67).
Fig. 7B-67
• There are three snap ring sizes available.
The snap rings are color-coded to indicate their

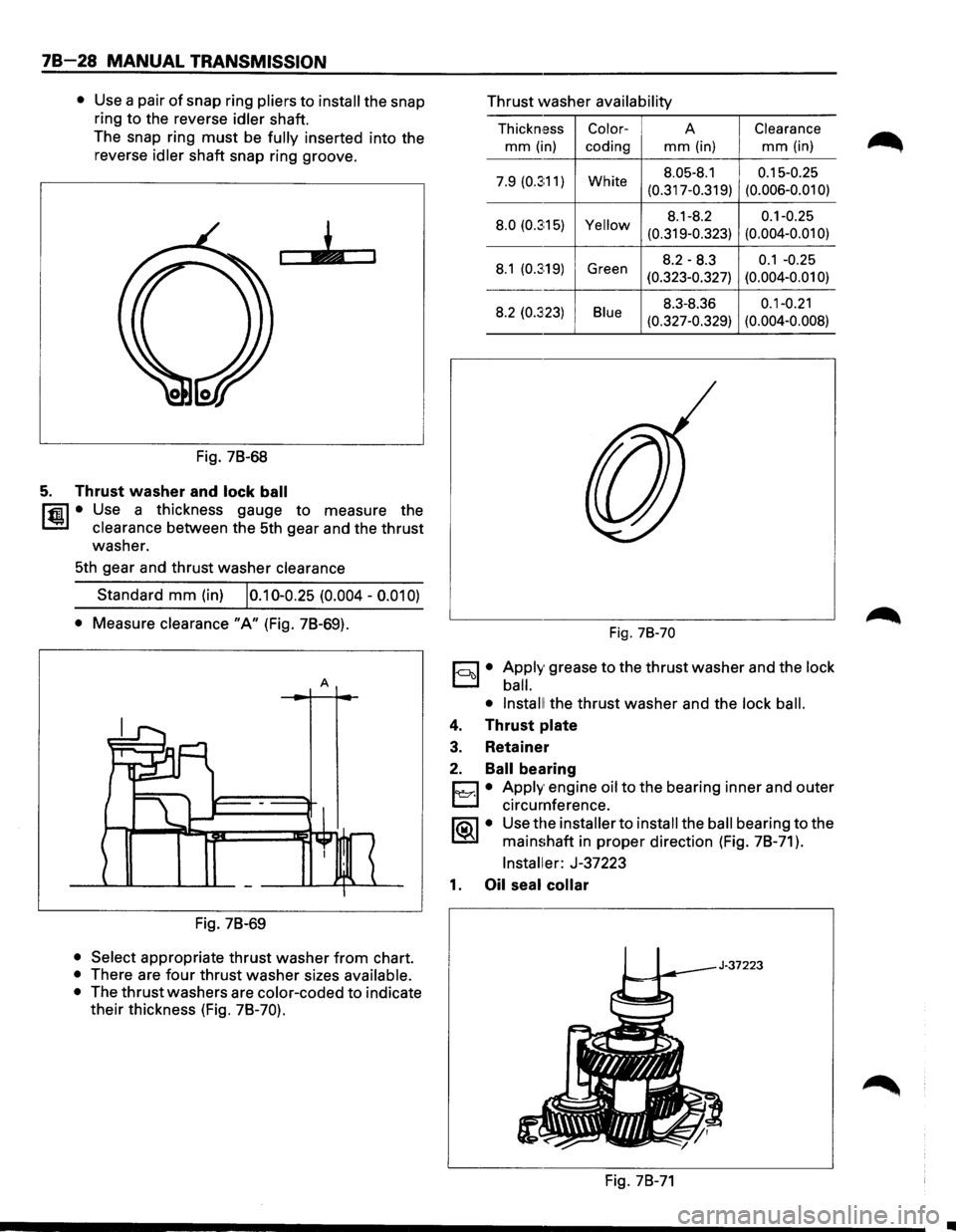

thickness (Fig. 7B-68).
Intermediate plate and snap
ring
clearance
Standard
mm(in)
0-0.15 (0-0.0059)
Snap ring availability mm (in)
Thickness
mm (in) Color-coding
1.2 (0.047) White
1.3
(0.051) Yellow
1.4 (0.055)
Blue
