1995 ISUZU TROOPER Workshop Manual

RADIO 9A-1
ACCESSORIES
Radio .................................................. .
Parts Location ..............................•...........
Circuit Diagram ......•.................................
Antenna ....•......................................•........
Auto Antenna ......................................... .

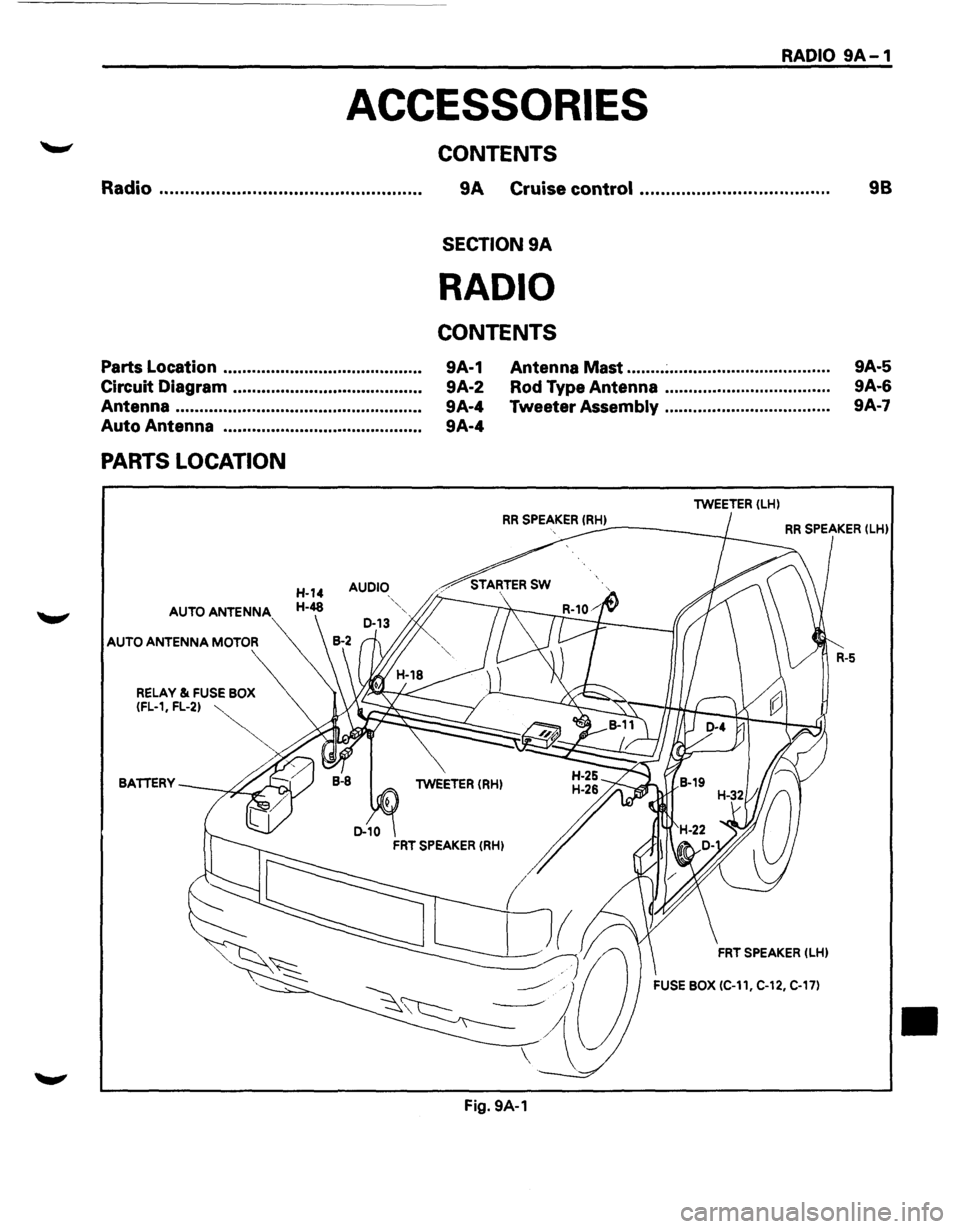

PARTS LOCATION
AUDIO
AUTO ANTENNA
AUTO ANTENNA MOTOR
CONTENTS
9A Cruise control ................................... ..
SECTION 9A
RADIO
CONTENTS
9A-1
9A-2
9A-4
9A-4 Antenna
Mast ........ ~ ................................. .
Rod Type Antenna .................................. .
Tweeter
Assembly .................................. .
lWEETER (LH)
98
9A-5
9A-6
9A·7
RR SPEAKER !RH) ----~ RR SPEAKER (lHl
BATTERY lWEETER (RH)
FRT SPEAKER (LHl
FUSE BOX (C-11, C-12, C-17)
Fig. 9A-1
•

9A-2 RADIO

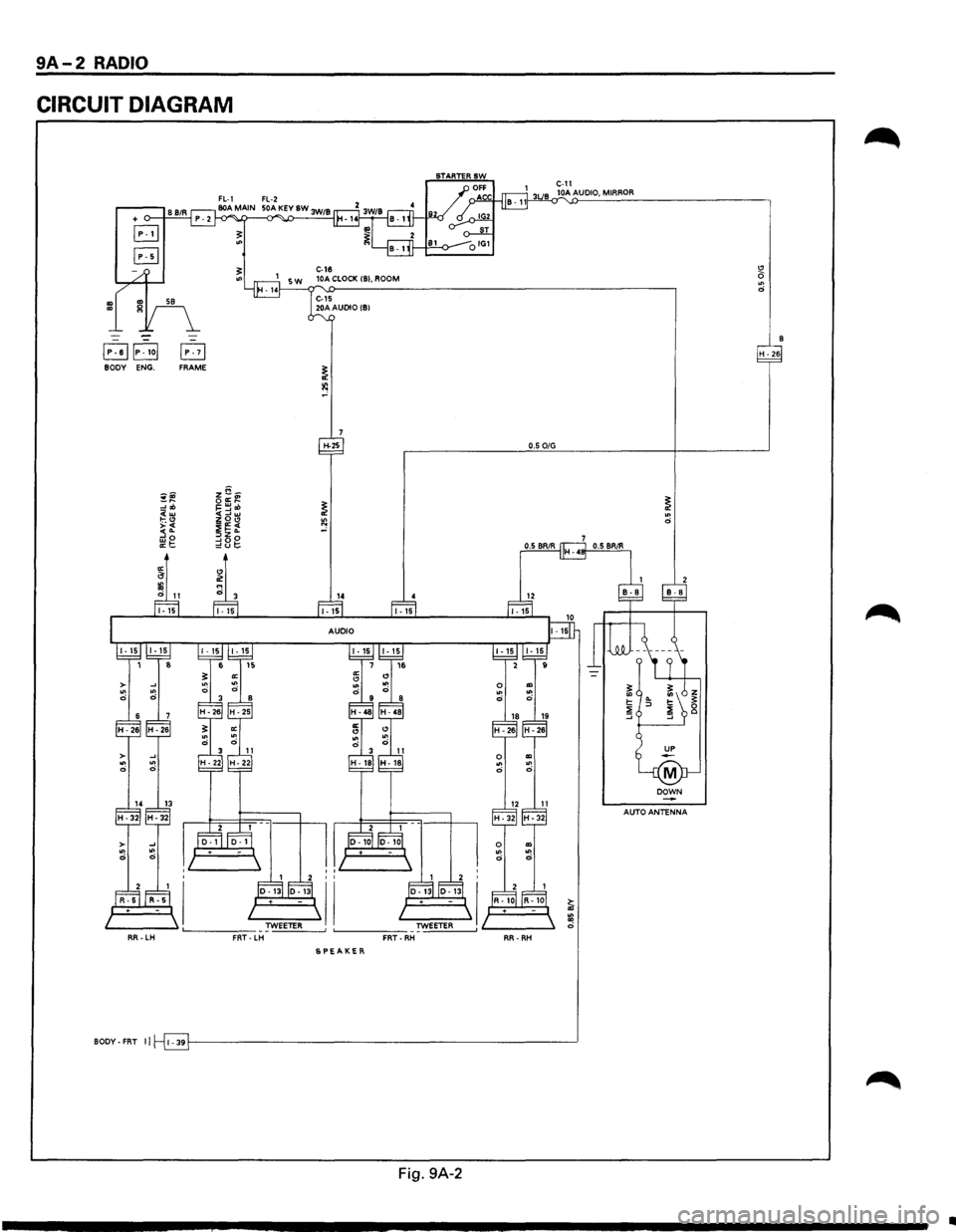

CIRCUIT DIAGRAM
~~P~1o[ B H · 26 BODY ENG. FRAME
H-25 0.5 0/G
~~ ~~~ ~ ~ :!ob ~==~«> <(w C> ~
SPEAKER
BODY-FAT II l-39r------------------------------------------------------------"
Fig. 9A-2
..

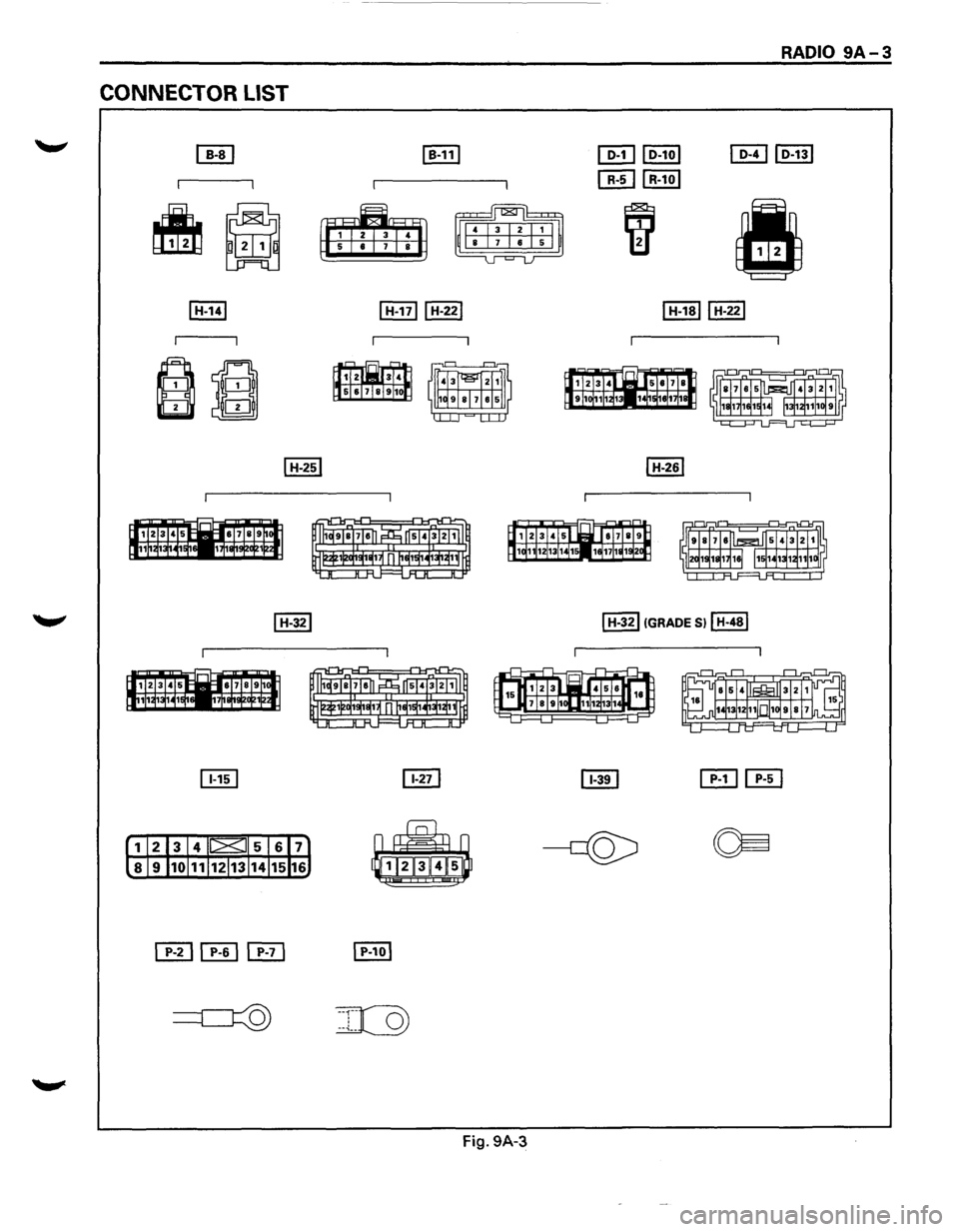

CONNECTOR LIST
~
~
~ ~
Fig. 9A-3
1]1] lo-1ol
[E] IR-101
IH-32IIGRADESIIH-48I
RADIO 9A-3

9A-4 RADIO

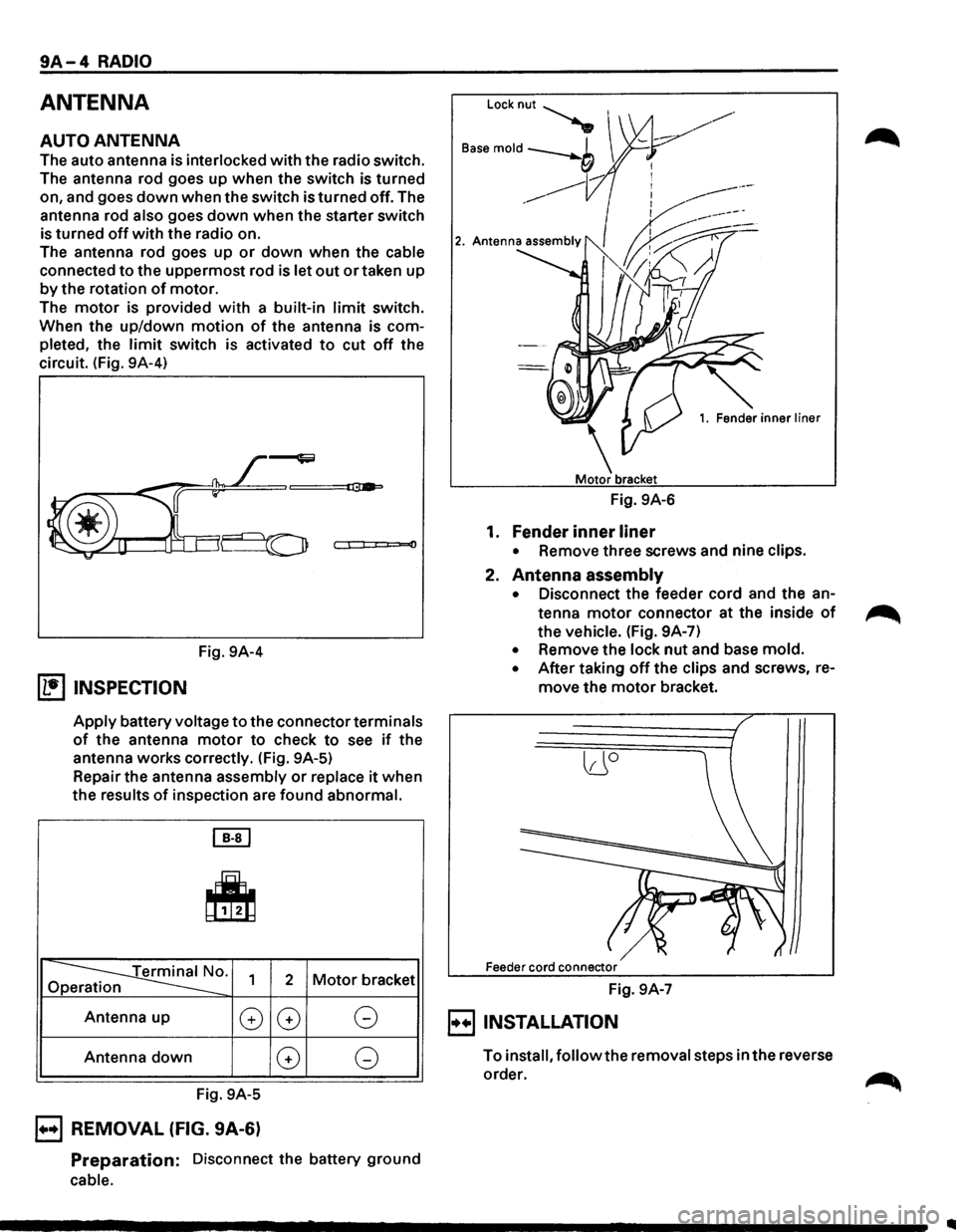

ANTENNA
AUTO ANTENNA
The auto antenna is interlocked with the radio switch.
The antenna rod goes up when the switch is turned
on, and goes
down when the switch is turned off. The
antenna rod
also goes down when the starter switch
is turned
off with the radio on.
The antenna rod goes up
or down when the cable
connected to the uppermost rod is let out or taken up
by the rotation of motor.
The
motor is provided with a built-in limit switch.
When the up/down
motion of the antenna is com­
pleted, the
limit switch is activated to cut off the
circuit. (Fig. 9A-4)
0
Fig. 9A-4
(1!] INSPECTION
Apply battery voltage to the connector terminals
of the antenna motor to check to see if the
antenna works correctly. (Fig. 9A-5)
Repair the antenna assembly
or replace it when
the results
of inspection are found abnormal.
[EJ
~
~0. Op 1 2 Motor bracket
Antenna up
G
Antenna down
Fig. 9A-5
B REMOVAL (FIG. 9A-6)
G G
G G
Preparation: Disconnect the battery ground
cable.
Locknut~
B"e mold --b I
___,
------------
1. Fender inner liner
Fig. 9A-6
1. Fender inner liner
• Remove three screws and nine clips.
2. Antenna assembly
• Disconnect the feeder cord and the an­
tenna
motor connector at the inside of
the vehicle. (Fig. 9A-7)
• Remove the lock nut and base mold.
• After taking off the clips and screws, re­
move the motor bracket.
lJO
Feeder cord connector
Fig. 9A-7
E) INSTALLATION
To install, follow the removal steps in the reverse
order.

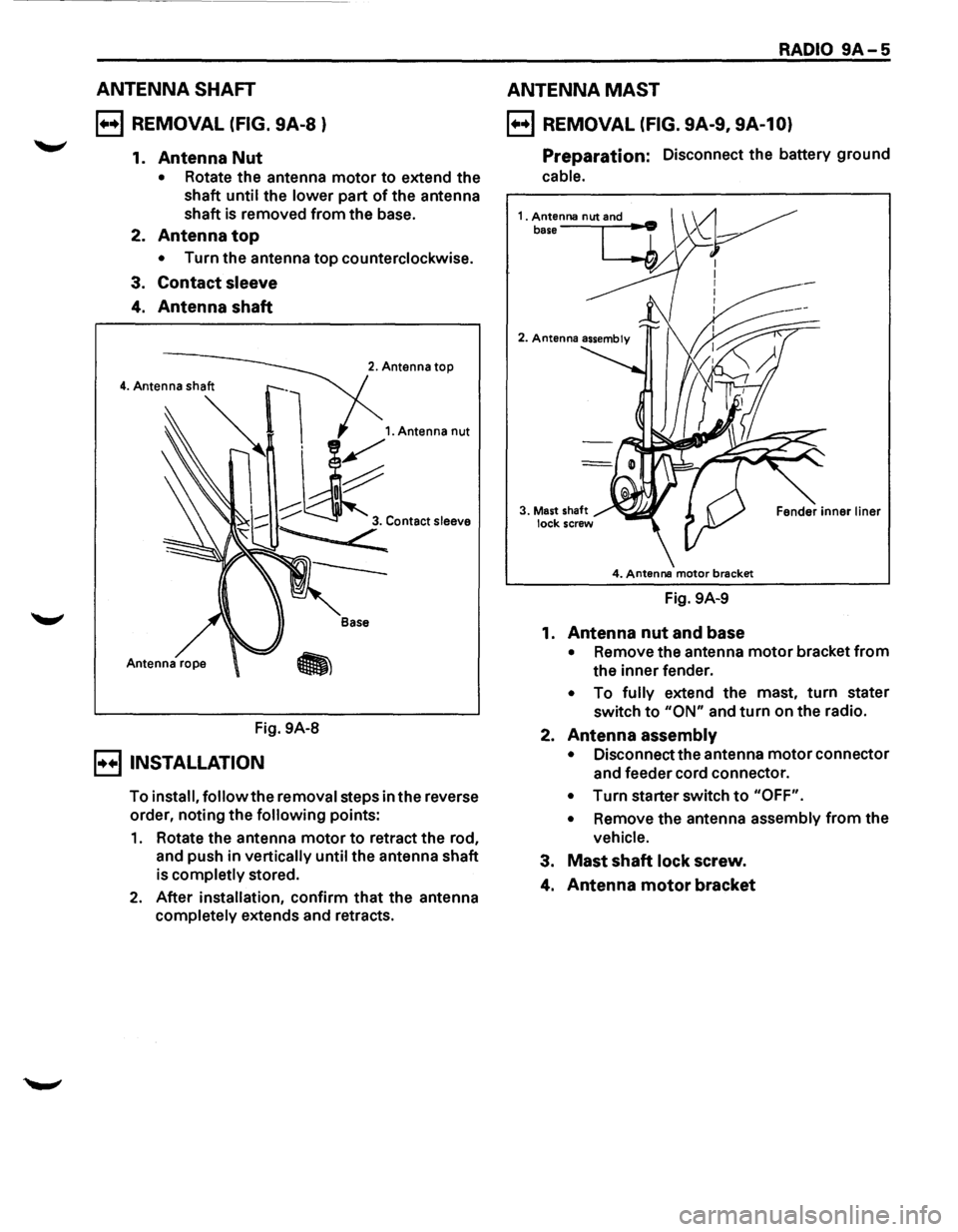

ANTENNA SHAFT
B REMOVAL (FIG. 9A-8 )
1. Antenna Nut
• Rotate the antenna motor to extend the
shaft
until the lower part of the antenna
shaft is removed from the base.
2.
Antenna top
• Turn the antenna top counterclockwise.
3.
Contact sleeve
4. Antenna shaft
Fig. 9A-8
B INSTALLATION
2. Antenna top
Base
To install, follow the removal steps in the reverse
order, noting the
following points:
1. Rotate the antenna motor to retract the rod,
and push in
vertically until the antenna shaft
is
completly stored.
2. After installation, confirm that the antenna
completely extends and retracts.
RADIO 9A-5
ANTENNA MAST
B REMOVAL (FIG. 9A-9, 9A-10)
Preparation: Disconnect the battery ground
cable.
4. Antenna motor brecket
Fig. 9A-9
1.
Antenna nut and base
• Remove the antenna motor bracket from
the inner fender.
• To fully extend the mast, turn stater
switch
to "ON" and turn on the radio.
2.
Antenna assembly
• Disconnect the antenna motor connector
and feeder cord connector.
• Turn starter switch to "OFF".
•
Remove the antenna assembly from the
vehicle.
3. Mast shaft lock screw.
4. Antenna motor bracket

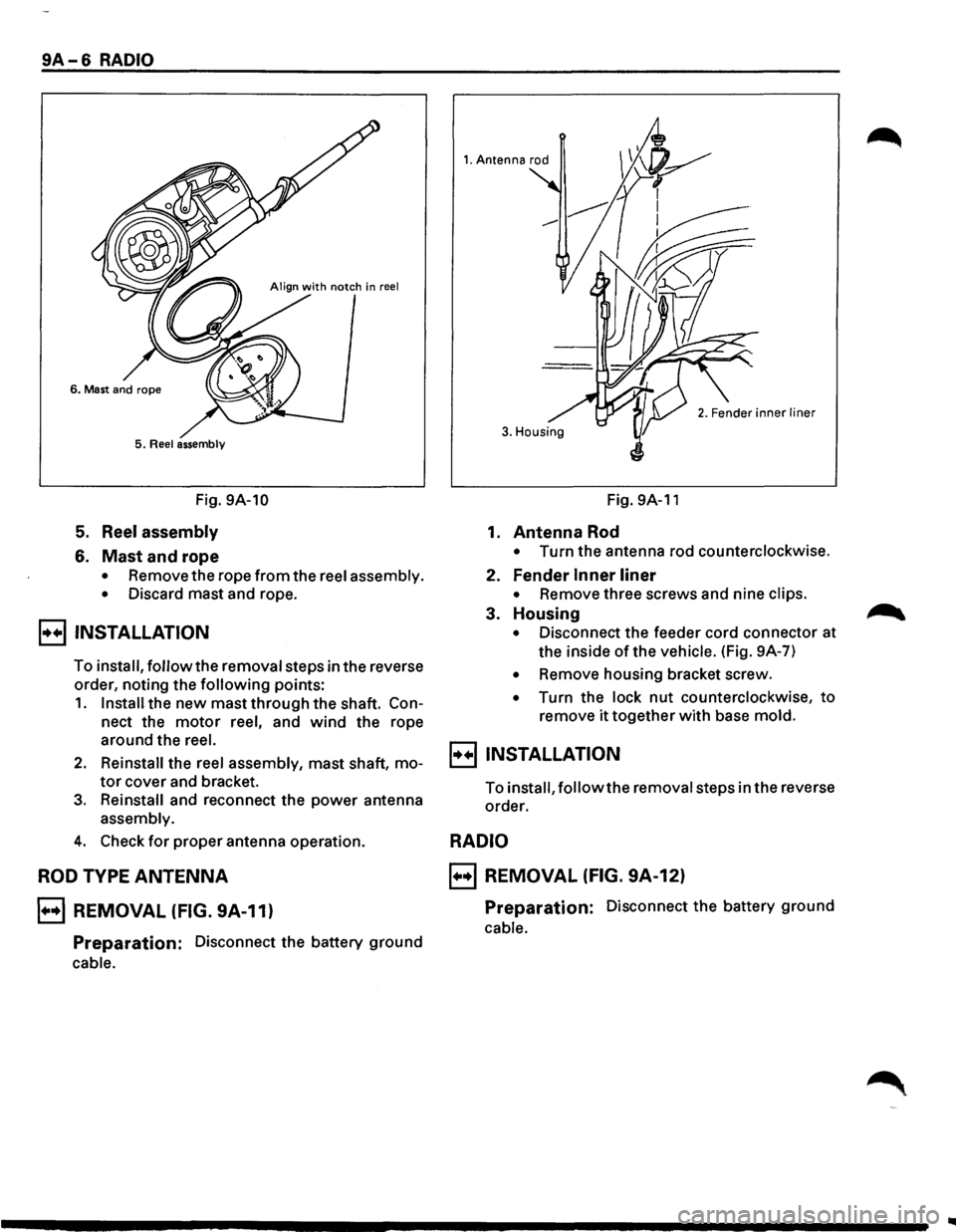

9A-6 RADIO
5. Reel assembly
Fig. 9A-10
5. Reel assembly
6. Mast and rope
• Remove the rope from the reel assembly.
•
Discard mast and rope.
B INSTALLATION
To install, follow the removal steps in the reverse
order, noting the
following points:
1. Install the new mast through the shaft. Con­
nect the motor reel, and wind the rope
around the
reel.
2. Reinstall the reel assembly, mast shaft, mo­
tor cover and bracket.
3. Reinstall and reconnect the power antenna
assembly.
4. Check for proper antenna operation.
ROD TYPE ANTENNA
B REMOVAL (FIG. 9A-11)
Preparation: Disconnect the battery ground
cable.
1. Antenna rod
3. Housing
Fig. 9A-11
1. Antenna Rod
• Turn the antenna rod counterclockwise.
2. Fender Inner liner
• Remove three screws and nine clips.
3. Housing
• Disconnect the feeder cord connector at
the inside
of the vehicle. (Fig. 9A-7)
• Remove housing bracket screw.
• Turn the lock nut counterclockwise, to
remove it together with base mold.
B INSTALLATION
To install, follow the removal steps in the reverse
order.

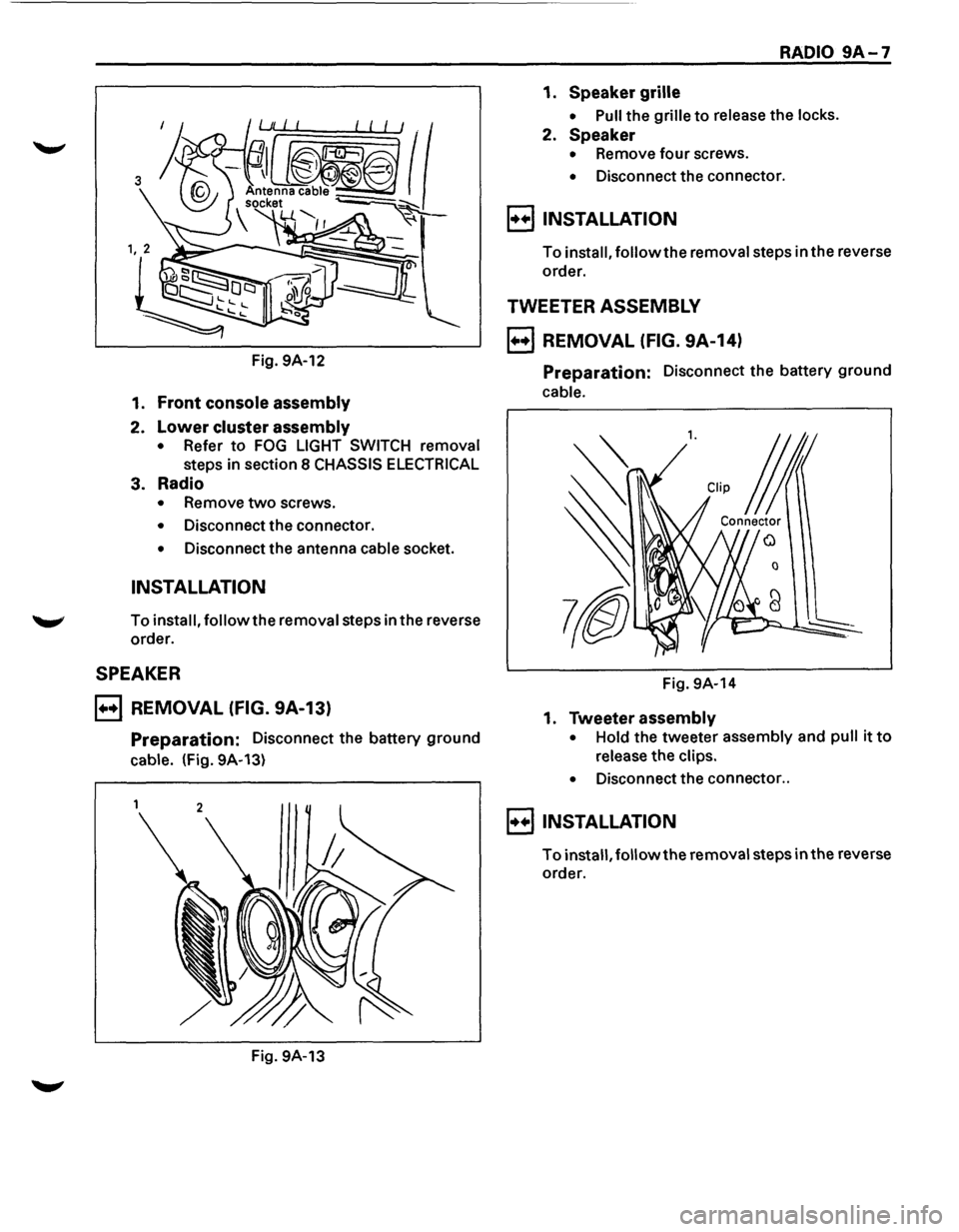

RADIO
B REMOVAL (FIG. 9A-12)
Preparation: Disconnect the battery ground
cable.
