1995 ISUZU TROOPER Workshop Manual

1+•1 REMOVAL
Preparation: Disconnect the battery ground cable
1. Rear end floor trim cover
2. Luggage side cap
3. Luggage side lower cover
• Remove rear side fixing screws and pry trim
cover retainers free from the body panel and
upper trim cover. (Fig. 10-107)
I
w\\1
Fig. 10-107
4. Luggage room light
• Remove luggage room light lens and fixing
~ screws.
Disconnect
luggage room light connector.
5. Rear roof trim cover (Fig. 10-108)
•
Pry trim cover retainers free from the body
panel.
Fig. 10-108
6. Speaker grille (Fig. 10-109)
Fig. 10-109
7. Rear speaker
BODY 10-59
I
I I
~
• Remove the rear speaker fixing screws and
disconnect
the connector.
8. Rear assist grip
• Open the both side covers of the assist grip
and fixing screws. (Fig. 10-110)
Assist grip
Cover
Fig. 10-110
9. Rear seat belt anchor bolt cover and anchor
bolt (Fig. 10-110)

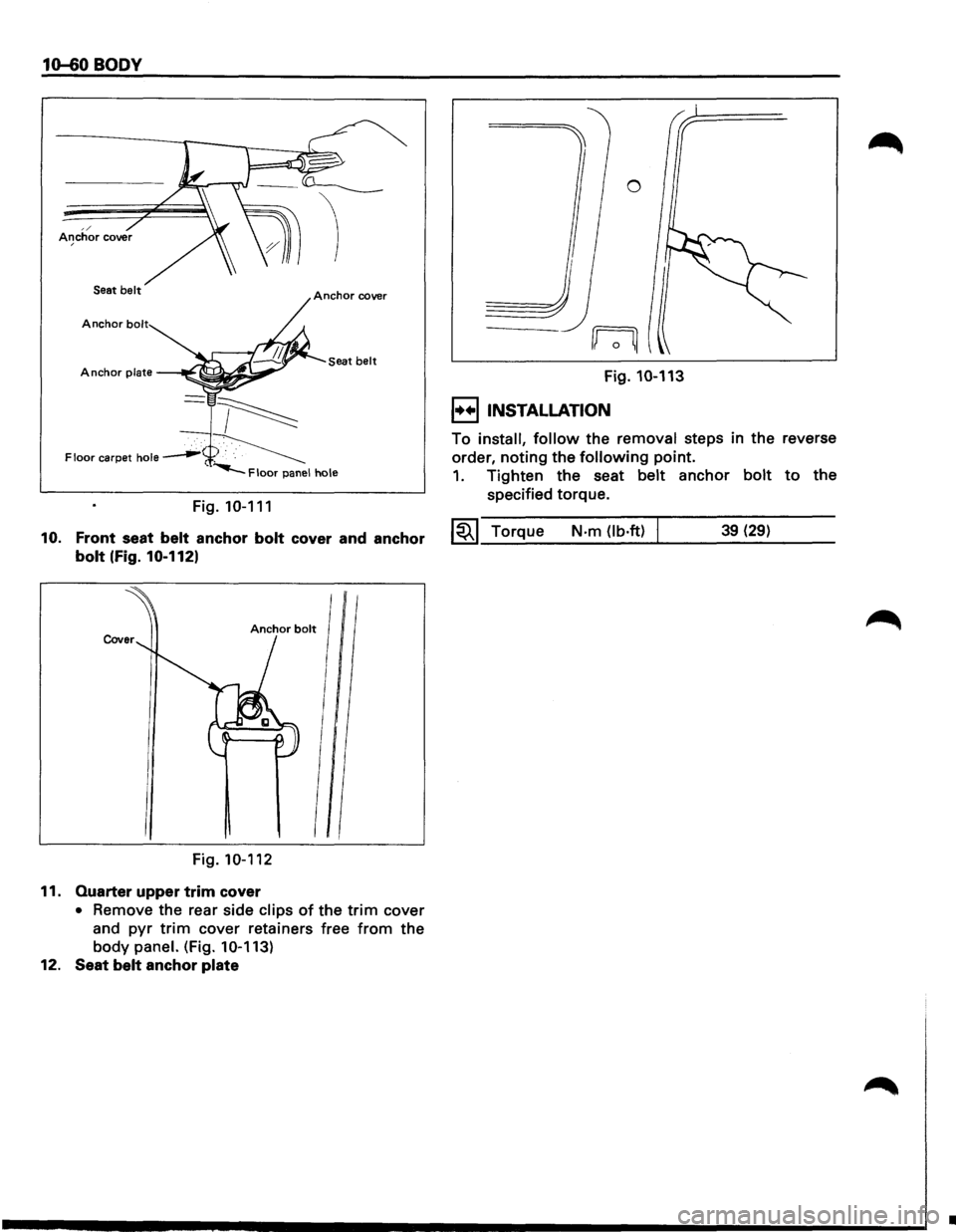

10-60 BODY
Seat belt
Anchor bolt
Seat belt Anchor plate
Fig. 10-111
10. Front seat belt anchor bolt cover and anchor
bolt (Fig. 10-1121
Fig. 10-112
11. Quarter upper trim cover
• Remove the rear side clips of the trim cover
and
pyr trim cover retainers free from the
body panel. (Fig. 10-113)
12. Seat belt anchor plate
Fig. 10-113
I••! INSTALLATION
To install, follow the removal steps in the reverse
order,
noting the following point.
1. Tighten the seat belt anchor bolt to the
specified torque.
~~~ Torque N·m (lb·ftl 39 (29)
•

BODY 10-61

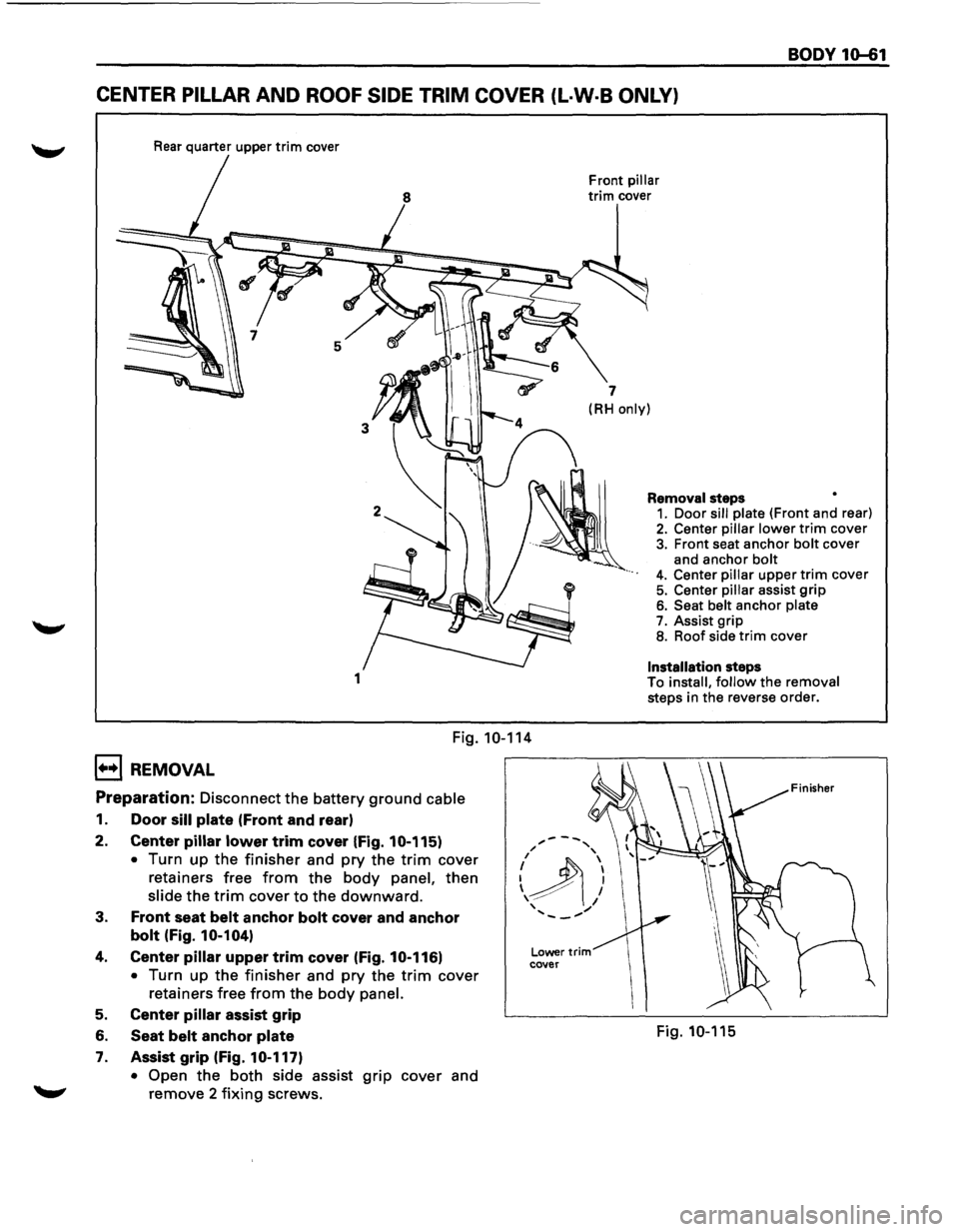

CENTER PILLAR AND ROOF SIDE TRIM COVER (L·W·B ONLY)
Rear quarter upper trim cover
5
1
Fig. 10-114
1+•1 REMOVAL
Preparation: Disconnect the battery ground cable
1. Door sill plate (Front and rear)
2. Center
pillar lower trim cover (Fig. 10-115)
•
Turn up the finisher and pry the trim cover
retainers free
from the body panel, then
slide the trim cover to the downward.
3. Front seat belt anchor bolt cover and anchor
bolt (Fig. 10-104)
4. Center pillar upper trim cover (Fig. 10-116)
•
Turn up the finisher and pry the trim cover
retainers free
from the body panel.
5. Center pillar assist grip
6. Seat belt anchor plate
7. Assist grip (Fig. 10-117)
• Open
the both side assist grip cover and
remove 2
fixing screws.
Front pillar
trim cover
7
(RH only)
Removal steps 1. Door sill plate (Front and rear) 2. Center pillar lower trim cover
3. Front seat anchor bolt cover
and anchor bolt 4. Center pillar upper trim cover 5. Center pillar assist grip
6. Seat belt anchor plate 7. Assist grip 8. Roof side trim cover
Installation steps To install, follow the removal
steps in the reverse order.
Fig. 10-115

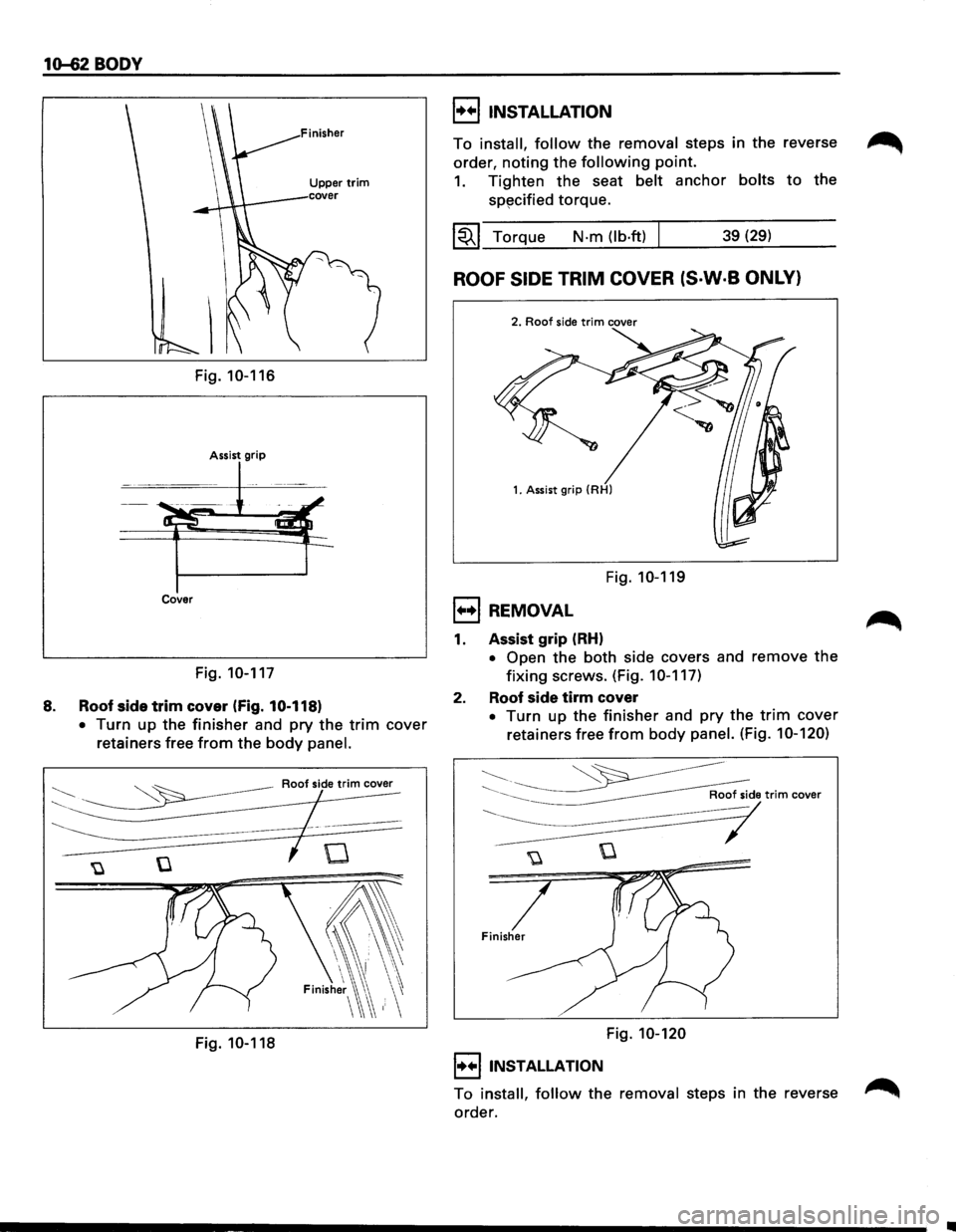

1~2BODY
Fig. 10-116
Assist grip
Cover
Fig. 10-117
8. Roof side trim cover (Fig. 10-118)
•
Turn up the finisher and pry the trim cover
retainers free
from the body panel.
~ -~ Roofsidetrim cover
~=1TF "U G 0
Fig. 10-118
l++liNSTALLATION
To install, follow the removal steps in the reverse ~
order, noting the following point.
1. Tighten the seat belt anchor bolts to the
sp~cified torque.
~~~ Torque N·m (lb·ft) I 39 (29)
ROOF SIDE TRIM COVER (S·W·B ONLY)
2. Roof side trim cover
Fig. 10-119
B REMOVAL
1. Assist grip (RH)
• Open the both side covers and remove the
fixing screws. (Fig. 10-117)
2. Roof side tirm cover
• Turn up the finisher and pry the trim cover
retainers free
from body panel. (Fig. 10-120)
Fig. 10-120
l++liNSTALLATION
To install, follow the removal steps in the reverse ~
order.

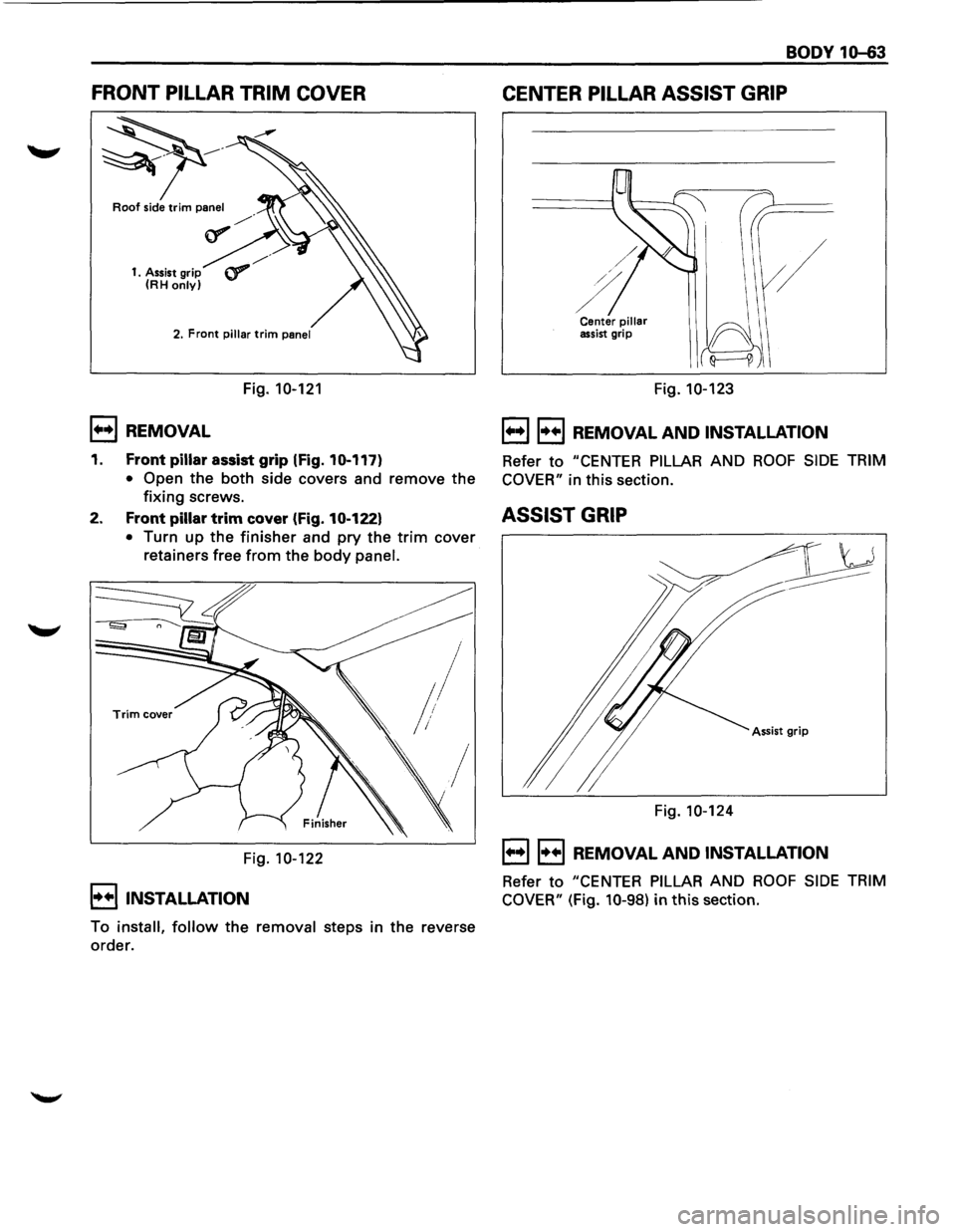

FRONT PILLAR TRIM COVER
~·
Roof side trim panel
1. Assist grip
(RH only)
1+•1 REMOVAL
Fig. 10-121
BODY 10-63
CENTER PILLAR ASSIST GRIP
Center pillar assist grip
Fig. 10-123
1+•11••1 REMOVAL AND INSTALLATION
1. Front pillar assist grip (fig. 10-117) Refer to "CENTER PILLAR AND ROOF SIDE TRIM
• Open
the both side covers and remove the COVER" in this section.
fixing screws.
2.
Front pillar trim cover (fig. 10-122) ASSIST GRIP
• Turn up the finisher and pry the trim cover .--------------------------,
retainers free from the body panel.
Fig. 10-122
I++IINSTALLATION
To install, follow the removal steps in the reverse
order. Fig.
10-124
l••ll••l REMOVAL AND INSTALLATION
Refer to "CENTER PILLAR AND ROOF SIDE TRIM
COVER"
(Fig. 10-98) in this section.

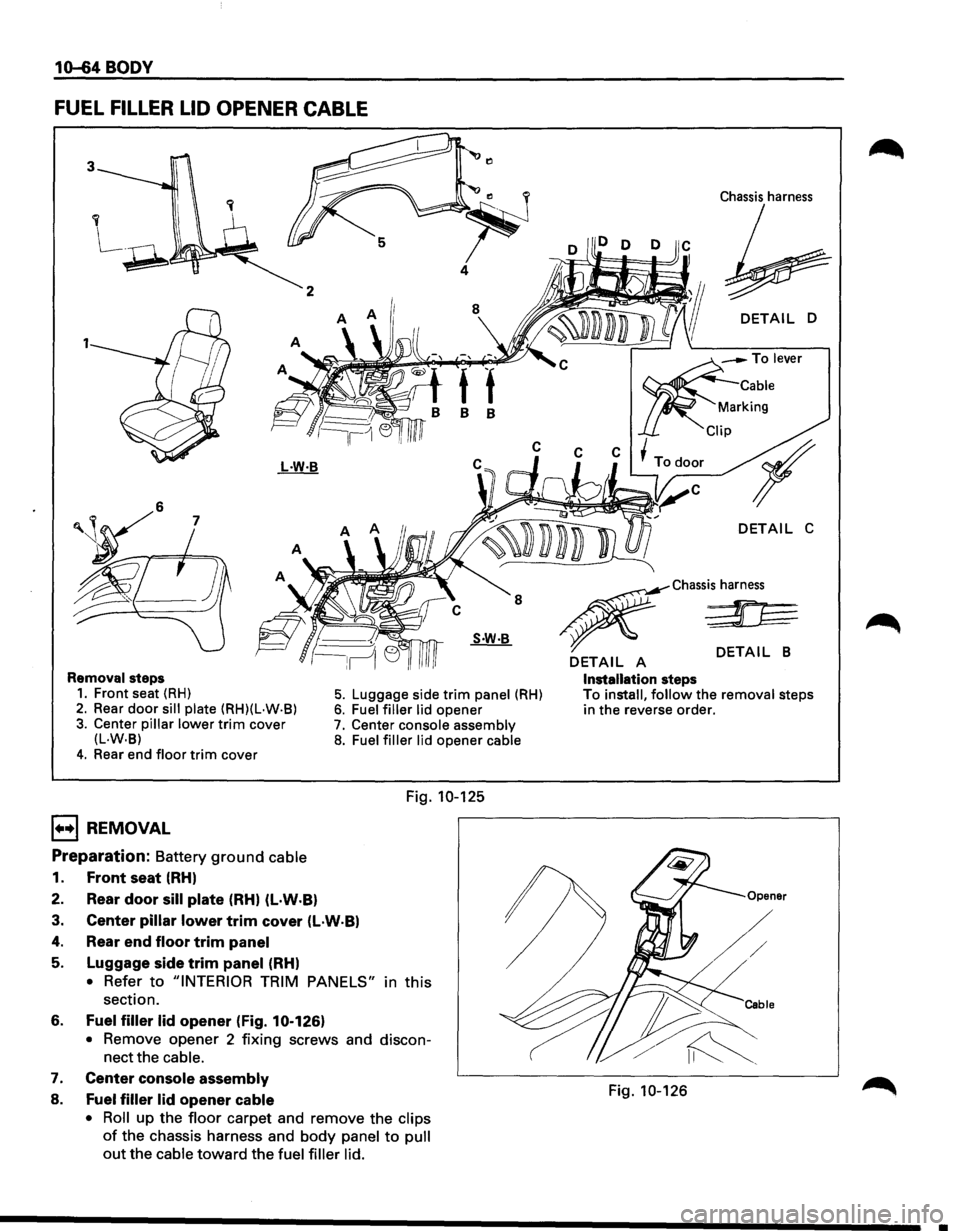

1(H;4 BODY
FUEL FILLER LID OPENER CABLE
2
1
8 8
Chassis harness
DETAIL D
-To lever
Cable
rking
p
~C~~C~~C~~Todooc r
Removal steps 1. Front seat (RH)
2. Rear door sill plate (RH)(L·W·B)
3. Center pillar lower trim cover (L·W.B)
4. Rear end floor trim cover
1••1 REMOVAL
Preparation: Battery ground cable
1. Front seat (RHl
2. Rear door sill plate (RH) (l·W·Bl
5. Luggage side trim panel (RH) 6. Fuel filler lid opener
7. Center console assembly 8. Fuel filler lid opener cable
Fig. 10-125
3. Center pillar lower trim cover (l·W·Bl
4. Rear end floor trim panel
5. Luggage side trim panel (RHl
• Refer to "INTERIOR TRIM PANELS" in this
section.
6.
Fuel filler lid opener (Fig. 10-126)
•
Remove opener 2 fixing screws and discon­
nect the
cable.
7. Center console assembly
8. Fuel filler lid opener cable
• Roll
up the floor carpet and remove the clips
of the chassis harness and body panel to pull
out the cable toward the fuel filler lid.
DETAIL C
~Chassis harness
/~ ~
DETAIL A DETAIL B
Installation steps To install, follow the removal steps in the reverse order.
Fig. 10-126
