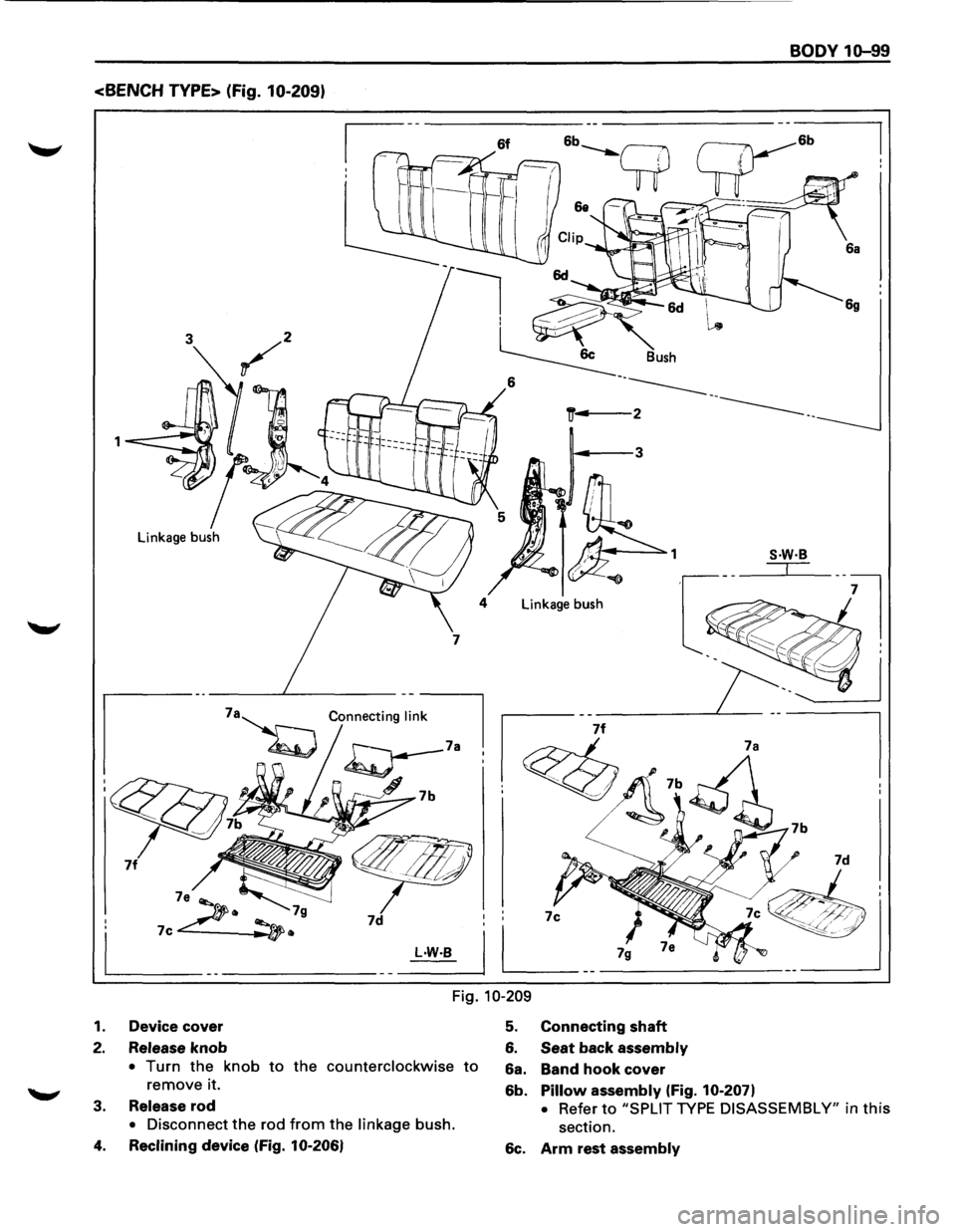

1995 ISUZU TROOPER Workshop Manual

,__,.
(Fig. 10-209)
3
1
Linkage bush
7d
--L·W·B I
Linkage bush
7c
BODY 1D-99
S·W·B
==c=
6g
L ___ _
Fig. 10-209
1. Device cover 5. Connecting shaft
2. Release knob 6. Seat back assembly
• Turn the knob to the counterclockwise to 6a. Band hook cover remove it.
6b. Pillow assembly (Fig. 10-207)
3. Release rod • Refer to "SPLIT TYPE DISASSEMBLY" in this
• Disconnect the rod from the linkage bush. section .
4. Reclining device (Fig. 10-2061 6c. Arm rest assembly

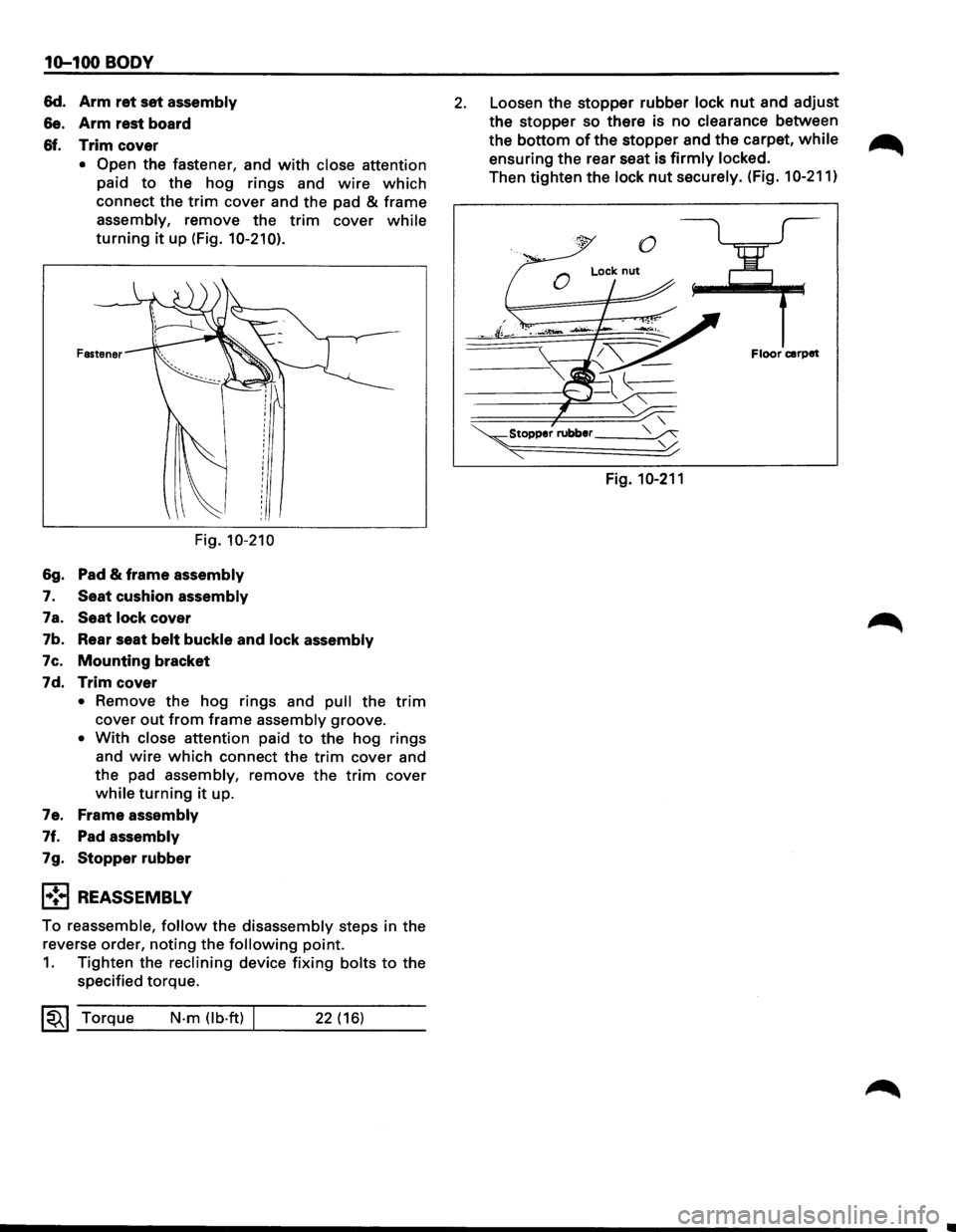

1Q-100 BODY
&d. Arm ret set assembly
&e. Arm rest board
&f. Trim cover
• Open the fastener, and with close attention
paid
to the hog rings and wire which
connect the trim cover and the pad & frame
assembly, remove the trim cover while
turning it up (Fig. 10-210).
Fastener
Fig. 10-210
&g. Pad & frame assembly
7. Seat cushion assembly
7a. Seat lock cover
7b. Rear seat
belt buckle and lock assembly
7c.
Mounting bracket
7d.
Trim cover
• Remove the hog rings and pull the trim
cover out from frame assembly groove.
• With close attention paid to the hog rings
and
wire which connect the trim cover and
the pad
assembly, remove the trim cover
while turning it up.
7e. Frame
assembly
7f. Pad assembly
7g. Stopperrubber
l•!•l REASSEMBLY
To reassemble, follow the disassembly steps in the
reverse order,
noting the following point.
1. Tighten the reclining device fixing bolts to the
specified torque.
~~~ Torque N-m (lb-ft) 22 (16)
2. Loosen the stopper rubber lock nut and adjust
the
stopper so there is no clearance between
the
bottom of the stopper and the carpet, while
ensuring the rear seat is firmly locked.
Then tighten the lock nut securely. (Fig. 10-211)
Floor carpet
~Stopper rubber __ _
"""' Fig. 10-211

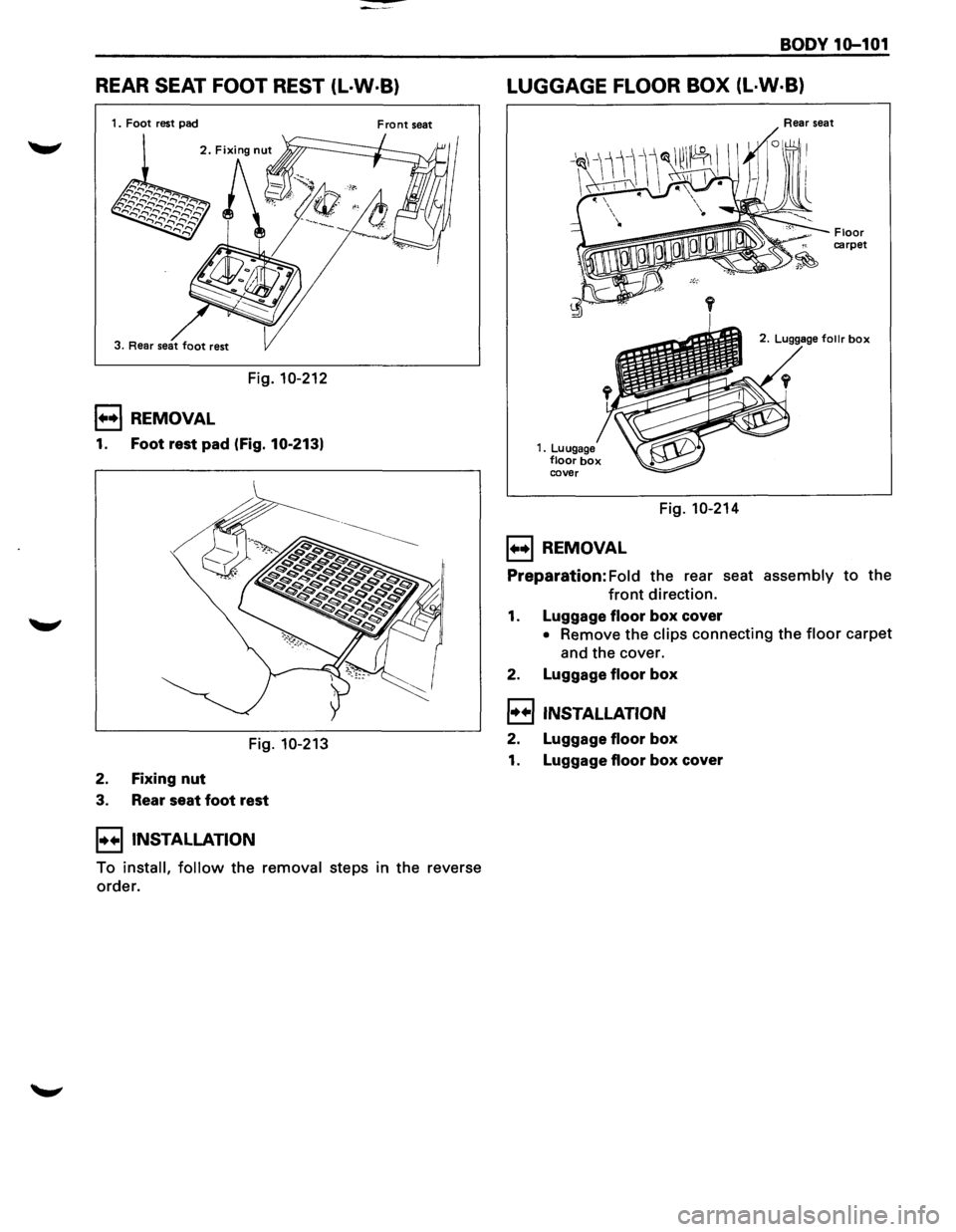

REAR SEAT FOOT REST (L·W·B)
1. Foot rest pad Front seat
Fig. 10-212
1+•1 REMOVAL
1. Foot rest pad (Fig. 10-213)
Fig. 10-213
2. Fixing
nut
3. Rear seat foot rest
I••! INSTALLATION
To install, follow the removal steps in the reverse
order.
BODY 10-101
LUGGAGE FLOOR BOX (L·W·B)
1. Luugage
floor box cover
B REMOVAL
Fig. 10-214
Rear seat
Floor
carpet
follr box
Preparation: Fold the rear seat assembly to the
front direction.
1. Luggage floor box cover
• Remove the clips connecting the floor carpet
and the cover.
2. Luggage
floor box
I••! INSTALLATION
2. Luggage floor box
1. Luggage floor box cover

10-102 BODY

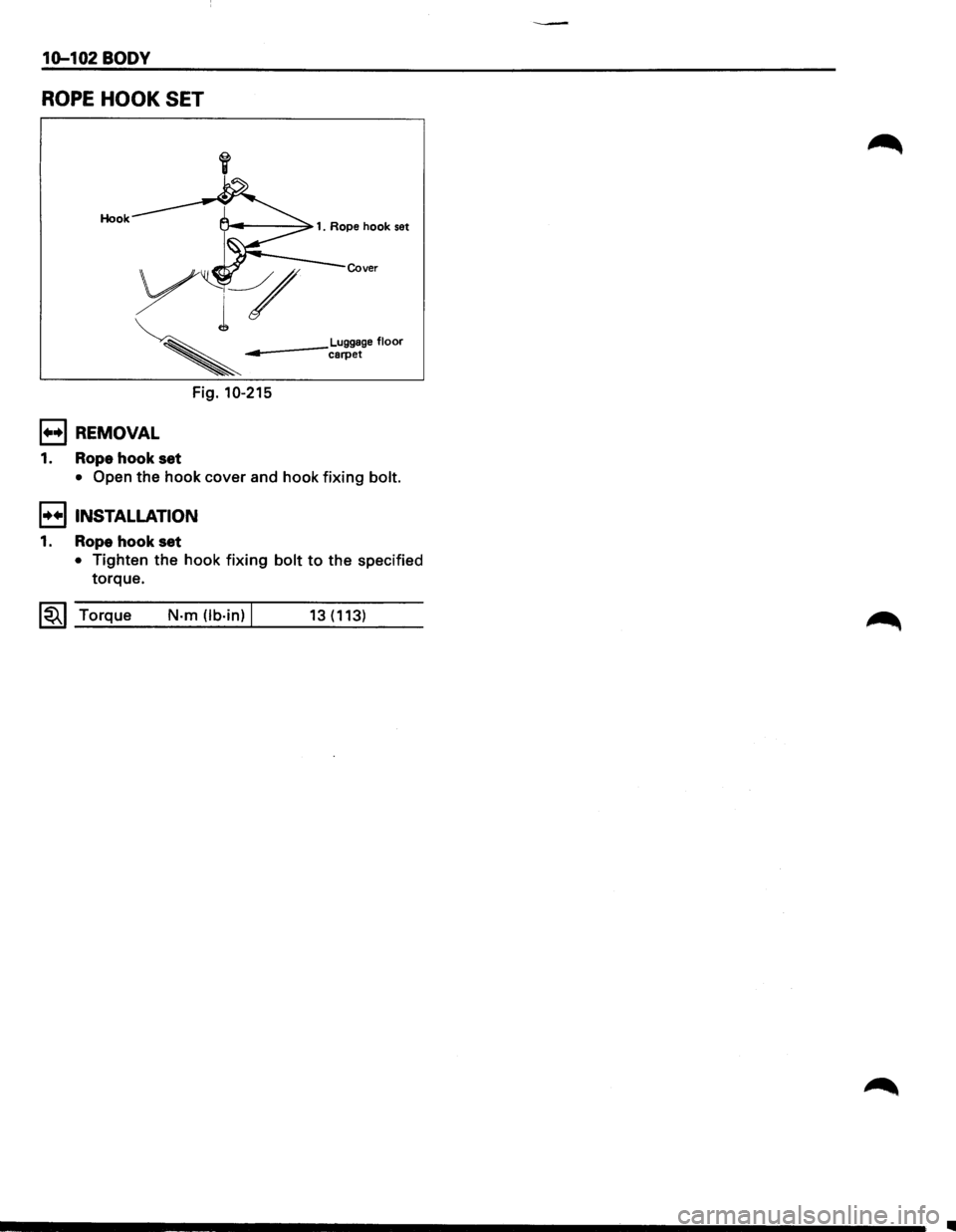

ROPE HOOK SET
Hook
Cover
Luggage floor ------carpet
Fig. 10-215
1••1 REMOVAL
1. Rope hook set
• Open the hook cover and hook fixing bolt.
I••! INSTALLATION
1. Rope hook set
• Tighten the hook fixing bolt to the specified
torque.
1~1 Torque N·m Ob·in) I 13(113)

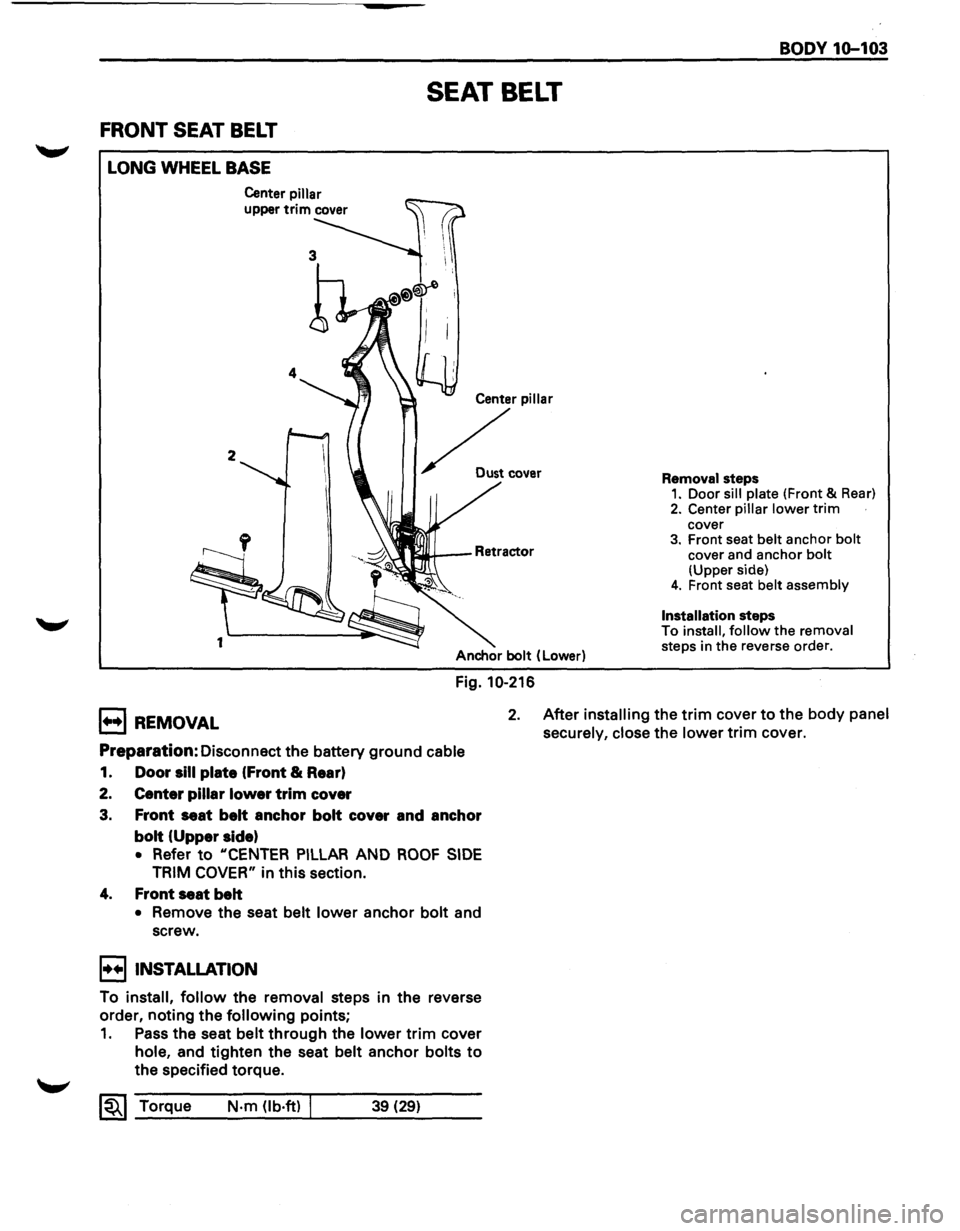

FRONT SEAT BELT
LONG WHEEL BASE
2
1
Center pillar
upper trim cover
SEAT BELT
Center pillar
~ .....
Anchor bolt (Lower)
Fig. 10-216
BODY 1Q-103
Removal steps 1. Door sill plate (Front & Rear)
2. Center pillar lower trim cover 3. Front seat belt anchor bolt cover and anchor bolt (Upper side) 4. Front seat belt assembly
Installation
steps
To install, follow the removal
steps in the reverse order.
B REMOVAL 2. After installing the trim cover to the body panel
securely, close
the lower trim cover.
Preparation: Disconnect the battery ground cable
1. Door sill plate (Front & Rear)
2. Center pillar lower trim cover
3. Front seat belt anchor bolt cover and anchor
bolt (Upper side)
• Refer to "CENTER PILLAR AND ROOF SIDE
TRIM COVER" in this section.
4. Front seat belt
• Remove the seat belt lower anchor bolt and
screw.
I••IINSTALLATION
To install, follow the removal steps in the reverse
order, noting the
following points;
1. Pass the seat belt through the lower trim cover
hole, and tighten the seat belt anchor bolts to
the specified torque.
~~~ Torque N·m (lb·ft) I 39 (29)

----
10-104 BODY

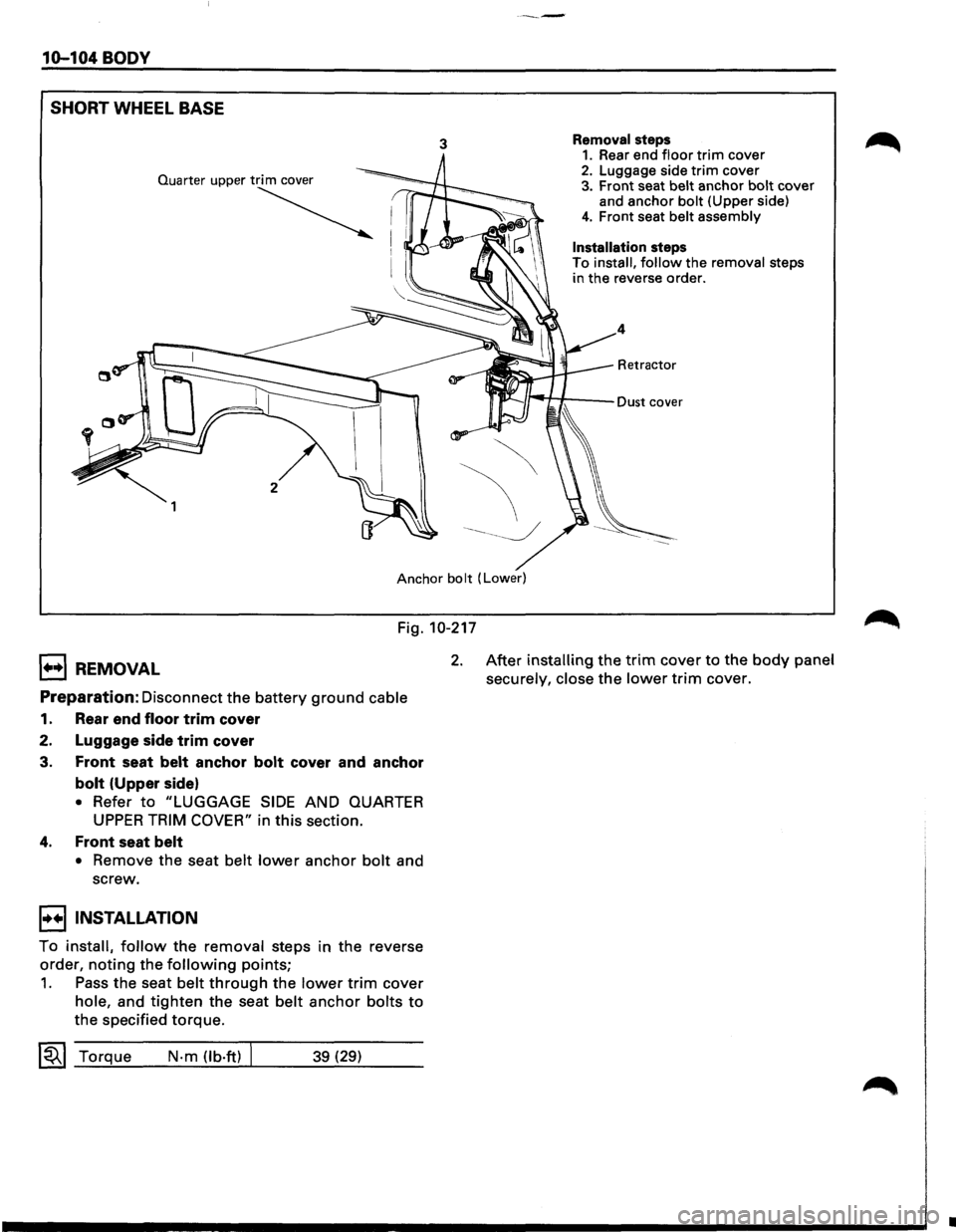

SHORT
WHEEL BASE
3 Removal steps 1. Rear end floor trim cover 2. Luggage side trim cover 3. Front seat belt anchor bolt cover
and anchor bolt (Upper side)
4. Front seat belt assembly
Installation steps
To install, follow the removal steps
in the reverse order.
4
Retractor
Anchor bolt (Lower)
Fig. 10-217
1++1 REMOVAL
Preparation: Disconnect the battery ground cable
1. Rear end floor trim cover
2. Luggage side
trim cover
3.
Front seat belt anchor bolt cover and anchor
bolt (Upper side)
• Refer to "LUGGAGE SIDE AND QUARTER
UPPER TRIM COVER" in this section.
4. Front seat belt
• Remove the seat belt lower anchor bolt and
screw.
I••IINSTALLATION
To install, follow the removal steps in the reverse
order,
noting the following points;
1. Pass the seat belt through the lower trim cover
hole, and tighten the seat belt anchor bolts to
the specified torque.
~~~ Torque N-m (lb·ft) 39 (29)
2. After installing the trim cover to the body panel
securely, close
the lower trim cover.
•

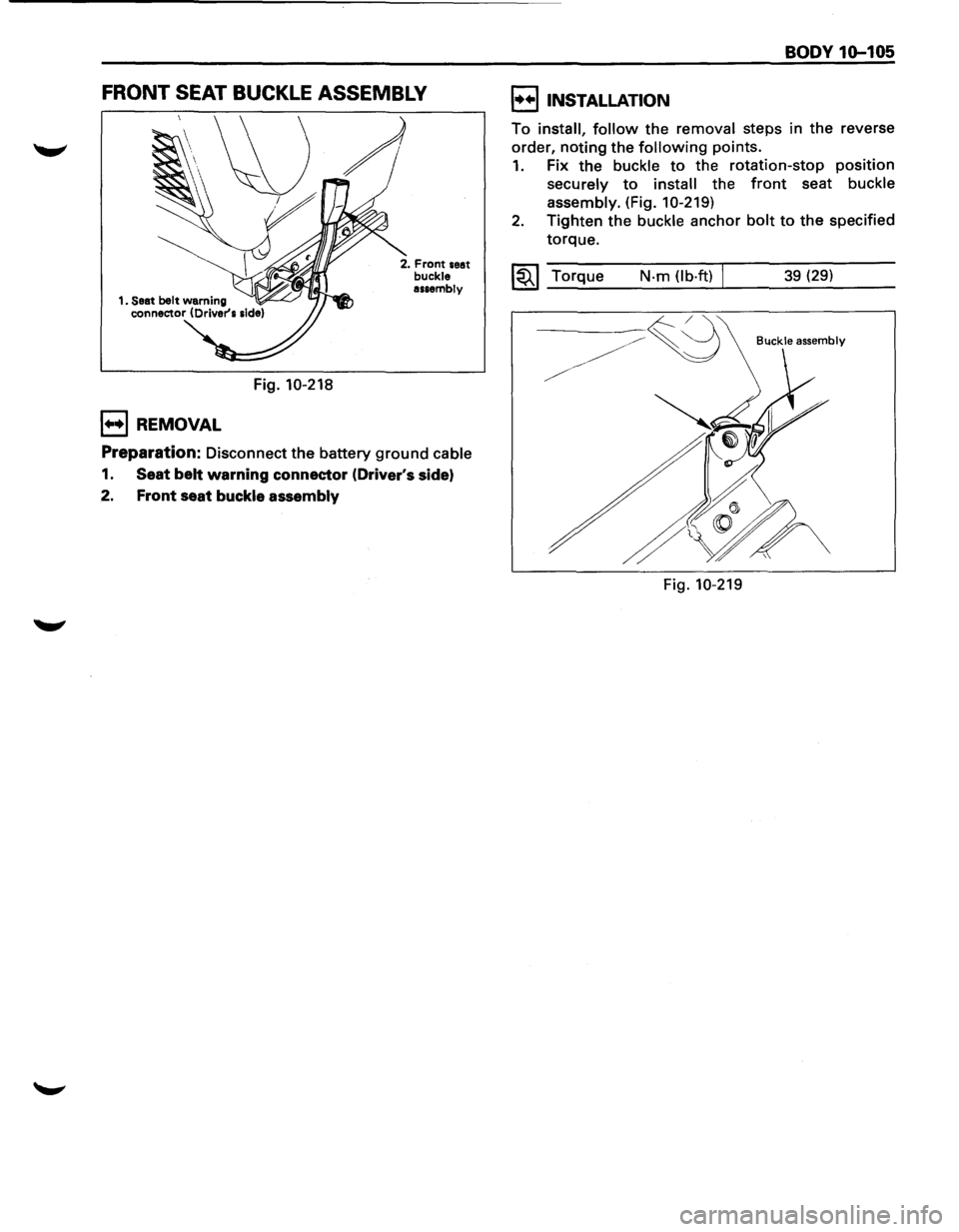

FRONT SEAT BUCKLE ASSEMBLY
Fig. 10-218
1++1 REMOVAL
2. Front seat buckle assembly
Preparation: Disconnect the battery ground cable
1. Seat belt warning connector (Driver's side)
2. Front seat buckle assembly
BODY 1Q-105
I••IINSTALLATION
To install, follow the removal steps in the reverse
order, noting the following points.
1. Fix the buckle to the rotation-stop position
securely to install the front seat buckle
assembly.
(Fig. 10-219)
2. Tighten the buckle anchor bolt to the specified
torque.
~~~ Torque N·m (lb·ft) I 39 (29)
Buckle assembly
Fig. 10-219
