BODY 1o-101
Installation steps
To install, follow the removal
steps in the reverse order.

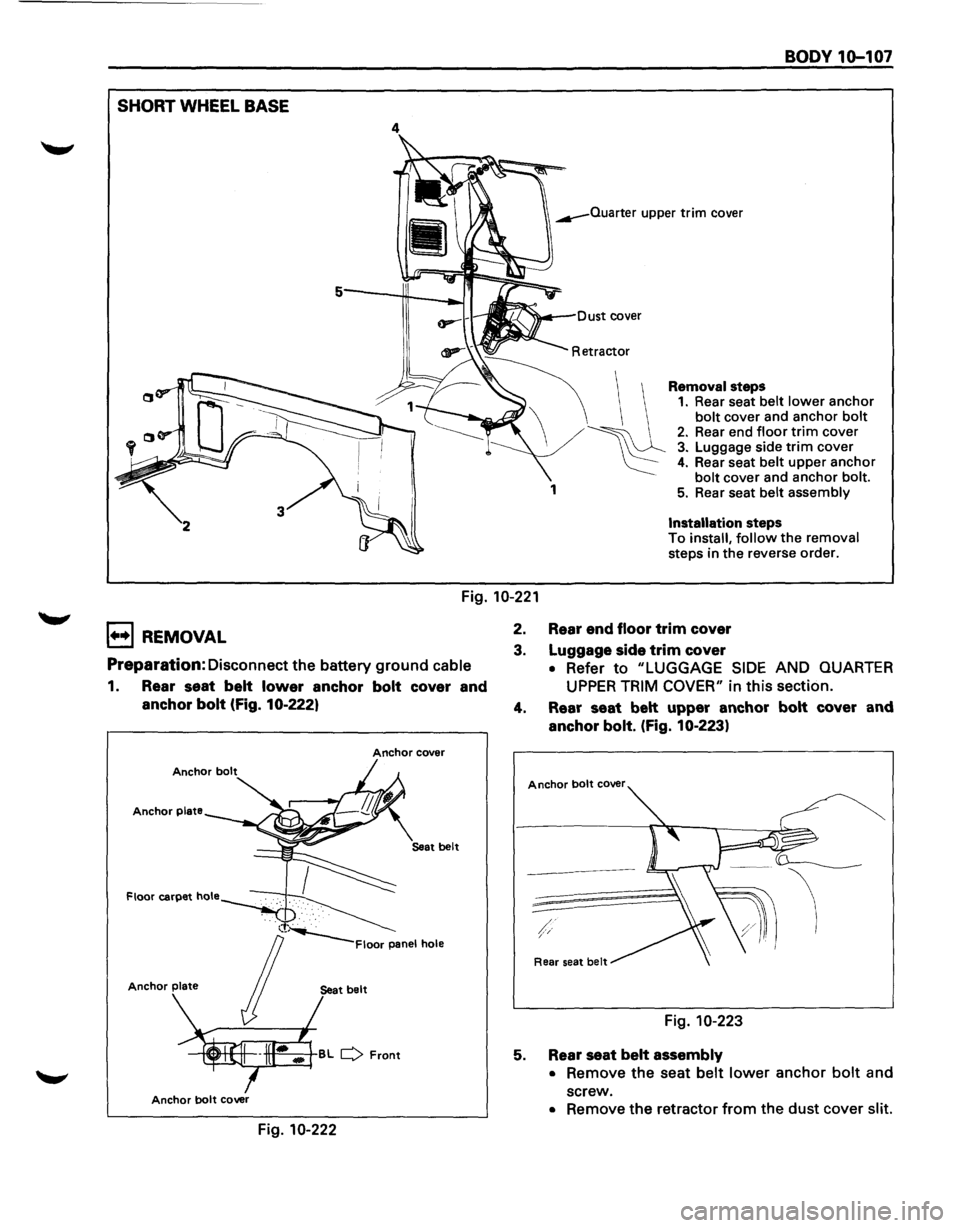

Fig. 10-221
1+•1 REMOVAL
Preparation: Disconnect the battery ground cable
1. Rear seat belt lower anchor bolt cover and
anchor bolt (Fig. 10-222)
Anchor cover
Anchor plate
Anchor plate
Anchor bolt cover
Fig. 10-222
2. Rear end floor trim cover
3. Luggage side trim cover
• Refer to "LUGGAGE SIDE AND QUARTER
UPPER TRIM COVER" in this section.
4. Rear seat belt upper anchor bolt cover and
anchor bolt. (fig. 10-223)
5.
A ear seat be It
Fig. 10-223
Rear seat belt assembly
•
Remove the seat belt lower anchor bolt and
screw.
• Remove the retractor from the dust cover slit.

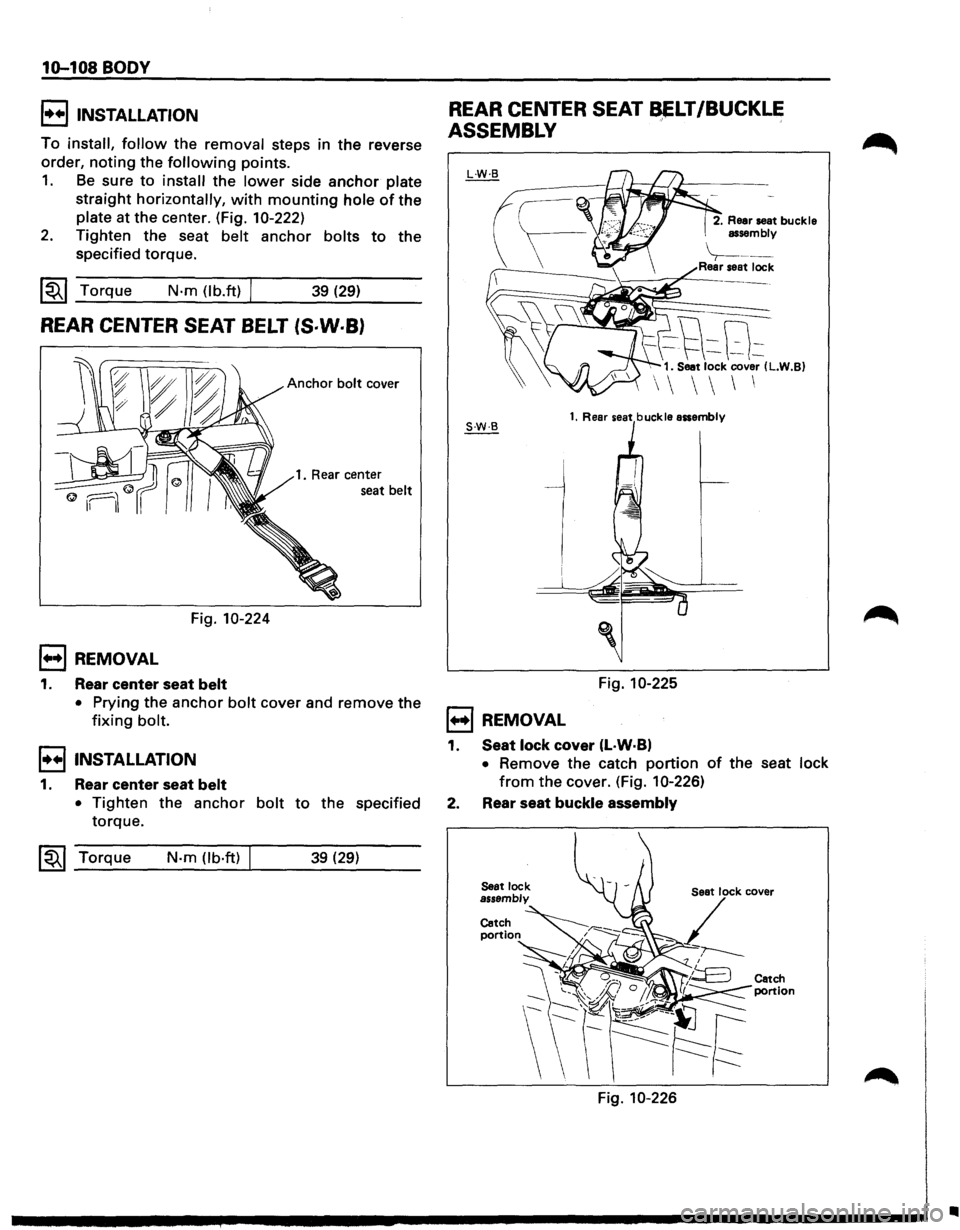

10-108 BODY
!••I INSTALLATION
To install, follow the removal steps in the reverse
order,
noting the following points.
1. Be sure to install the lower side anchor plate
straight horizontally, with mounting hole of the
plate at the center. (Fig. 10-222)
2. Tighten the seat belt anchor bolts to the
specified torque.
~~~ Torque N·m (lb.ft) / 39 (29)
REAR CENTER SEAT BELT (S·W·B)
Anchor bolt cover
1. Rear center
seat
belt
Fig. 10-224
1••1 REMOVAL
1. Rear center seat belt
• Prying the anchor bolt cover and remove the
fixing bolt.
I••IINSTALLATION
1. Rear center seat belt
• Tighten the anchor bolt to the specified
torque.
~~~ Torque N-m (lb·ft) 39 (29)
REAR CENTER SEAT ~LT/BUCKLE
ASSEMBLY
1••1 REMOVAL
2. Rear seat buckle
assembly
\----Rear seat lock
--t\8~ 1. Seat lock cover (L.W.B)

1. Rear seat buckle assembly
Fig. 10-225
1. Seat lock cover (L·W·B)
• Remove the catch portion of the seat lock
from the cover. (Fig. 10-226)
2. Rear seat buckle assembly
Catch
portion
Fig. 10-226
Catch
portion
•

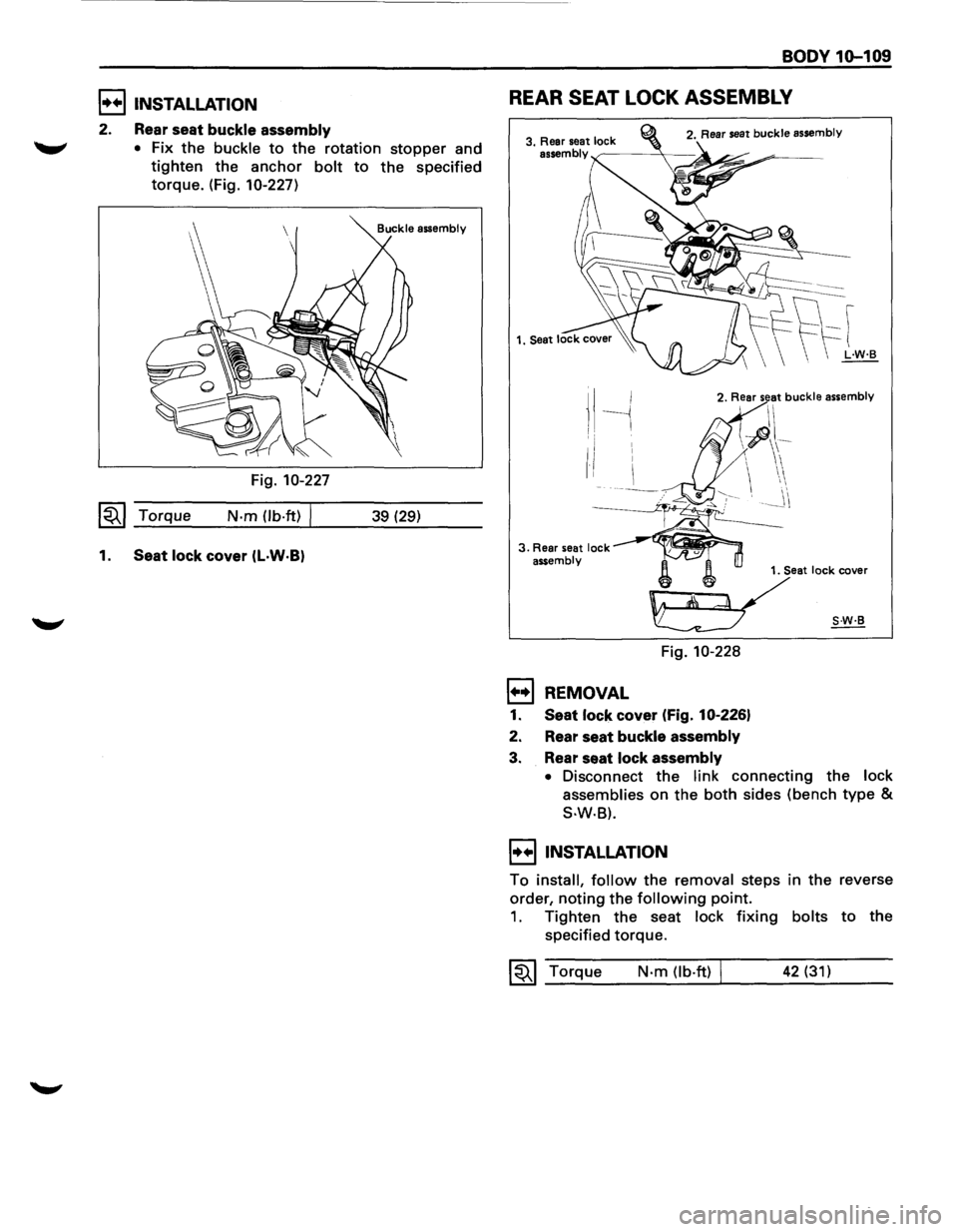

BODY 1G-109
E) INSTALLATION REAR SEAT LOCK ASSEMBLY
2. Rear seat buckle assembly
"-"' • Fix the buckle to the rotation stopper and
tighten the anchor bolt to the specified
torque. (Fig. 10-227)
Fig. 10-227
1~1 Torque N-m (lb-ft) I 39 (29)
1. Seat lock cover (l·W·B)
I --j I
3. Rear seat lock ---~~ai~~'"ll assembly
' 1. Seat lock cover
~
Fig. 10-228
1••1 REMOVAL
1. Seat lock cover (Fig. 10-226)
2. Rear seat
buckle assembly
3. Rear seat lock assembly
• Disconnect the link connecting the lock
assemblies
on the both sides (bench type &
S-W·B).
I••! INSTALLATION
To install, follow the removal steps in the reverse
order,
noting the following point.
1. Tighten the seat lock fixing bolts to the
specified
torque.
~~~ Torque N·m (lb·ft) 42 (31)

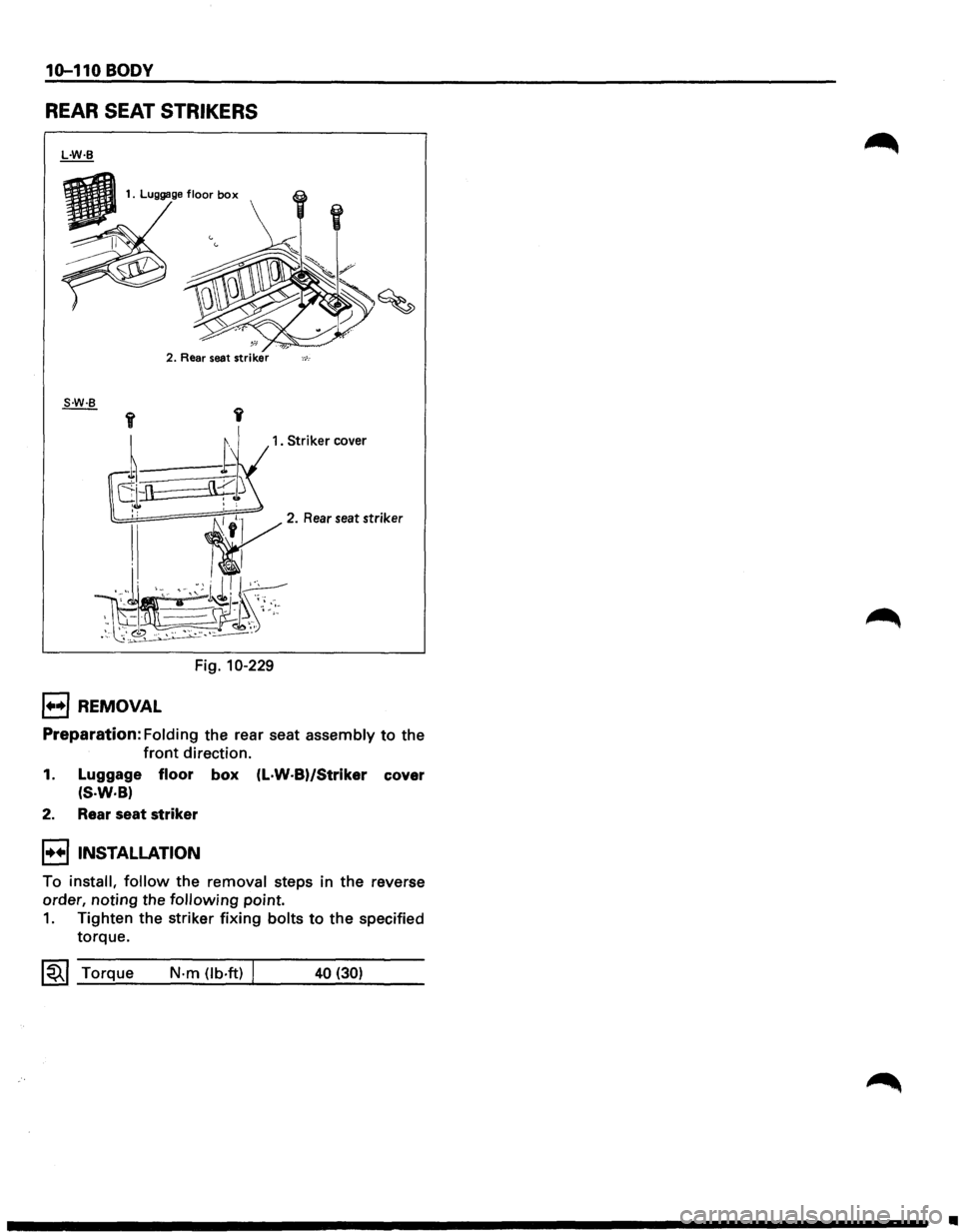

10-110 BODY
REAR SEAT STRIKERS
2. Rear seat striker ,_,_.
1. Striker cover
Fig. 10-229
1••1 REMOVAL
Preparation: Folding the rear seat assembly to the
front direction.
1. Luggage floor box (L·W·B)/Striker cover
(S·W·B)
2. Rear seat striker
I••IINSTALLATION
To install, follow the removal steps in the reverse
order,
noting the following point.
1. Tighten the striker fixing bolts to the specified
torque.
~~~ Torque N-m (lb.ft) J 40 (30)
•

BODY 10-111

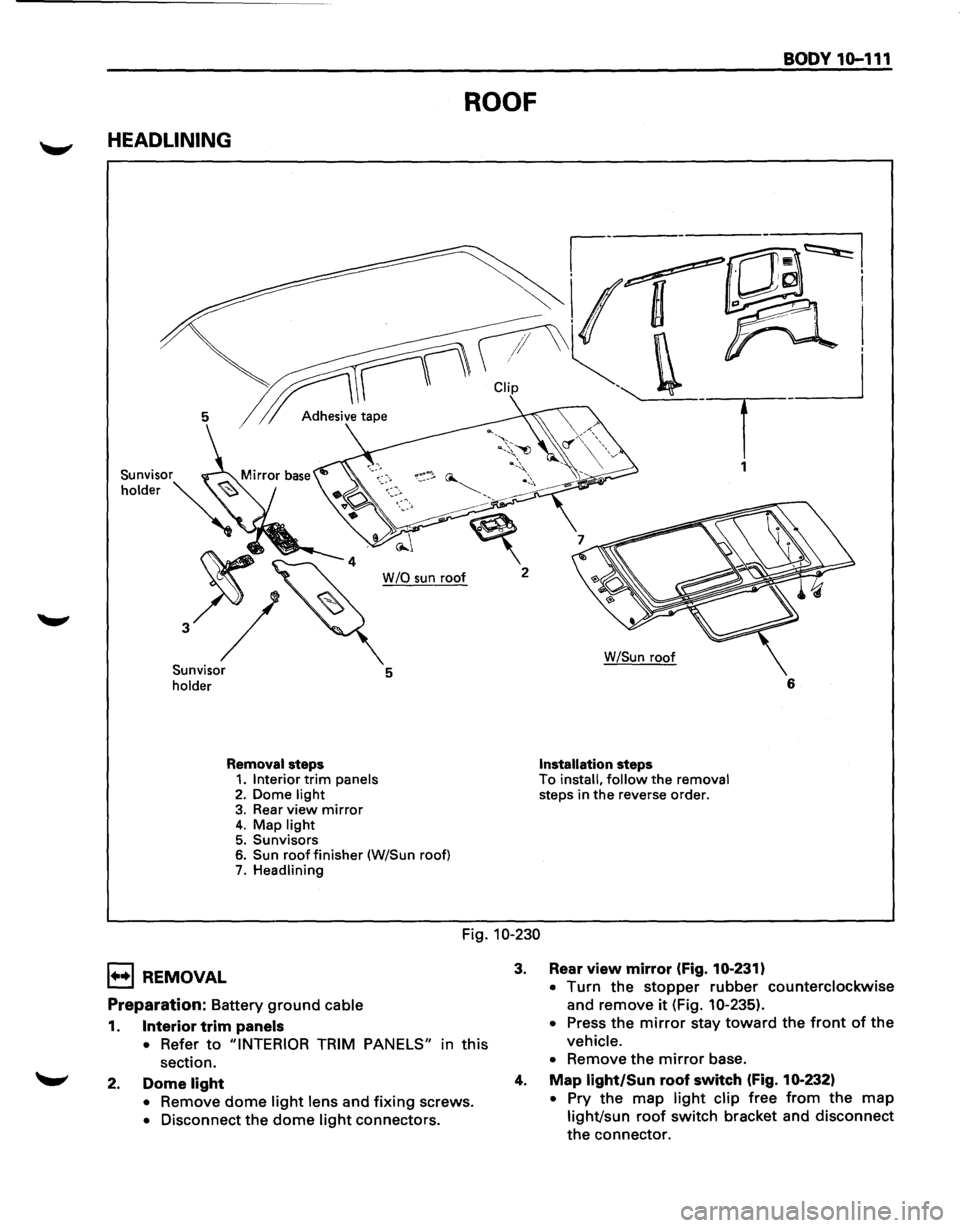

ROOF
HEADLINING
~---~~I
~r CUp ''-. _ __j
5 1 Adh.,;,;, tap• . T
1
W /0 sun roof 2
Sunvisor
holder 5
Removal steps 1. Interior trim panels 2. Dome light 3. Rear view mirror 4. Map light 5. Sunvisors 6. Sun roof finisher (W/Sun roof) 7. Headlining W/Sun
roof
Installation steps To install, follow the removal steps
in the reverse order. 6
Fig. 10-230
1••1 REMOVAL
Preparation: Battery ground cable
1. Interior trim panels
•
Refer to "INTERIOR TRIM PANELS" in this
section.
2. Dome light
• Remove dome light lens and fixing screws.
• Disconnect the dome light connectors.
3. Rear view mirror (Fig. 10-231)
• Turn the stopper rubber counterclockwise
and remove

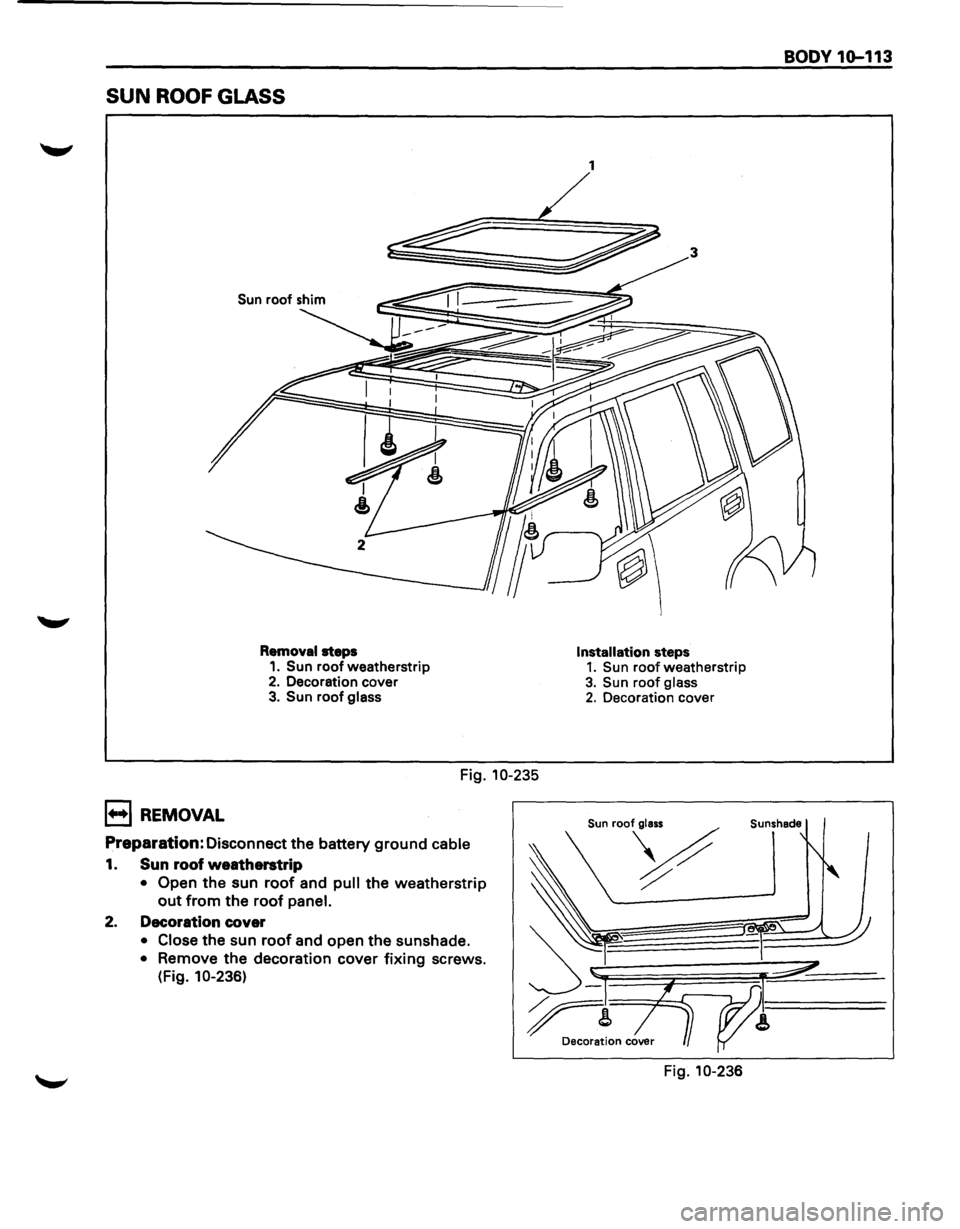

it (Fig. 10-235).
• Press the mirror stay toward the front of the
vehicle.
•
Remove the mirror base.
4. Map light/Sun roof switch (Fig. 10-232)
• Pry the map light clip free from the map
light/sun roof switch bracket and disconnect
the connector.

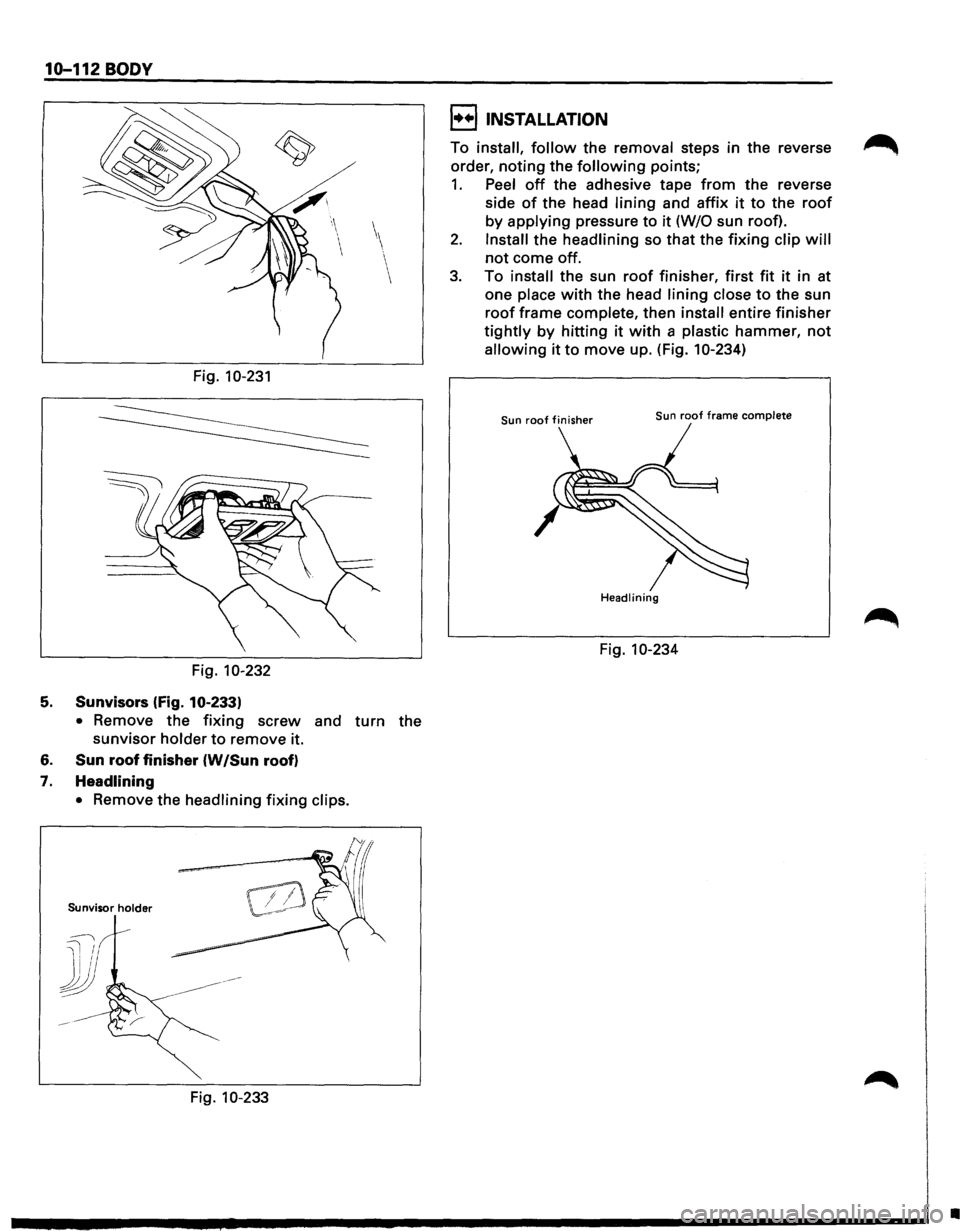

10-112 BODY
Fig. 10-231
Fig. 10-232
5. Sunvisors (fig. 10·233)
•
Remove the fixing screw and turn the
sunvisor holder to remove it.
6.
Sun roof finisher (W /Sun roof)
7.
Headlining •
Remove the headlining fixing clips.
Sunvisor holder
J
~l I I : 1/
&
Fig. 10-233
I••IINSTALLATION
To install, follow the removal steps in the reverse
order,
noting the following points;
1. Peel off the adhesive tape from the reverse
side
of the head lining and affix it to the roof
by applying pressure to it (W/0 sun roof).
2. Install the headlining so that the fixing clip will
not come off.

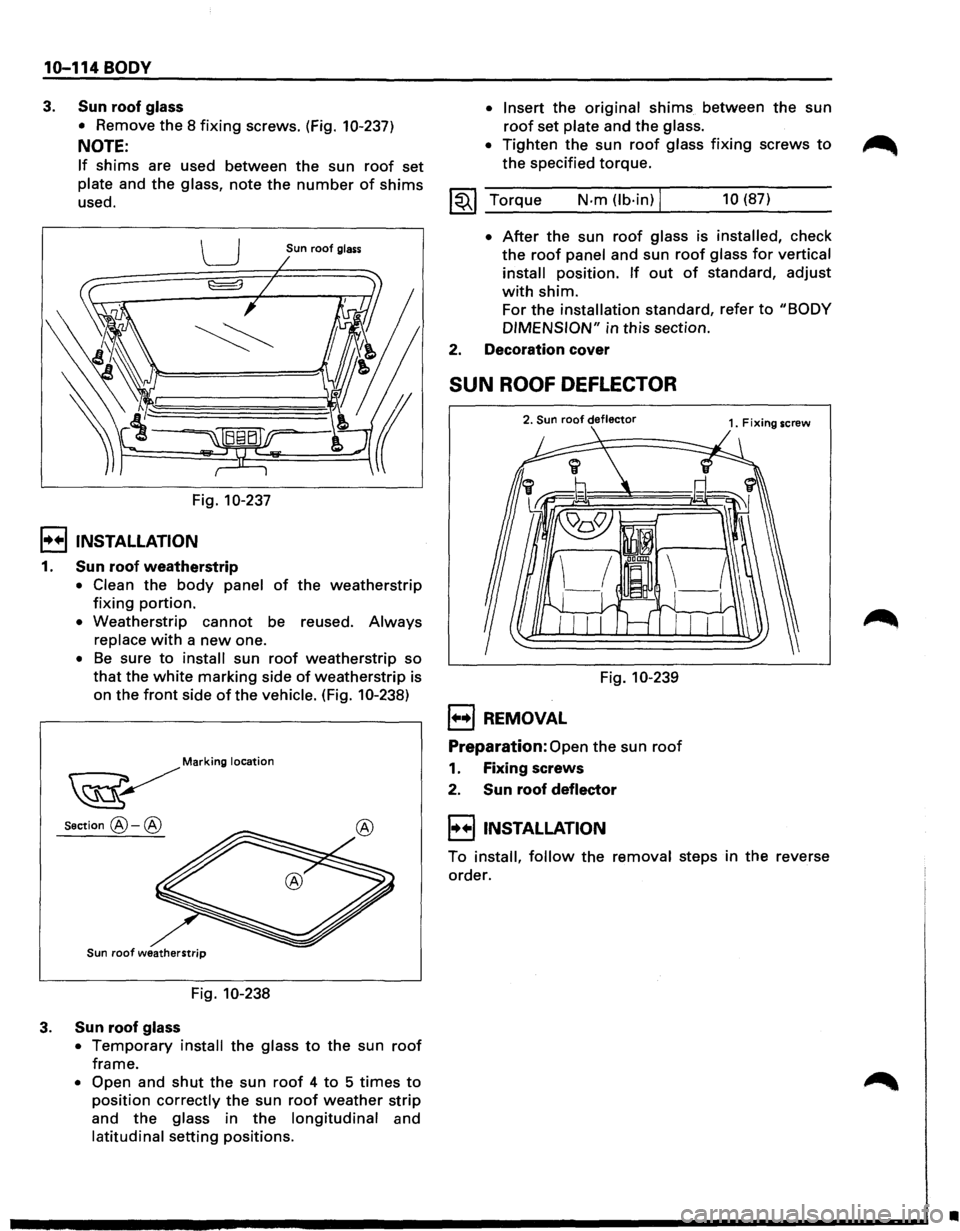

3. To install the sun roof finisher, first fit it in at
one
place with the head lining close to the sun
roof frame complete, then install entire finisher
tightly by hitting it with a plastic hammer, not
allowing it to move up. (Fig. 10-234)
Sun roof finisher Sun roof frame complete
Headlining
Fig. 10-234
•
