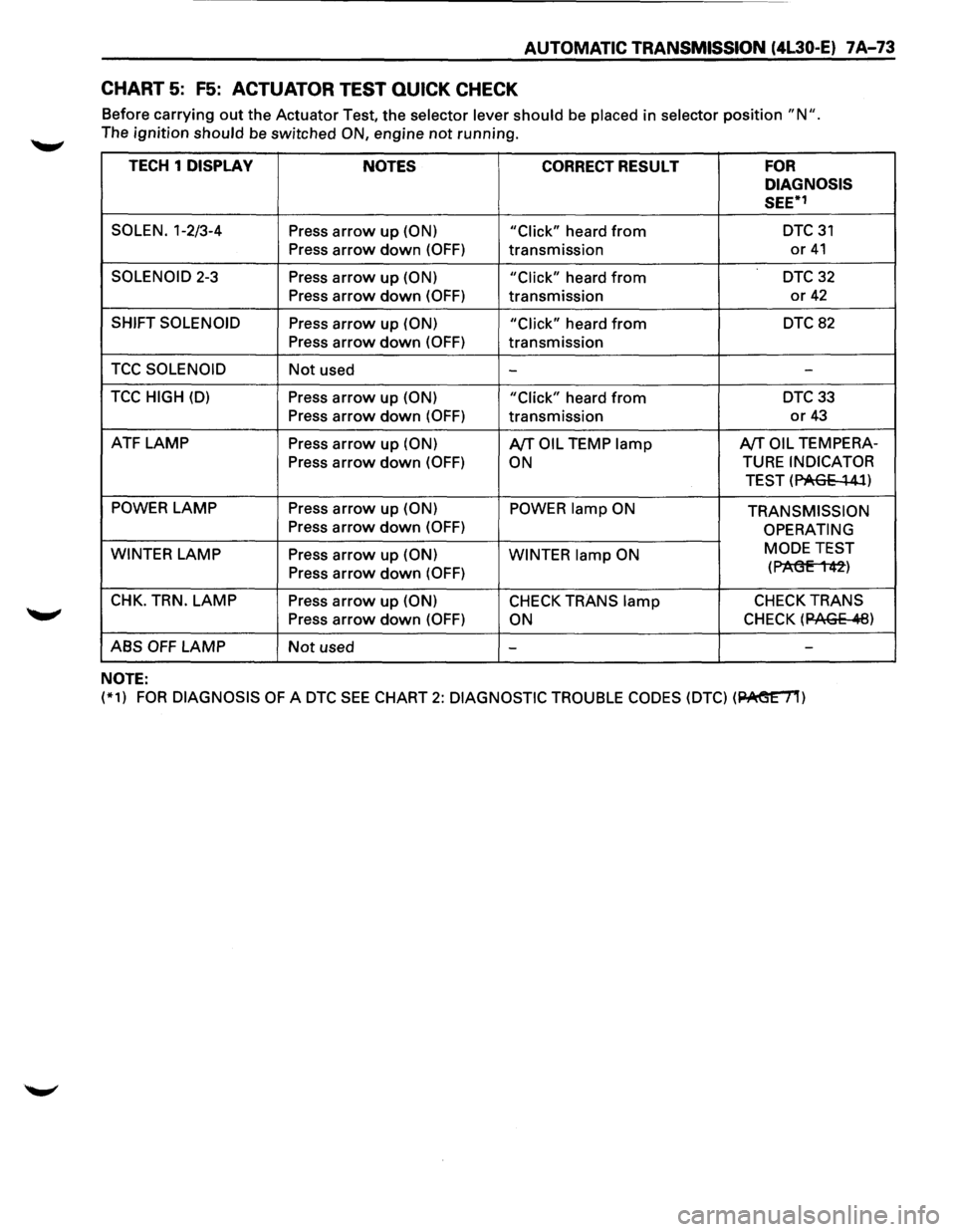

1995 ISUZU TROOPER Workshop Manual

AUTOMATIC TRANSMISSION (4L30-E) 7A-73
CHART 5: F5: ACTUATOR TEST QUICK CHECK
Before carrying out the Actuator Test, the selector lever should be placed in selector position "N ".
The ignition should be switched ON, engine not running.
TECH 1 DISPLAY
NOTES CORRECT RESULT FOR
DIAGNOSIS
SEE*1
SOLEN. 1-2/3-4 Press arrow up (ON)
"Click" heard from DTC31
Press
arrow down (OFF) transmission or 41
SOLENOID 2-3 Press arrow up (ON) "Click" heard from DTC 32
Press arrow down (OFF) transmission or 42
SHIFT SOLENOID Press arrow up (ON)
"Click" heard from DTC 82
Press arrow down (OFF) transmission
TCC SOLENOID Not used --
TCC HIGH (D) Press arrow up (ON)
"Click" heard from DTC33
Press
arrow down (OFF) transmission or 43
ATF LAMP Press arrow up (ON) A/TOIL TEMP lamp A/TOIL TEMPERA-
Press
arrow down (OFF) ON TURE INDICATOR
TEST (PAGE
~ 41)
POWER LAMP
Press arrow up (ON) POWER lamp ON TRANSMISSION Press arrow down (OFF) OPERATING
WINTER
LAMP Press arrow up (ON)
WINTER lamp ON MODE
TEST
Press arrow down (OFF) (P1'\(3E 1 42)
CHK. TRN. LAMP Press arrow up (ON) CHECK TRANS lamp CHECK TRANS
Press arrow down (OFF) ON CHECK (12AGE .11:8)
ABS OFF LAMP Not used - -
NOTE:
(*1) FOR DIAGNOSIS OF A DTC SEE CHART 2: DIAGNOSTIC
TROUBLE CODES (DTC) (~)

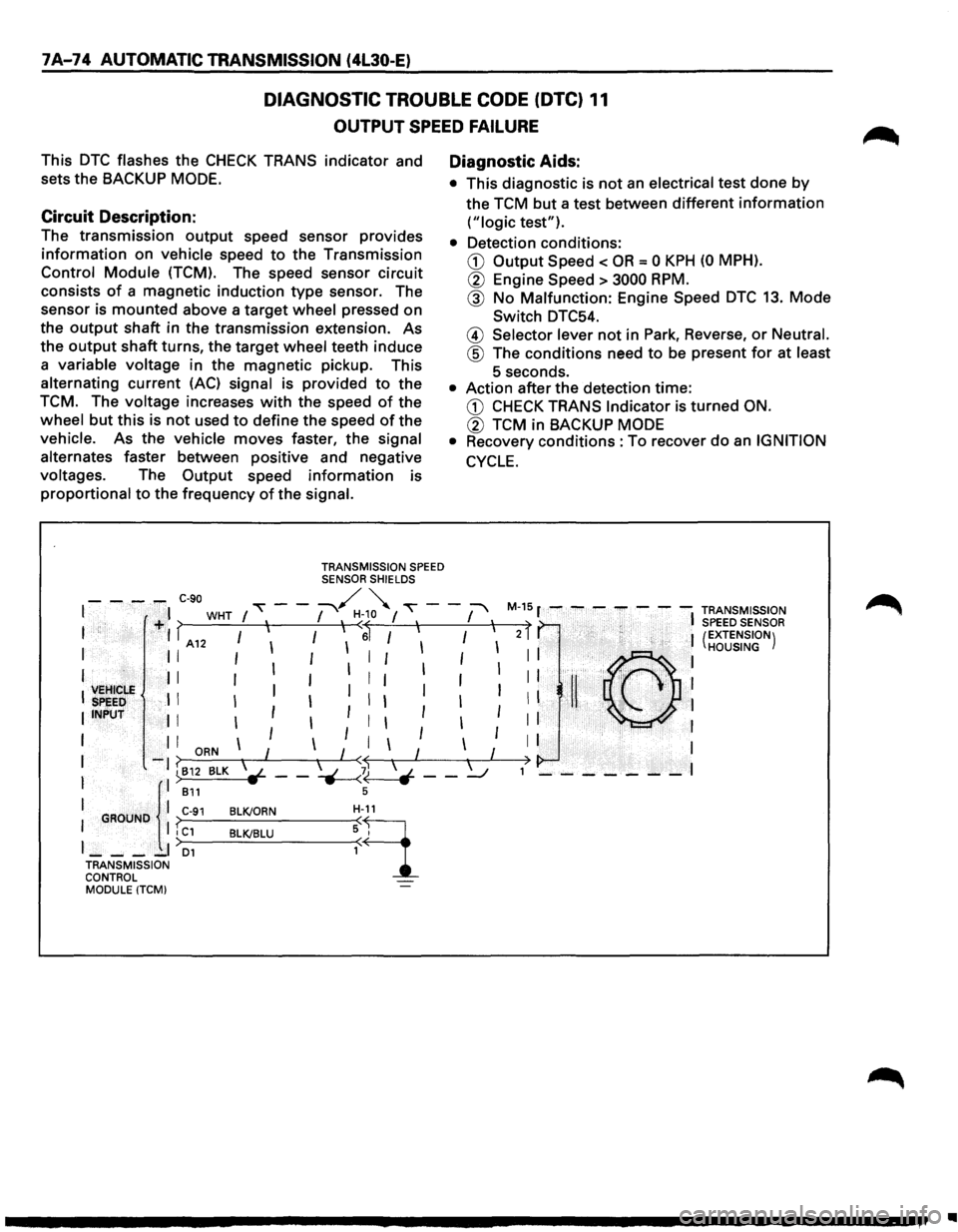

7 A-74 AUTOMATIC TRANSMISSION (4l30-E)
DIAGNOSTIC TROUBLE CODE (DTC) 11
OUTPUT SPEED FAILURE
This DTC flashes the CHECK TRANS indicator and
sets the
BACKUP MODE.
Circuit Description:
The transmission output speed sensor provides
information on vehicle speed to the Transmission
Control Module (TCM). The speed sensor circuit
consists
of a magnetic induction type sensor. The
sensor is
mounted above a target wheel pressed on
the
output shaft in the transmission extension. As
the
output shaft turns, the target wheel teeth induce
a variable voltage in the magnetic pickup. This
alternating current
(AC) signal is provided to the
TCM. The voltage increases with the speed of the
wheel
but this is not used to define the speed of the
vehicle. As the vehicle
moves faster, the signal
alternates faster between positive and negative
voltages. The
Output speed information is
proportional to the frequency of the signal.
TRANSMISSION SPEED SENSOR SHIELDS
Diagnostic Aids:
• This diagnostic is not an electrical test done by
the TCM but a test between different information
("logic test").
• Detection conditions:
CD Output Speed < OR = 0 KPH (0 MPH).
® Engine Speed > 3000 RPM.
@ No Malfunction: Engine Speed DTC 13. Mode
Switch DTC54.
@ Selector lever not in Park, Reverse, or Neutral.
@ The conditions need to be present for at least
5 seconds.
• Action after the detection time:
CD CHECK TRANS Indicator is turned ON.
® TCM in BACKUP MODE
•
Recovery conditions :To recover do an IGNITION
CYCLE.
- - -,.,.. C-90 "" - -~ ~ ""\' - -:-' M-15 r - - - - - - -TRANSMISSION I I WHT I , I , H<~o I , I , t , I SPEED SENSOR I +I > I I I I 6 I I I I 2 I (EXTENSION) I A12 I I I HOUSING
I II 111
11111111 ©I
', VEHICLE ', II I
I I I I I I I I I I !I ' ,~, 1
:
SPEED . I I I I I I I I I II "-.
I INPUT I I I I I I I I I I
I I I
ORN I I I I I I I I
I
-1 ~812 BLK l-- -~b - -~ ,> - - - - - - -I
I ll B11 s
I GROUND I C-91 BLK/ORN H-9_11
I I I C1 BLK/BLU : I
J __ -_I D1
TRANSMISSION
CONTROL MODULE
(TCM)
•

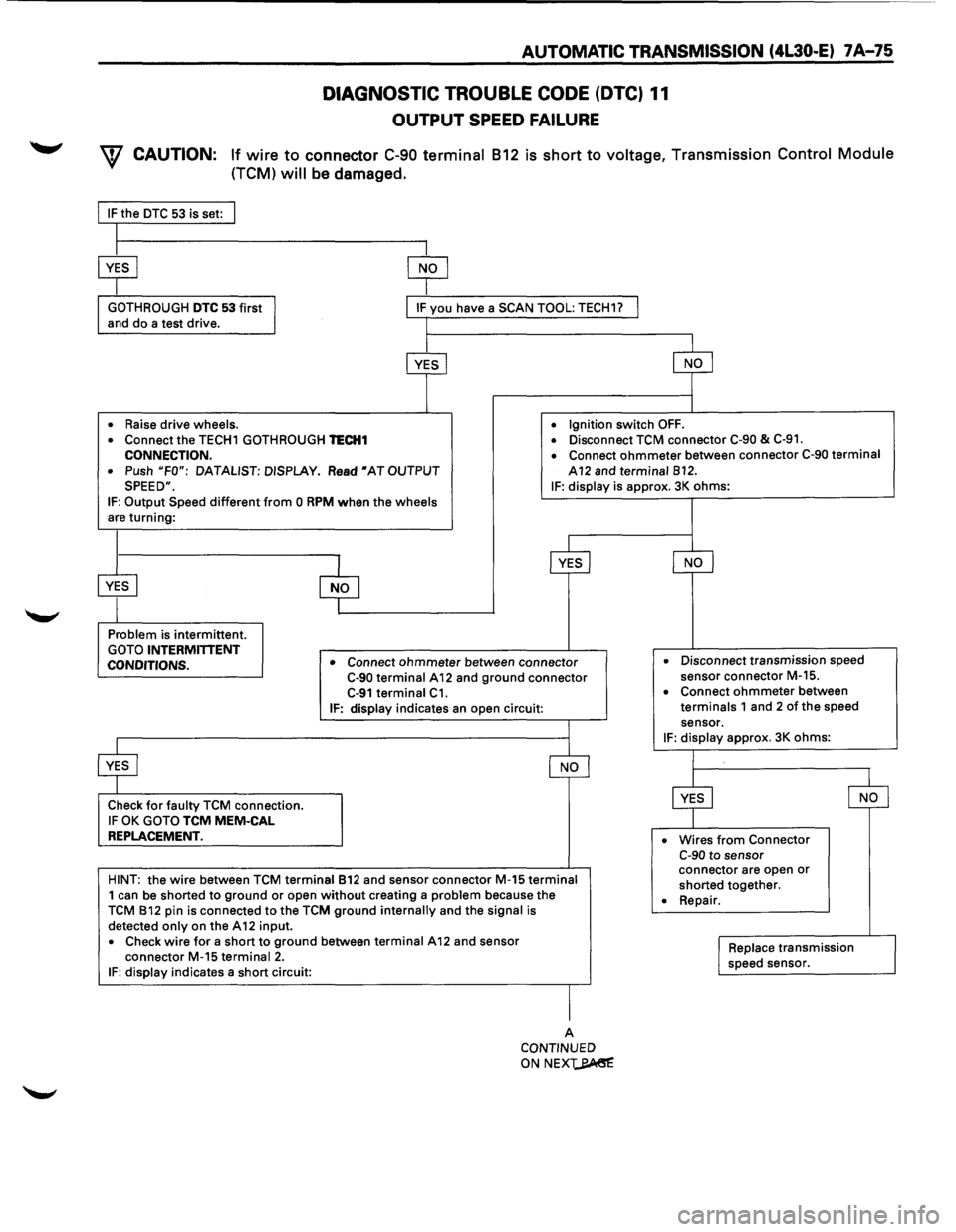

AUTOMATIC TRANSMISSION (4L30·E) 7 A-75
DIAGNOSTIC TROUBLE CODE (DTC) 11
OUTPUT SPEED FAILURE
W CAUTION: If wire to connector C-90 terminal 812 is short to voltage, Transmission Control Module
(TCM) will be damaged.
IF the DTC 53 is set:
I I
~
GOTH ROUGH DTC 53 first J I IF you have a SCAN TOOL: TECH17 I and do a test drive. I
cf
$
• Raise drive wheels. • Ignition switch OFF.
• Connect the TECH1 GOTH ROUGH TECH1 • Disconnect TCM connector C-90 & C-91.
CONNECTION. • Connect ohmmeter between connector C-90 terminal
• Push "FO": DATALIST: DISPLAY. Read •AT OUTPUT A12 and terminal 812 . SPEED". IF: display is approx. 3K ohms: IF: Output Speed different from 0 RPM when the wheels are turning:
diJ
§J
$
T
Problem is intermittent. GOTO INTERMITTENT
CONDITIONS. • Connect ohmmeter between connector C-90 terminal A12 and ground connector C-91 terminal C1.
IF: display indicates an open circuit:
$ ~
Check for faulty TCM connection. IF OK GOTO TCM MEM-CAL
REPLACEMENT.
HINT: the wire between TCM terminal 812 and sensor connector M-15 terminal 1 can be shorted to ground or open without creating a problem because the TCM 812 pin is connected to the TCM ground internally and the signal is
detected only on the A 12 input.
• Check wire for a short to ground between terminal A 12 and sensor
connector M-15 terminal 2. IF: display indicates a short circuit:
I
A CONTINUED
ONNEX~
NO
• Disconnect transmission speed
sensor connector M-15.
• Connect ohmmeter between terminals 1 and 2 of the speed
sensor.
IF: display approx. 3K ohms:
$ ~
• Wires from Connector C-90 to sensor
connector are open or shorted together.
• Repair .
I Replace transmission
speed sensor.

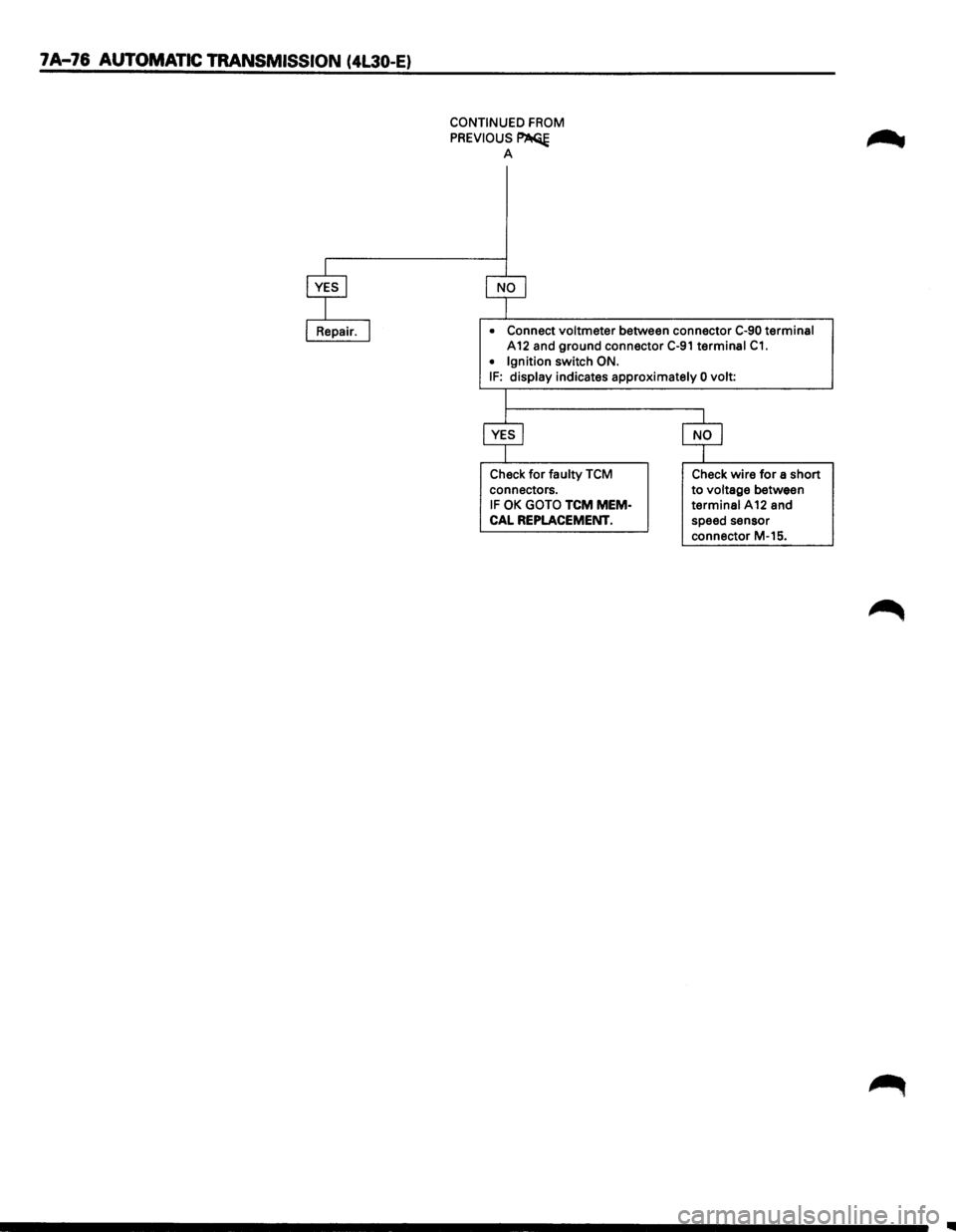

7A-76 AUTOMATIC TRANSMISSION (4L30-E)
CONTINUED FROM
PREVIOUS~ A
• Connect voltmeter between connector C-90 terminal
A 12 and ground connector C-91 terminal C1.
• Ignition switch ON. IF: display indicates approximately 0 volt:
Check
for faulty TCM
connectors.
IF OK GOTO TCM MEM·
CAL REPLACEMENT.
Check wire for a short
to voltage between
terminal A12 and
speed sensor
connector M-15.

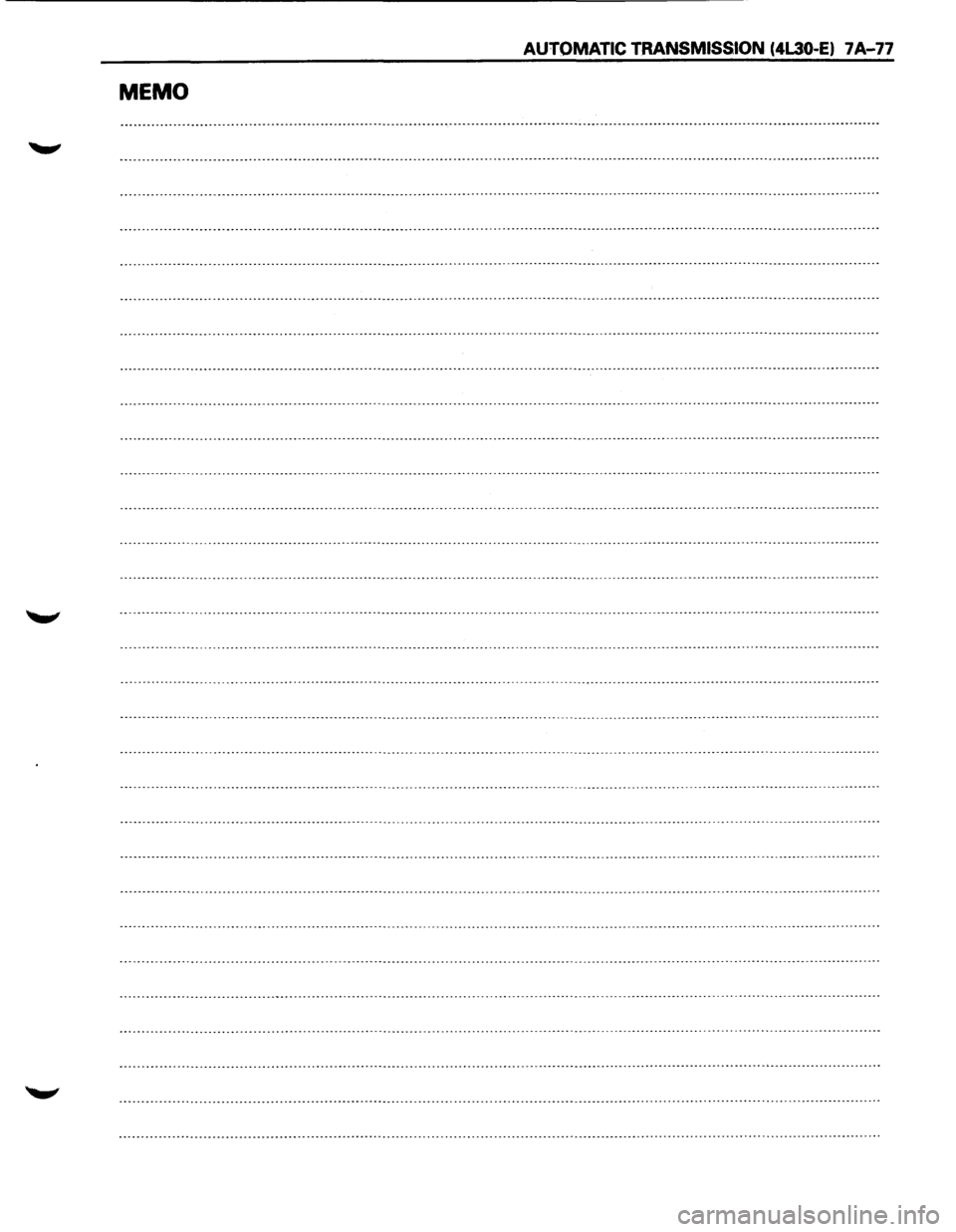

AUTOMATIC TRANSMISSION (4L30-E) 7A-77
MEMO

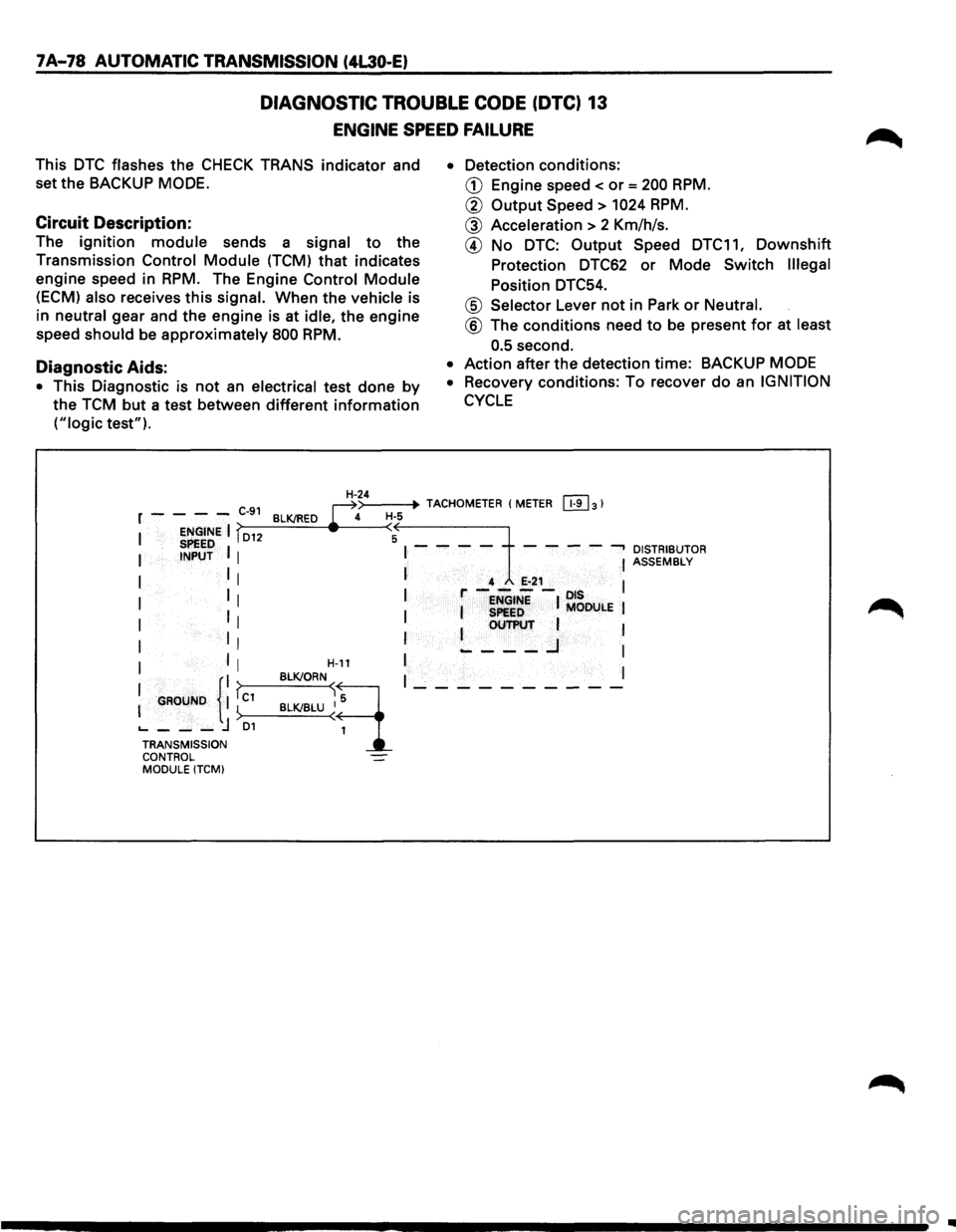

7A-78 AUTOMATIC TRANSMISSION (4L30-E)
DIAGNOSTIC TROUBLE CODE (DTC) 13
ENGINE SPEED FAILURE
This DTC flashes the CHECK TRANS indicator and
set the BACKUP
MODE.
Circuit Description:
The ignition module sends a signal to the
Transmission
Control Module (TCM) that indicates
engine speed in
RPM. The Engine Control Module
(ECM) also receives this signal. When the vehicle is
in
neutral gear and the engine is at idle, the engine
speed
should be approximately 800 RPM.
Diagnostic Aids:
• This Diagnostic is not an electrical test done by
the TCM but a test between different information
("logic test"). •
Detection
conditions:
CD Engine speed< or= 200 RPM.
@ Output Speed > 1024 RPM.
@ Acceleration > 2 Km/h/s.
@ No DTC: Output Speed DTC11, Downshift
Protection DTC62 or Mode Switch Illegal
Position DTC54.
@ Selector Lever not in Park or Neutral.
@ The conditions need to be present for at least
0.5
second.
• Action after the detection time: BACKUP MODE
•
Recovery conditions: To recover do an IGNITION
CYCLE
>--
-------t~lt--H--4~>-_4=.--+· TACHOMETER (METER [!1]31 r - - - -C-91 BLK/RED ~ H·S
I ENGINE I fD12 (A SPEED I I - - - - - - - --, DISTRIBUTOR I INPUT I I ASSEMBLy
I I I I 4 E-21 l I 1 r----ots 1 I I ENGINE I MODULE I
I II I I SPeED I OUTPUT 1
I II I ~---..J I
I I I H-11 I I
I GROUND {II fc1 BLK!ORN~q I_---------
I ) BLK/BLU ~ 1
'----j D1 TRANSMISSION CONTROL MODULE (TCMI
..
