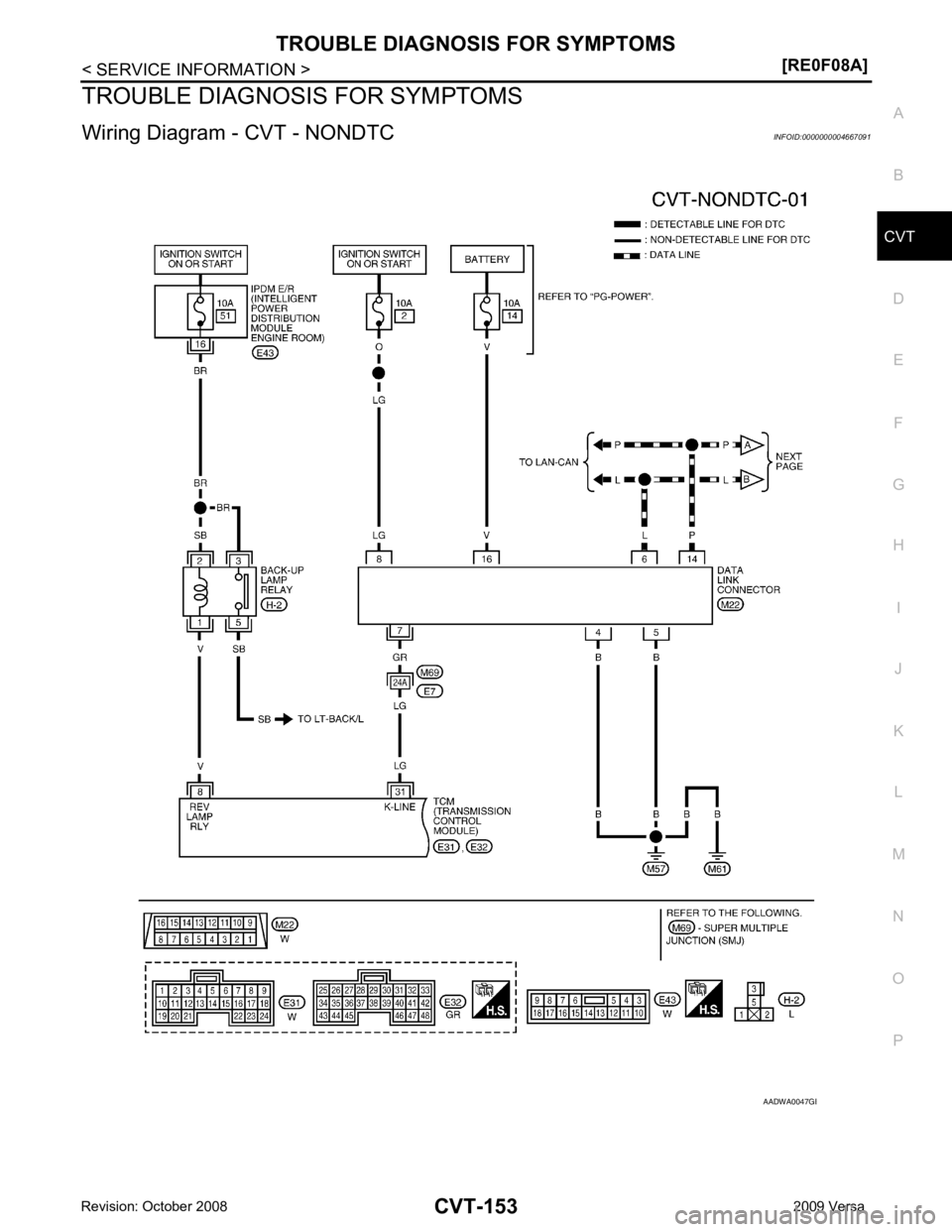

NISSAN TIIDA 2009 Service Repair Manual CVT N O P TROUBLE DIAGNOSIS FOR SYMPTOMS Wiring Diagram - CVT - NONDTC INFOID:0000000004667091 B

Page 1098 of 4331

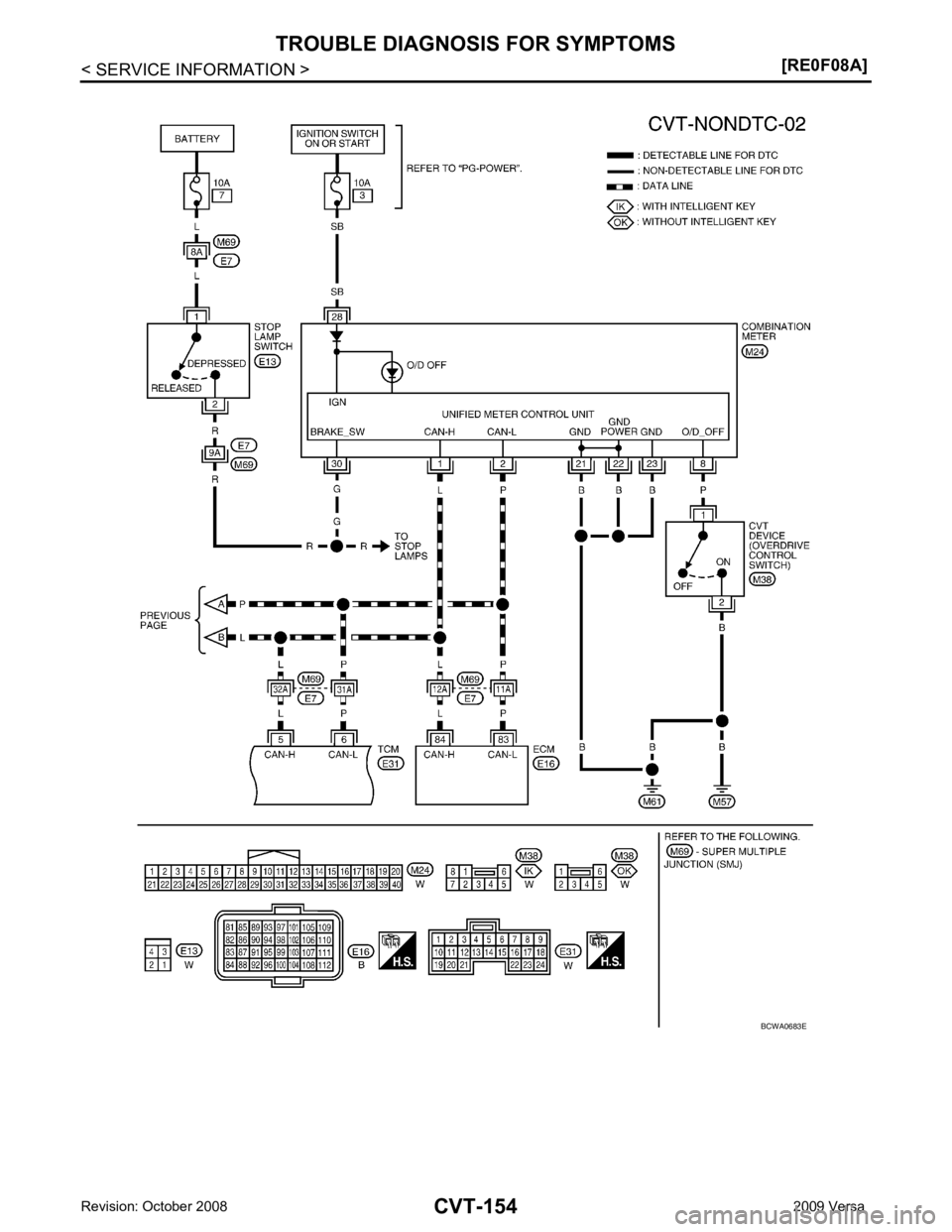

NISSAN TIIDA 2009 Service Repair Manual

Page 1099 of 4331

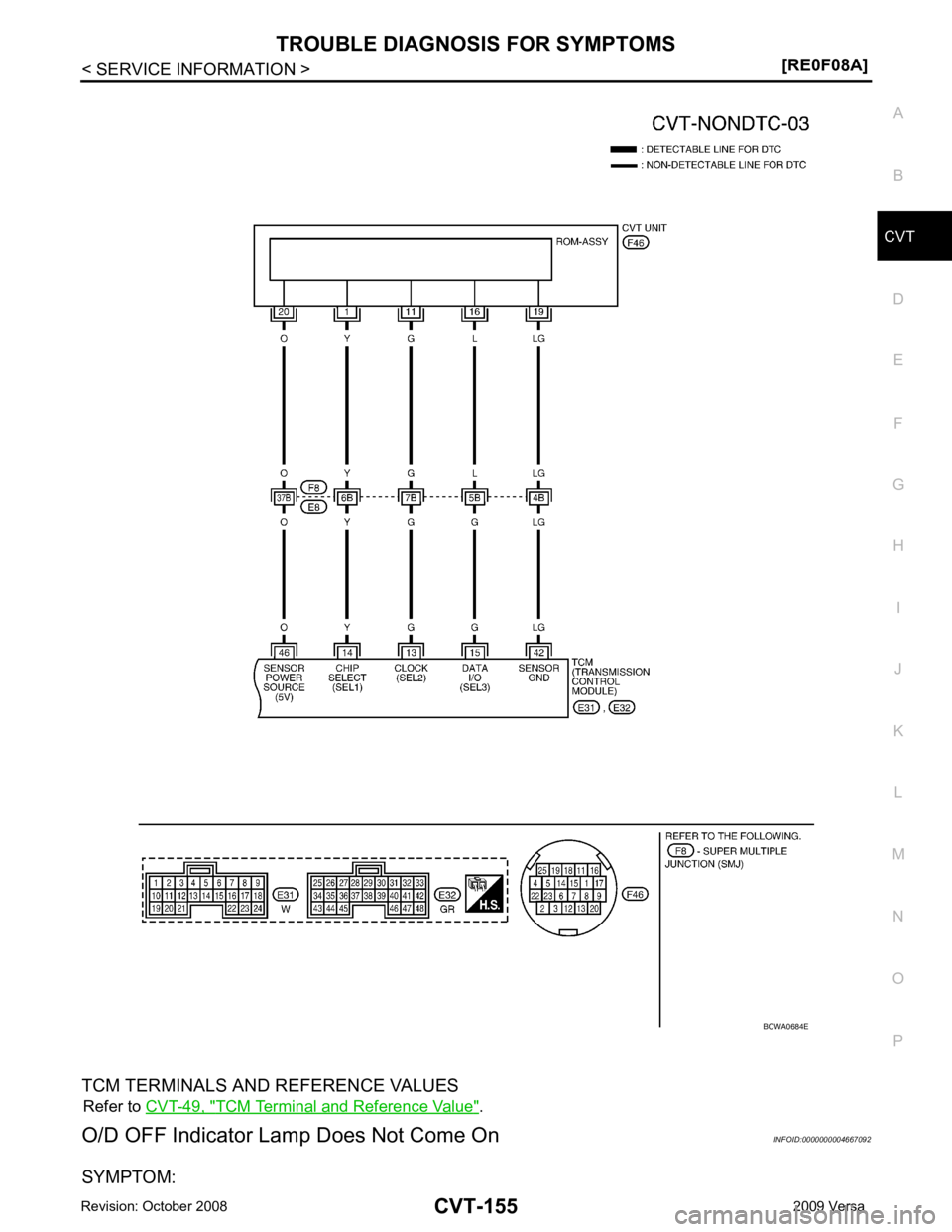

NISSAN TIIDA 2009 Service Repair Manual CVT N O P TCM TERMINALS AND REFERENCE VALUES Refer to CVT-49, " TCM Terminal and Reference Value " . O/D OFF Indicator Lamp Does Not Come On INFOID:0000000004667092 SYMPTOM:

Page 1100 of 4331

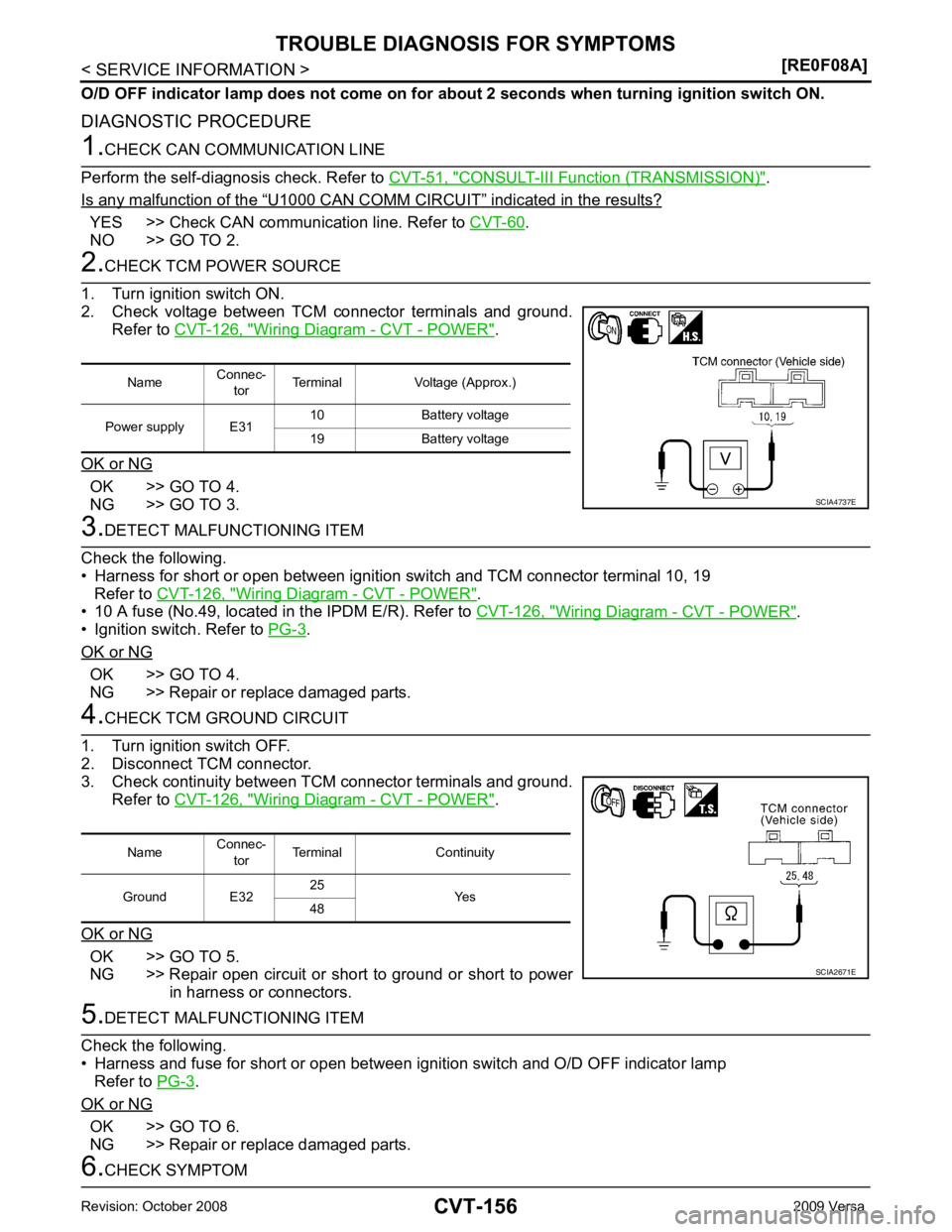

NISSAN TIIDA 2009 Service Repair Manual CONSULT-III Function (TRANSMISSION) " . Is any malfunction of the “ U1000 CAN COMM CIRCUIT ” indicated in the results? YES >> Check CAN communication line. Refer to CVT-60 . NO >> GO TO 2. Wiri

Page 1101 of 4331

NISSAN TIIDA 2009 Service Repair Manual CVT N O P Check again. Refer to CVT-45, " Check before Engine Is Started " . OK or NG OK >> INSPECTION END NG >> GO TO 7. OK or NG OK >> INSPECTION END NG >> Repair or replace damaged parts. Engine C

Page 1102 of 4331

NISSAN TIIDA 2009 Service Repair Manual OK >> INSPECTION END NG >> Replace the transaxle assembly. Refer to CVT-182, " Removal and Installation " . In "N" Position, Vehicle Moves INFOID:0000000004667095 SYMPTOM: Vehicle moves forward or ba

Page 1103 of 4331

NISSAN TIIDA 2009 Service Repair Manual CVT N O P OK >> GO TO 3. NG >> Repair. Checking CVT Fluid " . OK or NG OK >> GO TO 4. NG >> Refill CVT fluid. Inspections before Trouble Diagnosis " . OK or NG OK >> GO TO 5. NG >> Check the malfuncti

Page 1104 of 4331

NISSAN TIIDA 2009 Service Repair Manual Inspections before Trouble Diagnosis " . Inspections before Trouble Diagnosis " . OK or NG OK >> GO TO 6. NG >> Check the malfunctioning item. Refer to CVT-40, " Inspections before Trouble Diagnosis
