Page 777 of 4331

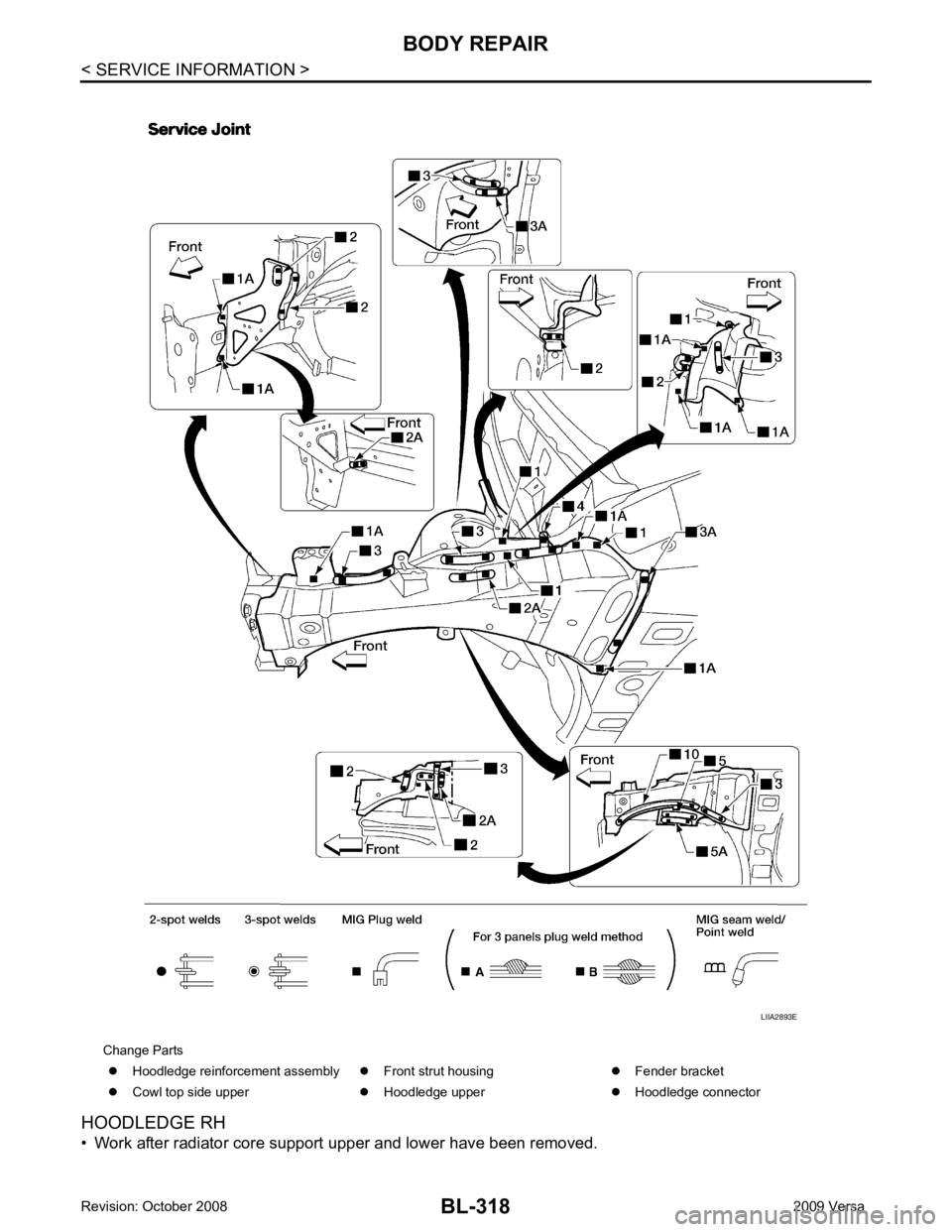

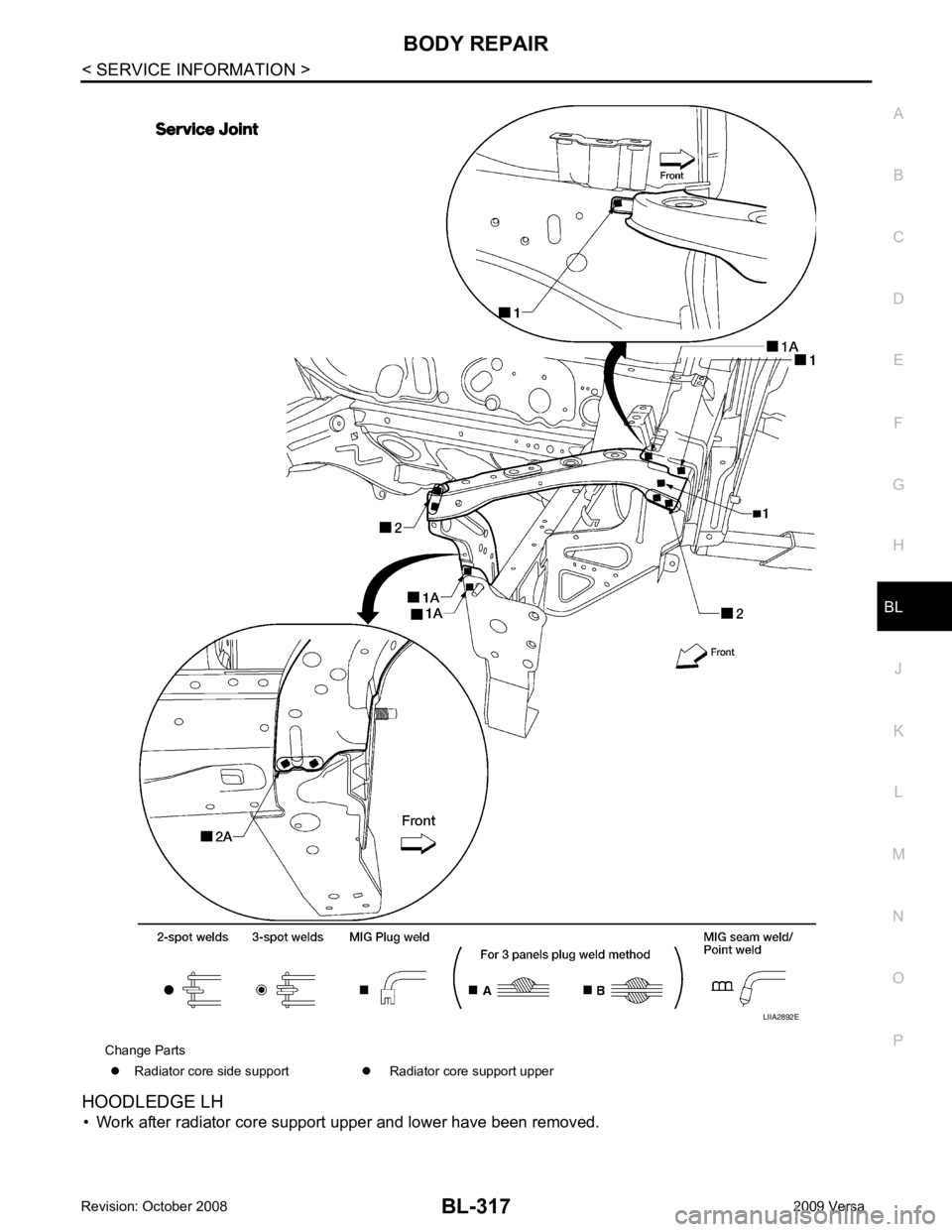

NISSAN TIIDA 2009 Service Repair Manual PIIA0151E PIIA0152E PIIA0153E

Page 778 of 4331

NISSAN TIIDA 2009 Service Repair Manual BL N O P HOODLEDGE LH • Work after radiator core support upper and lower have been removed. Change Parts �z Radiator core side support �z Radiator core support upper

Page 779 of 4331

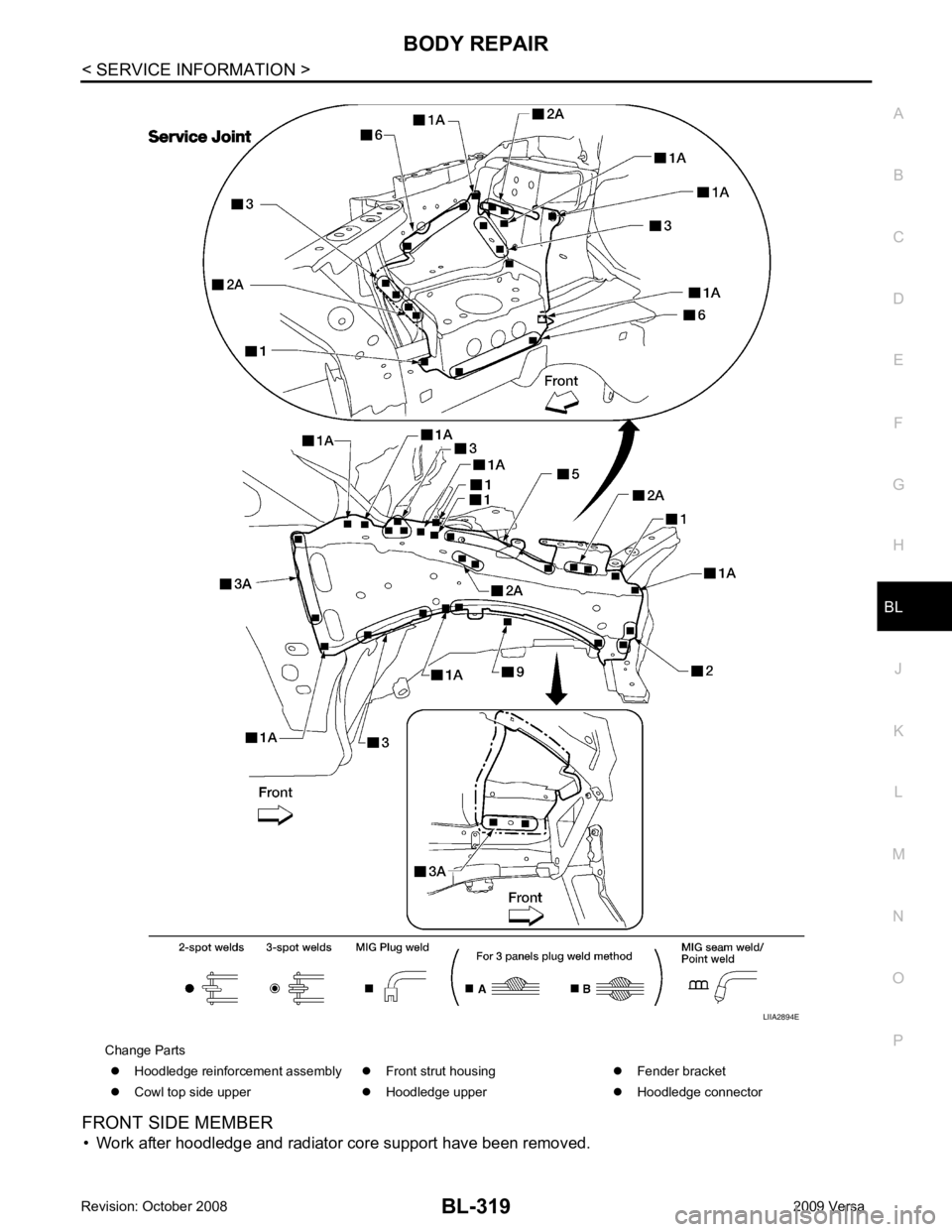

NISSAN TIIDA 2009 Service Repair Manual

Page 780 of 4331

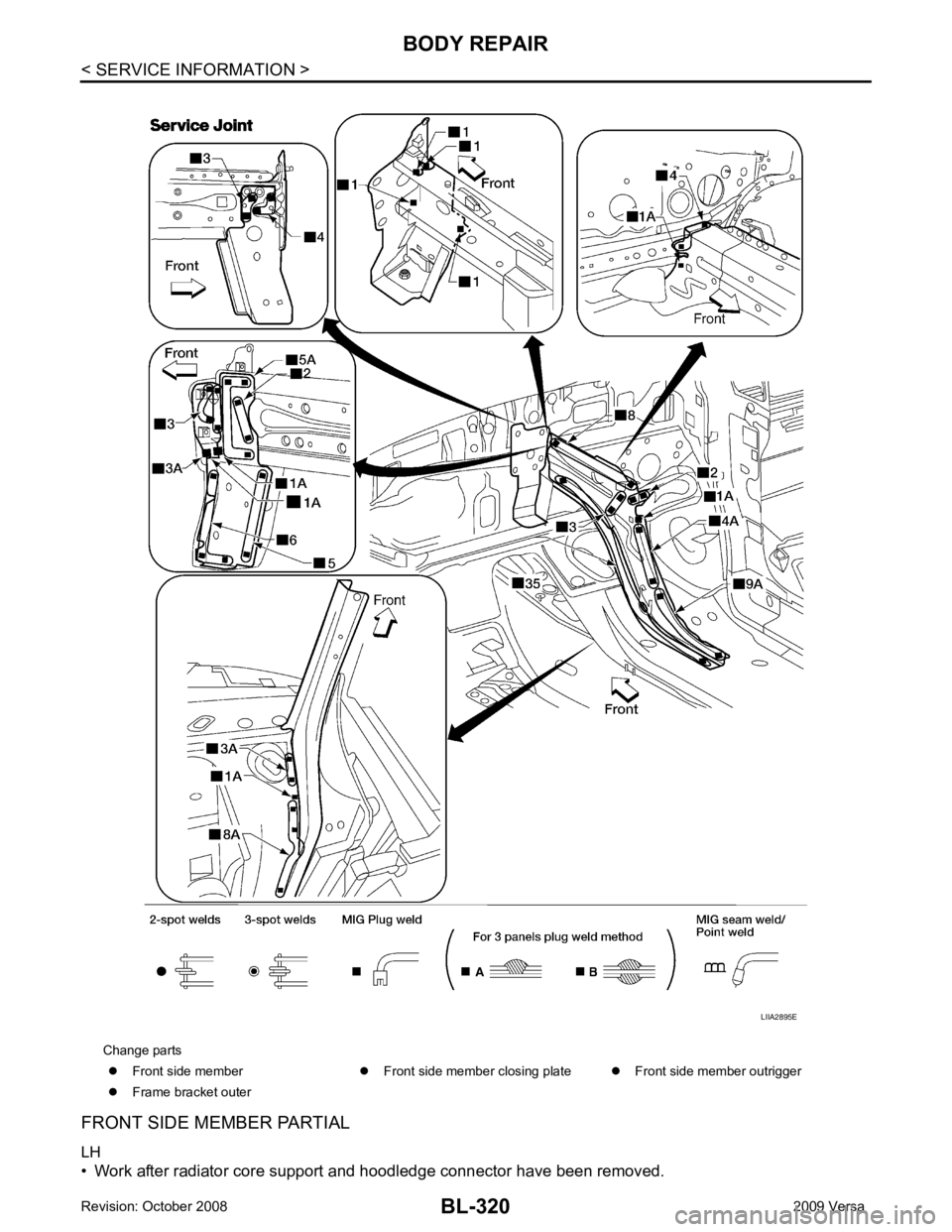

NISSAN TIIDA 2009 Service Repair Manual BL N O P FRONT SIDE MEMBER • Work after hoodledge and radiator core support have been removed. Change Parts �z Hoodledge reinforcement assembly �zFront strut housing �zFender bracket �z Cowl top sid

Page 781 of 4331

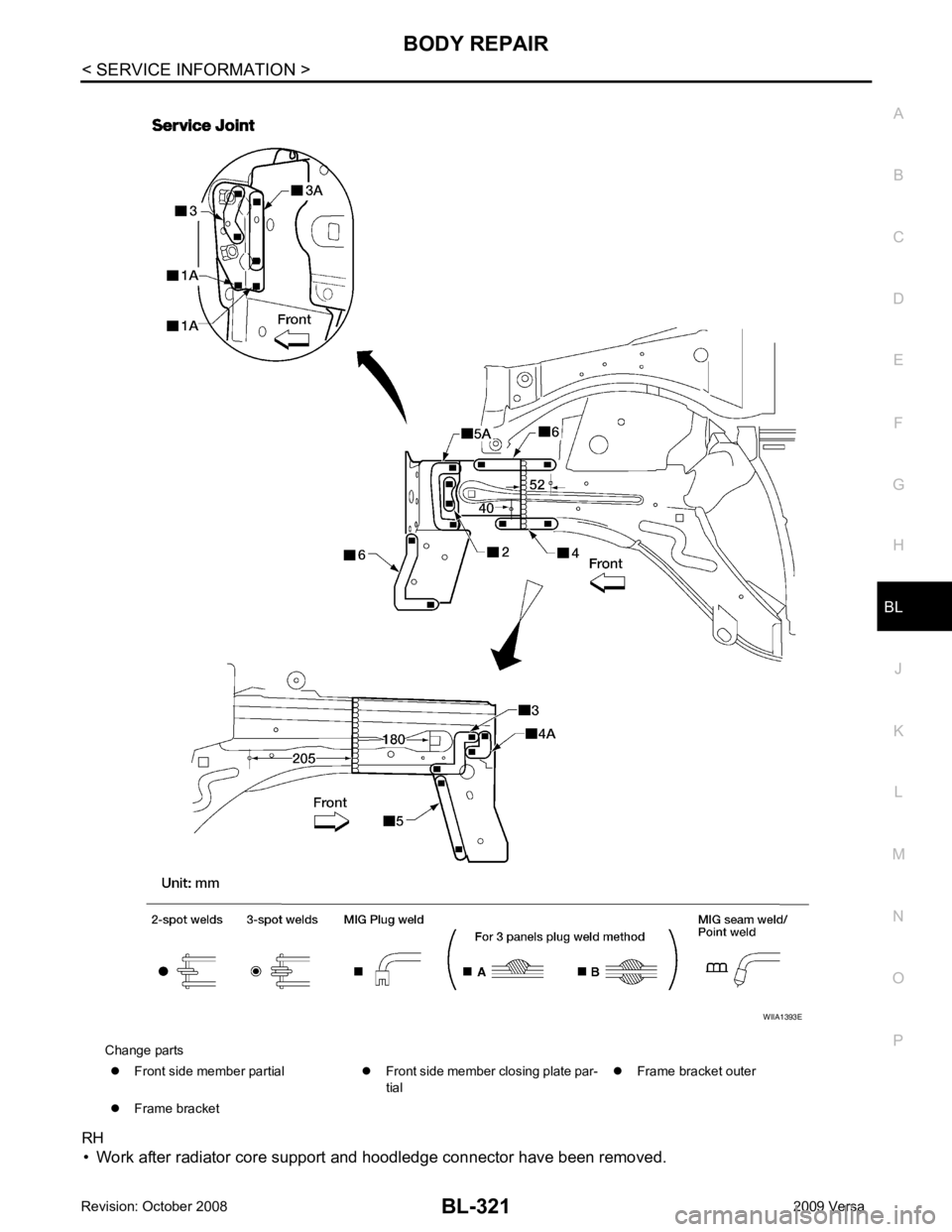

NISSAN TIIDA 2009 Service Repair Manual

Page 782 of 4331

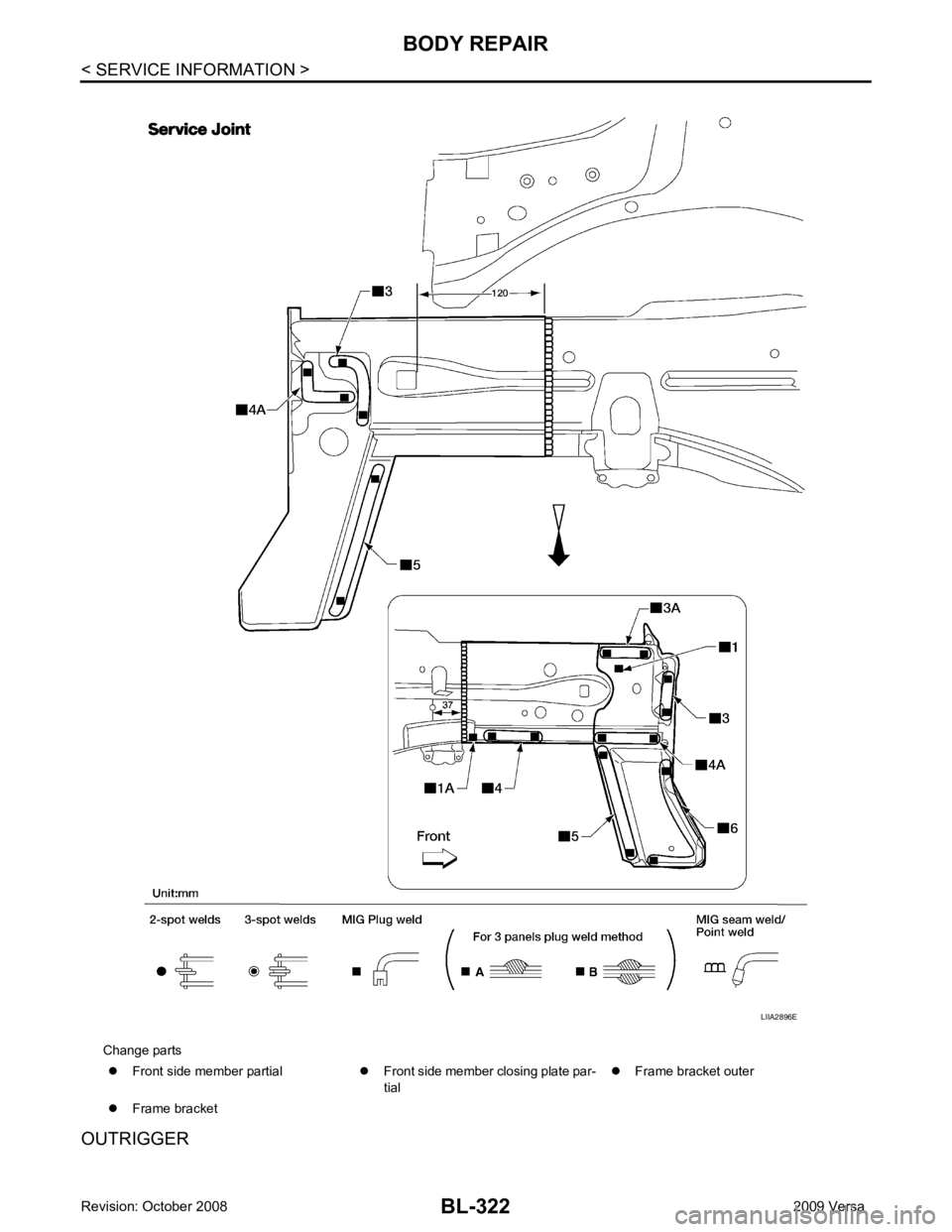

NISSAN TIIDA 2009 Service Repair Manual BL N O P RH • Work after radiator core support and hoodledge connector have been removed. Change parts �z Front side member partial �zFront side member closing plate par- tial �z Frame bracket outer

Page 783 of 4331

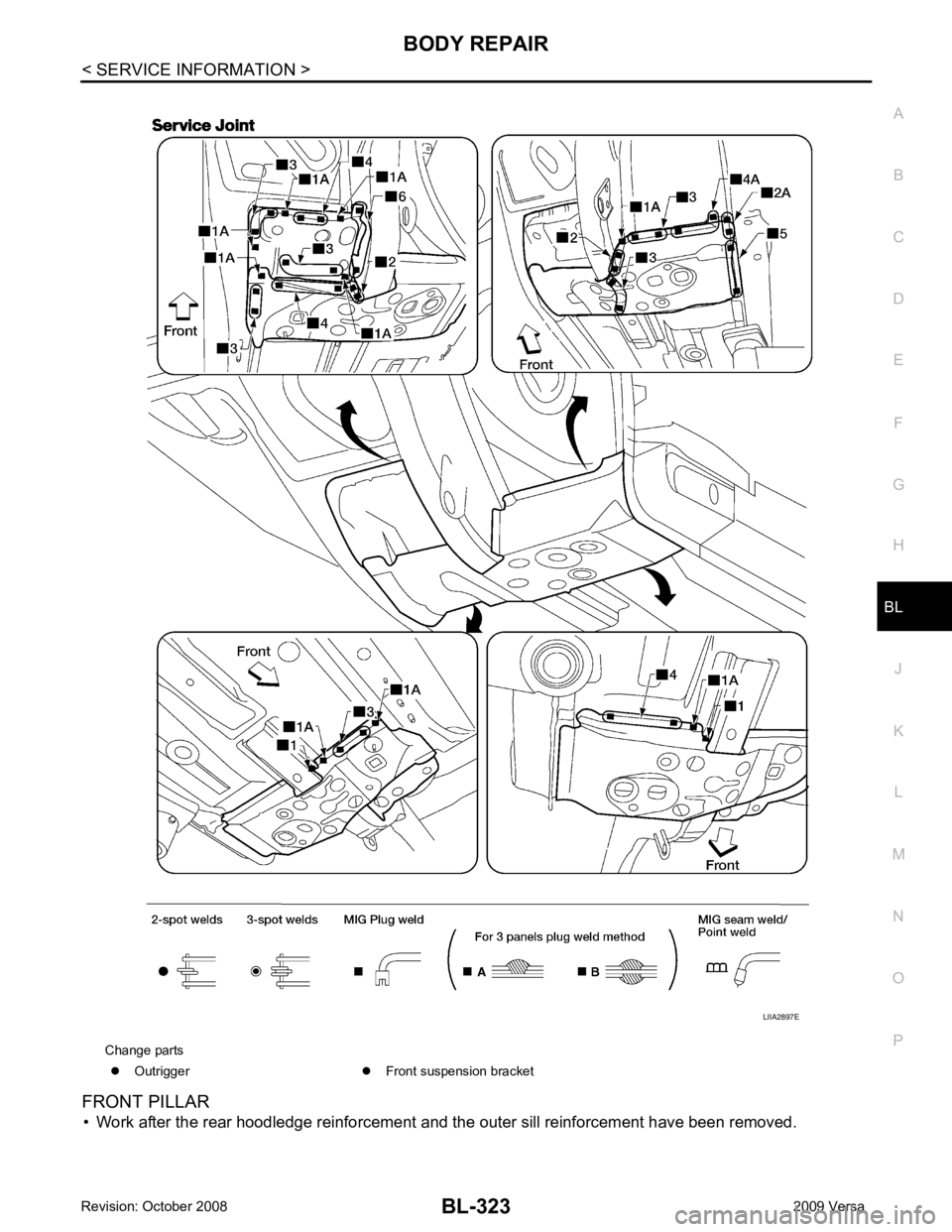

NISSAN TIIDA 2009 Service Repair Manual

Page 784 of 4331

NISSAN TIIDA 2009 Service Repair Manual BL N O P FRONT PILLAR • Work after the rear hoodledge reinforcement and the outer sill reinforcement have been removed. Change parts �z Outrigger �zFront suspension bracket
