NISSAN TIIDA 2009 Service Repair Manual DTC P2135 TP SENSOR
EC-1477
< SERVICE INFOMATION >
[MR TYPE 2] C
D E
F
G H
I
J
K L
M A EC
NP
O
3. If DTC is detected, go to
EC-1478, " Diagnosis Procedure " .

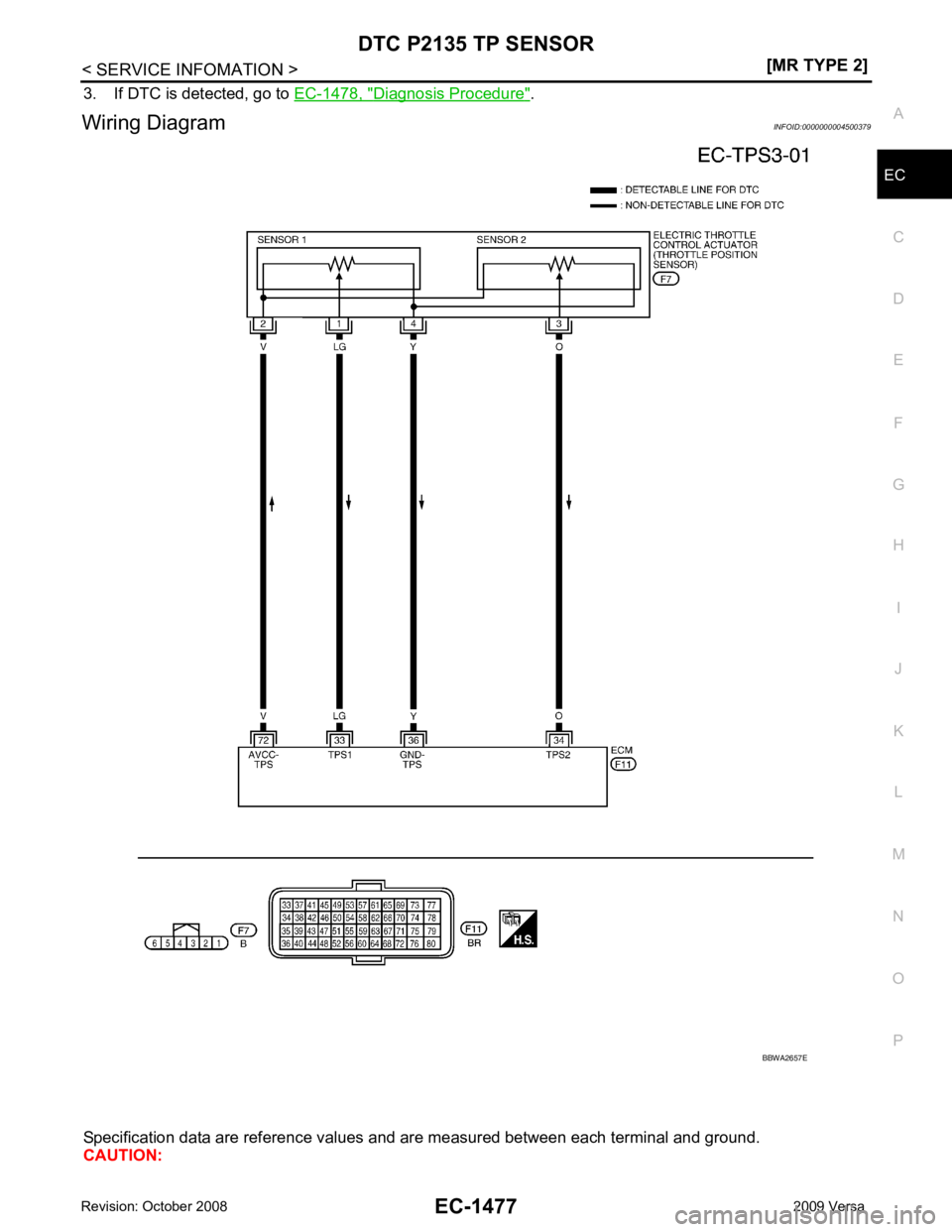

Wiring Diagram INFOID:0000000004500379
S

Page 2834 of 4331

NISSAN TIIDA 2009 Service Repair Manual EC-1478< SERVICE INFOMATION >
[MR TYPE 2]
DTC P2135 TP SENSOR
Do not use ECM ground terminals when measuring in put/output voltage. Doing so may result in dam-
age to the ECMs transistor. Use a groun

Page 2835 of 4331

NISSAN TIIDA 2009 Service Repair Manual DTC P2135 TP SENSOR
EC-1479
< SERVICE INFOMATION >
[MR TYPE 2] C
D E
F
G H
I
J
K L
M A EC
NP
O
1. Disconnect electric throttle c
ontrol actuator (1) harness connec-
tor.
- : Vehicle front
2. Turn igni

Page 2836 of 4331

NISSAN TIIDA 2009 Service Repair Manual EC-1480< SERVICE INFOMATION >
[MR TYPE 2]
DTC P2135 TP SENSOR
3. Perform EC-1084, " Idle Air Volume Learning " .
>> INSPECTION END 7.
CHECK INTERMITTENT INCIDENT
Refer to EC-1138 .
>> INSPECTION END

Page 2837 of 4331

NISSAN TIIDA 2009 Service Repair Manual DTC P2138 APP SENSOR
EC-1481
< SERVICE INFOMATION >
[MR TYPE 2] C
D E
F
G H
I
J
K L
M A EC
NP
O
DTC P2138 APP SENSOR
Component Description INFOID:0000000004501218
The accelerator pedal position se

DTC P2138 APP SENSOR
EC-1481
< SERVICE INFOMATION >
[MR TYPE 2] C
D E
F
G H
I
J
K L
M A EC
NP
O
DTC P2138 APP SENSOR
Component Description INFOID:0000000004501218
The accelerator pedal position sensor is installed on the upper end
of the accelerator pedal assembly. The sensor detects the accelera-
tor position and sends a signal to the ECM.
Accelerator pedal position sensor has two sensors. These sensors
are a kind of potentiometers which transform the accelerator pedal
position into output voltage, and emit the voltage signal to the ECM.
In addition, these sensors detect the opening and closing speed of
the accelerator pedal and feed the voltage signals to the ECM. The
ECM judges the current opening angle of the accelerator pedal from
these signals and controls the throttle control motor based on these
signals.
Idle position of the accelerato r pedal is determined by the ECM
receiving the signal from the accelerator pedal positi on sensor. The ECM uses this signal for the engine oper-
ation such as fuel cut.
CONSULT-III Reference Val ue in Data Monitor Mode INFOID:0000000004501219
Specification data are reference values.
*: Accelerator pedal position sensor 2 signal is converted by ECM internally. Thus, it differs from ECM terminal voltage.
On Board Diagnosis Logic INFOID:0000000004500385
This self-diagnosis has the on e trip detection logic.
NOTE:
If DTC P2138 is displayed with DTC P0643, first perform the trouble diagnosis for DTC P0643.
Refer to EC-1396 .
FAIL-SAFE MODE When the malfunction is detected, ECM ent ers fail-safe mode and the MIL lights up. PBIB1741E
MONITOR ITEM CONDITION SPECIFICATION
ACCEL SEN 1 • Ignition switch: ON
(Engine stopped) Accelerator pedal: Fully released 0.6 - 0.9V
Accelerator pedal: Fully depressed 4.0 - 4.8V
ACCEL SEN 2* • Ignition switch: ON
(Engine stopped) Accelerator pedal: Fully released 0.6 - 0.9V
Accelerator pedal: Fully depressed 3.9 - 4.8V
CLSD THL POS • Ignition switch: ON
(Engine stopped) Accelerator pedal: Fully released ON
Accelerator pedal: Slightly depressed OFF DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P2138
2138 Accelerator
pedal posi-
tion sensor circuit range/
performance Rationally incorrect voltage is sent to ECM
compared with the signals from APP sensor 1
and APP sensor 2. • Harness or connector
(APP sensor 1 and 2 circuit is open or
shorted.)
[Crankshaft position sensor (POS) circuit
is shorted.]
(EVAP control system pressure sensor
circuit is shorted.)
(Refrigerant pressure sensor circuit is
shorted.)
• Accelerator pedal position sensor (APP sensor 1 and 2)
• Crankshaft position sensor (POS)
• EVAP control system pressure sensor
• Refrigerant pressure sensor

Page 2838 of 4331

NISSAN TIIDA 2009 Service Repair Manual Diagnosis Procedure " .
Engine operating condition in fail-safe mode
The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be wi

Page 2839 of 4331

NISSAN TIIDA 2009 Service Repair Manual DTC P2138 APP SENSOR
EC-1483
< SERVICE INFOMATION >
[MR TYPE 2] C
D E
F
G H
I
J
K L
M A EC
NP
O

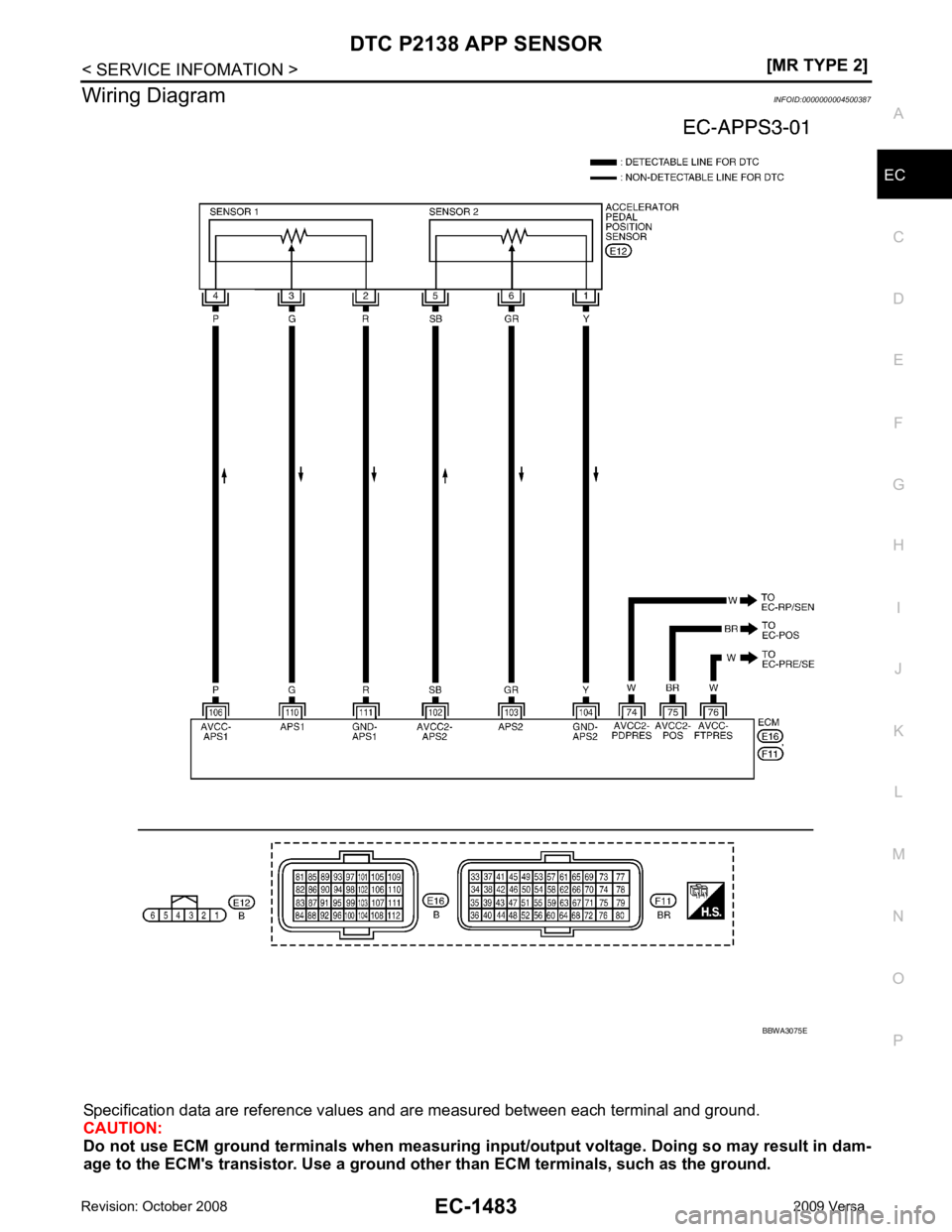

Wiring Diagram
INFOID:0000000004500387
Specification data are reference values and are measured between

Page 2840 of 4331

NISSAN TIIDA 2009 Service Repair Manual EC-1484< SERVICE INFOMATION >
[MR TYPE 2]
DTC P2138 APP SENSOR
Diagnosis Procedure INFOID:00000000045003881.
CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground screws
