DTC P0448 EVAP CANISTER VENT CONTROL VALVE
DTC P0448 EVAP CANISTER VENT CONTROL VALVE
Component Description INFOID:0000000004501189
The EVAP canister vent

EC-1342< SERVICE INFOMATION >
[MR TYPE 2]
DTC P0448 EVAP CANISTER VENT CONTROL VALVE
DTC P0448 EVAP CANISTER VENT CONTROL VALVE
Component Description INFOID:0000000004501189
The EVAP canister vent control valve (3) is located on the EVAP
canister (2) and is used to seal the canister vent.
This solenoid valve responds to signals from the ECM. When the
ECM sends an ON signal, the coil in the solenoid valve is energized.
A plunger will then move to seal the canister vent. The ability to seal
the vent is necessary for the on board diagnosis of other evaporative
emission control system components.
This solenoid valve is used only for diagnosis, and usually remains
opened.
When the vent is closed, under normal purge conditions, the evapo-
rative emission control system is depressurized and allows EVAP
control system diagnoses.
• EVAP control system pressure sensor (1)
CONSULT-III Reference Value in Data Monitor Mode INFOID:0000000004501190
Specification data are reference values.
On Board Diagn osis Logic INFOID:0000000004500203
DTC Confirmation Procedure INFOID:0000000004500204
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
1. Turn ignition switch ON and wait at least 5 seconds.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Start engine and let it idle for at least 1 minute.
4. Repeat next procedures three times. PBIB3642E
BBIA0693E
MONITOR ITEM CONDITION SPECIFICATION
VENT CONT/V • Ignition switch: ON OFF DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0448
0448 EVAP canister vent con-
trol valve close EVAP canister vent control valve remains
closed under specified driving conditions. • EVAP canister vent control valve
• EVAP control system pressure sensor and the circuit
• Blocked rubber tube to EVAP canister
vent control valve
• Drain filter
• EVAP canister is saturated with water

Page 2699 of 4331

NISSAN TIIDA 2009 Service Repair Manual DTC P0448 EVAP CANISTER
VENT CONTROL VALVE
EC-1343
< SERVICE INFOMATION >
[MR TYPE 2] C
D E
F
G H
I
J
K L
M A EC
NP
O

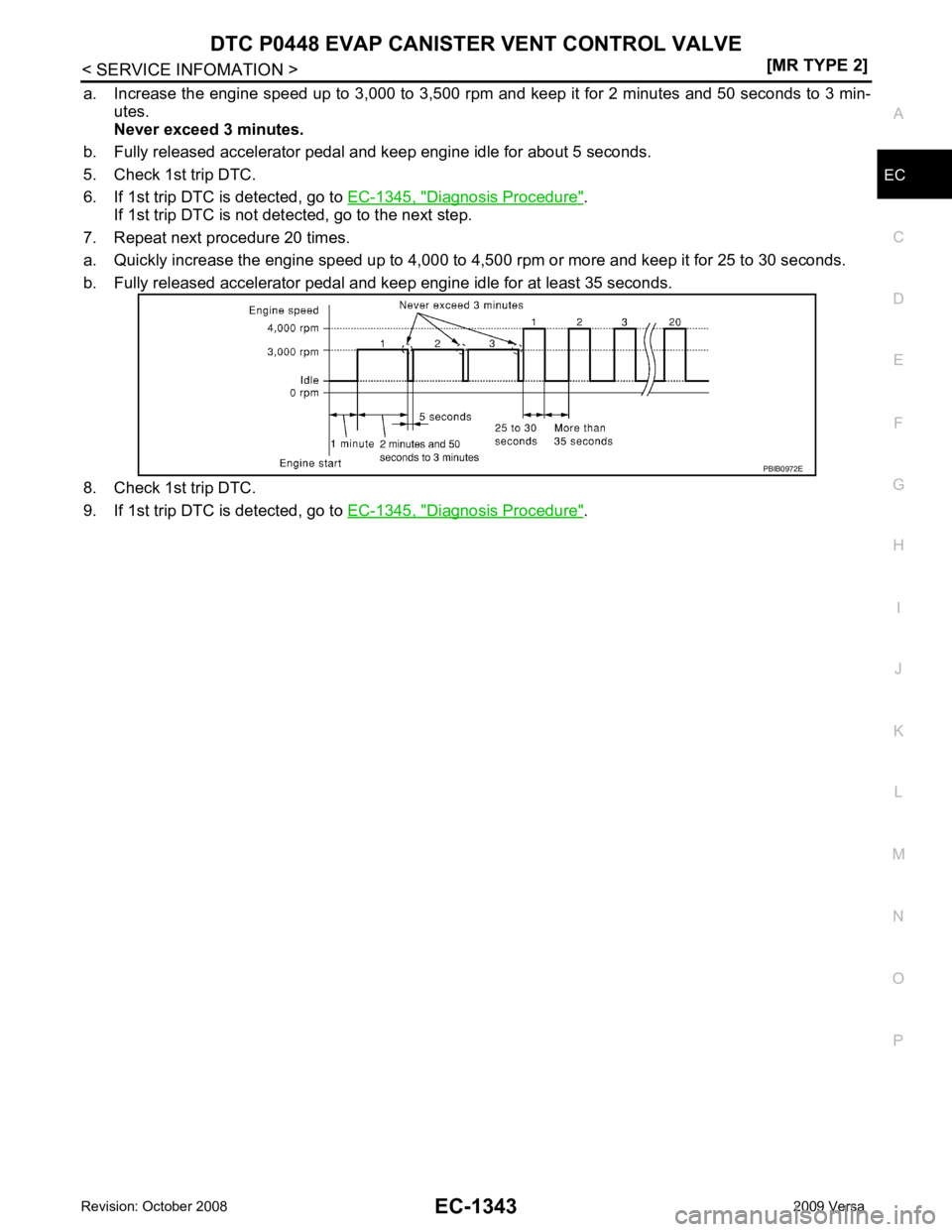

a. Increase the engine speed up to 3,000 to 3,500 rpm and keep it for 2 minutes a

Page 2700 of 4331

NISSAN TIIDA 2009 Service Repair Manual EC-1344< SERVICE INFOMATION >
[MR TYPE 2]
DTC P0448 EVAP CANISTER VENT CONTROL VALVE
Wiring Diagram INFOID:0000000004501191

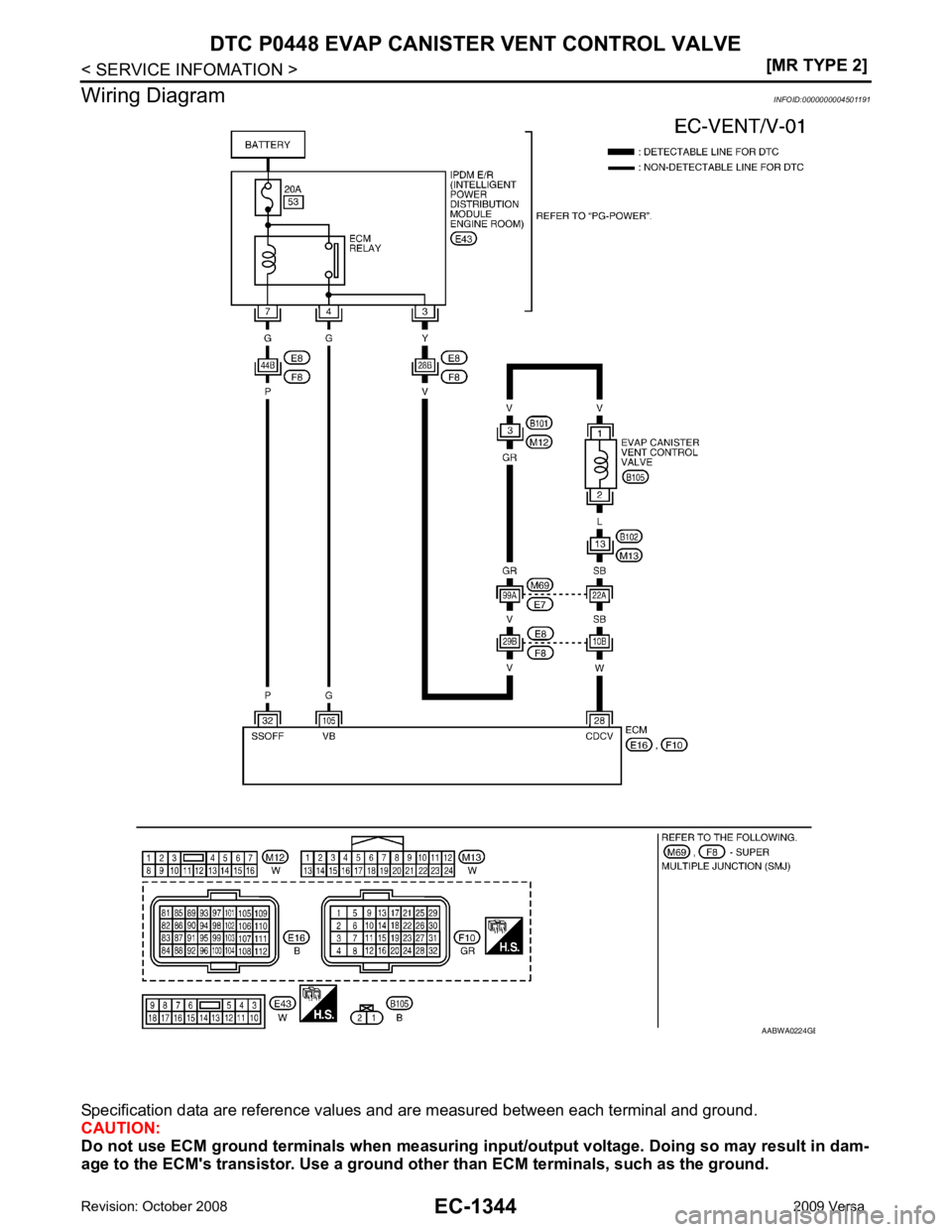

Specification data are reference values and are measured between each termin

Page 2701 of 4331

NISSAN TIIDA 2009 Service Repair Manual DTC P0448 EVAP CANISTER
VENT CONTROL VALVE
EC-1345
< SERVICE INFOMATION >
[MR TYPE 2] C
D E
F
G H
I
J
K L
M A EC
NP
O
Diagnosis Procedure
INFOID:00000000045002061.
CHECK RUBBER TUBE
1. Turn ignition

Page 2702 of 4331

NISSAN TIIDA 2009 Service Repair Manual EC-1346< SERVICE INFOMATION >
[MR TYPE 2]
DTC P0448 EVAP CANISTER VENT CONTROL VALVE
2. Does water drain from the EVAP canister.
Yes or No Yes >> GO TO 5.
No >> GO TO 7. 5.
CHECK EVAP CANISTER
Wei

Page 2703 of 4331

NISSAN TIIDA 2009 Service Repair Manual DTC P0448 EVAP CANISTER
VENT CONTROL VALVE
EC-1347
< SERVICE INFOMATION >
[MR TYPE 2] C
D E
F
G H
I
J
K L
M A EC
NP
O
With CONSULT-III
1. Remove EVAP canister vent c ontrol valve from EVAP canister.

Page 2704 of 4331

NISSAN TIIDA 2009 Service Repair Manual EC-1348< SERVICE INFOMATION >
[MR TYPE 2]
DTC P0451 EVAP CONTROL
SYSTEM PRESSURE SENSOR
DTC P0451 EVAP CONTROL SYSTEM PRESSURE SENSOR
Component Description INFOID:0000000004500208
The EVAP control
