NISSAN TIIDA 2009 Service Repair Manual DTC P2127, P2128 APP SENSOR
EC-1469
< SERVICE INFOMATION >
[MR TYPE 2] C
D E
F
G H
I
J
K L
M A EC
NP
O
DTC P2127, P2128 APP SENSOR
Component Description INFOID:0000000004501216
The accelerator pedal

DTC P2127, P2128 APP SENSOR
EC-1469
< SERVICE INFOMATION >
[MR TYPE 2] C
D E
F
G H
I
J
K L
M A EC
NP
O
DTC P2127, P2128 APP SENSOR
Component Description INFOID:0000000004501216
The accelerator pedal position sensor is installed on the upper end
of the accelerator pedal assembly. The sensor detects the accelera-
tor position and sends a signal to the ECM.
Accelerator pedal position sensor has two sensors. These sensors
are a kind of potentiometers which transform the accelerator pedal
position into output voltage, and emit the voltage signal to the ECM.
In addition, these sensors detect the opening and closing speed of
the accelerator pedal and feed the voltage signals to the ECM. The
ECM judges the current opening angle of the accelerator pedal from
these signals and controls the throttle control motor based on these
signals.
Idle position of the accelerato r pedal is determined by the ECM
receiving the signal from the accelerator pedal positi on sensor. The ECM uses this signal for the engine oper-
ation such as fuel cut.
CONSULT-III Reference Val ue in Data Monitor Mode INFOID:0000000004501217
Specification data are reference values.
*: Accelerator pedal position sensor 2 signal is converted by ECM internally. Thus, it differs from ECM terminal voltage.
On Board Diagnosis Logic INFOID:0000000004500369
These self-diagnoses have the on e trip detection logic.
FAIL-SAFE MODE When the malfunction is detected, ECM ent ers fail-safe mode and the MIL lights up. PBIB1741E
MONITOR ITEM CONDITION SPECIFICATION
ACCEL SEN 1 • Ignition switch: ON
(Engine stopped) Accelerator pedal: Fully released 0.6 - 0.9V
Accelerator pedal: Fully depressed 4.0 - 4.8V
ACCEL SEN 2* • Ignition switch: ON
(Engine stopped) Accelerator pedal: Fully released 0.6 - 0.9V
Accelerator pedal: Fully depressed 3.9 - 4.8V
CLSD THL POS • Ignition switch: ON
(Engine stopped) Accelerator pedal: Fully released ON
Accelerator pedal: Slightly depressed OFF DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P2127
2127 Accelerator pedal position
sensor 2 circuit low input An excessively low
voltage from the APP
sensor 2 is sent to ECM. • Harness or connectors
(APP sensor 2 circuit is open or shorted.)
[Crankshaft position sensor (POS) circuit
is shorted.]
(EVAP control system pressure sensor
circuit is shorted.)
(Refrigerant pressure sensor circuit is
shorted.)
• EVAP control system pressure sensor
• Accelerator pedal position sensor (APP sensor 2)
• Crankshaft position sensor (POS)
• Refrigerant pressure sensor
P2128
2128 Accelerator pedal position
sensor 2 circuit high input An excessively high
voltage from the APP
sensor 2 is sent to ECM. Engine operating condition in fail-safe mode
The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal condition.
So, the acceleration will be poor.

Page 2826 of 4331

NISSAN TIIDA 2009 Service Repair Manual Diagnosis Procedure " .

Page 2827 of 4331

NISSAN TIIDA 2009 Service Repair Manual DTC P2127, P2128 APP SENSOR
EC-1471
< SERVICE INFOMATION >
[MR TYPE 2] C
D E
F
G H
I
J
K L
M A EC
NP
O

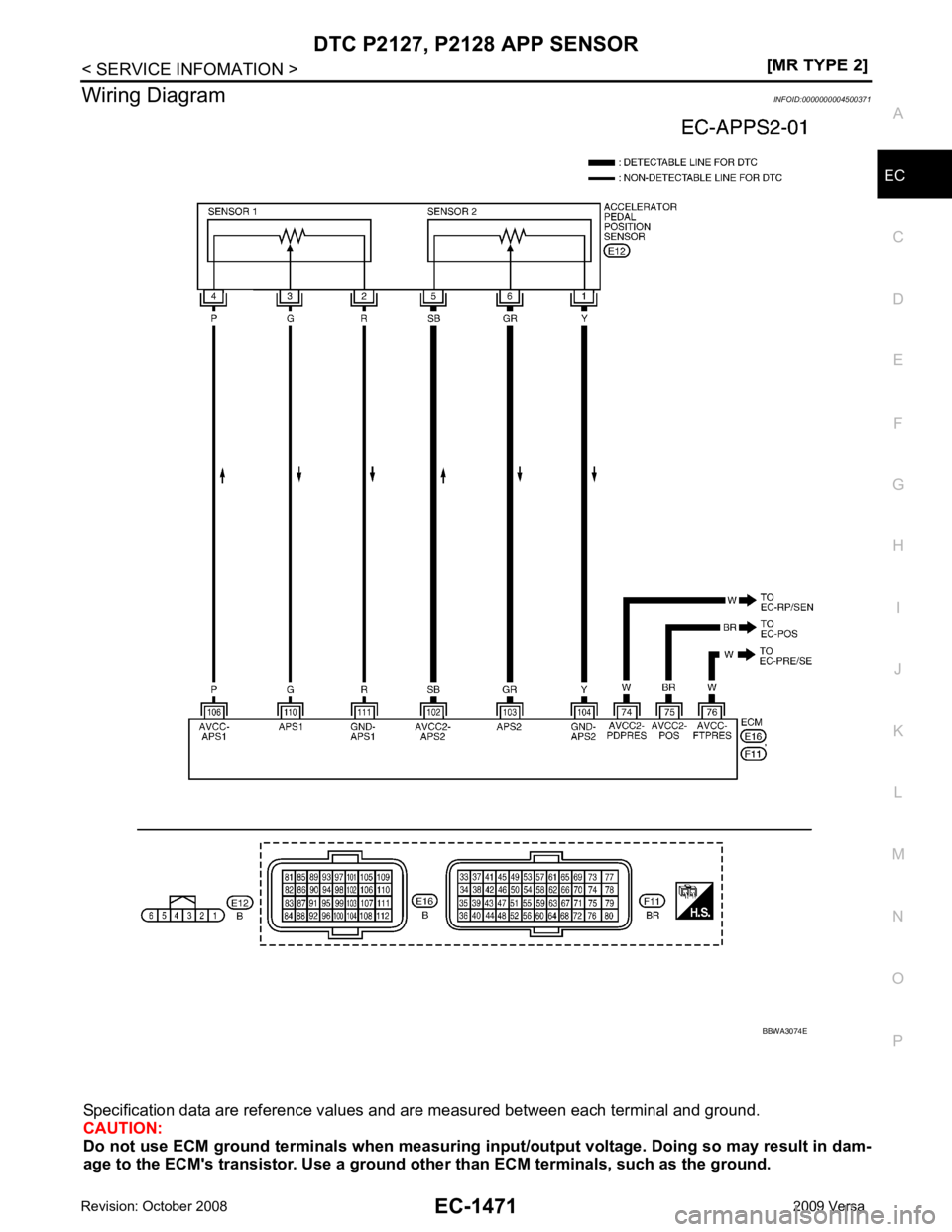

Wiring Diagram
INFOID:0000000004500371
Specification data are reference values and are measured

Page 2828 of 4331

NISSAN TIIDA 2009 Service Repair Manual EC-1472< SERVICE INFOMATION >
[MR TYPE 2]
DTC P2127, P2128 APP SENSOR
Diagnosis Procedure INFOID:00000000045003721.
CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground

Page 2829 of 4331

NISSAN TIIDA 2009 Service Repair Manual DTC P2127, P2128 APP SENSOR
EC-1473
< SERVICE INFOMATION >
[MR TYPE 2] C
D E
F
G H
I
J
K L
M A EC
NP
O
OK or NG OK >> GO TO 2.
NG >> Repair or replace ground connections. 2.
CHECK APP SENSOR 2 POWER S

Page 2830 of 4331

NISSAN TIIDA 2009 Service Repair Manual .)
OK or NG OK >> GO TO 10.
NG >> Replace malfunctioning component. OK >> GO TO 7.
NG >> Repair open circuit or short to ground or short to power in harness or connectors. OK >> GO TO 8.
NG >> Repair

Page 2831 of 4331

NISSAN TIIDA 2009 Service Repair Manual DTC P2127, P2128 APP SENSOR
EC-1475
< SERVICE INFOMATION >
[MR TYPE 2] C
D E
F
G H
I
J
K L
M A EC
NP
O
3. Check voltage between ECM terminals 110 (APP sensor 1 sig-
nal), 103 (APP sensor 2 si

Page 2832 of 4331

NISSAN TIIDA 2009 Service Repair Manual EC-1476< SERVICE INFOMATION >
[MR TYPE 2]
DTC P2135 TP SENSOR
DTC P2135 TP SENSOR
Component Description INFOID:0000000004501174
Electric throttle control actuator consists of throttle control

EC-1476< SERVICE INFOMATION >
[MR TYPE 2]
DTC P2135 TP SENSOR
DTC P2135 TP SENSOR
Component Description INFOID:0000000004501174
Electric throttle control actuator consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.
The throttle position sensor has two sensors. These sensors are a
kind of potentiometers which transform the throttle valve position into
output voltage, and emit the voltage signal to the ECM. In addition,
these sensors detect the opening and closing speed of the throttle
valve and feed the voltage signals to the ECM. The ECM judges the
current opening angle of the throttle valve from these signals and the
ECM controls the throttle control motor to make the throttle valve
opening angle properly in response to driving condition.
CONSULT-III Reference Value in Data Monitor Mode INFOID:0000000004501175
Specification data are reference values.
*: Throttle position sensor 2 signal is converted by ECM internally. Thus, it differs from ECM terminal voltage signal.
On Board Diagn osis Logic INFOID:0000000004500377
This self-diagnosis has the one trip detection logic.
NOTE:
If DTC P2135 is displayed with DTC P0643, firs t perform the trouble diagnosis for DTC P0643.
Refer to EC-1396 .
FAIL-SAFE MODE
When the malfunction is detected, the ECM enters fail-safe mode and the MIL lights up.
DTC Confirmation Procedure INFOID:0000000004500378
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 8V at idle.
1. Start engine and let it idle for 1 second.
2. Check DTC. PBIB0145E
MONITOR ITEM CONDITION SPECIFICATION
TP SEN 1-B1
TP SEN 2-B1* • Ignition switch: ON
(Engine stopped)
• Shift lever: D (A/T, CVT),
1st (M/T) Accelerator pedal: Fully released More than 0.36V
Accelerator pedal: Fully depressed Less than 4.75V DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P2135
2135 Throttle position sensor
circuit range/performance Rationally incorrect voltage is sent to ECM
compared with the signals from TP sensor 1
and TP sensor 2. • Harness or connector
(TP sensor 1 and 2 circuit is open or short-
ed.)
• Electric throttle control actuator (TP sensor 1 and 2) Engine operation condition in fail-safe mode
The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal condition.
So, the acceleration will be poor.
