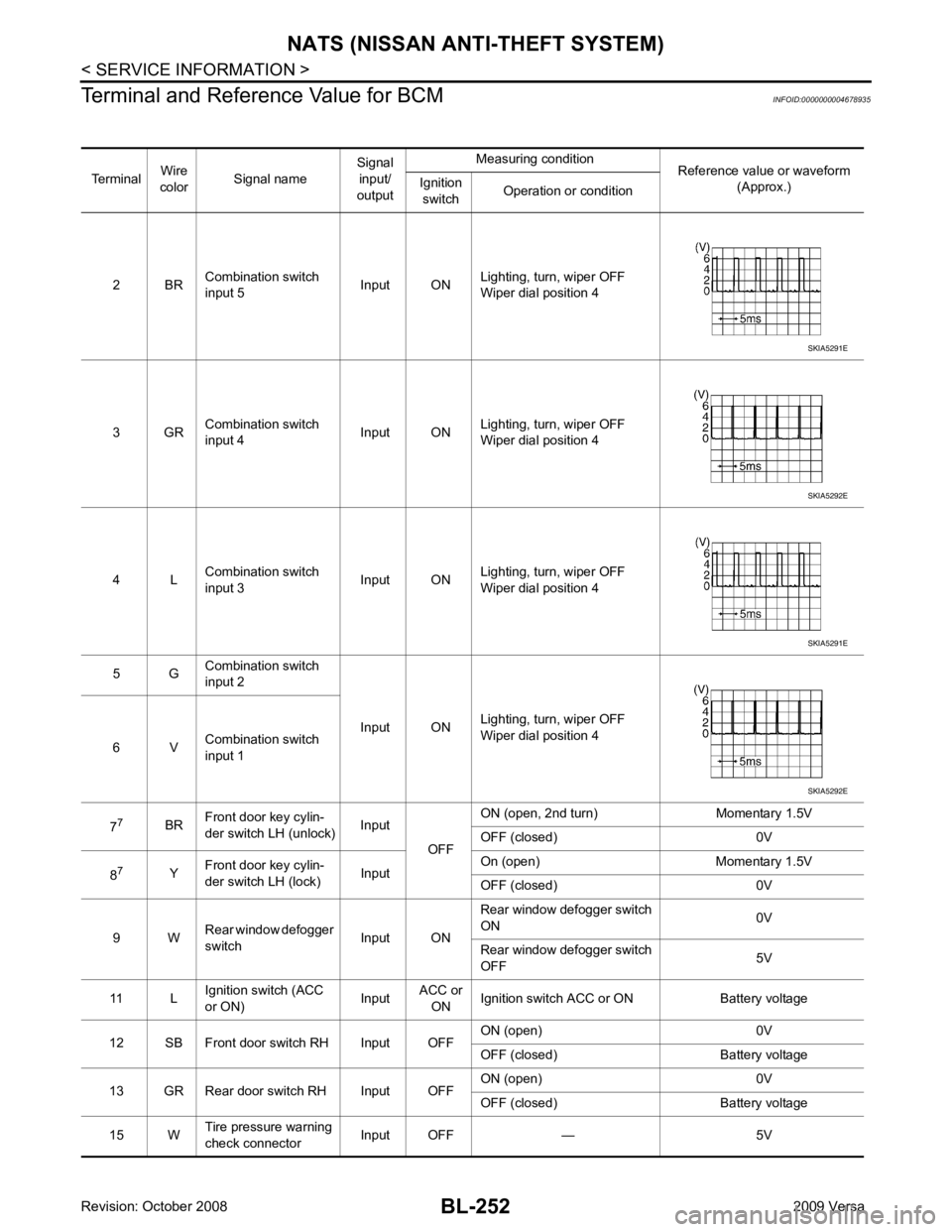

NISSAN TIIDA 2009 Service Repair Manual BL-252< SERVICE INFORMATION > NATS (NISSAN ANTI-THEFT SYSTEM) Terminal and Reference Value for BCM INFOID:0000000004678935 Terminal Wire color Signal name Signal input/ output Measuring condition Re

Page 714 of 4331

NISSAN TIIDA 2009 Service Repair Manual NATS (NISSAN ANTI-THEFT SYSTEM) BL-253 < SERVICE INFORMATION > C D E F G H J K L M A B BL N O P 18 V Remote keyless entry receiver (ground) Output OFF — 0V 19 BR Remote keyless entry receiver (pow

Page 715 of 4331

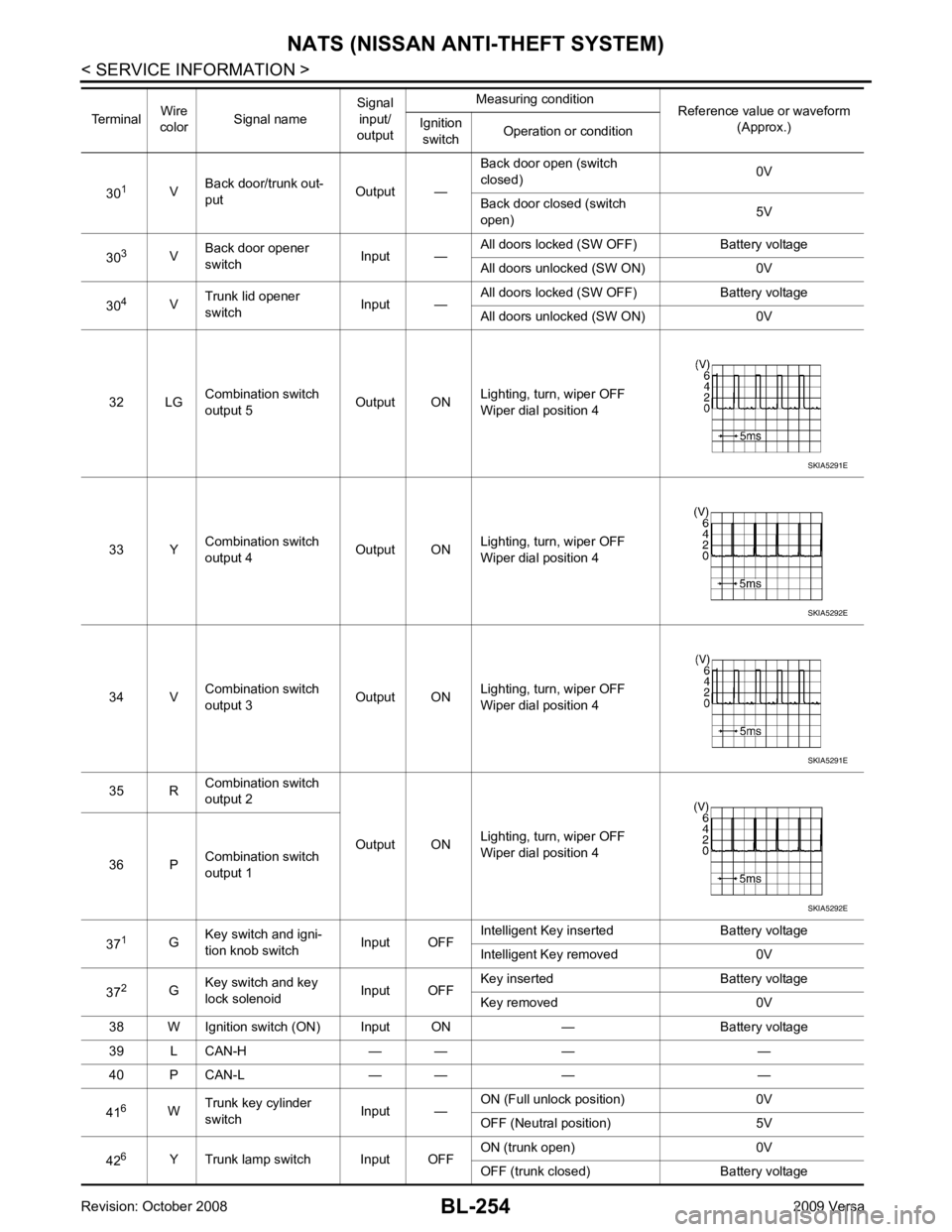

NISSAN TIIDA 2009 Service Repair Manual BL-254< SERVICE INFORMATION > NATS (NISSAN ANTI-THEFT SYSTEM) 30 1 VBack door/trunk out- put Output —Back door open (switch closed) 0V Back door closed (switch open) 5V 30 3 VBack door opener swi

Page 716 of 4331

NISSAN TIIDA 2009 Service Repair Manual NATS (NISSAN ANTI-THEFT SYSTEM) BL-255 < SERVICE INFORMATION > C D E F G H J K L M A B BL N O P 43 5 R Back door switch Input OFF ON (open) 0V OFF (closed) Battery voltage 44 5 LG Rear wiper auto stop

Page 717 of 4331

NISSAN TIIDA 2009 Service Repair Manual ECM Re-communicating Function " . NOTE: • When any initialization is performed, all ID previ ously registered will be erased and all NATS mechanical keys must be registered again.

Page 718 of 4331

NISSAN TIIDA 2009 Service Repair Manual BL N O P Trouble Diagnosis Procedure INFOID:0000000004305142 PRELIMINARY CHECK Intelligent Key Battery Replacement " . The engine cannot be started by all Intelligent Keys >> GO TO 3 The engine can b

Page 719 of 4331

NISSAN TIIDA 2009 Service Repair Manual CONSULT-III Application Item " . No malfunction is detected >> Refer to BL-115, " Trouble Diagnosis Procedure " . WORK FLOW Trouble Diagnosis " . >> GO TO 4

Page 720 of 4331

NISSAN TIIDA 2009 Service Repair Manual BL N O P This indication means that malfunction have been detected in NATS and engine control system. >> GO TO 8 U1000-U1010 " (MR type 1) or EC-1015, " U0101- U1001 " (MR type 2). Without e
