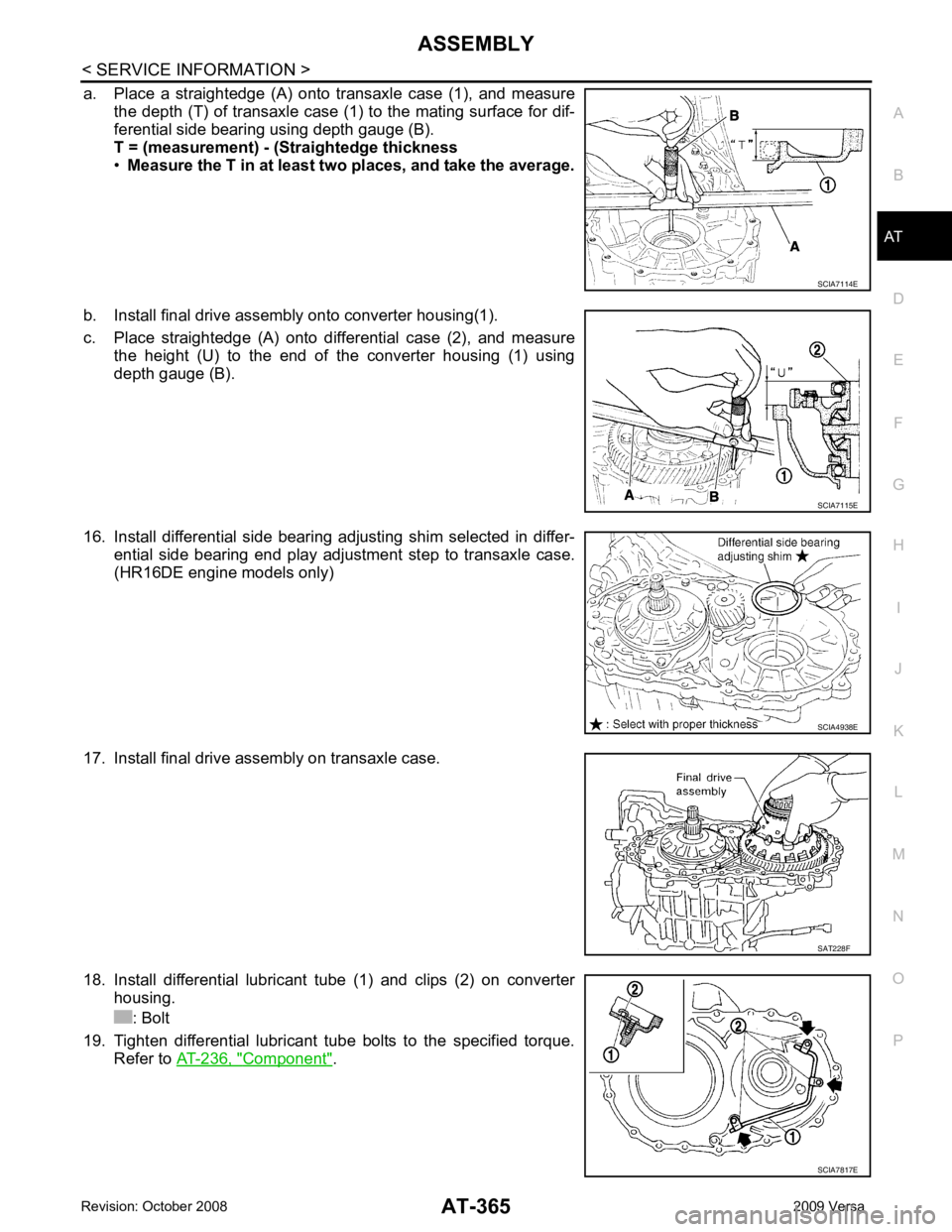

NISSAN TIIDA 2009 Service Repair Manual " Component " . 14. Apply compressed air into oil holes of transaxle case and check operation of brake band. 15. Select proper thickness of differential side bear ing adjusting shim using th

Page 370 of 4331

NISSAN TIIDA 2009 Service Repair Manual AT N O P a. Place a straightedge (A) onto tr ansaxle case (1), and measure the depth (T) of transaxle case (1) to the mating surface for dif- ferential side bearing using depth gauge (B). T =

Page 371 of 4331

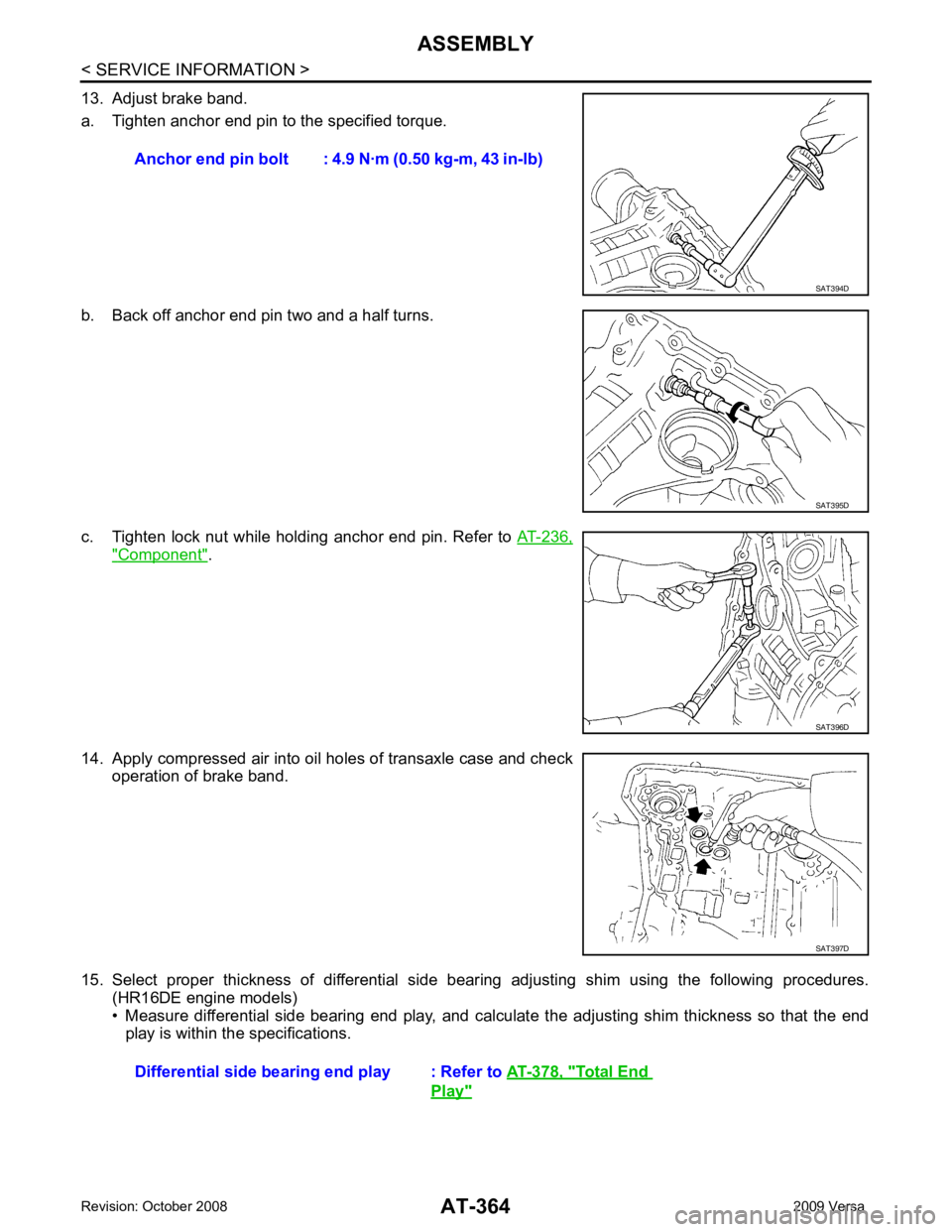

NISSAN TIIDA 2009 Service Repair Manual AT-366< SERVICE INFORMATION > ASSEMBLY 20. Install O-ring on differential oil port of transaxle case. 21. Apply recommended (Genuine Anaerobic Liquid Gasket or equivalent) to transaxle case as s

Page 372 of 4331

NISSAN TIIDA 2009 Service Repair Manual ASSEMBLY AT-367 < SERVICE INFORMATION > D E F G H I J K L M A B AT N O P a. With ABS i. Install O-ring (3) to plug (1). ii. Install plug (1) to converter housing (2). : Bolt b. Without ABS i. Install

Page 373 of 4331

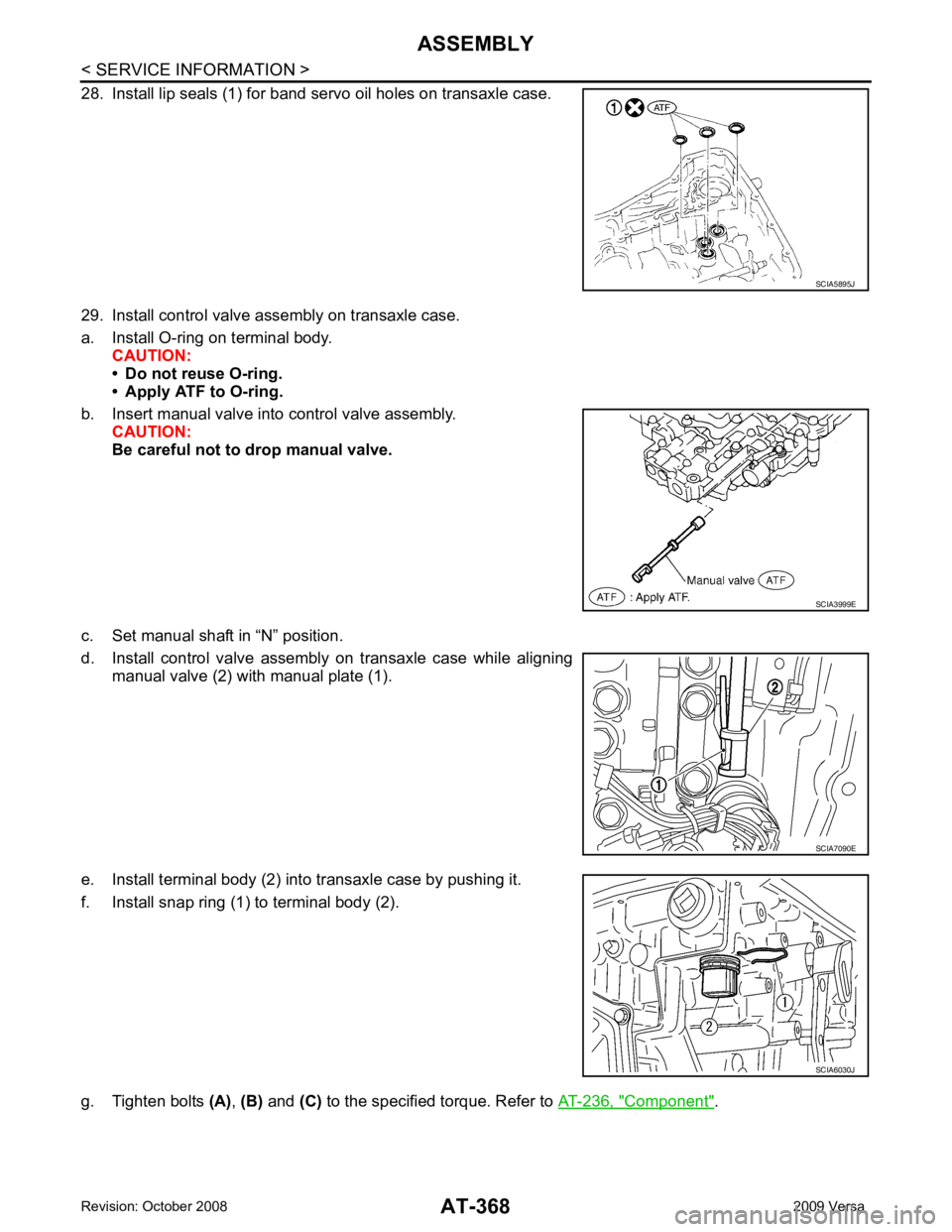

NISSAN TIIDA 2009 Service Repair Manual AT-368< SERVICE INFORMATION > ASSEMBLY 28. Install lip seals (1) for band servo oil holes on transaxle case. 29. Install control valve assembly on transaxle case. a. Install O-ring on terminal body. C

Page 374 of 4331

NISSAN TIIDA 2009 Service Repair Manual AT N O P Bolt length, number and location: 30. Install oil pan. a. Attach magnets on oil pan. b. Install oil pan gasket on transaxle case. CAUTION: • Completely remove all moisture, oil and old gask

Page 375 of 4331

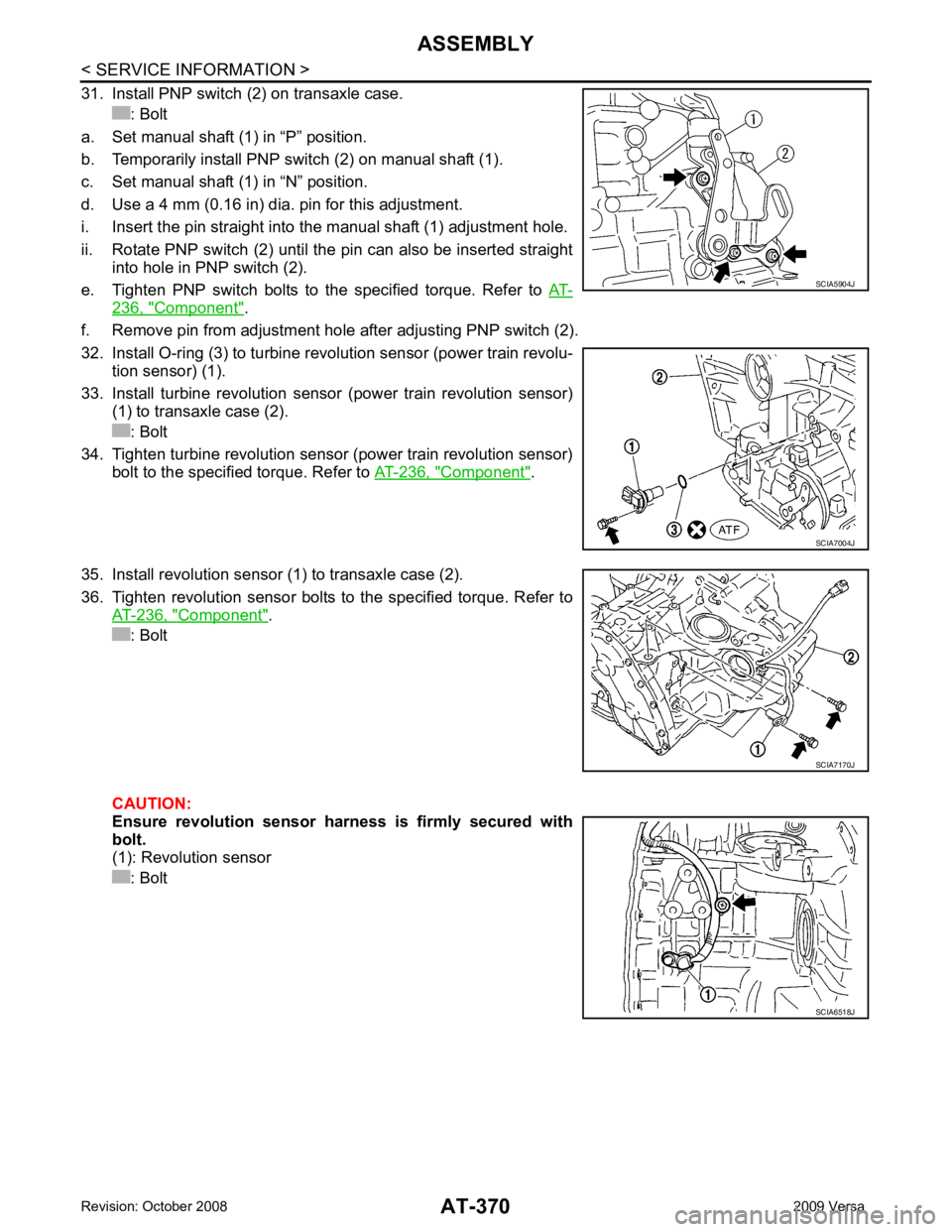

NISSAN TIIDA 2009 Service Repair Manual AT-370< SERVICE INFORMATION > ASSEMBLY 31. Install PNP switch (2) on transaxle case. : Bolt a. Set manual shaft (1) in “P” position. b. Temporarily install PNP switch (2) on manual shaft (1). c. S

Page 376 of 4331

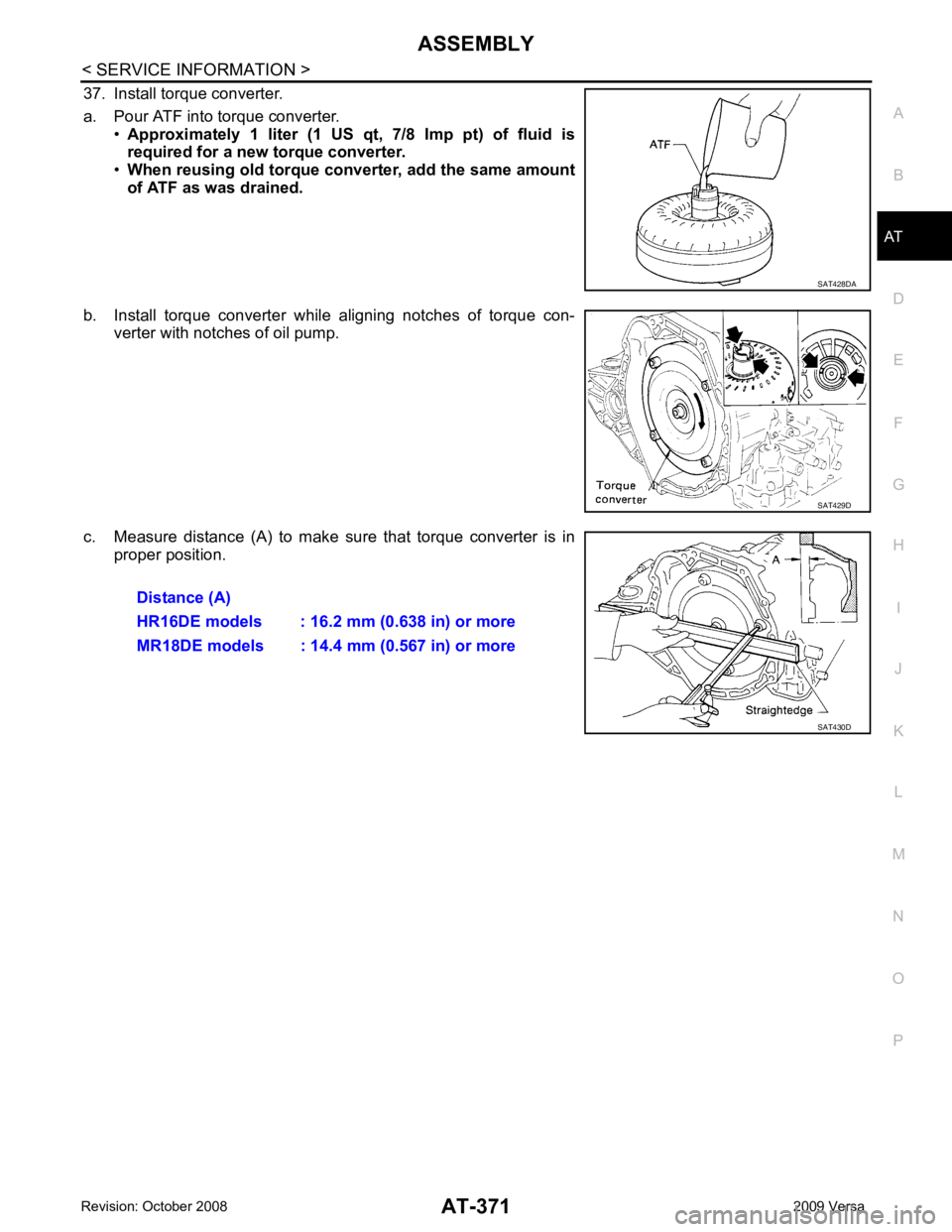

NISSAN TIIDA 2009 Service Repair Manual AT N O P 37. Install torque converter. a. Pour ATF into torque converter. •Approximately 1 liter (1 US qt, 7/8 Imp pt) of fluid is required for a new torque converter. • When reusing o
