DTC P1777 STEP MOTOR - CIRCUIT
CVT-313
< SERVICE INFORMATION >
[RE0F08B] D
E
F
G H
I
J
K L
M A
B CVT
N
O P
Diagnosis Procedure
INFOID:00000000043057831.
CHECK INPUT SIGNALS
With CONSULT-III
1. Start engine.
2. Select “SELECTION FROM MENU” in “DATA MONI TOR” mode for “TRANSMISSION” with CONSULT-III.
3. Start vehicle and read out the value of “STM STEP”, “SMCOIL A”, “SMCOIL B”, “SMCOIL C”, and
“SMCOIL D”.
OK or NG OK >> GO TO 4.
NG >> GO TO 2. 2.
CHECK HARNESS BETWEEN TCM AND STEP MOTOR
1. Turn ignition switch OFF.
2. Disconnect CVT unit connector and TCM connector.
3. Check continuity between TCM connector terminals and CVT
unit harness connector terminals.
4. If OK, check harness for short to ground and short to power.
5. If OK, check continuity between body ground and CVT assembly.
6. Reinstall any part removed.
OK or NG OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power in harness or connectors. 3.
CHECK STEP MOTOR
Check step motor. Refer to CVT-314, " Component Inspection " .
OK or NG OK >> GO TO 4.
NG >> Repair or replace damaged parts. 4.
CHECK DTC
Perform CVT-311, " DTC Confirmation Procedure " .
OK or NG OK >>
INSPECTION END
NG >> GO TO 5.
Item name Condition Display value (Approx.)
STM STEP
During driving−
20 step - 180 step
SMCOIL A
Changes ON⇔OFF.
SMCOIL B
SMCOIL C
SMCOIL D Item Connector Terminal Continuity
TCM E31 11 Yes
CVT unit harness connector F46 6
TCM E31 12 Yes
CVT unit harness connector F46 7
TCM E31 20 Yes
CVT unit harness connector F46 8
TCM E31 21 Yes
CVT unit harness connector F46 9 SCIA4695E
Page 1258 of 4331
CVT-314< SERVICE INFORMATION >
[RE0F08B]
DTC P1777 STEP MOTOR - CIRCUIT 5.
CHECK TCM
1. Check TCM input/output signals. Refer to CVT-228, " TCM Terminal and Reference Value " .
2. If NG, re-check TCM pin terminals for damage or loose connection with harness connector.
OK or NG OK >>
INSPECTION END
NG >> Repair or replace damaged parts.
Component Inspection INFOID:0000000004305784
STEP MOTOR
1. Turn ignition switch OFF.
2. Disconnect CVT unit harness connector.
3. Check resistance between CVT unit harness connector termi- nals and ground.
4. If NG, replace the transaxle assembly. Refer to CVT-354, " Removal and Installation " .
Name Connector Terminal
Resistance (Ap-
prox.)
Step motor F46 6 - 7
30 Ω
8 - 9
6 - Ground
15 Ω
7 - Ground
8 - Ground
9 - Ground SCIA4696E
Page 1259 of 4331

CVT
N
O P
DTC P1778 STEP MOTOR - FUNCTION
Description INFOID:0000000004305785
• The step motor is included in the control valve assembly.
• The step motor's 4 aspects of ON/OFF change according to the signal from TCM. As a result, the flow of line
pressure to primary pulley is changed and pulley ratio is controlled.
• This diagnosis item is detected when electrical system is OK, but mechanical system is NG.
• This diagnosis item is detected when the state of the changing the speed mechanism in unit does not oper-
ate normally.
CONSULT-III Reference Val ue in Data Monitor Mode INFOID:0000000004305786
Remarks: Specification data are reference values.
On Board Diagnosis Logic INFOID:0000000004305787
• This is an OBD-II self-diagnostic item.
• Diagnostic trouble code “P1778 STEP MOTR/FNC” with CO NSULT-III is detected under the following condi-
tions.
- When not changing the pulley ratio according to the instruction of TCM.
Possible Cause INFOID:0000000004305788
Step motor
DTC Confirmation Procedure INFOID:0000000004305789
CAUTION:
• Always drive vehicle at a safe speed.
• Before starting “DTC Confirmation Procedure”, confirm “Hi” or “Mid” or “Low” fixation by “PRI SPEED” and “VEHICLE SPEED” on “DATA MONITOR MODE”.
• If hi-geared fixation occurred, go to CVT-316, " Diagnosis Procedure " .
NOTE:
If “DTC Confirmation Procedure” has been previously performed, alw ays turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, touch “ERASE” on “SELF-DIAG RESU LTS” and then perform the following procedure to con-
firm the malfunction is eliminated.
WITH CONSULT-III
1. Turn ignition switch ON and select “DATA MO NITOR” mode for “TRANSMISSION” with CONSULT-III.
2. Make sure that output voltage of CVT fluid temperature sensor is within the range below.
ATF TEMP SEN: 1.0 - 2.0 V
If out of range, drive the vehicle to decrease the voltage (warm up the fluid) or stop engine to
increase the voltage (c ool down the fluid)
3. Select “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.
4. Start engine and maintain the following conditions for at least 30 consecutive seconds.
TEST START FROM 0 km/h (0 MPH)
CONSTANT ACCELERATION: Keep 30 sec or more
VEHICLE SPEED: 10 km/h (6 MPH) or more
ACC PEDAL OPEN: More than 1.0/8
RANGE: “D” position
ENG SPEED: 450 rpm or more
5. If DTC is detected, go to CVT-316, " Diagnosis Procedure " .
WITH GST
Follow the procedure “WITH CONSULT-III”. Item name Condition Display value (Approx.)
STM STEP During driving−
20 step - 180 step
GEAR RATIO 2.56 - 0.43
Page 1260 of 4331
CONSULT-III Function (TRANSMISSION) " .
Without CONSULT-III
Inspect the engine speed (rise and descend), vehicle speed, throttle position, and check shift change. Refer to
CVT-357, " Vehicle Speed When Shifting Gears " .
OK or NG OK >>
INSPECTION END
NG >> Replace the transaxle assembly. Refer to CVT-354, " Removal and Installation " .
Page 1261 of 4331
CVT
N
O P
OVERDRIVE CONTROL SWITCH
Description INFOID:0000000004305791
• Overdrive control switch is installed to the selector lever.
• O/D OFF indicator turns ON, and overdrive driving activates when pressing the overdrive control switch while driving in “D” position. O/D OFF indicator turns OFF, and “D” position driving starts when pressing the
overdrive control switch while driving in the overdriv e-off mode. Shifting the selector lever in any position
other than “D” releases the overdrive-off mode.
CONSULT-III Reference Val ue in Data Monitor Mode INFOID:0000000004305792
Item name Condition Display value
SPORT MODE SW While pushing overdrive cancel switch ON
Other conditions OFF
Page 1262 of 4331

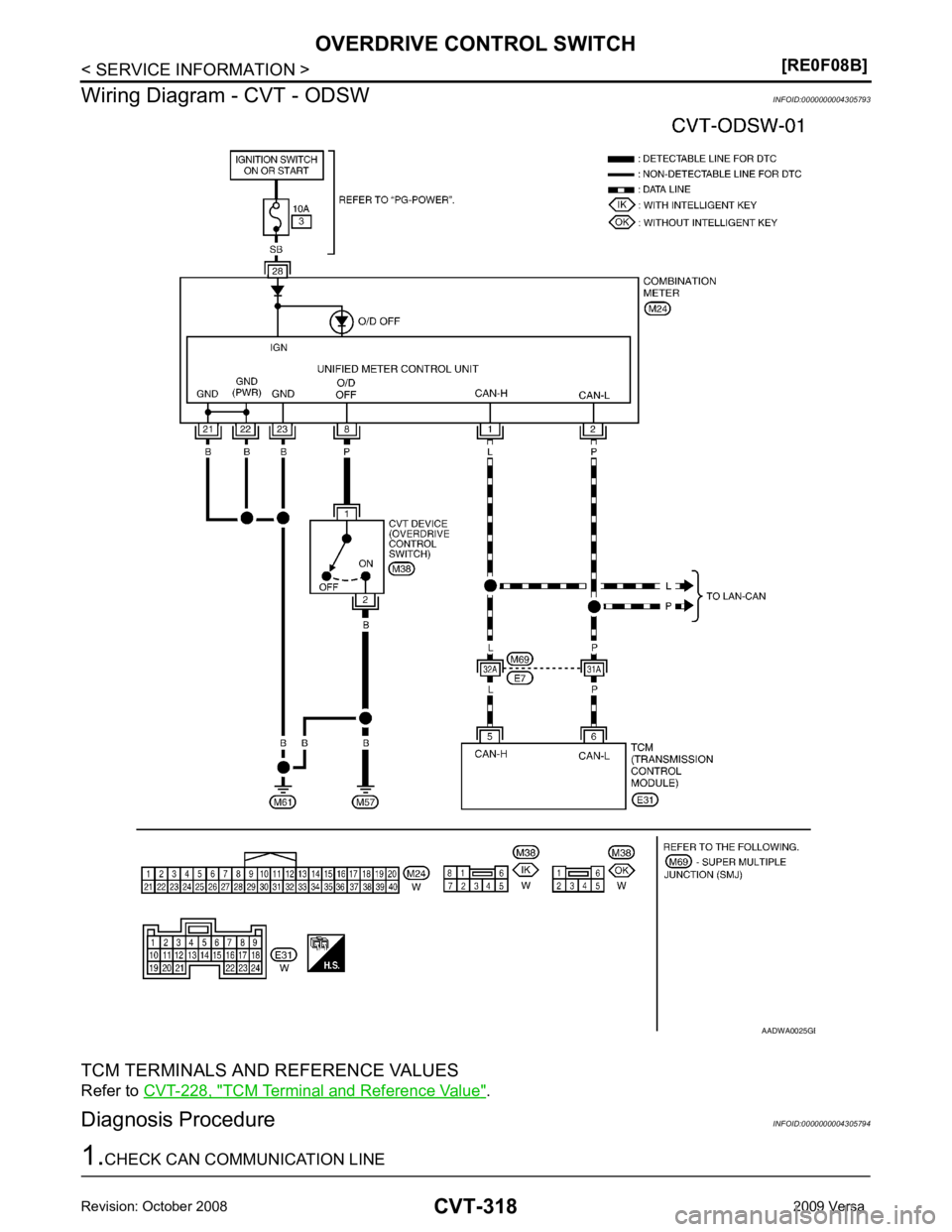

TCM Terminal and Reference Value " .
Diagnosis Procedure INFOID:0000000004305794 B
Page 1263 of 4331
![NISSAN TIIDA 2009 Service Repair Manual OVERDRIVE CONTROL SWITCH
CVT-319
< SERVICE INFORMATION >
[RE0F08B] D
E
F
G H
I
J
K L
M A
B CVT
N
O P
Perform the self-diagnosis check. Refer to
CVT-230, " CONSULT-III Functi
on (TRANSMISSION) " .
Is NISSAN TIIDA 2009 Service Repair Manual OVERDRIVE CONTROL SWITCH
CVT-319
< SERVICE INFORMATION >
[RE0F08B] D
E
F
G H
I
J
K L
M A
B CVT
N
O P
Perform the self-diagnosis check. Refer to
CVT-230, " CONSULT-III Functi
on (TRANSMISSION) " .
Is](/manual-img/5/57398/w960_57398-1262.png)
OVERDRIVE CONTROL SWITCH
CVT-319
< SERVICE INFORMATION >
[RE0F08B] D
E
F
G H
I
J
K L
M A
B CVT
N
O P
Perform the self-diagnosis check. Refer to
CVT-230, " CONSULT-III Functi
on (TRANSMISSION) " .
Is any malfunction of the “ U1000 CAN COMM CIRCUIT ” indicated in the results?
YES >> Check CAN communication line. Refer to
CVT-238 .
NO >> GO TO 2. 2.
CHECK OVERDRIVE CO NTROL SWITCH SIGNAL
With CONSULT-III
1. Turn ignition switch ON.
2. Select “ECU INPUT SIGNALS” in “DATA MONITO R” mode for “TRANSMISSION” with CONSULT-III.
3. Read out ON/OFF switching action of the “SPORT MODE SW”.
OK or NG OK >>
INSPECTION END
NG >> GO TO 3. 3.
CHECK OVERDRIVE CONTROL SWITCH
Check overdrive control switch. Refer to CVT-320, " Component Inspection "
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts. 4.
CHECK SELF-DIAGNOSTIC RESU LTS (COMBINATION METER)
Perform self-diagnosis check. Refer to DI-10, " Self-Diagnosis Mode of Combination Meter " .
Is any malfunction detected by self-diagnostic? YES >> Check the malfunctioning system.
NO - 1 >> With intelligent key: GO TO 5.
NO - 2 >> Without intelligent key: GO TO 6. 5.
CHECK OVERDRIVE CO NTROL SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect CVT device connector and combination meter connector.
3. Check continuity between CVT device harness connector (A)
terminal and combination meter harness connector (B) terminal.
Item name Condition Display value
SPORT MODE SW While pushing overdrive
cancel switch ON
Other conditions OFF Item Connector Terminal Continuity
CVT device harness connector M38 1 Yes
Combination meter harness
connector M24 8 SCIA7949E
Page 1264 of 4331
![NISSAN TIIDA 2009 Service Repair Manual CVT-320< SERVICE INFORMATION >
[RE0F08B]
OVERDRIVE CONTROL SWITCH
4. Check continuity between CVT device harness connector termi- nal and ground.
5. If OK, check harness for short to ground and short NISSAN TIIDA 2009 Service Repair Manual CVT-320< SERVICE INFORMATION >
[RE0F08B]
OVERDRIVE CONTROL SWITCH
4. Check continuity between CVT device harness connector termi- nal and ground.
5. If OK, check harness for short to ground and short](/manual-img/5/57398/w960_57398-1263.png)
CVT-320< SERVICE INFORMATION >
[RE0F08B]
OVERDRIVE CONTROL SWITCH
4. Check continuity between CVT device harness connector termi- nal and ground.
5. If OK, check harness for short to ground and short to power.
6. Reinstall any part removed.
OK or NG OK >>
INSPECTION END
NG >> Repair open circuit or short to ground or short to power
in harness or connectors. 6.
CHECK OVERDRIVE CONTROL SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect CVT device connector and combination meter connector.
3. Check continuity between CVT device harness connector (A)
terminal and combination meter harness connector (B) terminal.
4. Check continuity between CVT device harness connector termi- nal and ground.
5. If OK, check harness for short to ground and short to power.
6. Reinstall any part removed.
OK or NG OK >>
INSPECTION END
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
Component Inspection INFOID:0000000004305795
OVERDRIVE CONTROL SWITCH
With Intelligent Key
Check continuity between CVT device harness connector terminals.
Without Intelligent Key Item Connector Terminal Continuity
CVT device harness connector M38 2 - ground Yes SCIA7950E
Item Connector Terminal Continuity
CVT device harness connector M38 1 Yes
Combination meter harness
connector M24 8 SCIA7951E
Item Connector Terminal Continuity
CVT device harness connector M38 2 - ground Yes SCIA7952E
Item Condition Connector Terminal Continuity
Overdrive con-
trol switch While pushing
overdrive control
switch M38 1 - 2 Yes
Other conditions No SCIA7942E
