Page 1569 of 4331

NISSAN TIIDA 2009 Service Repair Manual EC NP O DTC CONFIRMATION PROCEDURE YES >> Go to EC-215, " Diagnosis Procedure " . NO-1 >> With CONSULT-III: GO TO 3. NO-2 >> Without CONSULT-III: GO TO 5. OK >> INSPECTION END NG >> Go to EC-215, "

Page 1570 of 4331

NISSAN TIIDA 2009 Service Repair Manual EC-214< COMPONENT DIAGNOSIS > [HR16DE] P0138 HO2S2 Without CONSULT-III 1. Start engine and warm it up to normal operating temperature. 2. Turn ignition switch OFF and wait at least 10 seconds. 3. Star

Page 1571 of 4331

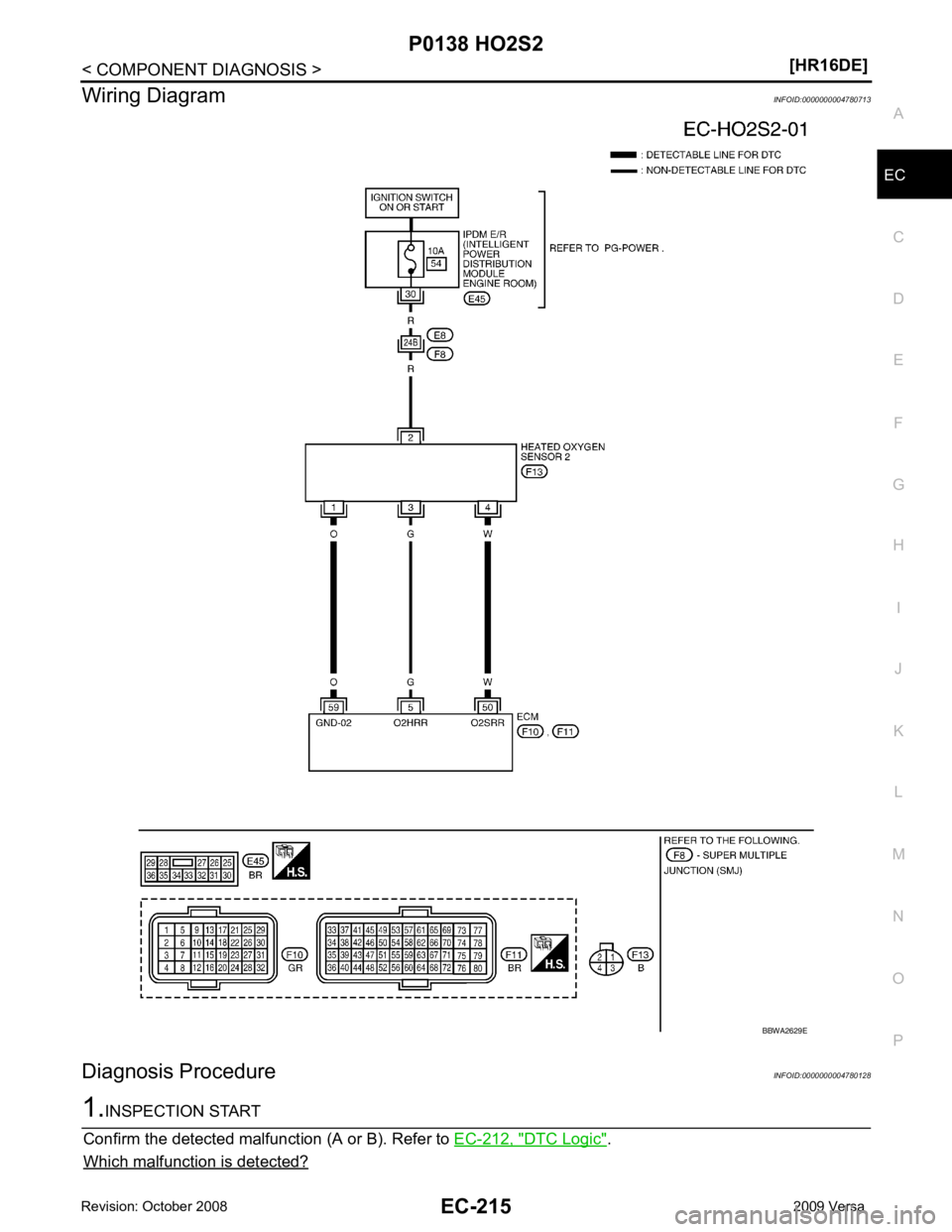

NISSAN TIIDA 2009 Service Repair Manual P0138 HO2S2 EC-215 < COMPONENT DIAGNOSIS > [HR16DE] C D E F G H I J K L M A EC NP O Wiring Diagram INFOID:0000000004780713 Diagnosis Procedure INFOID:00000000047801281. INSPECTION START Confirm the de

Page 1572 of 4331

NISSAN TIIDA 2009 Service Repair Manual Ground Inspection " . Is the inspection result normal? YES >> GO TO 3. NO >> Repair or replace ground connection. YES >> GO TO 4. NO >> Repair or replace harness or connectors. YES >> GO TO 5. NO >> R

Page 1573 of 4331

NISSAN TIIDA 2009 Service Repair Manual EC NP O Refer to EC-218, " Component Inspection " . Is the inspection result normal? YES >> GO TO 8. NO >> GO TO 7. Diagnosis Procedure " . >> INSPECTION END Ground Inspection " . Is the inspection r

Page 1574 of 4331

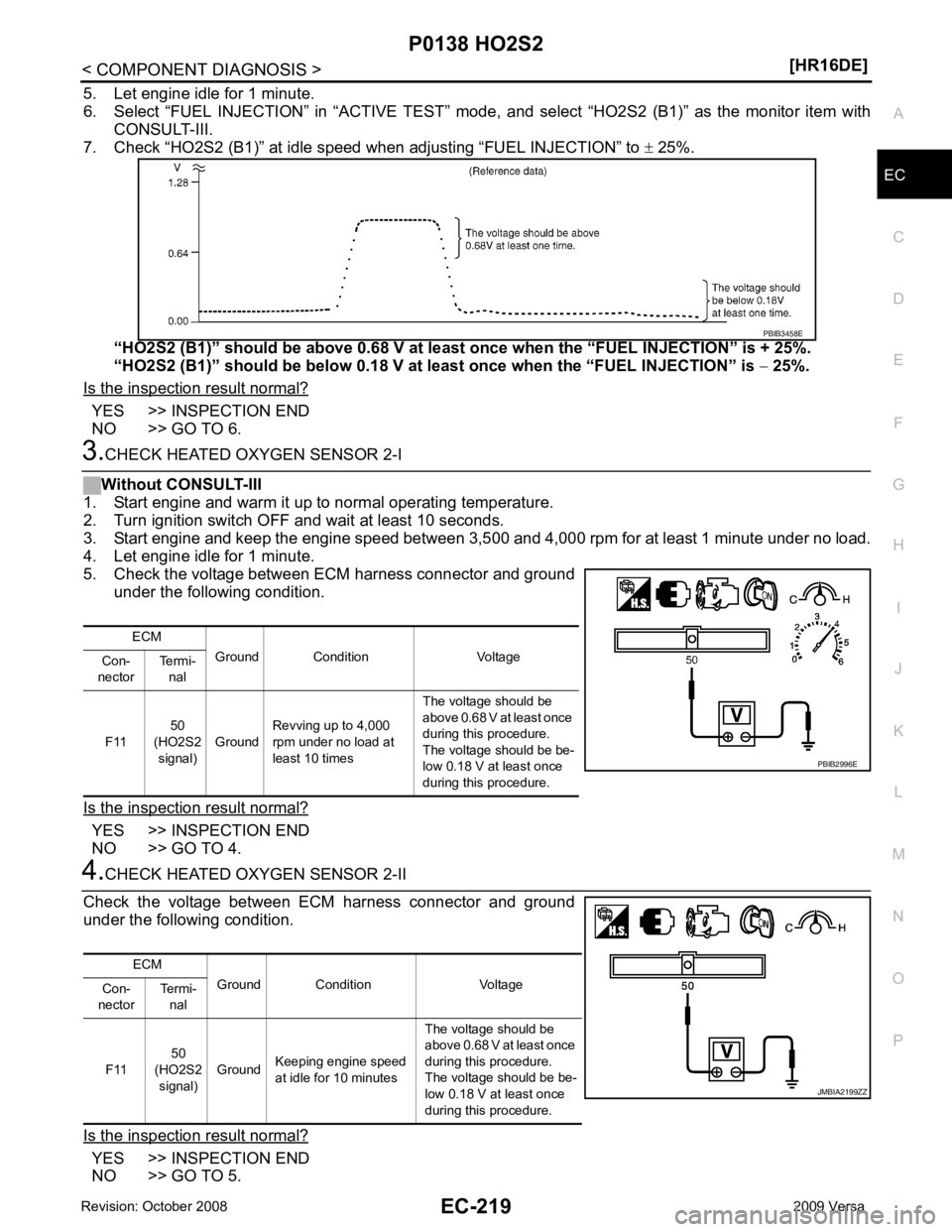

NISSAN TIIDA 2009 Service Repair Manual YES >> GO TO 13. NO >> Repair open circuit or short to ground or short to power in harness or connectors. Component Inspection " . Is the inspection result normal? YES >> GO TO 15. NO >> GO TO 14. Dia

Page 1575 of 4331

NISSAN TIIDA 2009 Service Repair Manual P0138 HO2S2 EC-219 < COMPONENT DIAGNOSIS > [HR16DE] C D E F G H I J K L M A EC NP O 5. Let engine idle for 1 minute. 6. Select “FUEL INJECTION” in “ACTIVE TEST” mode, and select “H

Page 1576 of 4331

NISSAN TIIDA 2009 Service Repair Manual EC-220< COMPONENT DIAGNOSIS > [HR16DE] P0138 HO2S2 5. CHECK HEATED OXYGEN SENSOR 2-III Check the voltage between ECM harness connector and ground under the following condition. Is the inspecti
