NISSAN TIIDA 2009 Service Repair Manual BL-44< SERVICE INFORMATION > POWER DOOR LOCK SYSTEM2. CHECK BCM POWER SUPPLY CIRCUIT 1. Turn ignition switch OFF. 2. Disconnect BCM. 3. Check voltage between BCM connectors and ground. OK or NG OK >>

Page 506 of 4331

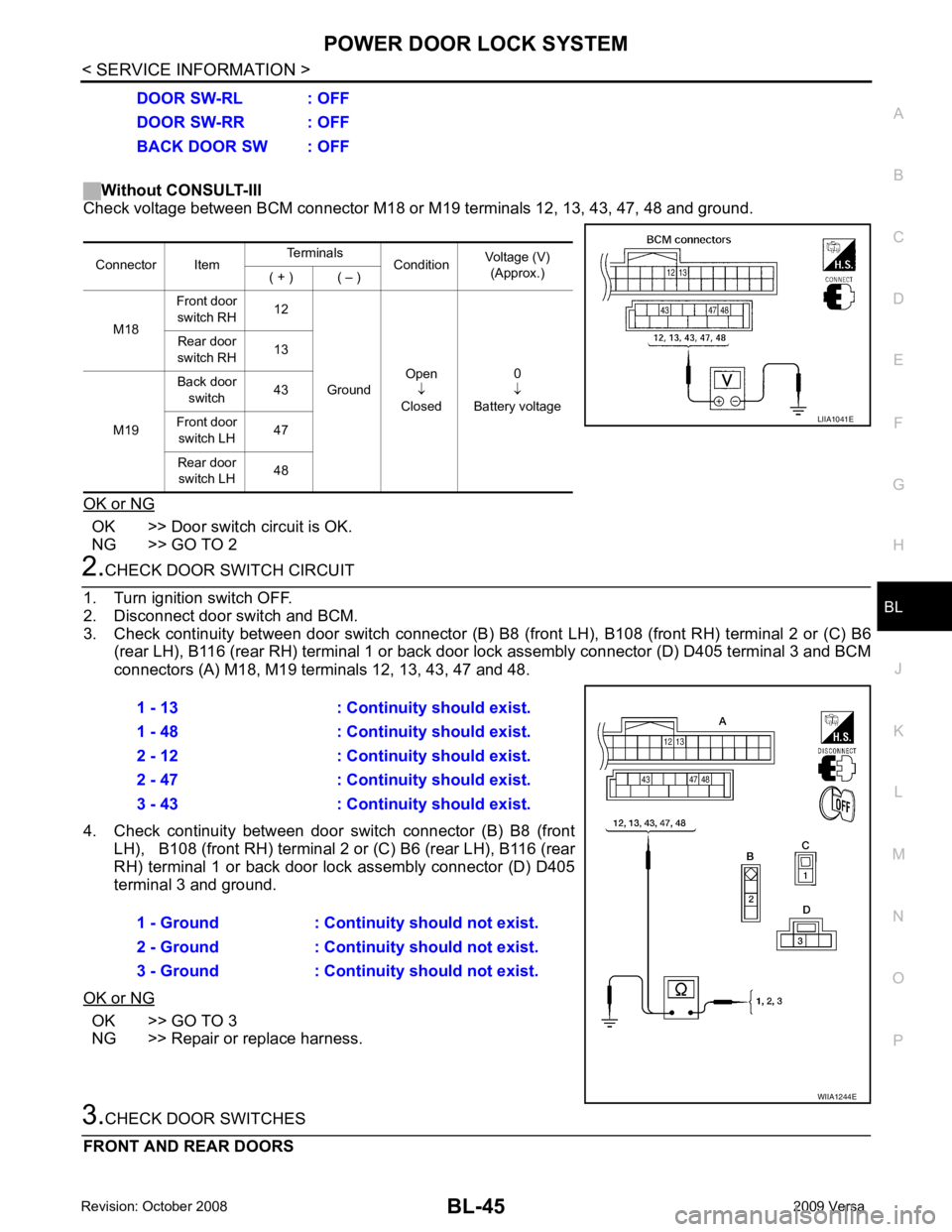

NISSAN TIIDA 2009 Service Repair Manual BL N O P Without CONSULT-III Check voltage between BCM connector M18 or M19 terminals 12, 13, 43, 47, 48 and ground. OK or NG OK >> Door switch circuit is OK. NG >> GO TO 2 OK >> GO TO 3 NG >> Repair

Page 507 of 4331

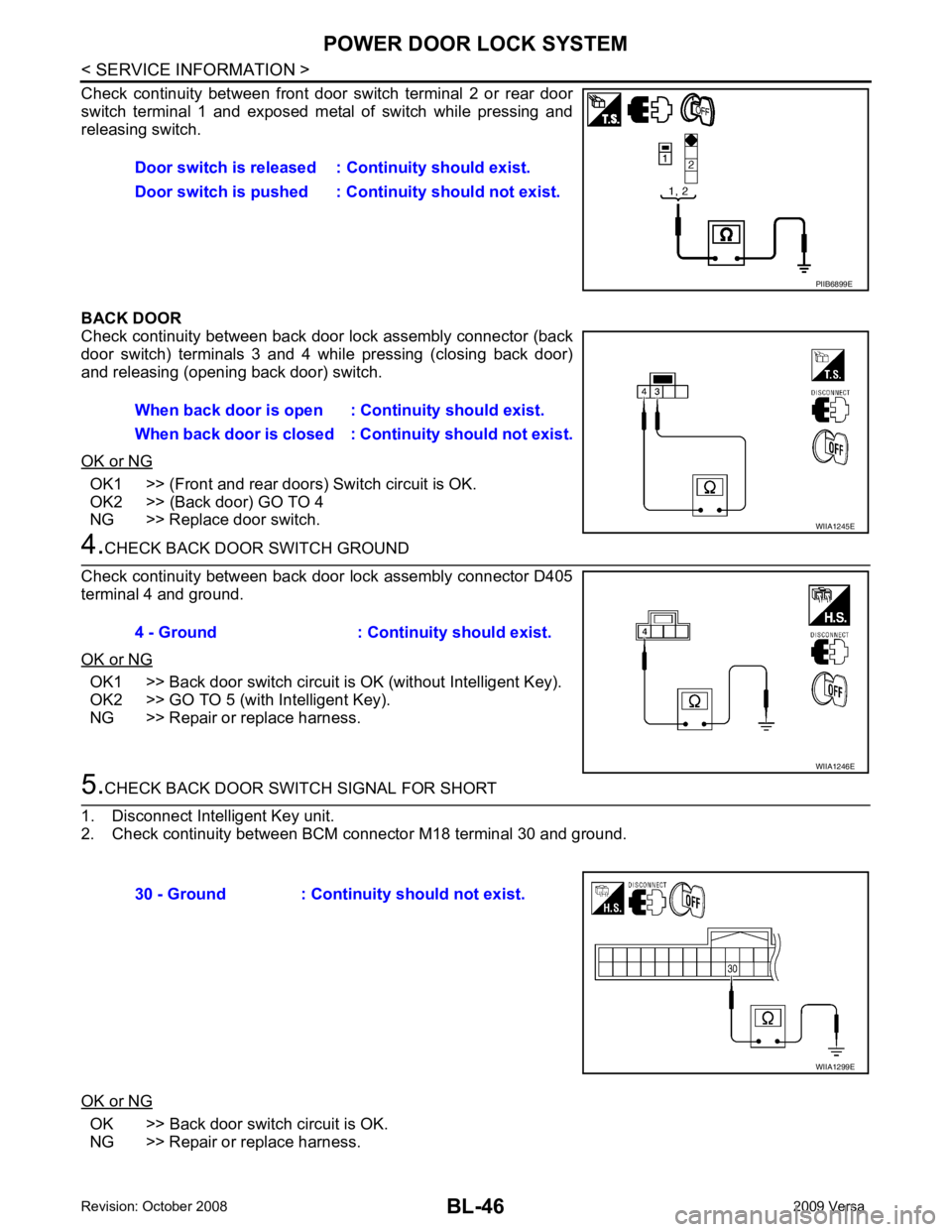

NISSAN TIIDA 2009 Service Repair Manual OK1 >> (Front and rear doors) Switch circuit is OK. OK2 >> (Back door) GO TO 4 NG >> Replace door switch. OK1 >> Back door switch circuit is OK (without Intelligent Key). OK2 >> GO TO 5 (with Intellig

Page 508 of 4331

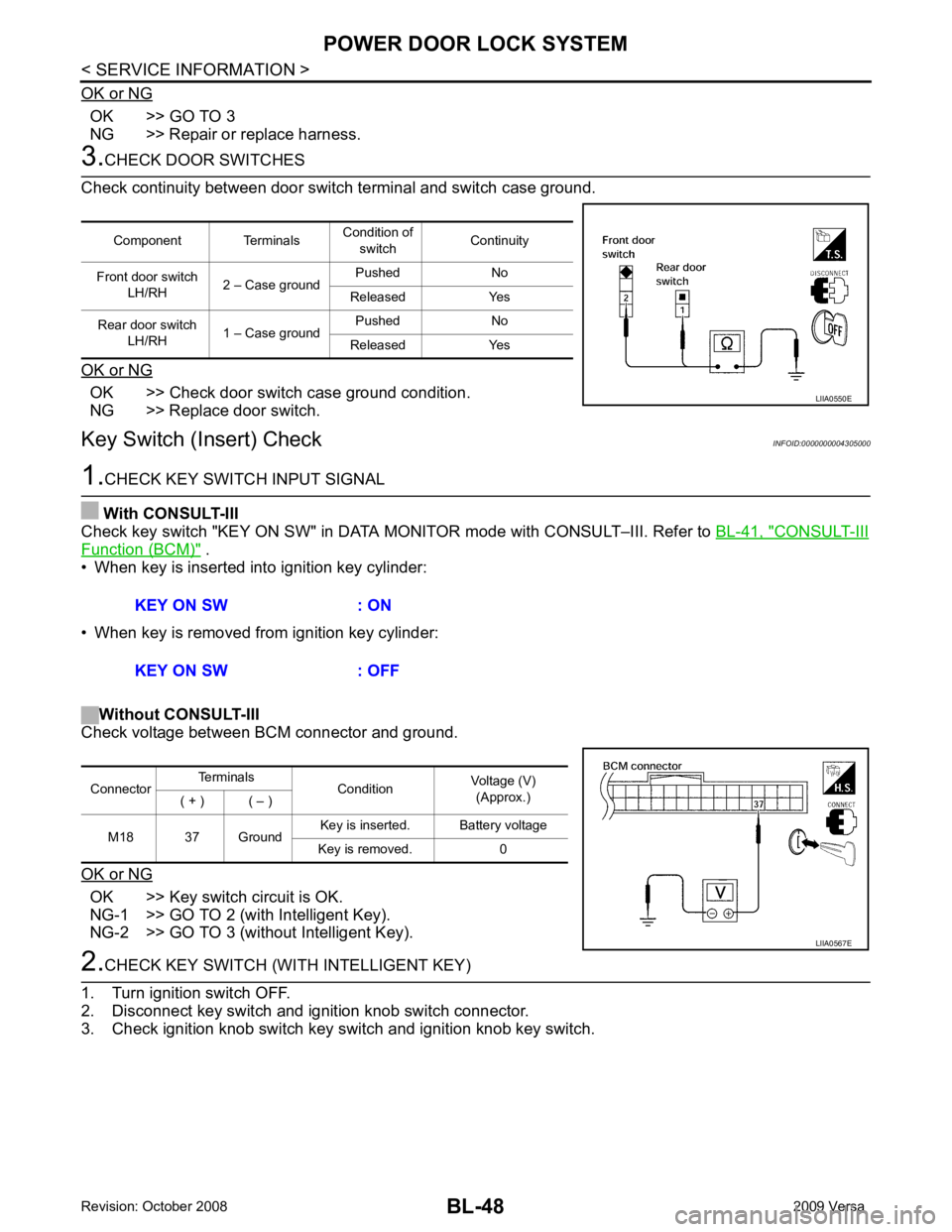

NISSAN TIIDA 2009 Service Repair Manual BL N O P Door Switch Check (Sedan) INFOID:0000000004304999CONSULT-III Function (BCM) " . • When doors are open: • When doors are closed: Without CONSULT-III Check voltage between BCM connector M

Page 509 of 4331

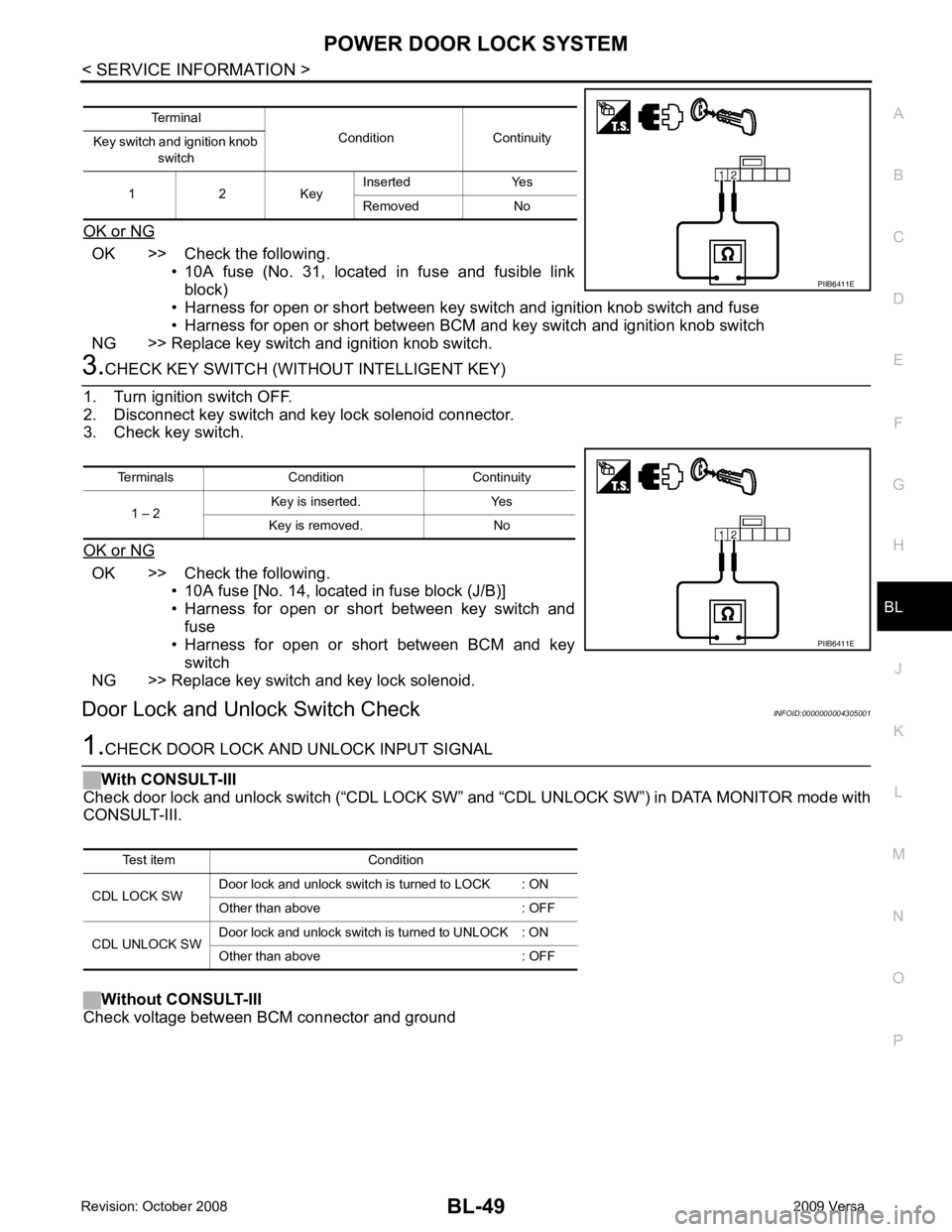

NISSAN TIIDA 2009 Service Repair Manual OK >> GO TO 3 NG >> Repair or replace harness. OK >> Check door switch case ground condition. NG >> Replace door switch. Key Switch (I nsert) Check INFOID:0000000004305000 CONSULT-III Function (BCM) "

Page 510 of 4331

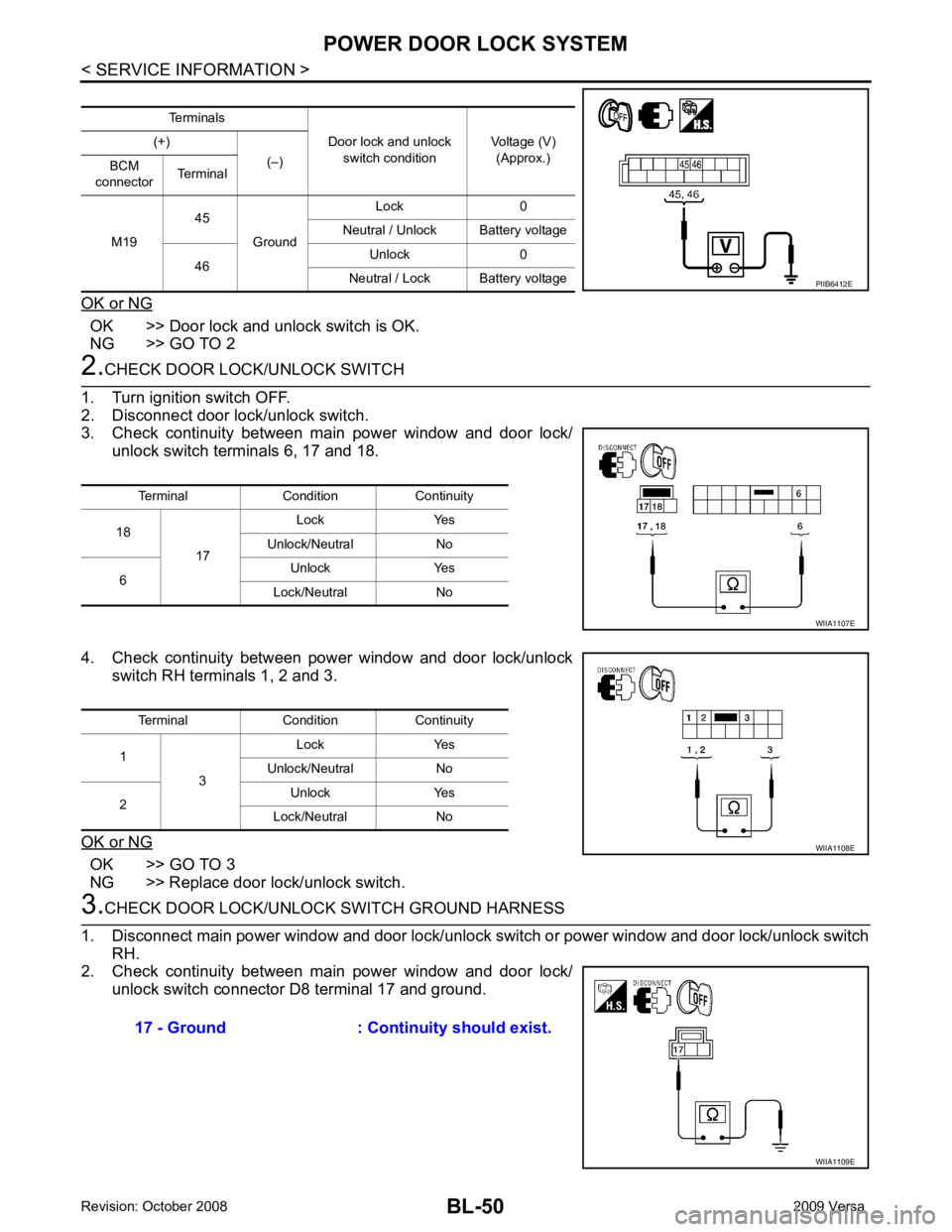

NISSAN TIIDA 2009 Service Repair Manual BL N O P OK or NG OK >> Check the following. • 10A fuse (No. 31, located in fuse and fusible link block) • Harness for open or short between key switch and ignition knob switch and fuse

Page 511 of 4331

NISSAN TIIDA 2009 Service Repair Manual OK >> Door lock and unlock switch is OK. NG >> GO TO 2 OK >> GO TO 3 NG >> Replace door lock/unlock switch.

Page 512 of 4331

NISSAN TIIDA 2009 Service Repair Manual BL N O P 3. Check continuity between power window and door lock/unlock switch RH connector D105 terminal 3 and ground OK or NG OK >> GO TO 4 NG >> Repair or replace harness.
