2009 NISSAN TIIDA Service Repair Manual

radio antenna wheel bolts open gas tank bulb tires fuel tank removal

Load previous 8 pages

Page 2305 of 4331

NISSAN TIIDA 2009 Service Repair Manual DTC P2127, P2128 APP SENSOR
EC-949
< SERVICE INFOMATION >
[MR TYPE 1] C
D E
F
G H
I
J
K L
M A EC
NP
O

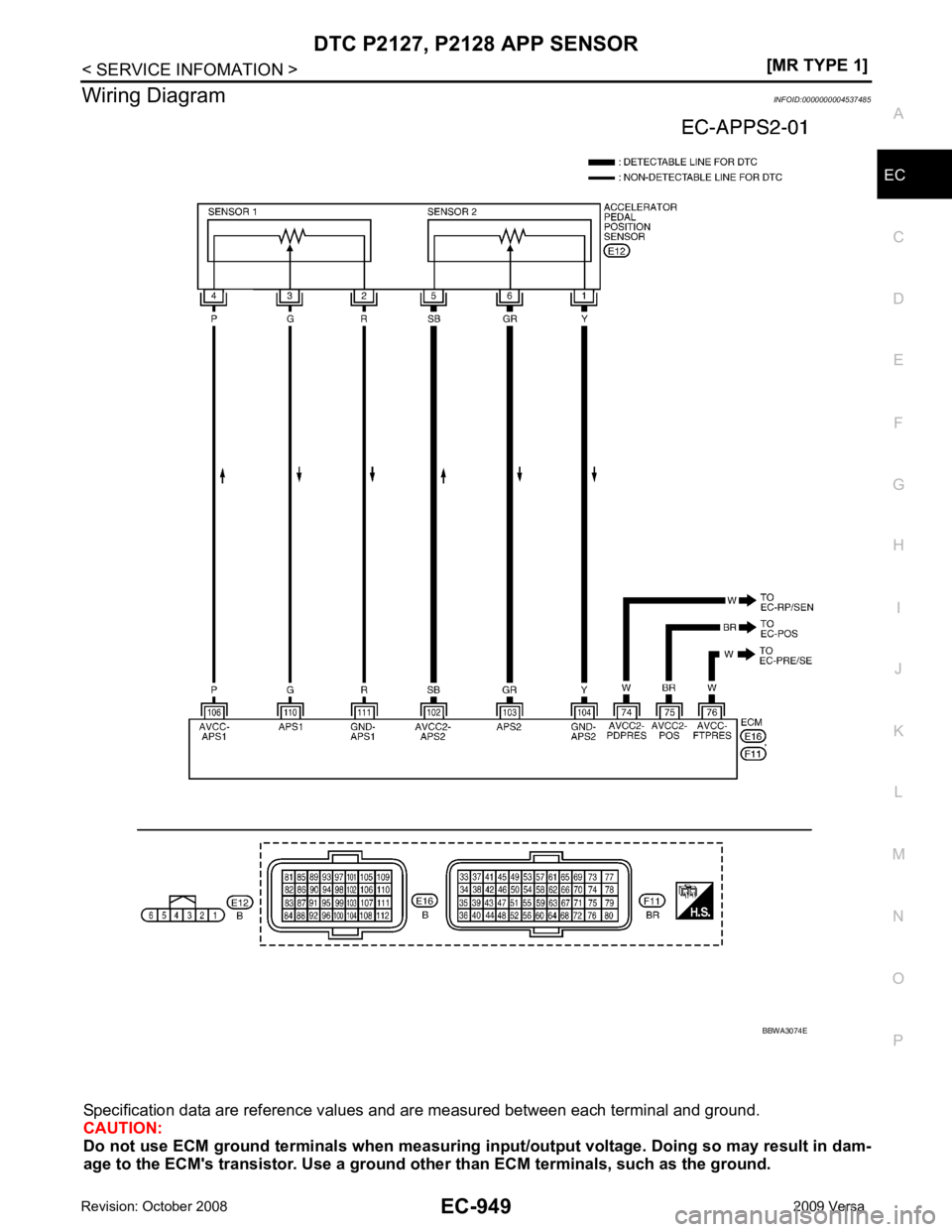

Wiring Diagram
INFOID:0000000004537485
Specification data are reference values and are measured b

Page 2306 of 4331

NISSAN TIIDA 2009 Service Repair Manual EC-950< SERVICE INFOMATION >
[MR TYPE 1]
DTC P2127, P2128 APP SENSOR
Diagnosis Procedure INFOID:00000000045374861.
CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground

Page 2307 of 4331

NISSAN TIIDA 2009 Service Repair Manual DTC P2127, P2128 APP SENSOR
EC-951
< SERVICE INFOMATION >
[MR TYPE 1] C
D E
F
G H
I
J
K L
M A EC
NP
O
OK or NG OK >> GO TO 2.
NG >> Repair or replace ground connections. 2.
CHECK APP SENSOR 2 POWER SU

Page 2308 of 4331

NISSAN TIIDA 2009 Service Repair Manual .)
OK or NG OK >> GO TO 10.
NG >> Replace malfunctioning component. OK >> GO TO 7.
NG >> Repair open circuit or short to ground or short to power in harness or connectors. OK >> GO TO 8.
NG >> Repair

Page 2309 of 4331

NISSAN TIIDA 2009 Service Repair Manual DTC P2127, P2128 APP SENSOR
EC-953
< SERVICE INFOMATION >
[MR TYPE 1] C
D E
F
G H
I
J
K L
M A EC
NP
O
3. Check voltage between ECM terminals 110 (APP sensor 1 sig-
nal), 103 (APP sensor 2 sig

Page 2310 of 4331

NISSAN TIIDA 2009 Service Repair Manual EC-954< SERVICE INFOMATION >
[MR TYPE 1]
DTC P2135 TP SENSOR
DTC P2135 TP SENSOR
Component Description INFOID:0000000004537489
Electric throttle control actuator consists of throttle control m

EC-954< SERVICE INFOMATION >
[MR TYPE 1]
DTC P2135 TP SENSOR
DTC P2135 TP SENSOR
Component Description INFOID:0000000004537489
Electric throttle control actuator consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.
The throttle position sensor has two sensors. These sensors are a
kind of potentiometers which transform the throttle valve position into
output voltage, and emit the voltage signal to the ECM. In addition,
these sensors detect the opening and closing speed of the throttle
valve and feed the voltage signals to the ECM. The ECM judges the
current opening angle of the throttle valve from these signals and the
ECM controls the throttle control motor to make the throttle valve
opening angle properly in response to driving condition.
CONSULT-III Reference Value in Data Monitor Mode INFOID:0000000004537490
Specification data are reference values.
*: Throttle position sensor 2 signal is converted by ECM internally. Thus, it differs from ECM terminal voltage signal.
On Board Diagn osis Logic INFOID:0000000004537491
This self-diagnosis has the one trip detection logic.
NOTE:
If DTC P2135 is displayed with DTC P0643, firs t perform the trouble diagnosis for DTC P0643.
Refer to EC-874 .
FAIL-SAFE MODE
When the malfunction is detected, the ECM enters fail-safe mode and the MIL lights up.
DTC Confirmation Procedure INFOID:0000000004537492
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 8V at idle.
1. Start engine and let it idle for 1 second.
2. Check DTC.
3. If DTC is detected, go to EC-956, " Diagnosis Procedure " . PBIB0145E
MONITOR ITEM CONDITION SPECIFICATION
TP SEN 1-B1
TP SEN 2-B1* • Ignition switch: ON
(Engine stopped) Accelerator pedal: Fully released More than 0.36V
• Shift lever: D (A/T, CVT), 1st (M/T) Accelerator pedal: Fully depressed Less than 4.75V DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P2135
2135 Throttle position sensor
circuit range/performance Rationally incorrect voltage is sent to ECM
compared with the signals from TP sensor 1
and TP sensor 2. • Harness or connector
(TP sensor 1 and 2 circuit is open or short-
ed.)
• Electric throttle control actuator
(TP sensor 1 and 2) Engine operation condition in fail-safe mode
The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal condition.
So, the acceleration will be poor.

Page 2311 of 4331

NISSAN TIIDA 2009 Service Repair Manual DTC P2135 TP SENSOR
EC-955
< SERVICE INFOMATION >
[MR TYPE 1] C
D E
F
G H
I
J
K L
M A EC
NP
O

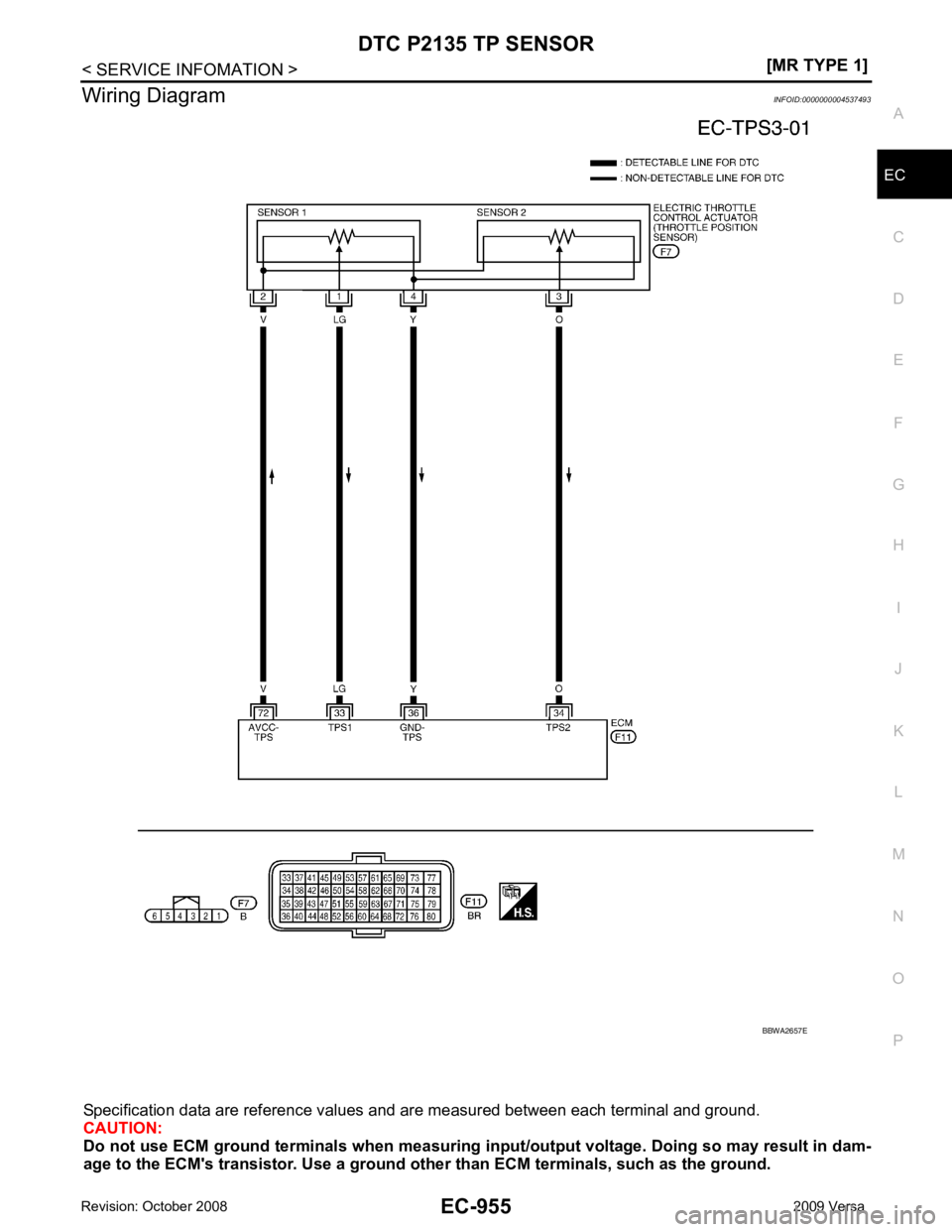

Wiring Diagram
INFOID:0000000004537493
Specification data are reference values and are measured between e

Page 2312 of 4331

NISSAN TIIDA 2009 Service Repair Manual EC-956< SERVICE INFOMATION >
[MR TYPE 1]
DTC P2135 TP SENSOR
Diagnosis Procedure INFOID:00000000045374941.
CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground screw on

Load next 8 pages
