Page 3921 of 4331

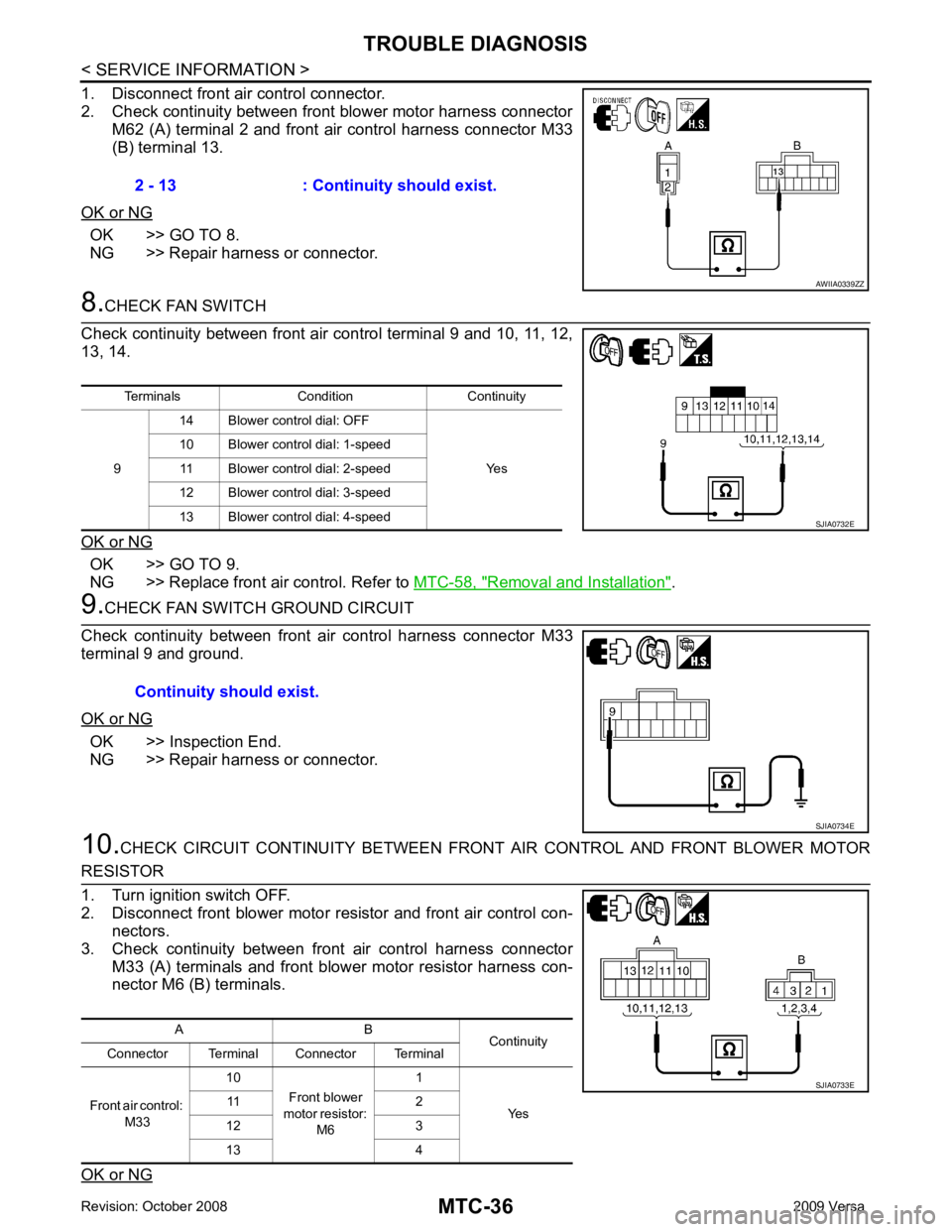

NISSAN TIIDA 2009 Service Repair Manual OK >> GO TO 8. NG >> Repair harness or connector. OK >> GO TO 9. NG >> Replace front air control. Refer to MTC-58, " Removal and Installation " . OK >> Inspection End. NG >> Repair harness or connect

Page 3922 of 4331

NISSAN TIIDA 2009 Service Repair Manual MTC N O P OK >> GO TO 11. NG >> Repair harness or connector. OK >> Replace the front blower motor resistor. Refer to MTC-66, " Removal and Installation " . NG >> Replace front air control. Refer to

Page 3923 of 4331

NISSAN TIIDA 2009 Service Repair Manual OK >> If the symptom still exists, perform a complete operational check. Refer to MTC-30, " Operational Check " . If other symptoms exist, refer to MTC-22, " How to Perform Trouble Diagn

Page 3924 of 4331

NISSAN TIIDA 2009 Service Repair Manual MTC N O P OK or NG OK >> GO TO 3. NG >> Check harness for open circuit. Re pair or replace if necessary.OK >> Replace magnet clutch. Refer to MTC-78, " Removal and Installation of Compressor - H

Page 3925 of 4331

NISSAN TIIDA 2009 Service Repair Manual OK >> GO TO 8. NG >> Repair harness or connector. Diagnosis Procedure " (MR type 1), EC-1529, " Diagnosis Procedure " (MR type 2) or EC-458, " Diagnosis Procedure " (HR16DE). .OK or NG OK >>

Page 3926 of 4331

NISSAN TIIDA 2009 Service Repair Manual MTC N O P 1. Turn ignition switch OFF. 2. Disconnect front air control connector and BCM connector. 3. Check continuity between BCM harness connector M18 (A) ter- minal 28 and front air control harnes

Page 3927 of 4331

NISSAN TIIDA 2009 Service Repair Manual OK >> GO TO 15. NG >> GO TO 17. OK >> GO TO 16. NG >> Replace front air control. Refer to MTC-56, " Disassem- bly and Assembly " . OK >> GO TO 17. NG >> Repair harness or connector. SJIA0760E

Page 3928 of 4331

NISSAN TIIDA 2009 Service Repair Manual MTC N O P OK or NG OK >> • GO TO 18 (with CVT). • GO TO 19 (without CVT). NG >> GO TO 21. OK >> Repair thermo control amp. jumper as necessary. NG >> Repair harness or connector. OK >> GO TO 20. N
