Page 2977 of 4331
THROTTLE VALVE CLOSED POSITION LEARNING : Special
Repair Requirement " .
• Perform “Throttle Valve Closed Position Learning” and “Idle Air Volume Learning” after repair when replacing electric throttle control actuator. Refer to EC-31, " THROTTLE VALVE CLOSED
POSITION LEARNING :Special Repair Requirement " and
EC-32, " IDLE AIR VOLUME LEARNING : Special Repair Requirement " .
: Engine front
Page 2978 of 4331
EM
NP
O
EXHAUST MANIFOLD
Exploded View INFOID:0000000004784284
Removal and Installation INFOID:0000000004784285
REMOVAL 1. Remove the cowl. Refer to EI-22, " Removal and Installation " .
2. Remove exhaust front tube. Refer to EX-5, " Component " .
3. Remove the harness bracket of air fuel ratio sensor 1 from the cylinder head.
4. Remove exhaust manifold cover.
5. Remove the air fuel ratio sensor 1. 1. Exhaust manifold cover 2. Exhaust manifold cover 3. Harness bracket
4. Air fuel ratio sensor 1 5. Exhaust manifold stay 6. Exhaust manifold
7. Gasket 8. Stud bolt 9. Heat insulator : Engine front
Page 2979 of 4331
Page 2980 of 4331
EXHAUST MANIFOLD
EM-33
< ON-VEHICLE REPAIR >
[HR16DE] C
D E
F
G H
I
J
K L
M A EM
NP
O
1. Tighten exhaust manifold nuts to specification in two stages in
the numerical order shown.
2. Use Tool (A) to install the air fuel ratio sensor 1. CAUTION:
• Handle it carefully and avoid impacts.
• Before installing a new air fu el ratio sensor 1, clean the
exhaust tube threads using suitable tool and approved
anti-seize lubricant.
• Do not over-tighten the air fu el ratio sensor 1. Doing so
may damage the air fuel rati o sensor 1, resulting in the
MIL coming on. : Engine front ALBIA0625ZZ
Tool number : KV10117100 ( — )
Tool number : — (J-43897-12)
Tool number : — (J-43897-18) PBIC3654E
Page 2981 of 4331
Inspection " .
2. Remove intake manifold. Refer to EM-28, " Exploded View " .
3. Disconnect quick connector with the following procedure. Dis- connect fuel feed hose from fuel tube.
NOTE:
There is no fuel return path.
1. Quick connector cap 2. Fuel feed hose 3. Fuel tube
4. Fuel tube protector 5. O-ring (black) 6. Clip
7. Fuel injector 8. O-ring (green)
Page 2982 of 4331

EM
NP
O

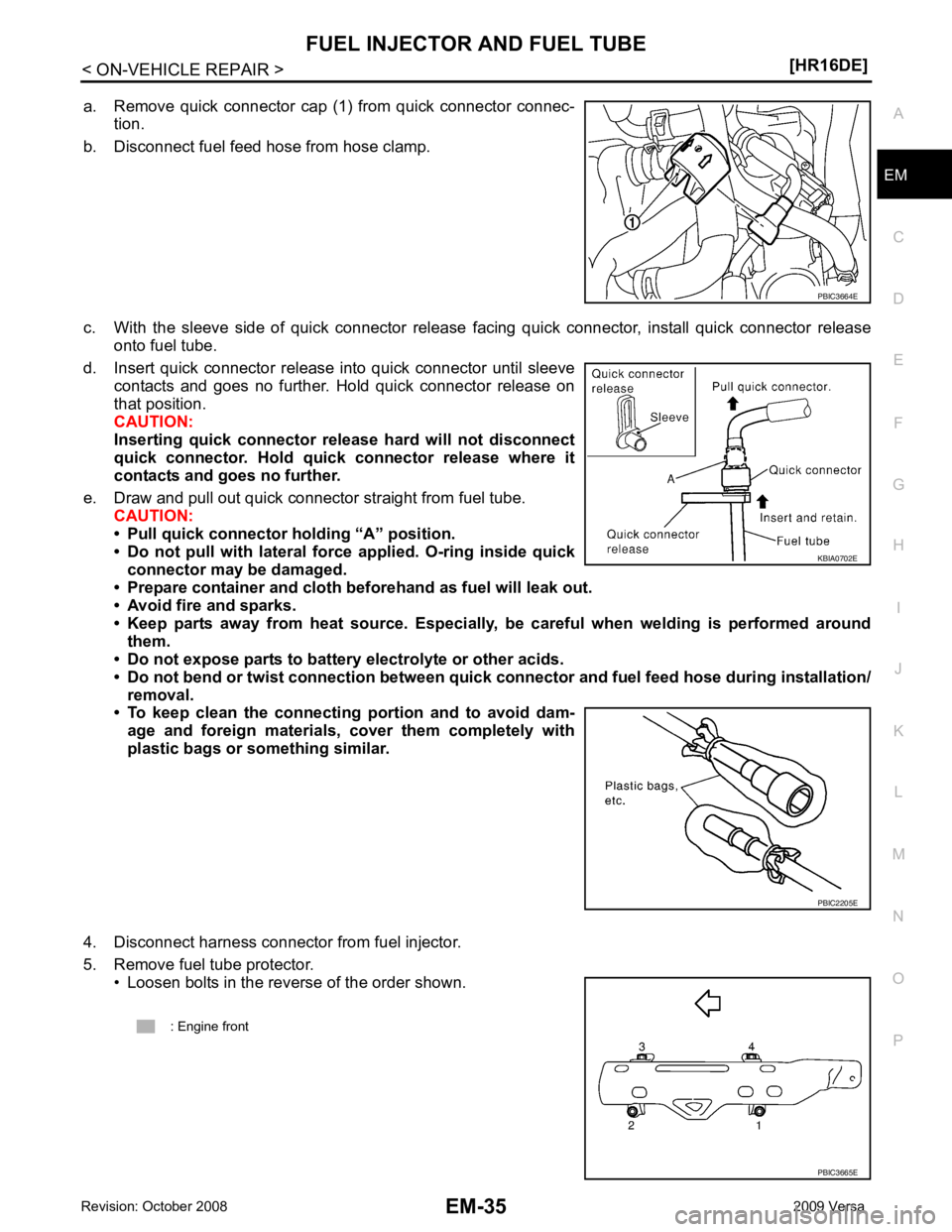

a. Remove quick connector cap (1) from quick connector connec-
tion.
b. Disconnect fuel feed hose from hose clamp.
c. With the sleeve side of quick connector release facing quick connector, install quick connector release onto fuel tube.
d. Insert quick connector release into quick connector until sleeve contacts and goes no further. Hold quick connector release on
that position.
CAUTION:
Inserting quick connector re lease hard will not disconnect
quick connector. Hold qui ck connector release where it
contacts and goes no further.
e. Draw and pull out quick connector straight from fuel tube. CAUTION:
• Pull quick connector holding “A” position.
• Do not pull with lateral force applied. O-ring inside quick
connector may be damaged.
• Prepare container and cloth be forehand as fuel will leak out.
• Avoid fire and sparks.
• Keep parts away from heat source. Especially, be careful when welding is performed around
them.
• Do not expose parts to battery electrolyte or other acids.
• Do not bend or twist connection between quick co nnector and fuel feed hose during installation/
removal.
• To keep clean the connecting portion and to avoid dam-
age and foreign materials, cover them completely with
plastic bags or something similar.
4. Disconnect harness connector from fuel injector.
5. Remove fuel tube protector. • Loosen bolts in the reverse of the order shown. KBIA0702E
Page 2983 of 4331
Page 2984 of 4331

EM
NP
O

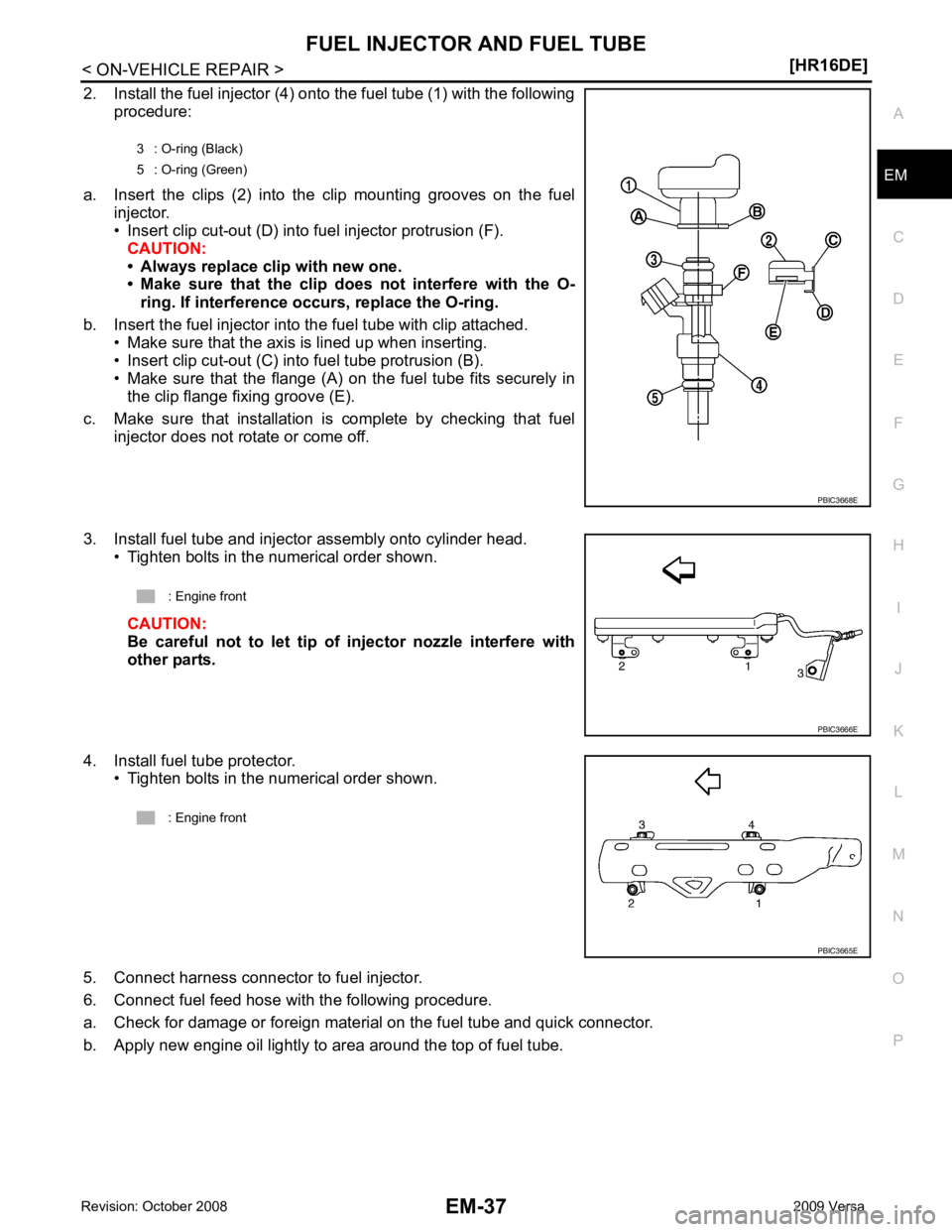

2. Install the fuel injector (4) onto the fuel tube (1) with the following
procedure:
a. Insert the clips (2) into the clip mounting grooves on the fuel injector.
• Insert clip cut-out (D) into fuel injector protrusion (F). CAUTION:
• Always replace clip with new one.
• Make sure that the clip do es not interfere with the O-
ring. If interference occurs, replace the O-ring.
b. Insert the fuel injector into the fuel tube with clip attached. • Make sure that the axis is lined up when inserting.
• Insert clip cut-out (C) into fuel tube protrusion (B).
• Make sure that the flange (A) on the fuel tube fits securely in the clip flange fixing groove (E).
c. Make sure that installation is complete by checking that fuel injector does not rotate or come off.
3. Install fuel tube and injector assembly onto cylinder head. • Tighten bolts in the numerical order shown.
CAUTION:
Be careful not to let tip of injector nozzle interfere with
other parts.
4. Install fuel tube protector. • Tighten bolts in the numerical order shown.
5. Connect harness connector to fuel injector.
6. Connect fuel feed hose with the following procedure.
a. Check for damage or foreign material on the fuel tube and quick connector.
b. Apply new engine oil lightly to area around the top of fuel tube. 3 : O-ring (Black)
5 : O-ring (Green)
