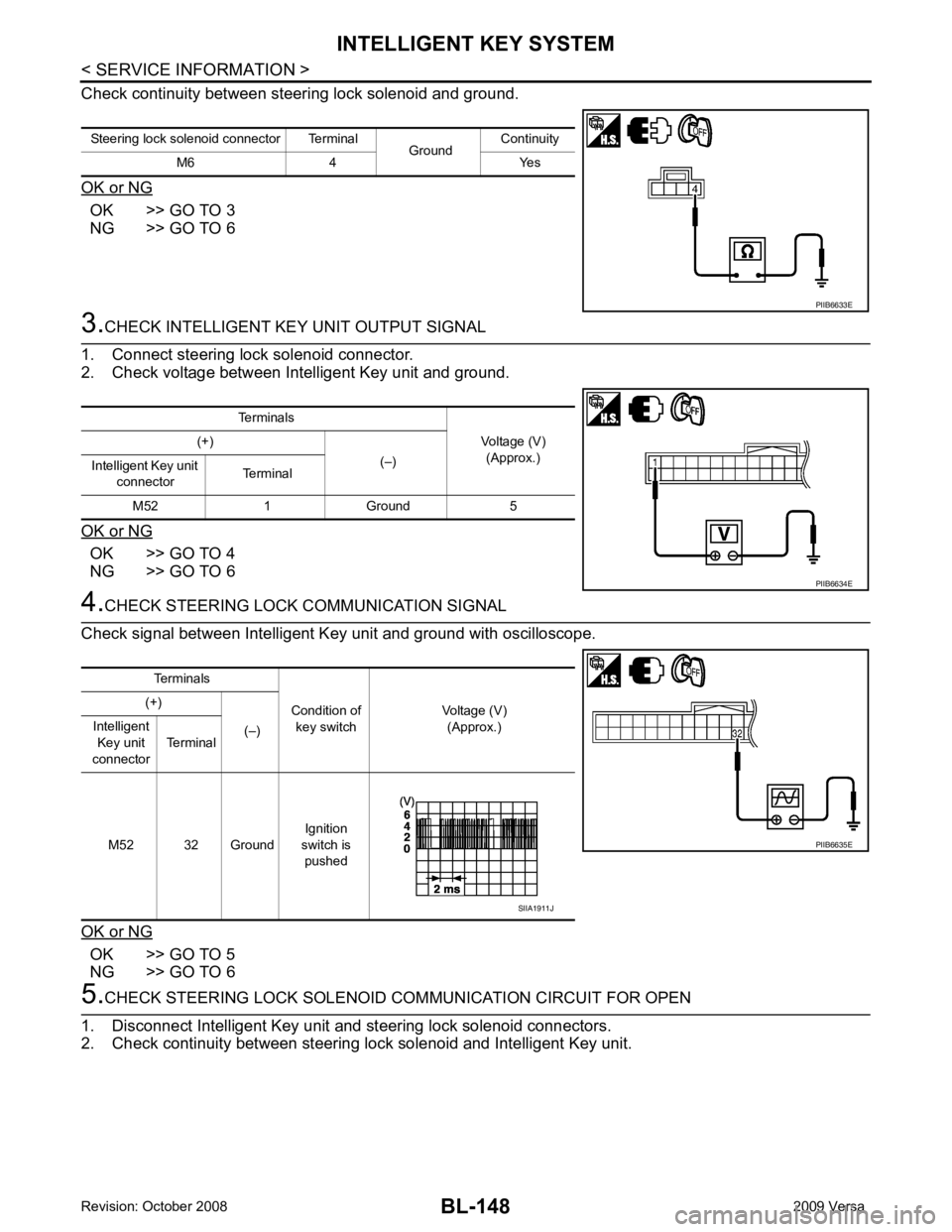

Page 609 of 4331

NISSAN TIIDA 2009 Service Repair Manual BL-148< SERVICE INFORMATION > INTELLIGENT KEY SYSTEM Check continuity between steering lock solenoid and ground. OK or NG OK >> GO TO 3 NG >> GO TO 6 3. CHECK INTELLIGENT KEY UNIT OUTPUT SIGNAL 1. Con

Page 610 of 4331

NISSAN TIIDA 2009 Service Repair Manual BL N O P OK or NG OK >> Replace steering lock solenoid. NG >> Repair or replace harness between steering lock sole- noid and Intelligent Key unit. OK >> Replace Intelligent Key unit. Refer to

Page 611 of 4331

NISSAN TIIDA 2009 Service Repair Manual OK >> GO TO 3 NG >> Repair or replace harness. OK >> Key switch and ignition knob switch is OK. NG >> Replace key switch and ignition knob switch. Ignition Switch Position Check INFOID:000000000430506

Page 612 of 4331

NISSAN TIIDA 2009 Service Repair Manual BL N O P 2. Disconnect Intelligent Key unit connector. 3. Check voltage between Intelligent Key unit harness connector M52 terminal 26 and ground. OK or NG OK >> Stop lamp switch is OK. NG >> G

Page 613 of 4331

NISSAN TIIDA 2009 Service Repair Manual BL-152< SERVICE INFORMATION > INTELLIGENT KEY SYSTEM Stop Lamp Switch Check (With M/T) INFOID:00000000043050641. CHECK STOP LAMP SWITCH INPUT SIGNAL 1. Turn ignition switch OFF. 2. Disconnect Intellig

Page 614 of 4331

NISSAN TIIDA 2009 Service Repair Manual BL N O P OK >> Check condition of harness and connector. NG >> Repair or replace harness. CVT or A/T Device (Park Position Switch) Check INFOID:0000000004305065OK >> Replace Intelligent Key unit. Ref

Page 615 of 4331

NISSAN TIIDA 2009 Service Repair Manual OK >> GO TO 5 NG >> Repair or replace harness. OK >> CVT or A/T device (park position switch) circuit is OK. NG >> Replace Intelligent Key unit. Refer to BL-158, " Removal and Installation of Intelli

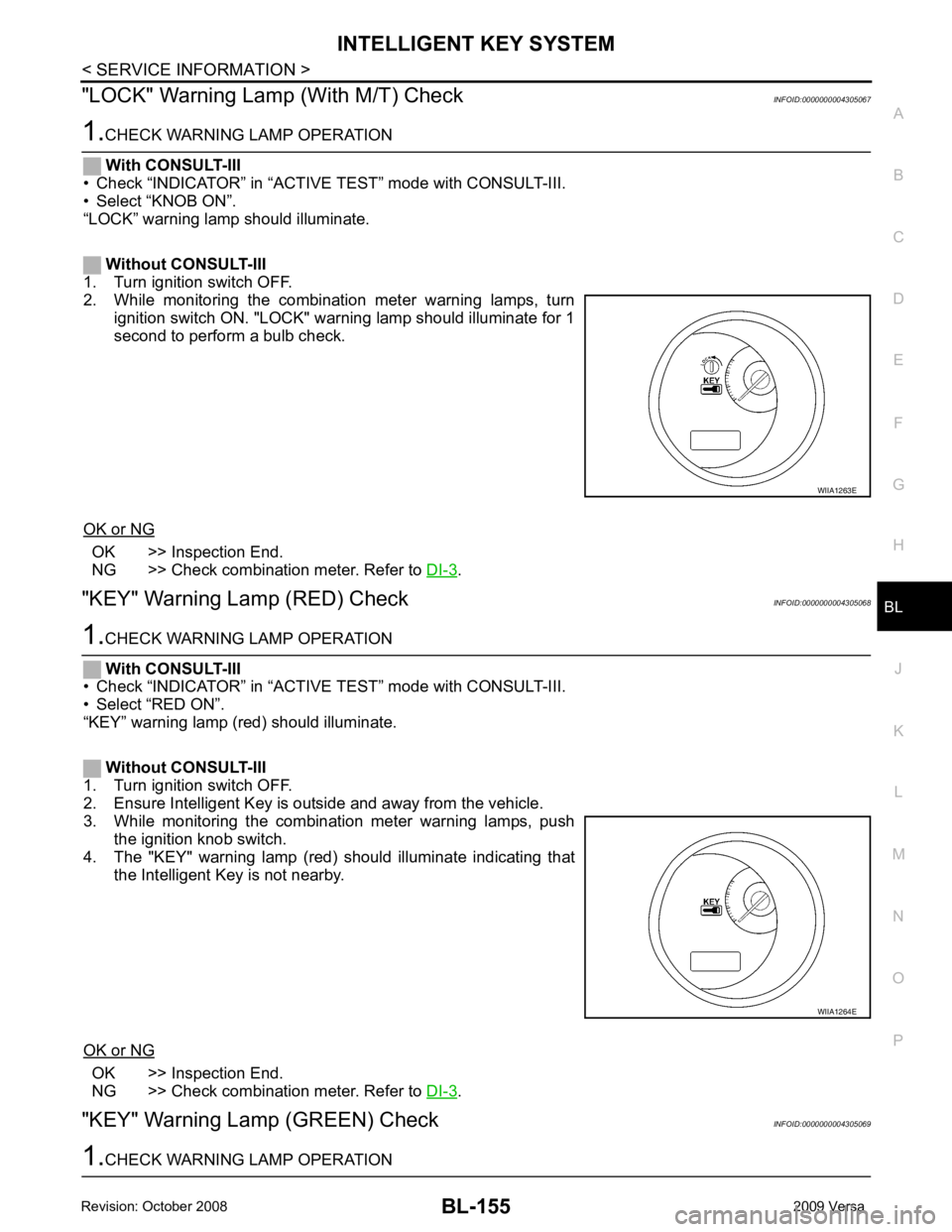

Page 616 of 4331

NISSAN TIIDA 2009 Service Repair Manual BL N O P "LOCK" Warning Lamp (With M/T) Check INFOID:0000000004305067OK >> Inspection End. NG >> Check combination meter. Refer to DI-3 . "KEY" Warning Lamp (RED) Check INFOID:0000000004305068OK >> I
