P0456 EVAP CONTROL SYSTEM
EC-341
< COMPONENT DIAGNOSIS >
[HR16DE] C
D E
F
G H
I
J
K L
M A EC
NP
O
3. Wipe clean valve housing.
4. Install fuel filler cap adapter (commercial service tool) to fuel filler cap.

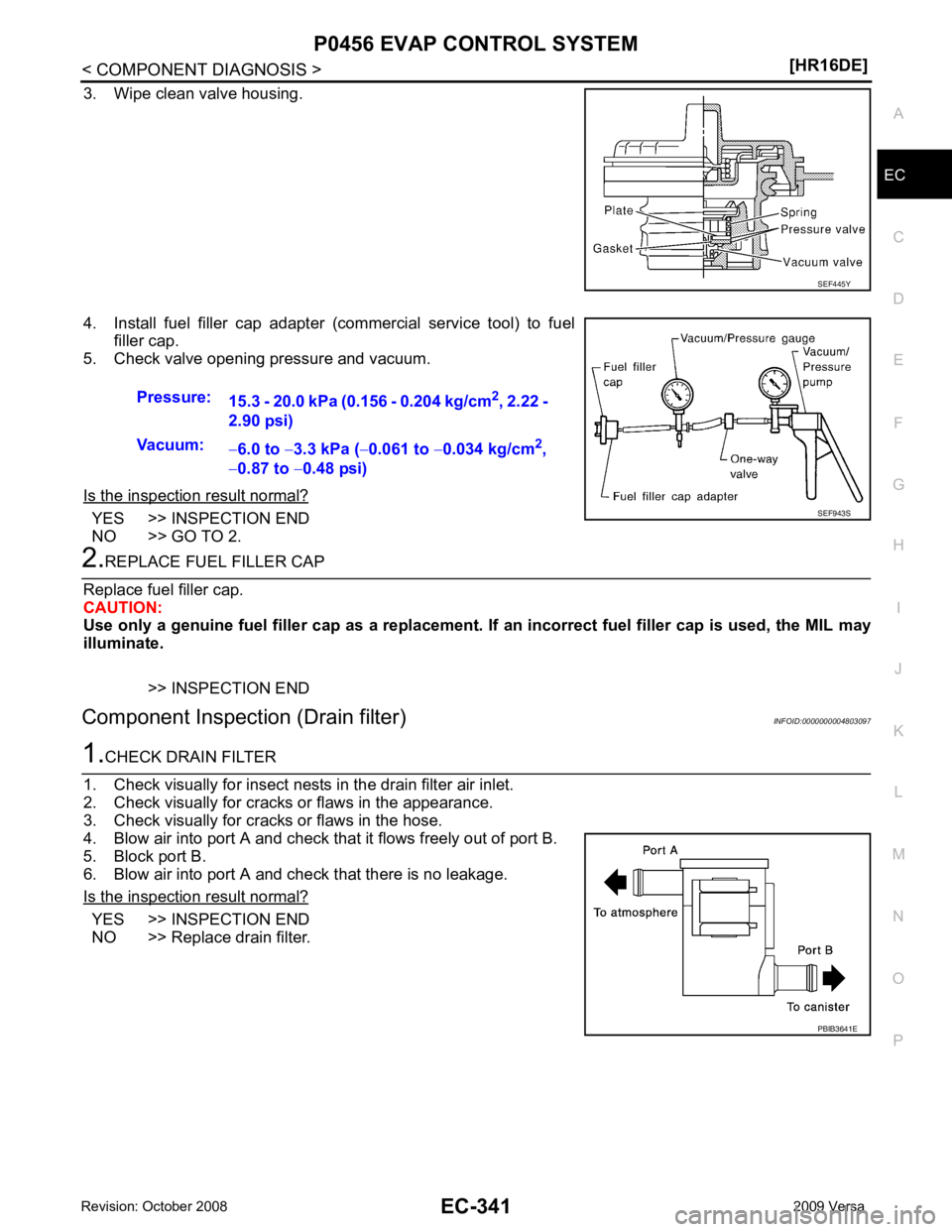

5. Check valve opening pressure and vacuum.
Is the inspection result normal? YES >> INSPECTION END
NO >> GO TO 2. 2.
REPLACE FUEL FILLER CAP
Replace fuel filler cap.
CAUTION:
Use only a genuine fuel filler cap as a replacement. If an incorrect fuel filler cap is used, the MIL may
illuminate.
>> INSPECTION END
Component Inspection (Drain filter) INFOID:00000000048030971.
CHECK DRAIN FILTER
1. Check visually for insect nests in the drain filter air inlet.
2. Check visually for cracks or flaws in the appearance.
3. Check visually for cracks or flaws in the hose.
4. Blow air into port A and check that it flows freely out of port B.
5. Block port B.
6. Blow air into port A and check that there is no leakage.
Is the inspection result normal? YES >> INSPECTION END
NO >> Replace drain filter. SEF445Y
Pressure:
15.3 - 20.0 kPa (0.156 - 0.204 kg/cm 2
, 2.22 -
2.90 psi)
Vacuum: −6.0 to −3.3 kPa ( −0.061 to −0.034 kg/cm 2
,
− 0.87 to −0.48 psi) SEF943S
PBIB3641E
Page 1698 of 4331
DTC Logic " .
When the vehicle is parked, naturally the fuel level in the fuel tank is stable. It means that output signal of the
fuel level sensor does not change. If ECM senses sloshi ng signal from the sensor, fuel level sensor malfunc-
tion is detected.
DTC CONFIRMATION PROCEDURE YES >> Go to
EC-342, " Diagnosis Procedure " .
NO >> INSPECTION END
Diagnosis Procedure INFOID:0000000004780212Trouble Diagnosis " .
Is the inspection result normal? YES >> GO TO 2.
NO >> Refer to DI-13, " Trouble Diagnosis "
Diagnosis Procedure " .
>> INSPECTION END
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0460 Fuel level sensor circuit
noise Even though the vehicle is parked, a signal be-
ing varied is sent from the fuel level sensor to
ECM. • Harness or connectors
(The CAN communication line is open or
shorted)
• Harness or connectors
(The sensor circuit is open or shorted)
• Combination meter
• Fuel level sensor
Page 1699 of 4331

EC
NP
O
P0461 FUEL LEVEL SENSOR
Description INFOID:0000000004780213
The fuel level sensor is mounted in the fuel level sensor unit.
The sensor detects a fuel level in the fuel tank and tr ansmits a signal to the combination meter. The combina-
tion meter sends the fuel level sensor signal to the ECM via the CAN communication line.
It consists of two parts, one is mechanical float and the ot her is variable resistor. Fuel level sensor output volt-
age changes depending on the movement of the fuel mechanical float.
DTC Logic INFOID:0000000004780214
DTC DETECTION LOGIC NOTE:
• If DTC P0461 is displayed with DTC UXXXX, first perform the tr ouble diagnosis for DTC UXXXX.
• If DTC P0461 is displayed with DT C P0607, first perform the trouble diagnosis for DTC P0607. Refer
to EC-357, " DTC Logic " .
Driving long distances naturally affect fuel gauge level.
This diagnosis detects the fuel gauge malfunction of the gauge not moving even after a long distance has
been driven.
DTC CONFIRMATION PROCEDURE Component Function Check " .
Use component function check to check the overall func tion of the fuel level sensor function. During this
check, a 1st trip DTC might not be confirmed.
Is the inspection result normal? YES >> INSPECTION END
NO >> Go to EC-344, " Diagnosis Procedure " .
Component Function Check INFOID:0000000004780215" General Precaution " .
TESTING CONDITION:
Before starting component function check, preparation of draining fuel and refilling fuel is required.
Do you have CONSULT-III? YES >> GO TO 2.
NO >> GO TO 3.
Page 1700 of 4331

Inspection " .
3. Remove the fuel feed hose on the fuel level sensor unit.
4. Connect a spare fuel hose where the fuel feed hose was removed.
5. Turn ignition switch OFF and wait at least 10 seconds then turn ON.
6. Select “FUEL LEVEL SE” in “DAT A MONITOR” mode with CONSULT-III.
7. Check “FUEL LEVEL SE” output voltage and note it.
8. Select “FUEL PUMP RELAY” in “ACTIVE TEST” mode with CONSULT-III.
9. Touch “ON” and drain fuel approximately 30 (7-7/8 US gal, 6-5/8 Imp gal) and stop it.
10. Check “FUEL LEVEL SE” output voltage and note it.
11. Fill fuel into the fuel tank for 30 (7-7/8 US gal, 6-5/8 Imp gal).
12. Check “FUEL LEVEL SE” output voltage and note it.
13. Confirm whether the voltage changes more than 0.03 V during step 7 to 10 and 10 to 12.
Is the inspection result normal? YES >> INSPECTION END
NO >> Go to EC-344, " Diagnosis Procedure " .
Inspection " .
3. Remove the fuel feed hose on the fuel level sensor unit.
4. Connect a spare fuel hose where the fuel feed hose was removed.
5. Turn ignition switch ON.
6. Drain fuel by 30 (7-7/8 US gal, 6-5/8 Imp gal) from the fuel tank using proper equipment.
7. Confirm that the fuel gauge indication varies.
8. Fill fuel into the fuel tank for 30 (7-7/8 US gal, 6-5/8 Imp gal).
9. Confirm that the fuel gauge indication varies.
Is the inspection result normal? YES >> INSPECTION END
NO >> Go to EC-344, " Diagnosis Procedure " .
Diagnosis Procedure INFOID:0000000004780216Trouble Diagnosis " .
Is the inspection result normal? YES >> GO TO 2.
NO >> Refer to DI-13, " Trouble Diagnosis "
Diagnosis Procedure " .
>> INSPECTION END
Page 1701 of 4331

EC
NP
O
P0462, P0463 FUEL LEVEL SENSOR
Description INFOID:0000000004780217
The fuel level sensor is mounted in the fuel level sensor unit.
The sensor detects a fuel level in the fuel tank and tr ansmits a signal to the combination meter. The combina-
tion meter sends the fuel level sensor signal to the ECM via the CAN communication line.
It consists of two parts, one is mechanical float and the ot her is variable resistor. Fuel level sensor output volt-
age changes depending on the movement of the fuel mechanical float.
DTC Logic INFOID:0000000004780218
DTC DETECTION LOGIC NOTE:
• If DTC P0462 or P0463 is displayed with DTC UXXXX, first perform the trouble diagnosis for DTC
UXXXX.
• If DTC P0462 or P0463 is displayed with DTC P0607, first perform the trouble diagnosis for DTC
P0607. Refer to EC-357, " DTC Logic " .
This diagnosis indicates the former, to detect open or short circuit malfunction.
DTC CONFIRMATION PROCEDURE YES >> Go to
EC-345, " Diagnosis Procedure " .
NO >> INSPECTION END
Diagnosis Procedure INFOID:0000000004780219Trouble Diagnosis " .
Is the inspection result normal? YES >> GO TO 2.
NO >> Refer to DI-13, " Trouble Diagnosis "
Diagnosis Procedure " .
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0462 Fuel level sensor circuit
low input An excessively low voltage from the sensor is
sent to ECM. • Harness or connectors
(The CAN communication line is open or
shorted)
• Harness or connectors (The sensor circuit is open or shorted)
• Combination meter
• Fuel level sensor
P0463
Fuel level sensor circuit
high input An excessively high voltage from the sensor is
sent to ECM.
Page 1702 of 4331
Page 1703 of 4331
EC
NP
O
P0500 VSS
Description INFOID:0000000004780220
The vehicle speed signal is sent to the combination me ter from the “ABS actuator and electric unit (control
unit)” via the CAN communication line. The combinati on meter then sends a signal to the ECM via the CAN
communication line.
DTC Logic INFOID:0000000004780221
DTC DETECTION LOGIC NOTE:
• If DTC P0500 is displayed with DTC UXXXX, first perform the tr ouble diagnosis for DTC UXXXX.
• If DTC P0500 is displayed with DT C P0607, first perform the trouble diagnosis for DTC P0607. Refer
to EC-357, " DTC Logic " .
DTC CONFIRMATION PROCEDURE YES >> GO TO 2.
NO >> GO TO 5. YES >> GO TO 2.
NO >> Go to EC-348, " Diagnosis Procedure " .
Page 1704 of 4331
YES >> Go to
EC-348, " Diagnosis Procedure " .
NO >> INSPECTION END Component Function Check " .
Use component function check to check the overall func tion of the vehicle speed signal circuit. During this
check, a 1st trip DTC might not be confirmed.
Is the inspection result normal? YES >> INSPECTION END
NO >> Go to EC-348, " Diagnosis Procedure " .
Component Function Check INFOID:0000000004780222YES >> INSPECTION END
NO >> Go to EC-348, " Diagnosis Procedure " .
Diagnosis Procedure INFOID:0000000004780223CONSULT-III Function (ABS) " .
Is the inspection result normal? YES >> GO TO 2.
NO >> Repair or replace. CONSULT-III Function (METER/M&A) " .
>> INSPECTION END
ENG SPEED
A/T: 1,900 - 6,000 rpm
M/T: 2,500 - 6,000 rpm
COOLAN TEMP/S More than 70 °C (158 °F)
B/FUEL SCHDL A/T: 4.8 - 31.8 msec
M/T: 3.8 - 31.8 msec
Selector lever Except P or N position (A/T)
Except Neutral position (M/T)
PW/ST SIGNAL OFF
