2005 MERCEDES-BENZ SPRINTER Service Repair Manual

8W-70 SPLICE INFORMATION
Component Page
S100............................ 8W-10-8, 9
S101............................. 8W-10-11
S102............................. 8W-11-29
S103............................. 8W-10-11
S104............................. 8W-10-28
S104............................. 8W-50-10
S105.............................. 8W-50-9
S175............................. 8W-10-29
S176............................. 8W-30-11
S177............................. 8W-30-10
S178............................. 8W-30-12
S200............................. 8W-10-19
S201............................. 8W-42-19
S202............................. 8W-11-36
S203............................. 8W-10-25
S204............................. 8W-10-20
S205............................. 8W-10-27
S206............................. 8W-10-22
S207.............................. 8W-44-5
S208.............................. 8W-44-5
S209.............................. 8W-42-5
S210............................. 8W-10-16
S211 ............................. 8W-15-24
S212............................. 8W-11-38
S213.............................. 8W-39-2
S214............................. 8W-11-38
S215.............................. 8W-30-2
S216............................. 8W-11-18
S217............................. 8W-10-29
S218.............................. 8W-42-4
S219............................. 8W-10-15
S220.............................. 8W-30-7
S221.............................. 8W-18-4
S222.............................. 8W-18-4
S223............................. 8W-10-30
S224.............................. 8W-30-3
S225............................. 8W-10-18
S226............................. 8W-11-24
S227............................. 8W-11-24
S228.............................. 8W-40-8
S229.............................. 8W-18-3
S250............................. 8W-10-23
S251.............................. 8W-35-3
S252............................. 8W-10-23
S253............................. 8W-11-28
S254.............................. 8W-44-6
S255............................. 8W-10-16
S256............................. 8W-11-17
S257.............................. 8W-18-5
S258.............................. 8W-31-7
S259.............................. 8W-30-2
S260.............................. 8W-30-3
S261............................. 8W-11-19
S262............................. 8W-10-29Component Page
S299.............................. 8W-35-7
S300............................. 8W-11-33
S301............................. 8W-11-33
S302............................. 8W-11-33
S303............................. 8W-15-23
S304............................. 8W-15-23
S305............................. 8W-11-36
S306............................. 8W-11-34
S307............................. 8W-11-34
S308.............................. 8W-15-5
S309.............................. 8W-15-6
S310............................. 8W-11-17
S311 ............................. 8W-11-30
S312.............................. 8W-35-6
S313.............................. 8W-35-6
S314.............................. 8W-35-6
S315.............................. 8W-35-6
S316............................. 8W-11-26
S317............................. 8W-50-11
S318.............................. 8W-51-3
S319.............................. 8W-35-3
S320.............................. 8W-31-9
S321............................. 8W-11-32
S322.............................. 8W-40-5
S323.............................. 8W-40-5
S324.............................. 8W-44-6
S325............................. 8W-11-23
S326.............................. 8W-40-6
S327.............................. 8W-42-8
S328.............................. 8W-45-6
S329.............................. 8W-45-6
S330.............................. 8W-48-4
S331.............................. 8W-48-3
S332............................. 8W-15-28
S333............................. 8W-10-17
S350............................. 8W-10-10
S351.............................. 8W-52-4
S352.............................. 8W-52-6
S353............................. 8W-10-24
S354.............................. 8W-70-2
S355............................. 8W-11-20
S356............................. 8W-10-26
S357.............................. 8W-61-4
S358............................. 8W-11-25
S359.............................. 8W-44-4
S360............................. 8W-11-23
S361............................. 8W-11-23
S362............................. 8W-11-35
S363.............................. 8W-63-4
S364............................. 8W-11-31
S365............................. 8W-11-32
S366.............................. 8W-63-4
S375.............................. 8W-61-4
VA8W-70 SPLICE INFORMATION 8W - 70 - 1

8W-80 CONNECTOR PIN-OUTS
Component Page
A/C Control Module-Roof.............. 8W-80-4
A/C Fan Switch..................... 8W-80-4
A/C Switch-Roof..................... 8W-80-4
Accelerator Pedal Position Sensor....... 8W-80-5
Air Outlet Temperature Sensor......... 8W-80-5
Airbag Control Module................ 8W-80-5
Airbag Squib-Driver.................. 8W-80-5

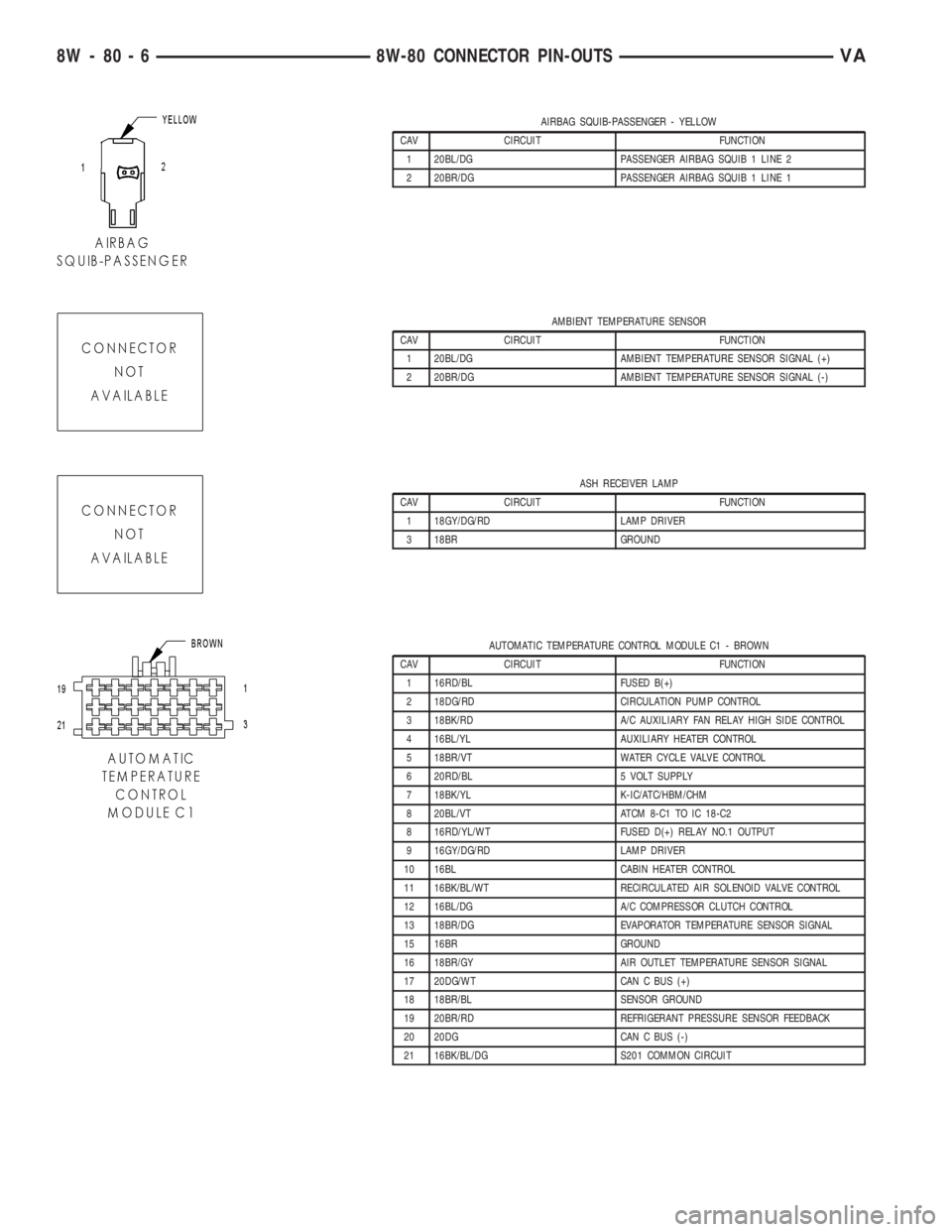

Airbag Squib-Passenger............... 8W-80-6
Ambient Temperature Sensor........... 8W-80-6
Ash Receiver Lamp.................. 8W-80-6
Automatic Temperature Control
Module C1....................... 8W-80-6
Automatic Temperature Control
Module C2....................... 8W-80-7
Auxiliary Heater Relay (In Relay Block) . . 8W-80-9
Auxiliary Heater Switch............... 8W-80-9
Battery Relay-Auxiliary............... 8W-80-9
Blower Motor Resistor Block........... 8W-80-9
Blower Motor Resistor Block C1......... 8W-80-9
Blower Motor Resistor Block C2........ 8W-80-10
Blower Motor Resistor Block C3........ 8W-80-10
Blower Motor-Front................. 8W-80-10
Body Plug Connector................ 8W-80-10
Boost Pressure Sensor............... 8W-80-10
Boost Pressure Solenoid.............. 8W-80-11
Brake Fluid Level Switch............. 8W-80-11
Brake Lamp Switch C1............... 8W-80-11
Brake Lamp Switch C2............... 8W-80-11
Brake Wear Sensor-Left Front......... 8W-80-11
Brake Wear Sensor-Left Rear.......... 8W-80-12
Brake Wear Sensor-Right Front........ 8W-80-12
Brake Wear Sensor-Right Rear......... 8W-80-12
C100............................. 8W-80-12
C100............................. 8W-80-12
C101............................. 8W-80-13
C101............................. 8W-80-13
C200............................. 8W-80-13
C200............................. 8W-80-14
C201............................. 8W-80-14
C201............................. 8W-80-15
C202............................. 8W-80-15
C202............................. 8W-80-15
C203............................. 8W-80-16
C203............................. 8W-80-16
C204............................. 8W-80-16
C204............................. 8W-80-16
C205............................. 8W-80-17
C205............................. 8W-80-17
C206............................. 8W-80-17
C206............................. 8W-80-17
C207............................. 8W-80-18
C207............................. 8W-80-18Component Page
C208............................. 8W-80-18
C208............................. 8W-80-18
C209............................. 8W-80-18
C209............................. 8W-80-19
C210............................. 8W-80-19
C210............................. 8W-80-19
C211 ............................. 8W-80-19
C211 ............................. 8W-80-19
C214............................. 8W-80-20
C214............................. 8W-80-20
C215............................. 8W-80-20
C215............................. 8W-80-20
C216............................. 8W-80-20
C216............................. 8W-80-20
C217............................. 8W-80-21
C217............................. 8W-80-21
C218............................. 8W-80-21
C218............................. 8W-80-21
C219............................. 8W-80-22
C219............................. 8W-80-22
C220............................. 8W-80-22
C220............................. 8W-80-22
C221............................. 8W-80-23
C221............................. 8W-80-23
C224............................. 8W-80-23
C224............................. 8W-80-23
C225............................. 8W-80-23
C225............................. 8W-80-24
Cabin Heater Assembly C1............ 8W-80-24
Cabin Heater Assembly C2............ 8W-80-24
Camshaft Position Sensor............. 8W-80-24
Center High Mounted Stop Lamp....... 8W-80-24
Central Timer Module C1............. 8W-80-25
Central Timer Module C2............. 8W-80-25
Cigar Lighter...................... 8W-80-25
Cigar Lighter Lamp................. 8W-80-26
Circulation Pump (Cabin Heater
Module)........................ 8W-80-26
Circulation Pump (Rest System)........ 8W-80-26
Circulation Pump Diode.............. 8W-80-26
Clockspring C1..................... 8W-80-26
Clockspring C2..................... 8W-80-27
Controller Antilock Brake............. 8W-80-27
Courtesy Lamp-Driver Door........... 8W-80-27
Courtesy Lamp-Left Sliding Door....... 8W-80-27
Courtesy Lamp-Passenger Door........ 8W-80-28
Courtesy Lamp-Right Sliding Door...... 8W-80-28
Crankcase Heater................... 8W-80-28
Crankshaft Position Sensor........... 8W-80-28
Ctel Connector..................... 8W-80-28
Cylinder Lock Switch-Driver.......... 8W-80-29
Data Link Connector................ 8W-80-29
VA8W-80 CONNECTOR PIN-OUTS 8W - 80 - 1

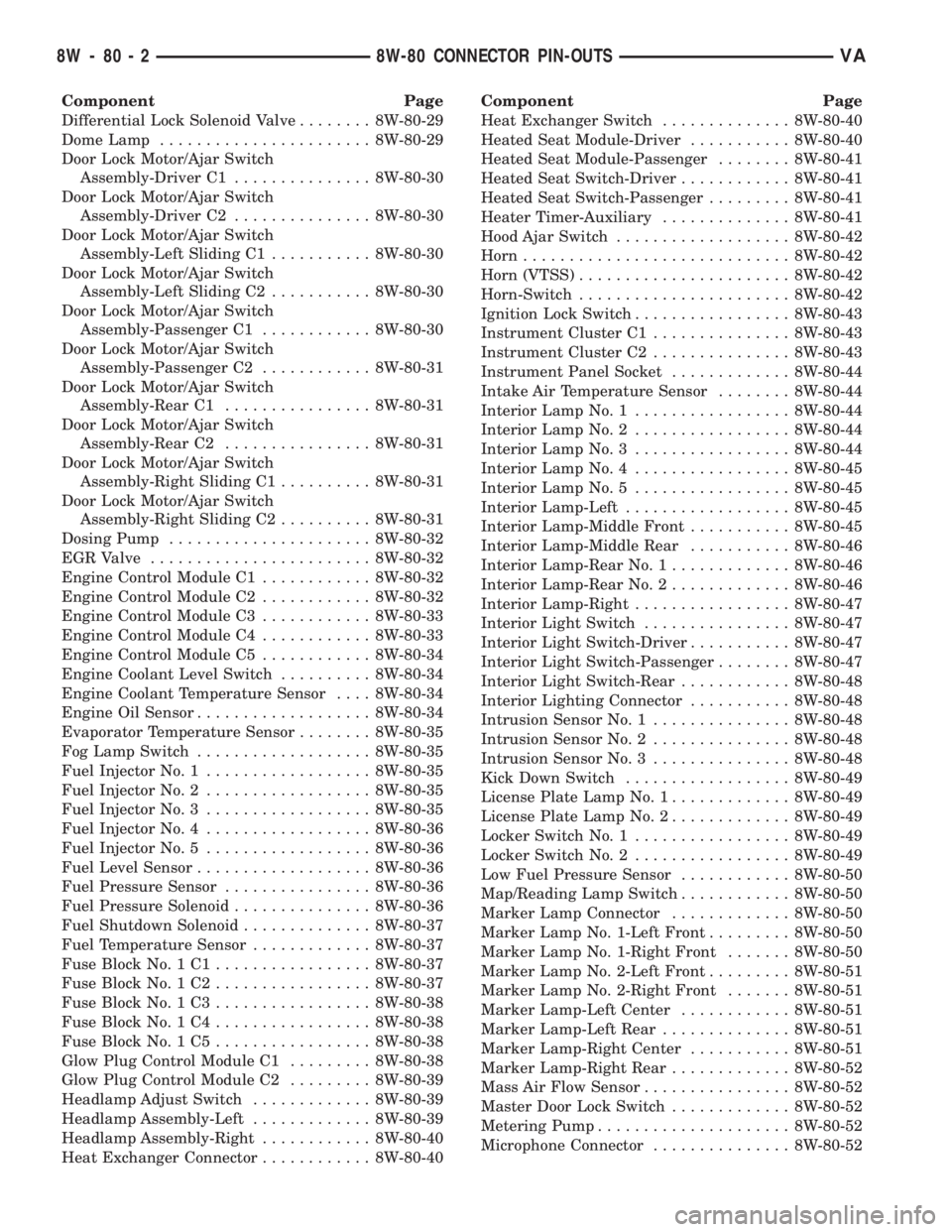

Component Page
Differential Lock Solenoid Valve........ 8W-80-29
Dome Lamp....................... 8W-80-29
Door Lock Motor/Ajar Switch
Assembly-Driver C1............... 8W-80-30
Door Lock Motor/Ajar Switch
Assembly-Driver C2............... 8W-80-30
Door Lock Motor/Ajar Switch
Assembly-Left Sliding C1........... 8W-80-30
Door Lock Motor/Ajar Switch
Assembly-Left Sliding C2........... 8W-80-30
Door Lock Motor/Ajar Switch
Assembly-Passenger C1............ 8W-80-30
Door Lock Motor/Ajar Switch
Assembly-Passenger C2............ 8W-80-31
Door Lock Motor/Ajar Switch
Assembly-Rear C1................ 8W-80-31
Door Lock Motor/Ajar Switch
Assembly-Rear C2................ 8W-80-31
Door Lock Motor/Ajar Switch
Assembly-Right Sliding C1.......... 8W-80-31
Door Lock Motor/Ajar Switch
Assembly-Right Sliding C2.......... 8W-80-31
Dosing Pump...................... 8W-80-32
EGR Valve........................ 8W-80-32
Engine Control Module C1............ 8W-80-32
Engine Control Module C2............ 8W-80-32
Engine Control Module C3............ 8W-80-33
Engine Control Module C4............ 8W-80-33
Engine Control Module C5............ 8W-80-34
Engine Coolant Level Switch.......... 8W-80-34
Engine Coolant Temperature Sensor.... 8W-80-34
Engine Oil Sensor................... 8W-80-34
Evaporator Temperature Sensor........ 8W-80-35
Fog Lamp Switch................... 8W-80-35
Fuel Injector No. 1.................. 8W-80-35
Fuel Injector No. 2.................. 8W-80-35
Fuel Injector No. 3.................. 8W-80-35
Fuel Injector No. 4.................. 8W-80-36
Fuel Injector No. 5.................. 8W-80-36
Fuel Level Sensor................... 8W-80-36
Fuel Pressure Sensor................ 8W-80-36
Fuel Pressure Solenoid............... 8W-80-36
Fuel Shutdown Solenoid.............. 8W-80-37
Fuel Temperature Sensor............. 8W-80-37
Fuse Block No. 1 C1................. 8W-80-37
Fuse Block No. 1 C2................. 8W-80-37
Fuse Block No. 1 C3................. 8W-80-38
Fuse Block No. 1 C4................. 8W-80-38
Fuse Block No. 1 C5................. 8W-80-38
Glow Plug Control Module C1......... 8W-80-38
Glow Plug Control Module C2......... 8W-80-39
Headlamp Adjust Switch............. 8W-80-39
Headlamp Assembly-Left............. 8W-80-39
Headlamp Assembly-Right............ 8W-80-40
Heat Exchanger Connector............ 8W-80-40Component Page
Heat Exchanger Switch.............. 8W-80-40
Heated Seat Module-Driver........... 8W-80-40
Heated Seat Module-Passenger........ 8W-80-41
Heated Seat Switch-Driver............ 8W-80-41
Heated Seat Switch-Passenger......... 8W-80-41
Heater Timer-Auxiliary.............. 8W-80-41
Hood Ajar Switch................... 8W-80-42
Horn............................. 8W-80-42
Horn (VTSS)....................... 8W-80-42
Horn-Switch....................... 8W-80-42
Ignition Lock Switch................. 8W-80-43
Instrument Cluster C1............... 8W-80-43
Instrument Cluster C2............... 8W-80-43
Instrument Panel Socket............. 8W-80-44
Intake Air Temperature Sensor........ 8W-80-44
Interior Lamp No. 1................. 8W-80-44
Interior Lamp No. 2................. 8W-80-44
Interior Lamp No. 3................. 8W-80-44
Interior Lamp No. 4................. 8W-80-45
Interior Lamp No. 5................. 8W-80-45
Interior Lamp-Left.................. 8W-80-45
Interior Lamp-Middle Front........... 8W-80-45
Interior Lamp-Middle Rear........... 8W-80-46
Interior Lamp-Rear No. 1............. 8W-80-46
Interior Lamp-Rear No. 2............. 8W-80-46
Interior Lamp-Right................. 8W-80-47
Interior Light Switch................ 8W-80-47
Interior Light Switch-Driver........... 8W-80-47
Interior Light Switch-Passenger........ 8W-80-47
Interior Light Switch-Rear............ 8W-80-48
Interior Lighting Connector........... 8W-80-48
Intrusion Sensor No. 1............... 8W-80-48
Intrusion Sensor No. 2............... 8W-80-48
Intrusion Sensor No. 3............... 8W-80-48
Kick Down Switch.................. 8W-80-49
License Plate Lamp No. 1............. 8W-80-49
License Plate Lamp No. 2............. 8W-80-49
Locker Switch No. 1................. 8W-80-49
Locker Switch No. 2................. 8W-80-49
Low Fuel Pressure Sensor............ 8W-80-50
Map/Reading Lamp Switch............ 8W-80-50
Marker Lamp Connector............. 8W-80-50
Marker Lamp No. 1-Left Front......... 8W-80-50
Marker Lamp No. 1-Right Front....... 8W-80-50
Marker Lamp No. 2-Left Front......... 8W-80-51
Marker Lamp No. 2-Right Front....... 8W-80-51
Marker Lamp-Left Center............ 8W-80-51
Marker Lamp-Left Rear.............. 8W-80-51
Marker Lamp-Right Center........... 8W-80-51
Marker Lamp-Right Rear............. 8W-80-52
Mass Air Flow Sensor................ 8W-80-52
Master Door Lock Switch............. 8W-80-52
Metering Pump..................... 8W-80-52
Microphone Connector............... 8W-80-52

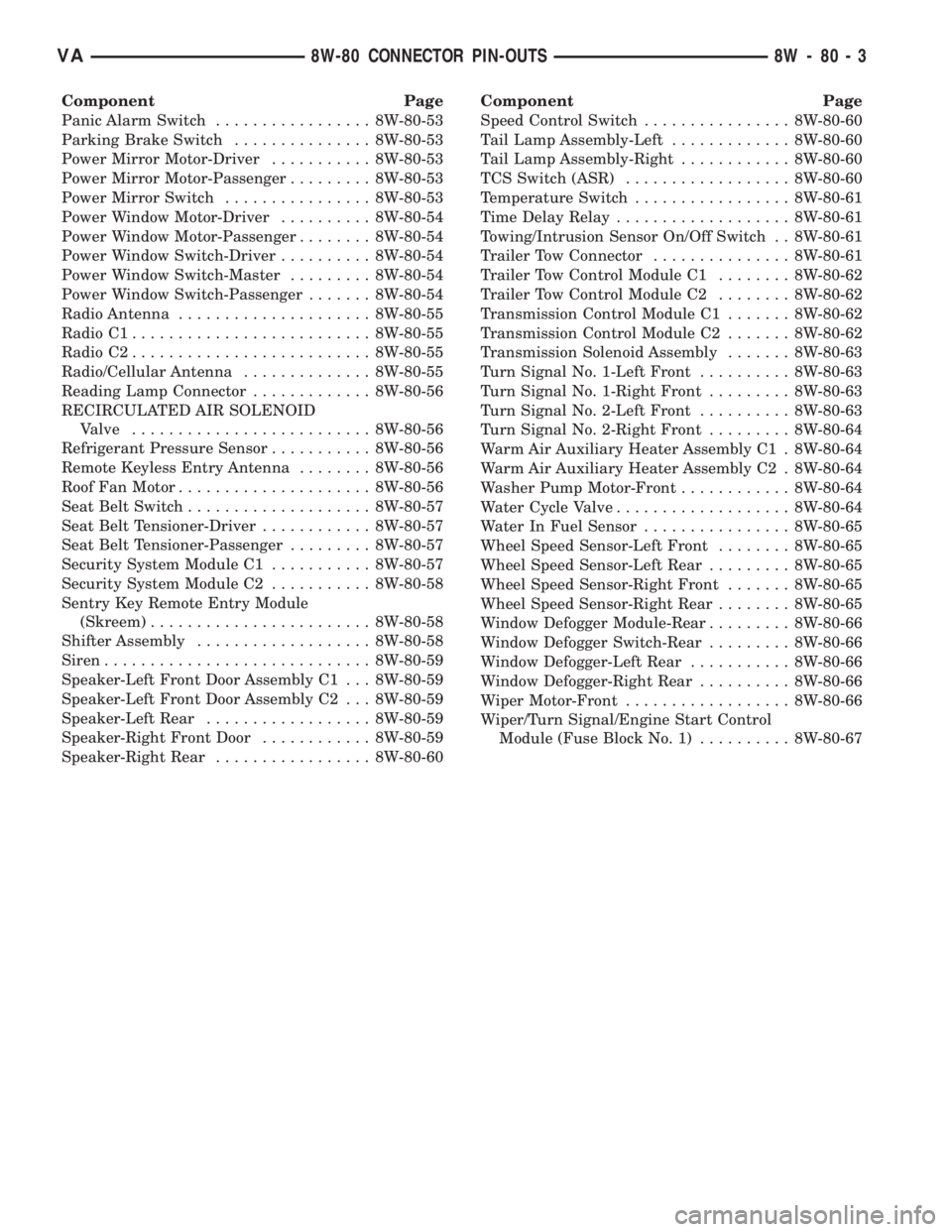

8W - 80 - 2 8W-80 CONNECTOR PIN-OUTSVA

Component Page
Panic Alarm Switch................. 8W-80-53
Parking Brake Switch............... 8W-80-53
Power Mirror Motor-Driver........... 8W-80-53
Power Mirror Motor-Passenger......... 8W-80-53
Power Mirror Switch................ 8W-80-53
Power Window Motor-Driver.......... 8W-80-54
Power Window Motor-Passenger........ 8W-80-54
Power Window Switch-Driver.......... 8W-80-54
Power Window Switch-Master......... 8W-80-54
Power Window Switch-Passenger....... 8W-80-54
Radio Antenna..................... 8W-80-55
Radio C1.......................... 8W-80-55
Radio C2.......................... 8W-80-55
Radio/Cellular Antenna.............. 8W-80-55
Reading Lamp Connector............. 8W-80-56
RECIRCULATED AIR SOLENOID
Valve.......................... 8W-80-56
Refrigerant Pressure Sensor........... 8W-80-56
Remote Keyless Entry Antenna........ 8W-80-56
Roof Fan Motor..................... 8W-80-56
Seat Belt Switch.................... 8W-80-57
Seat Belt Tensioner-Driver............ 8W-80-57
Seat Belt Tensioner-Passenger......... 8W-80-57
Security System Module C1........... 8W-80-57
Security System Module C2........... 8W-80-58
Sentry Key Remote Entry Module
(Skreem)........................ 8W-80-58
Shifter Assembly................... 8W-80-58
Siren............................. 8W-80-59
Speaker-Left Front Door Assembly C1 . . . 8W-80-59
Speaker-Left Front Door Assembly C2 . . . 8W-80-59
Speaker-Left Rear.................. 8W-80-59
Speaker-Right Front Door............ 8W-80-59
Speaker-Right Rear................. 8W-80-60Component Page
Speed Control Switch................ 8W-80-60
Tail Lamp Assembly-Left............. 8W-80-60
Tail Lamp Assembly-Right............ 8W-80-60
TCS Switch (ASR).................. 8W-80-60
Temperature Switch................. 8W-80-61
Time Delay Relay................... 8W-80-61
Towing/Intrusion Sensor On/Off Switch . . 8W-80-61
Trailer Tow Connector............... 8W-80-61
Trailer Tow Control Module C1........ 8W-80-62
Trailer Tow Control Module C2........ 8W-80-62
Transmission Control Module C1....... 8W-80-62
Transmission Control Module C2....... 8W-80-62
Transmission Solenoid Assembly....... 8W-80-63
Turn Signal No. 1-Left Front.......... 8W-80-63
Turn Signal No. 1-Right Front......... 8W-80-63
Turn Signal No. 2-Left Front.......... 8W-80-63
Turn Signal No. 2-Right Front......... 8W-80-64
Warm Air Auxiliary Heater Assembly C1 . 8W-80-64
Warm Air Auxiliary Heater Assembly C2 . 8W-80-64
Washer Pump Motor-Front............ 8W-80-64
Water Cycle Valve................... 8W-80-64
Water In Fuel Sensor................ 8W-80-65
Wheel Speed Sensor-Left Front........ 8W-80-65
Wheel Speed Sensor-Left Rear......... 8W-80-65
Wheel Speed Sensor-Right Front....... 8W-80-65
Wheel Speed Sensor-Right Rear........ 8W-80-65
Window Defogger Module-Rear......... 8W-80-66
Window Defogger Switch-Rear......... 8W-80-66
Window Defogger-Left Rear........... 8W-80-66
Window Defogger-Right Rear.......... 8W-80-66
Wiper Motor-Front.................. 8W-80-66
Wiper/Turn Signal/Engine Start Control
Module (Fuse Block No. 1).......... 8W-80-67
VA8W-80 CONNECTOR PIN-OUTS 8W - 80 - 3

A/C CONTROL MODULE-ROOF - BLACK
CAV CIRCUIT FUNCTION
1 12BR GROUND
2 12RD FUSED B(+)
3 16YL A/C SWITCH-ROOF SIGNAL 1
4 16VT A/C SWITCH-ROOF SIGNAL 2
5 16BK TEMPERATURE SWITCH SELECT
6 16BR TEMPERATURE SWITCH SENSE
A/C FAN SWITCH
CAV CIRCUIT FUNCTION
1 16GY/DG/RD LAMP DRIVER
3 16BK/BL/WT FUSED OPTIONAL EQUIPMENT RELAY OUTPUT
4 16WT SUPPLY VOLTAGE
5 16BR GROUND
6 16BR GROUND
7 16BK RETURN
8 16BK/BL/WT FUSED OPTIONAL EQUIPMENT RELAY OUTPUT
10 16BR GROUND
A/C SWITCH-ROOF
CAV CIRCUIT FUNCTION
1 16GY/DG/RD LAMP DRIVER
3 16RD/BK FUSED D(+) RELAY NO. 1 OUTPUT
4 16VT A/C SWITCH-ROOF SIGNAL 2
7 16YL A/C SWITCH-ROOF SIGNAL 1
8 16RD/BK FUSED D(+) RELAY NO. 1 OUTPUT
10 16BR GROUND
8W - 80 - 4 8W-80 CONNECTOR PIN-OUTSVA

ACCELERATOR PEDAL POSITION SENSOR - BLACK
CAV CIRCUIT FUNCTION
1 18BL/RD ACCEL PEDAL POSITION SENSOR 5 VOLT SUPPLY
2 18BR/BL SENSOR GROUND
3 18BL/DG ACCEL PEDAL POSITION SENSOR SIGNAL NO. 1
4 18BR/GY SENSOR GROUND
5 18GY/DG ACCEL PEDAL POSITION SENSOR SIGNAL NO. 2
AIR OUTLET TEMPERATURE SENSOR
CAV CIRCUIT FUNCTION
1 18BR/GY AIR OUTLET TEMPERATURE SENSOR SIGNAL
2 18BR/BL SENSOR GROUND
AIRBAG CONTROL MODULE - YELLOW
CAV CIRCUIT FUNCTION
1 20BL DRIVER SEAT BELT TENSIONER LINE 2
2 20BR/YL DRIVER SEAT BELT TENSIONER LINE 1
3 20BL PASSENGER SEAT BELT TENSIONER LINE 2
4 20BR PASSENGER SEAT BELT TENSIONER LINE 1
5 20BK FUSED IGNITION SWITCH OUTPUT (RUN-START)
6 20BR GROUND
7 20YL AIRBAG WARNING INDICATOR DRIVER
9 20BK/RD K-ACM
10 20DG DRIVER AIRBAG SQUIB 1 LINE 2
11 20VT DRIVER AIRBAG SQUIB 1 LINE 1
13 20BL/DG PASSENGER AIRBAG SQUIB 1 LINE 2
14 20BR/DG PASSENGER AIRBAG SQUIB 1 LINE 1
20 20DG ENHANCED ACCIDENT REPORT DRIVER
AIRBAG SQUIB-DRIVER
CAV CIRCUIT FUNCTION
1 20DG DRIVER AIRBAG SQUIB 1 LINE 2
2 20VT DRIVER AIRBAG SQUIB 1 LINE 1
VA8W-80 CONNECTOR PIN-OUTS 8W - 80 - 5

AIRBAG SQUIB-PASSENGER - YELLOW
CAV CIRCUIT FUNCTION
1 20BL/DG PASSENGER AIRBAG SQUIB 1 LINE 2
2 20BR/DG PASSENGER AIRBAG SQUIB 1 LINE 1
AMBIENT TEMPERATURE SENSOR
CAV CIRCUIT FUNCTION
1 20BL/DG AMBIENT TEMPERATURE SENSOR SIGNAL (+)
2 20BR/DG AMBIENT TEMPERATURE SENSOR SIGNAL (-)
ASH RECEIVER LAMP
CAV CIRCUIT FUNCTION
1 18GY/DG/RD LAMP DRIVER
3 18BR GROUND
AUTOMATIC TEMPERATURE CONTROL MODULE C1 - BROWN
CAV CIRCUIT FUNCTION
1 16RD/BL FUSED B(+)
2 18DG/RD CIRCULATION PUMP CONTROL
3 18BK/RD A/C AUXILIARY FAN RELAY HIGH SIDE CONTROL
4 16BL/YL AUXILIARY HEATER CONTROL
5 18BR/VT WATER CYCLE VALVE CONTROL
6 20RD/BL 5 VOLT SUPPLY
7 18BK/YL K-IC/ATC/HBM/CHM
8 20BL/VT ATCM 8-C1 TO IC 18-C2
8 16RD/YL/WT FUSED D(+) RELAY NO.1 OUTPUT
9 16GY/DG/RD LAMP DRIVER
10 16BL CABIN HEATER CONTROL
11 16BK/BL/WT RECIRCULATED AIR SOLENOID VALVE CONTROL
12 16BL/DG A/C COMPRESSOR CLUTCH CONTROL
13 18BR/DG EVAPORATOR TEMPERATURE SENSOR SIGNAL
15 16BR GROUND
16 18BR/GY AIR OUTLET TEMPERATURE SENSOR SIGNAL
17 20DG/WT CAN C BUS (+)
18 18BR/BL SENSOR GROUND
19 20BR/RD REFRIGERANT PRESSURE SENSOR FEEDBACK
20 20DG CAN C BUS (-)
21 16BK/BL/DG S201 COMMON CIRCUIT
8W - 80 - 6 8W-80 CONNECTOR PIN-OUTSVA
