2005 MERCEDES-BENZ SPRINTER Service Repair Manual

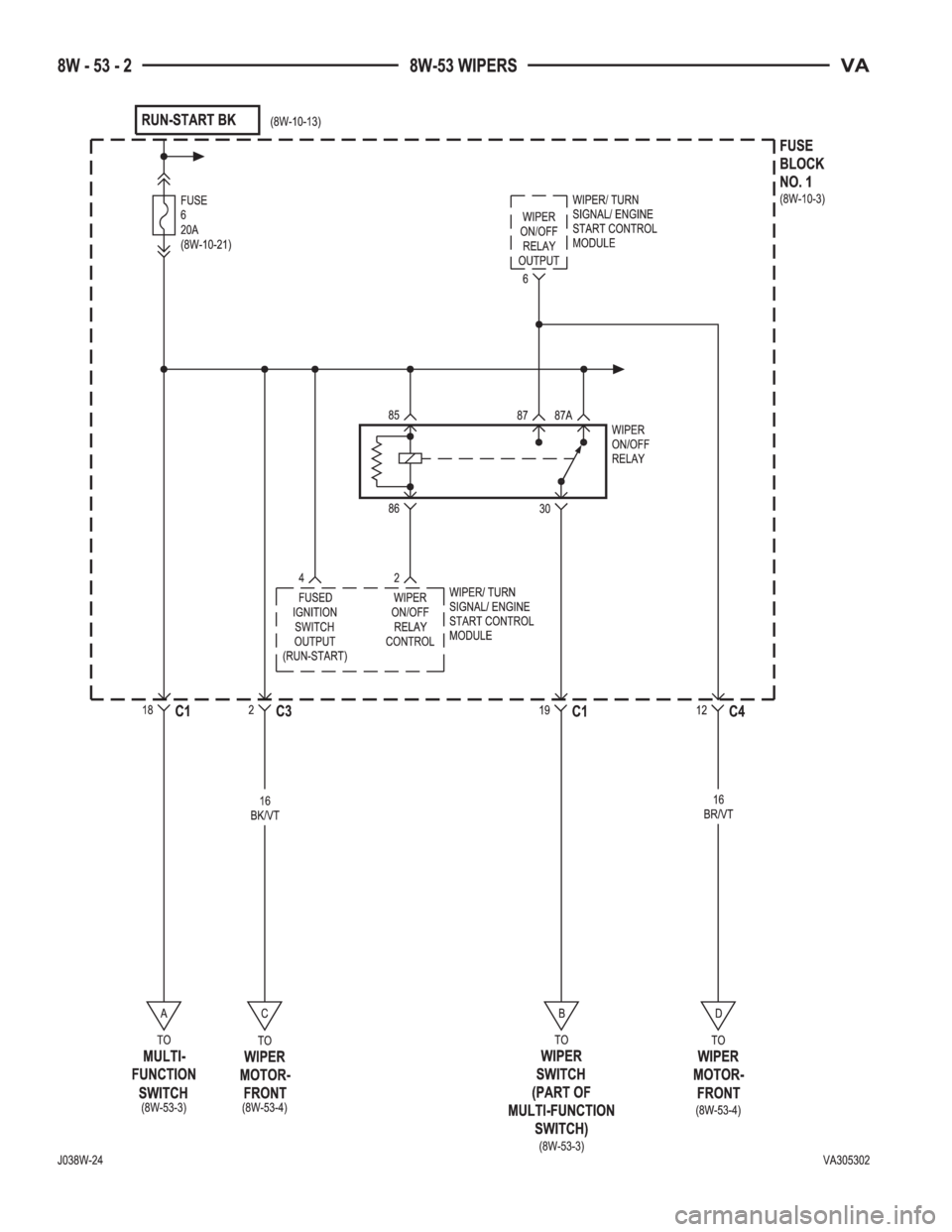

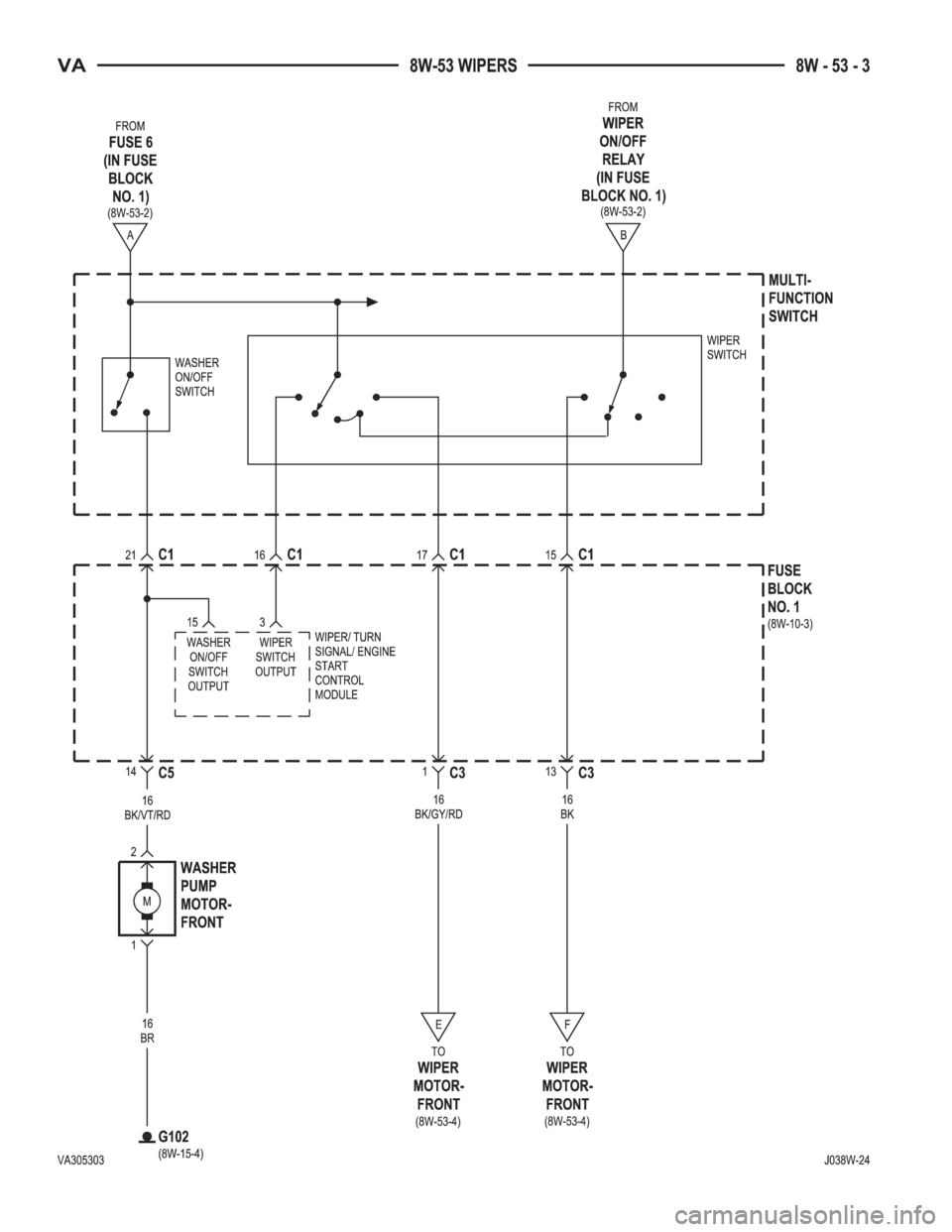

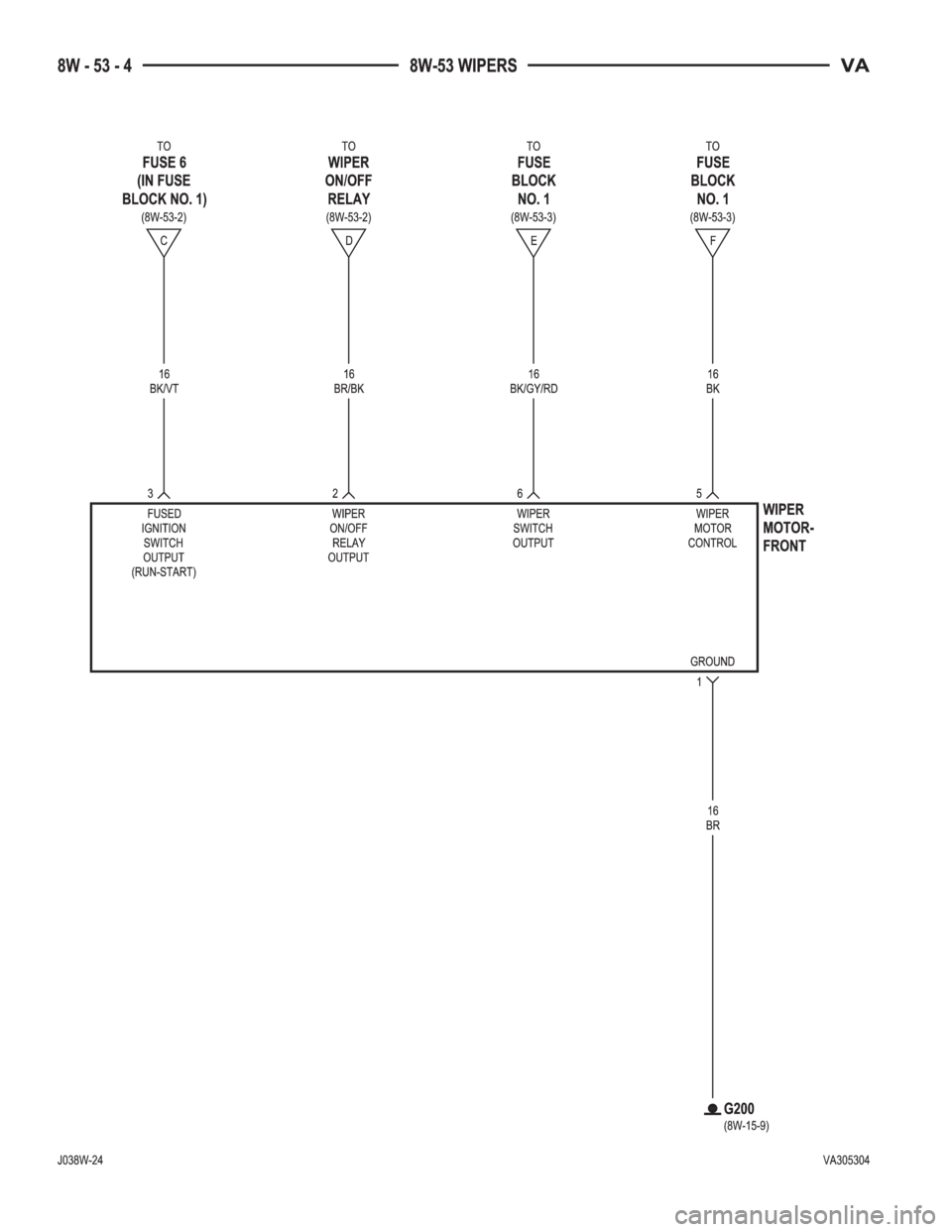

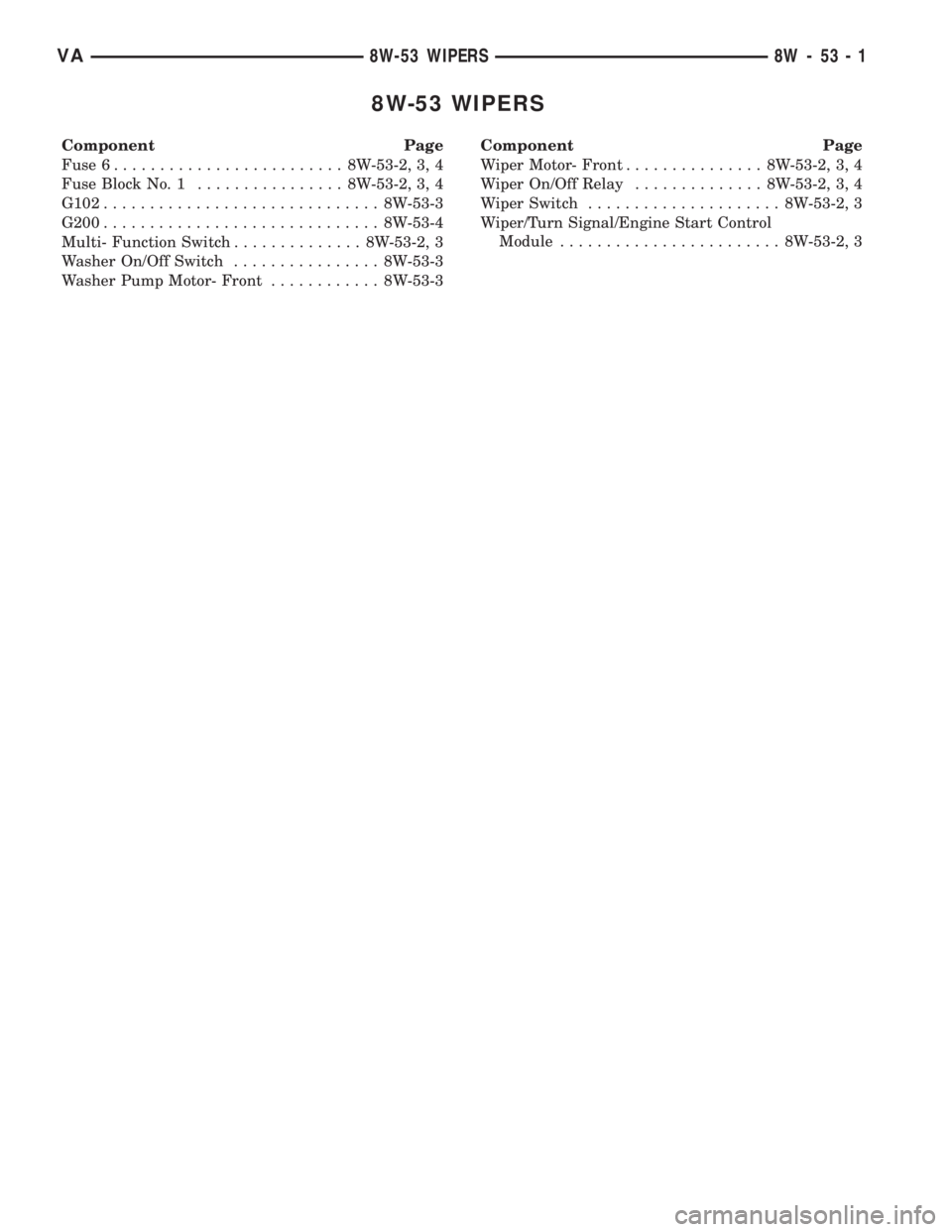

8W-53 WIPERS
Component Page
Fuse 6......................... 8W-53-2, 3, 4
Fuse Block No. 1................ 8W-53-2, 3, 4
G102.............................. 8W-53-3
G200.............................. 8W-53-4
Multi- Function Switch.............. 8W-53-2, 3
Washer On/Off Switch................ 8W-53-3
Washer Pump Motor- Front............ 8W-53-3Component Page
Wiper Motor- Front............... 8W-53-2, 3, 4
Wiper On/Off Relay.............. 8W-53-2, 3, 4
Wiper Switch..................... 8W-53-2, 3
Wiper/Turn Signal/Engine Start Control
Module........................ 8W-53-2, 3
VA8W-53 WIPERS 8W - 53 - 1

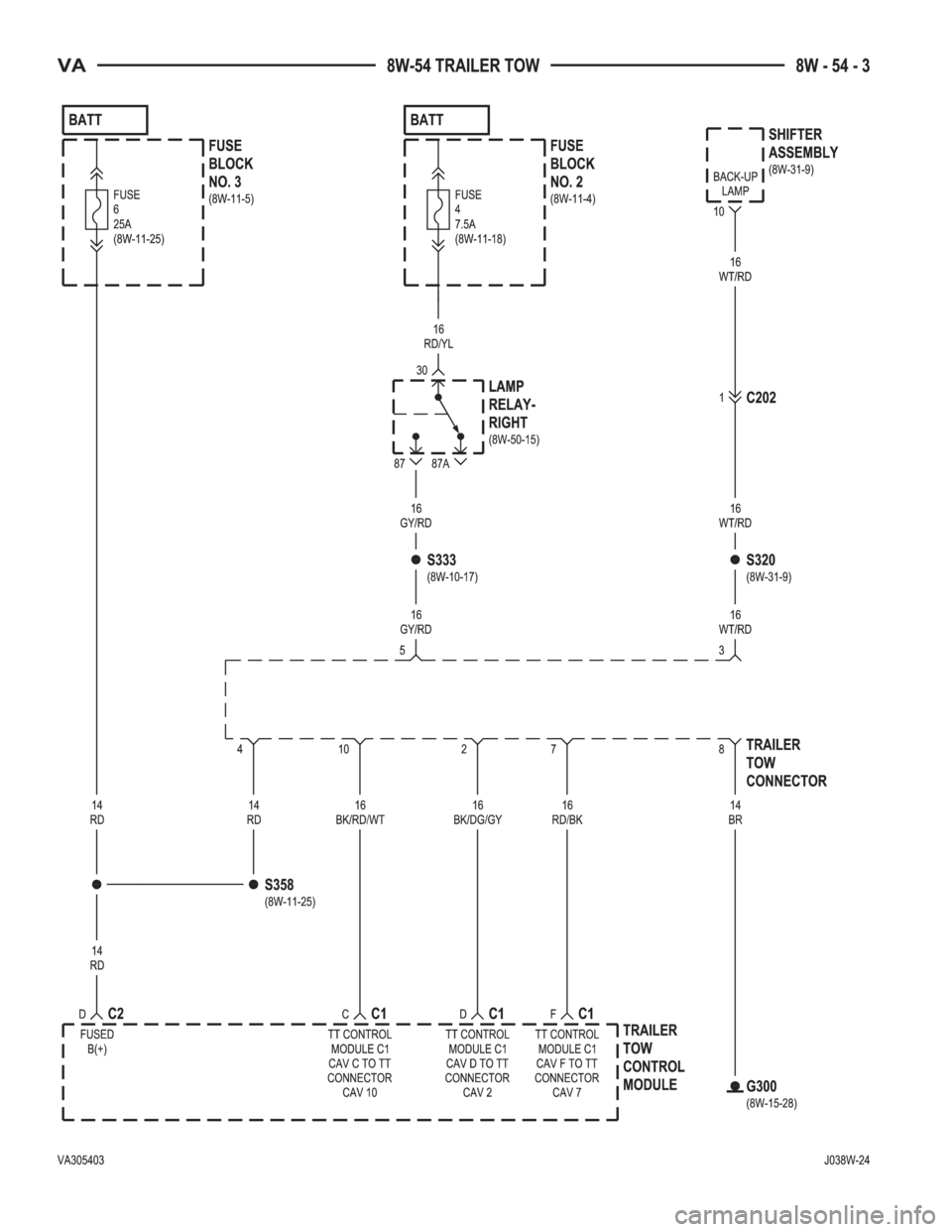

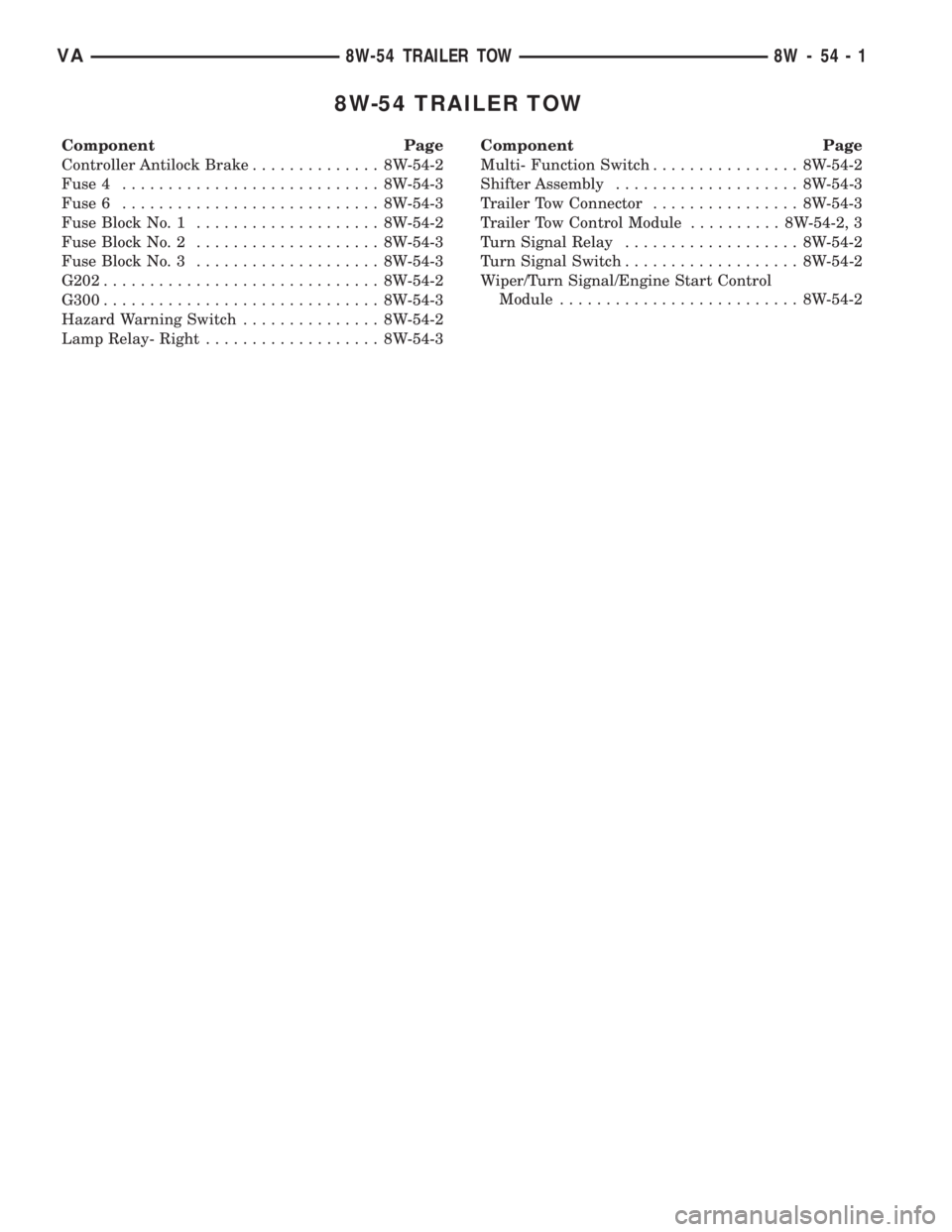

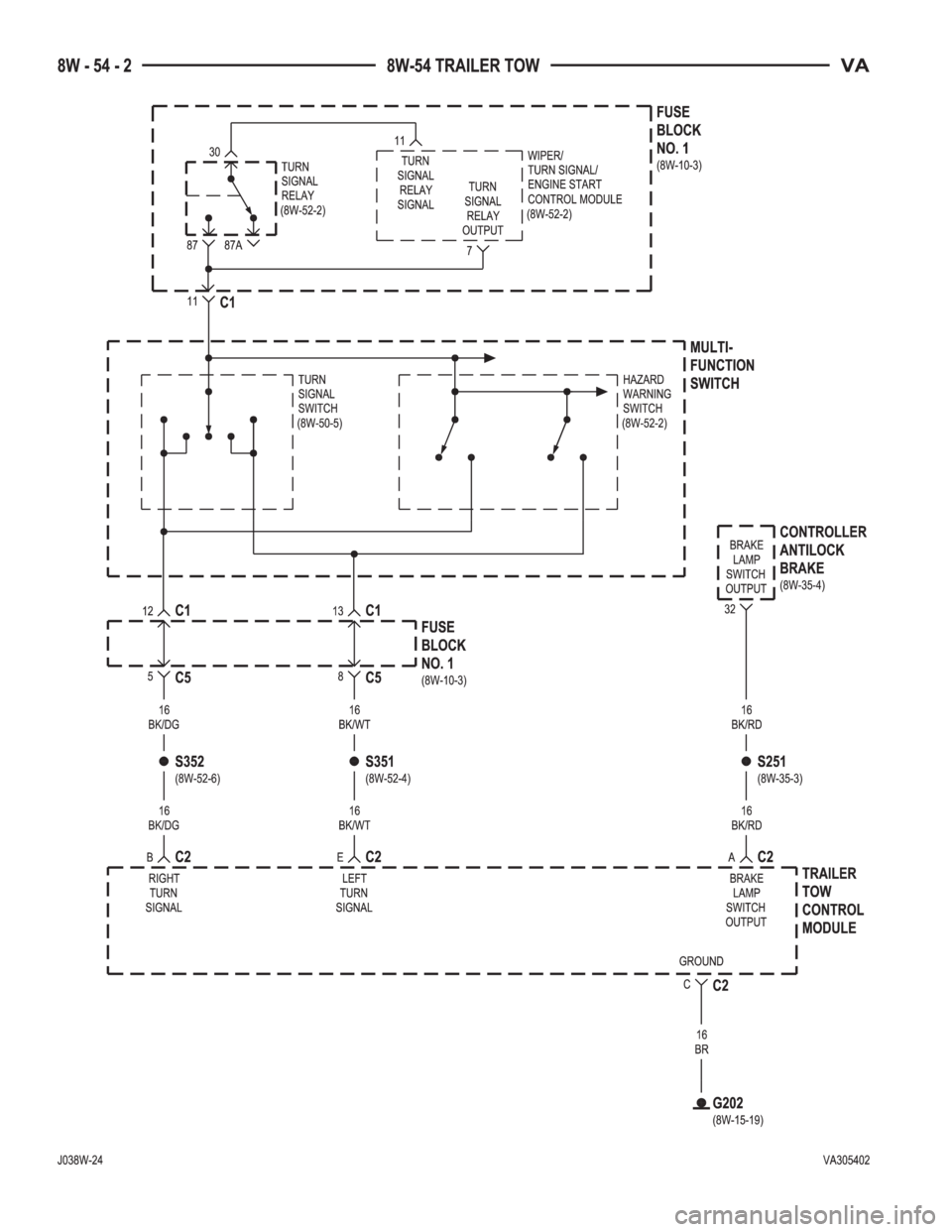

8W-54 TRAILER TOW
Component Page
Controller Antilock Brake.............. 8W-54-2
Fuse 4............................ 8W-54-3
Fuse 6............................ 8W-54-3
Fuse Block No. 1.................... 8W-54-2
Fuse Block No. 2.................... 8W-54-3
Fuse Block No. 3.................... 8W-54-3
G202.............................. 8W-54-2
G300.............................. 8W-54-3
Hazard Warning Switch............... 8W-54-2
Lamp Relay- Right................... 8W-54-3Component Page
Multi- Function Switch................ 8W-54-2
Shifter Assembly.................... 8W-54-3
Trailer Tow Connector................ 8W-54-3
Trailer Tow Control Module.......... 8W-54-2, 3
Turn Signal Relay................... 8W-54-2
Turn Signal Switch................... 8W-54-2
Wiper/Turn Signal/Engine Start Control
Module.......................... 8W-54-2
VA8W-54 TRAILER TOW 8W - 54 - 1
