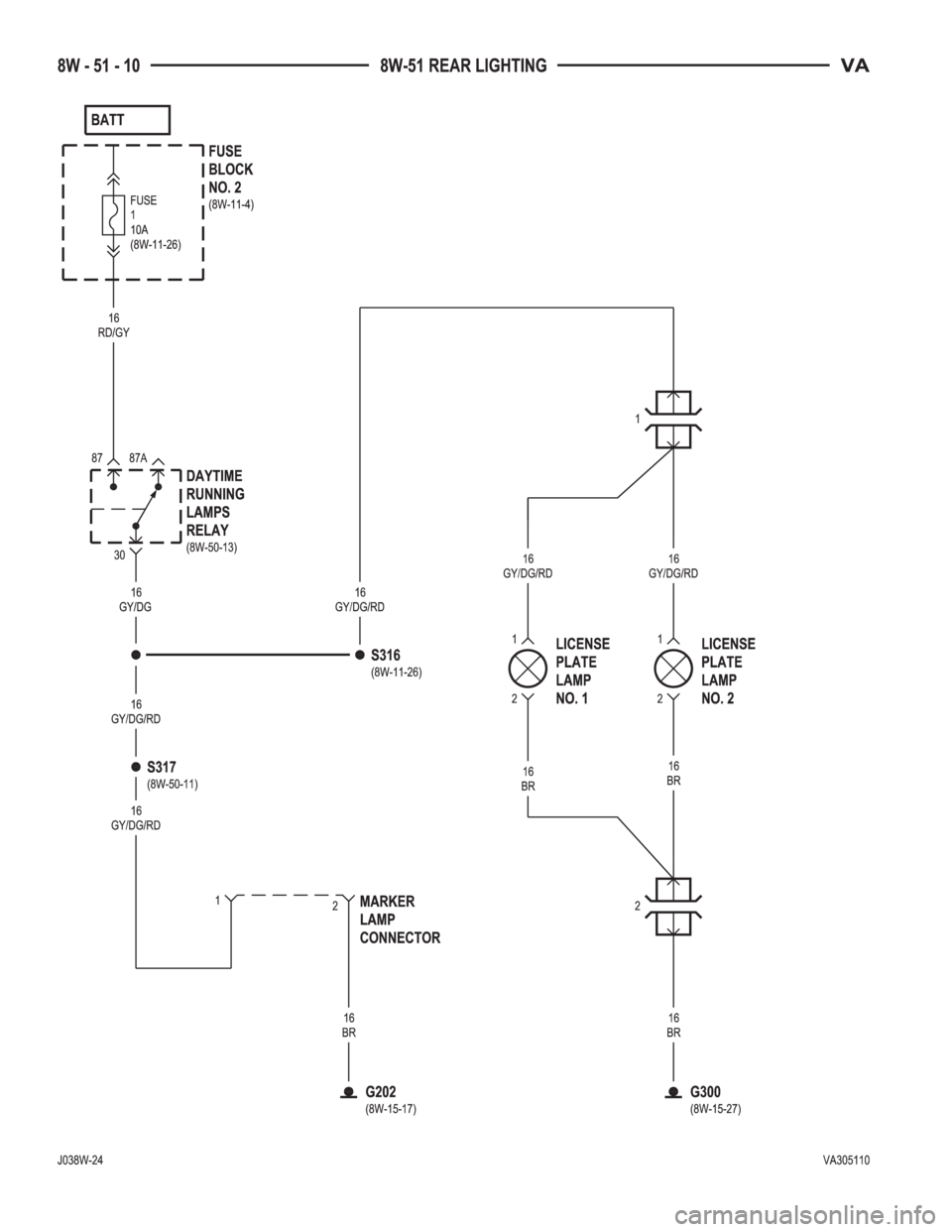

2005 MERCEDES-BENZ SPRINTER Service Repair Manual

8W-52 TURN SIGNALS
Component Page
Fuse 5.......................... 8W-52-3, 5
Fuse 6............................ 8W-52-2
Fuse 8.......................... 8W-52-3, 5
Fuse 9............................ 8W-52-2
Fuse Block No. 1............. 8W-52-2, 3, 4, 5, 6
Fuse/Relay Block.................. 8W-52-3, 5
G100.............................. 8W-52-4
G102.............................. 8W-52-6
G200.............................. 8W-52-2
Hazard Warning Switch............... 8W-52-2
Headlamp Assembly- Left.............. 8W-52-4
Headlamp Assembly- Right............ 8W-52-6
Instrument Cluster................. 8W-52-4, 6
Multi- Function Switch................ 8W-52-2
Security System Module............. 8W-52-4, 6
Sentry Key Remote Entry Module..... 8W-52-3, 4Component Page
Tail Lamp Assembly- Left.............. 8W-52-4

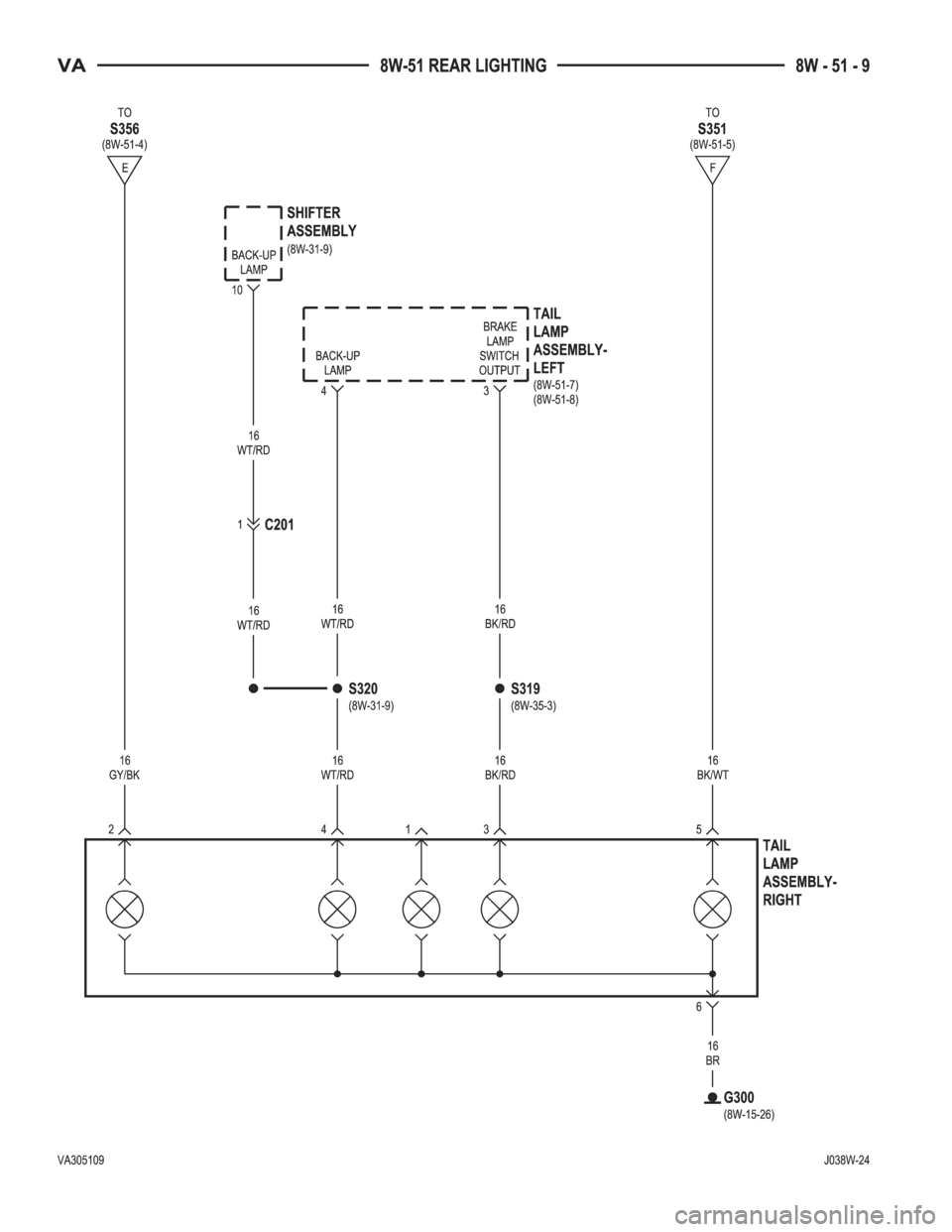

Tail Lamp Assembly- Right............ 8W-52-6
Trailer Tow Control Module.......... 8W-52-4, 6
Turn Signal No. 1- Left Front........... 8W-52-4
Turn Signal No. 1- Right Front......... 8W-52-6
Turn Signal No. 2- Left Front........... 8W-52-4
Turn Signal No. 2- Right Front......... 8W-52-6
Turn Signal Relay................... 8W-52-2

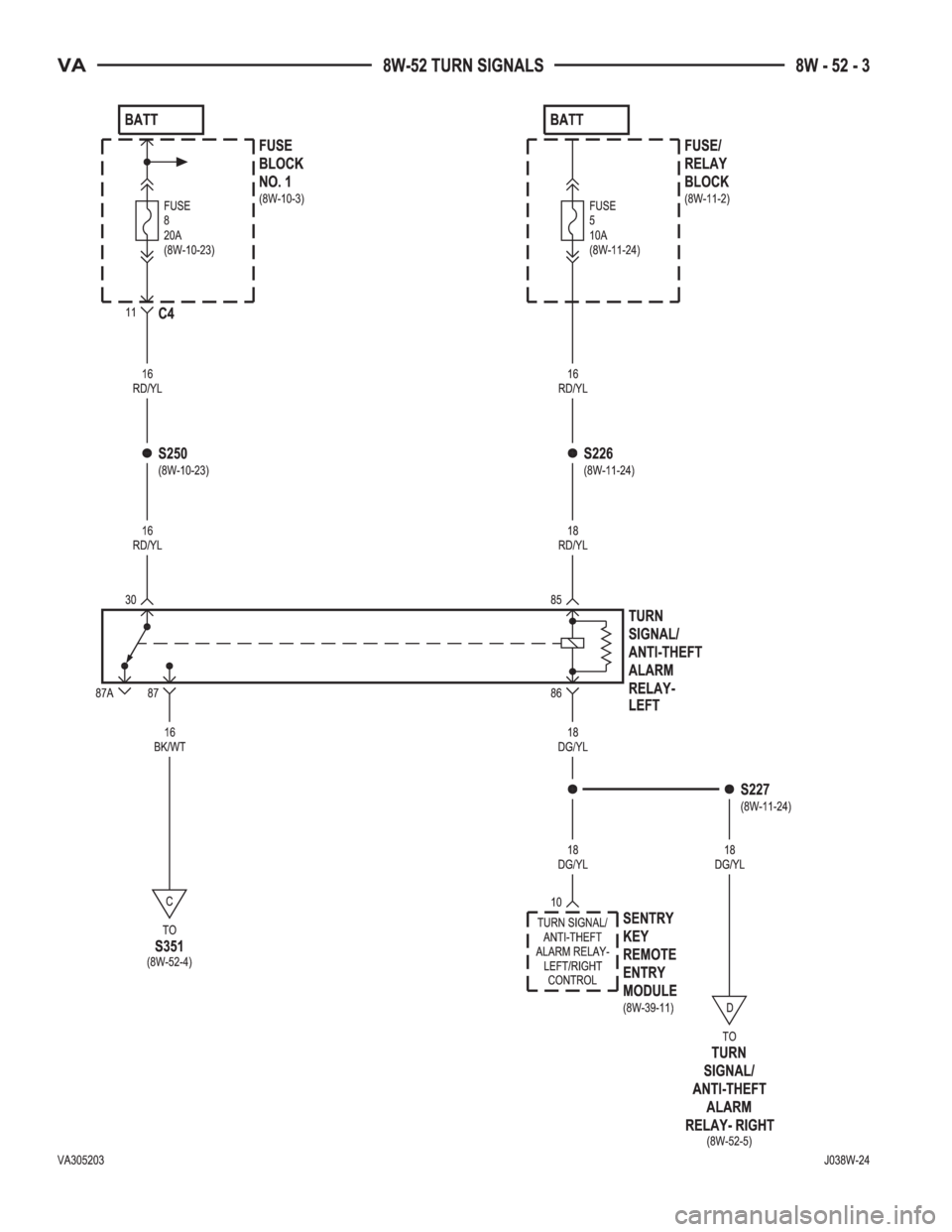

Turn Signal/Anti-Theft Alarm
Relay- Left..................... 8W-52-3, 4

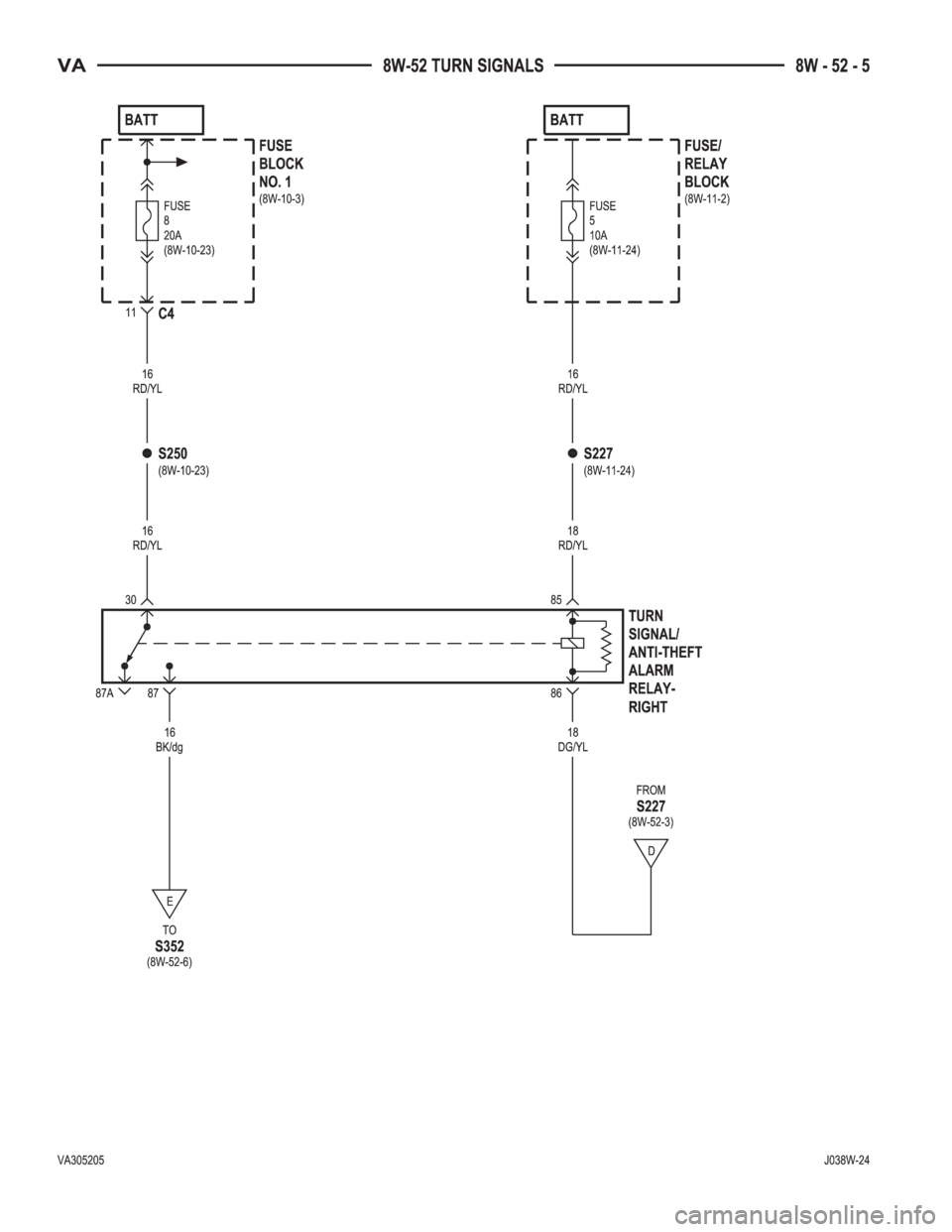

Turn Signal/Anti-Theft Alarm
Relay- Right.................. 8W-52-3, 5, 6
Wiper/Turn Signal/Engine Start
Control Module.................... 8W-52-2
