2005 MERCEDES-BENZ SPRINTER Service Repair Manual

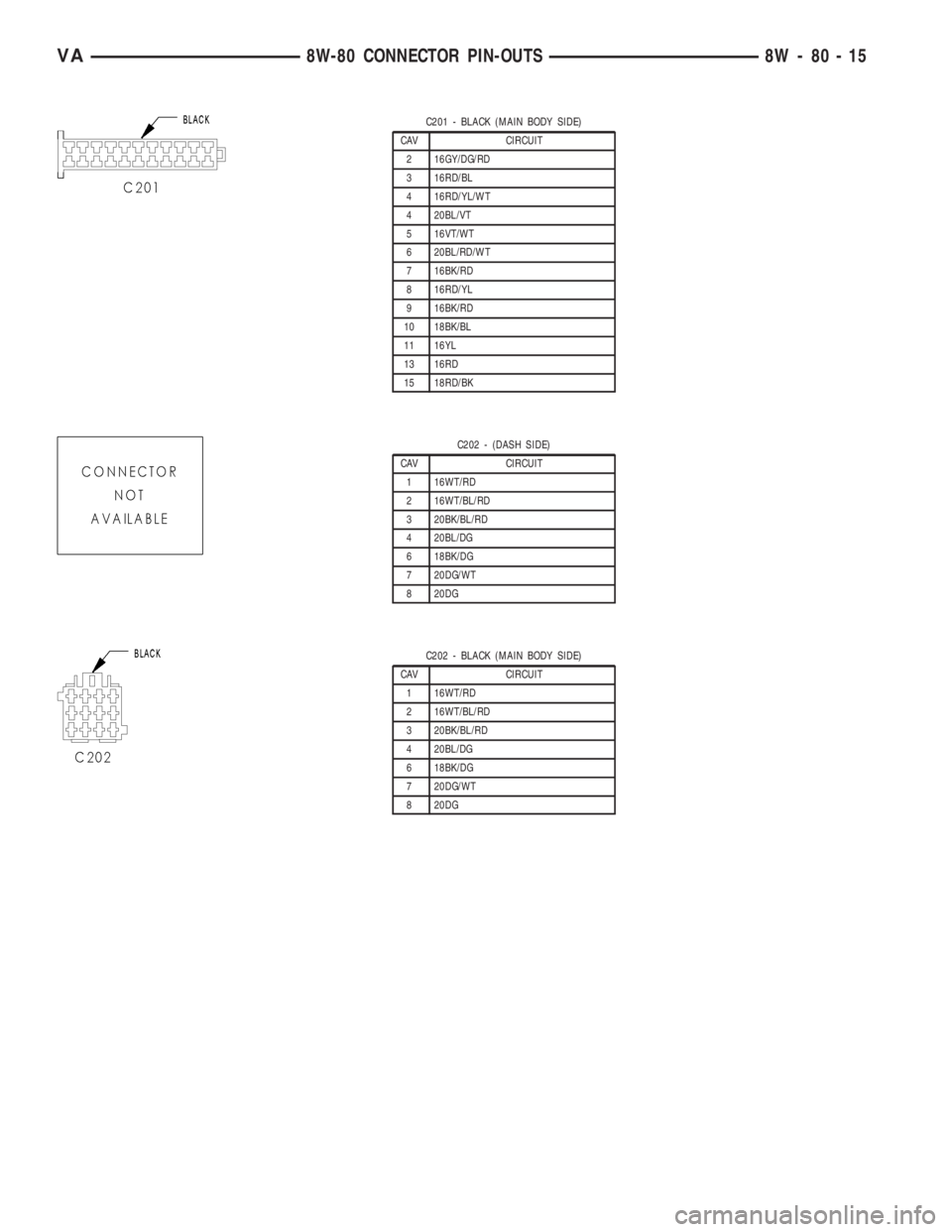

C201 - BLACK (MAIN BODY SIDE)
CAV CIRCUIT
2 16GY/DG/RD
3 16RD/BL
4 16RD/YL/WT
4 20BL/VT
5 16VT/WT
6 20BL/RD/WT
7 16BK/RD
8 16RD/YL
9 16BK/RD
10 18BK/BL
11 16YL
13 16RD
15 18RD/BK
C202 - (DASH SIDE)
CAV CIRCUIT
1 16WT/RD
2 16WT/BL/RD
3 20BK/BL/RD
4 20BL/DG
6 18BK/DG
7 20DG/WT
8 20DG
C202 - BLACK (MAIN BODY SIDE)
CAV CIRCUIT
1 16WT/RD
2 16WT/BL/RD
3 20BK/BL/RD
4 20BL/DG
6 18BK/DG
7 20DG/WT
8 20DG
VA8W-80 CONNECTOR PIN-OUTS 8W - 80 - 15

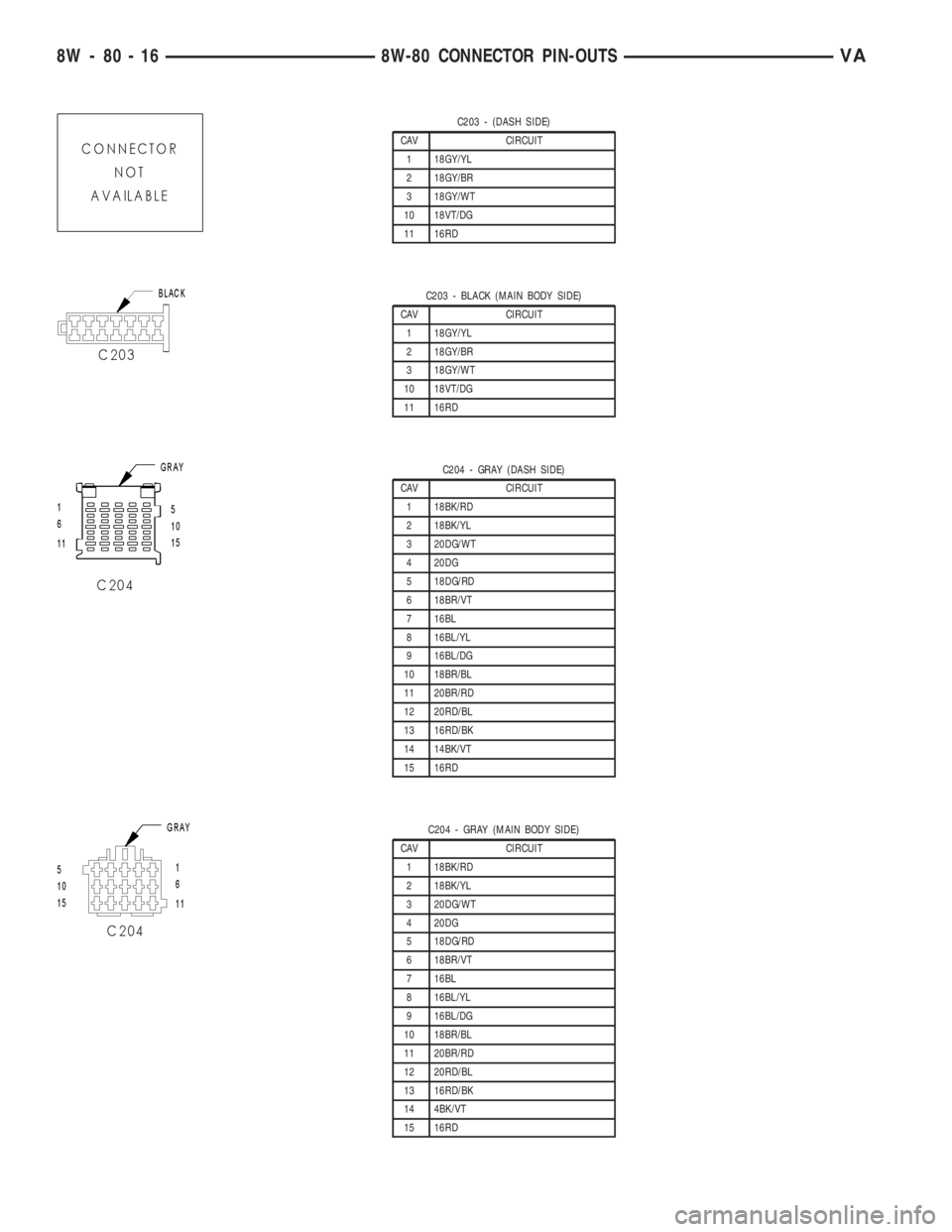

C203 - (DASH SIDE)
CAV CIRCUIT
1 18GY/YL
2 18GY/BR
3 18GY/WT
10 18VT/DG
11 16RD
C203 - BLACK (MAIN BODY SIDE)
CAV CIRCUIT
1 18GY/YL
2 18GY/BR
3 18GY/WT
10 18VT/DG
11 16RD
C204 - GRAY (DASH SIDE)
CAV CIRCUIT
1 18BK/RD
2 18BK/YL
3 20DG/WT
4 20DG
5 18DG/RD
6 18BR/VT
7 16BL
8 16BL/YL
9 16BL/DG
10 18BR/BL
11 20BR/RD
12 20RD/BL
13 16RD/BK
14 14BK/VT
15 16RD
C204 - GRAY (MAIN BODY SIDE)
CAV CIRCUIT
1 18BK/RD
2 18BK/YL
3 20DG/WT
4 20DG
5 18DG/RD
6 18BR/VT
7 16BL
8 16BL/YL
9 16BL/DG
10 18BR/BL
11 20BR/RD
12 20RD/BL
13 16RD/BK
14 4BK/VT
15 16RD
8W - 80 - 16 8W-80 CONNECTOR PIN-OUTSVA

C205 - YELLOW (DASH SIDE)
CAV CIRCUIT
1 20BL/DG
2 20BR/DG
C205 - YELLOW (MAIN BODY SIDE)
CAV CIRCUIT
1 20BL/DG
2 20BR/DG
C206 - (DASH SIDE)
CAV CIRCUIT
1 16RD
2 14BK/VT
3 16VT/DG
4 16VT/RD
5 16VT/YL
6 16VT/BK
7 16VT/BR
8 16VT
15 16BK/BL/WT
18 16VT/YL
19 16VT/BL
20 18RD/BK/WT
21 18BK/BL
C206 - (MAIN BODY SIDE)
CAV CIRCUIT
1 16BK/BL/WT
2 14BK/VT
3 16VT/DG
4 16VT/RD
5 16VT/YL
6 16VT/BK
7 16VT/BR
8 16VT
15 16BK/BL/WT
18 16VT/YL
19 16VT/BL
20 16RD/BK/WT
21 18BK/BL
VA8W-80 CONNECTOR PIN-OUTS 8W - 80 - 17

C207 - (DASH SIDE)
CAV CIRCUIT
11 16DG
12 16YL
17 16RD/YL
C207 - (MAIN BODY SIDE)
CAV CIRCUIT
11 16DG
12 16YL
17 16RD/YL
C208 - (CABIN SIDE)
CAV CIRCUIT
3 16WT
4 16BK
C208 - (DASH SIDE)
CAV CIRCUIT
3 16WT
4 16BK
C209 - (CABIN SIDE)
CAV CIRCUIT
1 16BR/BL
2 16WT/BL
3 16BR/DG
4 16WT/DG
8W - 80 - 18 8W-80 CONNECTOR PIN-OUTSVA

C209 - (DASH SIDE)
CAV CIRCUIT
1 16BR/BL
2 16WT/BL
3 16BR/GY
4 16WT/GY
C210 - (DRIVER DOOR SIDE)
CAV CIRCUIT
1 14BR
2 16B/YL
3 16BK/YL/DG
4 16BK/WT
5 16BL/WT
C210 - BLACK (MAIN BODY SIDE)
CAV CIRCUIT
1 14BR
2 16BK/YL
3 16BK/YL/DG
4 16BK/WT
5 16BL/WT
C211 - (POWER MIRROR SWITCH SIDE)
CAV CIRCUIT
1 18BR
2 18BK/RD
4 18BL/DG
5 18DG
6 18WT/GY
C211 - BLACK (POWER MIRROR SIDE)
CAV CIRCUIT
1 18BR
2 18BK/RD
4 18BL/DG
5 18DG
6 18WT/GY
VA8W-80 CONNECTOR PIN-OUTS 8W - 80 - 19

C214 - LT. BLUE (CABIN SIDE)
CAV CIRCUIT
1 16YL
2 16VT
3 16BK
4 16BR
C214 - LT.BLUE (DASH SIDE)
CAV CIRCUIT
1 16YL
2 16VT
3 16BK
4 16BR
C215 - BLACK (CABIN SIDE)
CAV CIRCUIT
1 16RD/YL
2 16BK/RD
5 16BR/WT
6 14BR
C215 - BLACK (MAIN BODY)
CAV CIRCUIT
1 16RD/YL
2 16BK/RD
5 20BR/WT
6 14BR
C216 - BLACK (CABIN SIDE)
CAV CIRCUIT
1 12RD
C216 - BLACK (MAIN BODY SIDE)
CAV CIRCUIT
1 12RD
8W - 80 - 20 8W-80 CONNECTOR PIN-OUTSVA

C217 - (CABIN SIDE)
CAV CIRCUIT
1 16RD/YL
2 16YL
3 16DG
4 16YL
C217 - (MAIN BODY SIDE)
CAV CIRCUIT
1 16RD/YL
2 16YL
3 16DG
4 16YL
C218 - (CABIN SIDE)
CAV CIRCUIT
1 16BR/WT
2 16BR/YL
3 16RD/DG
4 16DG/YL
5 20DG/BK
6 20GY/BK
7 20DG/WT/BL
C218 - (MAIN BODY SIDE)
CAV CIRCUIT
1 16BR/WT
2 16BR/YL
3 16RD/DG
4 16DG/YL
5 20DG/BK
6 20GY/BK
7 20DG/WT/BL
VA8W-80 CONNECTOR PIN-OUTS 8W - 80 - 21

C219 - (MAIN BODY SIDE)
CAV CIRCUIT
5 16BK/RD
6 16BL/RD
7 16YL/WT
8 16DG/BK
9 16BK/RD
10 16BL/RD
11 16YL/RD
12 16DG/YL
C219 - BLACK (CABIN SIDE)
CAV CIRCUIT
5 16BK/RD
6 16BL/RD
7 16YL/WT
8 16DG/BK
9 16BK/RD
10 16BL/RD
11 16YL/RD
12 16DG/YL
C220 - (CIGARETTE SIDE)
CAV CIRCUIT
1 16RD/YL
2 16BR
3 16GY/DG/RD
C220 - (DASH SIDE)
CAV CIRCUIT
1 16RD/YL
2 16BR
3 16GY/DG/RD
8W - 80 - 22 8W-80 CONNECTOR PIN-OUTSVA
