2005 MERCEDES-BENZ SPRINTER Service Repair Manual

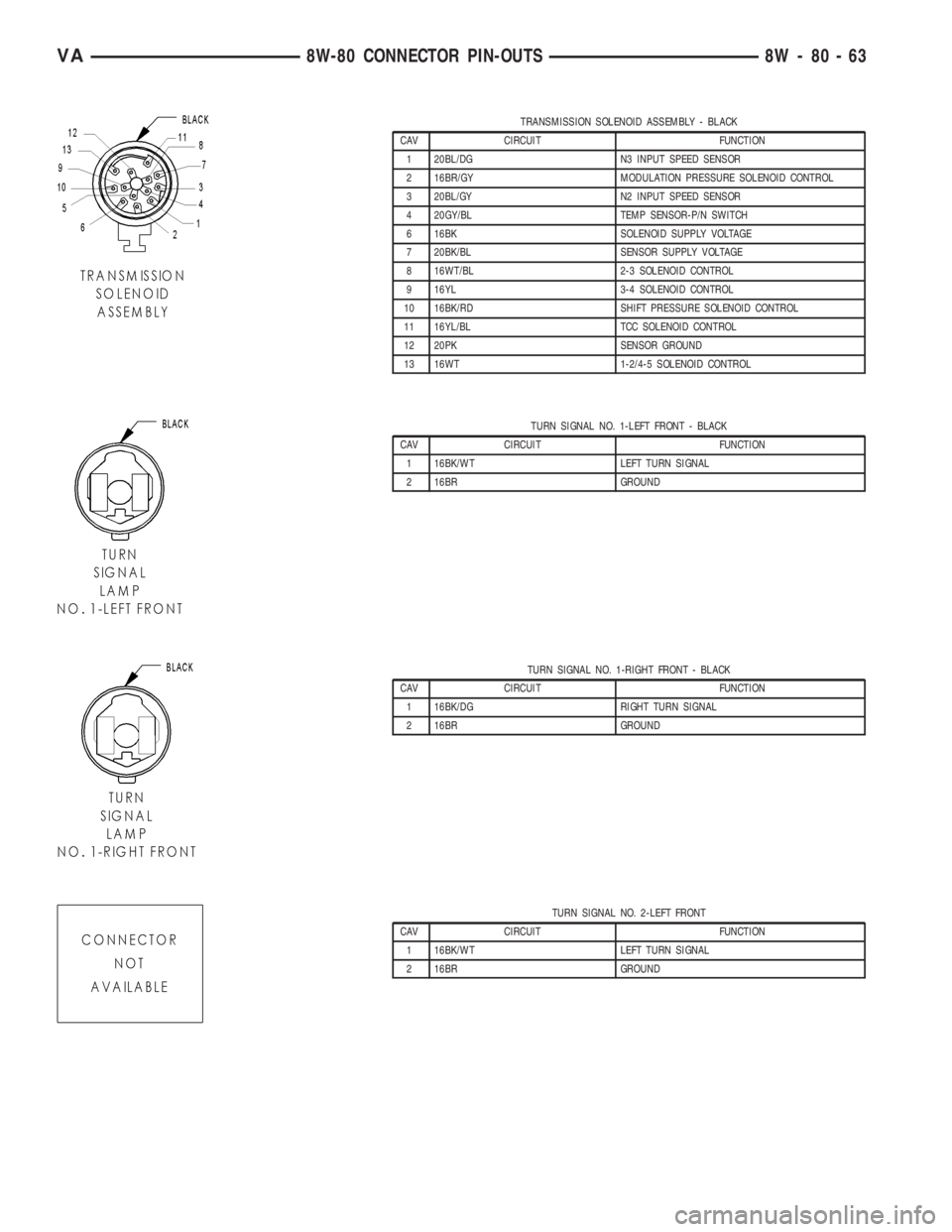

TRANSMISSION SOLENOID ASSEMBLY - BLACK
CAV CIRCUIT FUNCTION
1 20BL/DG N3 INPUT SPEED SENSOR
2 16BR/GY MODULATION PRESSURE SOLENOID CONTROL
3 20BL/GY N2 INPUT SPEED SENSOR
4 20GY/BL TEMP SENSOR-P/N SWITCH
6 16BK SOLENOID SUPPLY VOLTAGE
7 20BK/BL SENSOR SUPPLY VOLTAGE
8 16WT/BL 2-3 SOLENOID CONTROL
9 16YL 3-4 SOLENOID CONTROL
10 16BK/RD SHIFT PRESSURE SOLENOID CONTROL
11 16YL/BL TCC SOLENOID CONTROL
12 20PK SENSOR GROUND
13 16WT 1-2/4-5 SOLENOID CONTROL
TURN SIGNAL NO. 1-LEFT FRONT - BLACK
CAV CIRCUIT FUNCTION
1 16BK/WT LEFT TURN SIGNAL
2 16BR GROUND
TURN SIGNAL NO. 1-RIGHT FRONT - BLACK
CAV CIRCUIT FUNCTION
1 16BK/DG RIGHT TURN SIGNAL
2 16BR GROUND
TURN SIGNAL NO. 2-LEFT FRONT
CAV CIRCUIT FUNCTION
1 16BK/WT LEFT TURN SIGNAL
2 16BR GROUND
VA8W-80 CONNECTOR PIN-OUTS 8W - 80 - 63

TURN SIGNAL NO. 2-RIGHT FRONT
CAV CIRCUIT FUNCTION
1 16BK/DG RIGHT TURN SIGNAL
2 16BR GROUND

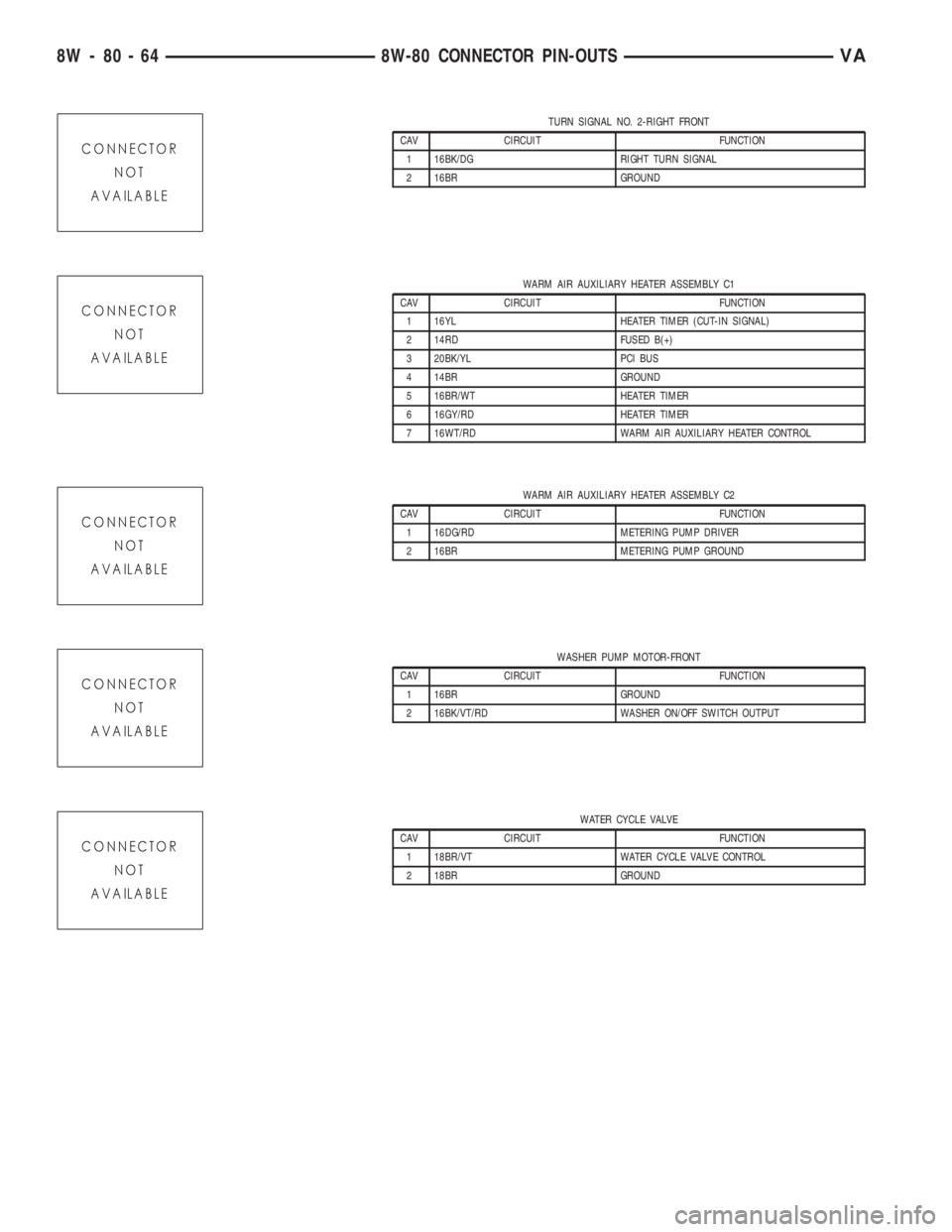

WARM AIR AUXILIARY HEATER ASSEMBLY C1
CAV CIRCUIT FUNCTION
1 16YL HEATER TIMER (CUT-IN SIGNAL)
2 14RD FUSED B(+)
3 20BK/YL PCI BUS
4 14BR GROUND
5 16BR/WT HEATER TIMER
6 16GY/RD HEATER TIMER
7 16WT/RD WARM AIR AUXILIARY HEATER CONTROL
WARM AIR AUXILIARY HEATER ASSEMBLY C2
CAV CIRCUIT FUNCTION
1 16DG/RD METERING PUMP DRIVER
2 16BR METERING PUMP GROUND
WASHER PUMP MOTOR-FRONT
CAV CIRCUIT FUNCTION
1 16BR GROUND
2 16BK/VT/RD WASHER ON/OFF SWITCH OUTPUT
WATER CYCLE VALVE
CAV CIRCUIT FUNCTION
1 18BR/VT WATER CYCLE VALVE CONTROL
2 18BR GROUND
8W - 80 - 64 8W-80 CONNECTOR PIN-OUTSVA

WATER IN FUEL SENSOR - BLACK
CAV CIRCUIT FUNCTION
1 18BR SENSOR GROUND
2 18BR/RD WATER IN FUEL SENSOR 12 VOLT SUPPLY
3 18BK/YL WATER IN FUEL SENSOR SIGNAL
WHEEL SPEED SENSOR-LEFT FRONT
CAV CIRCUIT FUNCTION
1 18BK LEFT FRONT WHEEL SPEED SENSOR (+)
2 18BR LEFT FRONT WHEEL SPEED SENSOR (-)
WHEEL SPEED SENSOR-LEFT REAR
CAV CIRCUIT FUNCTION
1 18WT LEFT REAR WHEEL SPEED SENSOR (+)
2 18BR LEFT REAR WHEEL SPEED SENSOR (-)
WHEEL SPEED SENSOR-RIGHT FRONT
CAV CIRCUIT FUNCTION
1 18BK RIGHT FRONT WHEEL SPEED SENSOR (+)
2 18BR RIGHT FRONT WHEEL SPEED SENSOR (-)
WHEEL SPEED SENSOR-RIGHT REAR
CAV CIRCUIT FUNCTION
1 18YL RIGHT REAR WHEEL SPEED SENSOR (+)
2 18BR RIGHT REAR WHEEL SPEED SENSOR (-)
VA8W-80 CONNECTOR PIN-OUTS 8W - 80 - 65

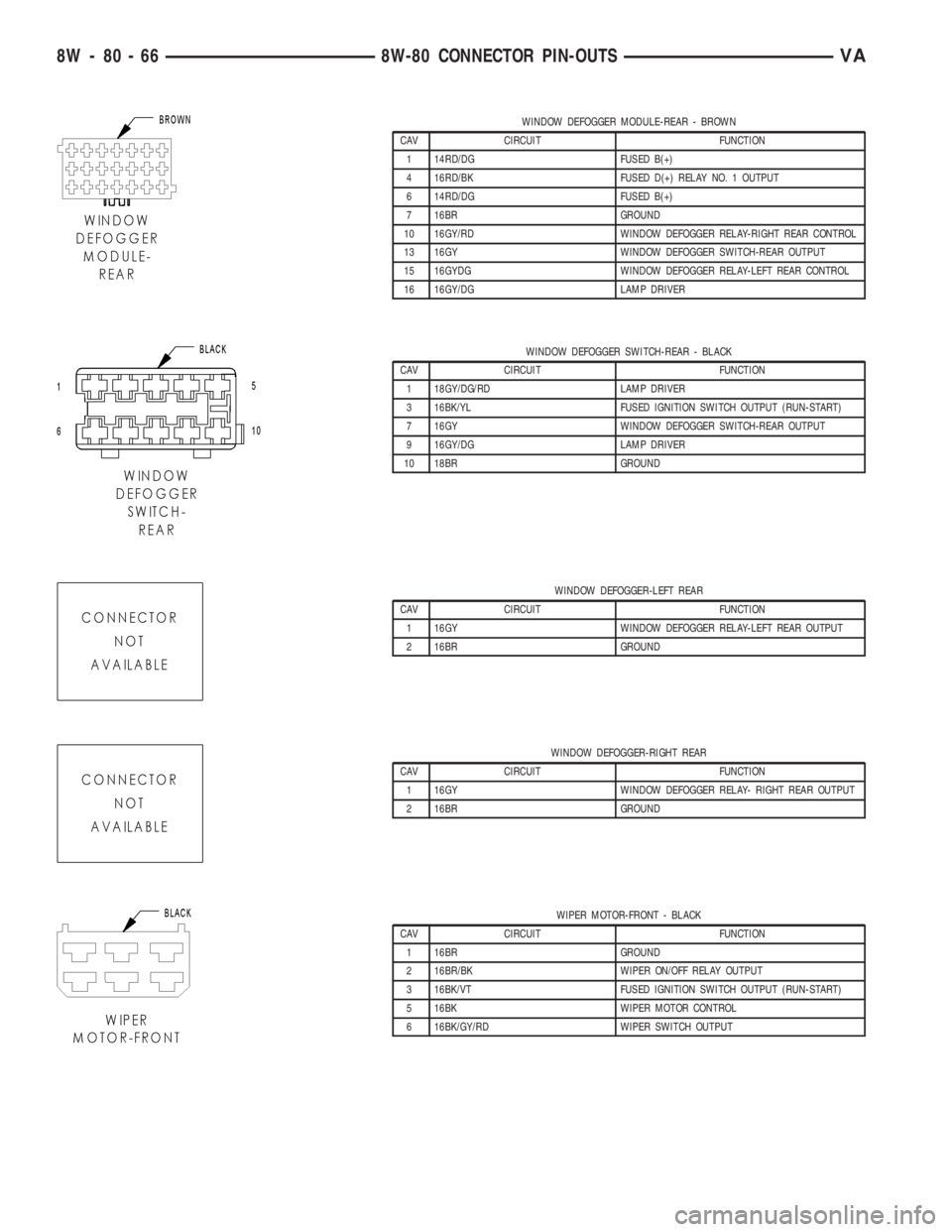

WINDOW DEFOGGER MODULE-REAR - BROWN
CAV CIRCUIT FUNCTION
1 14RD/DG FUSED B(+)
4 16RD/BK FUSED D(+) RELAY NO. 1 OUTPUT
6 14RD/DG FUSED B(+)
7 16BR GROUND
10 16GY/RD WINDOW DEFOGGER RELAY-RIGHT REAR CONTROL
13 16GY WINDOW DEFOGGER SWITCH-REAR OUTPUT
15 16GYDG WINDOW DEFOGGER RELAY-LEFT REAR CONTROL
16 16GY/DG LAMP DRIVER
WINDOW DEFOGGER SWITCH-REAR - BLACK
CAV CIRCUIT FUNCTION
1 18GY/DG/RD LAMP DRIVER
3 16BK/YL FUSED IGNITION SWITCH OUTPUT (RUN-START)
7 16GY WINDOW DEFOGGER SWITCH-REAR OUTPUT
9 16GY/DG LAMP DRIVER
10 18BR GROUND
WINDOW DEFOGGER-LEFT REAR
CAV CIRCUIT FUNCTION
1 16GY WINDOW DEFOGGER RELAY-LEFT REAR OUTPUT
2 16BR GROUND
WINDOW DEFOGGER-RIGHT REAR
CAV CIRCUIT FUNCTION
1 16GY WINDOW DEFOGGER RELAY- RIGHT REAR OUTPUT
2 16BR GROUND
WIPER MOTOR-FRONT - BLACK
CAV CIRCUIT FUNCTION
1 16BR GROUND
2 16BR/BK WIPER ON/OFF RELAY OUTPUT
3 16BK/VT FUSED IGNITION SWITCH OUTPUT (RUN-START)
5 16BK WIPER MOTOR CONTROL
6 16BK/GY/RD WIPER SWITCH OUTPUT
8W - 80 - 66 8W-80 CONNECTOR PIN-OUTSVA

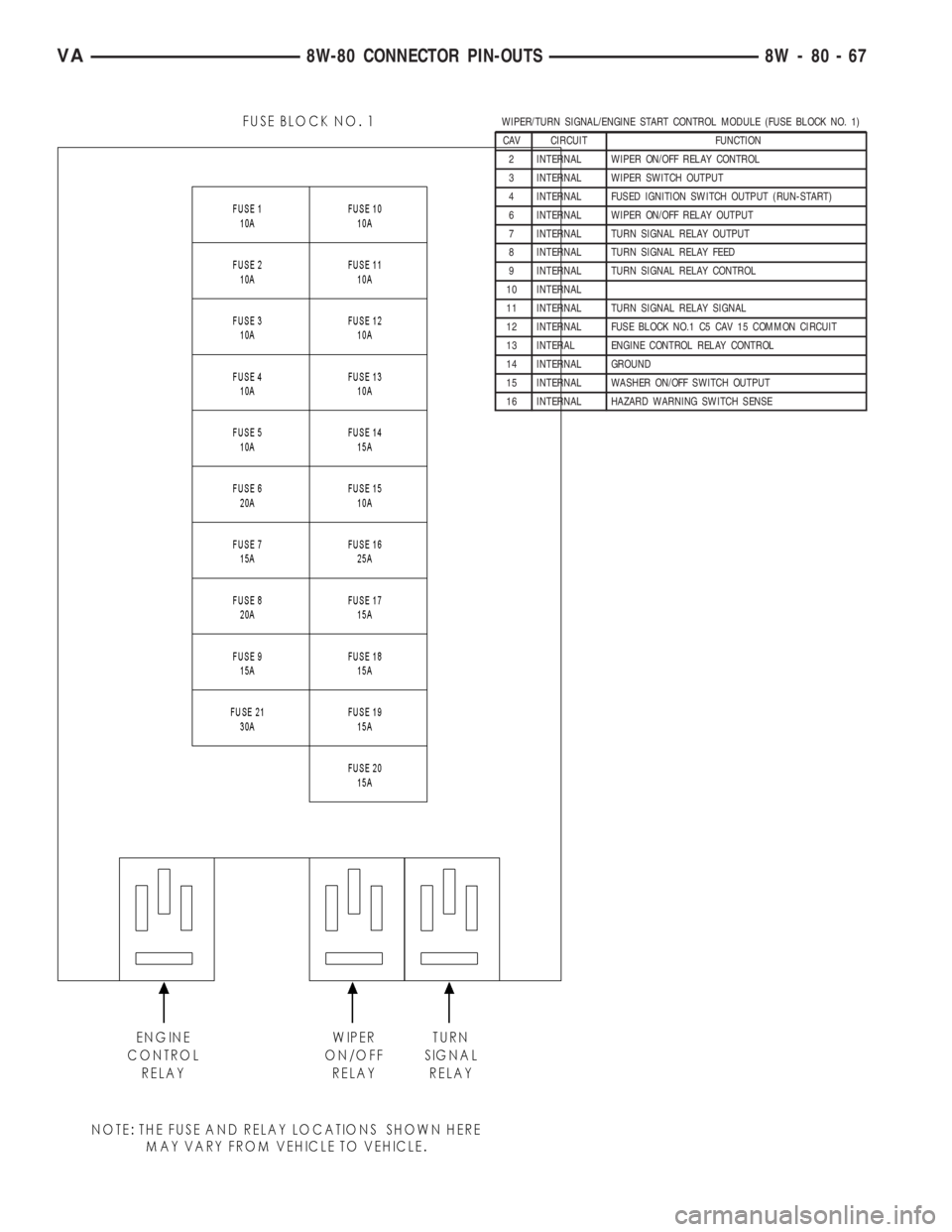

WIPER/TURN SIGNAL/ENGINE START CONTROL MODULE (FUSE BLOCK NO. 1)
CAV CIRCUIT FUNCTION
2 INTERNAL WIPER ON/OFF RELAY CONTROL
3 INTERNAL WIPER SWITCH OUTPUT
4 INTERNAL FUSED IGNITION SWITCH OUTPUT (RUN-START)
6 INTERNAL WIPER ON/OFF RELAY OUTPUT
7 INTERNAL TURN SIGNAL RELAY OUTPUT
8 INTERNAL TURN SIGNAL RELAY FEED
9 INTERNAL TURN SIGNAL RELAY CONTROL
10 INTERNAL
11 INTERNAL TURN SIGNAL RELAY SIGNAL
12 INTERNAL FUSE BLOCK NO.1 C5 CAV 15 COMMON CIRCUIT
13 INTERAL ENGINE CONTROL RELAY CONTROL
14 INTERNAL GROUND
15 INTERNAL WASHER ON/OFF SWITCH OUTPUT
16 INTERNAL HAZARD WARNING SWITCH SENSE
VA8W-80 CONNECTOR PIN-OUTS 8W - 80 - 67

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

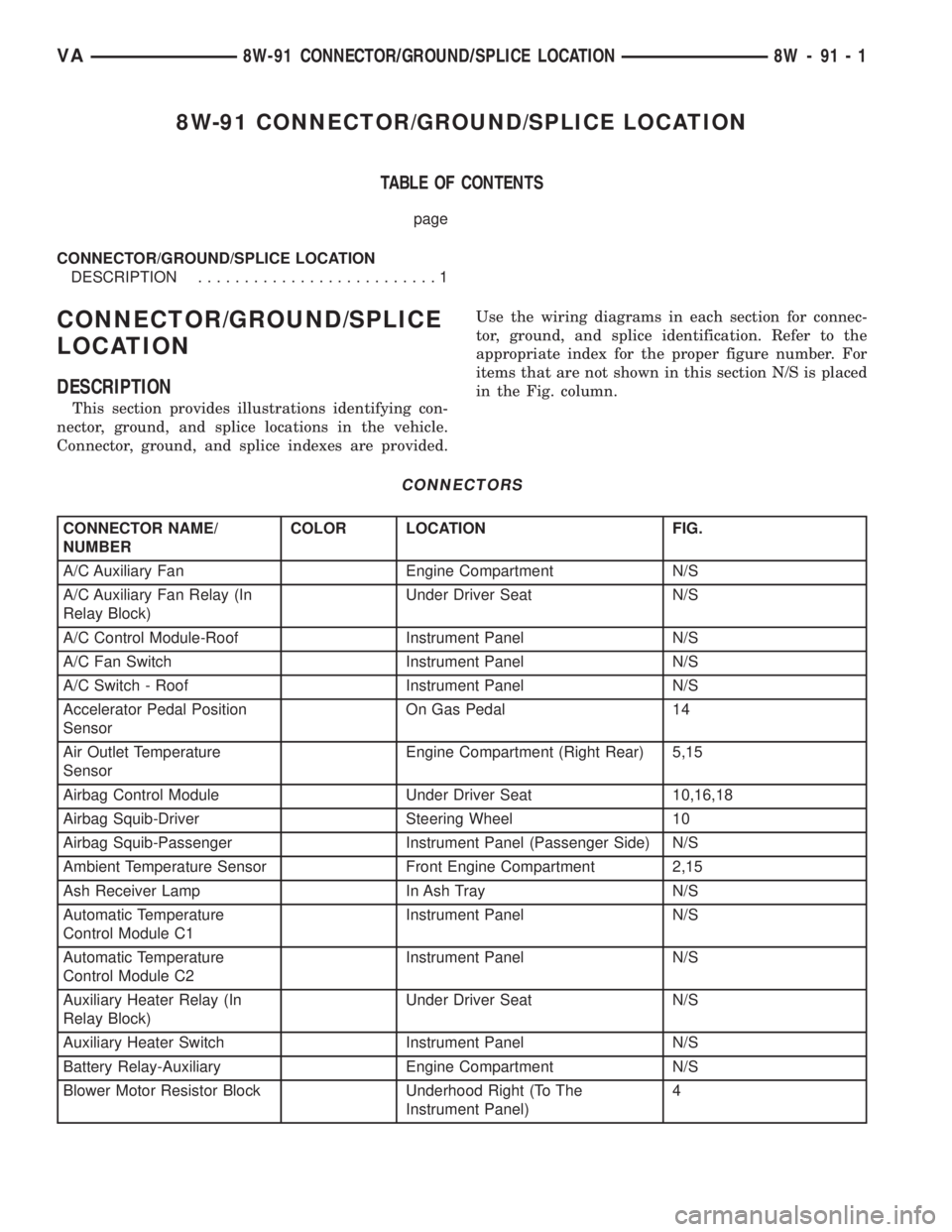

TABLE OF CONTENTS
page
CONNECTOR/GROUND/SPLICE LOCATION
DESCRIPTION..........................1
CONNECTOR/GROUND/SPLICE
LOCATION
DESCRIPTION
This section provides illustrations identifying con-
nector, ground, and splice locations in the vehicle.
Connector, ground, and splice indexes are provided.Use the wiring diagrams in each section for connec-
tor, ground, and splice identification. Refer to the
appropriate index for the proper figure number. For
items that are not shown in this section N/S is placed
in the Fig. column.
CONNECTORS
CONNECTOR NAME/
NUMBERCOLOR LOCATION FIG.
A/C Auxiliary Fan Engine Compartment N/S
A/C Auxiliary Fan Relay (In
Relay Block)Under Driver Seat N/S
A/C Control Module-Roof Instrument Panel N/S
A/C Fan Switch Instrument Panel N/S
A/C Switch - Roof Instrument Panel N/S
Accelerator Pedal Position
SensorOn Gas Pedal 14
Air Outlet Temperature
SensorEngine Compartment (Right Rear) 5,15
Airbag Control Module Under Driver Seat 10,16,18
Airbag Squib-Driver Steering Wheel 10
Airbag Squib-Passenger Instrument Panel (Passenger Side) N/S
Ambient Temperature Sensor Front Engine Compartment 2,15
Ash Receiver Lamp In Ash Tray N/S
Automatic Temperature
Control Module C1Instrument Panel N/S
Automatic Temperature
Control Module C2Instrument Panel N/S
Auxiliary Heater Relay (In
Relay Block)Under Driver Seat N/S
Auxiliary Heater Switch Instrument Panel N/S
Battery Relay-Auxiliary Engine Compartment N/S
Blower Motor Resistor Block Underhood Right (To The
Instrument Panel)4
VA8W-91 CONNECTOR/GROUND/SPLICE LOCATION 8W - 91 - 1

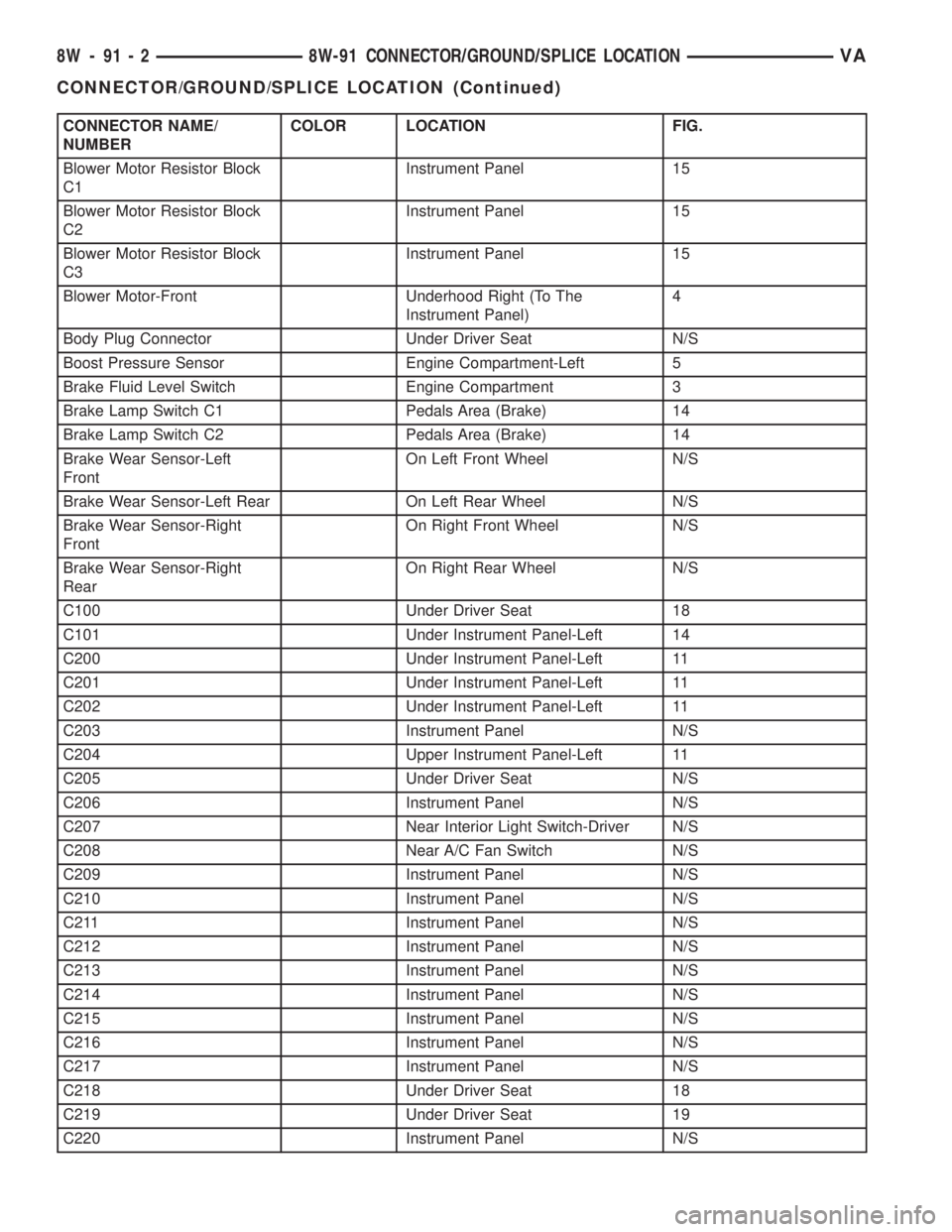

CONNECTOR NAME/
NUMBERCOLOR LOCATION FIG.
Blower Motor Resistor Block
C1Instrument Panel 15
Blower Motor Resistor Block
C2Instrument Panel 15
Blower Motor Resistor Block
C3Instrument Panel 15
Blower Motor-Front Underhood Right (To The
Instrument Panel)4
Body Plug Connector Under Driver Seat N/S
Boost Pressure Sensor Engine Compartment-Left 5
Brake Fluid Level Switch Engine Compartment 3
Brake Lamp Switch C1 Pedals Area (Brake) 14
Brake Lamp Switch C2 Pedals Area (Brake) 14
Brake Wear Sensor-Left
FrontOn Left Front Wheel N/S
Brake Wear Sensor-Left Rear On Left Rear Wheel N/S
Brake Wear Sensor-Right
FrontOn Right Front Wheel N/S
Brake Wear Sensor-Right
RearOn Right Rear Wheel N/S
C100 Under Driver Seat 18
C101 Under Instrument Panel-Left 14
C200 Under Instrument Panel-Left 11
C201 Under Instrument Panel-Left 11
C202 Under Instrument Panel-Left 11
C203 Instrument Panel N/S
C204 Upper Instrument Panel-Left 11
C205 Under Driver Seat N/S
C206 Instrument Panel N/S
C207 Near Interior Light Switch-Driver N/S
C208 Near A/C Fan Switch N/S
C209 Instrument Panel N/S
C210 Instrument Panel N/S
C211 Instrument Panel N/S
C212 Instrument Panel N/S
C213 Instrument Panel N/S
C214 Instrument Panel N/S
C215 Instrument Panel N/S
C216 Instrument Panel N/S
C217 Instrument Panel N/S
C218 Under Driver Seat 18
C219 Under Driver Seat 19
C220 Instrument Panel N/S
8W - 91 - 2 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONVA
CONNECTOR/GROUND/SPLICE LOCATION (Continued)
