2005 MERCEDES-BENZ SPRINTER Service Repair Manual

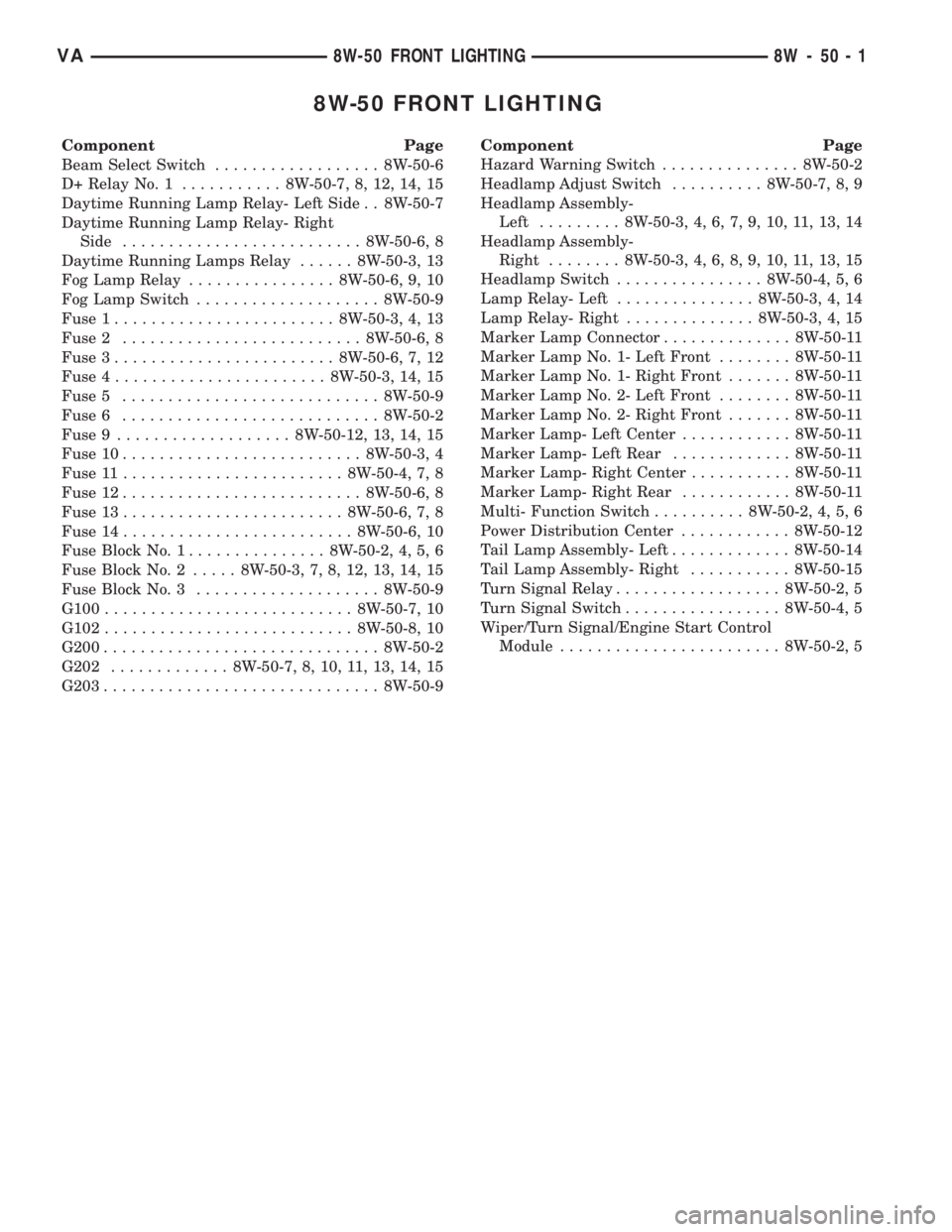

8W-50 FRONT LIGHTING
Component Page
Beam Select Switch.................. 8W-50-6
D+ Relay No. 1........... 8W-50-7, 8, 12, 14, 15
Daytime Running Lamp Relay- Left Side . . 8W-50-7
Daytime Running Lamp Relay- Right
Side.......................... 8W-50-6, 8
Daytime Running Lamps Relay...... 8W-50-3, 13
Fog Lamp Relay................ 8W-50-6, 9, 10
Fog Lamp Switch.................... 8W-50-9
Fuse 1........................ 8W-50-3, 4, 13
Fuse 2.......................... 8W-50-6, 8
Fuse 3........................ 8W-50-6, 7, 12
Fuse 4....................... 8W-50-3, 14, 15
Fuse 5............................ 8W-50-9
Fuse 6............................ 8W-50-2
Fuse 9................... 8W-50-12, 13, 14, 15
Fuse 10.......................... 8W-50-3, 4
Fuse 11........................ 8W-50-4, 7, 8
Fuse 12.......................... 8W-50-6, 8
Fuse 13........................ 8W-50-6, 7, 8
Fuse 14......................... 8W-50-6, 10
Fuse Block No. 1............... 8W-50-2, 4, 5, 6
Fuse Block No. 2..... 8W-50-3, 7, 8, 12, 13, 14, 15
Fuse Block No. 3.................... 8W-50-9
G100........................... 8W-50-7, 10
G102........................... 8W-50-8, 10
G200.............................. 8W-50-2
G202............. 8W-50-7, 8, 10, 11, 13, 14, 15
G203.............................. 8W-50-9Component Page
Hazard Warning Switch............... 8W-50-2
Headlamp Adjust Switch.......... 8W-50-7, 8, 9
Headlamp Assembly-
Left......... 8W-50-3, 4, 6, 7, 9, 10, 11, 13, 14
Headlamp Assembly-
Right........ 8W-50-3, 4, 6, 8, 9, 10, 11, 13, 15
Headlamp Switch................ 8W-50-4, 5, 6
Lamp Relay- Left............... 8W-50-3, 4, 14
Lamp Relay- Right.............. 8W-50-3, 4, 15
Marker Lamp Connector.............. 8W-50-11
Marker Lamp No. 1- Left Front........ 8W-50-11
Marker Lamp No. 1- Right Front....... 8W-50-11
Marker Lamp No. 2- Left Front........ 8W-50-11
Marker Lamp No. 2- Right Front....... 8W-50-11
Marker Lamp- Left Center............ 8W-50-11
Marker Lamp- Left Rear............. 8W-50-11
Marker Lamp- Right Center........... 8W-50-11
Marker Lamp- Right Rear............ 8W-50-11
Multi- Function Switch.......... 8W-50-2, 4, 5, 6
Power Distribution Center............ 8W-50-12
Tail Lamp Assembly- Left............. 8W-50-14
Tail Lamp Assembly- Right........... 8W-50-15
Turn Signal Relay.................. 8W-50-2, 5
Turn Signal Switch................. 8W-50-4, 5
Wiper/Turn Signal/Engine Start Control
Module........................ 8W-50-2, 5
VA8W-50 FRONT LIGHTING 8W - 50 - 1
