INTERIOR LAMP-RIGHT - BLACK
CAV CIRCUIT FUNCTION
1 16BR GROUND
2 16RD/YL FUSED B(+)
3 16BR/WT DOOR AJAR SWITCH SENSE
INTERIOR LIGHT SWITCH
CAV CIRCUIT FUNCTION
1 16GY/DG/RD LAMP DRIVER
3 16RD/YL FUSED B(+)
7 16YL INTERIOR LIGHT SWITCH OUTPUT
9 16DG INTERIOR LAMPS DRIVER
10 16BR GROUND
INTERIOR LIGHT SWITCH-DRIVER
CAV CIRCUIT FUNCTION
3 16RD/YL FUSED B(+)
7 16YL INTERIOR LIGHT SWITCH OUTPUT
INTERIOR LIGHT SWITCH-PASSENGER
CAV CIRCUIT FUNCTION
3 16RD/YL FUSED B(+)
7 16YL INTERIOR LIGHT SWITCH OUTPUT
VA8W-80 CONNECTOR PIN-OUTS 8W - 80 - 47

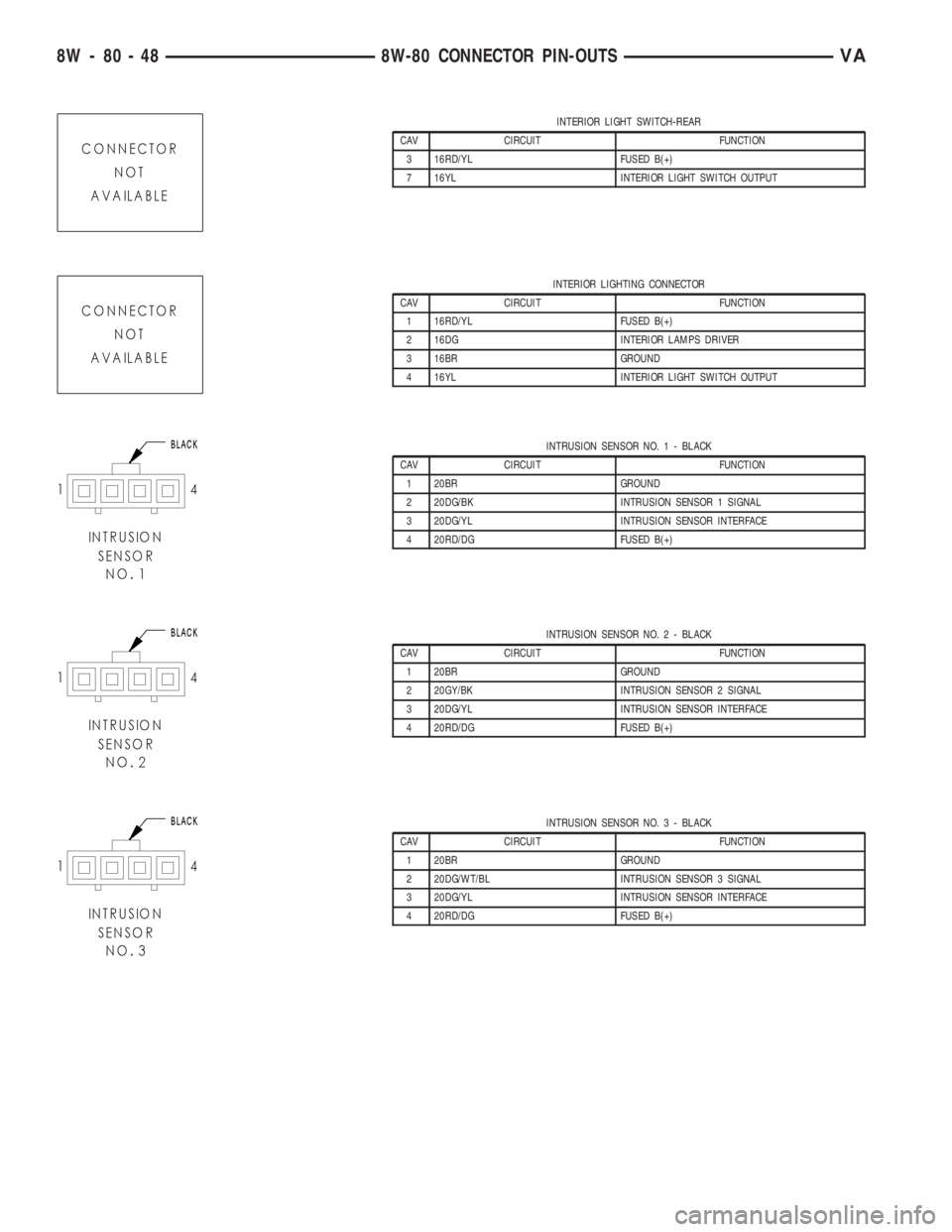

INTERIOR LIGHT SWITCH-REAR
CAV CIRCUIT FUNCTION
3 16RD/YL FUSED B(+)
7 16YL INTERIOR LIGHT SWITCH OUTPUT
INTERIOR LIGHTING CONNECTOR
CAV CIRCUIT FUNCTION
1 16RD/YL FUSED B(+)
2 16DG INTERIOR LAMPS DRIVER
3 16BR GROUND
4 16YL INTERIOR LIGHT SWITCH OUTPUT
INTRUSION SENSOR NO. 1 - BLACK
CAV CIRCUIT FUNCTION
1 20BR GROUND
2 20DG/BK INTRUSION SENSOR 1 SIGNAL
3 20DG/YL INTRUSION SENSOR INTERFACE
4 20RD/DG FUSED B(+)
INTRUSION SENSOR NO. 2 - BLACK
CAV CIRCUIT FUNCTION
1 20BR GROUND
2 20GY/BK INTRUSION SENSOR 2 SIGNAL
3 20DG/YL INTRUSION SENSOR INTERFACE
4 20RD/DG FUSED B(+)
INTRUSION SENSOR NO. 3 - BLACK
CAV CIRCUIT FUNCTION
1 20BR GROUND
2 20DG/WT/BL INTRUSION SENSOR 3 SIGNAL
3 20DG/YL INTRUSION SENSOR INTERFACE
4 20RD/DG FUSED B(+)
8W - 80 - 48 8W-80 CONNECTOR PIN-OUTSVA

KICK DOWN SWITCH - BLACK
CAV CIRCUIT FUNCTION
1 18BR/DG KICKDOWN SWITCH SIGNAL
2 18BR SENSOR GROUND
LICENSE PLATE LAMP NO. 1
CAV CIRCUIT FUNCTION
1 16GY/GR/RD LAMP DRIVER
2 16BR GROUND
LICENSE PLATE LAMP NO. 2
CAV CIRCUIT FUNCTION
1 16GY/GR/RD LAMP DRIVER
2 16BR GROUND
LOCKER SWITCH NO. 1
CAV CIRCUIT FUNCTION
1 16GY/DG/RD LAMP DRIVER
3 16BK/RD FUSED OPTIONAL EQUIPMENT RELAY OUTPUT
4 16BR/BK LOCKER SWITCH NO. 2 OUTPUT
7 16VT/YL DIFFERENTIAL LOCK SOLENOID CONTROL
10 20BR GROUND
LOCKER SWITCH NO. 2
CAV CIRCUIT FUNCTION
1 16BR/BK LOCKER SWITCH NO. 2 OUTPUT
2 16BK/RD FUSED OPTIONAL EQUIPMENT RELAY OUTPUT
VA8W-80 CONNECTOR PIN-OUTS 8W - 80 - 49

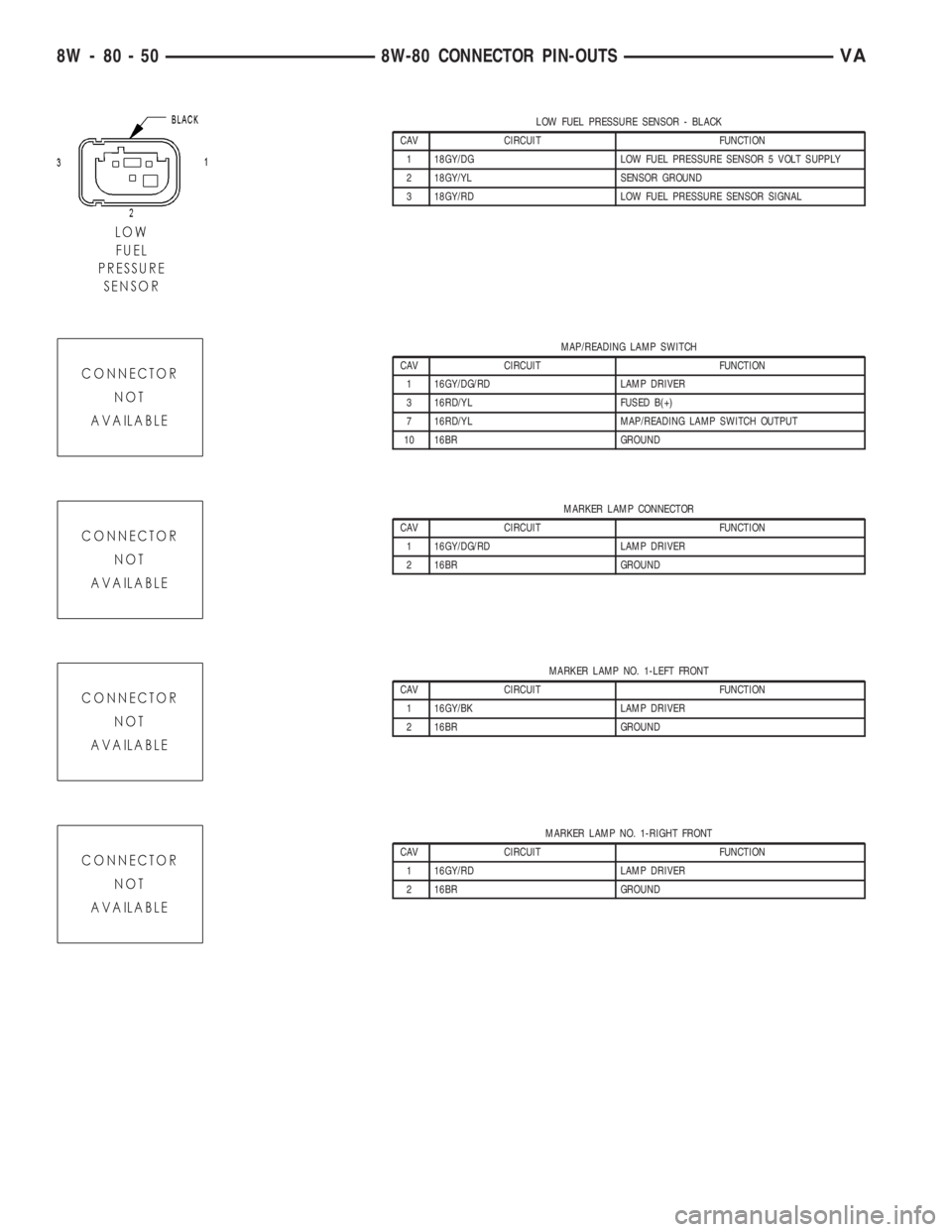

LOW FUEL PRESSURE SENSOR - BLACK
CAV CIRCUIT FUNCTION
1 18GY/DG LOW FUEL PRESSURE SENSOR 5 VOLT SUPPLY
2 18GY/YL SENSOR GROUND
3 18GY/RD LOW FUEL PRESSURE SENSOR SIGNAL
MAP/READING LAMP SWITCH
CAV CIRCUIT FUNCTION
1 16GY/DG/RD LAMP DRIVER
3 16RD/YL FUSED B(+)
7 16RD/YL MAP/READING LAMP SWITCH OUTPUT
10 16BR GROUND
MARKER LAMP CONNECTOR
CAV CIRCUIT FUNCTION
1 16GY/DG/RD LAMP DRIVER
2 16BR GROUND
MARKER LAMP NO. 1-LEFT FRONT
CAV CIRCUIT FUNCTION
1 16GY/BK LAMP DRIVER
2 16BR GROUND
MARKER LAMP NO. 1-RIGHT FRONT
CAV CIRCUIT FUNCTION
1 16GY/RD LAMP DRIVER
2 16BR GROUND
8W - 80 - 50 8W-80 CONNECTOR PIN-OUTSVA

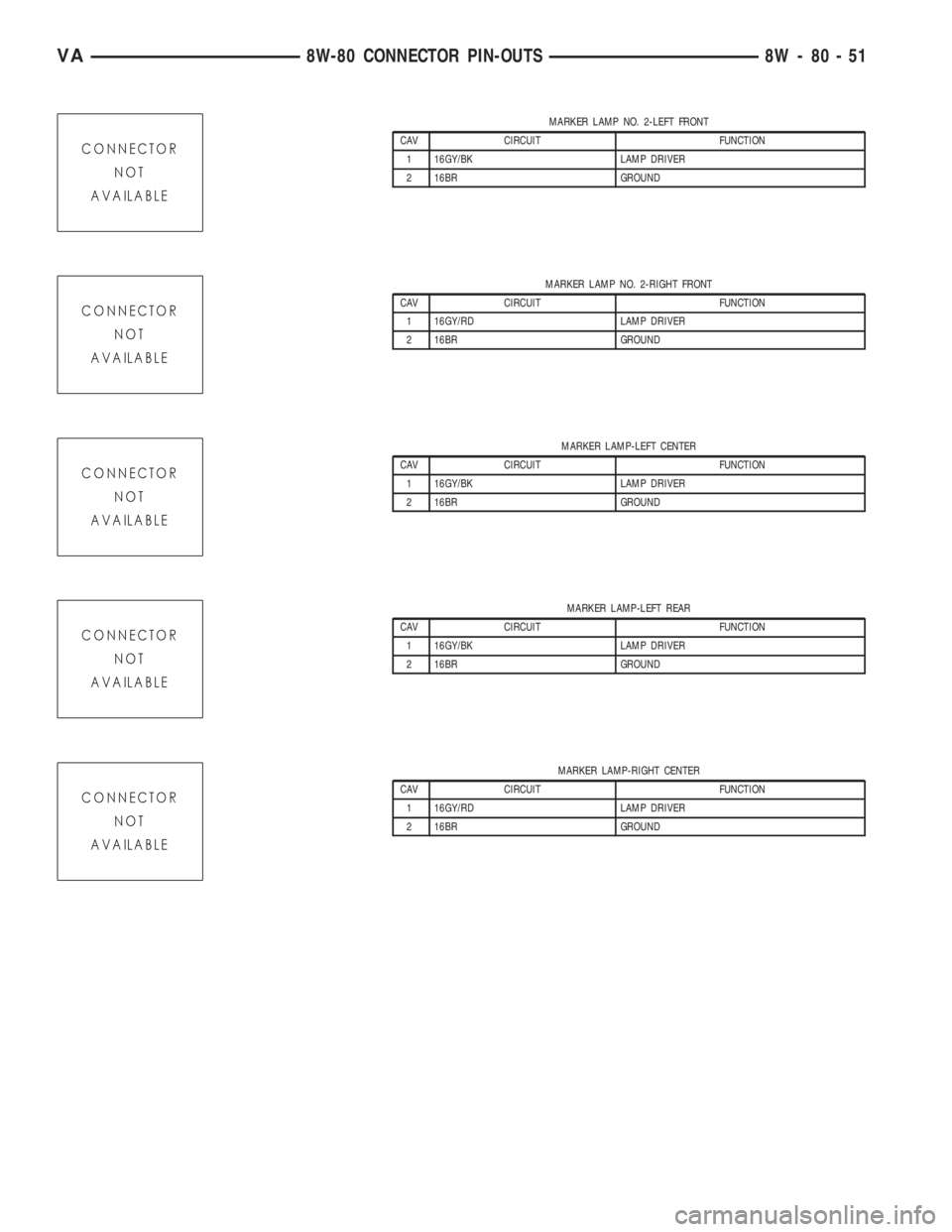

MARKER LAMP NO. 2-LEFT FRONT
CAV CIRCUIT FUNCTION
1 16GY/BK LAMP DRIVER
2 16BR GROUND
MARKER LAMP NO. 2-RIGHT FRONT
CAV CIRCUIT FUNCTION
1 16GY/RD LAMP DRIVER
2 16BR GROUND
MARKER LAMP-LEFT CENTER
CAV CIRCUIT FUNCTION
1 16GY/BK LAMP DRIVER
2 16BR GROUND
MARKER LAMP-LEFT REAR
CAV CIRCUIT FUNCTION
1 16GY/BK LAMP DRIVER
2 16BR GROUND
MARKER LAMP-RIGHT CENTER
CAV CIRCUIT FUNCTION
1 16GY/RD LAMP DRIVER
2 16BR GROUND
VA8W-80 CONNECTOR PIN-OUTS 8W - 80 - 51

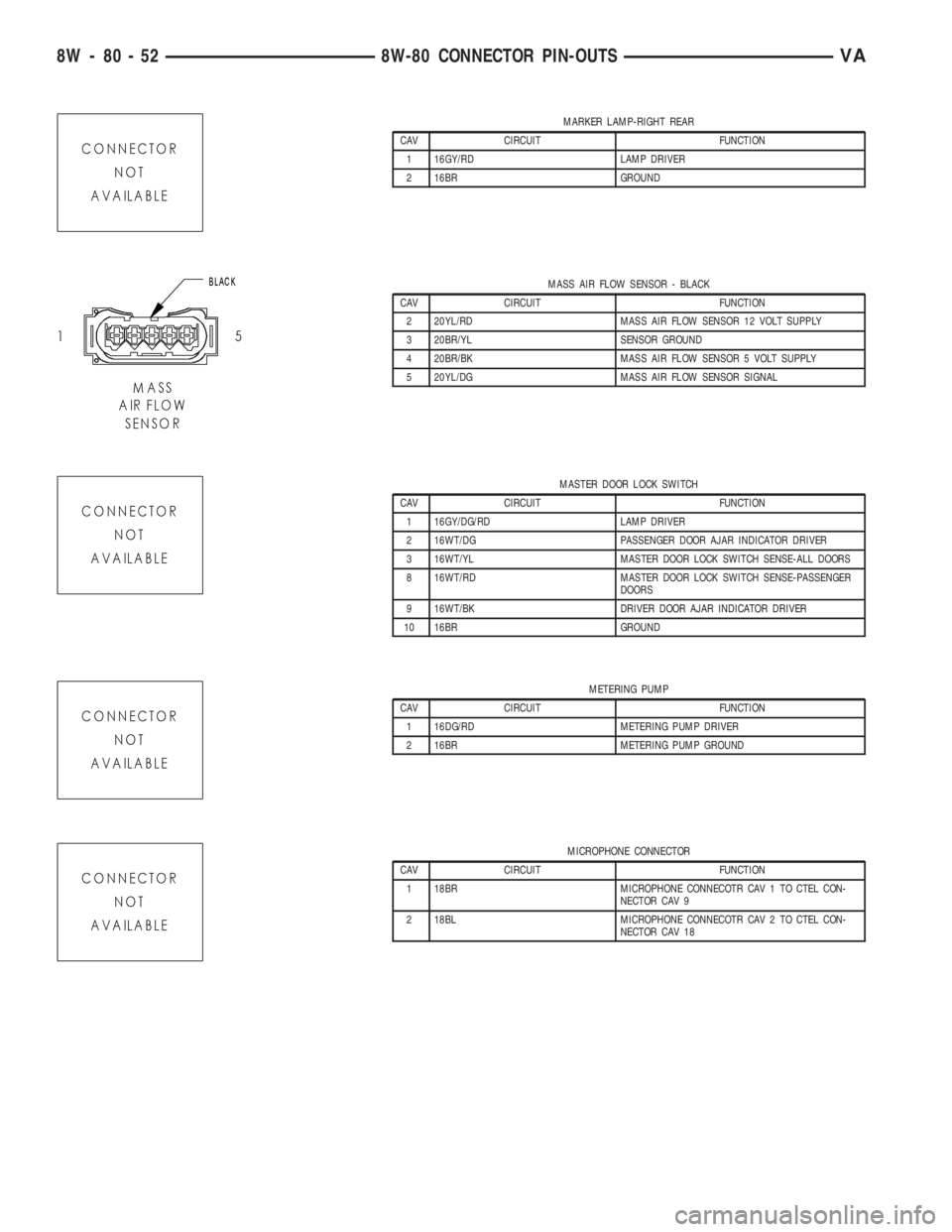

MARKER LAMP-RIGHT REAR
CAV CIRCUIT FUNCTION
1 16GY/RD LAMP DRIVER
2 16BR GROUND
MASS AIR FLOW SENSOR - BLACK
CAV CIRCUIT FUNCTION
2 20YL/RD MASS AIR FLOW SENSOR 12 VOLT SUPPLY
3 20BR/YL SENSOR GROUND
4 20BR/BK MASS AIR FLOW SENSOR 5 VOLT SUPPLY
5 20YL/DG MASS AIR FLOW SENSOR SIGNAL
MASTER DOOR LOCK SWITCH
CAV CIRCUIT FUNCTION
1 16GY/DG/RD LAMP DRIVER
2 16WT/DG PASSENGER DOOR AJAR INDICATOR DRIVER
3 16WT/YL MASTER DOOR LOCK SWITCH SENSE-ALL DOORS
8 16WT/RD MASTER DOOR LOCK SWITCH SENSE-PASSENGER
DOORS
9 16WT/BK DRIVER DOOR AJAR INDICATOR DRIVER
10 16BR GROUND
METERING PUMP
CAV CIRCUIT FUNCTION
1 16DG/RD METERING PUMP DRIVER
2 16BR METERING PUMP GROUND
MICROPHONE CONNECTOR
CAV CIRCUIT FUNCTION
1 18BR MICROPHONE CONNECOTR CAV 1 TO CTEL CON-
NECTOR CAV 9
2 18BL MICROPHONE CONNECOTR CAV 2 TO CTEL CON-
NECTOR CAV 18
8W - 80 - 52 8W-80 CONNECTOR PIN-OUTSVA

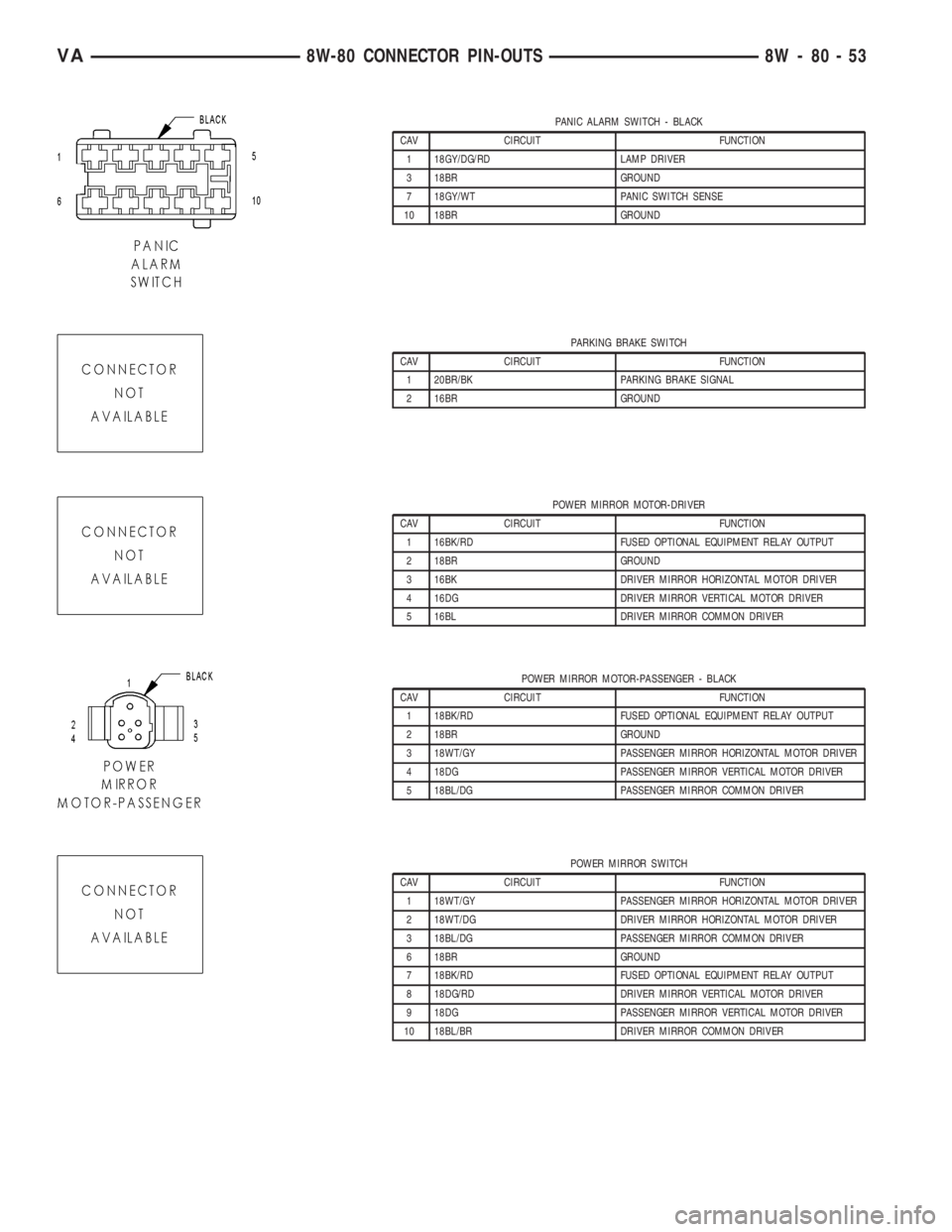

PANIC ALARM SWITCH - BLACK
CAV CIRCUIT FUNCTION
1 18GY/DG/RD LAMP DRIVER
3 18BR GROUND
7 18GY/WT PANIC SWITCH SENSE
10 18BR GROUND
PARKING BRAKE SWITCH
CAV CIRCUIT FUNCTION
1 20BR/BK PARKING BRAKE SIGNAL
2 16BR GROUND
POWER MIRROR MOTOR-DRIVER
CAV CIRCUIT FUNCTION
1 16BK/RD FUSED OPTIONAL EQUIPMENT RELAY OUTPUT
2 18BR GROUND
3 16BK DRIVER MIRROR HORIZONTAL MOTOR DRIVER
4 16DG DRIVER MIRROR VERTICAL MOTOR DRIVER
5 16BL DRIVER MIRROR COMMON DRIVER
POWER MIRROR MOTOR-PASSENGER - BLACK
CAV CIRCUIT FUNCTION
1 18BK/RD FUSED OPTIONAL EQUIPMENT RELAY OUTPUT
2 18BR GROUND
3 18WT/GY PASSENGER MIRROR HORIZONTAL MOTOR DRIVER
4 18DG PASSENGER MIRROR VERTICAL MOTOR DRIVER
5 18BL/DG PASSENGER MIRROR COMMON DRIVER
POWER MIRROR SWITCH
CAV CIRCUIT FUNCTION
1 18WT/GY PASSENGER MIRROR HORIZONTAL MOTOR DRIVER
2 18WT/DG DRIVER MIRROR HORIZONTAL MOTOR DRIVER
3 18BL/DG PASSENGER MIRROR COMMON DRIVER
6 18BR GROUND
7 18BK/RD FUSED OPTIONAL EQUIPMENT RELAY OUTPUT
8 18DG/RD DRIVER MIRROR VERTICAL MOTOR DRIVER
9 18DG PASSENGER MIRROR VERTICAL MOTOR DRIVER
10 18BL/BR DRIVER MIRROR COMMON DRIVER
VA8W-80 CONNECTOR PIN-OUTS 8W - 80 - 53

POWER WINDOW MOTOR-DRIVER
CAV CIRCUIT FUNCTION
1 16BK DRIVER WINDOW DRIVER (UP)
2 16BL DRIVER WINDOW DRIVER (DOWN)
POWER WINDOW MOTOR-PASSENGER
CAV CIRCUIT FUNCTION
1 16BL PASSENGER WINDOW DRIVER (DOWN)
2 16BK PASSENGER WINDOW DRIVER (UP)
POWER WINDOW SWITCH-DRIVER
CAV CIRCUIT FUNCTION
1 16BL DRIVER WINDOW DRIVER (DOWN)
2 16BK DRIVER WINDOW DRIVER (UP)
3 16BR GROUND
4 16BK/YL FUSED OPTIONAL EQUIPMENT RELAY OUTPUT
5 16BR GROUND
POWER WINDOW SWITCH-MASTER
CAV CIRCUIT FUNCTION
1 16BL/WT MASTER PASSENGER WINDOW DRIVER (DOWN)
2 16BK/WT MASTER PASSENGER WINDOW DRIVER (UP)
3 16BR GROUND
4 16BK/YL/DG FUSED OPTIONAL EQUIPMENT RELAY OUTPUT
5 16BR GROUND
POWER WINDOW SWITCH-PASSENGER
CAV CIRCUIT FUNCTION
1 16BL PASSENGER WINDOW DRIVER (DOWN)
2 16BK PASSENGER WINDOW DRIVER (UP)
3 BL/WT MASTER PASSENGER WINDOW DRIVER (DOWN)
4 BK/YL/DG FUSED OPTIONAL EQUIPMENT RELAY OUTPUT
5 16BK/WT MASTER PASSENGER WINDOW DRIVER (UP)
