2005 MERCEDES-BENZ SPRINTER Service Repair Manual

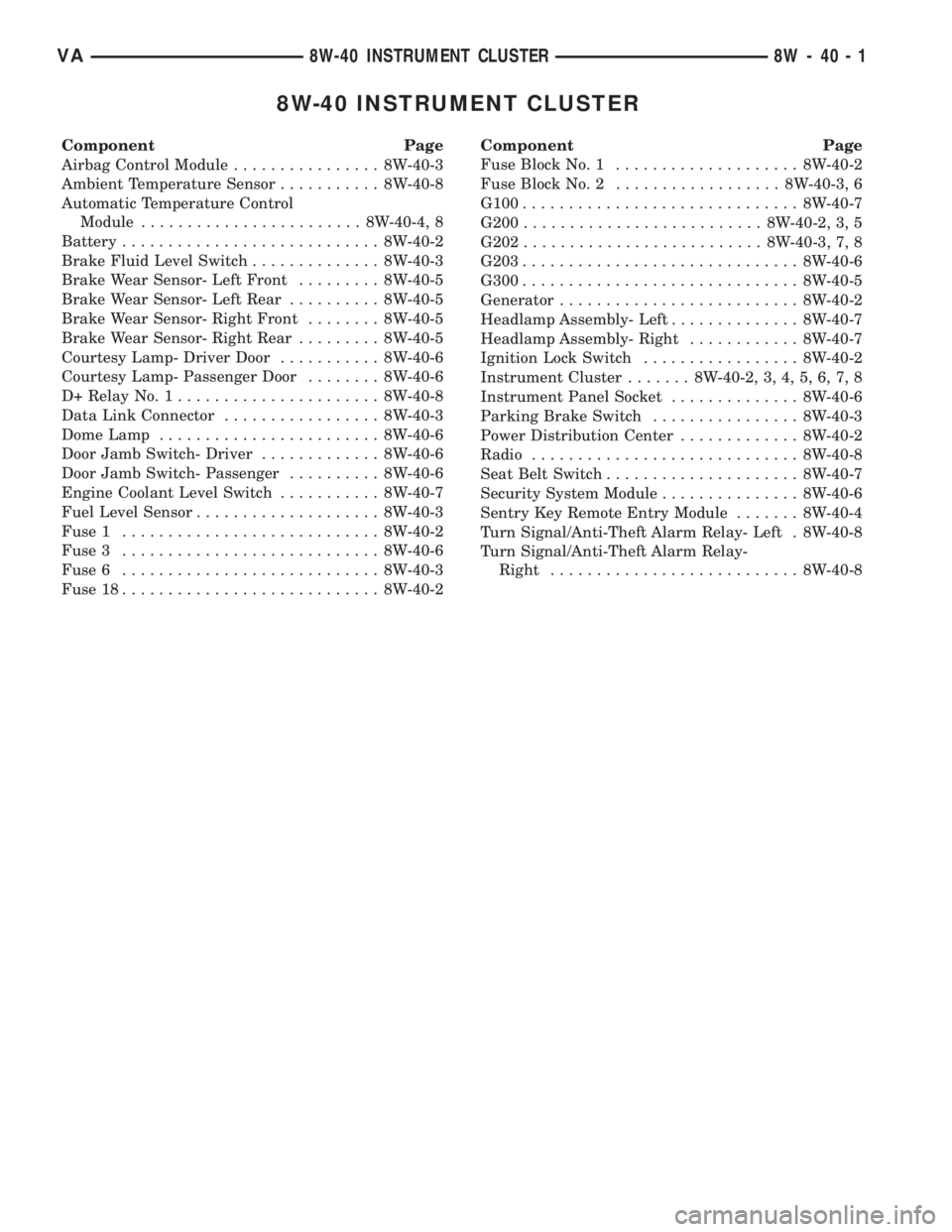

8W-40 INSTRUMENT CLUSTER
Component Page

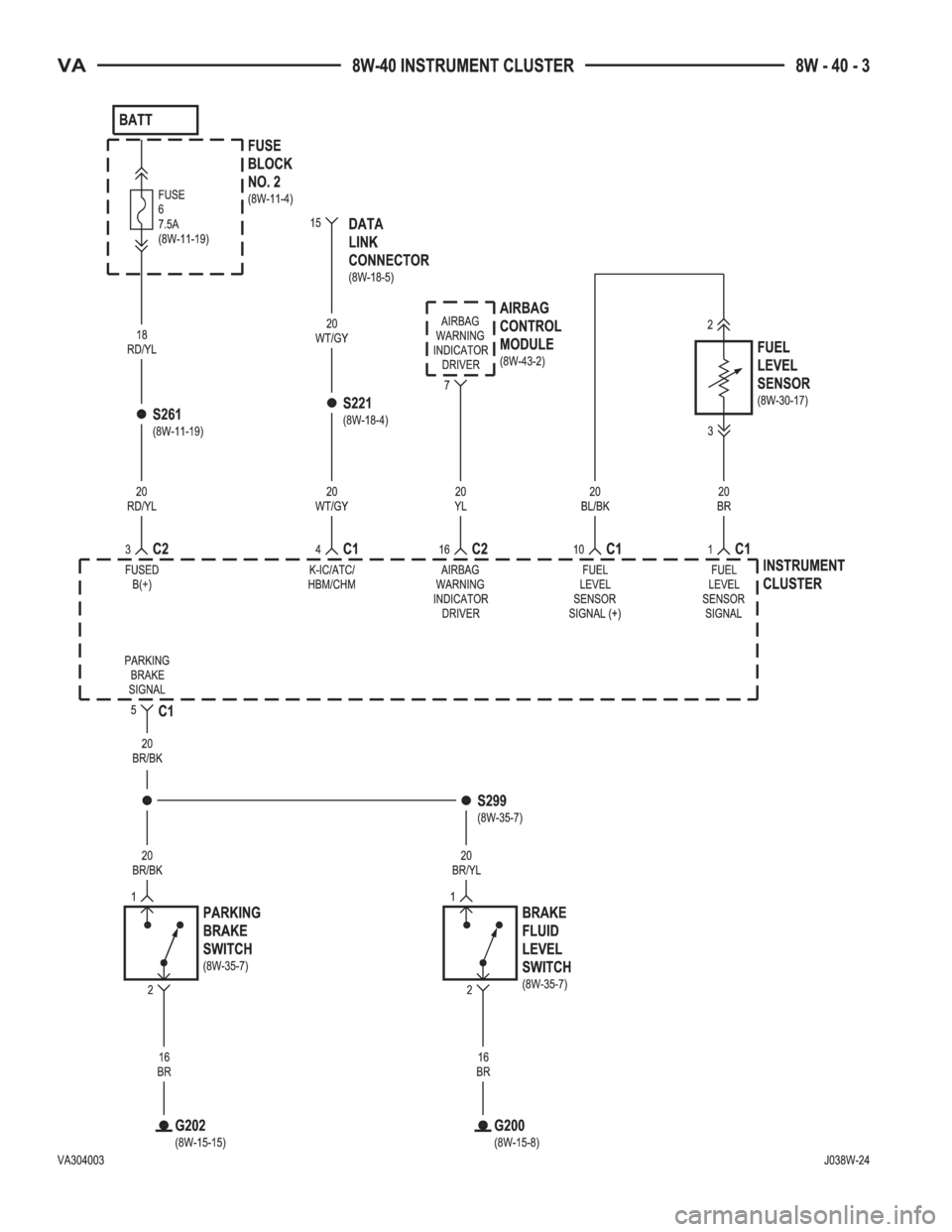

Airbag Control Module................ 8W-40-3
Ambient Temperature Sensor........... 8W-40-8
Automatic Temperature Control
Module........................ 8W-40-4, 8

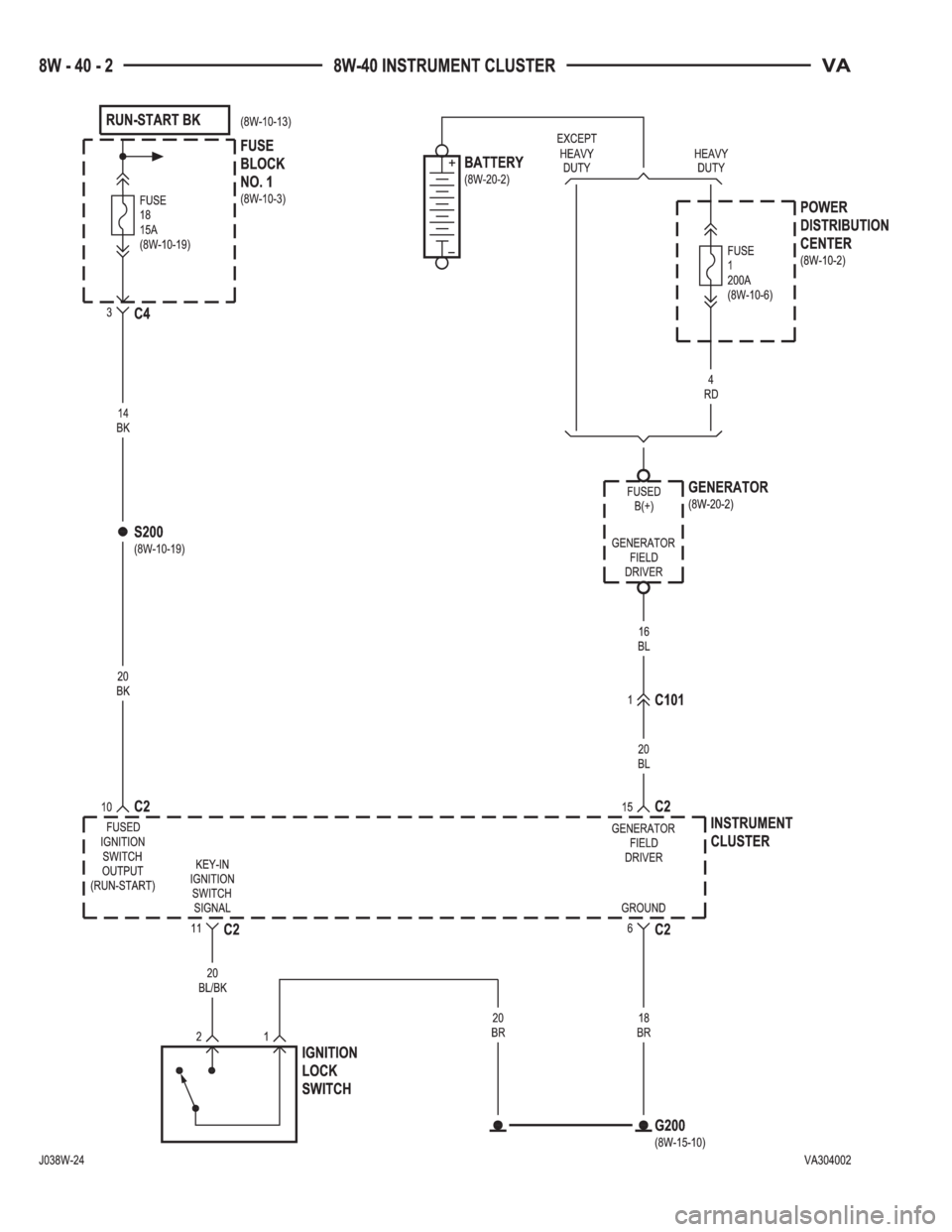

Battery............................ 8W-40-2
Brake Fluid Level Switch.............. 8W-40-3

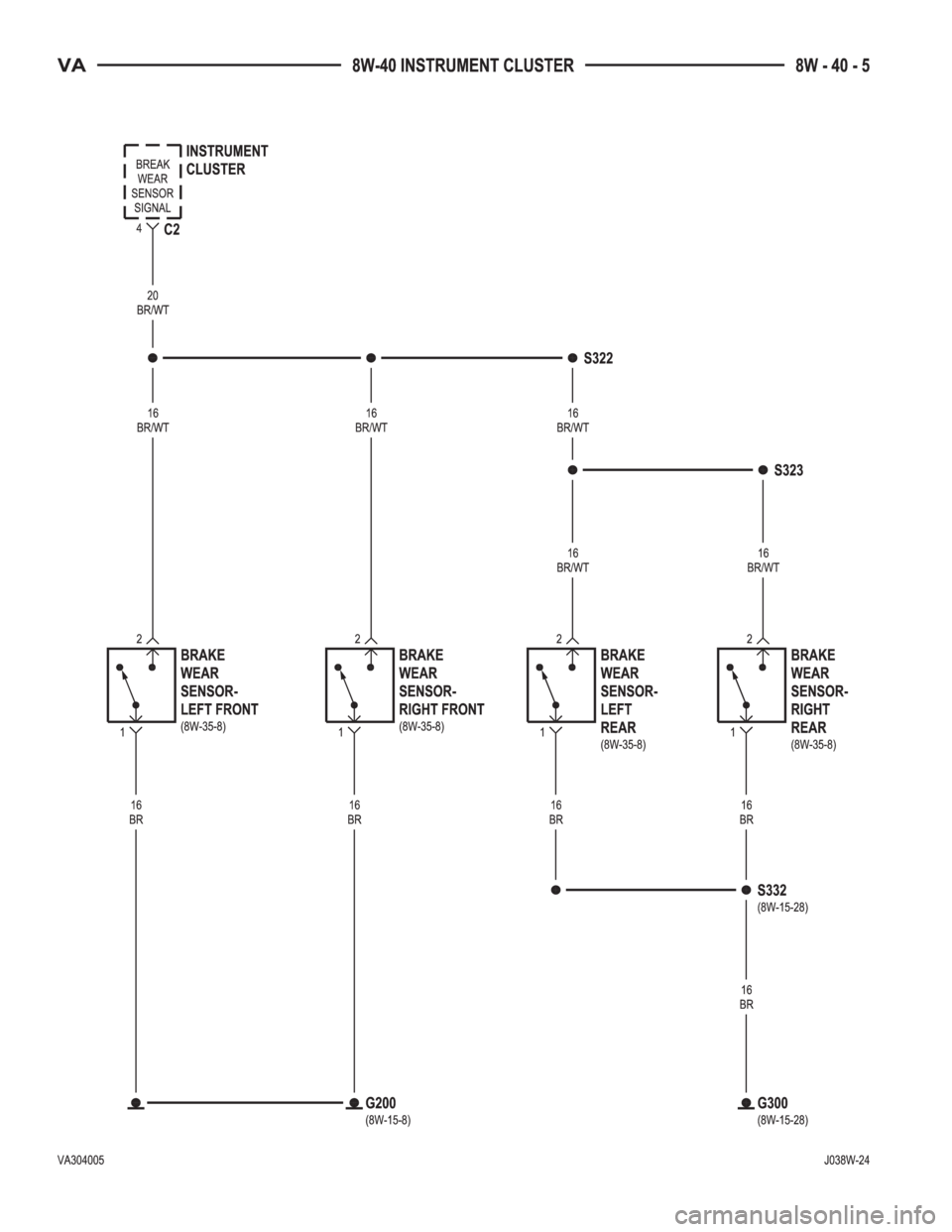

Brake Wear Sensor- Left Front......... 8W-40-5
Brake Wear Sensor- Left Rear.......... 8W-40-5
Brake Wear Sensor- Right Front........ 8W-40-5
Brake Wear Sensor- Right Rear......... 8W-40-5

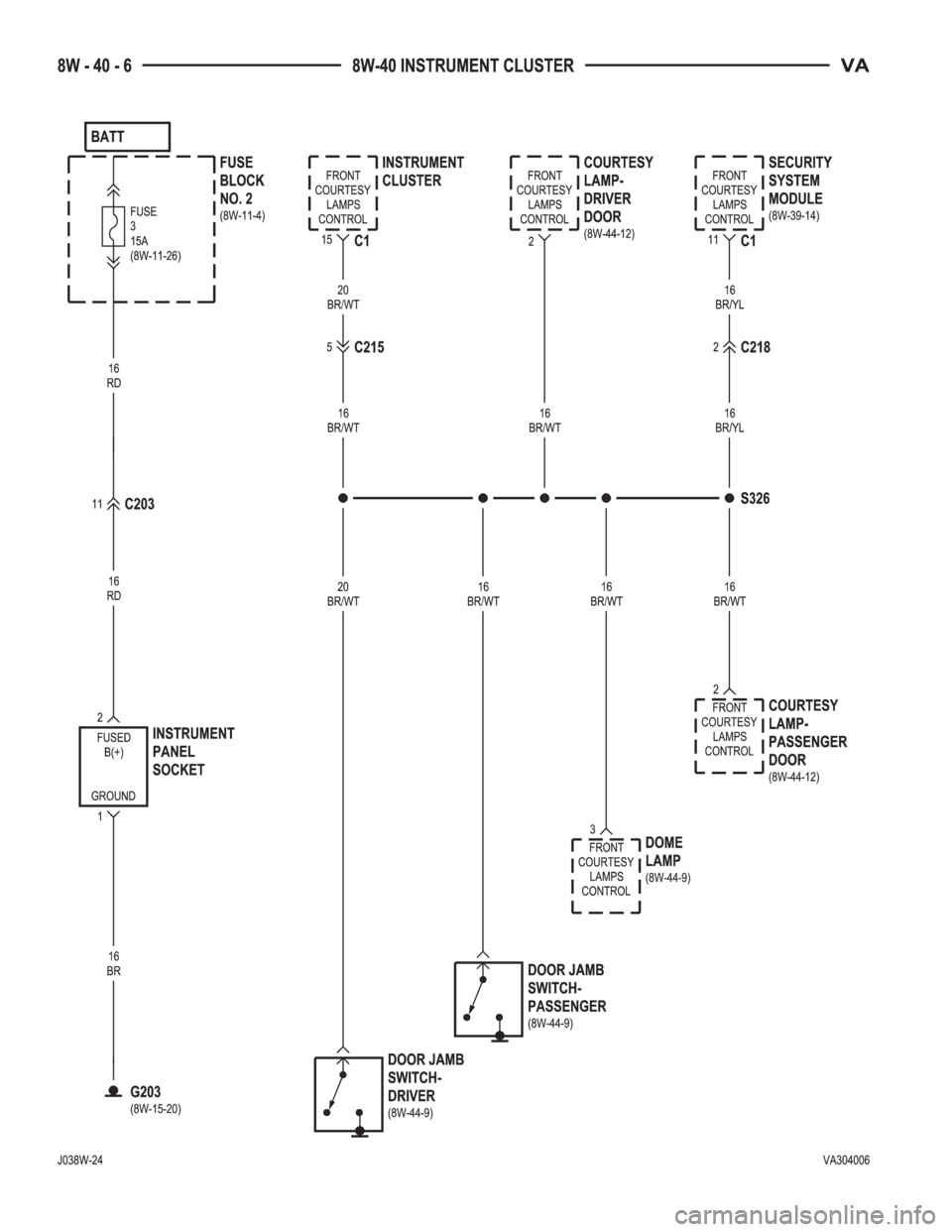

Courtesy Lamp- Driver Door........... 8W-40-6
Courtesy Lamp- Passenger Door........ 8W-40-6

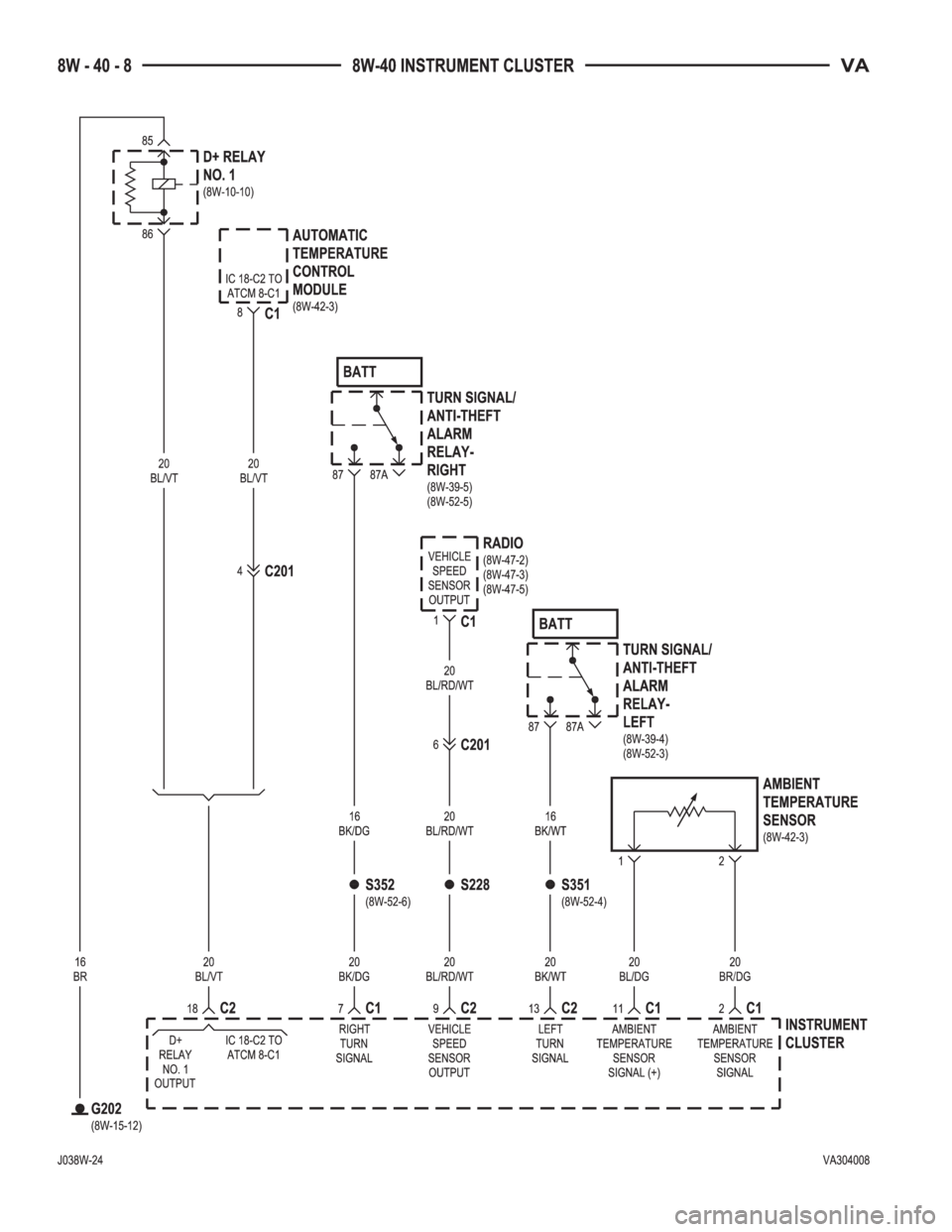

D+ Relay No. 1...................... 8W-40-8
Data Link Connector................. 8W-40-3
Dome Lamp........................ 8W-40-6
Door Jamb Switch- Driver............. 8W-40-6
Door Jamb Switch- Passenger.......... 8W-40-6

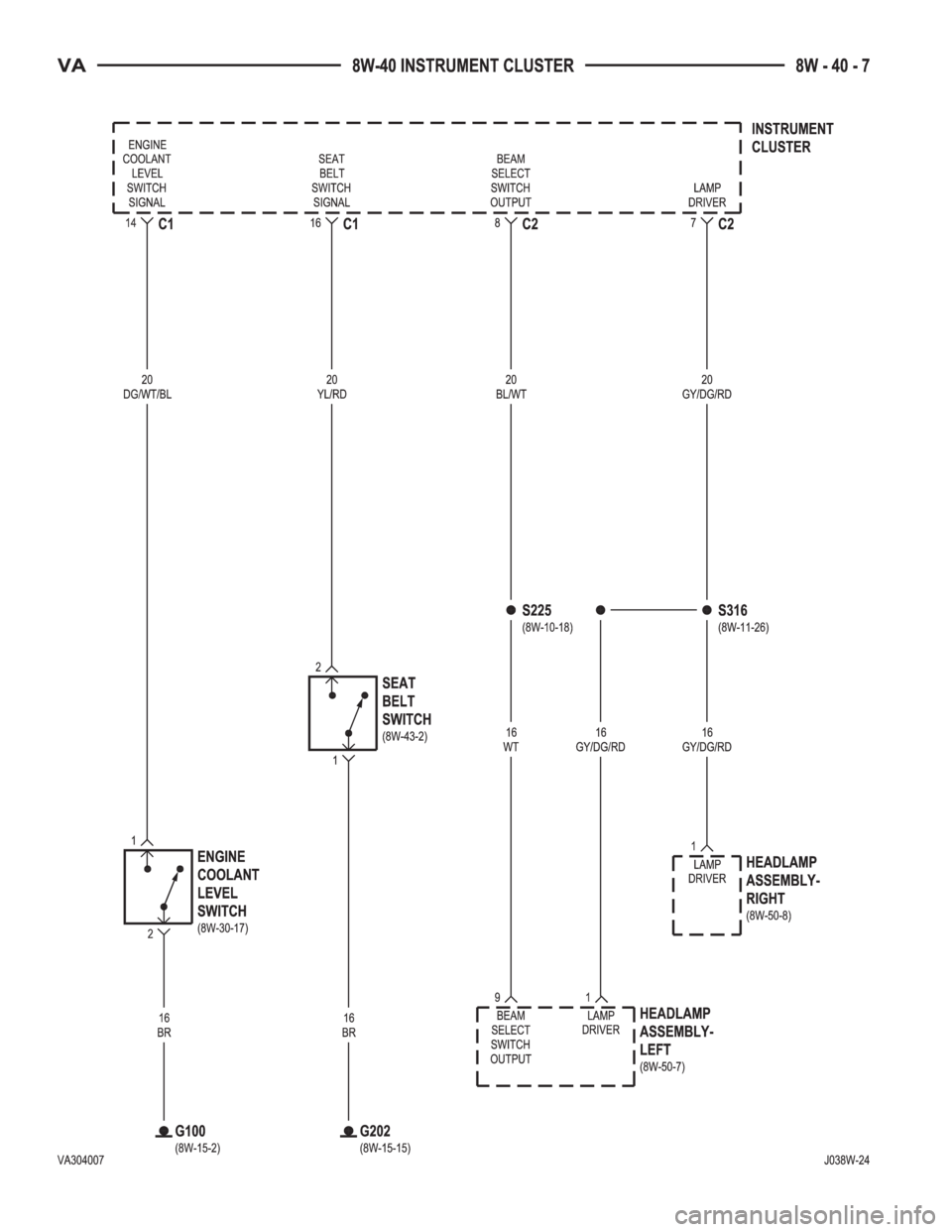

Engine Coolant Level Switch........... 8W-40-7
Fuel Level Sensor.................... 8W-40-3
Fuse 1............................ 8W-40-2
Fuse 3............................ 8W-40-6
Fuse 6............................ 8W-40-3
Fuse 18............................ 8W-40-2Component Page
Fuse Block No. 1.................... 8W-40-2
Fuse Block No. 2.................. 8W-40-3, 6
G100.............................. 8W-40-7
G200.......................... 8W-40-2, 3, 5
G202.......................... 8W-40-3, 7, 8
G203.............................. 8W-40-6
G300.............................. 8W-40-5
Generator.......................... 8W-40-2
Headlamp Assembly- Left.............. 8W-40-7
Headlamp Assembly- Right............ 8W-40-7
Ignition Lock Switch................. 8W-40-2
Instrument Cluster....... 8W-40-2, 3, 4, 5, 6, 7, 8
Instrument Panel Socket.............. 8W-40-6
Parking Brake Switch................ 8W-40-3
Power Distribution Center............. 8W-40-2
Radio............................. 8W-40-8
Seat Belt Switch..................... 8W-40-7
Security System Module............... 8W-40-6

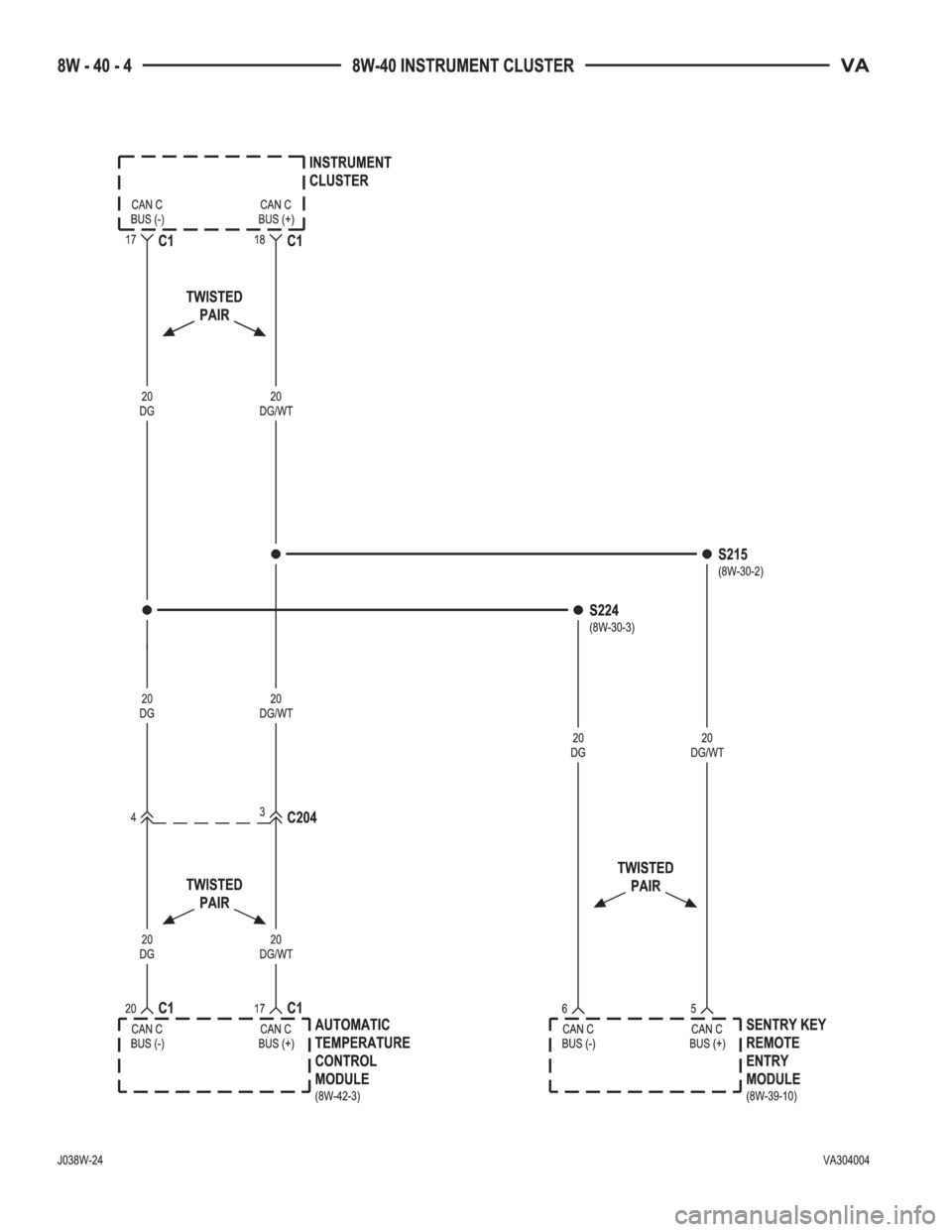

Sentry Key Remote Entry Module....... 8W-40-4
Turn Signal/Anti-Theft Alarm Relay- Left . 8W-40-8
Turn Signal/Anti-Theft Alarm Relay-
Right........................... 8W-40-8
VA8W-40 INSTRUMENT CLUSTER 8W - 40 - 1
