ASH RECEIVER/CIGAR
LIGHTER LAMP UNIT
REMOVAL
An ash receiver/cigar lighter lamp unit is optional
equipment on this model (Fig. 1). The bulb and bulb
holder are secured by an integral mount to the out-
side of the cigar lighter halo ring, and serves to illu-
minate both the translucent halo ring and the ash
receiver. A small lens that is snap-fit into the inboard
side of the ash receiver bin allows light from the
lamp on the halo ring to also illuminate the ash
receiver. The ash receiver/cigar lighter lamp is ser-
viced only as a unit with the ash receiver housing
and cigar lighter receptacle. If the lamp is faulty or
damaged, the entire ash receiver housing and cigar
lighter receptacle unit must be replaced. (Refer to 23
- BODY/INSTRUMENT PANEL/ASH RECEIVER -
REMOVAL).
INSTALLATION
An ash receiver/cigar lighter lamp unit is optional
equipment on this model (Fig. 1). The bulb and bulb
holder are secured by an integral mount to the out-
side of the cigar lighter halo ring, and serves to illu-
minate both the translucent halo ring and the ash
receiver. A small lens that is snap-fit into the inboard
side of the ash receiver bin allows light from the
lamp on the halo ring to also illuminate the ash
receiver. The ash receiver/cigar lighter lamp is ser-
viced only as a unit with the ash receiver housing
and cigar lighter receptacle. If the lamp is faulty ordamaged, the entire ash receiver housing and cigar
lighter receptacle unit must be replaced. (Refer to 23
- BODY/INSTRUMENT PANEL/ASH RECEIVER -
INSTALLATION).
CARGO/DOME LAMP BULB
REMOVAL
(1) Disconnect and isolate the battery negative
cable.
(2) Remove the cargo/dome lamp unit from its
mounting location, but do not disconnect the vehicle
wire harness from the lamp connector receptacle.
(Refer to 8 - ELECTRICAL/LAMPS/LIGHTING -
INTERIOR/CARGO/DOME LAMP UNIT - REMOV-
AL).
(3) Grasp the lamp housing in one hand and care-
fully pull the bulb out of the bulb holder with the
other hand (Fig. 2).
INSTALLATION
(1) Grasp the cargo/dome lamp housing in one
hand and carefully insert the bulb into the bulb
holder with the other hand (Fig. 2).
(2) Reinstall the cargo/dome lamp unit into its
mounting location. (Refer to 8 - ELECTRICAL/
LAMPS/LIGHTING - INTERIOR/CARGO/DOME
LAMP UNIT - INSTALLATION).
(3) Reconnect the battery negative cable.
Fig. 1 Ash Receiver/Cigar Lighter Lamp Unit
1 - CIGAR LIGHTER
2 - HALO RING
3 - LENS
4 - LAMP UNIT (BIN REMOVED)
5 - ASH RECEIVER BIN
6 - ASH RECEIVER
Fig. 2 Cargo/Dome Lamp Bulb Remove/Install
1 - LAMP HOUSING
2 - BULB
3 - CONNECTOR RECEPTACLE
VALAMPS/LIGHTING - INTERIOR 8L - 27

CARGO/DOME LAMP UNIT
REMOVAL
(1) Disconnect and isolate the battery negative
cable.
(2) Insert the tip of a small flat-bladed screwdriver
into the notch on one edge of the cargo/dome lamp
housing to depress the retainer clip and pull that
edge of the lamp away from its mounting location
(Fig. 3).
(3)
Pull the cargo/dome lamp unit from its mounting
location far enough to access and disconnect the vehicle
wire harness from the lamp connector receptacle.
(4) Remove the cargo/dome lamp unit from its
mounting location.
INSTALLATION
(1) Position the cargo/dome lamp unit to its
mounting location.
(2) Reconnect the vehicle wire harness connector
to the cargo/dome lamp connector receptacle (Fig. 3).
(3) Position the edge of the cargo/dome lamp hous-
ing opposite from the retainer clip into the mounting
hole.
(4) Push firmly and evenly on the notched edge of
the cargo/dome lamp housing until the retainer clip
latches into place.
(5) Reconnect the battery negative cable.
CARGO LAMP SWITCH
REMOVAL
REMOVAL - INSTRUMENT PANEL
(1) Disconnect and isolate the battery negative
cable.(2) Remove the accessory switch bezel from the
instrument panel. (Refer to 23 - BODY/INSTRU-
MENT PANEL/ACCESSORY SWITCH BEZEL -
REMOVAL).
(3) From the back of the accessory switch bezel,
disconnect the vehicle wire harness connector for the
cargo lamp switch from the receptacle on the back of
the switch (Fig. 4).
(4) From the back of the accessory switch bezel,
depress the two latches on the outside of the switch
body and push the switch out through the front of
the bezel.
REMOVAL - BULKHEAD
(1) Disconnect and isolate the battery negative
cable.
(2) Carefully pry the cargo lamp switch and switch
bezel out of the switch box on the back of the cargo
compartment bulkhead panel.
(3) Pull the cargo lamp switch and bezel away
from the switch box far enough to access and discon-
nect the vehicle wire harness connector for the
switch from the receptacle on the back of the switch.
(4) From the back of the switch bezel, depress the
two latches on the outside of the cargo lamp switch
body and push the switch out through the top of the
switch bezel.
REMOVAL - REAR PILLAR
(1) Disconnect and isolate the battery negative
cable.
(2) Carefully pry the cargo lamp switch and switch
bezel out of the switch mounting hole on the inside of
the rear door opening pillar.
Fig. 3 Cargo/Dome Lamp Unit Remove/Install
1 - LAMP HOUSING
2 - SWITCH BUTTON
3 - NOTCHFig. 4 Cargo Lamp Switch - Accessory Switch Bezel
Mounted Remove/Install
1 - SWITCH (TYPICAL)
2 - ACCESSORY SWITCH BEZEL
3 - BLOCK-OUT PLATE
4 - LATCH (2)
8L - 28 LAMPS/LIGHTING - INTERIORVA

(3) Pull the cargo lamp switch and bezel away
from the pillar far enough to access and disconnect
the vehicle wire harness connector for the switch
from the receptacle on the back of the switch.
(4) From the back of the switch bezel, depress the
two latches on the outside of the cargo lamp switch
body and push the switch out through the top of the
switch bezel.
INSTALLATION
INSTALLATION - INSTRUMENT PANEL
(1) From the front of the accessory switch bezel,
align the cargo lamp switch body with the opening in
the bezel and push the switch into the bezel until the
two latches on the outside of the switch body snap
into place (Fig. 4).
(2) From the back of the accessory switch bezel,
reconnect the vehicle wire harness connector for the
cargo lamp switch to the receptacle on the back of
the switch.
(3) Reinstall the accessory switch bezel onto the
instrument panel. (Refer to 23 - BODY/INSTRU-
MENT PANEL/ACCESSORY SWITCH BEZEL -
INSTALLATION).
(4) Reconnect the battery negative cable.
INSTALLATION - BULKHEAD
(1) From the front of the switch bezel, align the
cargo lamp switch body with the opening in the bezel
and push the switch into the bezel until the two
latches on the outside of the switch body snap into
place.
(2) Reconnect the vehicle wire harness connector
for the cargo lamp switch to the receptacle on the
back of the switch.
(3) Using hand pressure, firmly and evenly press
the cargo lamp switch and switch bezel into the
switch box on the back of the cargo compartment
bulkhead panel.
(4) Reconnect the battery negative cable.
INSTALLATION - REAR PILLAR
(1) From the front of the switch bezel, align the
cargo lamp switch body with the opening in the bezel
and push the switch into the bezel until the two
latches on the outside of the switch body snap into
place.
(2) Reconnect the vehicle wire harness connector
for the cargo lamp switch to the receptacle on the
back of the switch.(3) Using hand pressure, firmly and evenly press
the cargo lamp switch and switch bezel into the
switch mounting hole on the inside of the rear door
opening pillar.
(4) Reconnect the battery negative cable.
DOME/READING LAMP BULB
REMOVAL
(1) Disconnect and isolate the battery negative
cable.
(2) Remove the dome/reading lamp unit from its
mounting location, but do not disconnect the vehicle
wire harness from the lamp connector receptacle.
(Refer to 8 - ELECTRICAL/LAMPS/LIGHTING -
INTERIOR/DOME/READING LAMP UNIT -
REMOVAL).
(3) Grasp the lamp housing in one hand and care-
fully pull the bulb out of the bulb holder with the
other hand (Fig. 5).
INSTALLATION
(1) Grasp the dome/reading lamp housing in one
hand and carefully insert the bulb into the bulb
holder with the other hand (Fig. 5).
(2) Reinstall the dome/reading lamp unit into its
mounting location. (Refer to 8 - ELECTRICAL/
LAMPS/LIGHTING - INTERIOR/DOME/READING
LAMP UNIT - INSTALLATION).
(3) Reconnect the battery negative cable.
Fig. 5 Dome/Reading Lamp Bulb Remove/Install
1 - LAMP HOUSING
2 - CONNECTOR RECEPTACLE
3 - BULB (2)
VALAMPS/LIGHTING - INTERIOR 8L - 29
CARGO LAMP SWITCH (Continued)

DOME/READING LAMP UNIT
REMOVAL
(1) Disconnect and isolate the battery negative
cable.
(2) Insert the tip of a small flat-bladed screwdriver
into the notch on one edge of the dome/reading lamp
housing to depress the retainer clip and pull that
edge of the lamp away from its mounting location
(Fig. 6).
(3) Pull the dome/reading lamp unit from its
mounting location far enough to access and discon-
nect the vehicle wire harness from the lamp connec-
tor receptacle.
(4) Remove the dome/reading lamp unit from its
mounting location.
INSTALLATION
(1) Position the dome/reading lamp unit to its
mounting location.
(2) Reconnect the vehicle wire harness connector
to the dome/reading lamp connector receptacle (Fig.
6).
(3) Position the edge of the dome/reading lamp
housing opposite from the retainer clip into the
mounting hole.
(4) Push firmly and evenly on the notched edge of
the dome/reading lamp housing until the retainer
clip latches into place.
(5) Reconnect the battery negative cable.
DOME LAMP/INTRUSION
SENSOR BULB
REMOVAL
(1) Disconnect and isolate the battery negative
cable.
(2) Remove the dome lamp/intrusion sensor unit
from its mounting location, but do not disconnect the
vehicle wire harness from the lamp connector recep-
tacle. (Refer to 8 - ELECTRICAL/LAMPS/LIGHTING
- INTERIOR/DOME LAMP/INTRUSION SENSOR
UNIT - REMOVAL).
(3) Grasp the lamp housing in one hand and rotate
the bulb holder and bulb unit counterclockwise about
30 degrees on the circuit board (Fig. 7).
(4) Pull the bulb holder and bulb unit straight out
from the mounting hole in the circuit board.
INSTALLATION
(1) Grasp the dome lamp/intrusion sensor unit
housing in one hand and align the bulb holder and
bulb unit with the bulb mounting hole in the circuit
board with the other hand (Fig. 7).
(2) Insert the bulb holder and bulb unit straight
into the circuit board bulb mounting hole until it is
firmly seated.
(3) Rotate the bulb holder and bulb unit clockwise
about 30 degrees on the circuit board.
(4) Reinstall the dome lamp/intrusion sensor unit
into its mounting location. (Refer to 8 - ELECTRI-
CAL/LAMPS/LIGHTING - INTERIOR/DOME LAMP/
INTRUSION SENSOR UNIT - INSTALLATION).
(5) Reconnect the battery negative cable.
Fig. 6 Dome/Reading Lamp Unit Remove/Install
1 - LAMP HOUSING
2 - SWITCH BUTTON
3 - NOTCH
4 - SUN VISOR (2)
5 - HEADLINER
Fig. 7 Dome Lamp/Intrusion Sensor Bulb Remove/
Install
1 - BULB HOLDER/BULB (4)
2 - LAMP HOUSING
8L - 30 LAMPS/LIGHTING - INTERIORVA

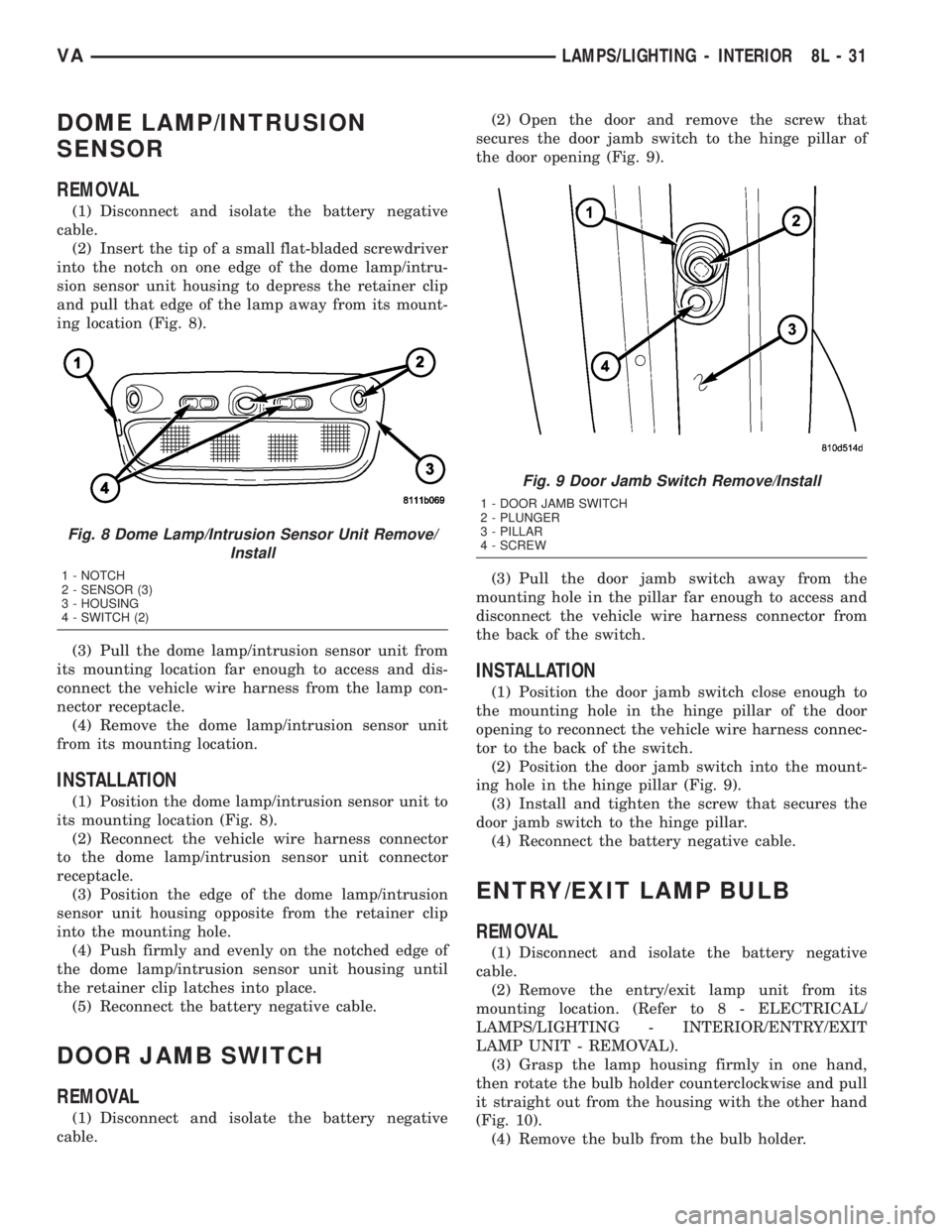

DOME LAMP/INTRUSION
SENSOR
REMOVAL
(1) Disconnect and isolate the battery negative
cable.
(2) Insert the tip of a small flat-bladed screwdriver
into the notch on one edge of the dome lamp/intru-
sion sensor unit housing to depress the retainer clip
and pull that edge of the lamp away from its mount-
ing location (Fig. 8).
(3) Pull the dome lamp/intrusion sensor unit from
its mounting location far enough to access and dis-
connect the vehicle wire harness from the lamp con-
nector receptacle.
(4) Remove the dome lamp/intrusion sensor unit
from its mounting location.
INSTALLATION
(1) Position the dome lamp/intrusion sensor unit to
its mounting location (Fig. 8).
(2) Reconnect the vehicle wire harness connector
to the dome lamp/intrusion sensor unit connector
receptacle.
(3) Position the edge of the dome lamp/intrusion
sensor unit housing opposite from the retainer clip
into the mounting hole.
(4) Push firmly and evenly on the notched edge of
the dome lamp/intrusion sensor unit housing until
the retainer clip latches into place.
(5) Reconnect the battery negative cable.
DOOR JAMB SWITCH
REMOVAL
(1) Disconnect and isolate the battery negative
cable.(2) Open the door and remove the screw that
secures the door jamb switch to the hinge pillar of
the door opening (Fig. 9).
(3) Pull the door jamb switch away from the
mounting hole in the pillar far enough to access and
disconnect the vehicle wire harness connector from
the back of the switch.
INSTALLATION
(1) Position the door jamb switch close enough to
the mounting hole in the hinge pillar of the door
opening to reconnect the vehicle wire harness connec-
tor to the back of the switch.
(2) Position the door jamb switch into the mount-
ing hole in the hinge pillar (Fig. 9).
(3) Install and tighten the screw that secures the
door jamb switch to the hinge pillar.
(4) Reconnect the battery negative cable.
ENTRY/EXIT LAMP BULB
REMOVAL
(1) Disconnect and isolate the battery negative
cable.
(2) Remove the entry/exit lamp unit from its
mounting location. (Refer to 8 - ELECTRICAL/
LAMPS/LIGHTING - INTERIOR/ENTRY/EXIT
LAMP UNIT - REMOVAL).
(3) Grasp the lamp housing firmly in one hand,
then rotate the bulb holder counterclockwise and pull
it straight out from the housing with the other hand
(Fig. 10).
(4) Remove the bulb from the bulb holder.
Fig. 8 Dome Lamp/Intrusion Sensor Unit Remove/
Install
1 - NOTCH
2 - SENSOR (3)
3 - HOUSING
4 - SWITCH (2)
Fig. 9 Door Jamb Switch Remove/Install
1 - DOOR JAMB SWITCH
2 - PLUNGER
3 - PILLAR
4 - SCREW
VALAMPS/LIGHTING - INTERIOR 8L - 31

INSTALLATION
(1) Insert the bulb into the entry/exit lamp bulb
holder (Fig. 10).
(2) Grasp the entry/exit lamp housing firmly in
one hand, then insert the bulb holder into the hous-
ing and rotate it clockwise to lock it in place with the
other hand.
(3) Reinstall the entry/exit lamp unit into its
mounting location. (Refer to 8 - ELECTRICAL/
LAMPS/LIGHTING - INTERIOR/ENTRY/EXIT
LAMP UNIT - INSTALLATION).
(4) Reconnect the battery negative cable.
ENTRY/EXIT LAMP UNIT
REMOVAL
(1) Disconnect and isolate the battery negative
cable.
(2) Insert the tip of a small flat-bladed screwdriver
into the notch on one edge of the entry/exit lamp
housing to depress the retainer clip and pull that
edge of the lamp away from its mounting location
(Fig. 11).
(3) Pull the entry/exit lamp unit from its mounting
location far enough to access and disconnect the vehi-
cle wire harness from the lamp connector receptacle.(4) Remove the entry/exit lamp unit from its
mounting location.
INSTALLATION
(1) Position the entry/exit lamp unit to its mount-
ing location.
(2) Reconnect the vehicle wire harness connector
to the entry/exit lamp connector receptacle (Fig. 11).
(3) Position the edge of the entry/exit lamp hous-
ing opposite from the retainer clip into the mounting
hole.
(4) Push firmly and evenly on the notched edge of
the entry/exit lamp housing until the retainer clip
latches into place.
(5) Reconnect the battery negative cable.
TIME DELAY RELAY
REMOVAL
(1) Disconnect and isolate the battery negative
cable.
(2) Move the driver side front seat to its most for-
ward position for easiest access to the seat riser
cover panel.
(3) Remove the two screws that secure the cover
panel to the top of the seat riser under the driver
side front seat (Fig. 12).
(4) Remove the cover panel from the top of the
driver side seat riser.
(5) Remove the time delay relay from its vehicle
wire harness connector by grasping it firmly and
pulling it straight out from the connector within the
driver side seat riser.
Fig. 10 Entry/Exit Lamp Bulb Remove/Install
1 - LAMP HOUSING
2 - BULB HOLDER
3 - CONNECTOR
Fig. 11 Entry/Exit Lamp Unit Remove/Install
1 - STEP WELL SCUFF PAD
2 - NOTCH
3 - ENTRY/EXIT LAMP UNIT
Fig. 12 Seat Riser Cover
1 - DRIVER SEAT BACK
2 - COVER PANEL
3 - SCREW (2)
4 - SEAT RISER
8L - 32 LAMPS/LIGHTING - INTERIORVA
ENTRY/EXIT LAMP BULB (Continued)

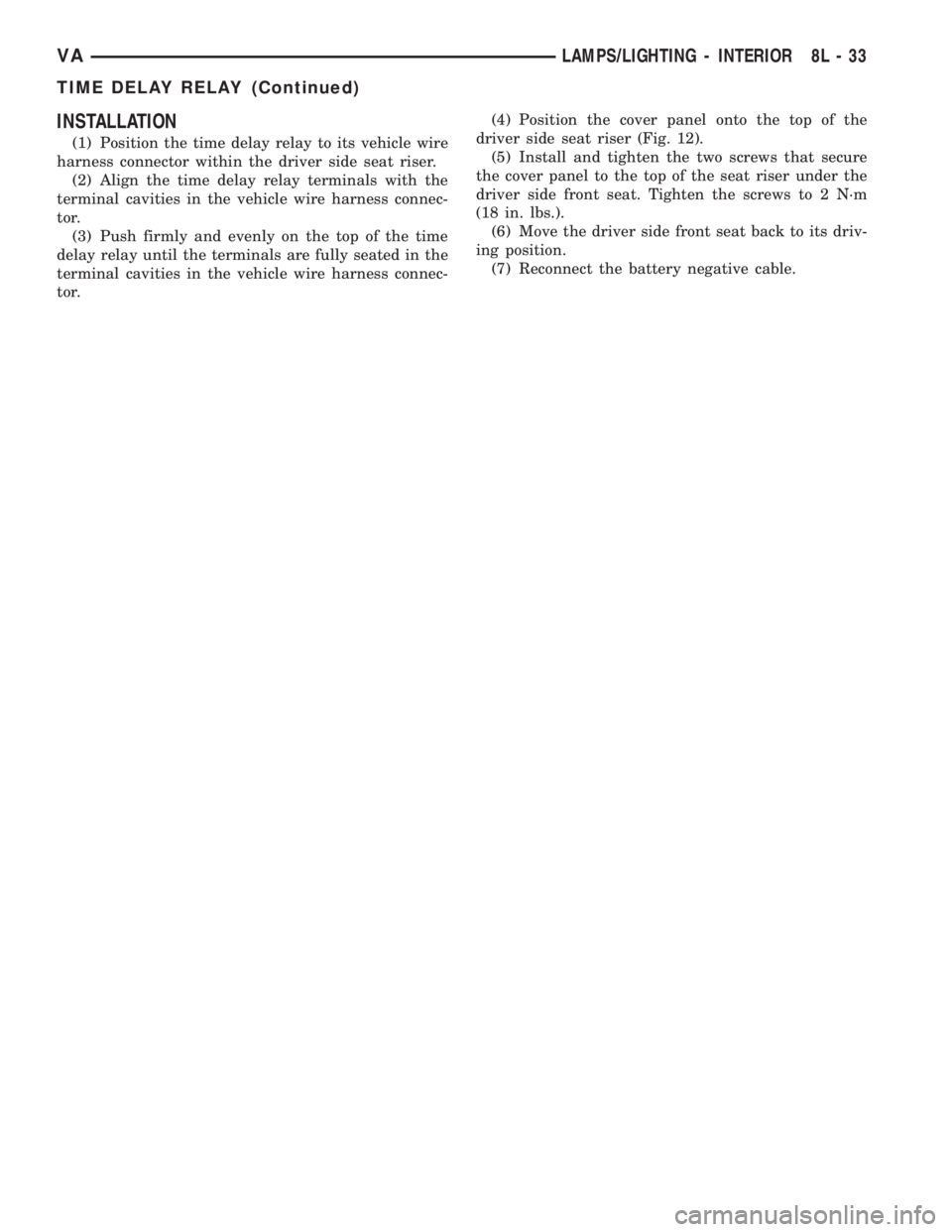

INSTALLATION
(1) Position the time delay relay to its vehicle wire
harness connector within the driver side seat riser.
(2) Align the time delay relay terminals with the
terminal cavities in the vehicle wire harness connec-
tor.
(3) Push firmly and evenly on the top of the time
delay relay until the terminals are fully seated in the
terminal cavities in the vehicle wire harness connec-
tor.(4) Position the cover panel onto the top of the
driver side seat riser (Fig. 12).
(5) Install and tighten the two screws that secure
the cover panel to the top of the seat riser under the
driver side front seat. Tighten the screws to 2 N´m
(18 in. lbs.).
(6) Move the driver side front seat back to its driv-
ing position.
(7) Reconnect the battery negative cable.
VALAMPS/LIGHTING - INTERIOR 8L - 33
TIME DELAY RELAY (Continued)
