2005 MERCEDES-BENZ SPRINTER Service Repair Manual

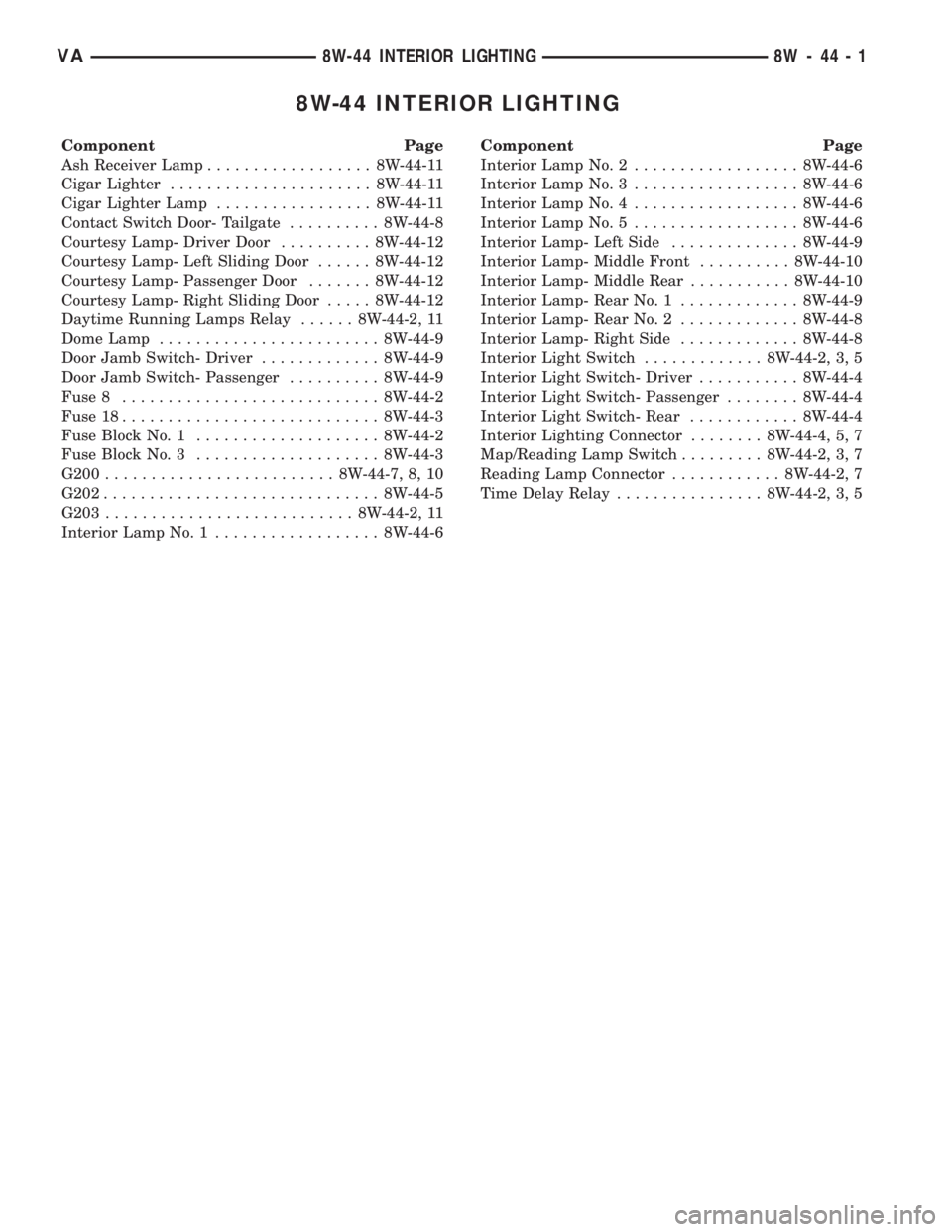

8W-44 INTERIOR LIGHTING
Component Page
Ash Receiver Lamp.................. 8W-44-11
Cigar Lighter...................... 8W-44-11
Cigar Lighter Lamp................. 8W-44-11

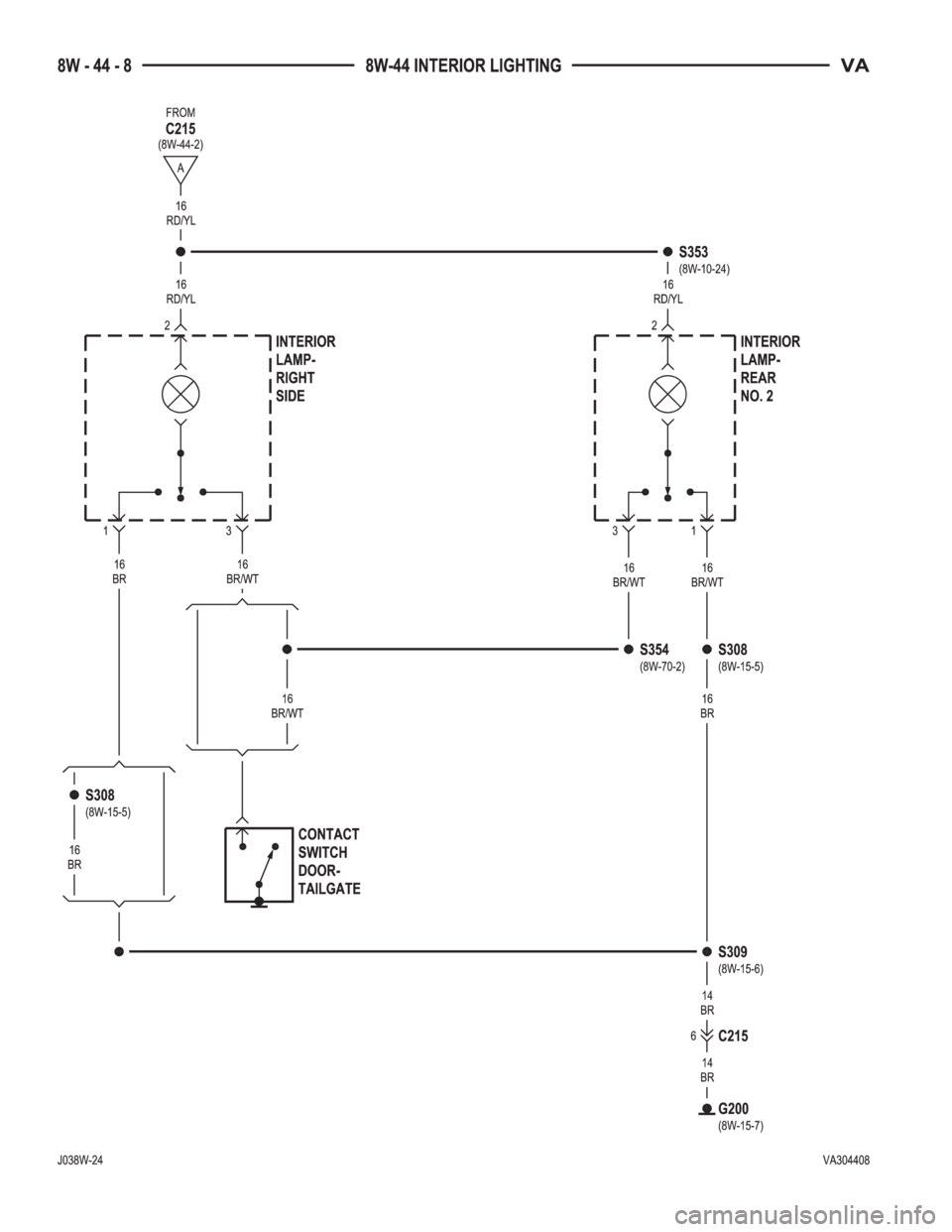

Contact Switch Door- Tailgate.......... 8W-44-8
Courtesy Lamp- Driver Door.......... 8W-44-12
Courtesy Lamp- Left Sliding Door...... 8W-44-12
Courtesy Lamp- Passenger Door....... 8W-44-12
Courtesy Lamp- Right Sliding Door..... 8W-44-12

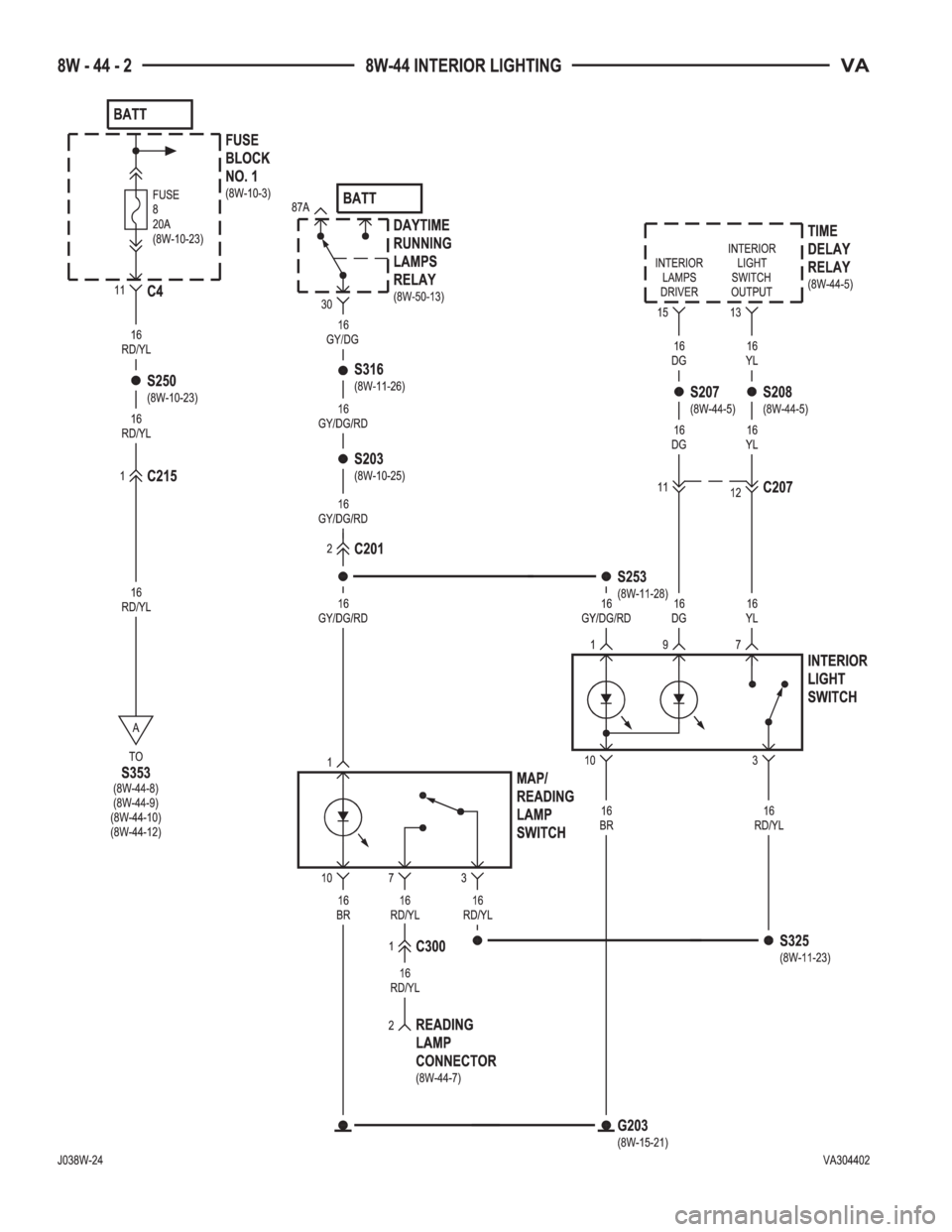

Daytime Running Lamps Relay...... 8W-44-2, 11
Dome Lamp........................ 8W-44-9
Door Jamb Switch- Driver............. 8W-44-9
Door Jamb Switch- Passenger.......... 8W-44-9
Fuse 8............................ 8W-44-2
Fuse 18............................ 8W-44-3
Fuse Block No. 1.................... 8W-44-2
Fuse Block No. 3.................... 8W-44-3

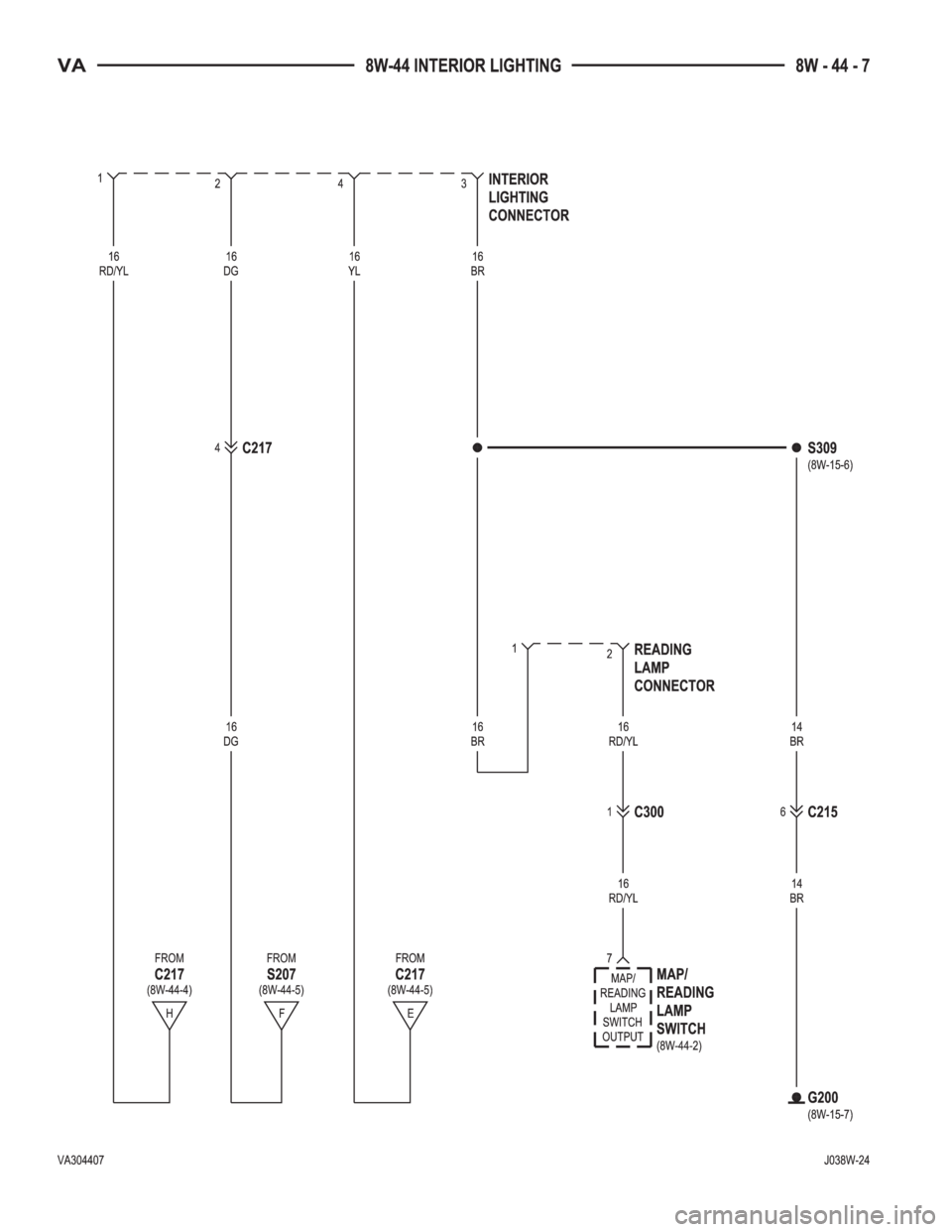

G200......................... 8W-44-7, 8, 10

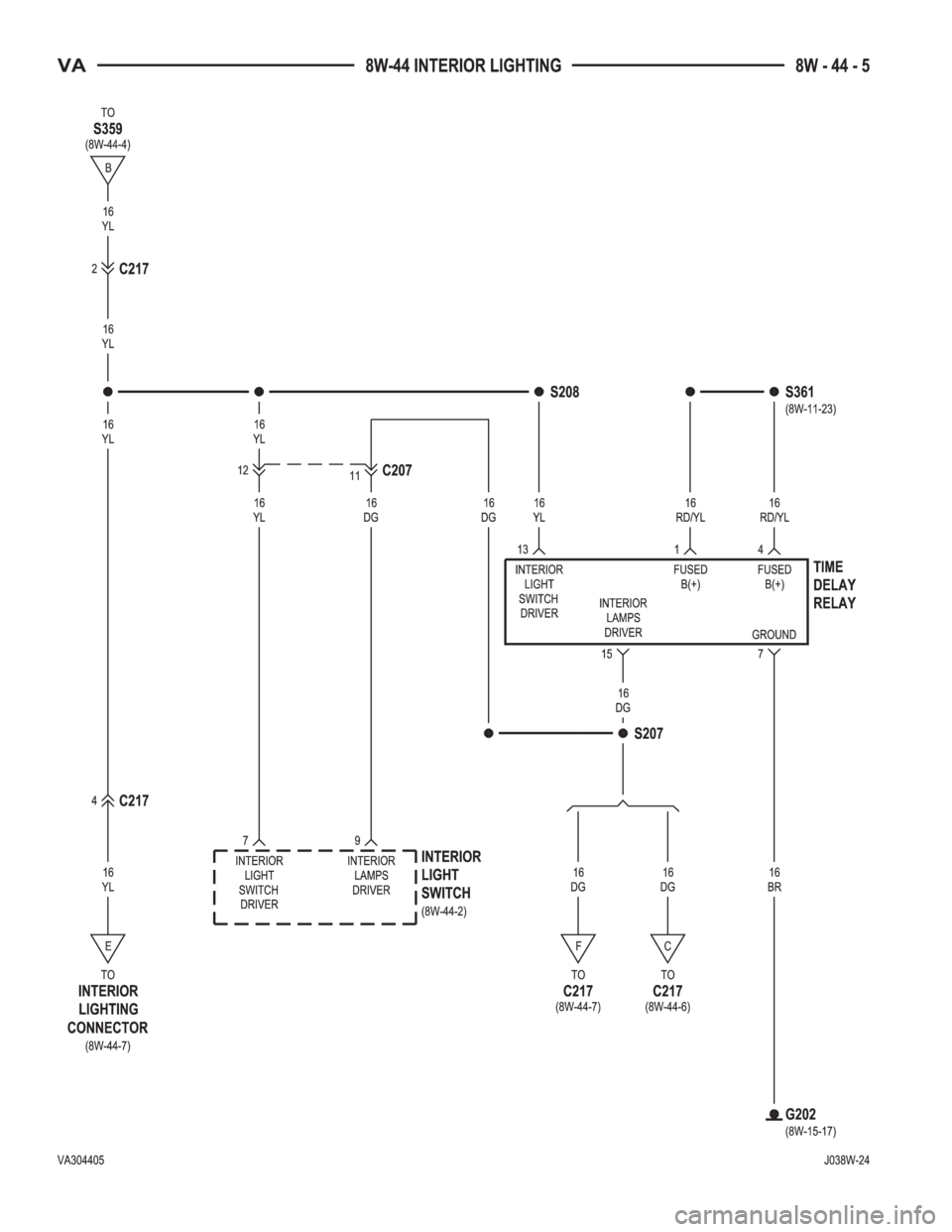

G202.............................. 8W-44-5
G203........................... 8W-44-2, 11
Interior Lamp No. 1.................. 8W-44-6Component Page
Interior Lamp No. 2.................. 8W-44-6
Interior Lamp No. 3.................. 8W-44-6
Interior Lamp No. 4.................. 8W-44-6
Interior Lamp No. 5.................. 8W-44-6
Interior Lamp- Left Side.............. 8W-44-9
Interior Lamp- Middle Front.......... 8W-44-10
Interior Lamp- Middle Rear........... 8W-44-10
Interior Lamp- Rear No. 1............. 8W-44-9
Interior Lamp- Rear No. 2............. 8W-44-8
Interior Lamp- Right Side............. 8W-44-8
Interior Light Switch............. 8W-44-2, 3, 5

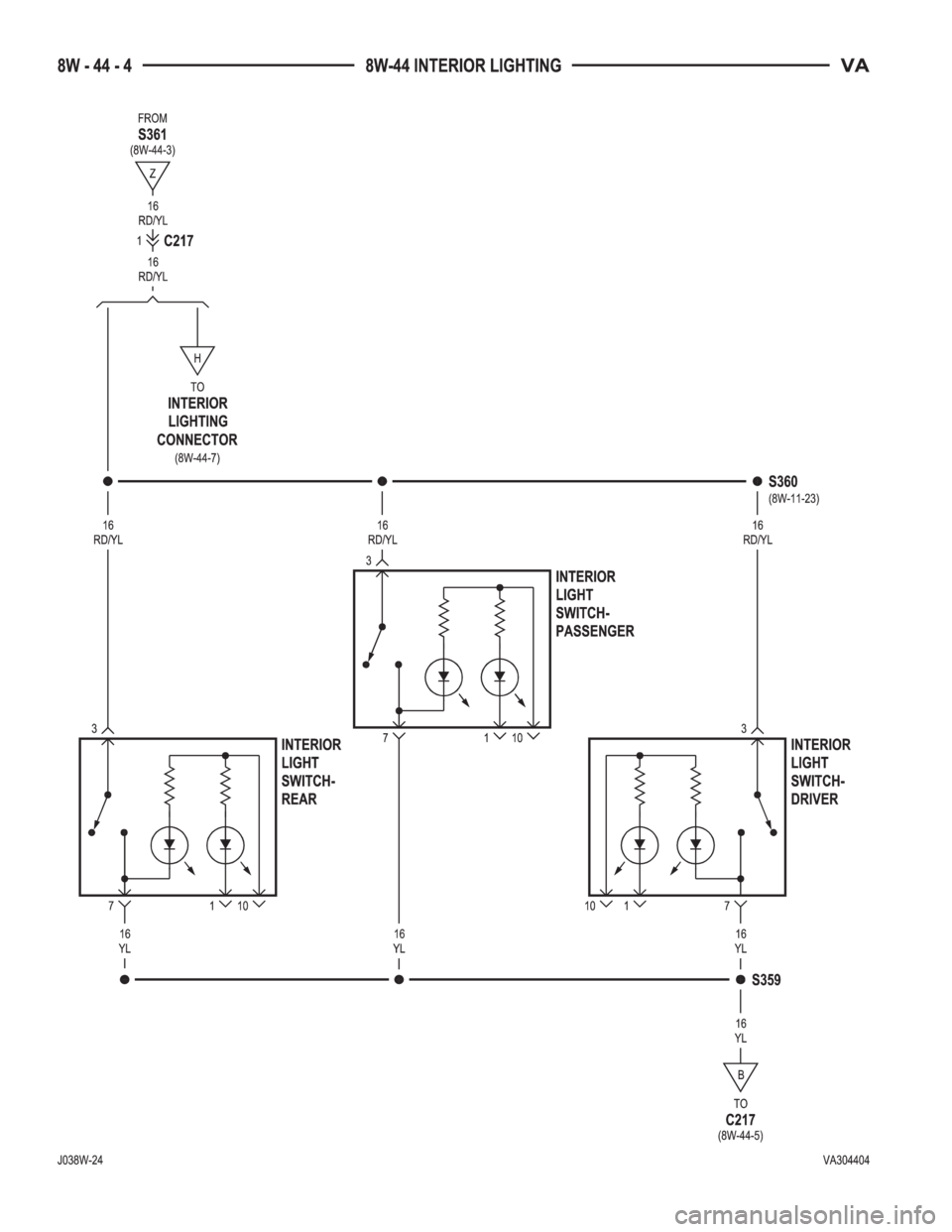

Interior Light Switch- Driver........... 8W-44-4
Interior Light Switch- Passenger........ 8W-44-4
Interior Light Switch- Rear............ 8W-44-4
Interior Lighting Connector........ 8W-44-4, 5, 7
Map/Reading Lamp Switch......... 8W-44-2, 3, 7
Reading Lamp Connector............ 8W-44-2, 7
Time Delay Relay................ 8W-44-2, 3, 5
VA8W-44 INTERIOR LIGHTING 8W - 44 - 1
