HYDRAULIC FLOW IN DRIVE - FOURTH TO FIFTH GEAR TRANSITION
VAAUTOMATIC TRANSMISSION - NAG1 21 - 61
AUTOMATIC TRANSMISSION - NAG1 (Continued)

HYDRAULIC FLOW IN DRIVE - FIFTH GEAR
21 - 62 AUTOMATIC TRANSMISSION - NAG1VA
AUTOMATIC TRANSMISSION - NAG1 (Continued)

HYDRAULIC FLOW IN DRIVE - FIFTH GEAR - EMCC
VAAUTOMATIC TRANSMISSION - NAG1 21 - 63
AUTOMATIC TRANSMISSION - NAG1 (Continued)

HYDRAULIC FLOW IN DRIVE - FIFTH TO FOURTH GEAR TRANSITION
21 - 64 AUTOMATIC TRANSMISSION - NAG1VA
AUTOMATIC TRANSMISSION - NAG1 (Continued)

HYDRAULIC FLOW IN DRIVE - FOURTH TO THIRD GEAR TRANSITION
VAAUTOMATIC TRANSMISSION - NAG1 21 - 65
AUTOMATIC TRANSMISSION - NAG1 (Continued)

HYDRAULIC FLOW IN DRIVE - THIRD TO SECOND GEAR TRANSITION
21 - 66 AUTOMATIC TRANSMISSION - NAG1VA
AUTOMATIC TRANSMISSION - NAG1 (Continued)

HYDRAULIC FLOW IN DRIVE - SECOND TO FIRST GEAR TRANSITION
VAAUTOMATIC TRANSMISSION - NAG1 21 - 67
AUTOMATIC TRANSMISSION - NAG1 (Continued)

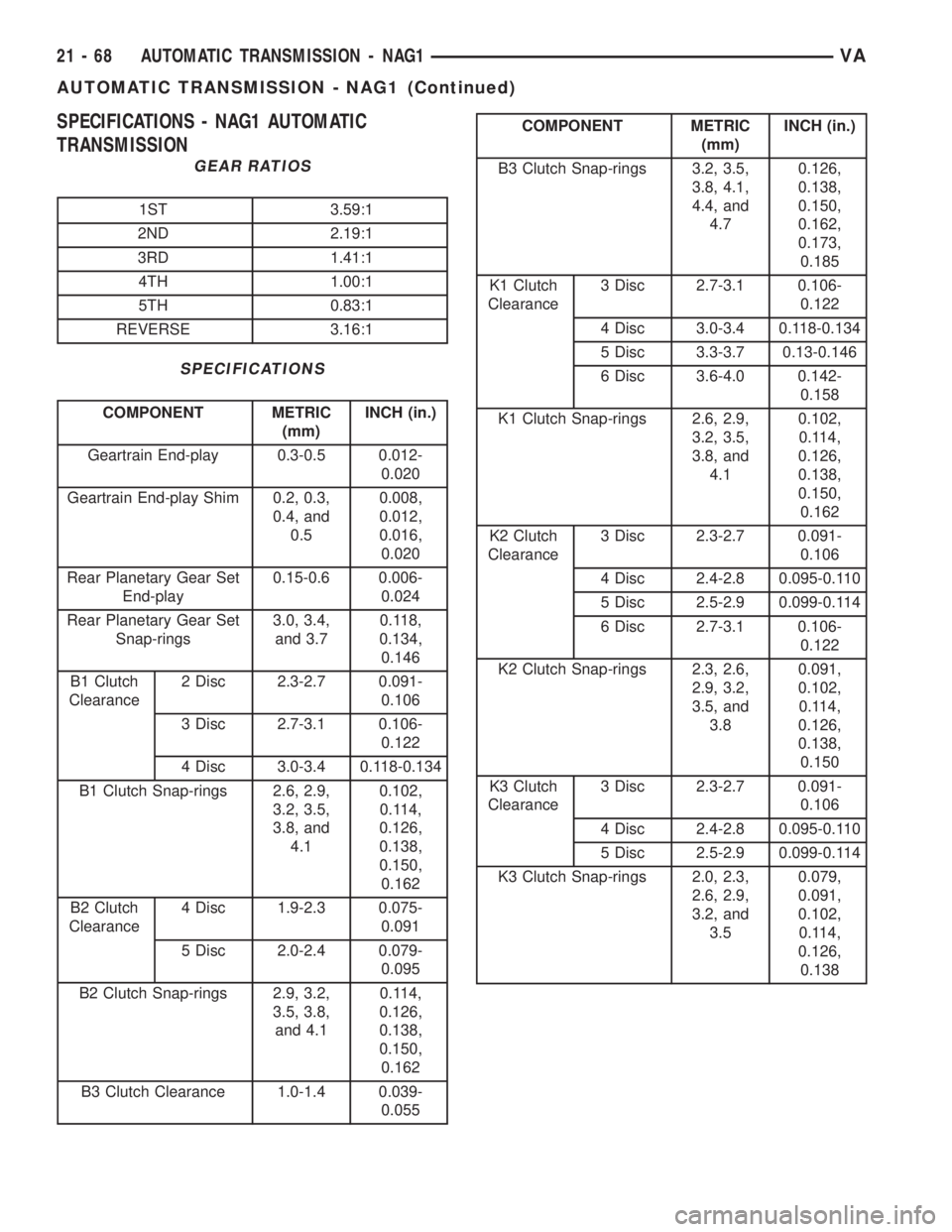

SPECIFICATIONS - NAG1 AUTOMATIC
TRANSMISSION
GEAR RATIOS
1ST 3.59:1
2ND 2.19:1
3RD 1.41:1
4TH 1.00:1
5TH 0.83:1
REVERSE 3.16:1
SPECIFICATIONS
COMPONENT METRIC
(mm)INCH (in.)
Geartrain End-play 0.3-0.5 0.012-
0.020
Geartrain End-play Shim 0.2, 0.3,
0.4, and
0.50.008,
0.012,
0.016,
0.020
Rear Planetary Gear Set
End-play0.15-0.6 0.006-
0.024
Rear Planetary Gear Set
Snap-rings3.0, 3.4,
and 3.70.118,
0.134,
0.146
B1 Clutch
Clearance2 Disc 2.3-2.7 0.091-
0.106
3 Disc 2.7-3.1 0.106-
0.122
4 Disc 3.0-3.4 0.118-0.134
B1 Clutch Snap-rings 2.6, 2.9,
3.2, 3.5,
3.8, and
4.10.102,
0.114,
0.126,
0.138,
0.150,
0.162
B2 Clutch
Clearance4 Disc 1.9-2.3 0.075-
0.091
5 Disc 2.0-2.4 0.079-
0.095
B2 Clutch Snap-rings 2.9, 3.2,
3.5, 3.8,
and 4.10.114,
0.126,
0.138,
0.150,
0.162
B3 Clutch Clearance 1.0-1.4 0.039-
0.055
COMPONENT METRIC
(mm)INCH (in.)
B3 Clutch Snap-rings 3.2, 3.5,
3.8, 4.1,
4.4, and
4.70.126,
0.138,
0.150,
0.162,
0.173,
0.185
K1 Clutch
Clearance3 Disc 2.7-3.1 0.106-
0.122
4 Disc 3.0-3.4 0.118-0.134
5 Disc 3.3-3.7 0.13-0.146
6 Disc 3.6-4.0 0.142-
0.158
K1 Clutch Snap-rings 2.6, 2.9,
3.2, 3.5,
3.8, and
4.10.102,
0.114,
0.126,
0.138,
0.150,
0.162
K2 Clutch
Clearance3 Disc 2.3-2.7 0.091-
0.106
4 Disc 2.4-2.8 0.095-0.110
5 Disc 2.5-2.9 0.099-0.114
6 Disc 2.7-3.1 0.106-
0.122
K2 Clutch Snap-rings 2.3, 2.6,
2.9, 3.2,
3.5, and
3.80.091,
0.102,
0.114,
0.126,
0.138,
0.150
K3 Clutch
Clearance3 Disc 2.3-2.7 0.091-
0.106
4 Disc 2.4-2.8 0.095-0.110
5 Disc 2.5-2.9 0.099-0.114
K3 Clutch Snap-rings 2.0, 2.3,
2.6, 2.9,
3.2, and
3.50.079,
0.091,
0.102,
0.114,
0.126,
0.138
21 - 68 AUTOMATIC TRANSMISSION - NAG1VA
AUTOMATIC TRANSMISSION - NAG1 (Continued)
