2005 MERCEDES-BENZ SPRINTER Service Repair Manual

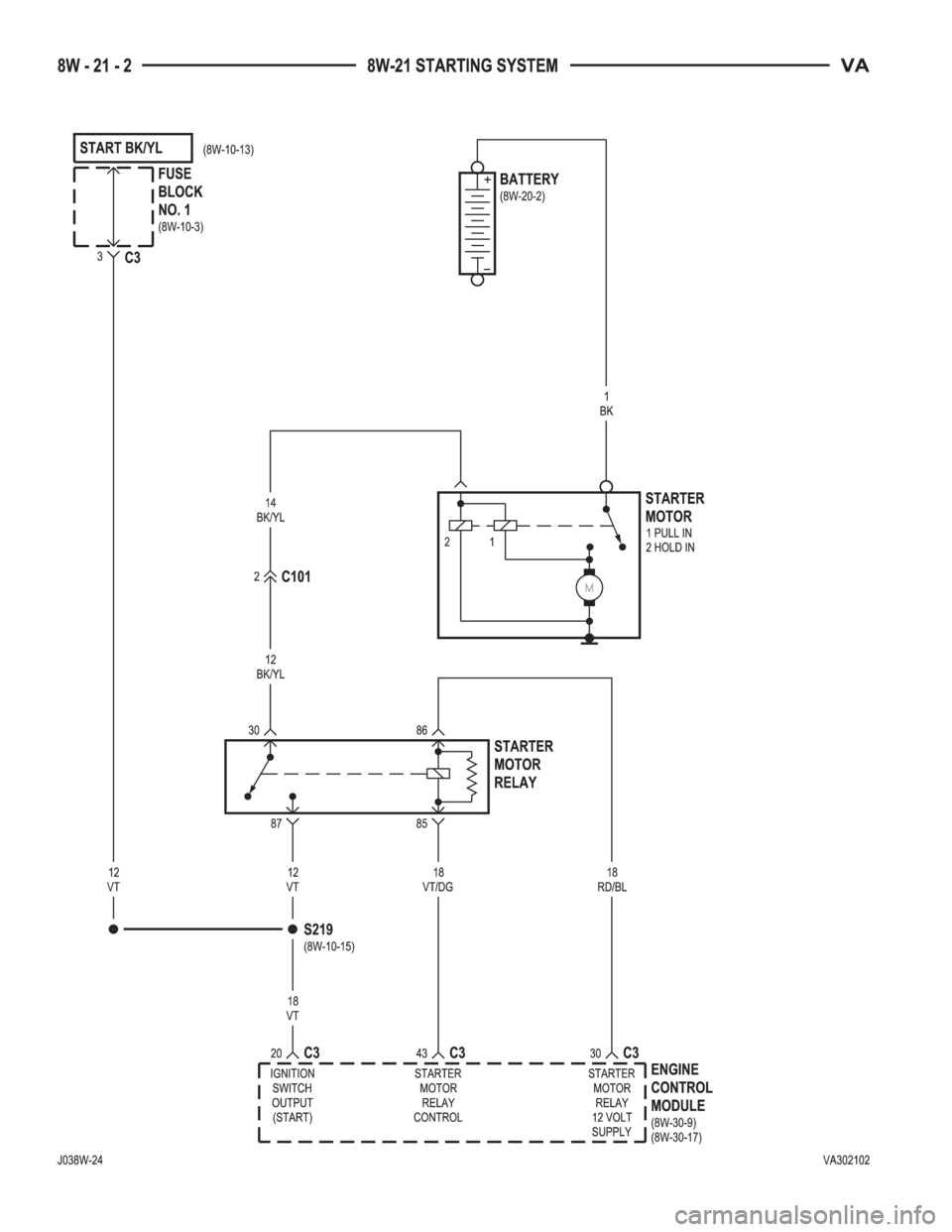

8W-21 STARTING SYSTEM
Component Page
Battery............................ 8W-21-2
Engine Control Module................ 8W-21-2
Fuse Block No. 1.................... 8W-21-2Component Page
Starter Motor....................... 8W-21-2
Starter Motor Relay.................. 8W-21-2
VA8W-21 STARTING SYSTEM 8W - 21 - 1

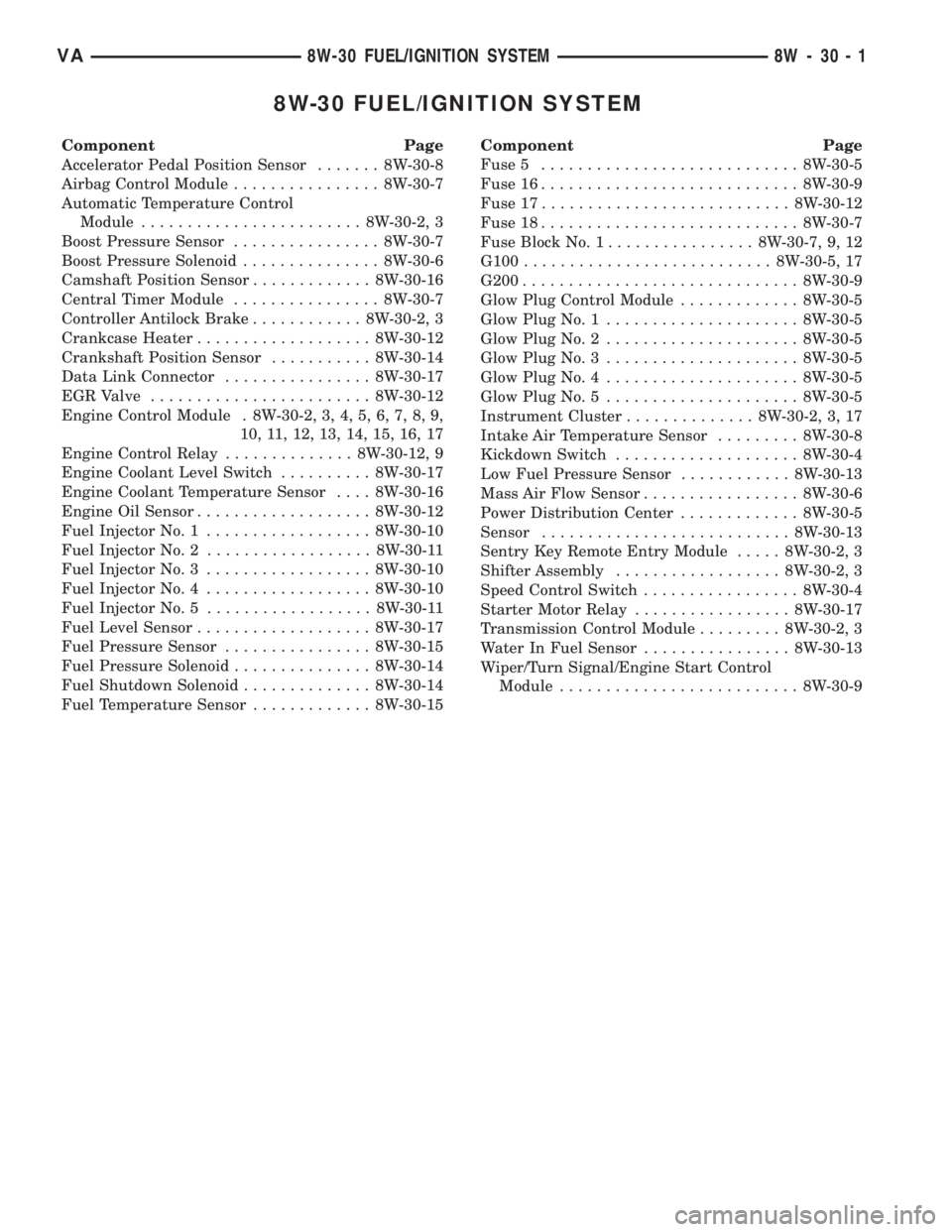

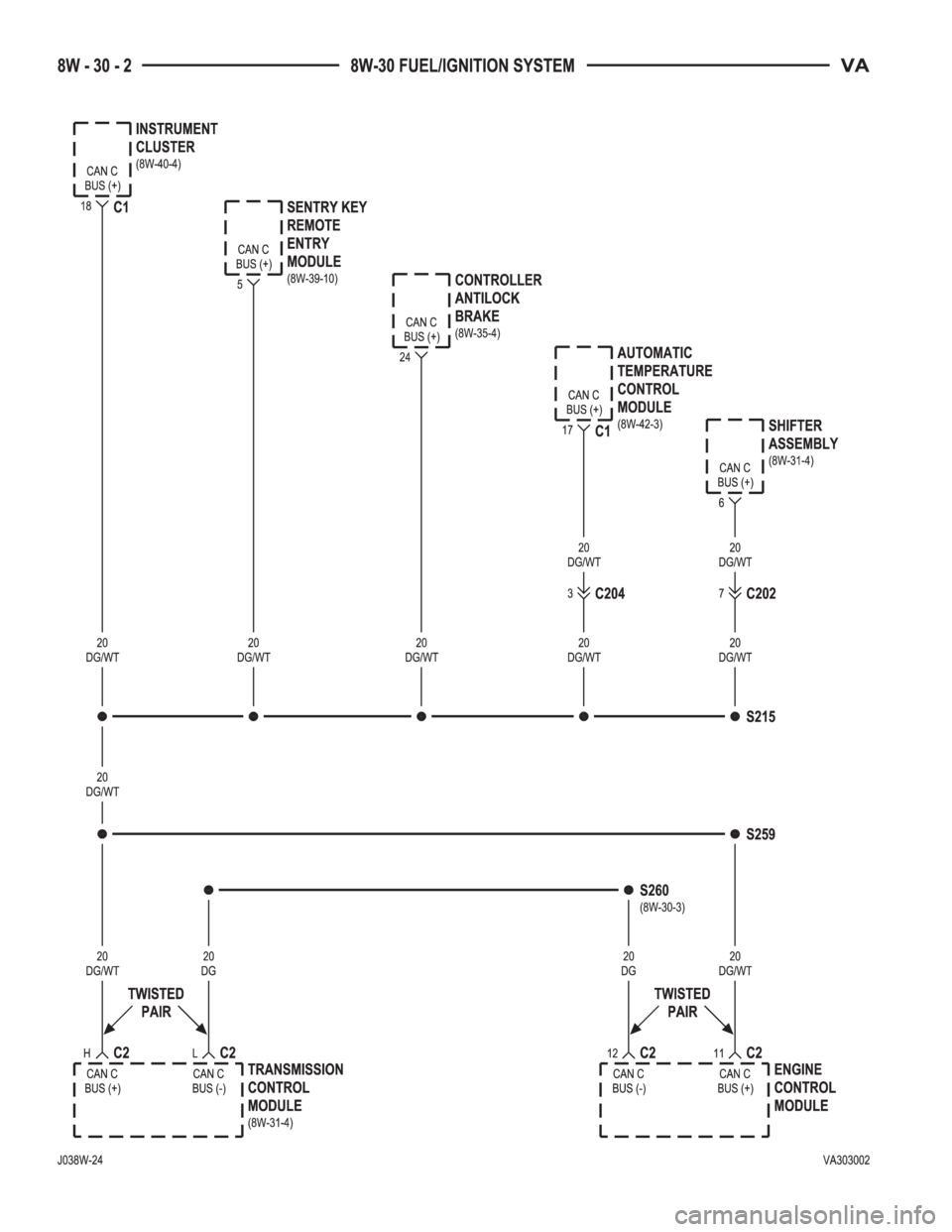

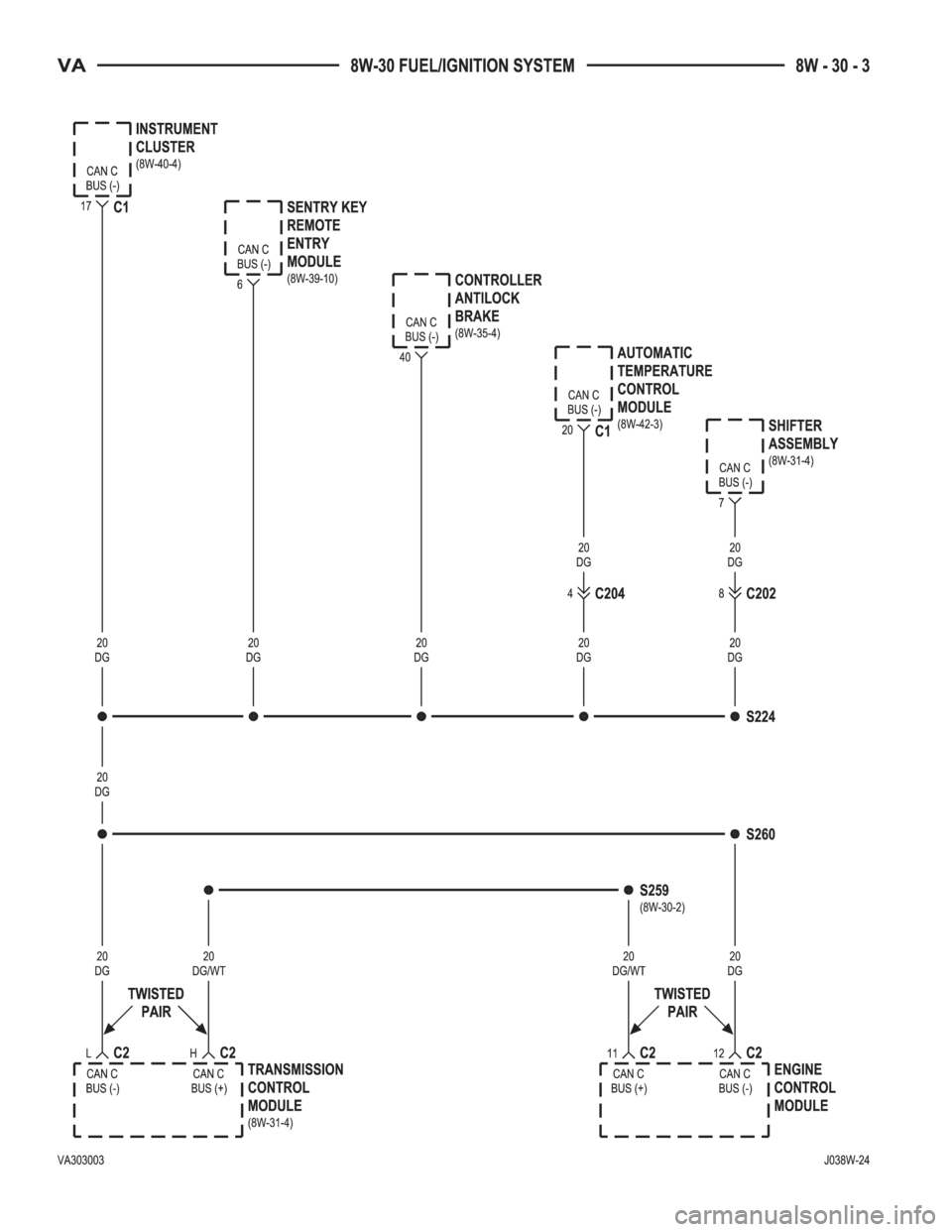

8W-30 FUEL/IGNITION SYSTEM
Component Page
Accelerator Pedal Position Sensor....... 8W-30-8
Airbag Control Module................ 8W-30-7
Automatic Temperature Control
Module........................ 8W-30-2, 3
Boost Pressure Sensor................ 8W-30-7

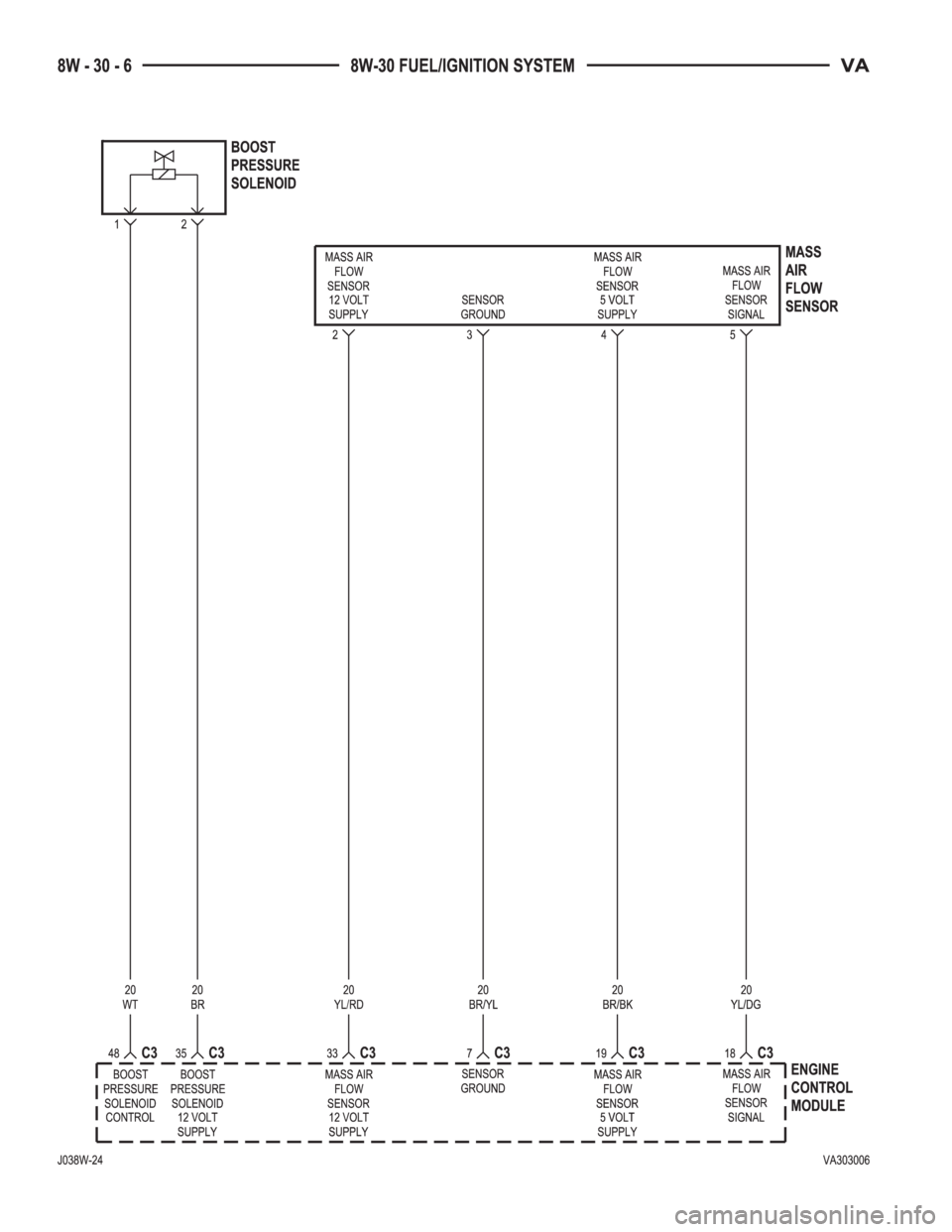

Boost Pressure Solenoid............... 8W-30-6
Camshaft Position Sensor............. 8W-30-16
Central Timer Module................ 8W-30-7
Controller Antilock Brake............ 8W-30-2, 3
Crankcase Heater................... 8W-30-12
Crankshaft Position Sensor........... 8W-30-14
Data Link Connector................ 8W-30-17
EGR Valve........................ 8W-30-12
Engine Control Module . 8W-30-2, 3, 4, 5, 6, 7, 8, 9,
10, 11, 12, 13, 14, 15, 16, 17
Engine Control Relay.............. 8W-30-12, 9
Engine Coolant Level Switch.......... 8W-30-17
Engine Coolant Temperature Sensor.... 8W-30-16
Engine Oil Sensor................... 8W-30-12
Fuel Injector No. 1.................. 8W-30-10
Fuel Injector No. 2.................. 8W-30-11
Fuel Injector No. 3.................. 8W-30-10
Fuel Injector No. 4.................. 8W-30-10
Fuel Injector No. 5.................. 8W-30-11
Fuel Level Sensor................... 8W-30-17
Fuel Pressure Sensor................ 8W-30-15
Fuel Pressure Solenoid............... 8W-30-14
Fuel Shutdown Solenoid.............. 8W-30-14
Fuel Temperature Sensor............. 8W-30-15Component Page
Fuse 5............................ 8W-30-5
Fuse 16............................ 8W-30-9
Fuse 17........................... 8W-30-12
Fuse 18............................ 8W-30-7
Fuse Block No. 1................ 8W-30-7, 9, 12
G100........................... 8W-30-5, 17
G200.............................. 8W-30-9
Glow Plug Control Module............. 8W-30-5
Glow Plug No. 1..................... 8W-30-5
Glow Plug No. 2..................... 8W-30-5
Glow Plug No. 3..................... 8W-30-5
Glow Plug No. 4..................... 8W-30-5
Glow Plug No. 5..................... 8W-30-5
Instrument Cluster.............. 8W-30-2, 3, 17
Intake Air Temperature Sensor......... 8W-30-8

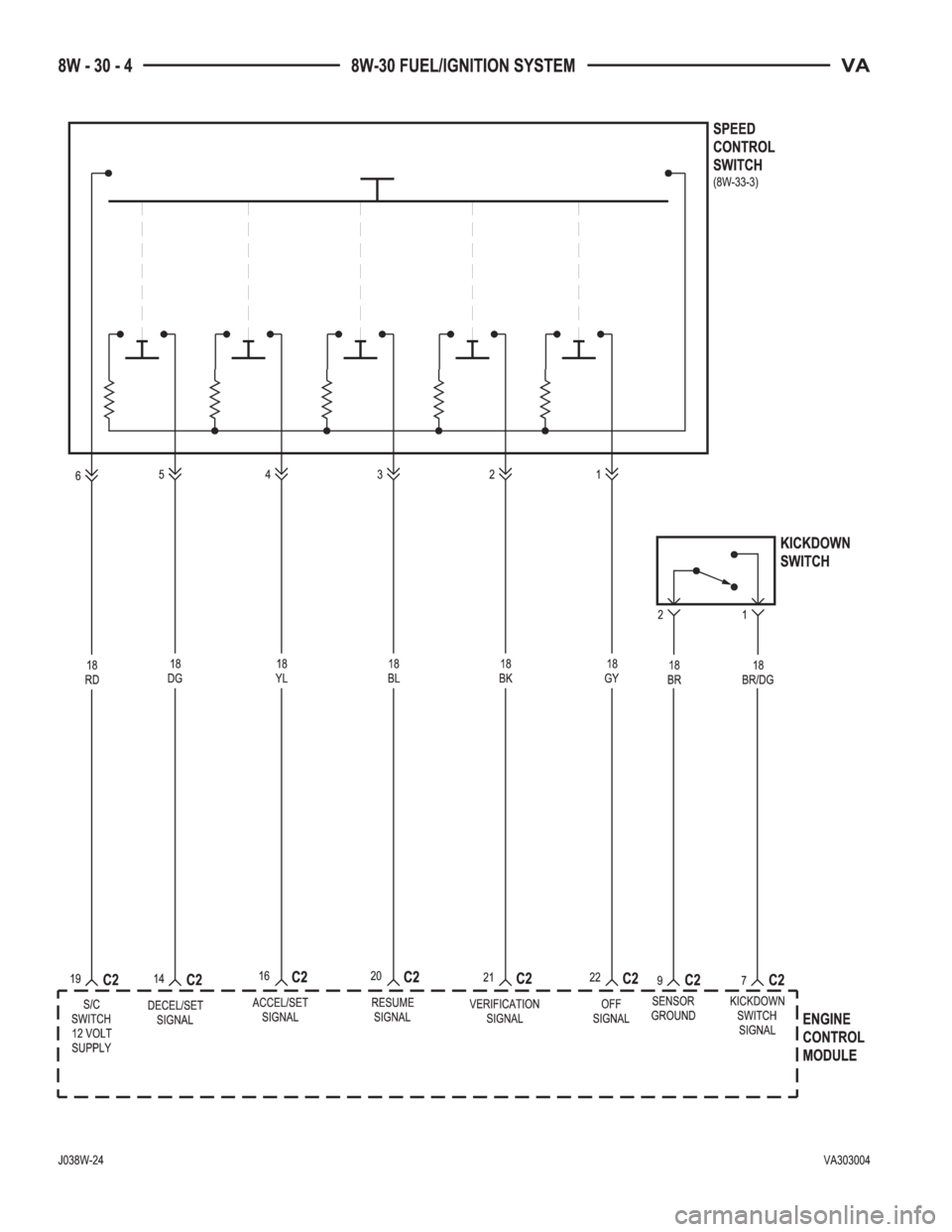

Kickdown Switch.................... 8W-30-4
Low Fuel Pressure Sensor............ 8W-30-13
Mass Air Flow Sensor................. 8W-30-6
Power Distribution Center............. 8W-30-5
Sensor........................... 8W-30-13
Sentry Key Remote Entry Module..... 8W-30-2, 3
Shifter Assembly.................. 8W-30-2, 3
Speed Control Switch................. 8W-30-4
Starter Motor Relay................. 8W-30-17
Transmission Control Module......... 8W-30-2, 3
Water In Fuel Sensor................ 8W-30-13
Wiper/Turn Signal/Engine Start Control
Module.......................... 8W-30-9
VA8W-30 FUEL/IGNITION SYSTEM 8W - 30 - 1
