2000 NISSAN PATROL Electronic Repair Manual

Page 9 of 1033

NISSAN PATROL 2000  Electronic Repair Manual A/T Electrical Parts Location
SAT164KA
OVERALL SYSTEM
AT-1007

Page 10 of 1033

NISSAN PATROL 2000  Electronic Repair Manual Circuit Diagram
TAT012M
OVERALL SYSTEM
AT-1008

Page 11 of 1033

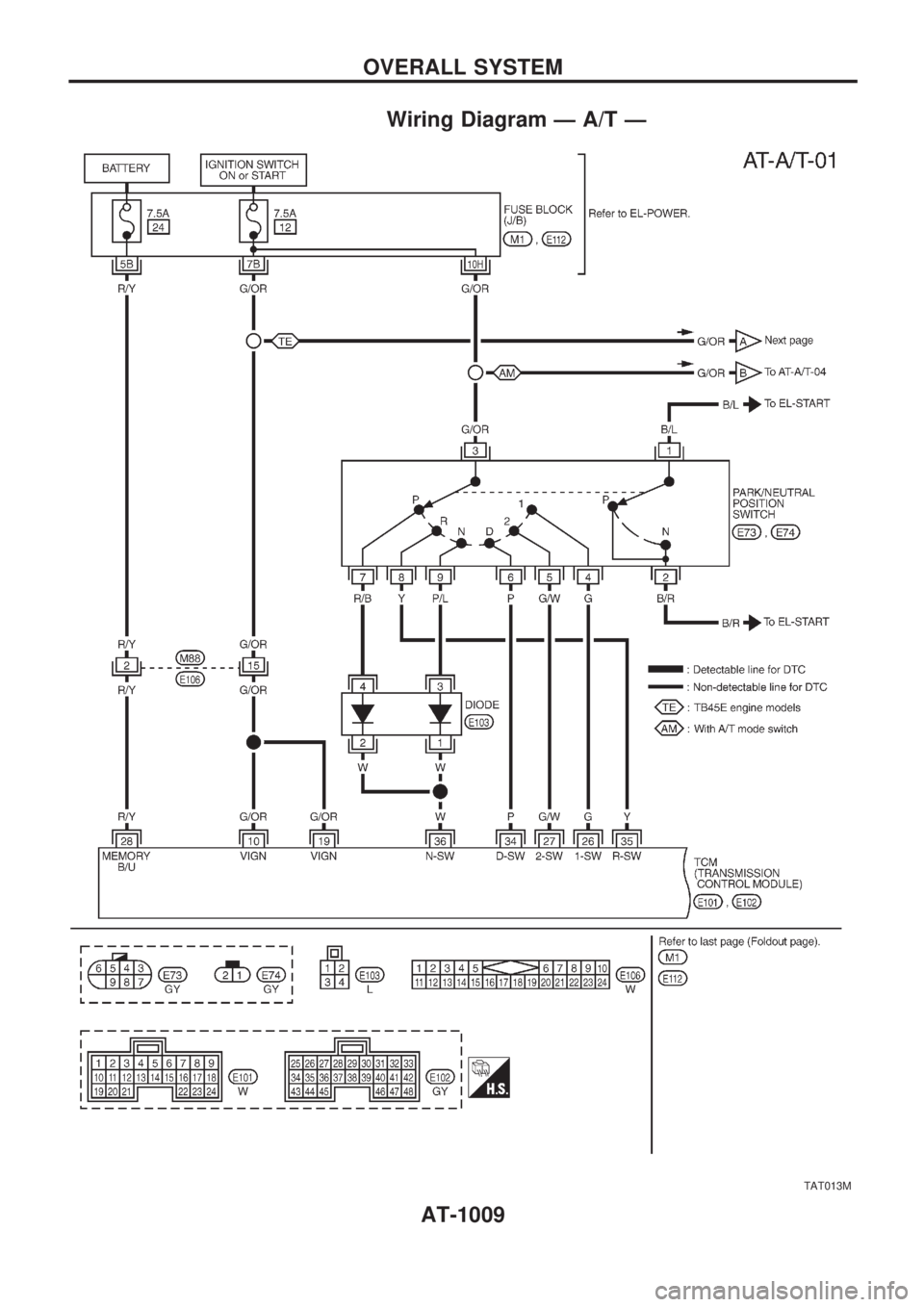

NISSAN PATROL 2000  Electronic Repair Manual Wiring Diagram Ð A/T Ð
TAT013M
OVERALL SYSTEM
AT-1009

Page 12 of 1033

NISSAN PATROL 2000  Electronic Repair Manual TAT014M
OVERALL SYSTEM

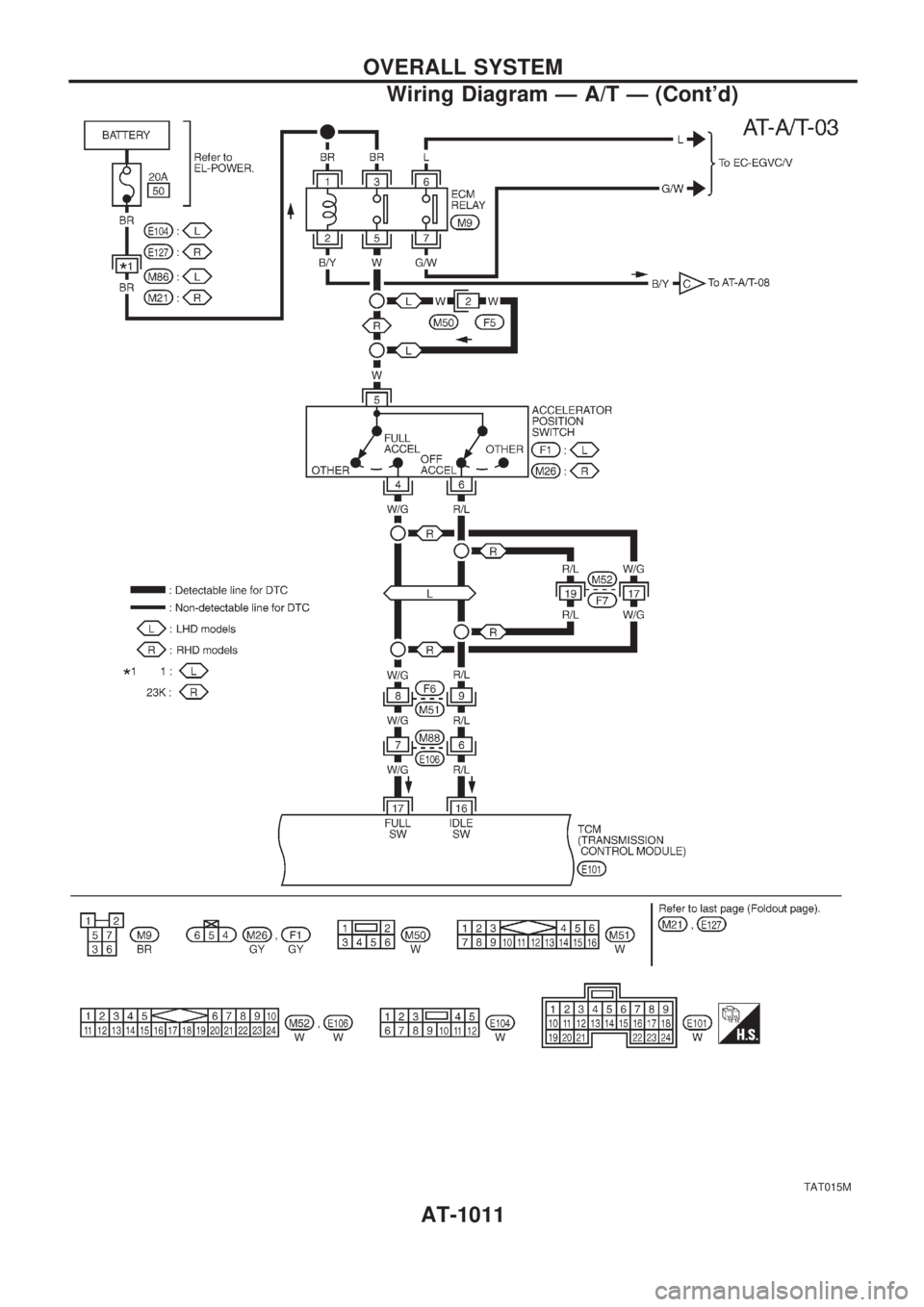

Wiring Diagram Ð A/T Ð (Contd)
AT-1010

Page 13 of 1033

NISSAN PATROL 2000  Electronic Repair Manual TAT015M
OVERALL SYSTEM

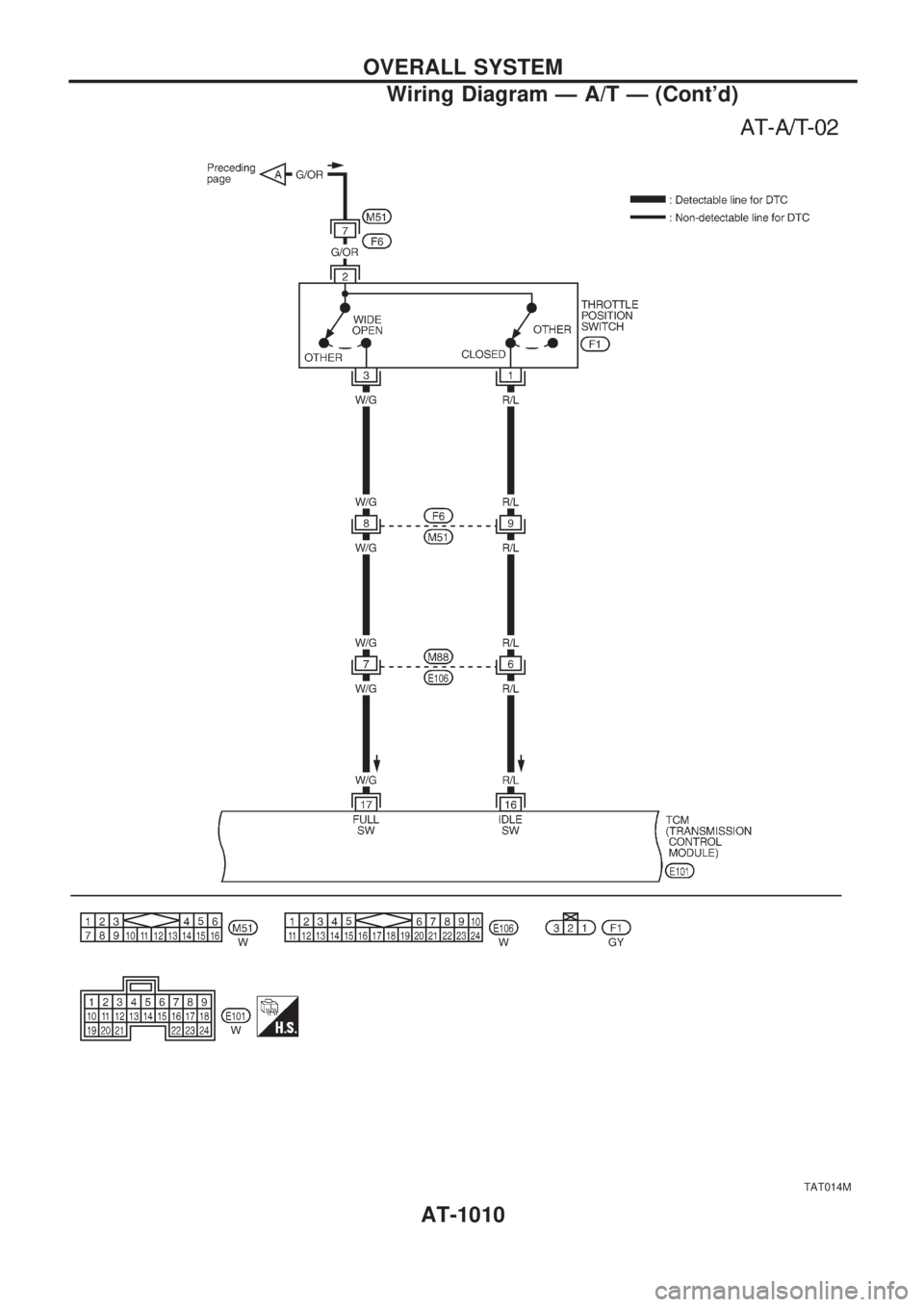

Wiring Diagram Ð A/T Ð (Contd)
AT-1011

Page 14 of 1033

NISSAN PATROL 2000  Electronic Repair Manual TAT026M
OVERALL SYSTEM

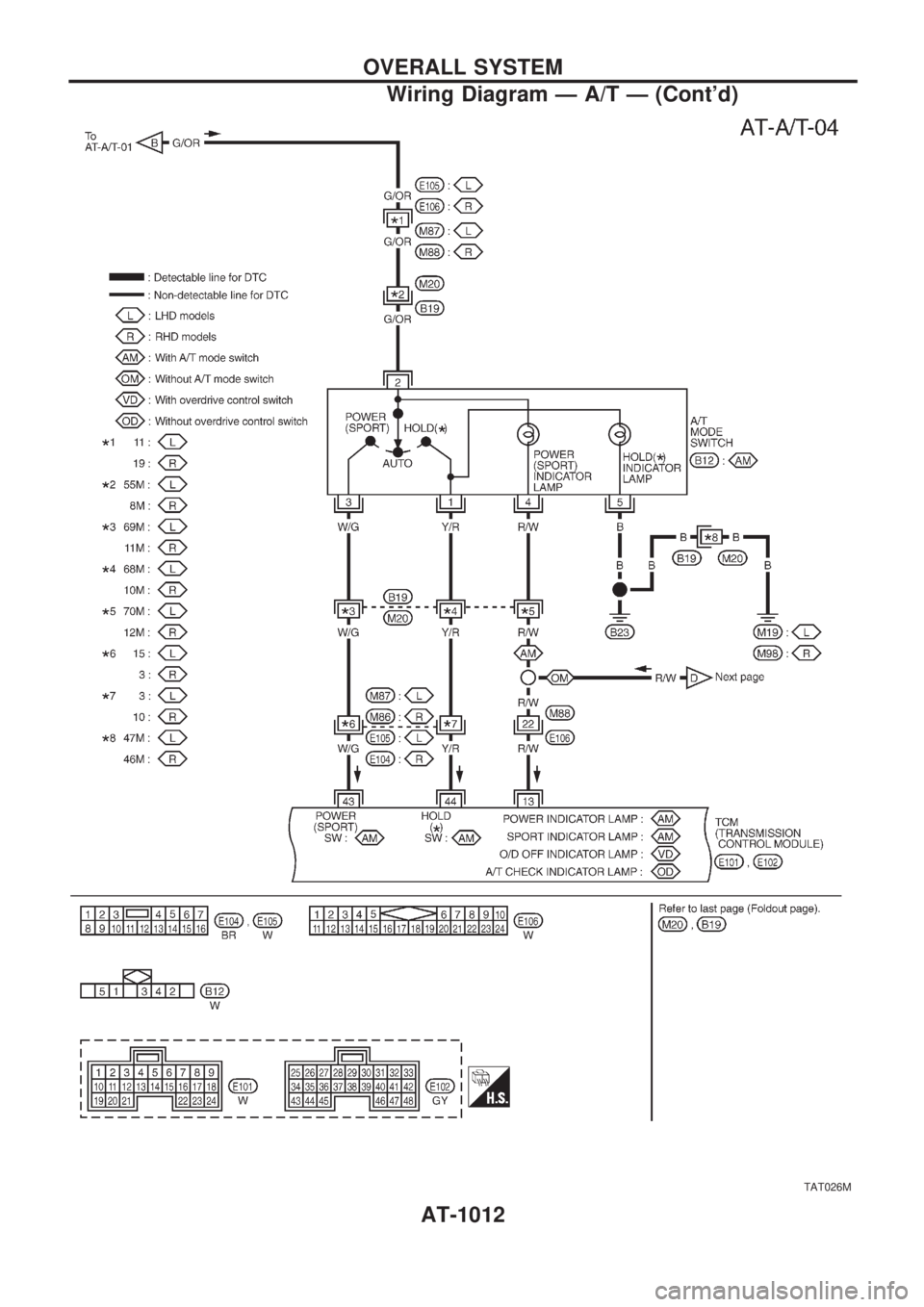

Wiring Diagram Ð A/T Ð (Contd)
AT-1012

Page 15 of 1033

NISSAN PATROL 2000  Electronic Repair Manual TAT016M
OVERALL SYSTEM
Wiring Diagram Ð A/T Ð (Contd)
AT-1013

Page 16 of 1033

NISSAN PATROL 2000  Electronic Repair Manual TAT017M
OVERALL SYSTEM

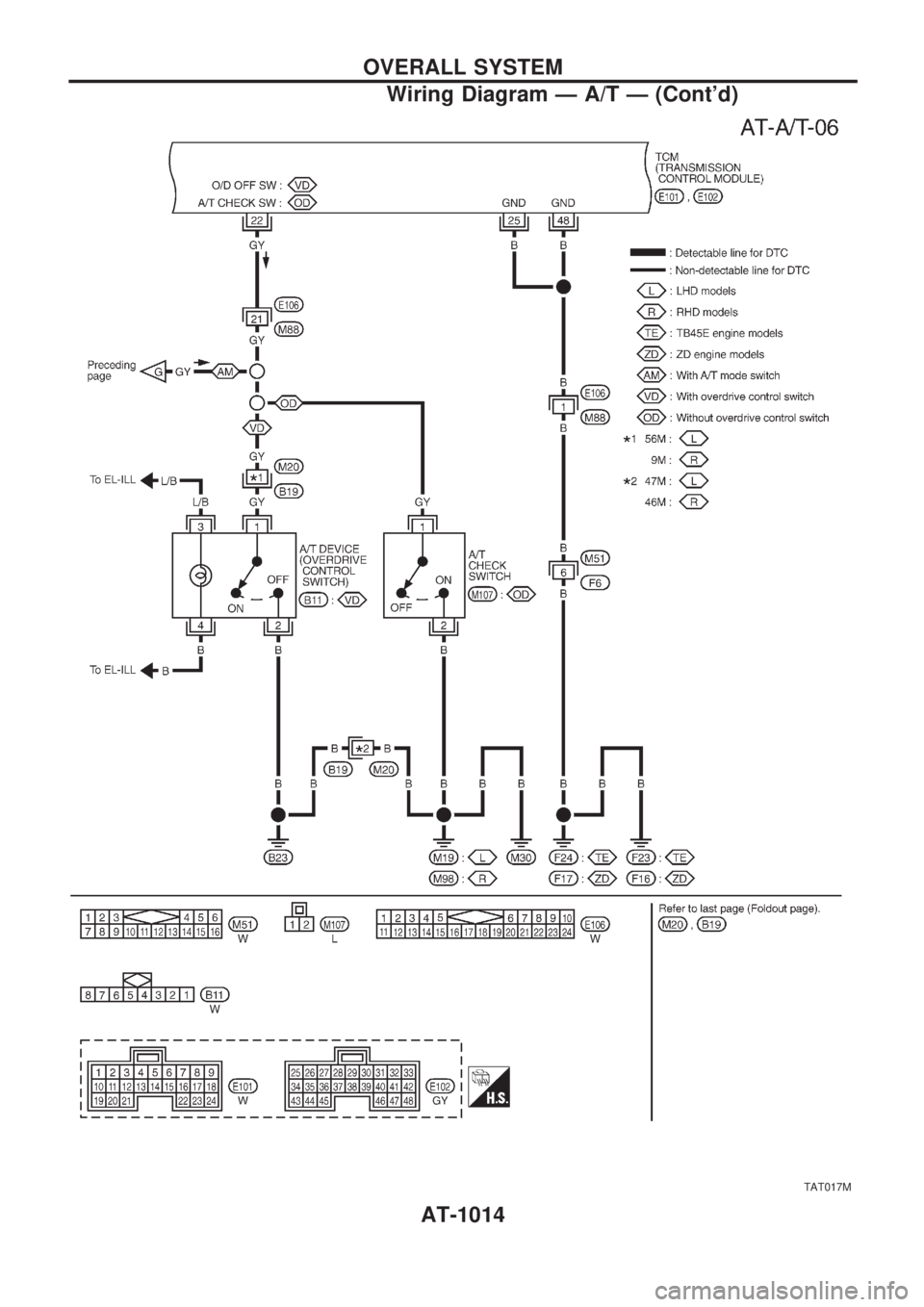

Wiring Diagram Ð A/T Ð (Contd)
AT-1014
