Page 865 of 1033

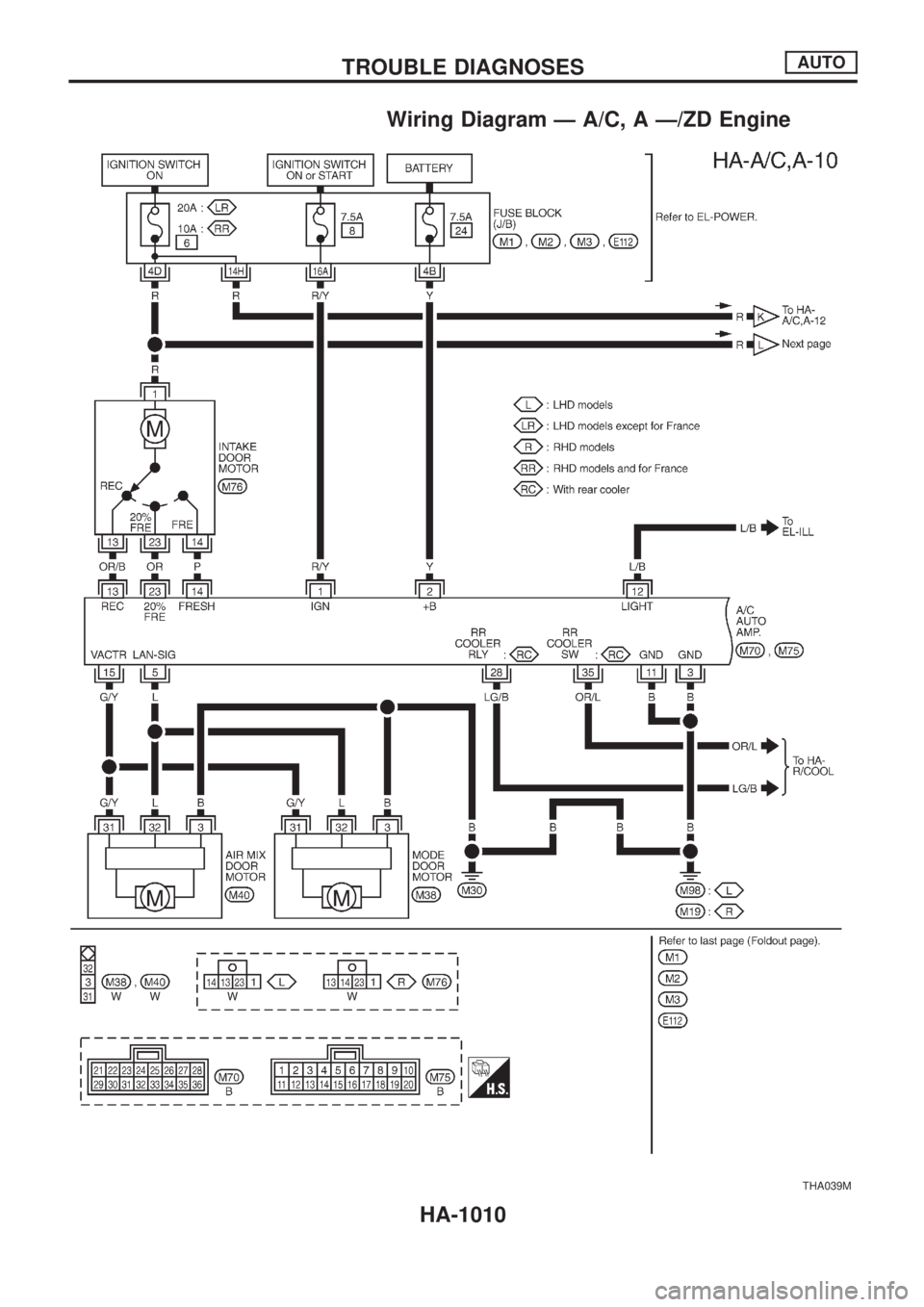

Wiring Diagram Ð A/C, A Ð/ZD Engine

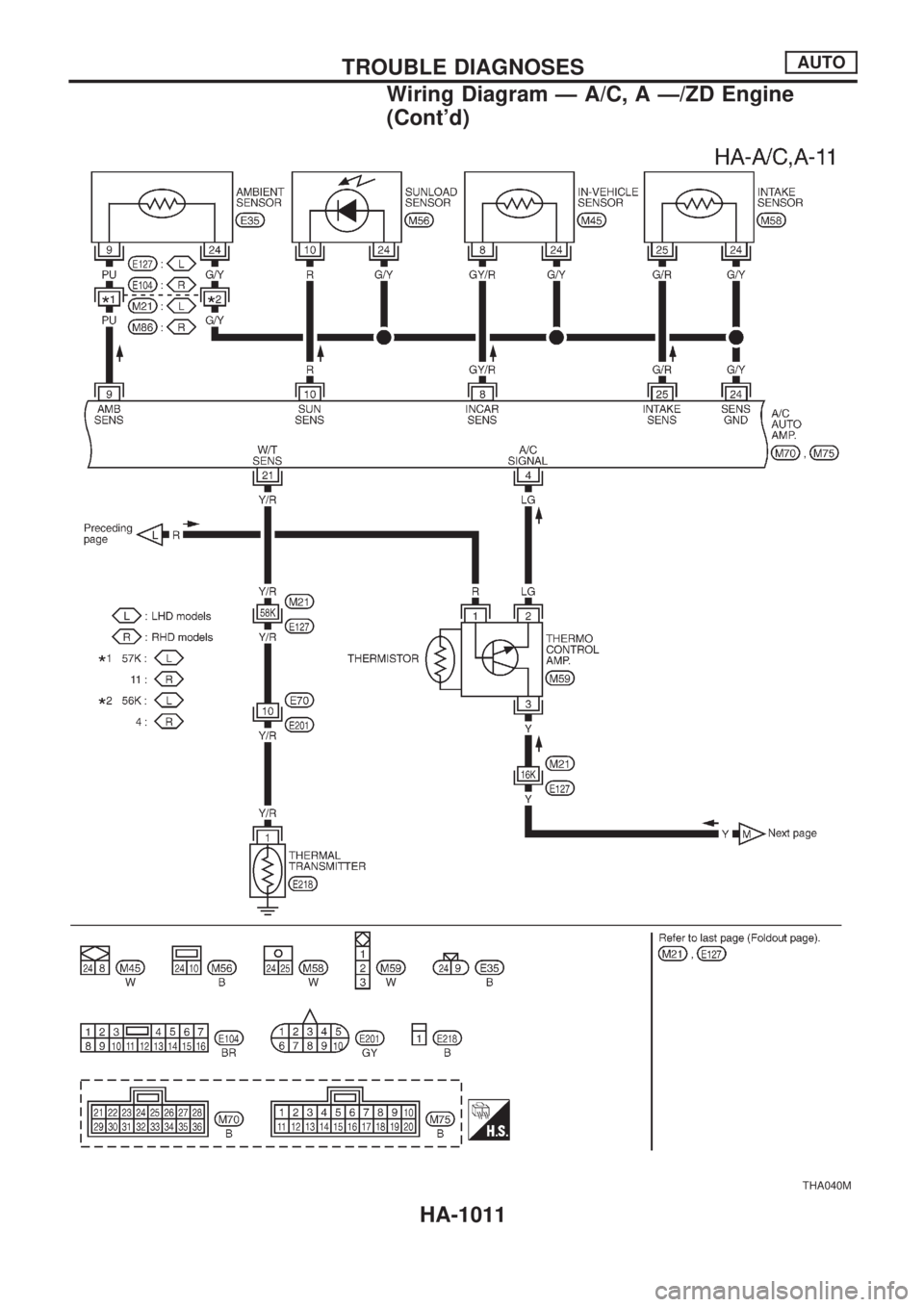

THA039M
TROUBLE DIAGNOSESAUTO
HA-1010
Page 866 of 1033

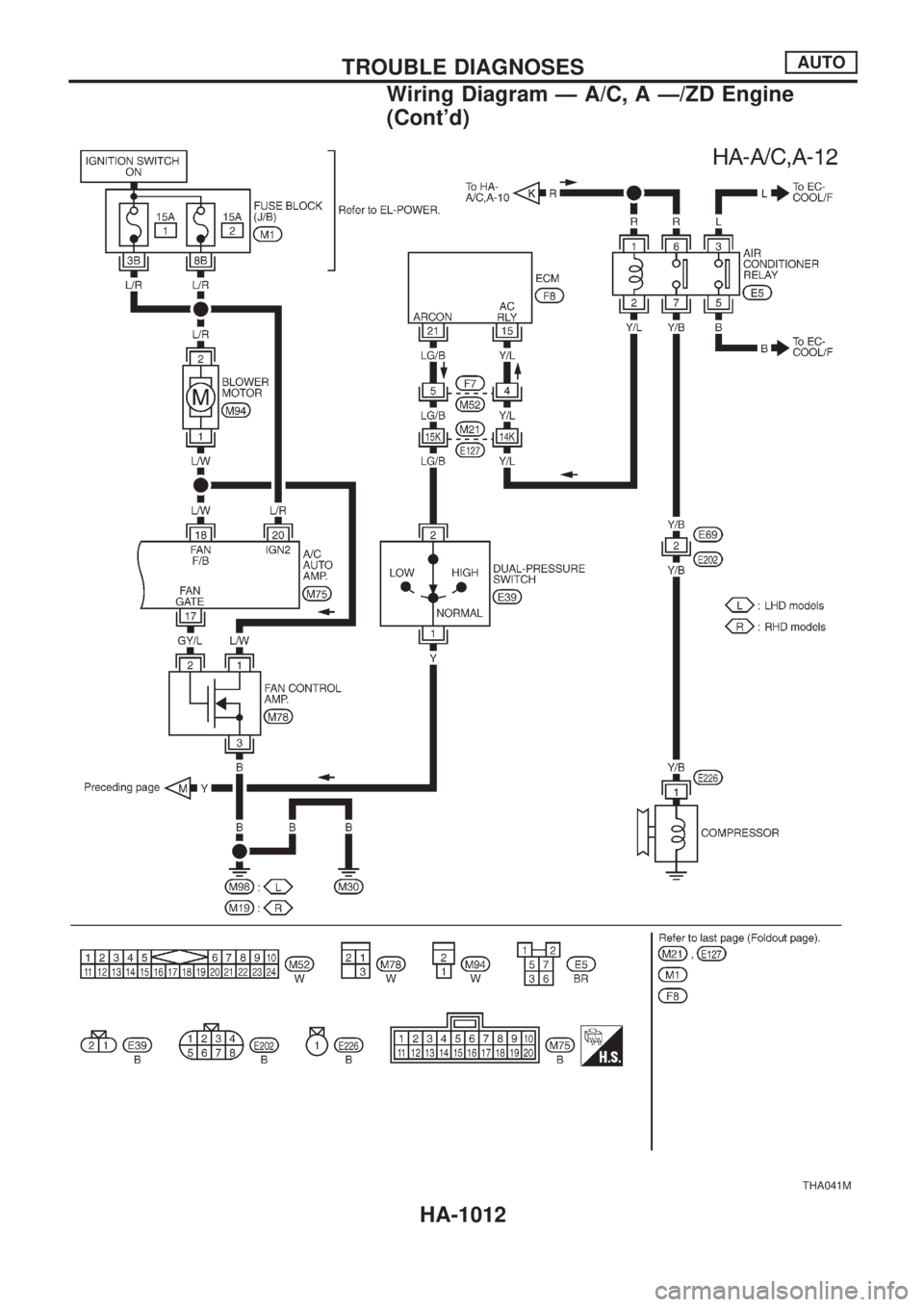

THA040M
TROUBLE DIAGNOSESAUTO
Wiring Diagram Ð A/C, A Ð/ZD Engine
(Cont'd)
HA-1011
Page 867 of 1033
THA041M
TROUBLE DIAGNOSESAUTO
Wiring Diagram Ð A/C, A Ð/ZD Engine
(Cont'd)
HA-1012
Page 868 of 1033

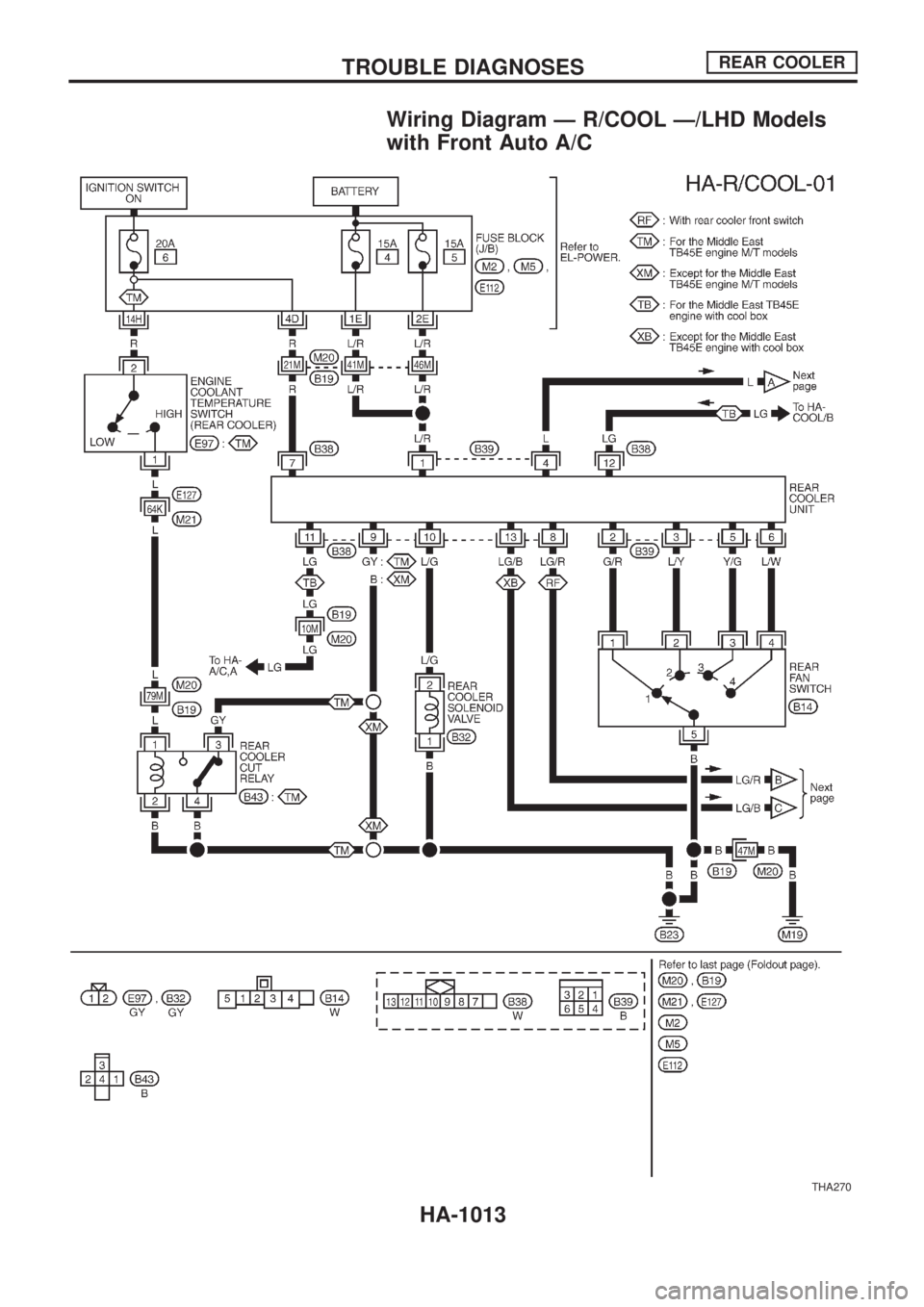

Wiring Diagram Ð R/COOL Ð/LHD Models
with Front Auto A/C

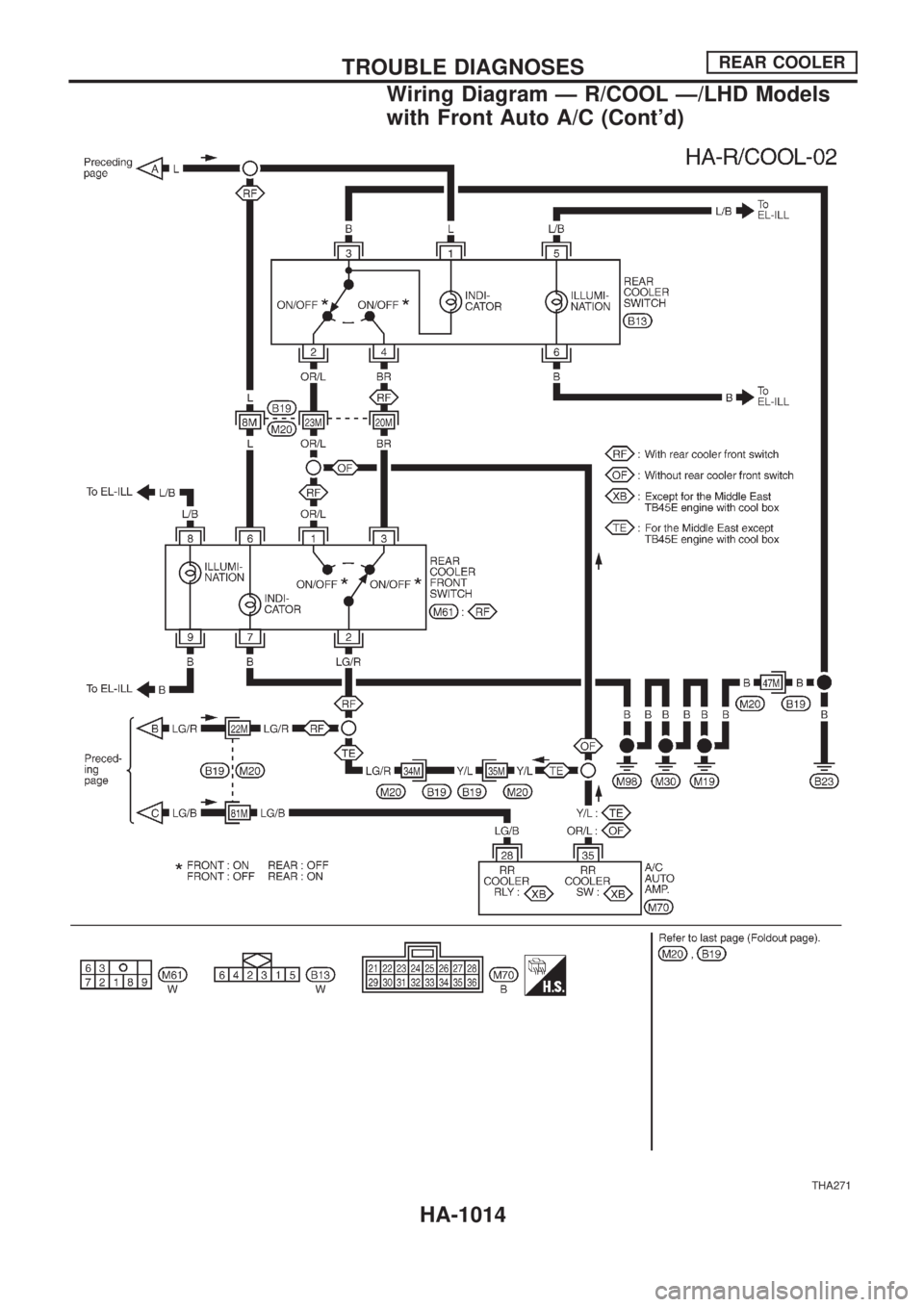

THA270
TROUBLE DIAGNOSESREAR COOLER
HA-1013
Page 869 of 1033
THA271
TROUBLE DIAGNOSESREAR COOLER
Wiring Diagram Ð R/COOL Ð/LHD Models
with Front Auto A/C (Cont'd)
HA-1014
Page 870 of 1033

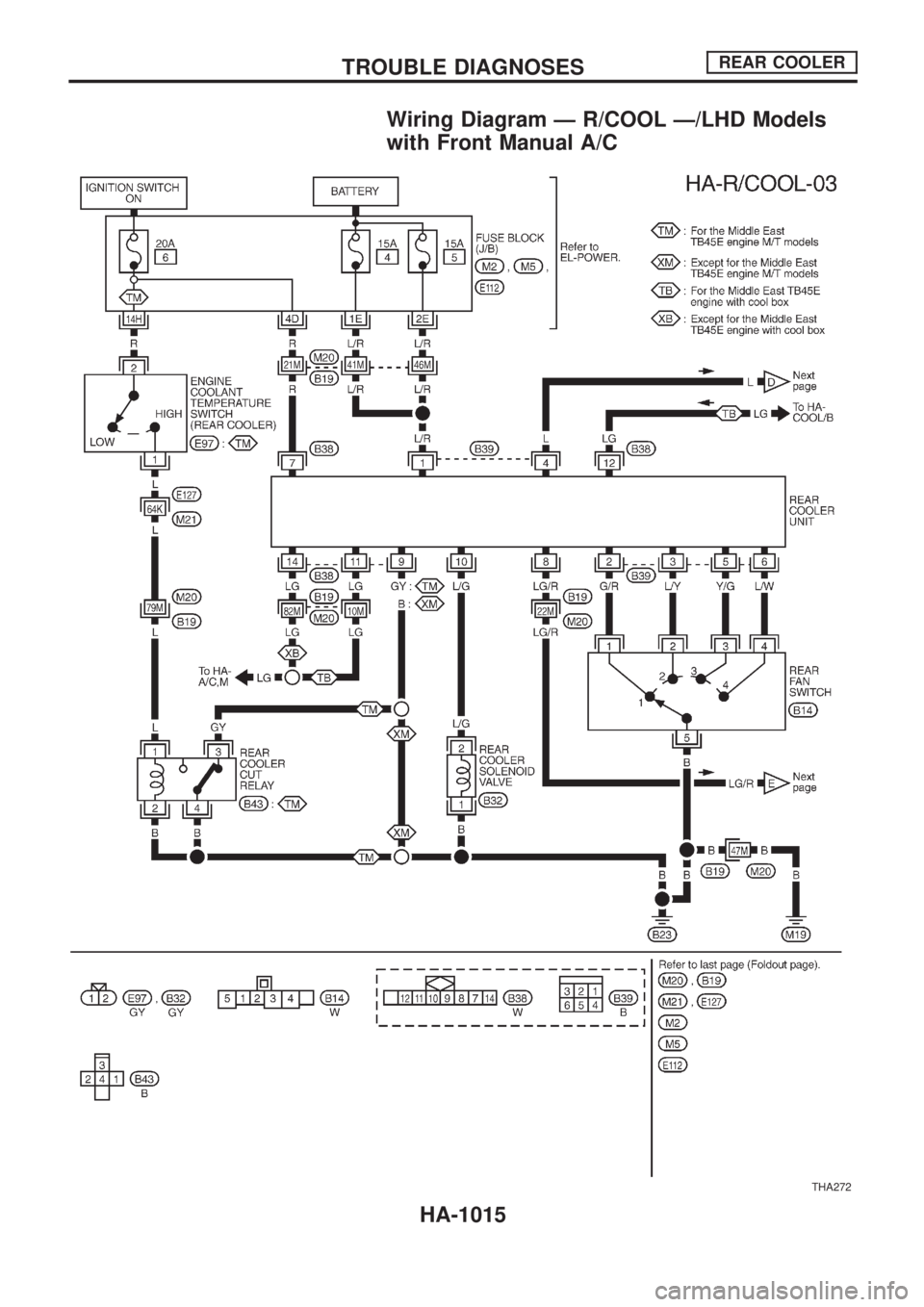

Wiring Diagram Ð R/COOL Ð/LHD Models
with Front Manual A/C
THA272
TROUBLE DIAGNOSESREAR COOLER
HA-1015
Page 871 of 1033
THA273
TROUBLE DIAGNOSESREAR COOLER
Wiring Diagram Ð R/COOL Ð/LHD Models
with Front Manual A/C (Cont'd)
HA-1016
Page 872 of 1033

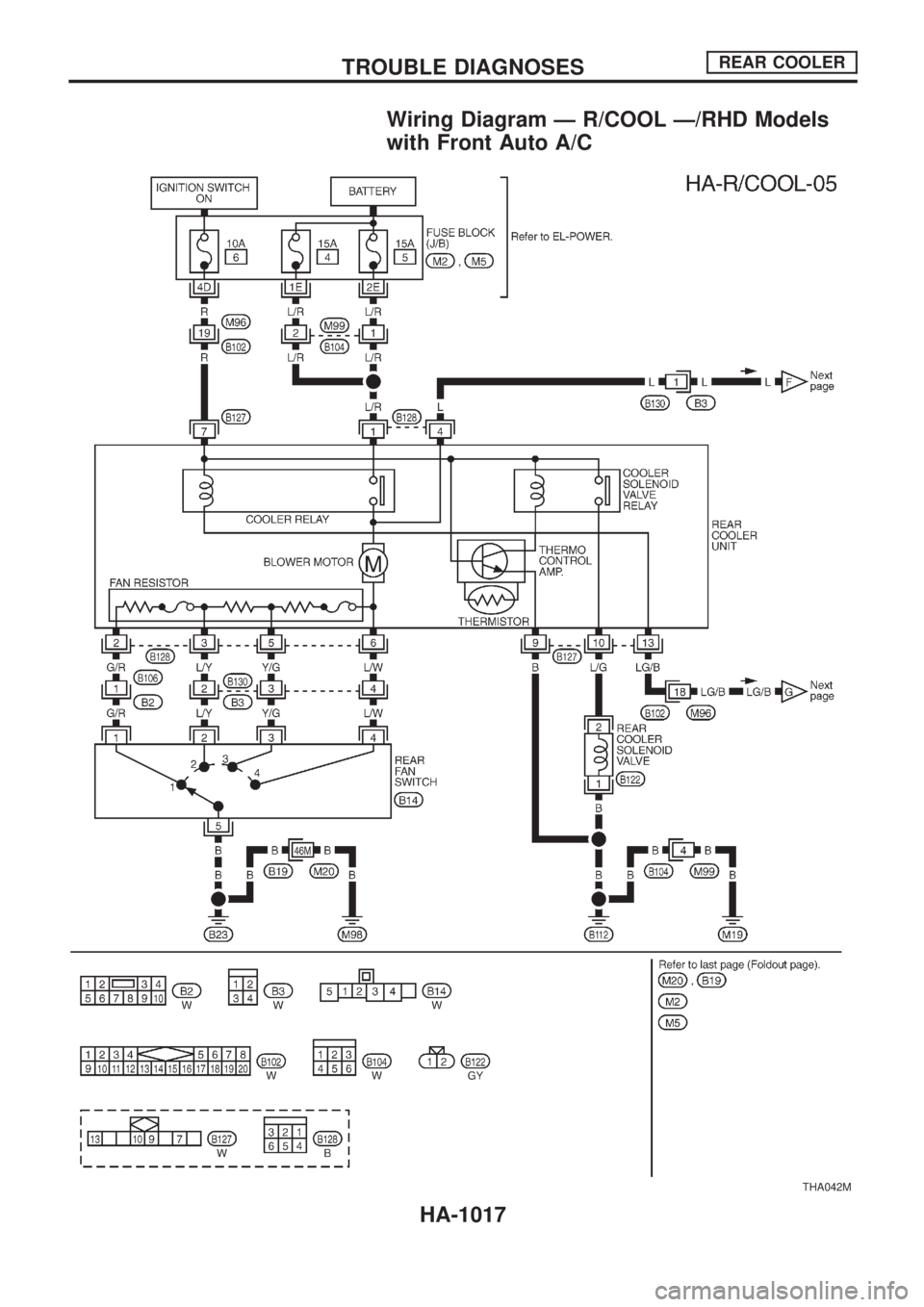

Wiring Diagram Ð R/COOL Ð/RHD Models
with Front Auto A/C
THA042M
TROUBLE DIAGNOSESREAR COOLER
HA-1017
