2000 NISSAN PATROL Electronic Repair Manual

Service Data and Specifications (SDS)
Applied modelZD30
Standard Option
Type 115D31L 110D26L´2
Capacity V-AH 12-80 12-75
BATTERY
EL-1035

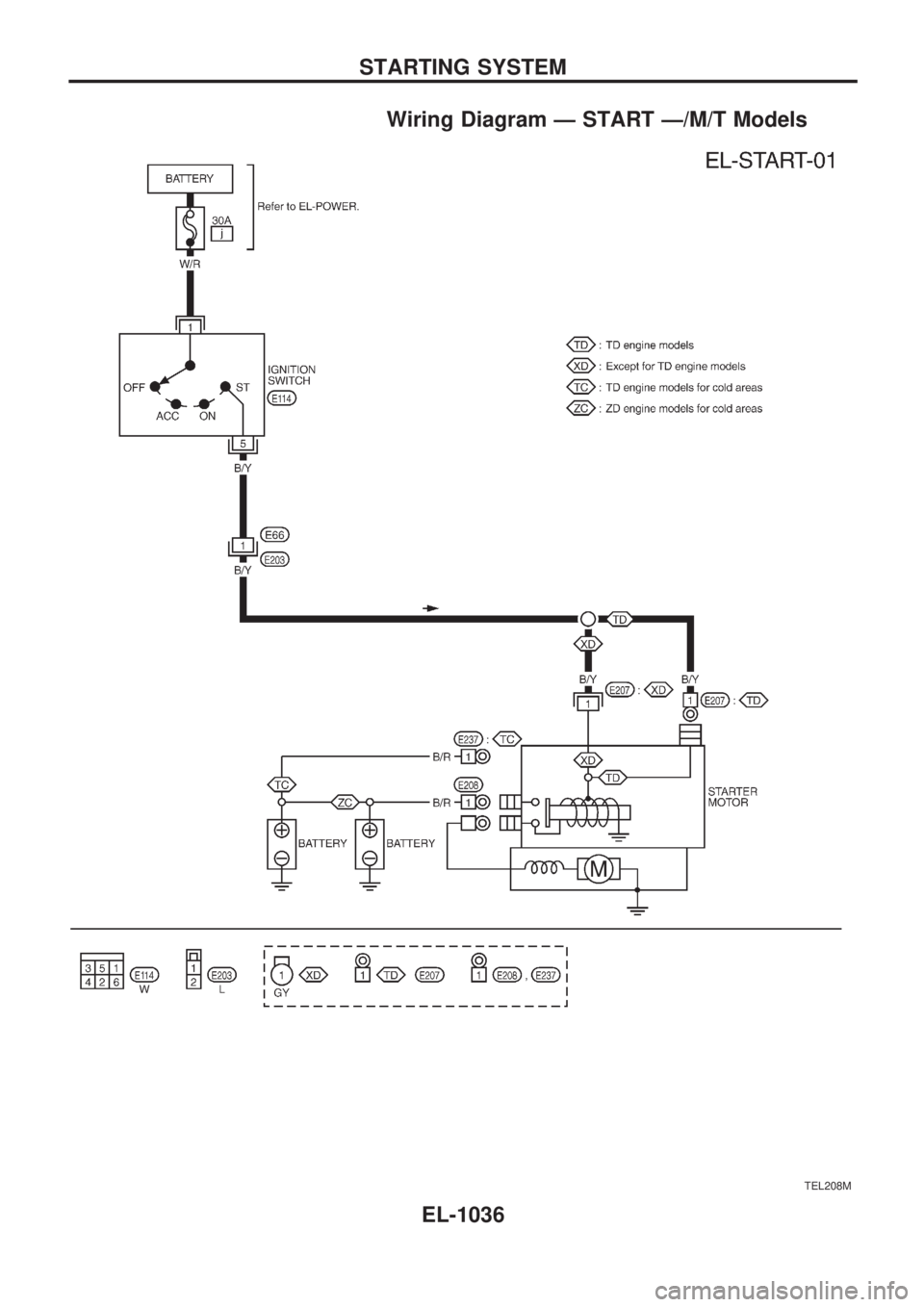

Wiring Diagram Ð START Ð/M/T Models
TEL208M
STARTING SYSTEM
EL-1036

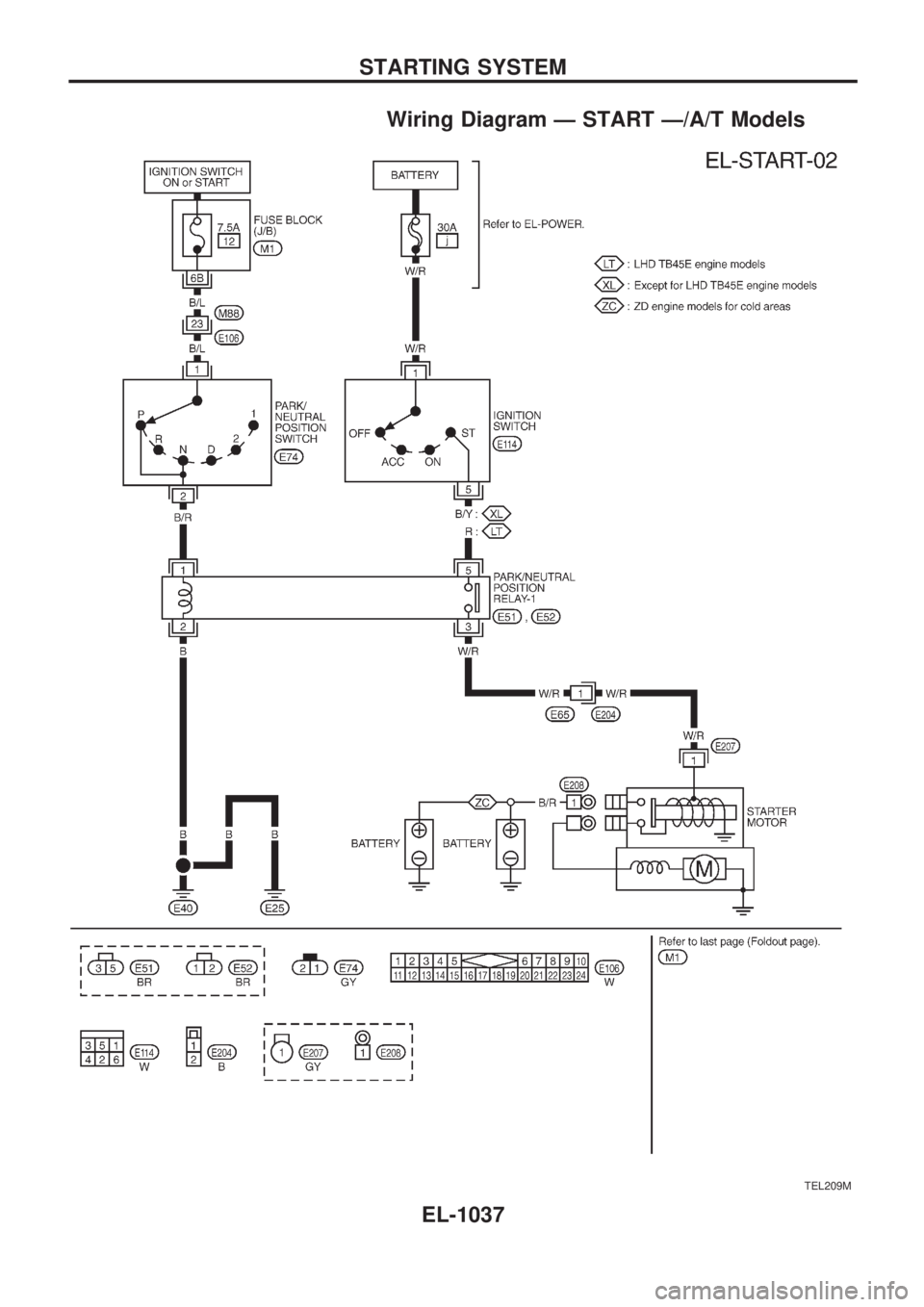

Wiring Diagram Ð START Ð/A/T Models
TEL209M
STARTING SYSTEM
EL-1037

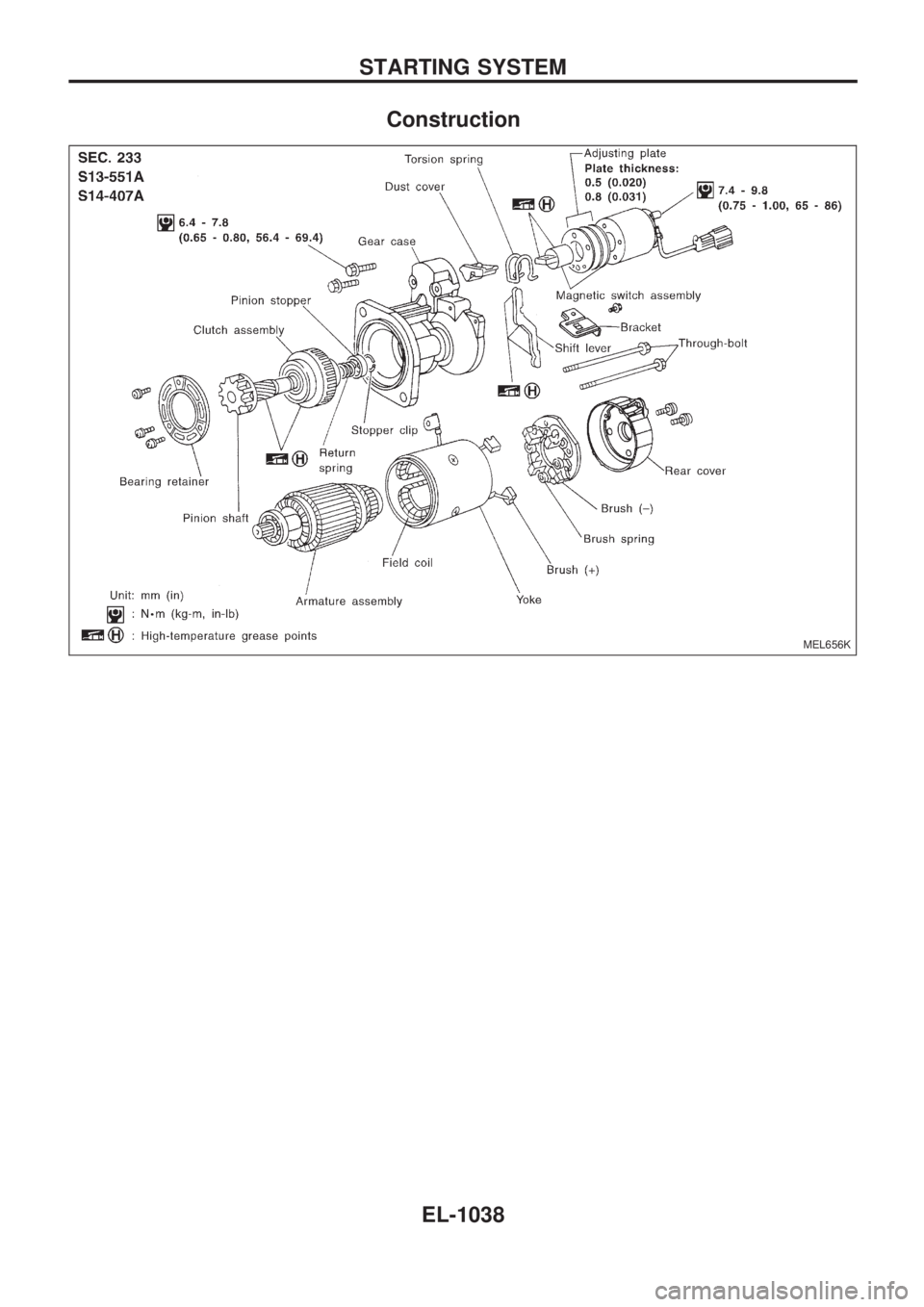

Construction
MEL656K
STARTING SYSTEM
EL-1038

Service Data and Specifications (SDS)
STARTER
TypeS13-551A S14-407A
HITACHI
Reduction
Applied modelZD30
Standard Option
System voltage V 12
No-load
Terminal voltage V 11.0
Current A Less than 160
Revolution rpm More than 3,300 More than 3,400
Minimum diameter of commutator
mm (in)35.5 (1.398)
Minimum length of brush mm (in) 11.0 (0.433)
Brush spring tension
N (kg, lb)28.4 - 34.3 (2.9 - 3.5, 6.4 - 7.7)
Clearance between bearing metal
and armature shaft mm (in)Ð
Clearance ª!º between pinion
front edge and pinion stopper
mm (in)Ð
Movement ª!º in height of pinion
assembly mm (in)0.3 - 2.0 (0.012 - 0.079)
STARTING SYSTEM
EL-1039

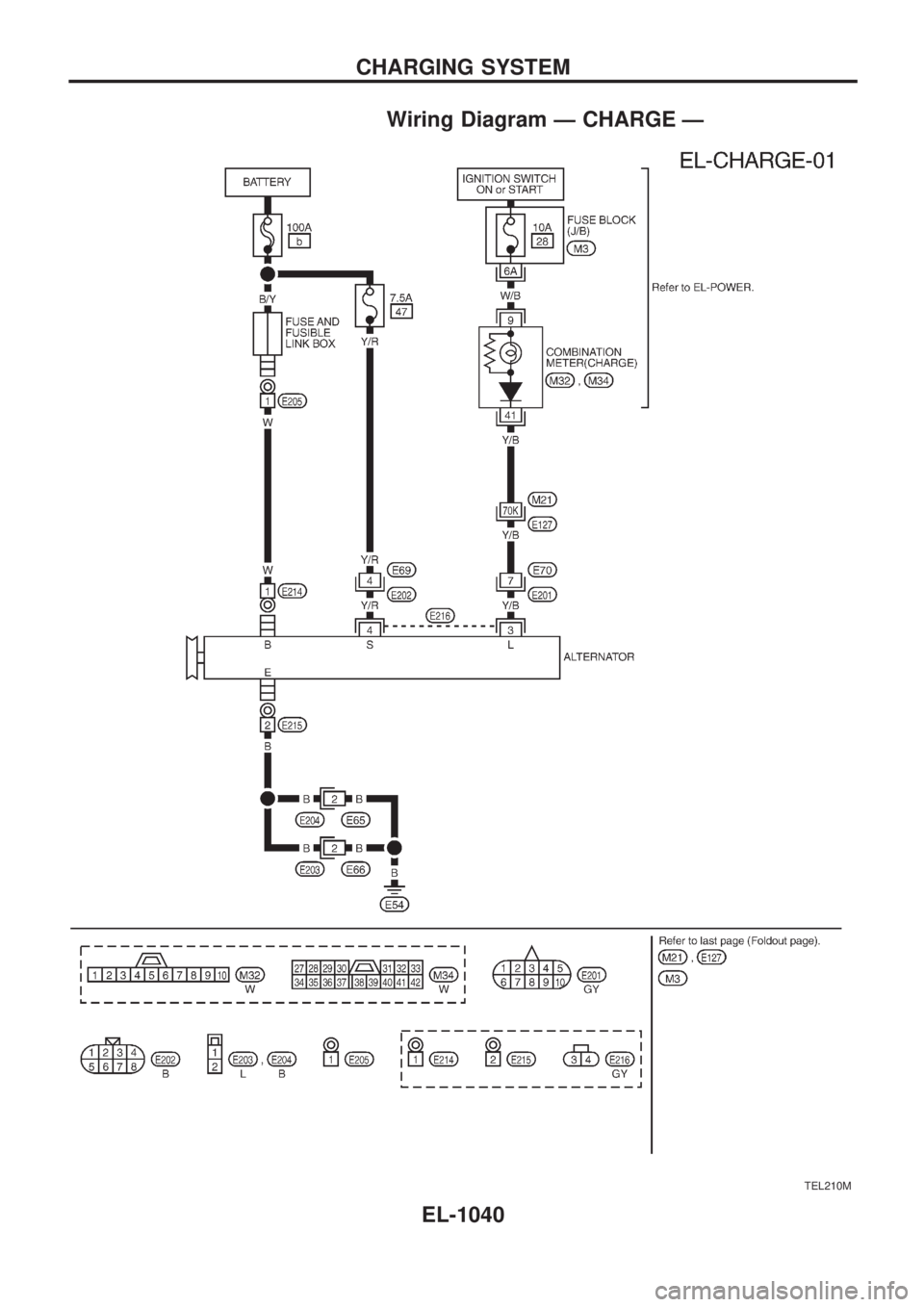

WiringDiagramÐCHARGE —
TEL210M
CHARGING SYSTEM
EL-1040

Construction
Service Data and Specifications (SDS)
ALTERNATOR
TypeLR190-752
HITACHI
Applied model ZD30
Nominal rating V-A 12-90
Ground polarity Negative
Minimum revolution under no-
load
(When 13.5V is applied) rpmLess than 1,000
Hot output current
(When 13.5V is applied)
A/rpmMore than 23/1,300
More than 65/2,500
More than 87/5,000
Regulated output voltage V 14.1 - 14.7
Minimum length of brush mm (in) 6.0 (0.236)
Brush spring pressure
N (g, oz)1.0 - 3.43 (102 - 350, 3.60 - 12.34)
Slip ring minimum outer diameter
mm (in)26.0 (1.024)
Rotor (Field coil) resistanceW2.67
MEL658K
CHARGING SYSTEM
EL-1041

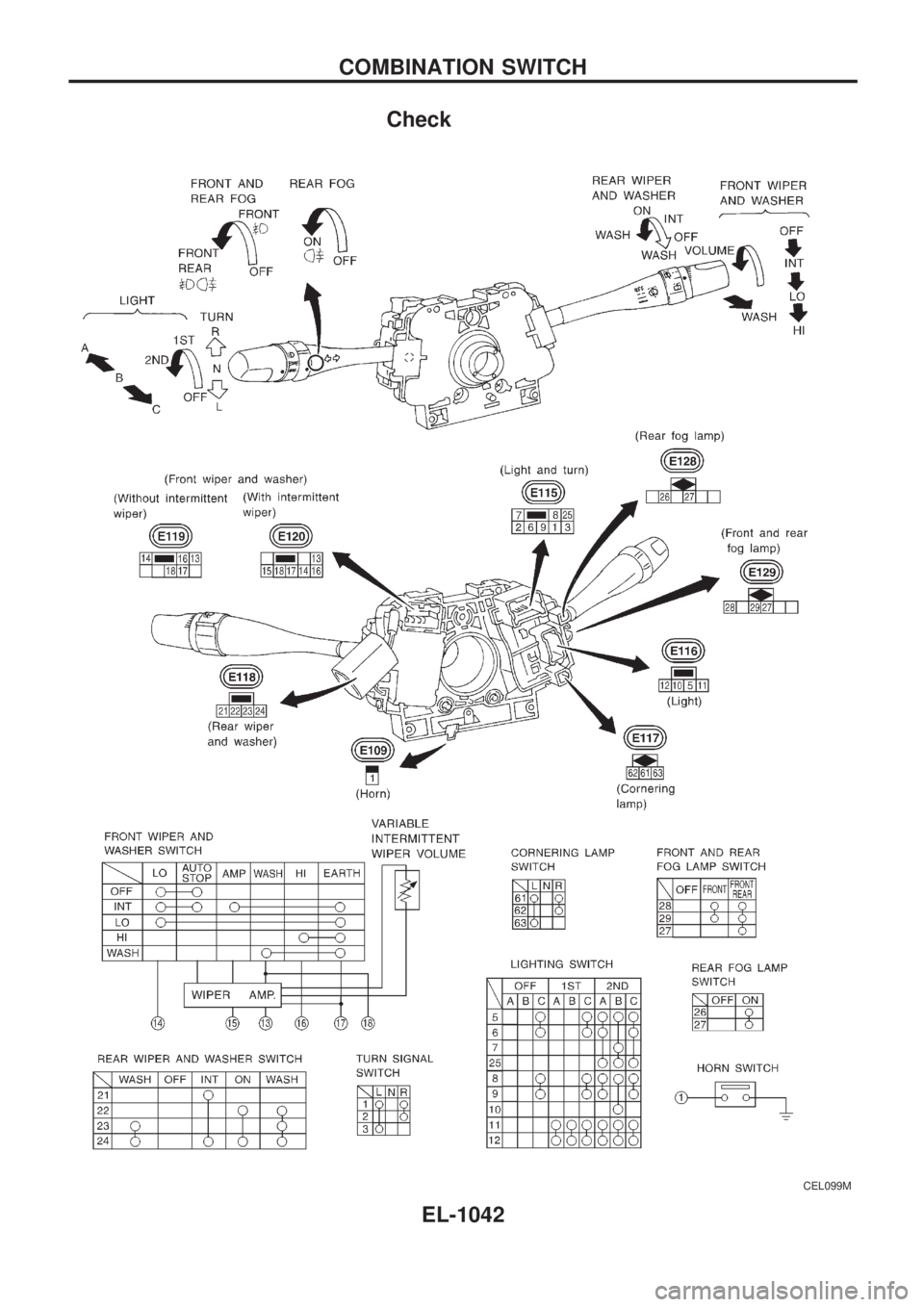

Check
CEL099M
COMBINATION SWITCH
EL-1042
