2000 NISSAN PATROL Electronic Repair Manual

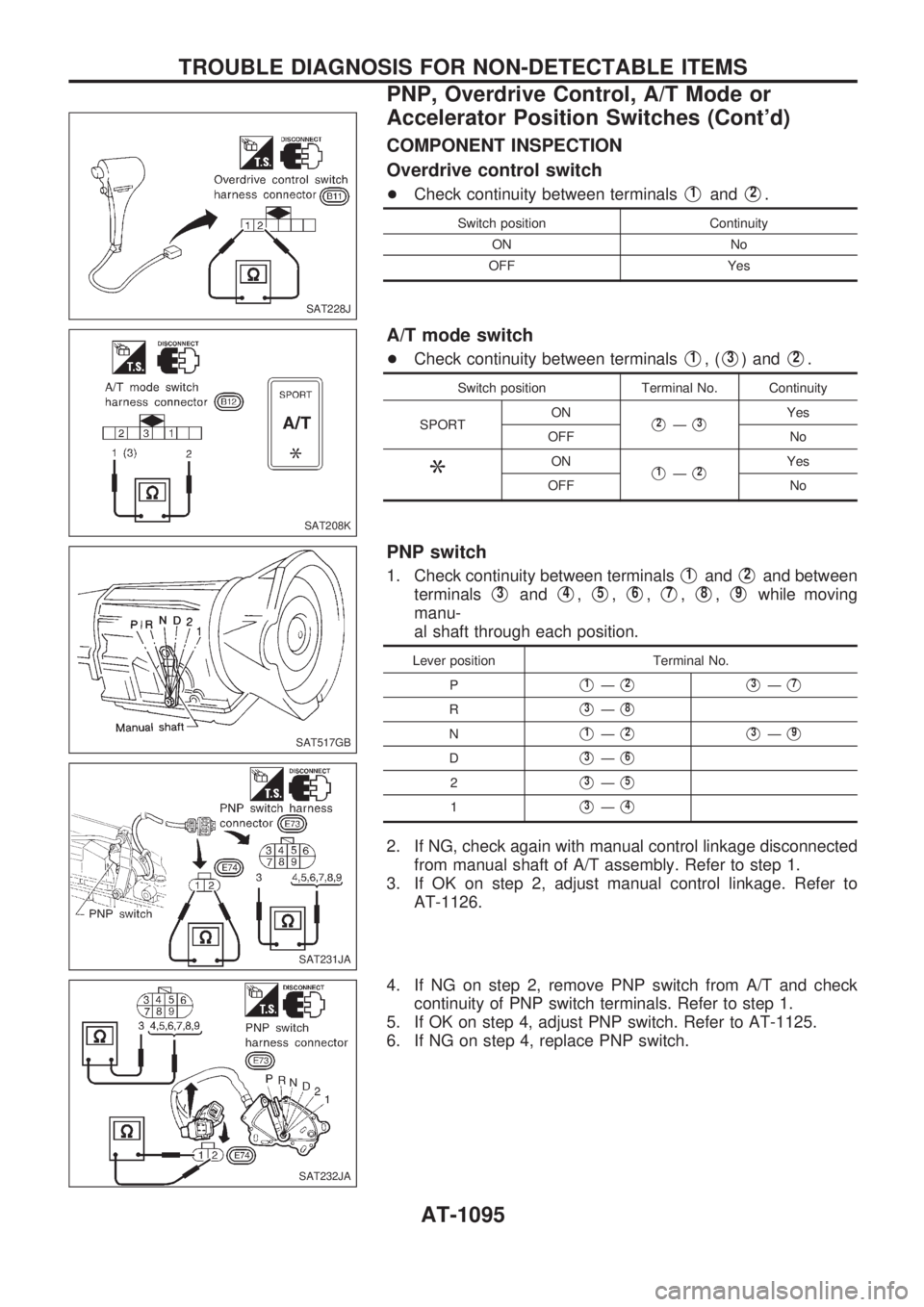

COMPONENT INSPECTION
Overdrive control switch
+Check continuity between terminalsV1andV2.
Switch position Continuity
ON No
OFF Yes
A/T mode switch
+Check continuity between terminalsV1,(V3) andV2.
Switch position Terminal No. Continuity
SPORTON
V2ÐV3Yes
OFF No
ONV1ÐV2Yes
OFF No
PNP switch
1. Check continuity between terminalsV1andV2and between
terminals
V3andV4,V5,V6,V7,V8,V9while moving
manu-
al shaft through each position.
Lever position Terminal No.
P
V1ÐV2V3ÐV7
RV3ÐV8
NV1ÐV2V3ÐV9
DV3ÐV6
2V3ÐV5
1V3ÐV4
2. If NG, check again with manual control linkage disconnected
from manual shaft of A/T assembly. Refer to step 1.
3. If OK on step 2, adjust manual control linkage. Refer to
AT-1126.
4. If NG on step 2, remove PNP switch from A/T and check
continuity of PNP switch terminals. Refer to step 1.
5. If OK on step 4, adjust PNP switch. Refer to AT-1125.
6. If NG on step 4, replace PNP switch.
SAT228J
SAT208K
SAT517GB
SAT231JA
SAT232JA
TROUBLE DIAGNOSIS FOR NON-DETECTABLE ITEMS
PNP, Overdrive Control, A/T Mode or
Accelerator Position Switches (Cont'd)
AT-1095

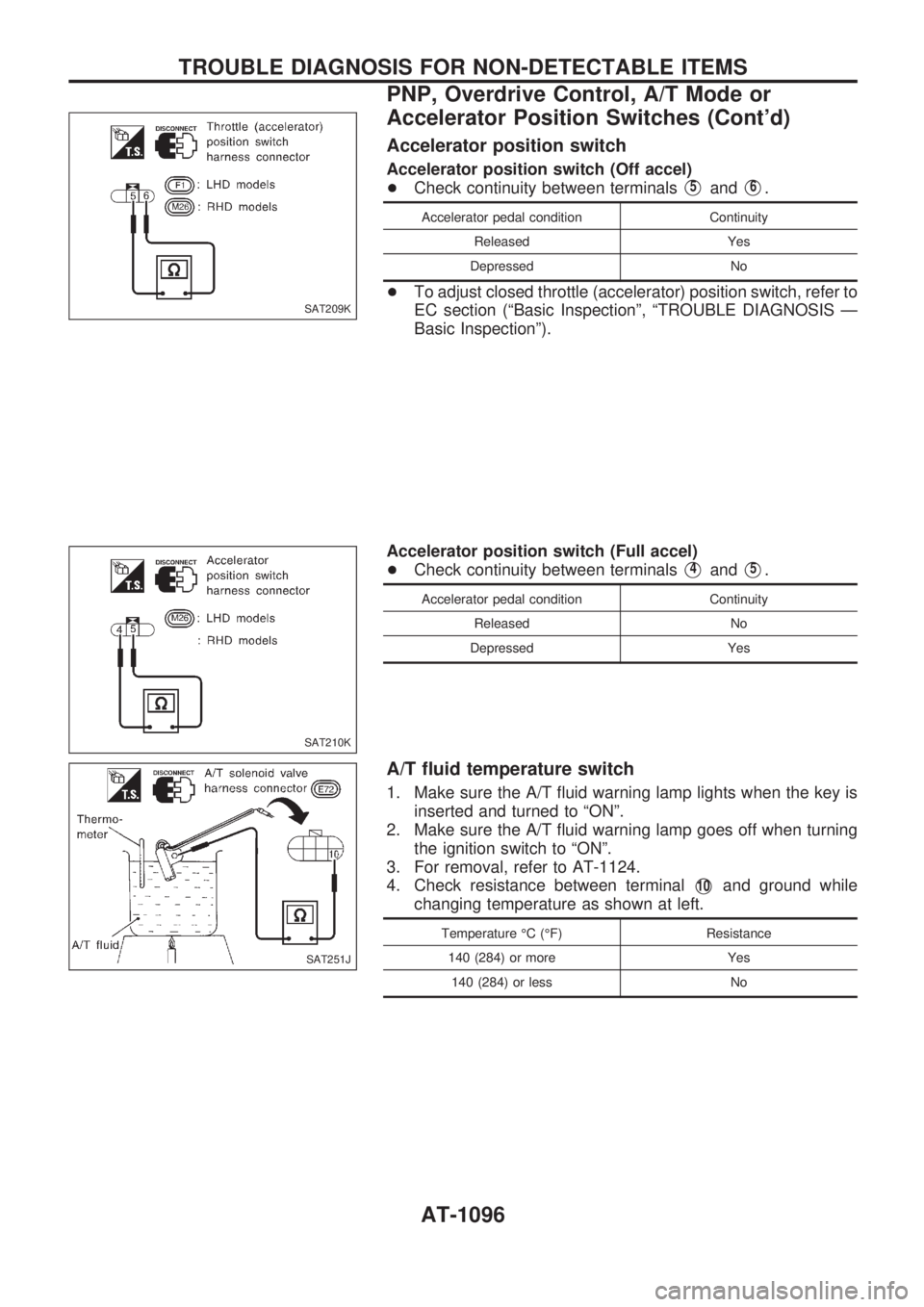

Accelerator position switch
Accelerator position switch (Off accel)
+Check continuity between terminals
V5andV6.
Accelerator pedal condition Continuity
Released Yes
Depressed No
+To adjust closed throttle (accelerator) position switch, refer to
EC section (ªBasic Inspectionº, ªTROUBLE DIAGNOSIS Ð
Basic Inspectionº).
Accelerator position switch (Full accel)
+Check continuity between terminals
V4andV5.
Accelerator pedal condition Continuity
Released No
Depressed Yes
A/T fluid temperature switch
1. Make sure the A/T fluid warning lamp lights when the key is
inserted and turned to ªONº.
2. Make sure the A/T fluid warning lamp goes off when turning
the ignition switch to ªONº.
3. For removal, refer to AT-1124.
4. Check resistance between terminal
V10and ground while
changing temperature as shown at left.
Temperature ÉC (ÉF) Resistance
140 (284) or more Yes
140 (284) or less No
SAT209K
SAT210K
SAT251J
TROUBLE DIAGNOSIS FOR NON-DETECTABLE ITEMS
PNP, Overdrive Control, A/T Mode or
Accelerator Position Switches (Cont'd)
AT-1096

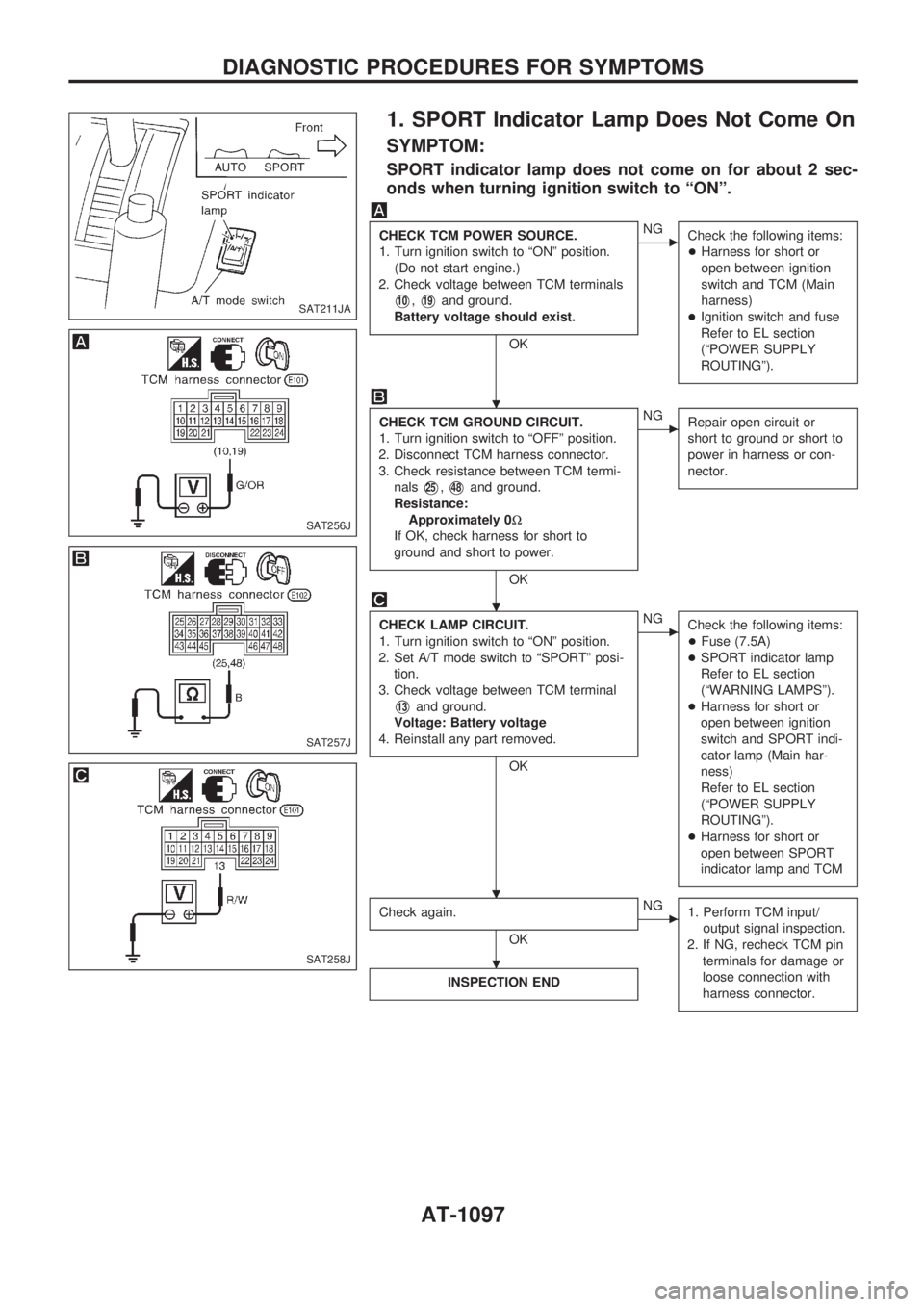

1. SPORT Indicator Lamp Does Not Come On
SYMPTOM:
SPORT indicator lamp does not come on for about 2 sec-
onds when turning ignition switch to ªONº.
CHECK TCM POWER SOURCE.
1. Turn ignition switch to ªONº position.
(Do not start engine.)
2. Check voltage between TCM terminals
V10,V19and ground.
Battery voltage should exist.
OK
cNG
Check the following items:
+Harness for short or
open between ignition
switch and TCM (Main
harness)
+Ignition switch and fuse
Refer to EL section
(ªPOWER SUPPLY
ROUTINGº).
CHECK TCM GROUND CIRCUIT.
1. Turn ignition switch to ªOFFº position.
2. Disconnect TCM harness connector.
3. Check resistance between TCM termi-
nals
V25,V48and ground.
Resistance:
Approximately 0W
If OK, check harness for short to
ground and short to power.
OK
cNG
Repair open circuit or
short to ground or short to
power in harness or con-
nector.
CHECK LAMP CIRCUIT.
1. Turn ignition switch to ªONº position.
2. Set A/T mode switch to ªSPORTº posi-
tion.
3. Check voltage between TCM terminal
V13and ground.
Voltage: Battery voltage
4. Reinstall any part removed.
OK
cNG
Check the following items:
+Fuse (7.5A)
+SPORT indicator lamp
Refer to EL section
(ªWARNING LAMPSº).
+Harness for short or
open between ignition
switch and SPORT indi-
cator lamp (Main har-
ness)
Refer to EL section
(ªPOWER SUPPLY
ROUTINGº).
+Harness for short or
open between SPORT
indicator lamp and TCM
Check again.
OK
cNG
1. Perform TCM input/
output signal inspection.
2. If NG, recheck TCM pin
terminals for damage or
loose connection with
harness connector.
INSPECTION END
SAT211JA
SAT256J
SAT257J
SAT258J
.
.
. .
.
DIAGNOSTIC PROCEDURES FOR SYMPTOMS
AT-1097

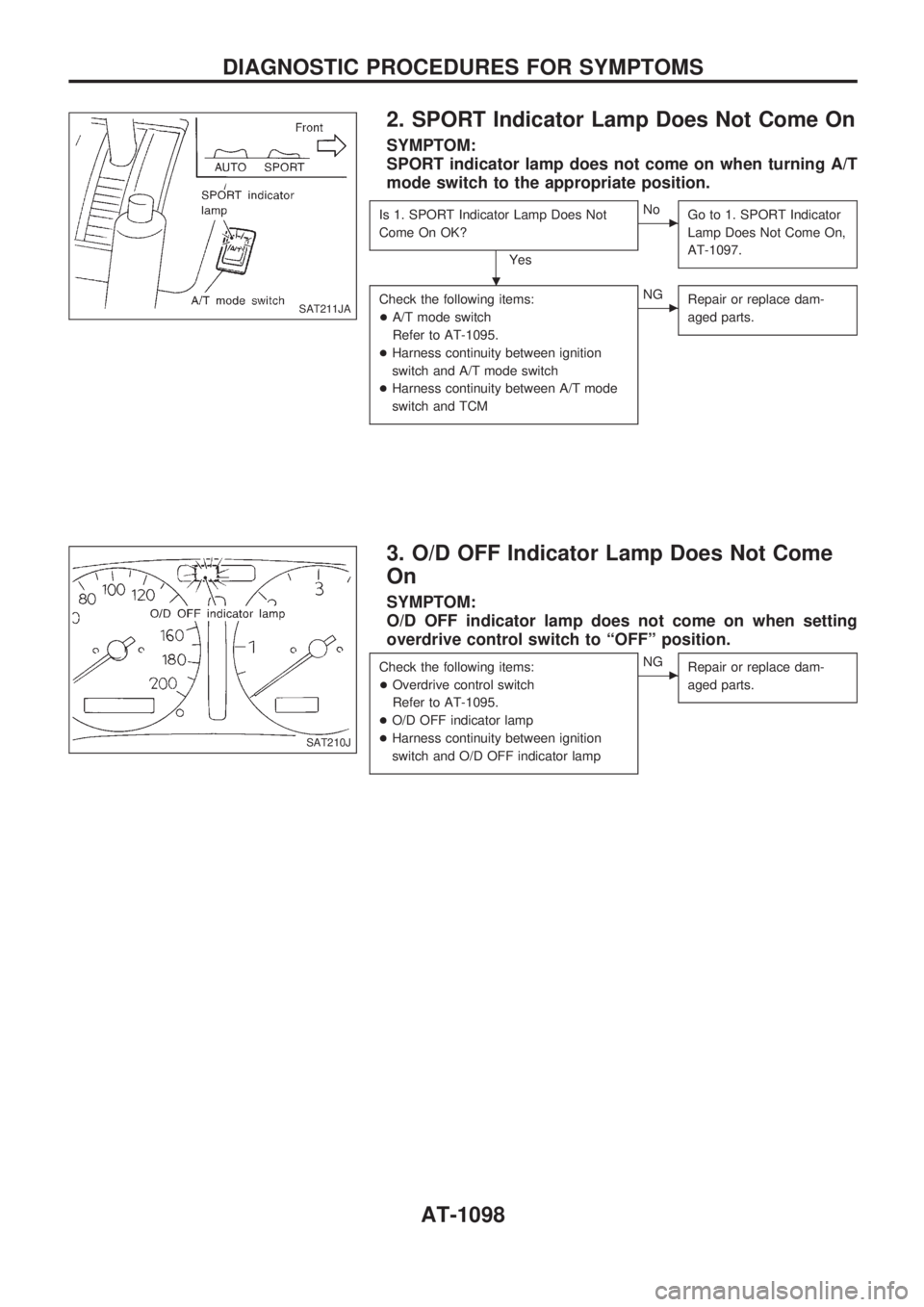

2. SPORT Indicator Lamp Does Not Come On
SYMPTOM:
SPORT indicator lamp does not come on when turning A/T
mode switch to the appropriate position.
Is 1. SPORT Indicator Lamp Does Not
Come On OK?
Yes
cNo
Go to 1. SPORT Indicator
Lamp Does Not Come On,
AT-1097.
Check the following items:
+A/T mode switch
Refer to AT-1095.
+Harness continuity between ignition
switch and A/T mode switch
+Harness continuity between A/T mode
switch and TCMcNG
Repair or replace dam-
aged parts.
3. O/D OFF Indicator Lamp Does Not Come
On
SYMPTOM:
O/D OFF indicator lamp does not come on when setting
overdrive control switch to ªOFFº position.
Check the following items:
+Overdrive control switch
Refer to AT-1095.
+O/D OFF indicator lamp
+Harness continuity between ignition
switch and O/D OFF indicator lampcNG
Repair or replace dam-
aged parts.
SAT211JA
SAT210J
.
DIAGNOSTIC PROCEDURES FOR SYMPTOMS
AT-1098

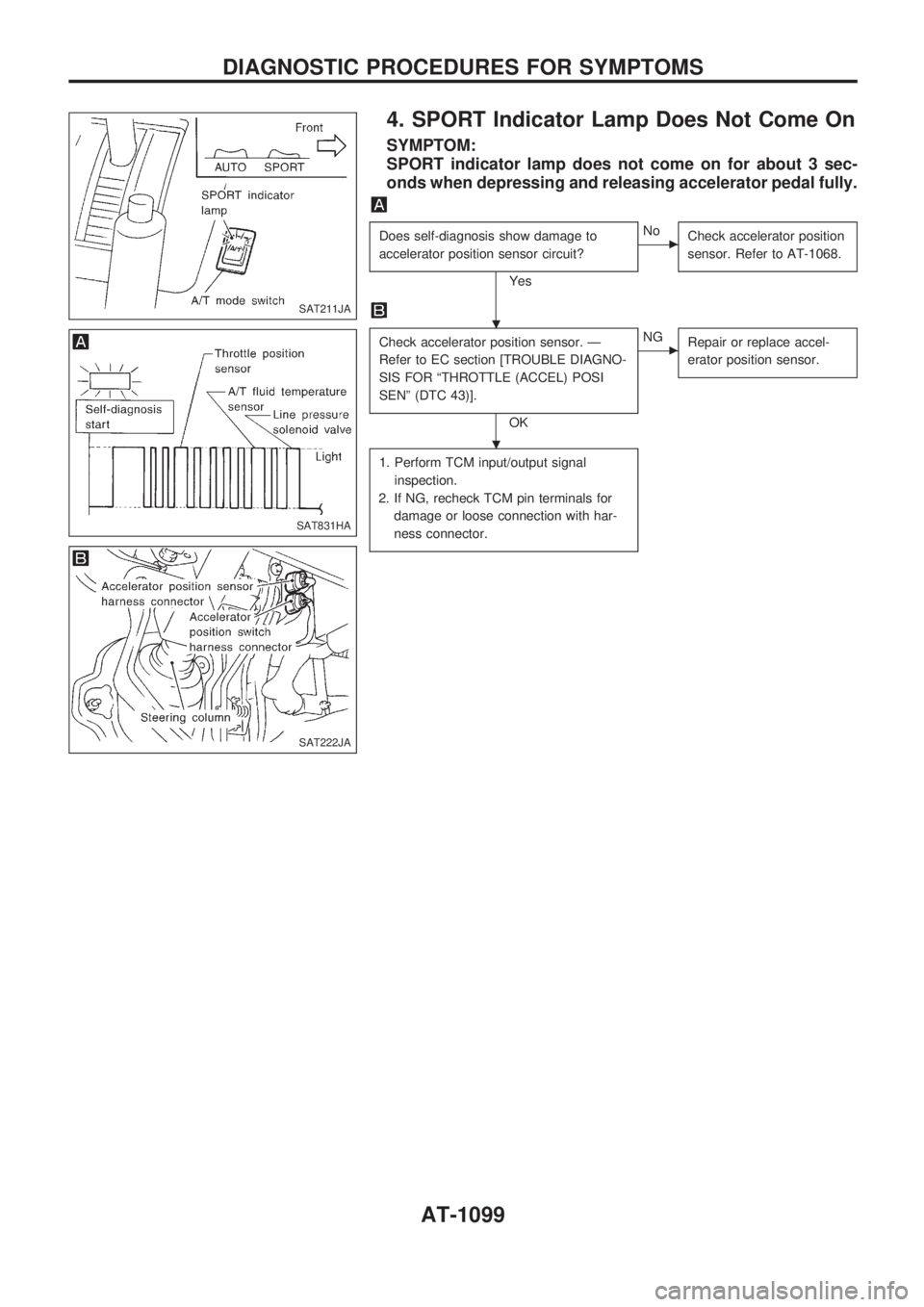

4. SPORT Indicator Lamp Does Not Come On
SYMPTOM:
SPORT indicator lamp does not come on for about 3 sec-
onds when depressing and releasing accelerator pedal fully.
Does self-diagnosis show damage to
accelerator position sensor circuit?
Yes
cNo
Check accelerator position
sensor. Refer to AT-1068.
Check accelerator position sensor. Ð
Refer to EC section [TROUBLE DIAGNO-
SIS FOR ªTHROTTLE (ACCEL) POSI
SENº (DTC 43)].
OK
cNG
Repair or replace accel-
erator position sensor.
1. Perform TCM input/output signal
inspection.
2. If NG, recheck TCM pin terminals for
damage or loose connection with har-
ness connector.
SAT211JA
SAT831HA
SAT222JA
.
.
DIAGNOSTIC PROCEDURES FOR SYMPTOMS
AT-1099

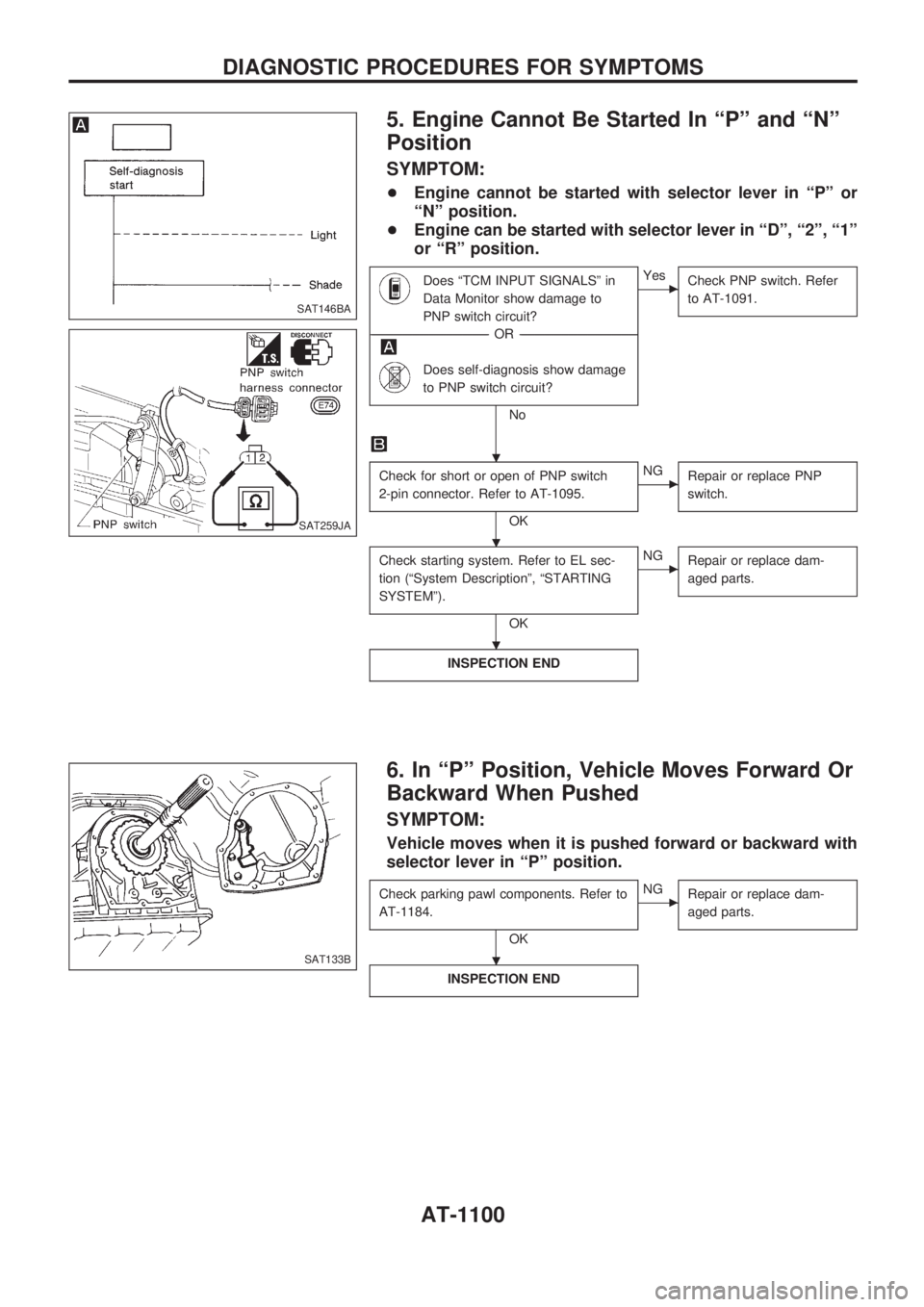

5. Engine Cannot Be Started In ªPº and ªNº
Position
SYMPTOM:
+Engine cannot be started with selector lever in ªPº or
ªNº position.
+Engine can be started with selector lever in ªDº, ª2º, ª1º
or ªRº position.
Does ªTCM INPUT SIGNALSº in
Data Monitor show damage to
PNP switch circuit?
------------------------------------------------------------------------------------------------------------------------------------OR------------------------------------------------------------------------------------------------------------------------------------
Does self-diagnosis show damage
to PNP switch circuit?
No
cYes
Check PNP switch. Refer
to AT-1091.
Check for short or open of PNP switch
2-pin connector. Refer to AT-1095.
OK
cNG
Repair or replace PNP
switch.
Check starting system. Refer to EL sec-
tion (ªSystem Descriptionº, ªSTARTING
SYSTEMº).
OK
cNG
Repair or replace dam-
aged parts.
INSPECTION END
6. In ªPº Position, Vehicle Moves Forward Or
Backward When Pushed
SYMPTOM:
Vehicle moves when it is pushed forward or backward with
selector lever in ªPº position.
Check parking pawl components. Refer to
AT-1184.
OK
cNG
Repair or replace dam-
aged parts.
INSPECTION END
SAT146BA
SAT259JA
SAT133B
.
.
.
.
DIAGNOSTIC PROCEDURES FOR SYMPTOMS
AT-1100

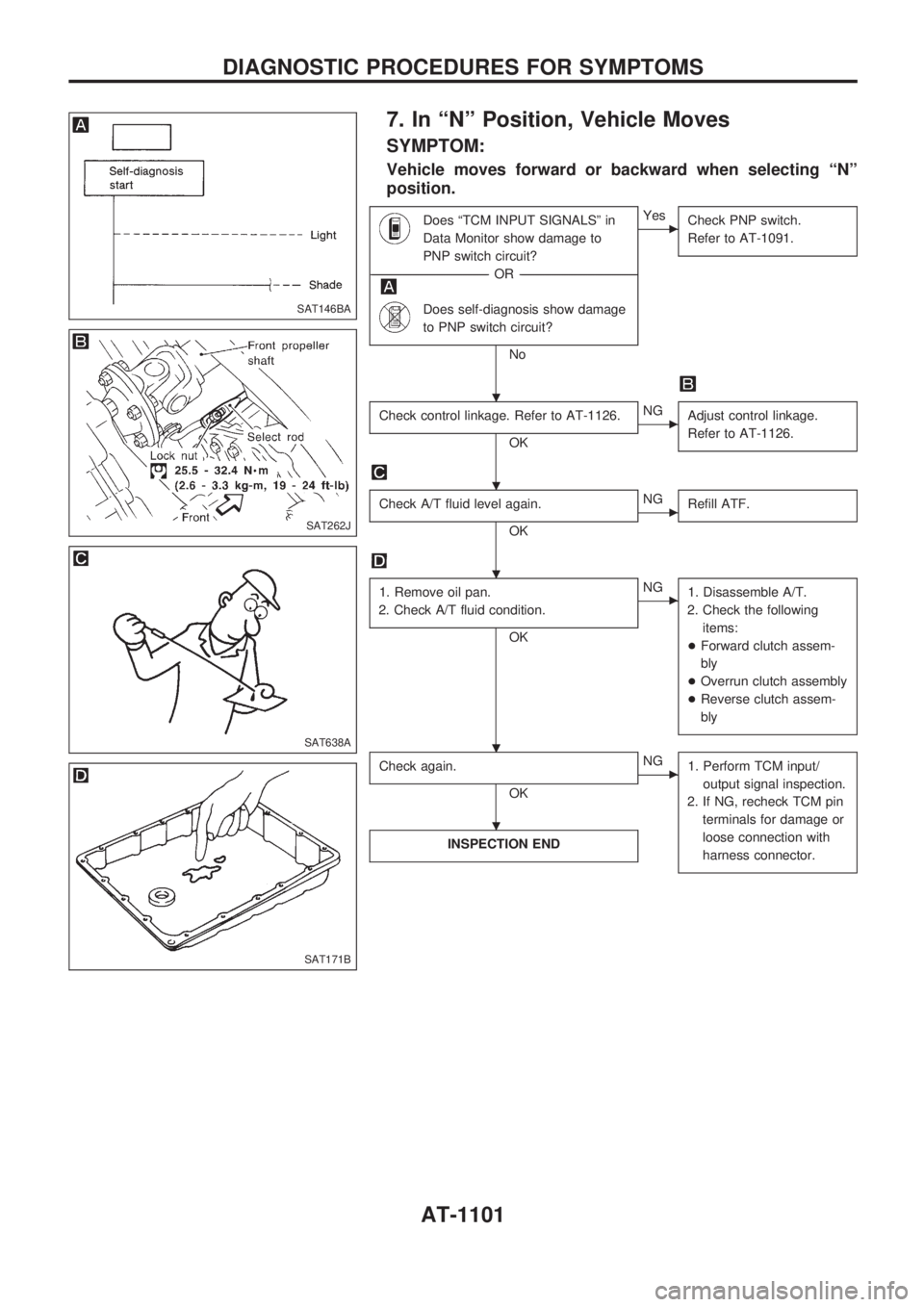

7. In ªNº Position, Vehicle Moves
SYMPTOM:
Vehicle moves forward or backward when selecting ªNº
position.
Does ªTCM INPUT SIGNALSº in
Data Monitor show damage to
PNP switch circuit?
------------------------------------------------------------------------------------------------------------------------------------OR------------------------------------------------------------------------------------------------------------------------------------
Does self-diagnosis show damage
to PNP switch circuit?
No
cYes
Check PNP switch.
Refer to AT-1091.
Check control linkage. Refer to AT-1126.
OK
cNG
Adjust control linkage.
Refer to AT-1126.
Check A/T fluid level again.
OK
cNG
Refill ATF.
1. Remove oil pan.
2. Check A/T fluid condition.
OK
cNG
1. Disassemble A/T.
2. Check the following
items:
+Forward clutch assem-
bly
+Overrun clutch assembly
+Reverse clutch assem-
bly
Check again.
OK
cNG
1. Perform TCM input/
output signal inspection.
2. If NG, recheck TCM pin
terminals for damage or
loose connection with
harness connector.
INSPECTION END
SAT146BA
SAT262J
SAT638A
SAT171B
.
.
.
. .
.
DIAGNOSTIC PROCEDURES FOR SYMPTOMS
AT-1101

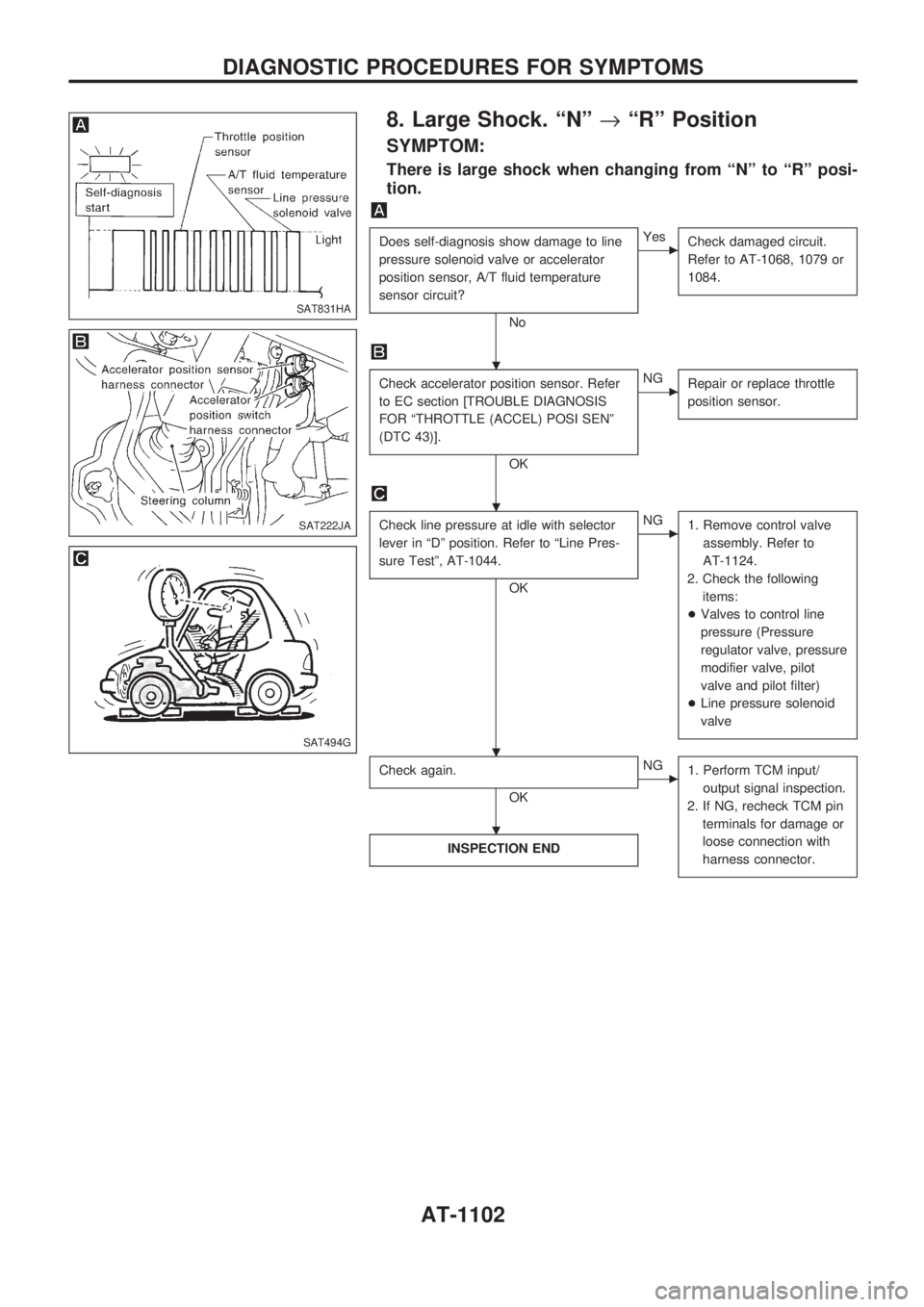

8. Large Shock. ªNº®ªRº Position
SYMPTOM:
There is large shock when changing from ªNº to ªRº posi-
tion.
Does self-diagnosis show damage to line
pressure solenoid valve or accelerator
position sensor, A/T fluid temperature
sensor circuit?
No
cYes
Check damaged circuit.
Refer to AT-1068, 1079 or
1084.
Check accelerator position sensor. Refer
to EC section [TROUBLE DIAGNOSIS
FOR ªTHROTTLE (ACCEL) POSI SENº
(DTC 43)].
OK
cNG
Repair or replace throttle
position sensor.
Check line pressure at idle with selector
lever in ªDº position. Refer to ªLine Pres-
sure Testº, AT-1044.
OK
cNG
1. Remove control valve
assembly. Refer to
AT-1124.
2. Check the following
items:
+Valves to control line
pressure (Pressure
regulator valve, pressure
modifier valve, pilot
valve and pilot filter)
+Line pressure solenoid
valve
Check again.
OK
cNG
1. Perform TCM input/
output signal inspection.
2. If NG, recheck TCM pin
terminals for damage or
loose connection with
harness connector.
INSPECTION END
SAT831HA
SAT222JA
SAT494G
.
.
. .
.
DIAGNOSTIC PROCEDURES FOR SYMPTOMS
AT-1102
