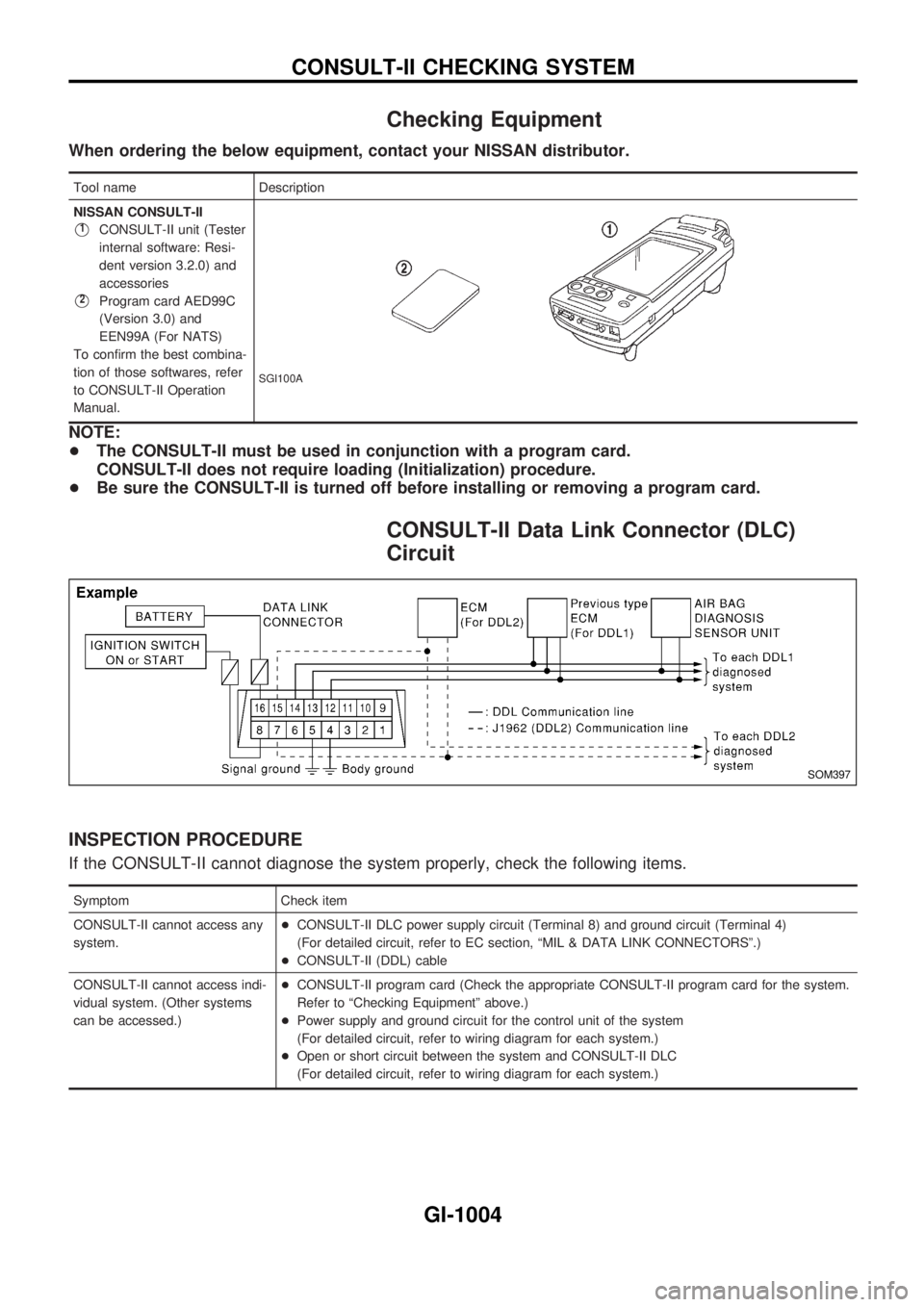

Checking Equipment
When ordering the below equipment, contact your NISSAN distributor.
Tool name Description
NISSAN CONSULT-II
V1CONSULT-II unit (Tester
internal software: Resi-
dent version 3.2.0) and
accessories
V2Program card AED99C
(Version 3.0) and
EEN99A (For NATS)
To confirm the best combina-
tion of those softwares, refer
to CONSULT-II Operation
Manual.
SGI100A
NOTE:
+The CONSULT-II must be used in conjunction with a program card.
CONSULT-II does not require loading (Initialization) procedure.
+Be sure the CONSULT-II is turned off before installing or removing a program card.
CONSULT-II Data Link Connector (DLC)
Circuit
INSPECTION PROCEDURE
If the CONSULT-II cannot diagnose the system properly, check the following items.
Symptom Check item
CONSULT-II cannot access any
system.+CONSULT-II DLC power supply circuit (Terminal 8) and ground circuit (Terminal 4)
(For detailed circuit, refer to EC section, ªMIL & DATA LINK CONNECTORSº.)
+CONSULT-II (DDL) cable
CONSULT-II cannot access indi-
vidual system. (Other systems
can be accessed.)+CONSULT-II program card (Check the appropriate CONSULT-II program card for the system.
Refer to ªChecking Equipmentº above.)
+Power supply and ground circuit for the control unit of the system
(For detailed circuit, refer to wiring diagram for each system.)
+Open or short circuit between the system and CONSULT-II DLC
(For detailed circuit, refer to wiring diagram for each system.)
SOM397
CONSULT-II CHECKING SYSTEM
GI-1004

Model Variation
Destina-
tionSteering
positionEngineModel Hardtop Station Wagon
Rear seat arrangement2nd seat 2nd center split bench seat
Forward facing Seatless3rd seat
Seatless Forward facing
Front differential H233B
Rear differential
H233B/H260
Transmis-
sionTransfer Grade
EuropeRHD
ZD30DDTiFS5R50B
TX12ASKWSSREFY61UEA Ð Ð TWSSREFY61UEA
RE4R03A Ð Ð Ð TWSSREAY61UEA
FS5R50B
SEKWSSRFFY61UEA Ð Ð TWSSRFFY61UEA
RE4R03A KWSSRFAY61UEA Ð Ð TWSSRFAY61UEA
FS5R50B
SEÐ Ð Ð TWSSRHFY61UEA
RE4R03A Ð Ð Ð TWSSRHAY61UEA
LHDFS5R50B
SKWSSLEFY61UGA KWSSLEFY61USP TWSSLEFY61USP TWSSLEFY61UGA
RE4R03A Ð Ð Ð TWSSLEAY61UGA
FS5R50B
SEKWSSLFFY61UGA Ð TWSSLFFY61USP TWSSLFFY61UGA
Ð Ð Ð TWSSLFFY61USA
RE4R03AKWSSLFAY61UGA Ð Ð TWSSLFAY61UGA
Ð Ð Ð TWSSLFAY61USA
FS5R50B
SEÐ Ð Ð TWSSLHFY61UGA
Ð Ð Ð TWSSLHFY61USA
RE4R03AÐ Ð Ð TWSSLHAY61UGA
Ð Ð Ð TWSSLHAY61USA
IDENTIFICATION INFORMATION
GI-1005

Prefix and suffix designations
TWSSLEFY61 UEA
A: 3rd seat forward facing
P: 3rd seat/Rear seat seatless
E: RHD for Europe
G: Central/South Europe
S: North Europe
U: Turbocharger engine
F: 5-speed floor shift manual transmission
A: 4-speed floor shift automatic transmission
E:SF:SEH:SE
L: LH drive R: RH drive
S: Long wheelbase (4WD)
WS: ZD30DDTi engine
T: Station Wagon
K: Hardtop
IDENTIFICATION INFORMATION
Model Variation (Cont'd)
GI-1006

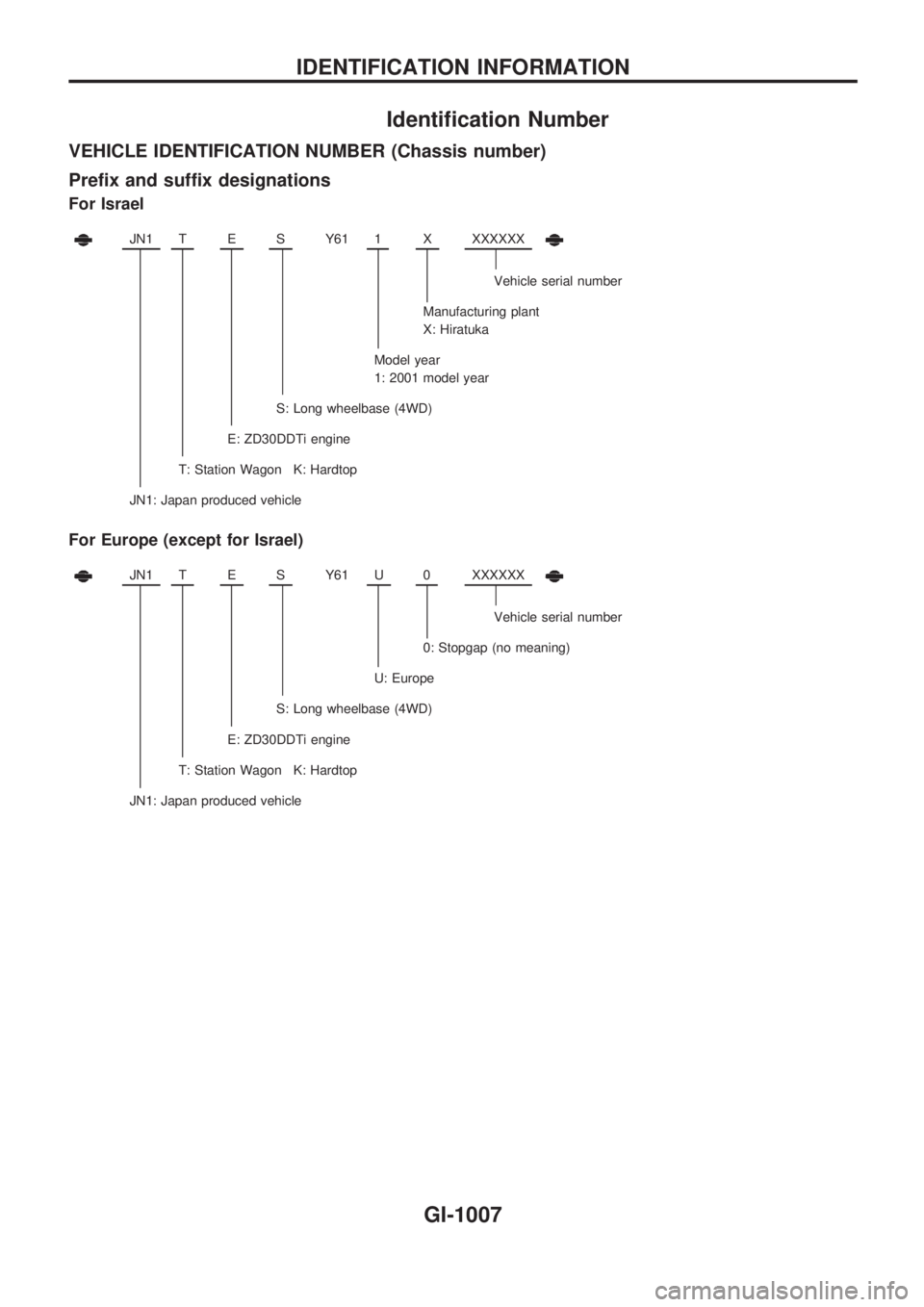

Identification Number
VEHICLE IDENTIFICATION NUMBER (Chassis number)
Prefix and suffix designations
For Israel
JN1TESY61 1XXXXXXX
Vehicle serial number
Manufacturing plant
X: Hiratuka
Model year
1: 2001 model year
S: Long wheelbase (4WD)
E: ZD30DDTi engine
T: Station Wagon K: Hardtop
JN1: Japan produced vehicle
For Europe (except for Israel)
JN1TESY61 U0XXXXXX
Vehicle serial number
0: Stopgap (no meaning)
U: Europe
S: Long wheelbase (4WD)
E: ZD30DDTi engine
T: Station Wagon K: Hardtop
JN1: Japan produced vehicle
IDENTIFICATION INFORMATION
GI-1007

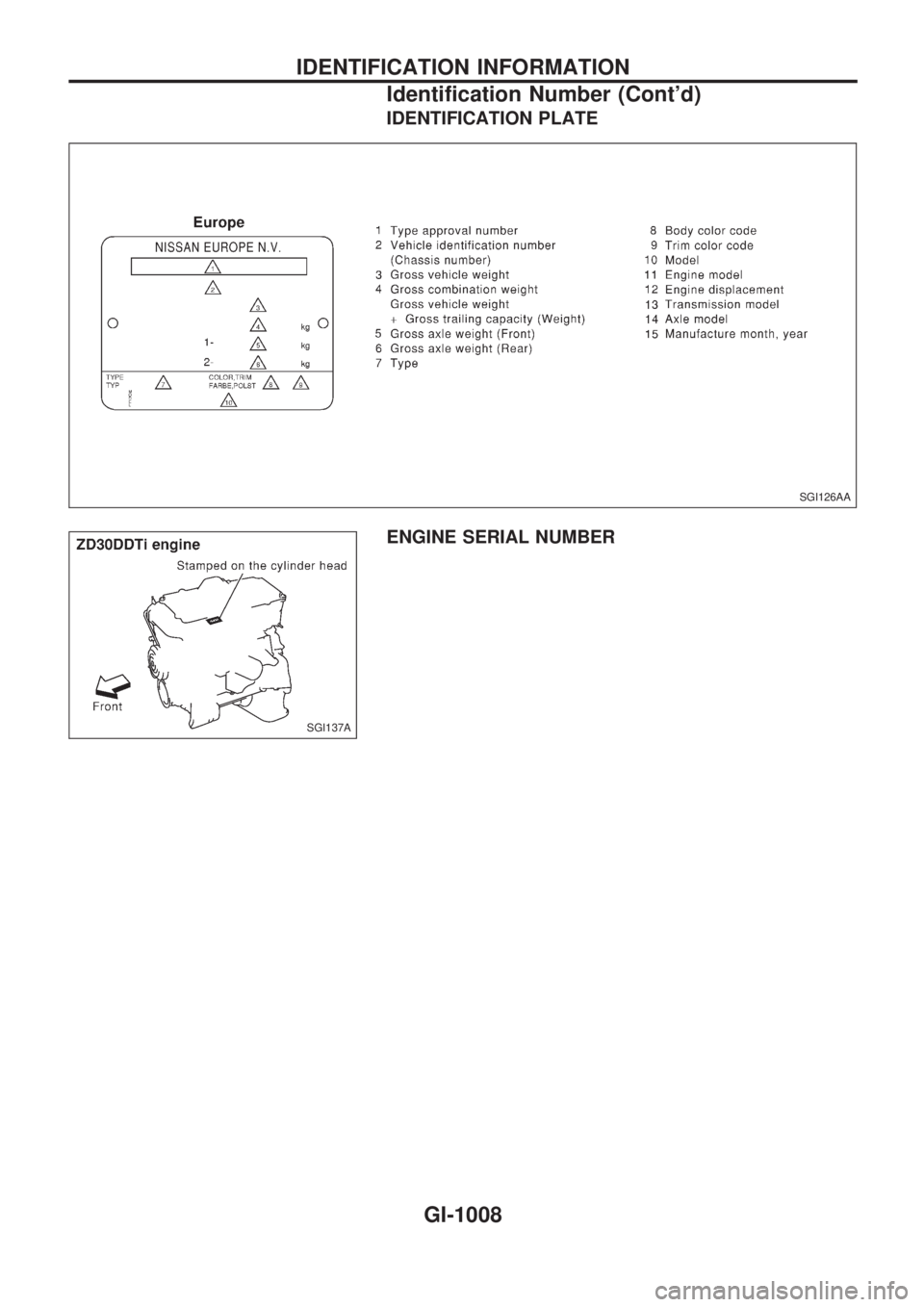

IDENTIFICATION PLATE
ENGINE SERIAL NUMBER
SGI126AA
SGI137A
IDENTIFICATION INFORMATION
Identification Number (Cont'd)
GI-1008

WARNING:
+Never get under the vehicle while it is supported only by the jack. Always use safety stands to
support the frame when you have to get under the vehicle.
+Place wheel chocks at both front and back of the wheel which is diagonally opposite the jack
position.
Example: If the jack is positioned at the LH front wheel, place wheel chocks at RH rear wheel.
+A 2-pole lift is not recommended because it may become unbalance when the vehicle is on it.
+Jack up the vehicle only under no load conditions.
Screw Jack
SGI016AA
LIFTING POINTS AND TOW TRUCK TOWING
GI-1009

Tow Truck Towing
TOWING HOOKS
The towing hooks are provided only for emergency.
+Use the towing hooksonly, not other parts of the vehicle.
Otherwise, the vehicle body will be damaged.
+Use the towing hooksonlyto free a vehicle stuck in sand,
snow, mud, etc.Nevertow the vehicle for long distances
using only the towing hooks.
+The towing hook is under tremendous force when used to
free a stuck vehicle. Always pull the cable straight out from
the front or rear of the vehicle.Neverpull on the hook at a
sideways angle.
SGI025AA
LIFTING POINTS AND TOW TRUCK TOWING
GI-1010

HEATER &
AIR CONDITIONER
SECTION
HA
MODIFICATION NOTICE:
+Wiring diagrams have been changed.
+Cooler cycle for ZD30DDTi engine has been added.
CONTENTS
PRECAUTIONS AND PREPARATION............... 1002
Supplemental Restraint System (SRS) ªAIR
BAGº and ªSEAT BELT PRE-TENSIONERº ... 1002
Precautions for Refrigerant Connection .......... 1002
MANUAL
TROUBLE DIAGNOSES..................................... 1005
Wiring Diagram Ð HEATER Ð ....................... 1005
Wiring Diagram Ð R/HEAT Ð/LHD Models ... 1006
Wiring Diagram Ð A/C, M Ð/ZD Engine ........ 1007
AUTO
TROUBLE DIAGNOSES..................................... 1009
Circuit Diagram ................................................ 1009
Wiring Diagram Ð A/C, A Ð/ZD Engine......... 1010REAR COOLER
TROUBLE DIAGNOSES..................................... 1013
Wiring Diagram Ð R/COOL Ð/LHD Models
with Front Auto A/C ......................................... 1013
Wiring Diagram Ð R/COOL Ð/LHD Models
with Front Manual A/C ..................................... 1015
Wiring Diagram Ð R/COOL Ð/RHD Models
with Front Auto A/C ......................................... 1017
Wiring Diagram Ð R/COOL Ð/RHD Models
with Front Manual A/C ..................................... 1019
MANUAL AND AUTO
SERVICE PROCEDURES................................... 1021
Refrigerant Lines.............................................. 1021
Compressor Mounting...................................... 1023

HA
