2000 NISSAN PATROL Electronic Repair Manual

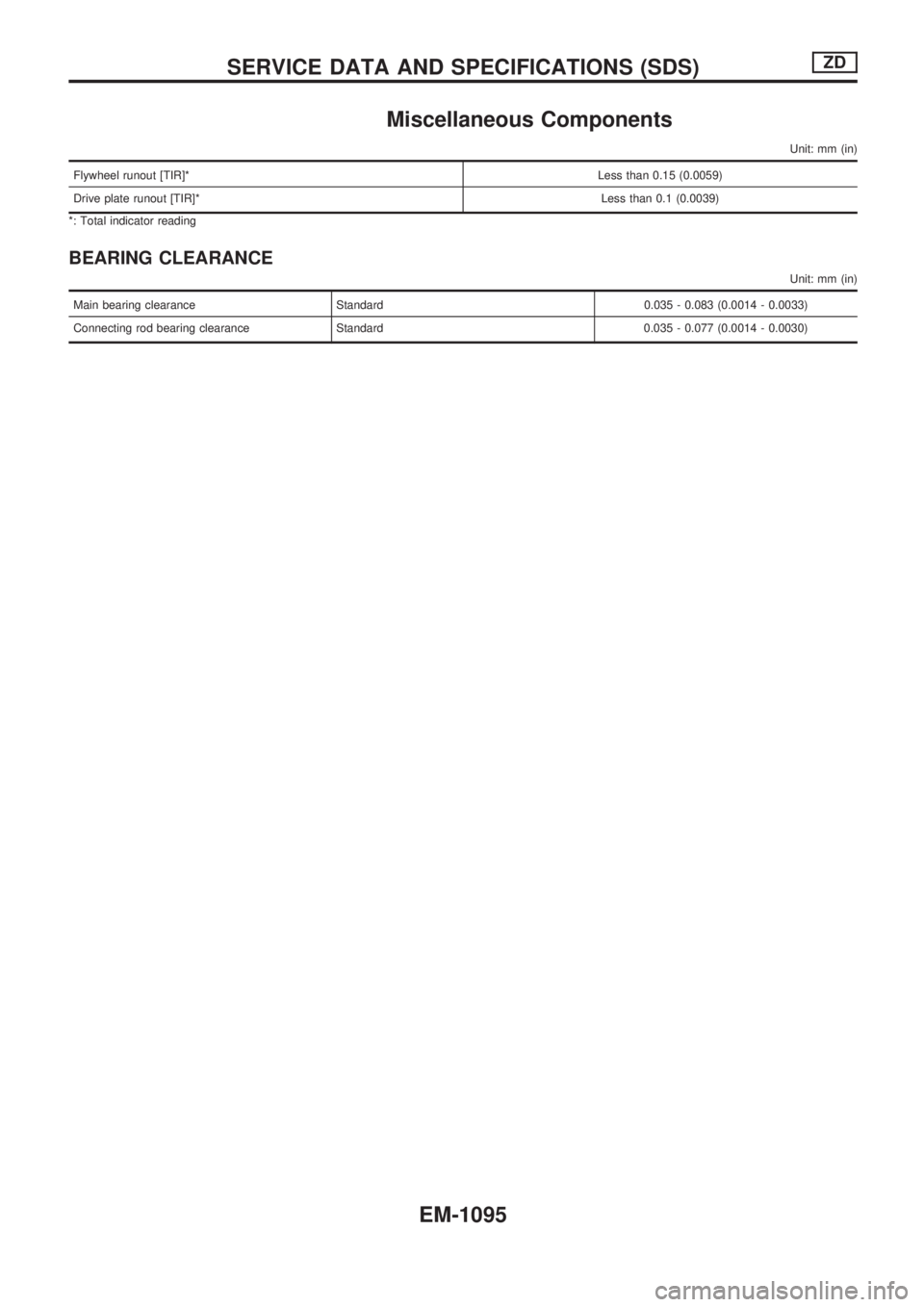

Miscellaneous Components
Unit: mm (in)
Flywheel runout [TIR]*Less than 0.15 (0.0059)
Drive plate runout [TIR]*Less than 0.1 (0.0039)
*: Total indicator reading
BEARING CLEARANCE
Unit: mm (in)
Main bearing clearance Standard 0.035 - 0.083 (0.0014 - 0.0033)
Connecting rod bearing clearance Standard 0.035 - 0.077 (0.0014 - 0.0030)
SERVICE DATA AND SPECIFICATIONS (SDS)ZD
EM-1095

FRONT AXLE &
FRONT SUSPENSION
SECTION
FA
MODIFICATION NOTICE:
Tightening torque of brake rotor bolt has been changed.
CONTENTS
FRONT AXLE Ð Drive Flange and
Free-running Hub............................................... 1002

FA

SFA859BA

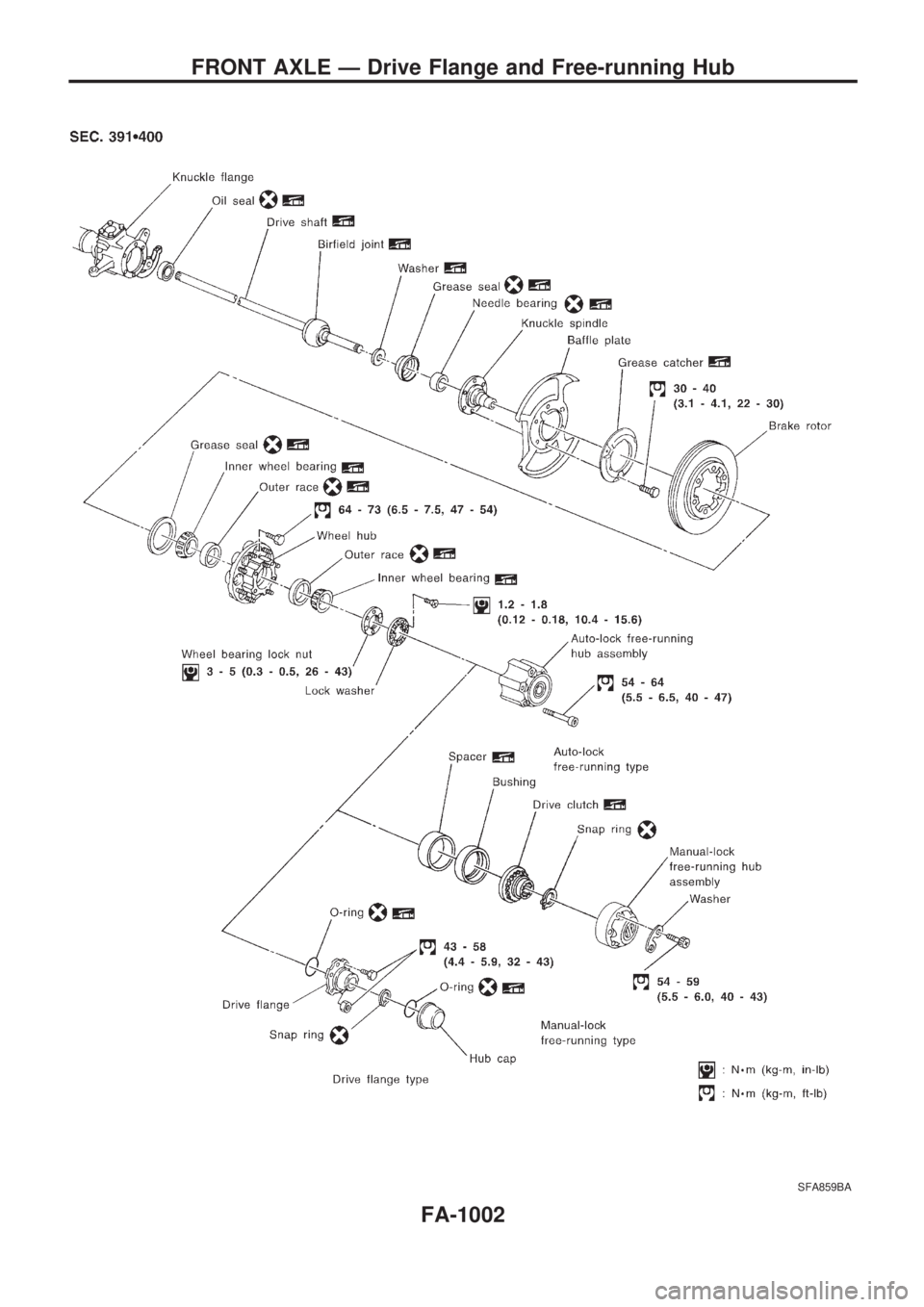

FRONT AXLE Ð Drive Flange and Free-running Hub
FA-1002

ACCELERATOR CONTROL, FUEL &
EXHAUST SYSTEMS
SECTION
FE
MODIFICATION NOTICE:
+The circuit diagram and wiring diagram have been changed.
+ZD30DDTi engine has been added.
+The accelerator control system for ZD30DDTi engine models is the same as for RD28ETi engine mod-
els. Refer to FE-3 in Service Manual [SM7E-1Y61G0 (01)].
+The fuel tank and sub-fuel tank for ZD30DDTi engine models are the same as for TD42 engine models.
Refer to FE-22 and FE-25 in Service Manual [SM7E-1Y61G0 (01)].
CONTENTS
TROUBLE DIAGNOSES..................................... 1002
Circuit Diagram ................................................ 1002
Wiring Diagram Ð S/TANK Ð ........................ 1003ZD
EXHAUST SYSTEM............................................ 1007

FE

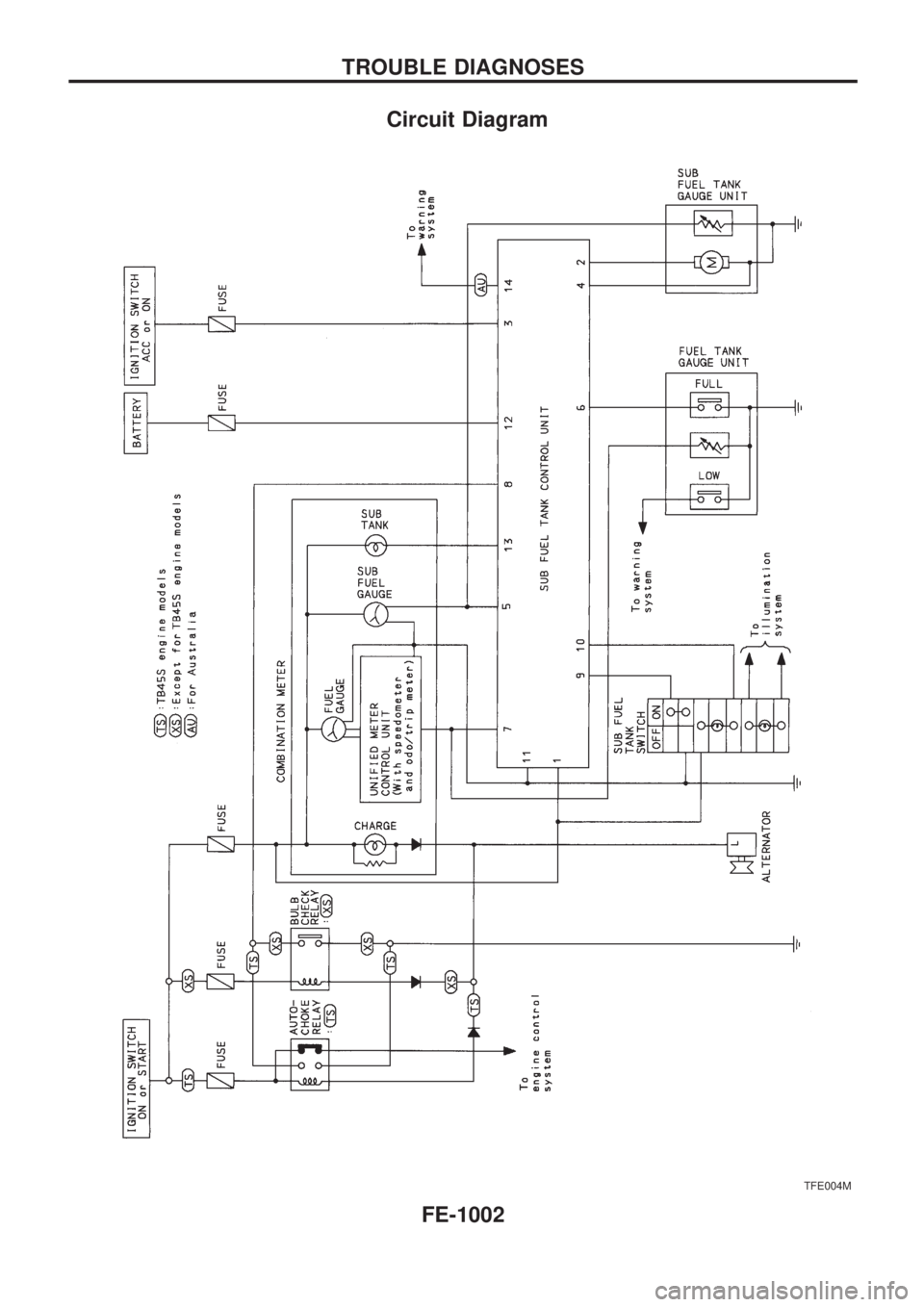

Circuit Diagram
TFE004M
TROUBLE DIAGNOSES
FE-1002

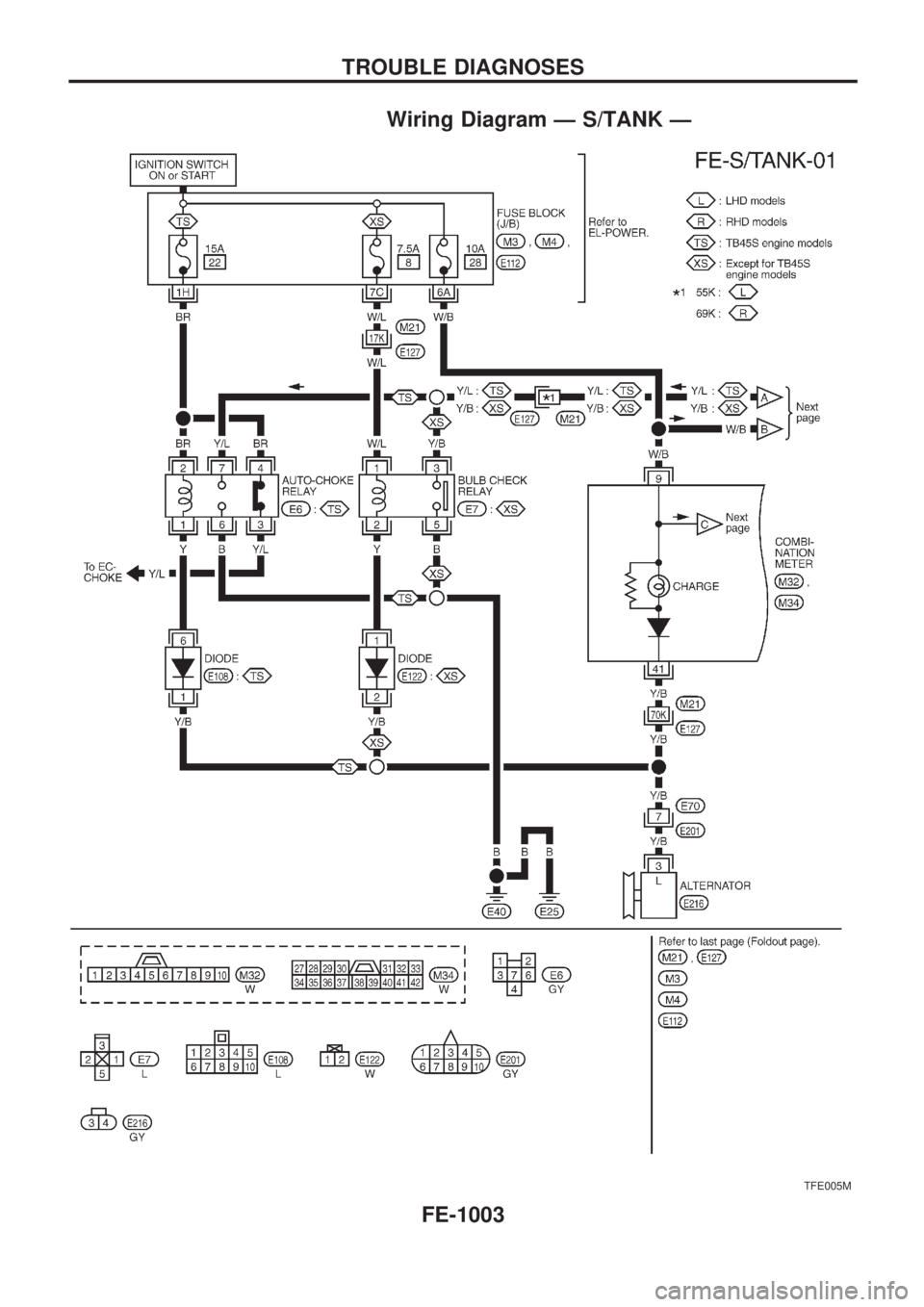

Wiring Diagram Ð S/TANK Ð
TFE005M
TROUBLE DIAGNOSES
FE-1003

TFE014
TROUBLE DIAGNOSES
Wiring Diagram Ð S/TANK Ð (Cont'd)
FE-1004

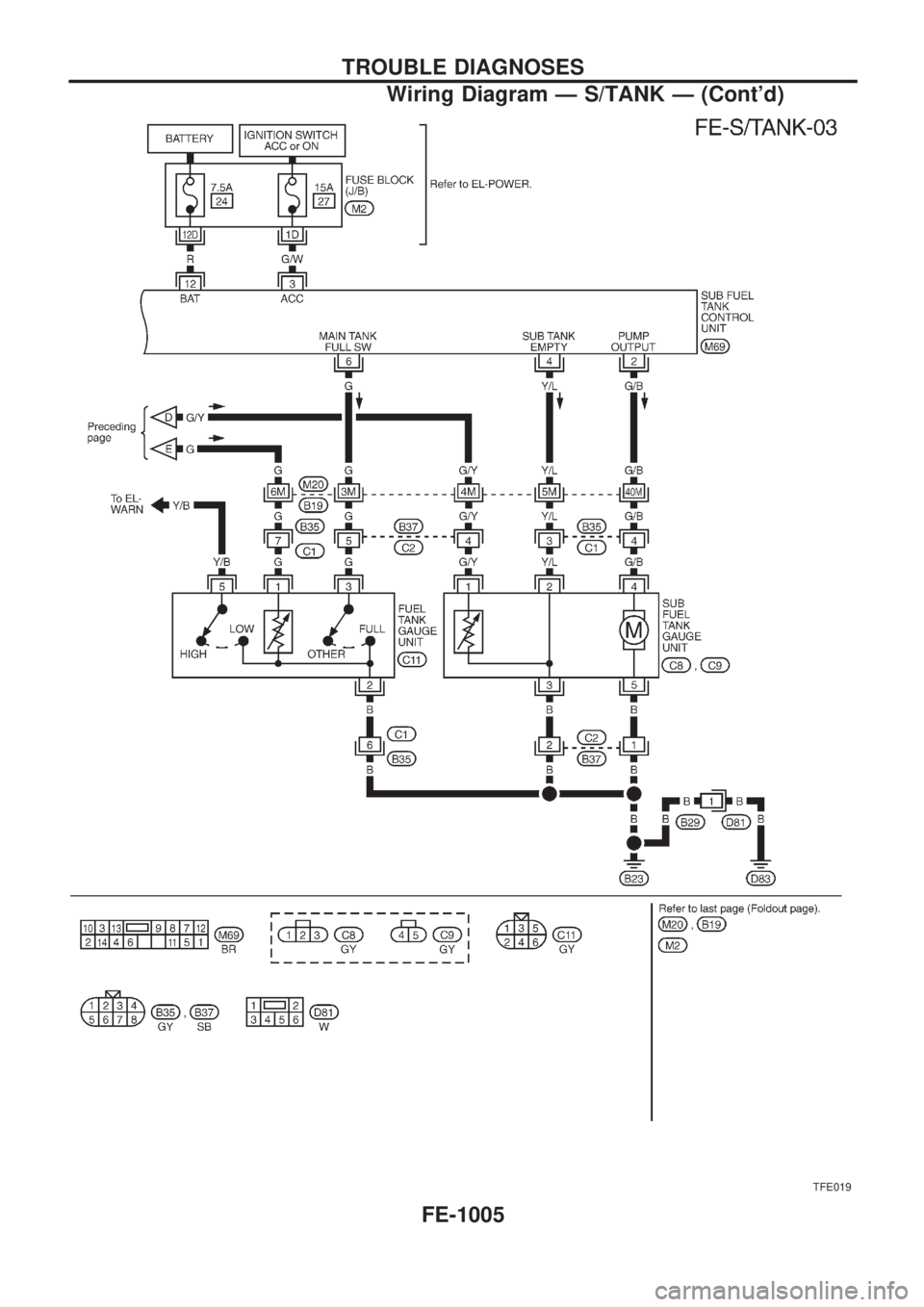

TFE019
TROUBLE DIAGNOSES

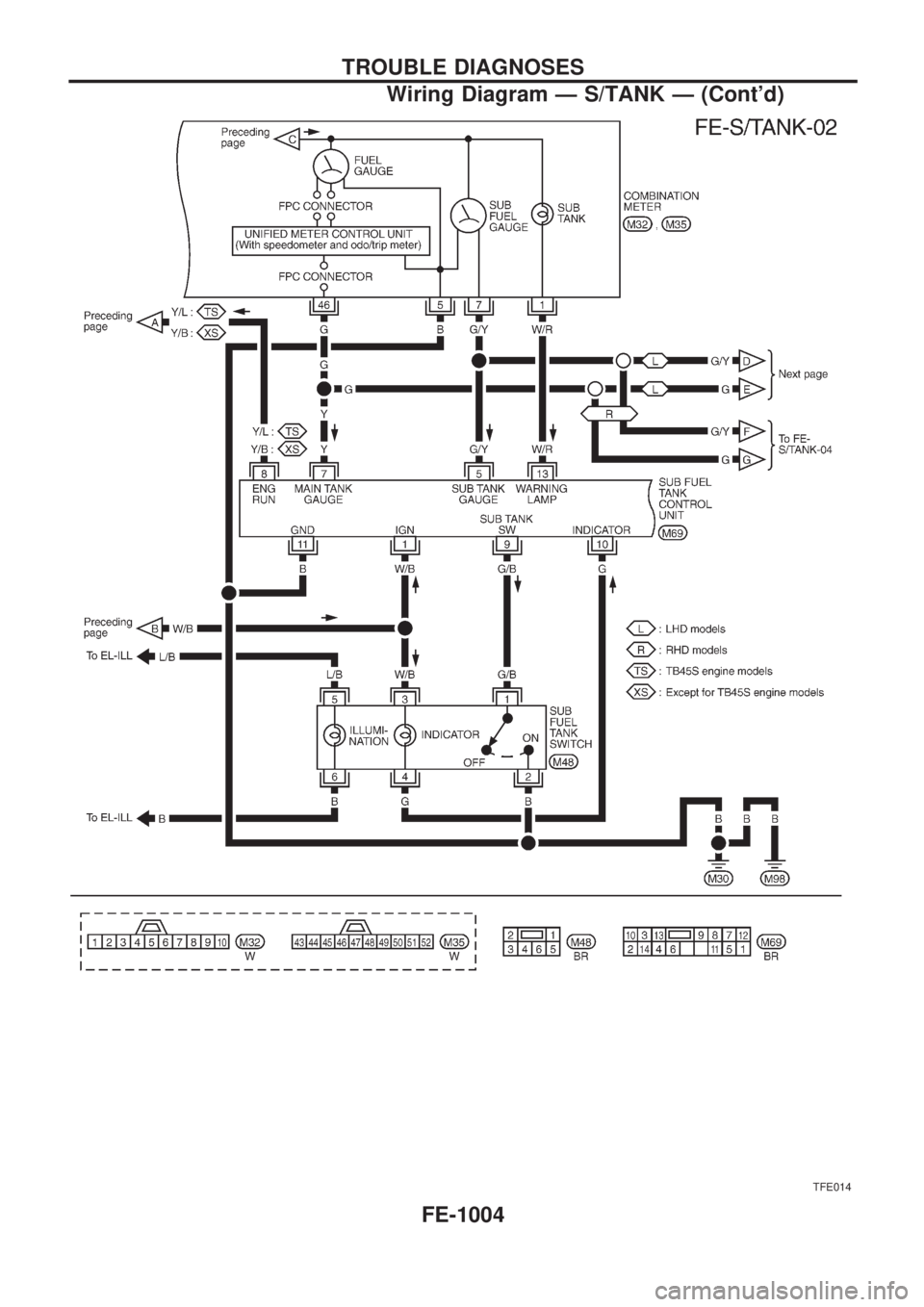

Wiring Diagram Ð S/TANK Ð (Cont'd)
FE-1005
