2000 NISSAN PATROL Electronic Repair Manual

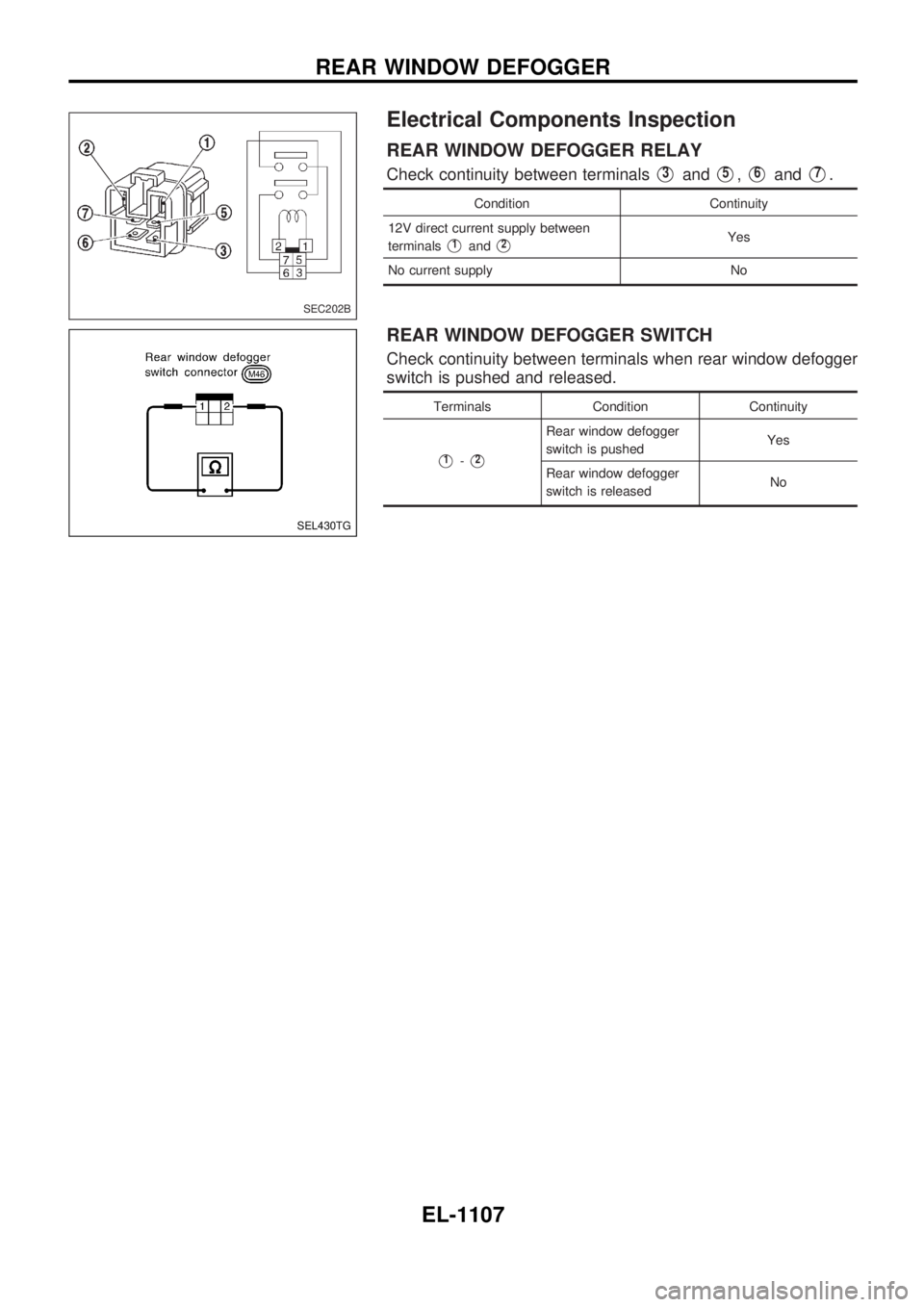

Electrical Components Inspection
REAR WINDOW DEFOGGER RELAY
Check continuity between terminalsV3andV5,V6andV7.
Condition Continuity
12V direct current supply between
terminals
V1andV2Yes
No current supply No
REAR WINDOW DEFOGGER SWITCH
Check continuity between terminals when rear window defogger
switch is pushed and released.
Terminals Condition Continuity
V1-V2
Rear window defogger
switch is pushedYes
Rear window defogger
switch is releasedNo
SEC202B
SEL430TG
REAR WINDOW DEFOGGER
EL-1107

Wiring Diagram Ð REMOTE Ð
TEL581B
AUDIO
EL-1108

Wiring Diagram Ð P/ANT Ð/RHD Models
TEL290M
AUDIO ANTENNA
EL-1109

Schematic
TEL582B
AUTOMATIC SPEED CONTROL DEVICE (ASCD)
EL-1110

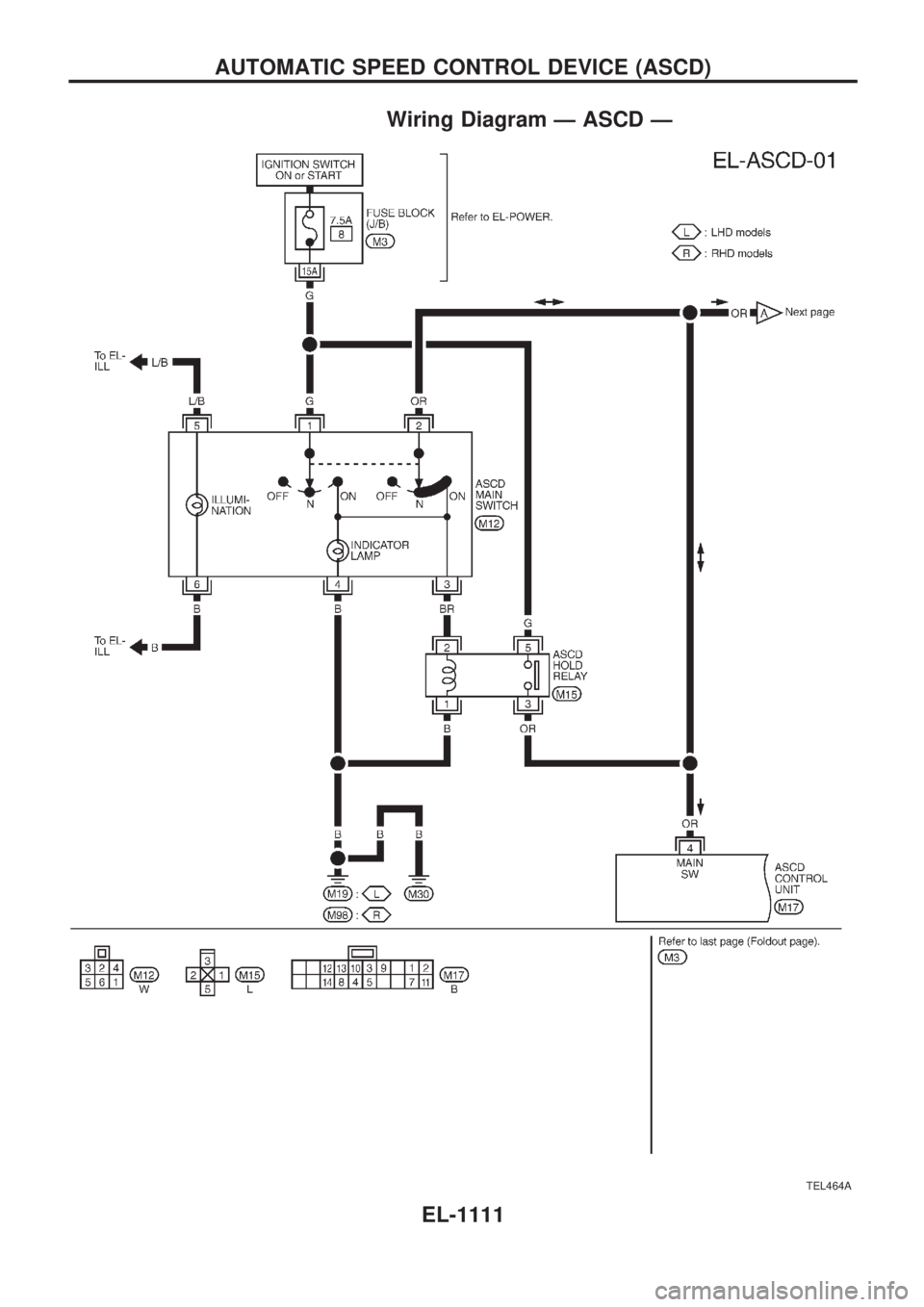

Wiring Diagram Ð ASCD Ð
TEL464A
AUTOMATIC SPEED CONTROL DEVICE (ASCD)
EL-1111

TEL583B

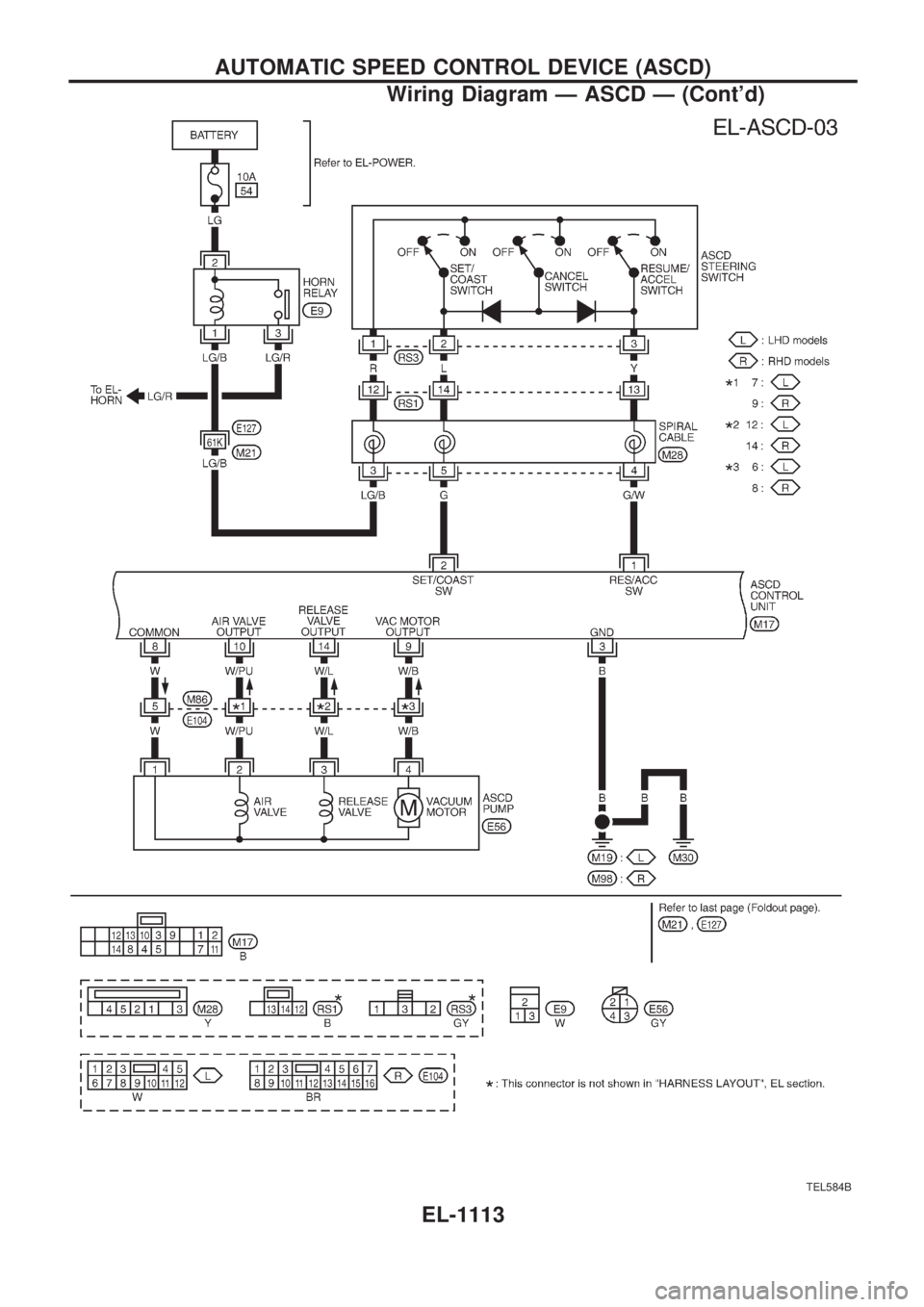

AUTOMATIC SPEED CONTROL DEVICE (ASCD)
Wiring Diagram Ð ASCD Ð (Cont'd)
EL-1112

TEL584B
AUTOMATIC SPEED CONTROL DEVICE (ASCD)
Wiring Diagram Ð ASCD Ð (Cont'd)
EL-1113

TEL467A

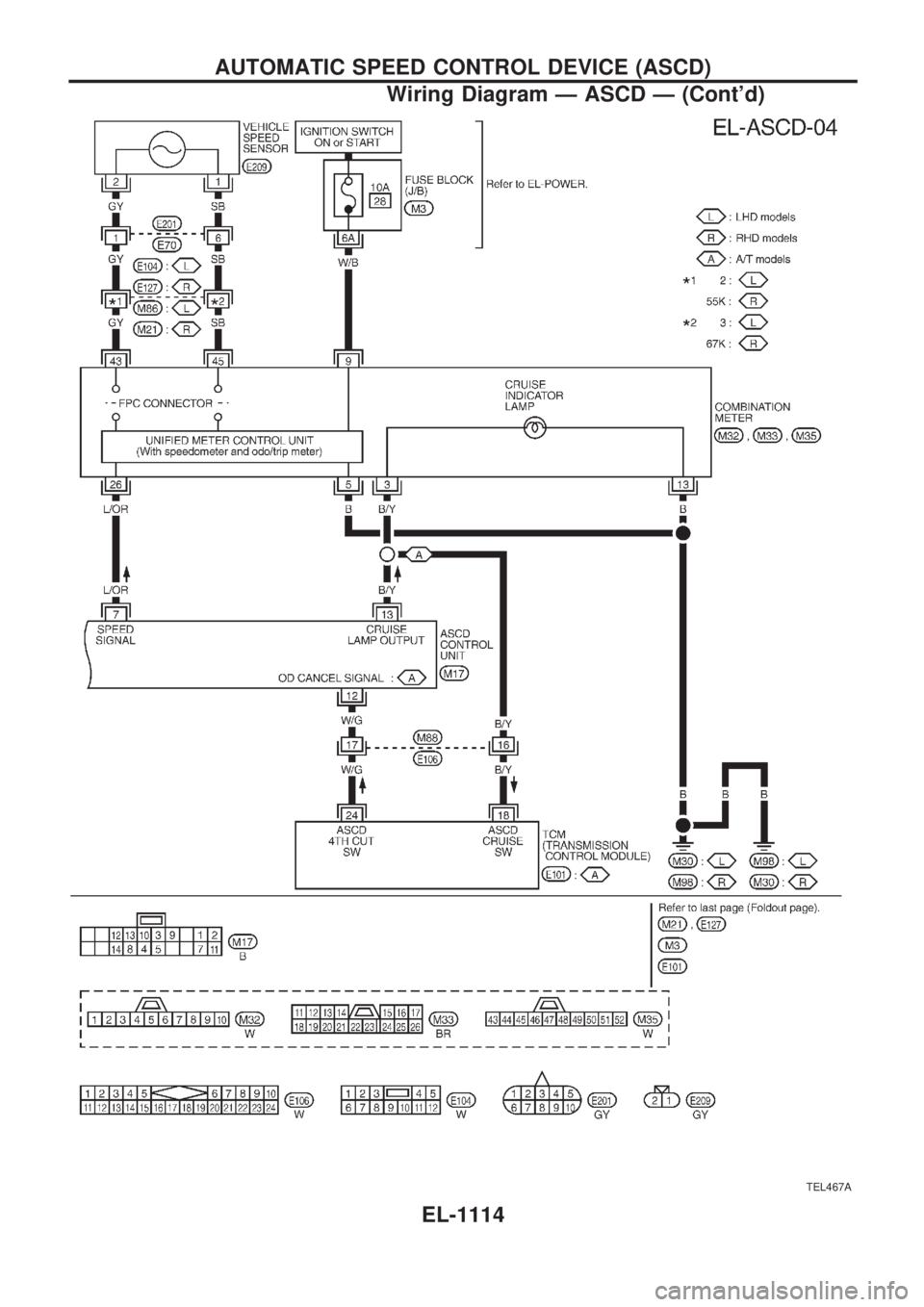

AUTOMATIC SPEED CONTROL DEVICE (ASCD)
Wiring Diagram Ð ASCD Ð (Cont'd)
EL-1114
