2000 NISSAN PATROL Electronic Repair Manual

CEL103M

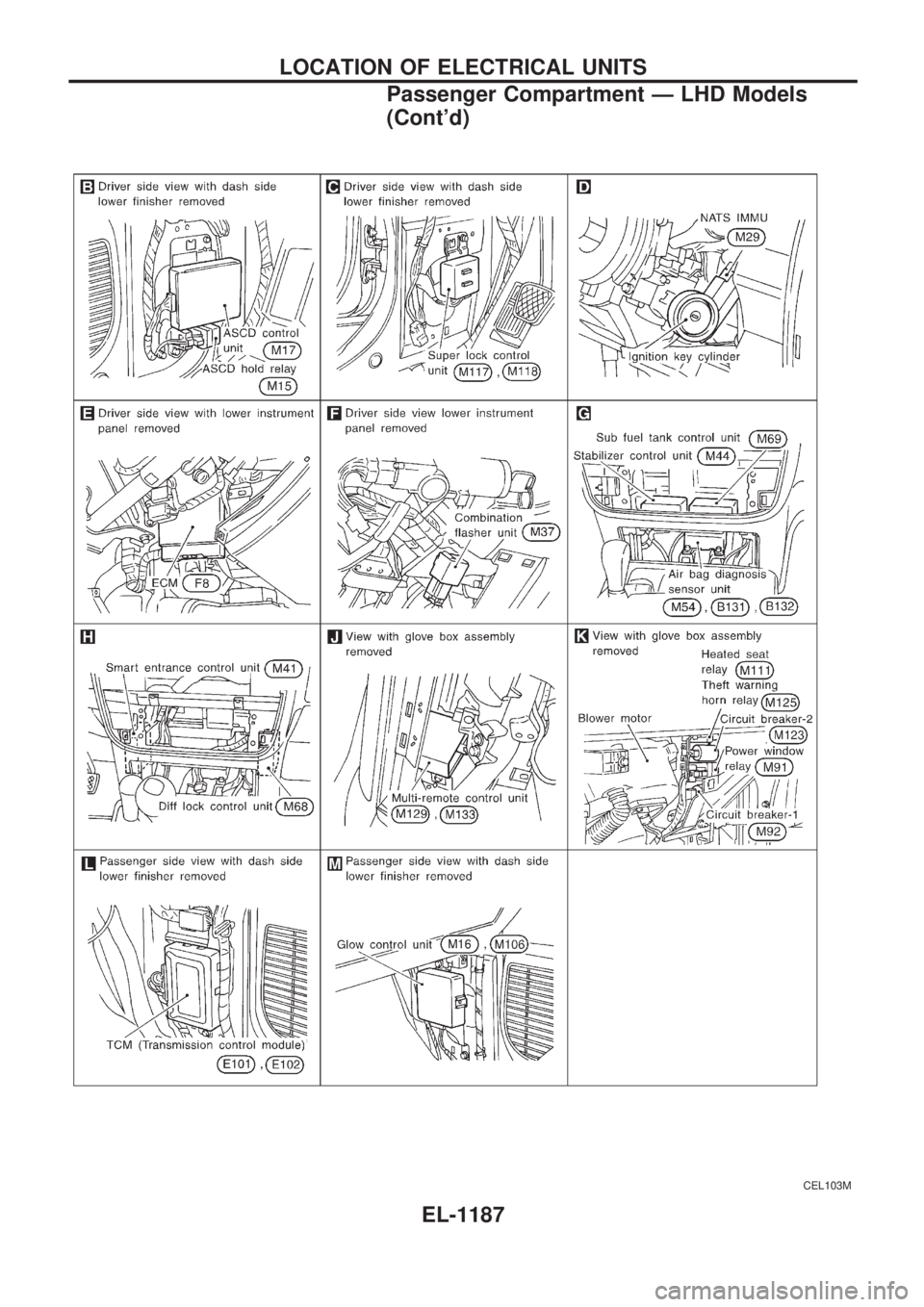

LOCATION OF ELECTRICAL UNITS
Passenger Compartment Ð LHD Models
(Cont'd)
EL-1187

Passenger Compartment Ð RHD Models
CEL104M
LOCATION OF ELECTRICAL UNITS
EL-1188

CEL105M

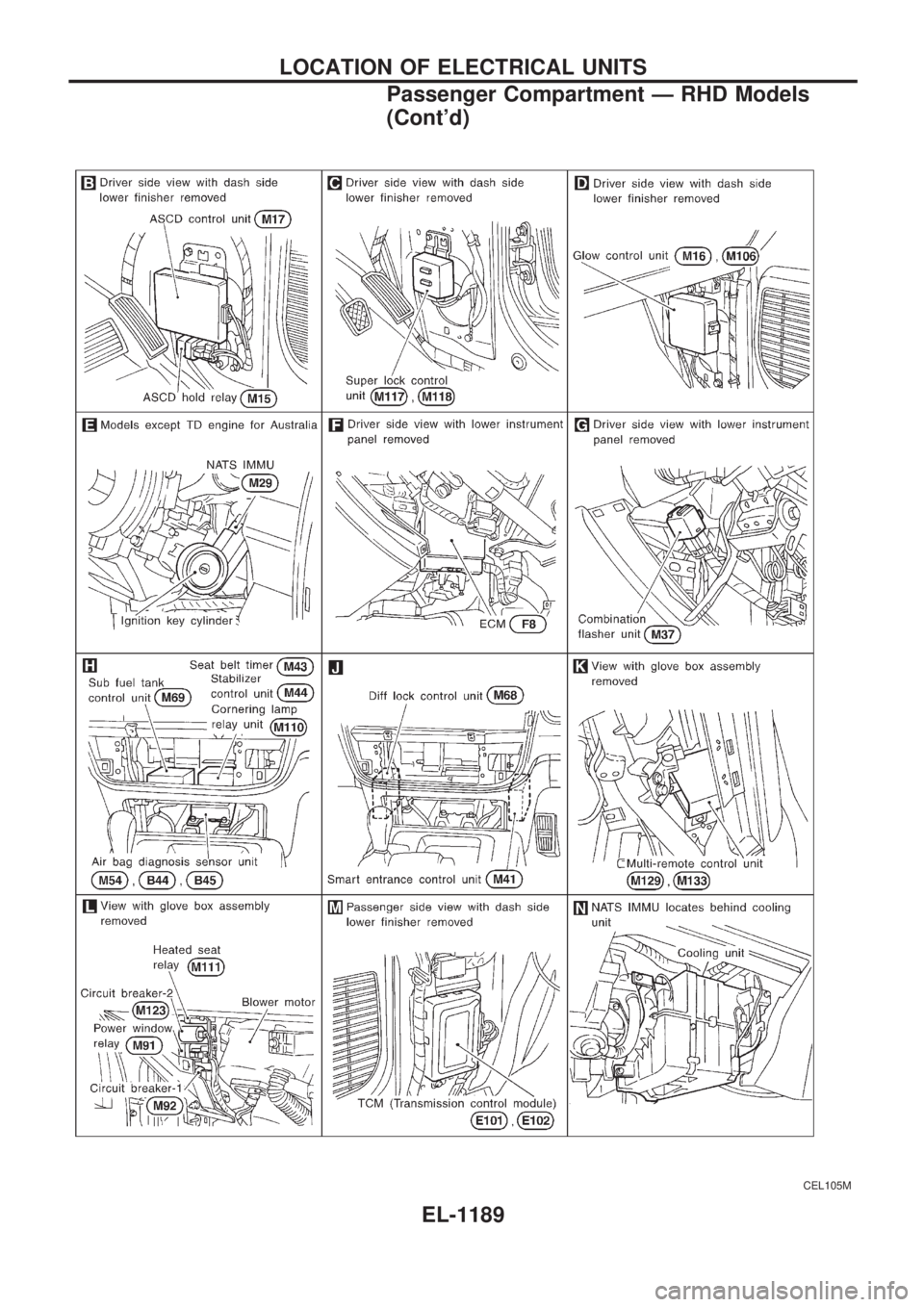

LOCATION OF ELECTRICAL UNITS
Passenger Compartment Ð RHD Models
(Cont'd)
EL-1189

NOTE
LOCATION OF ELECTRICAL UNITS
EL-1190

How to Read Harness Layout
Example:
G2E1B/6: ASCD ACTUATOR
Connector color / Cavity
Connector number
Grid reference
The following Harness Layouts use a map style grid to help locate connectors on the drawings:
+Main Harness
+Engine Room Harness (Engine Compartment)
To use the grid reference
1)Find the desired connector number on the connector list.
2) Find the grid reference.
3) On the drawing, find the crossing of the grid reference letter column and number row.
4) Find the connector number in the crossing zone.
5) Follow the line (if used) to the connector.
CONNECTOR SYMBOL
Main symbols of connector (in Harness Layout) are indicated in the below.
Connector typeWater proof type Standard type
Male Female Male Female
+Cavity: Less than 4
+Relay connector
+Cavity: From 5 to 8
+Cavity: More than 9
ÐÐ
+Ground terminal etc.
Ð

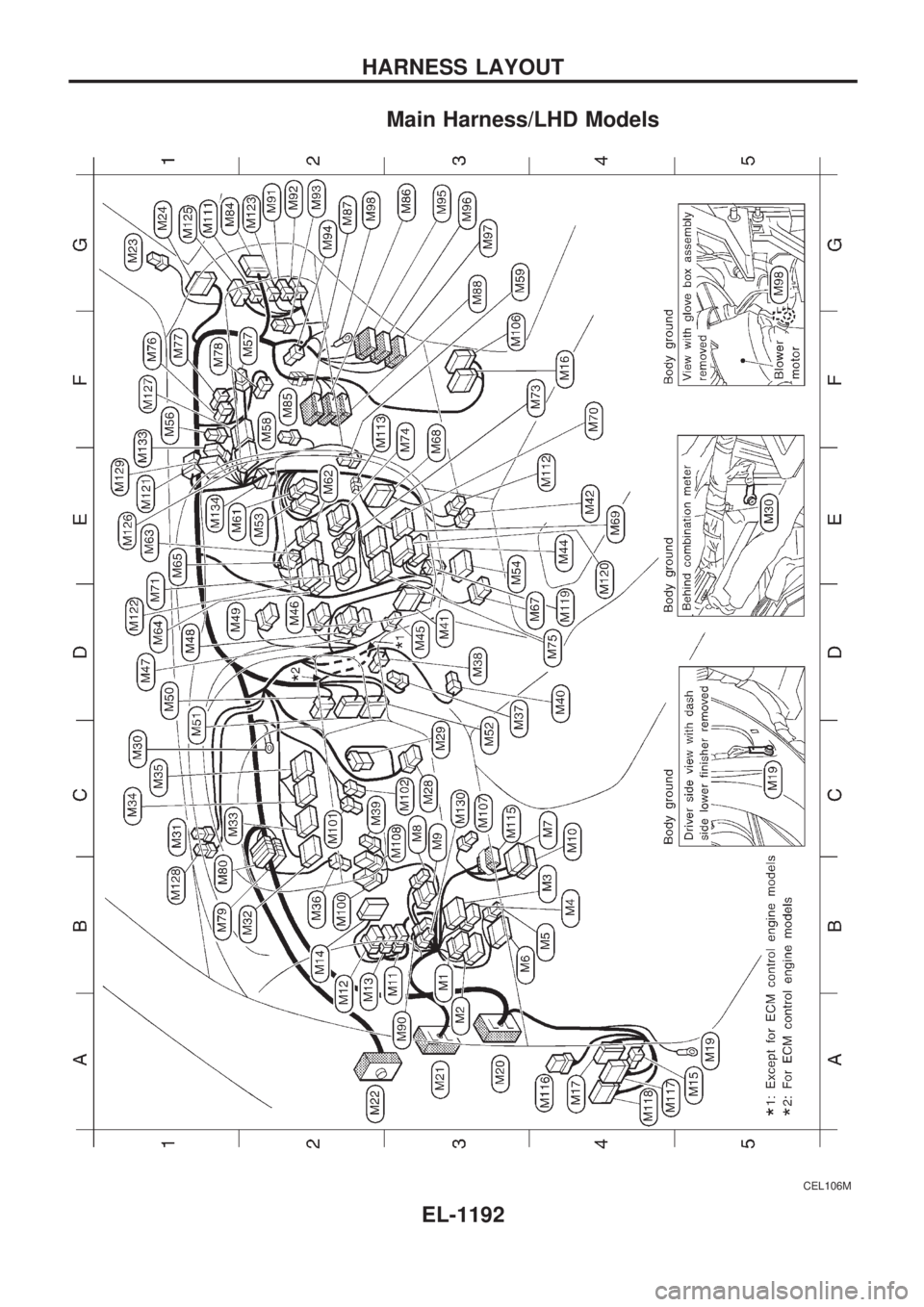

HARNESS LAYOUT
EL-1191

Main Harness/LHD Models
CEL106M
HARNESS LAYOUT
EL-1192

CEL107M

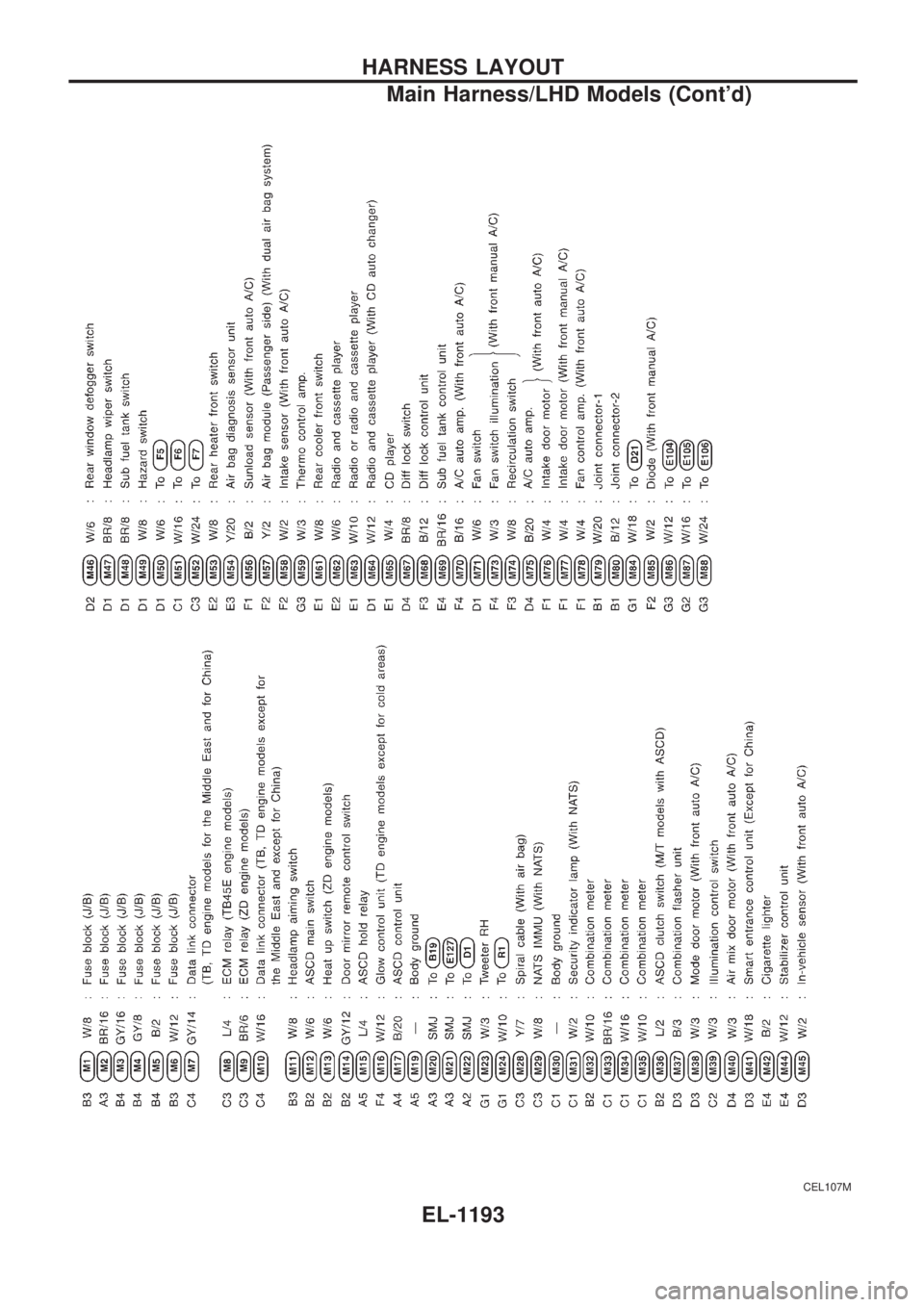

HARNESS LAYOUT
Main Harness/LHD Models (Cont'd)
EL-1193

CEL108M

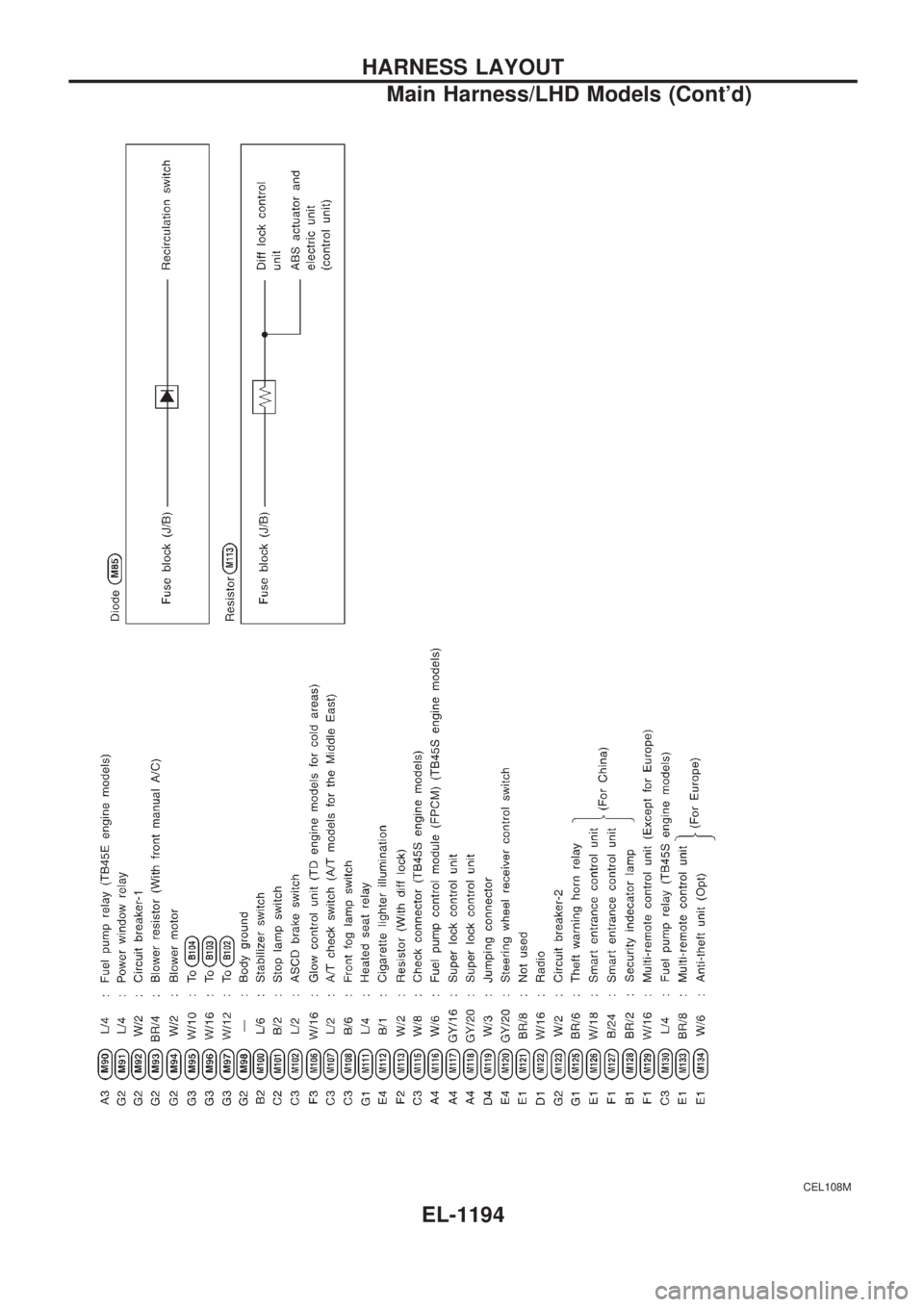

HARNESS LAYOUT
Main Harness/LHD Models (Cont'd)
EL-1194
