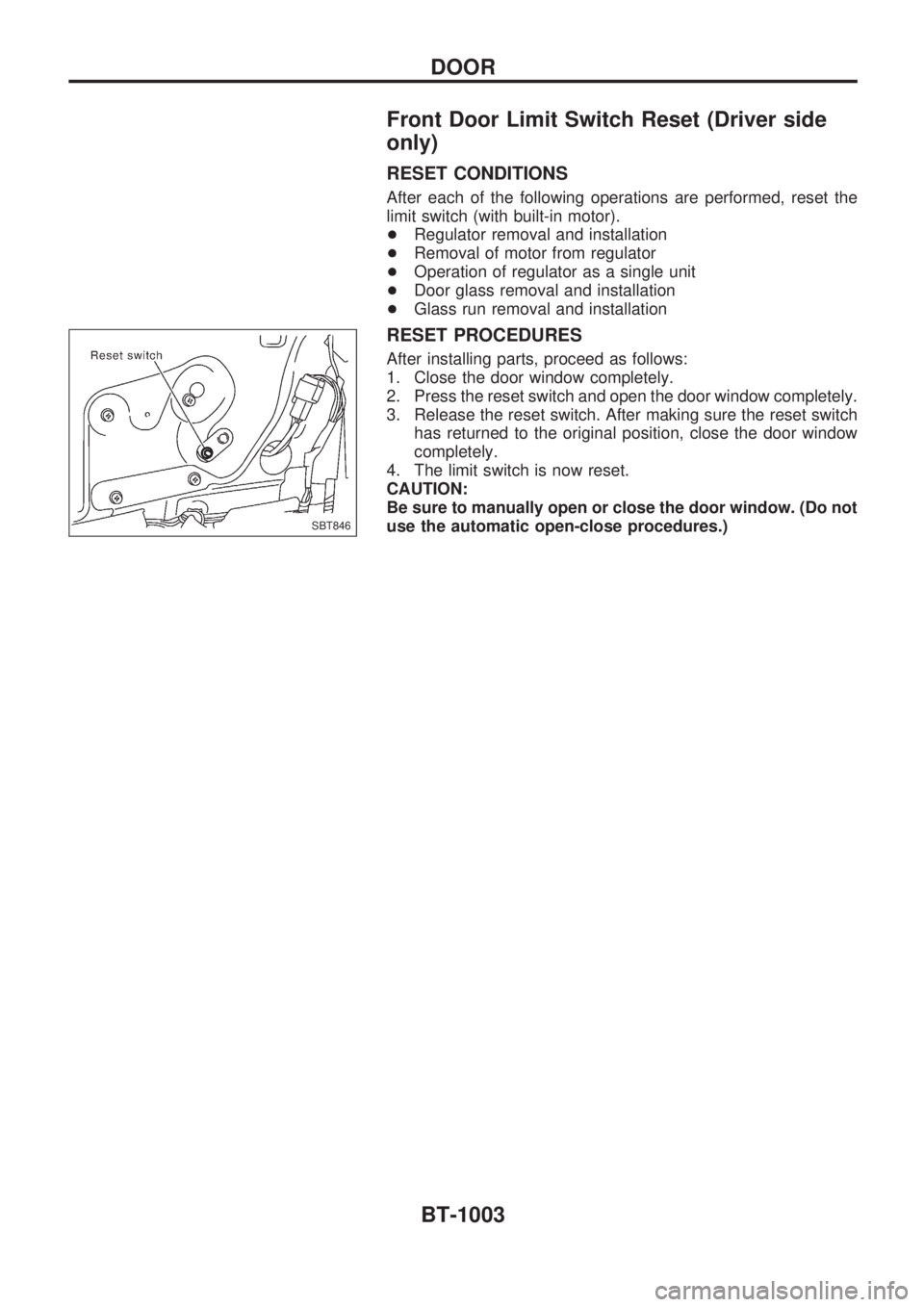

Front Door Limit Switch Reset (Driver side
only)
RESET CONDITIONS
After each of the following operations are performed, reset the
limit switch (with built-in motor).
+Regulator removal and installation
+ Removal of motor from regulator
+ Operation of regulator as a single unit
+ Door glass removal and installation
+ Glass run removal and installation
RESET PROCEDURES
After installing parts, proceed as follows:
1. Close the door window completely.
2. Press the reset switch and open the door window completely.
3. Release the reset switch. After making sure the reset switch
has returned to the original position, close the door window
completely.
4. The limit switch is now reset.
CAUTION:
Be sure to manually open or close the door window. (Do not
use the automatic open-close procedures.)
SBT846
DOOR
BT-1003
Page 226 of 1033
Door Trim
REMOVAL Ð Door trim
V1Remove inner cover from front corner of door. Refer to ªDoor Mirrorº for details, BT-1007.
V2Remove inside handle escutcheon.
V3Remove door armrest.
V4Remove cover and screw securing power window switches, then disconnect the connector.
V5Remove screw securing door trim.
V6Remove clips securing door trim.
V7Lift out door trim.
SBT847
INTERIOR TRIM
BT-1004
Page 227 of 1033

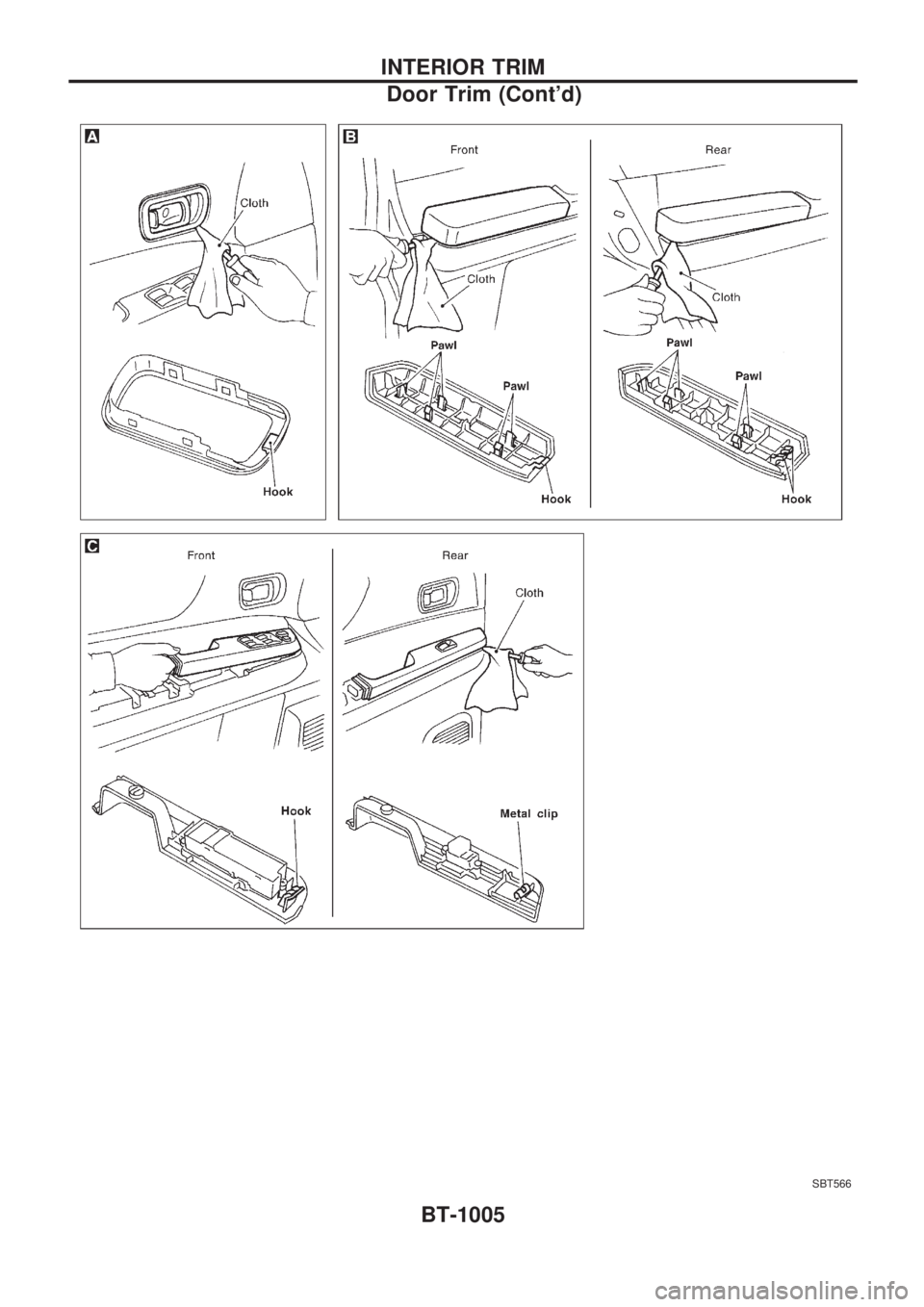

SBT566
INTERIOR TRIM
Door Trim (Cont'd)BT-1005
Page 228 of 1033

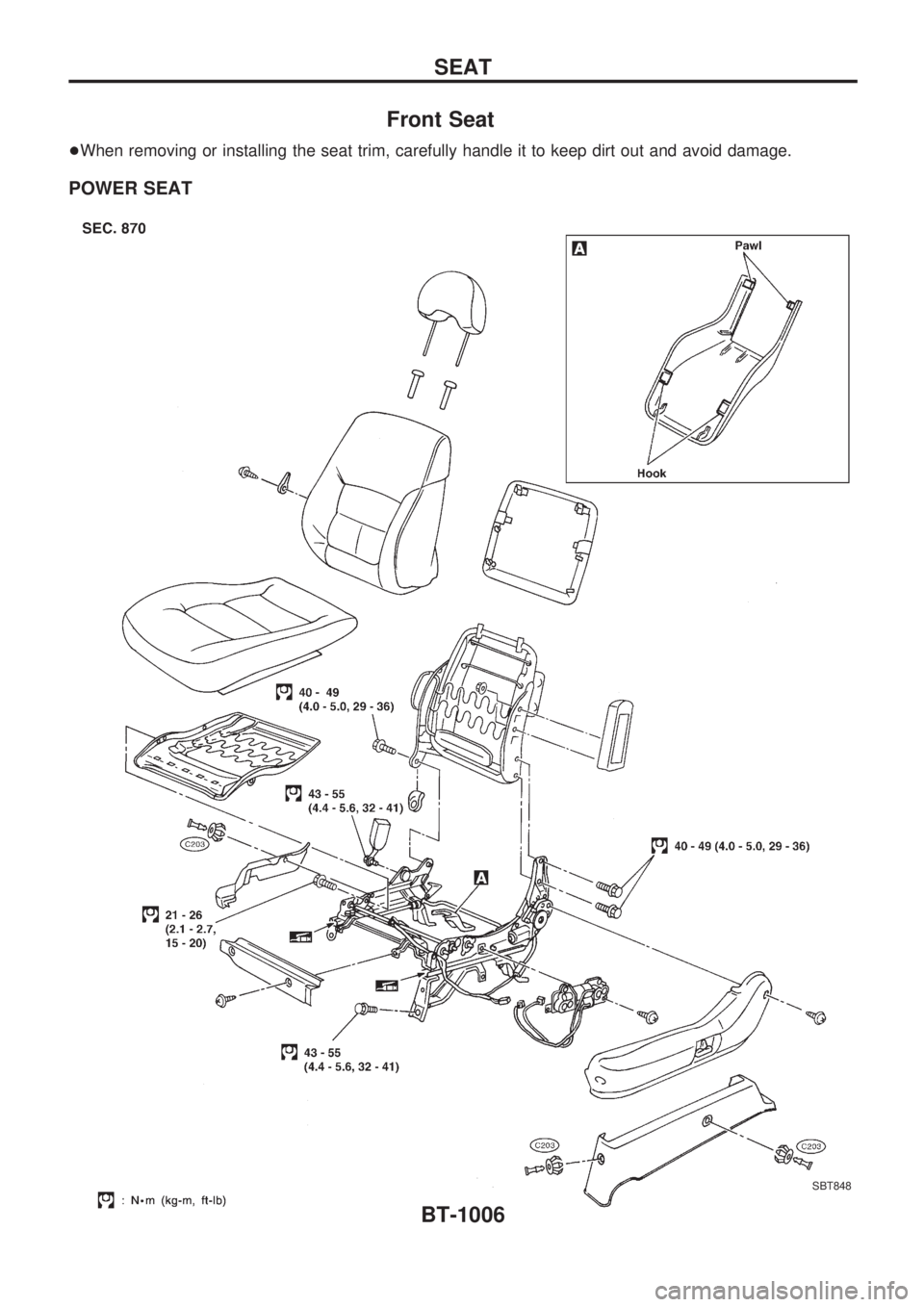

Front Seat
+When removing or installing the seat trim, carefully handle it to keep dirt out and avoid damage.
POWER SEAT
SBT848
SEAT
BT-1006
Page 229 of 1033
Door Mirror
CAUTION:
Be careful not to scratch door rearview mirror body.
HFor Wiring Diagram, refer to ªPOWER DOOR MIRRORº in EL section.
REMOVAL Ð Door mirror
V1Remove clip securing inner cover, then remove inner cover.
V2Remove door trim. Refer to ªDoor Trimº for details, BT-1004.
V3Roll back sealing screen and remove door mirror harness connector.
V4Remove door mirror harness clip.
V5Remove bolts securing door mirror, then remove door mirror assembly.
SBT849
MIRROR
BT-1007
Page 230 of 1033
CLUTCH
SECTION
CL
MODIFICATION NOTICE:
+The ZD30DDTi engine model has been added.
CONTENTS
CLUTCH SYSTEM............................................... 1002
HYDRAULIC CLUTCH CONTROL..................... 1003
Clutch Operating Cylinder................................ 1003
SERVICE DATA AND SPECIFICATIONS
(SDS).................................................................... 1004General Specifications ..................................... 1004
Inspection and Adjustment .............................. 1004
CL
Page 231 of 1033
SCL824

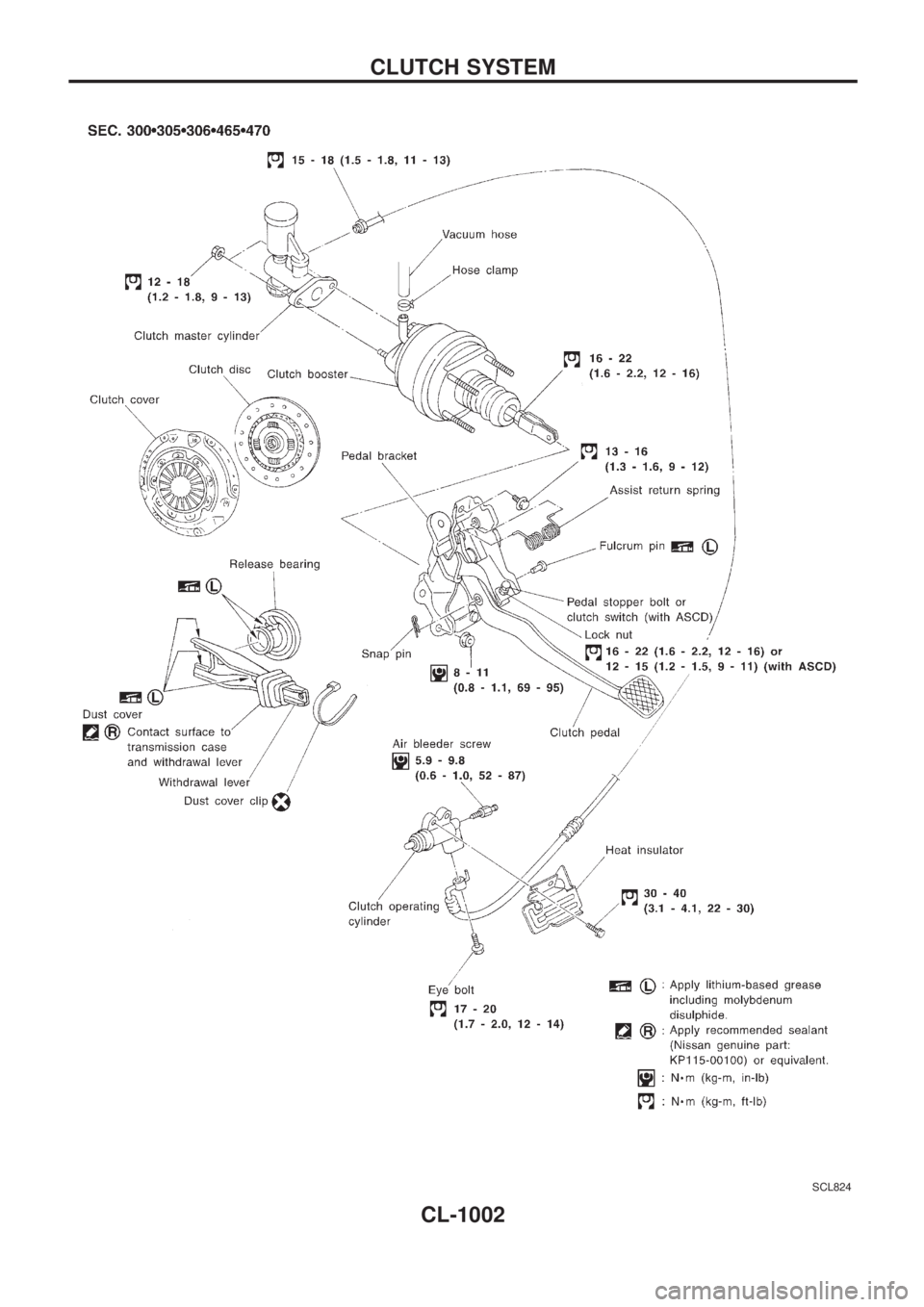

CLUTCH SYSTEM
CL-1002
Page 232 of 1033

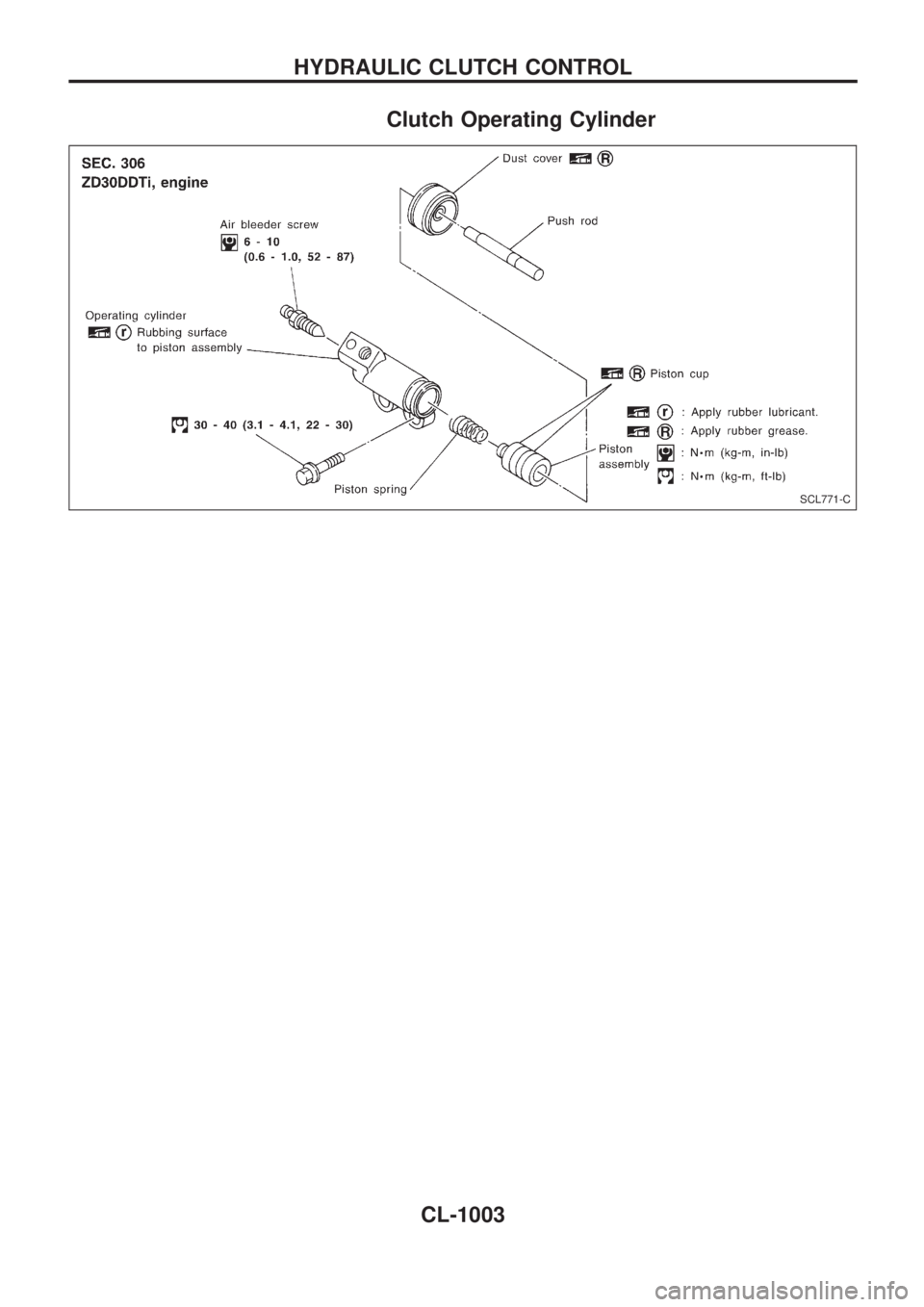

Clutch Operating Cylinder
SCL771-C
HYDRAULIC CLUTCH CONTROL
CL-1003
