Page 641 of 1033
TEL265M

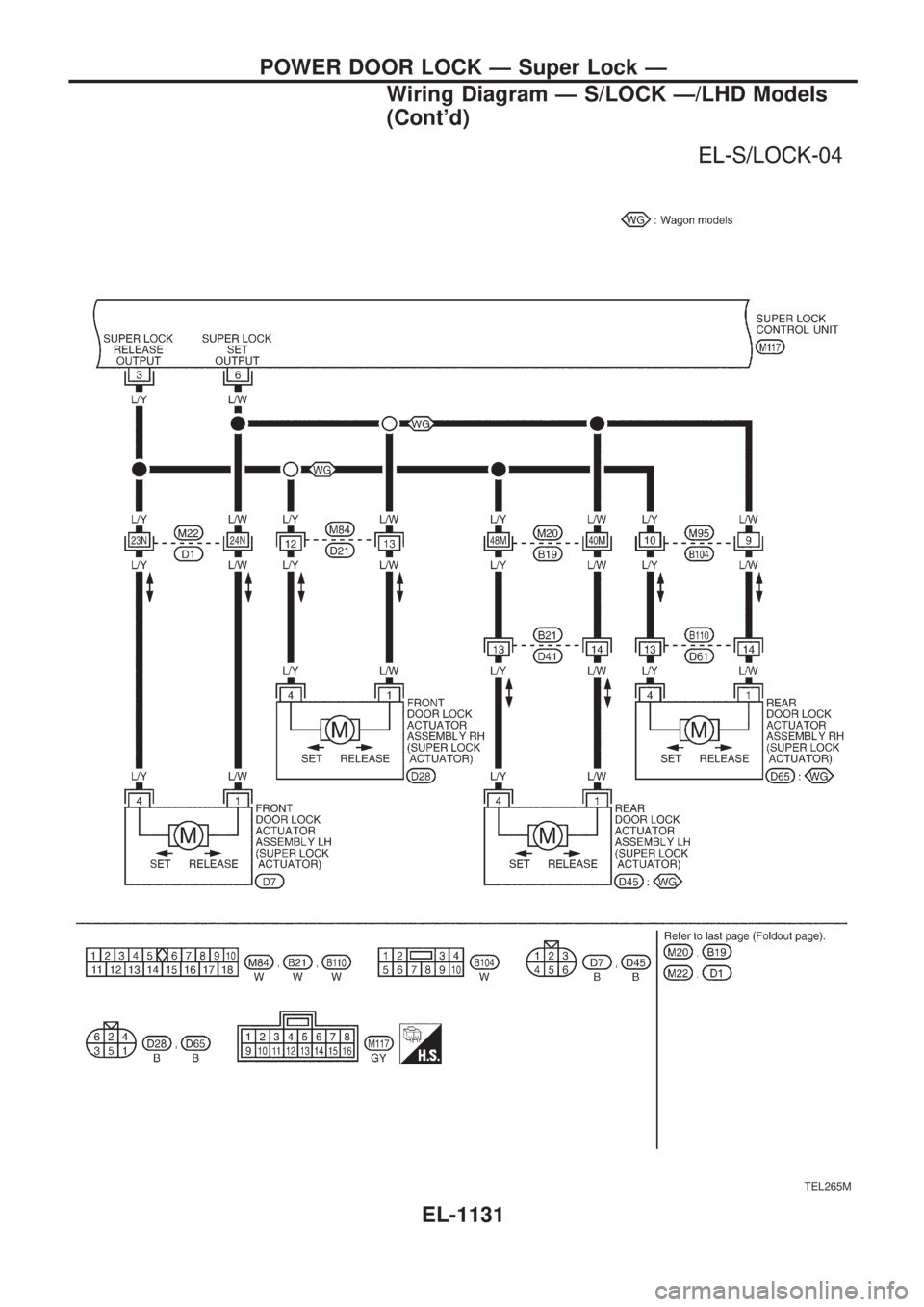

POWER DOOR LOCK Ð Super Lock Ð
Wiring Diagram Ð S/LOCK Ð/LHD Models
(Cont'd)
EL-1131
Page 642 of 1033
TEL266M
POWER DOOR LOCK Ð Super Lock Ð
Wiring Diagram Ð S/LOCK Ð/LHD Models
(Cont'd)
EL-1132
Page 643 of 1033

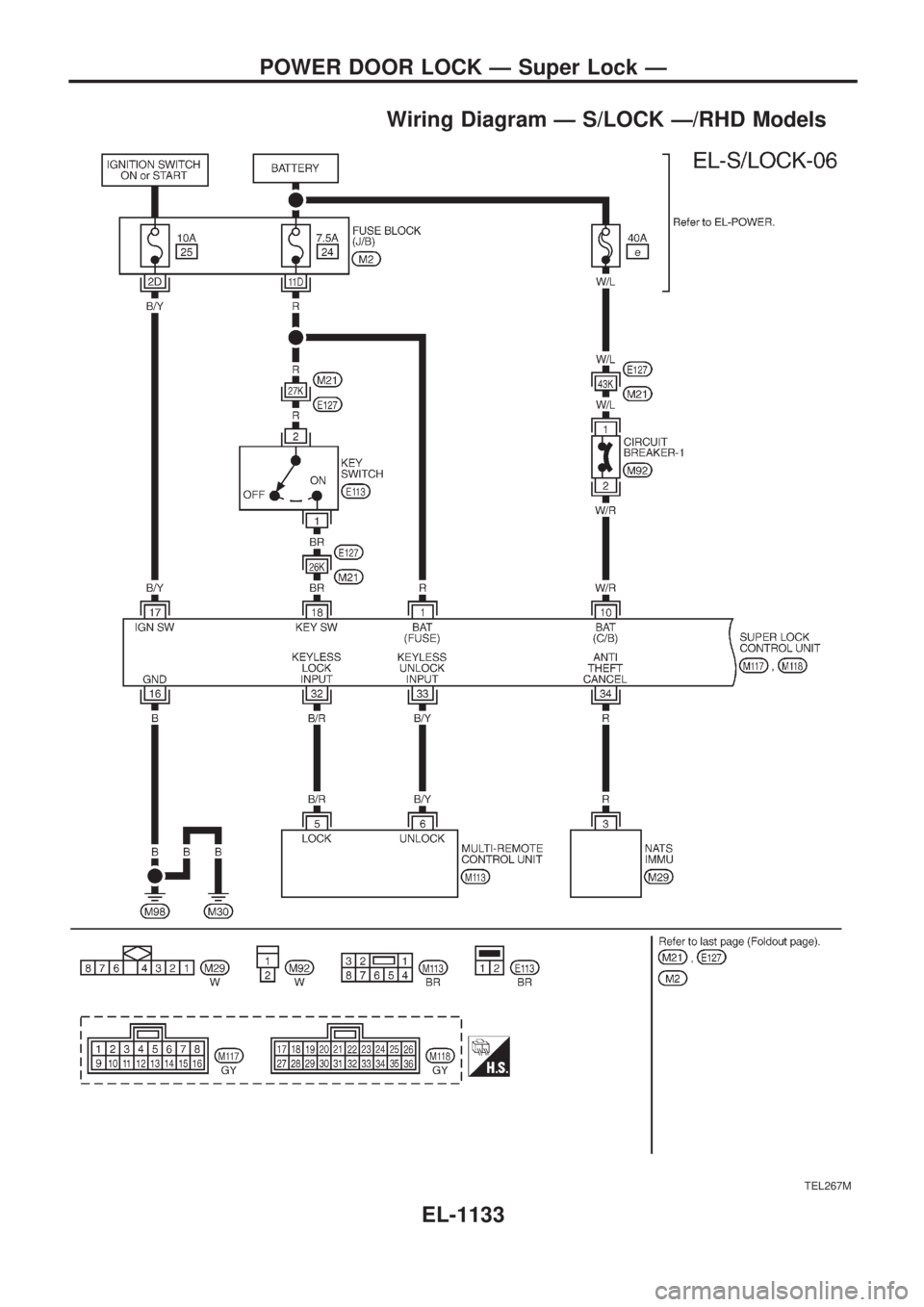

Wiring Diagram Ð S/LOCK Ð/RHD Models
TEL267M
POWER DOOR LOCK Ð Super Lock Ð
EL-1133
Page 644 of 1033
TEL268M
POWER DOOR LOCK Ð Super Lock Ð
Wiring Diagram Ð S/LOCK Ð/RHD Models
(Cont'd)
EL-1134
Page 645 of 1033
TEL269M
POWER DOOR LOCK Ð Super Lock Ð
Wiring Diagram Ð S/LOCK Ð/RHD Models
(Cont'd)
EL-1135
Page 646 of 1033
TEL270M
POWER DOOR LOCK Ð Super Lock Ð
Wiring Diagram Ð S/LOCK Ð/RHD Models
(Cont'd)
EL-1136
Page 647 of 1033
TEL271M
POWER DOOR LOCK Ð Super Lock Ð
Wiring Diagram Ð S/LOCK Ð/RHD Models
(Cont'd)
EL-1137
Page 648 of 1033

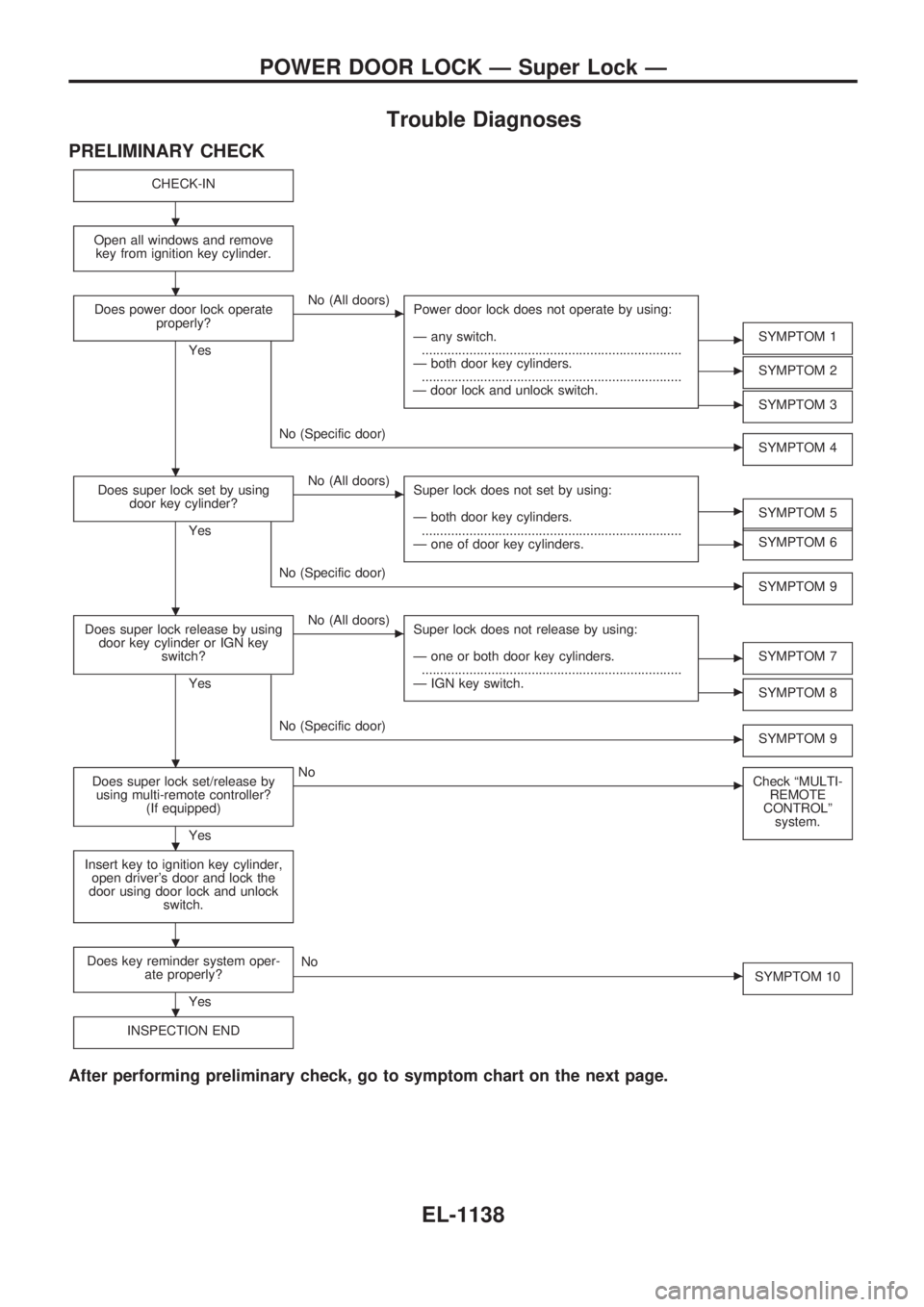

Trouble Diagnoses
PRELIMINARY CHECK
CHECK-IN
Open all windows and remove
key from ignition key cylinder.
Does power door lock operate
properly?
Yes
cNo (All doors)
Power door lock does not operate by using:
Ð any switch.
.......................................................................
Ð both door key cylinders.
.......................................................................
Ð door lock and unlock switch.
cSYMPTOM 1
cSYMPTOM 2
cSYMPTOM 3
cNo (Specific door)
SYMPTOM 4
Does super lock set by using
door key cylinder?
Yes
cNo (All doors)
Super lock does not set by using:
Ð both door key cylinders.
.......................................................................
Ð one of door key cylinders.
cSYMPTOM 5
cSYMPTOM 6
cNo (Specific door)
SYMPTOM 9
Does super lock release by using
door key cylinder or IGN key
switch?
Yes
cNo (All doors)
Super lock does not release by using:
Ð one or both door key cylinders.
.......................................................................
Ð IGN key switch.
cSYMPTOM 7
cSYMPTOM 8
cNo (Specific door)
SYMPTOM 9
Does super lock set/release by
using multi-remote controller?
(If equipped)
Yes
cNo
Check ªMULTI-
REMOTE
CONTROLº
system.
Insert key to ignition key cylinder,
open driver's door and lock the
door using door lock and unlock
switch.
Does key reminder system oper-
ate properly?
Yes
cNo
SYMPTOM 10
INSPECTION END
After performing preliminary check, go to symptom chart on the next page.
.
.
.
.
.
.
.
.
POWER DOOR LOCK Ð Super Lock Ð
EL-1138
