Page 585 of 1033

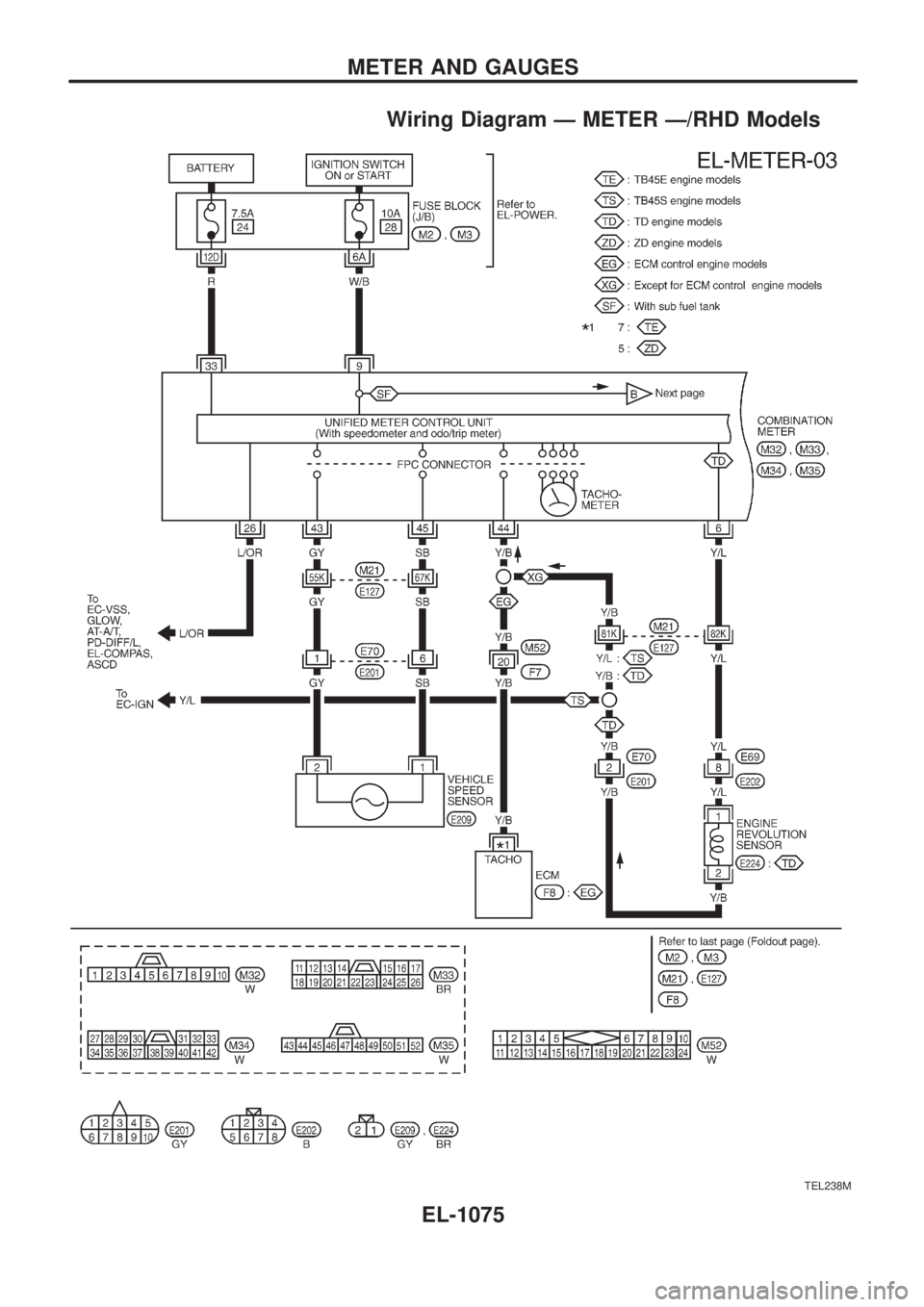

Wiring Diagram Ð METER Ð/RHD Models
TEL238M
METER AND GAUGES
EL-1075
Page 586 of 1033
TEL239M
METER AND GAUGES

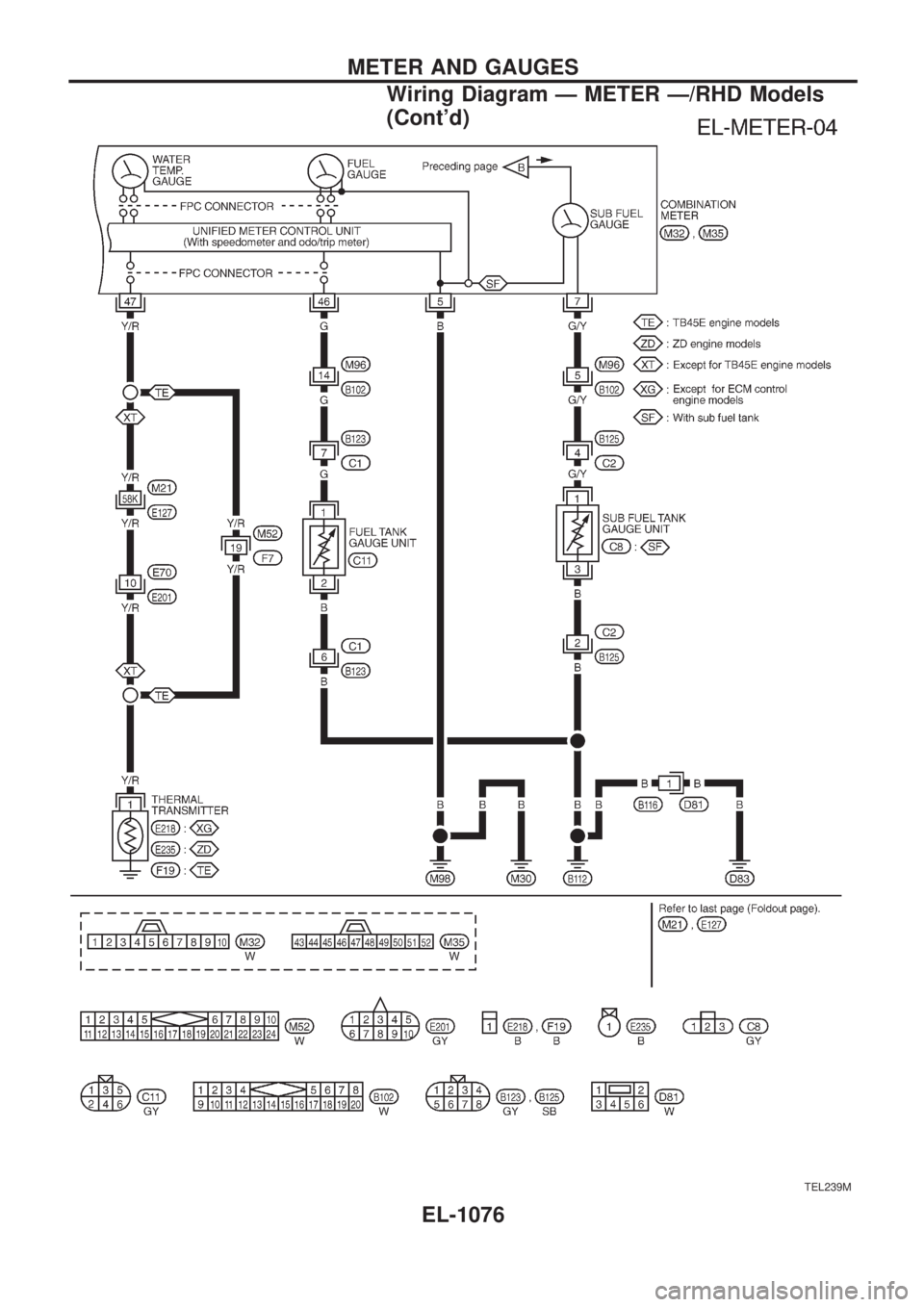

Wiring Diagram Ð METER Ð/RHD Models
(Cont'd)
EL-1076
Page 587 of 1033
NOTE
METER AND GAUGES
EL-1077
Page 588 of 1033

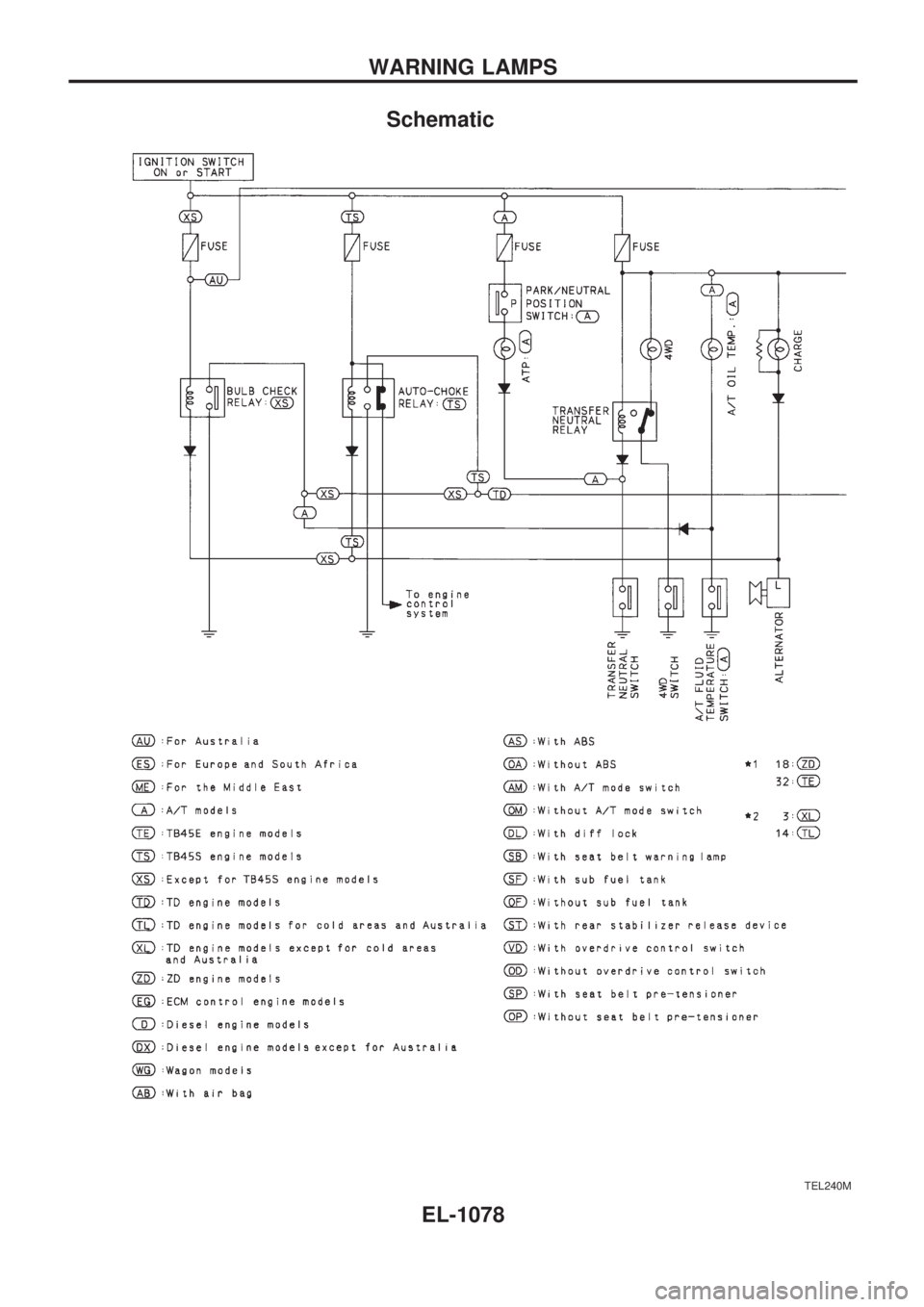

Schematic
TEL240M
WARNING LAMPS
EL-1078
Page 589 of 1033
TEL241M
WARNING LAMPS

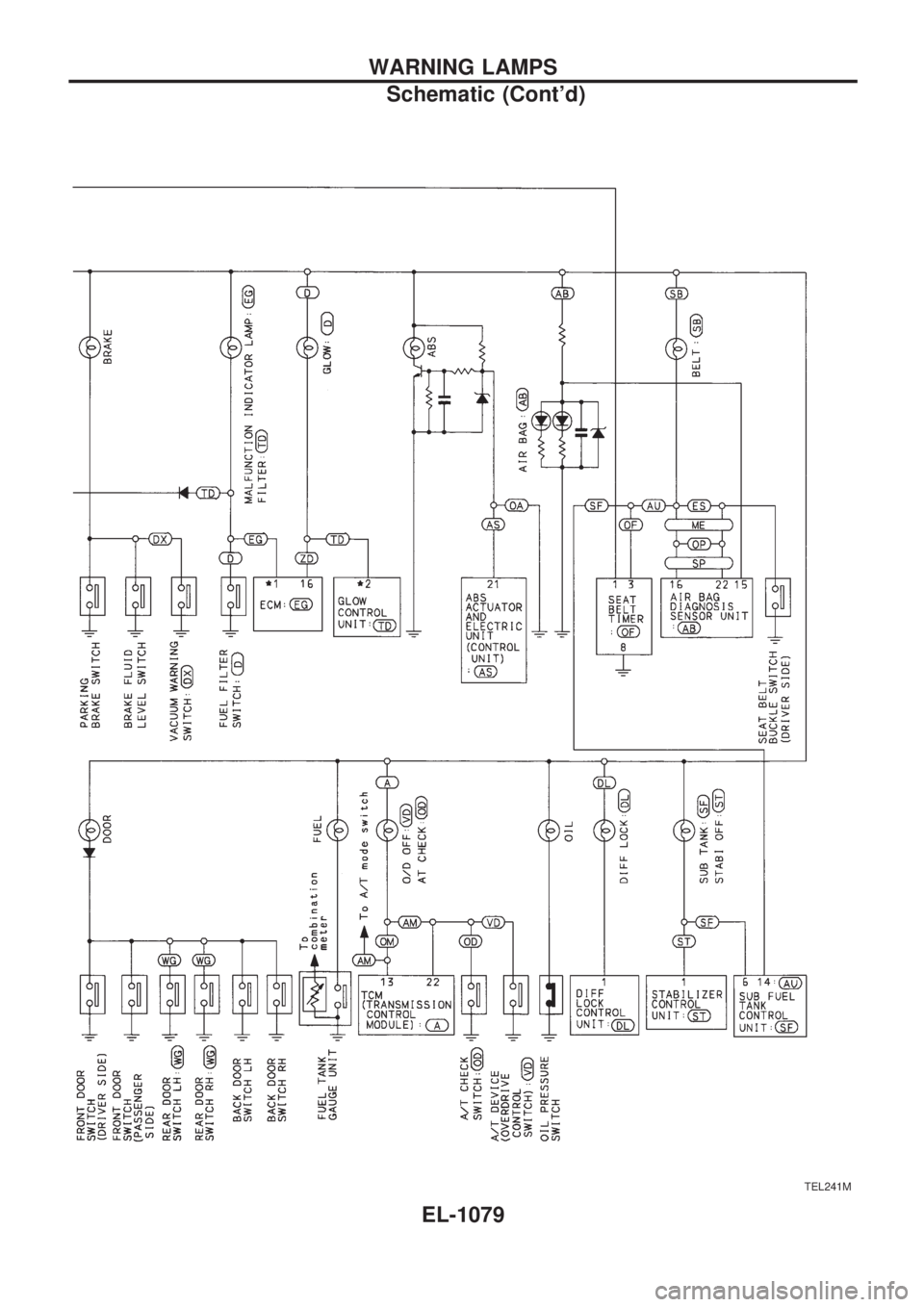

Schematic (Cont'd)
EL-1079
Page 590 of 1033

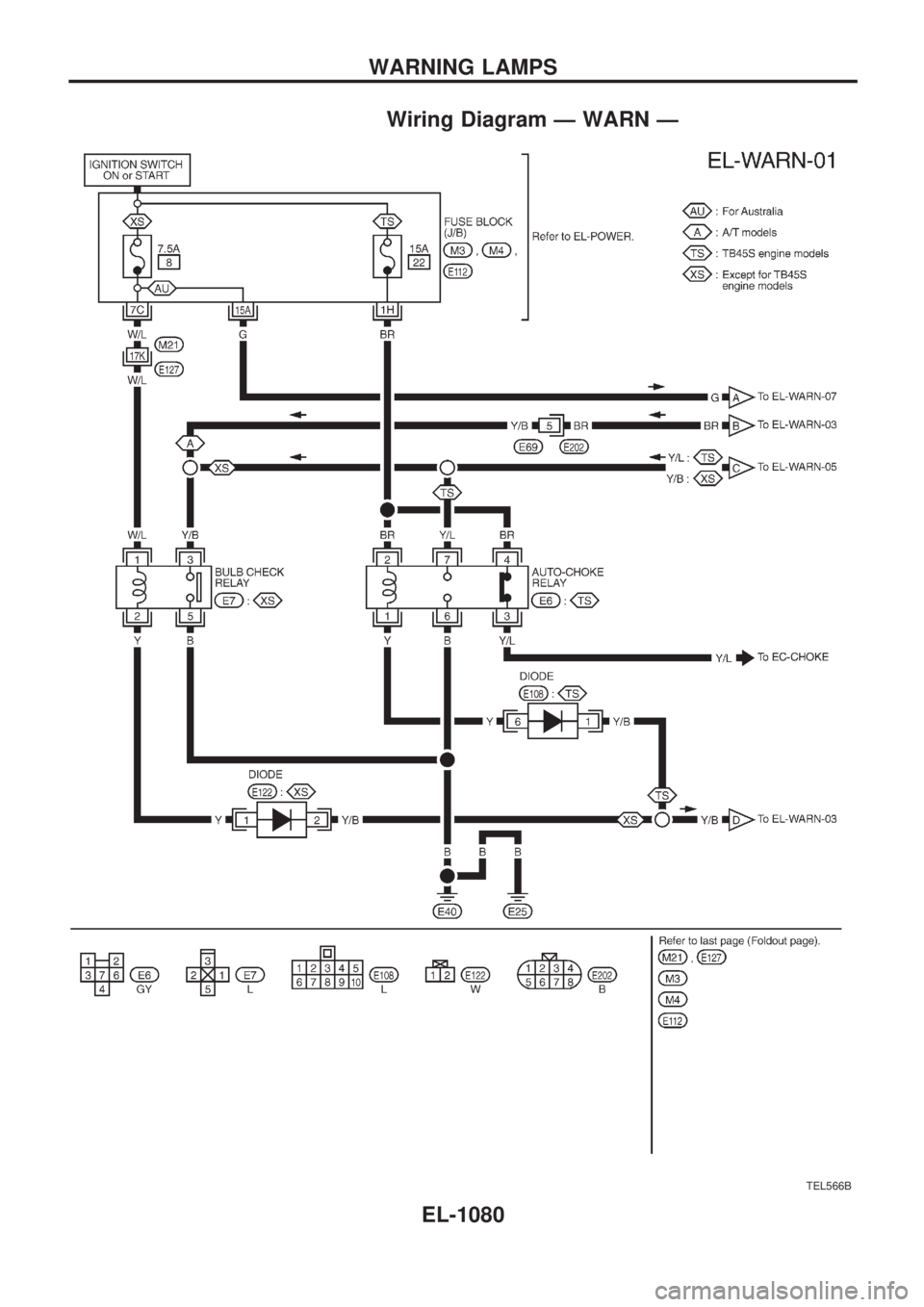

Wiring Diagram Ð WARN Ð
TEL566B
WARNING LAMPS
EL-1080
Page 591 of 1033
TEL567B
WARNING LAMPS
Wiring Diagram Ð WARN Ð (Cont'd)
EL-1081
Page 592 of 1033
TEL242M
WARNING LAMPS
Wiring Diagram Ð WARN Ð (Cont'd)
EL-1082
