7. Install oil pump assembly.
a. Install needle bearing on oil pump assembly.
+Apply petroleum jelly to the needle bearing.
b. Install selected thrust washer on oil pump assembly.
+Apply petroleum jelly to thrust washer.
c. Carefully install seal rings into grooves and press them into
the petroleum jelly so that they are a tight fit.
d. Install O-ring on oil pump assembly.
+Apply petroleum jelly to O-ring.
e. Apply petroleum jelly to mating surface of transmission case
and oil pump assembly.
f. Install oil pump assembly.
+Install two converter housing securing bolts in bolt
holes in oil pump assembly as guides.
SAT989A
SAT990A
SAT991A
SAT992A
SAT993A
ASSEMBLY
Assembly (2) (Cont'd)
AT-1199

+Insert oil pump assembly to the specified position in
transmission, as shown at left.
8. Install O-ring on input shaft.
+Apply ATF to O-rings.
9. Install converter housing.
a. Apply recommended sealant (Nissan genuine part: KP610-
00250 or equivalent) to outer periphery of bolt holes in con-
verter housing.
+Do not apply too much sealant.
b. Apply recommended sealant (Nissan genuine part: KP610-
00250 or equivalent) to seating surfaces of bolts that secure
front of converter housing.
c. Install converter housing on transmission case.
10. Adjust brake band.
a. Tighten anchor end pin to specified torque.
Anchor end pin:
: 3.9 - 5.9 Nzm
(0.4 - 0.6 kg-m, 35 - 52 in-lb)
b. Back off anchor end pin two and a half turns.
SAT994A
SAT114B
SAT279J
SAT280J
SAT001B
ASSEMBLY
Assembly (2) (Cont'd)
AT-1200

c. While holding anchor end pin, tighten lock nut.

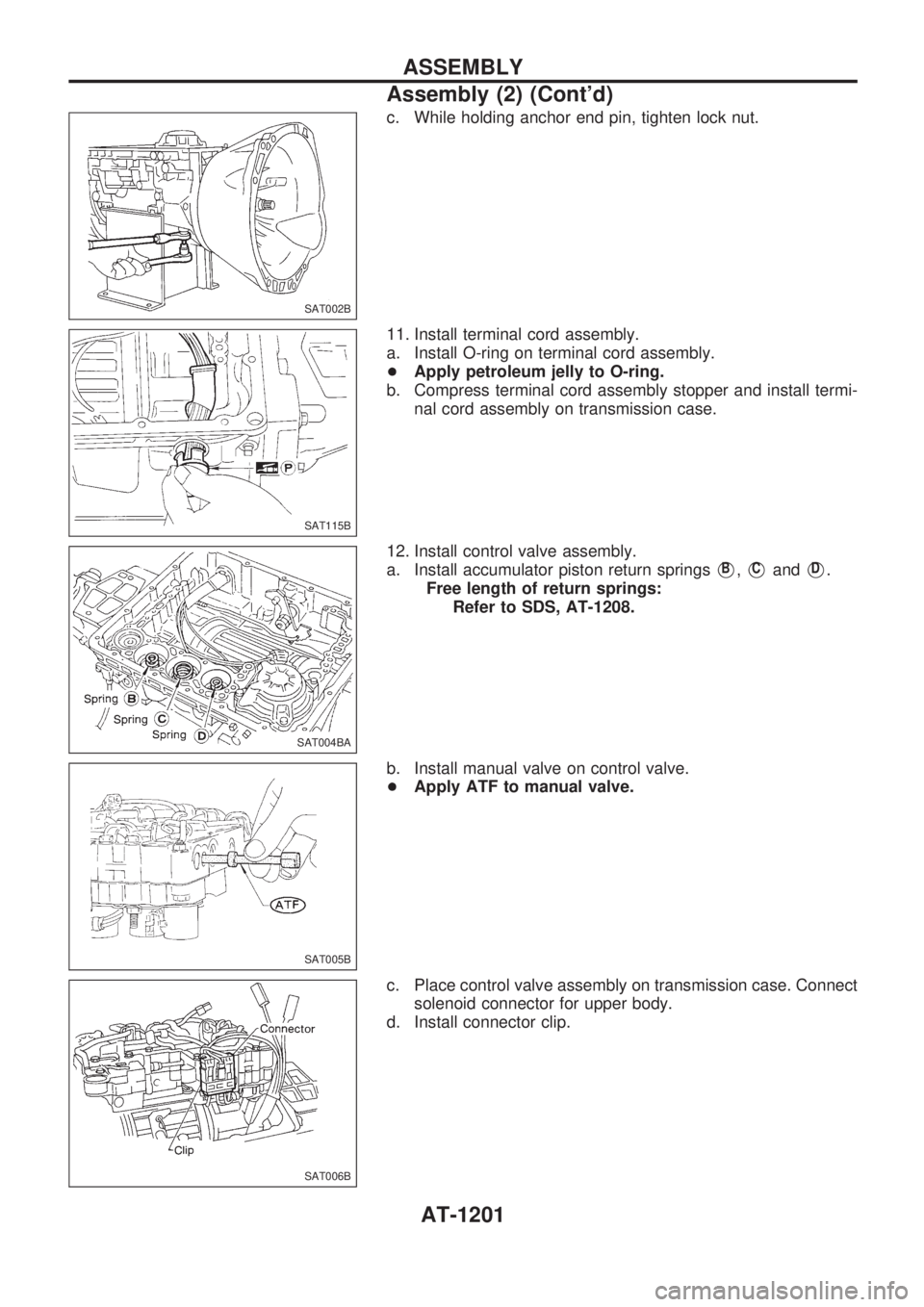

11. Install terminal cord assembly.
a. Install O-ring on terminal cord assembly.
+Apply petroleum jelly to O-ring.
b. Compress terminal cord assembly stopper and install termi-
nal cord assembly on transmission case.
12. Install control valve assembly.
a. Install accumulator piston return springs
VB,VCandVD.
Free length of return springs:
Refer to SDS, AT-1208.
b. Install manual valve on control valve.
+Apply ATF to manual valve.
c. Place control valve assembly on transmission case. Connect
solenoid connector for upper body.
d. Install connector clip.
SAT002B
SAT115B
SAT004BA
SAT005B
SAT006B
ASSEMBLY
Assembly (2) (Cont'd)
AT-1201

e. Install control valve assembly on transmission case.
f. Install connector tube brackets and tighten bolts
VAandVB.
+Check that terminal assembly does not catch.
Bolt symbol!mm (in)
VA33 (1.30)
VB45 (1.77)
g. Install O-ring on oil strainer.
+Apply petroleum jelly to O-ring.
h. Install oil strainer on control valve.
i. Securely fasten terminal harness with clips.
j. Install torque converter clutch solenoid valve and A/T fluid
temperature sensor connectors.
SAT353B
SAT221B
SAT009B
SAT010B
ASSEMBLY
Assembly (2) (Cont'd)
AT-1202

13. Install oil pan.
a. Attach a magnet to oil pan.
b. Install new oil pan gasket on transmission case.
c. Install oil pan and bracket on transmission case.
+Always replace oil pan bolts as they are self-sealing
bolts.
+Before installing bolts, remove traces of sealant and oil
from mating surface and thread holes.
+Tighten four bolts in a criss-cross pattern to prevent
dislocation of gasket.
d. Tighten drain plug.
14. Install PNP switch.
a. Check that manual shaft is in ª1º position.
b. Temporarily install PNP switch on manual shaft.
c. Move manual shaft to ªNº.
d. Tighten bolts while inserting 4.0 mm (0.157 in) dia. pin ver-
tically into locating holes in PNP switch and manual shaft.
15. Install torque converter.
a. Pour ATF into torque converter.
+Approximately 2 liters (1-3/4 Imp qt) of fluid are required
for a new torque converter.
+When reusing old torque converter, add the same
amount of fluid as was drained.
SAT011B
SAT601B
SAT299I
SAT014B
SAT428DA
ASSEMBLY
Assembly (2) (Cont'd)
AT-1203

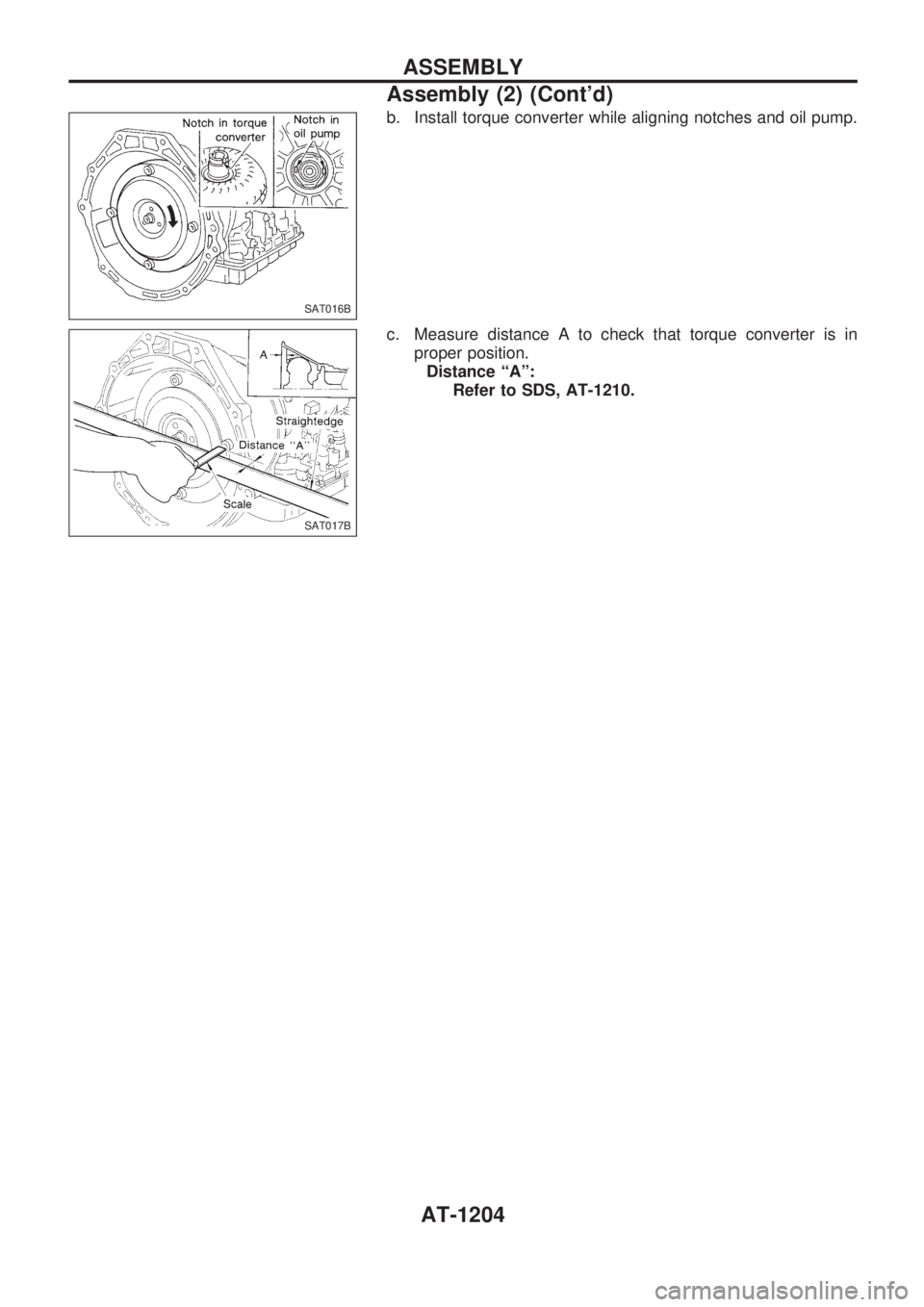

b. Install torque converter while aligning notches and oil pump.
c. Measure distance A to check that torque converter is in
proper position.
Distance ªAº:
Refer to SDS, AT-1210.
SAT016B
SAT017B
ASSEMBLY
Assembly (2) (Cont'd)
AT-1204

A/T Fluid Cooler
REMOVAL AND INSTALLATION
1. Remove front radiator grill. Refer to BT section (ªBODY
ENDº).
2. Disconnect fluid hoses from A/T fluid cooler unit.
3. Remove A/T fluid cooler unit.
4. Remove A/T fluid cooler upper and lower brackets.
5. Remove clips securing fluid hose (A/T fluid cooler unit to
radiator) and loosen hose clamps, then remove the fluid
hose.
6. Loosen clamps securing fluid hose (A/T assembly to A/T fluid
cooler unit), then remove the fluid hose.
7. Remove bolts securing A/T fluid cooler tube bracket.
8. Remove fluid hose with bracket.
+Reverse the removal procedure to install the A/T fluid cooler
unit. Refer to the component drawing and specified tighten-
ing torque.
+Check A/T fluid level and refill if necessary. Refer to MA
section (ªCHASSIS AND BODY MAINTENANCEº).
SAT959J
A/T FLUID COOLER SYSTEM
AT-1205

General Specifications
Engine ZD30DDTi
Automatic transmission
modelRE4R03A
Transmission model
code number57X17
Stall torque ratio 2.0 : 1
Transmission gear ratio
1st 2.784
2nd 1.544
Top 1.000
OD 0.694
Reverse 2.275
Recommended fluid Genuine Nissan ATF or equivalent*
Fluid capacity
!(Imp qt)11.8 (10-3/8)
*: Refer to MA section (ªFluids and Lubricantsº, ªRECOMMENDED
FLUIDS AND LUBRICANTSº).
Specifications and Adjustment
SHIFT SCHEDULE
Vehicle speed when shifting gears
Throttle posi-
tionShift patternVehicle speed km/h (MPH)
D
1®D2D2®D3D3®D4D4®D3D3®D2D2®D112®11
Full throttleStandard36-46
(22 - 29)72-80
(45 - 50)117 - 127
(73 - 79)113 - 123
(70 - 76)65-73
(40 - 45)33-37
(21 - 23)36-46
(22 - 29)
Power36-46
(22 - 29)72-80
(45 - 50)117 - 127
(73 - 79)113 - 123
(70 - 76)65-73
(40 - 45)33-37
(21 - 23)36-46
(22 - 29)
Half throttleStandard36-46
(22 - 29)72-80
(45 - 50)117 - 127
(73 - 79)113 - 123
(70 - 76)65-73
(40 - 45)33-37
(21 - 23)36-46
(22 - 29)
Power36-46
(22 - 29)72-80
(45 - 50)117 - 127
(73 - 79)113 - 123
(70 - 76)65-73
(40 - 45)33-37
(21 - 23)36-46
(22 - 29)
SERVICE DATA AND SPECIFICATIONS (SDS)
