2000 NISSAN PATROL Electronic Repair Manual

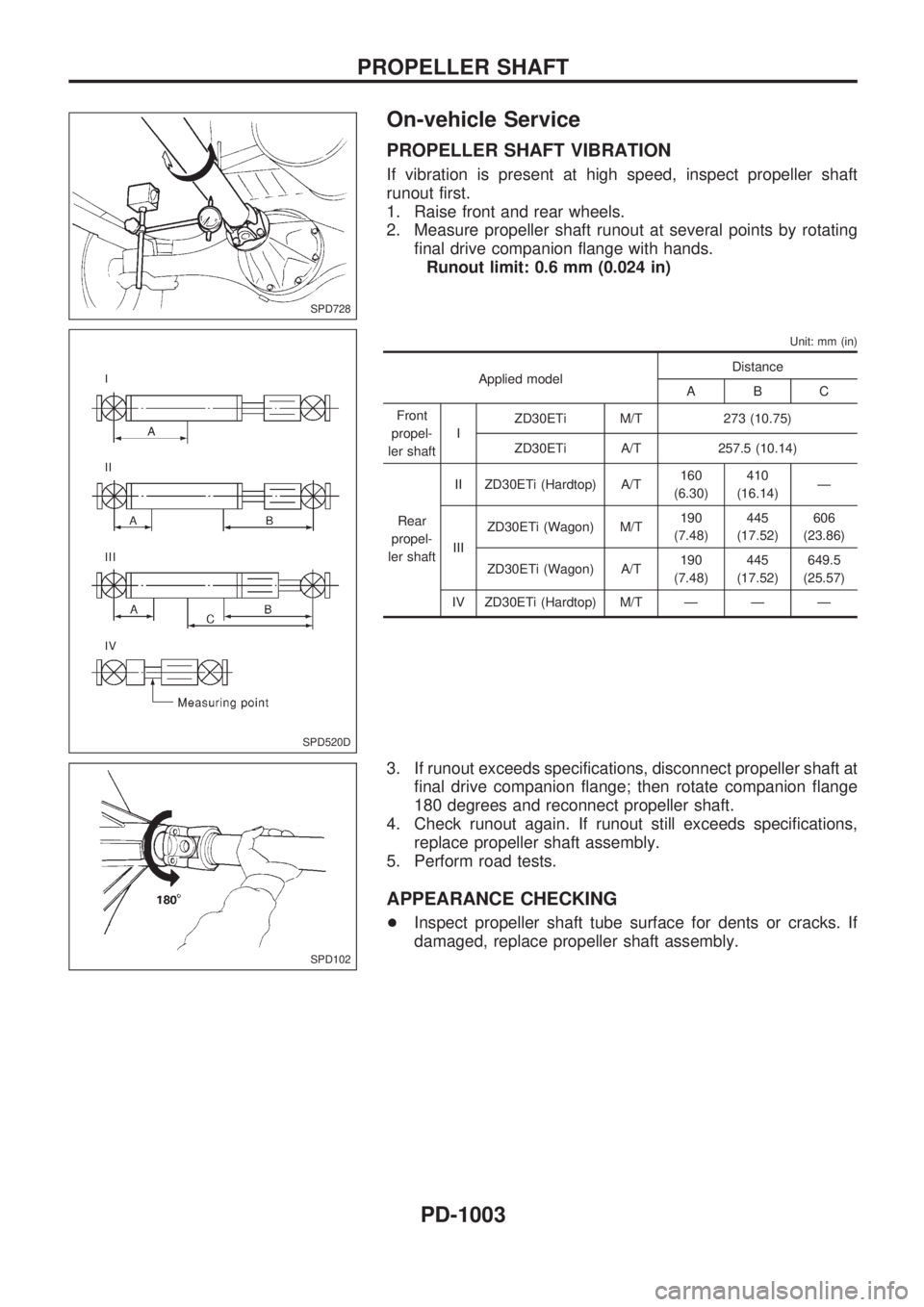

On-vehicle Service
PROPELLER SHAFT VIBRATION
If vibration is present at high speed, inspect propeller shaft
runout first.
1. Raise front and rear wheels.
2. Measure propeller shaft runout at several points by rotatingfinal drive companion flange with hands.Runout limit: 0.6 mm (0.024 in)
Unit: mm (in)
Applied model Distance
ABC
Front
propel-
ler shaft I
ZD30ETi M/T 273 (10.75)
ZD30ETi A/T 257.5 (10.14)
Rear
propel-
ler shaft II ZD30ETi (Hardtop) A/T
160
(6.30) 410
(16.14) Ð
III ZD30ETi (Wagon) M/T
190
(7.48) 445
(17.52) 606
(23.86)
ZD30ETi (Wagon) A/T 190
(7.48) 445
(17.52) 649.5
(25.57)
IV ZD30ETi (Hardtop) M/T Ð Ð Ð
3. If runout exceeds specifications, disconnect propeller shaft at final drive companion flange; then rotate companion flange
180 degrees and reconnect propeller shaft.
4. Check runout again. If runout still exceeds specifications, replace propeller shaft assembly.
5. Perform road tests.
APPEARANCE CHECKING
+ Inspect propeller shaft tube surface for dents or cracks. If
damaged, replace propeller shaft assembly.
SPD728
SPD520D
SPD102
PROPELLER SHAFT
PD-1003

SPD436AA
FRONT FINAL DRIVE
PD-1004

SPD437AA
REAR FINAL DRIVE
PD-1005

Wiring Diagram Ð DIFF/L Ð/LHD Models
TPD013
DIFFERENTIAL LOCK
PD-1006

TPD018
DIFFERENTIAL LOCK
Wiring Diagram Ð DIFF/L Ð/LHD Models
(Cont'd)PD-1007

Wiring Diagram Ð DIFF/L Ð/RHD Models
TPD016
DIFFERENTIAL LOCK
PD-1008

TPD001M
DIFFERENTIAL LOCK
Wiring Diagram Ð DIFF/L Ð/RHD Models
(Cont'd)PD-1009

Propeller Shaft
GENERAL SPECIFICATIONS
Front propeller shaft
Applied modelZD30ETi engine
M/T A/T
Propeller shaft model 2F80B
Number of joints 2
Type of journal bearing Solid (Disassembly type)
Coupling type with trans-
mission Flange type
Distance between yokes mm (in) 73 (2.87)
Shaft length (Spider-to-
spider) mm (in) 832 (32.76) 796 (31.34)
Shaft outer diameter mm (in) 50.8 (2.000)
Rear propeller shaft
Applied model
Engine ZD30ETi
Transmission M/T A/T A/T M/T
Body Hardtop Wagon Hardtop Wagon
Propeller shaft model 2F100H
Number of joints 2
Type of journal bearing Solid (Disassembly type)
Coupling type with trans-
mission Flange type
Distance between yokes mm (in) 94 (3.70) 94 (3.70) 94 (3.70) 94 (3.70)
Shaft length (Spider-to-
spider) mm (in) 440 (17.32) 1,044 (41.10) 480 (18.90) 957 (37.68)
Shaft outer diameter mm (in) 57 (2.24) 89.6 (3.528) 75.2 (2.961) 89.6 (3.528)
Available snap rings
2F80B
Thickness mm (in) Color Part number
1.99 (0.0783) White 37146-C9400
2.02 (0.0795) Yellow 37147-C9400
2.05 (0.0807) Red 37148-C9400
2.08 (0.0819) Green 37149-C9400
2.11 (0.0831) Blue 37150-C9400
2.14 (0.0843) Light brown 37151-C9400
2.17 (0.0854) Black 37152-C9400
2.20 (0.0866) Colorless 37153-C9400
2F100H
Thickness mm (in) Color Part number1.95 (0.0768) White 37146-61502
1.98 (0.0780) Yellow 37147-61502
2.01 (0.0791) Red 37148-61502
2.04 (0.0803) Green 37149-61502
2.07 (0.0815) Blue 37150-61502
2.10 (0.0827) Light brown 37151-61502
2.13 (0.0839) Pink 37146-61503
2.16 (0.0850) Gold 37147-61503
2.19 (0.0862) Black 37148-61503
2.22 (0.0874) Colorless 37149-61503
SERVICE DATA AND SPECIFICATIONS (SDS)
PD-1010
