2000 NISSAN PATROL Electronic Repair Manual

Page 729 of 1033

NISSAN PATROL 2000  Electronic Repair Manual HARDTOP
CEL134M
HARNESS LAYOUT
Body No. 2 Harness/LHD Models (Contd)
EL-1219

Page 730 of 1033

NISSAN PATROL 2000  Electronic Repair Manual Body No. 2 Harness/RHD Models
WAGON
CEL135M
HARNESS LAYOUT
EL-1220

Page 731 of 1033

NISSAN PATROL 2000  Electronic Repair Manual HARDTOP
CEL136M
HARNESS LAYOUT
Body No. 2 Harness/RHD Models (Contd)
EL-1221

Page 732 of 1033

NISSAN PATROL 2000  Electronic Repair Manual Chassis Harness
CEL250A
HARNESS LAYOUT
EL-1222

Page 733 of 1033

NISSAN PATROL 2000  Electronic Repair Manual Room Lamp Harness
CEL137M
HARNESS LAYOUT
EL-1223

Page 734 of 1033

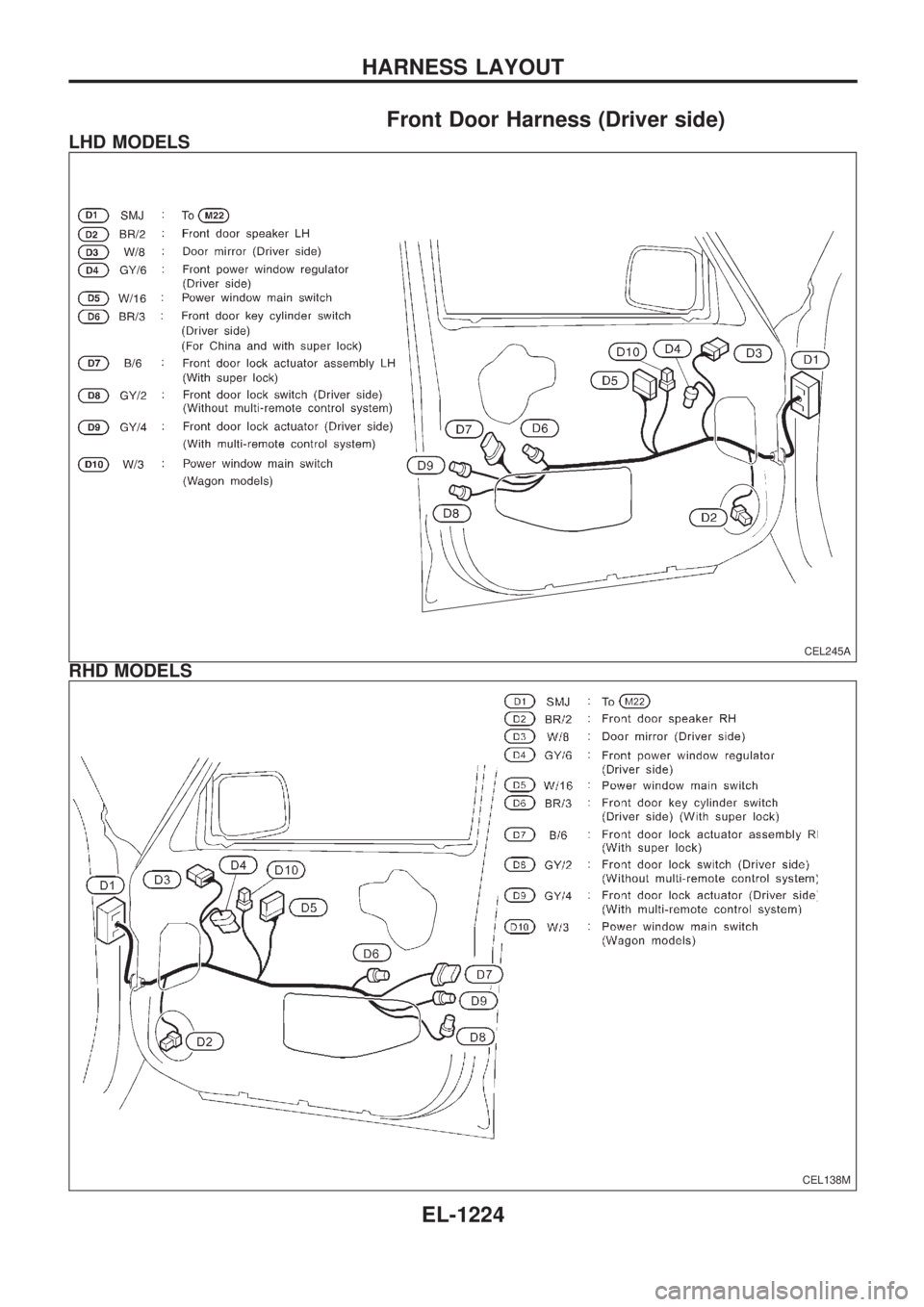

NISSAN PATROL 2000  Electronic Repair Manual Front Door Harness (Driver side)
LHD MODELS
RHD MODELS
CEL245A
CEL138M
HARNESS LAYOUT
EL-1224

Page 735 of 1033

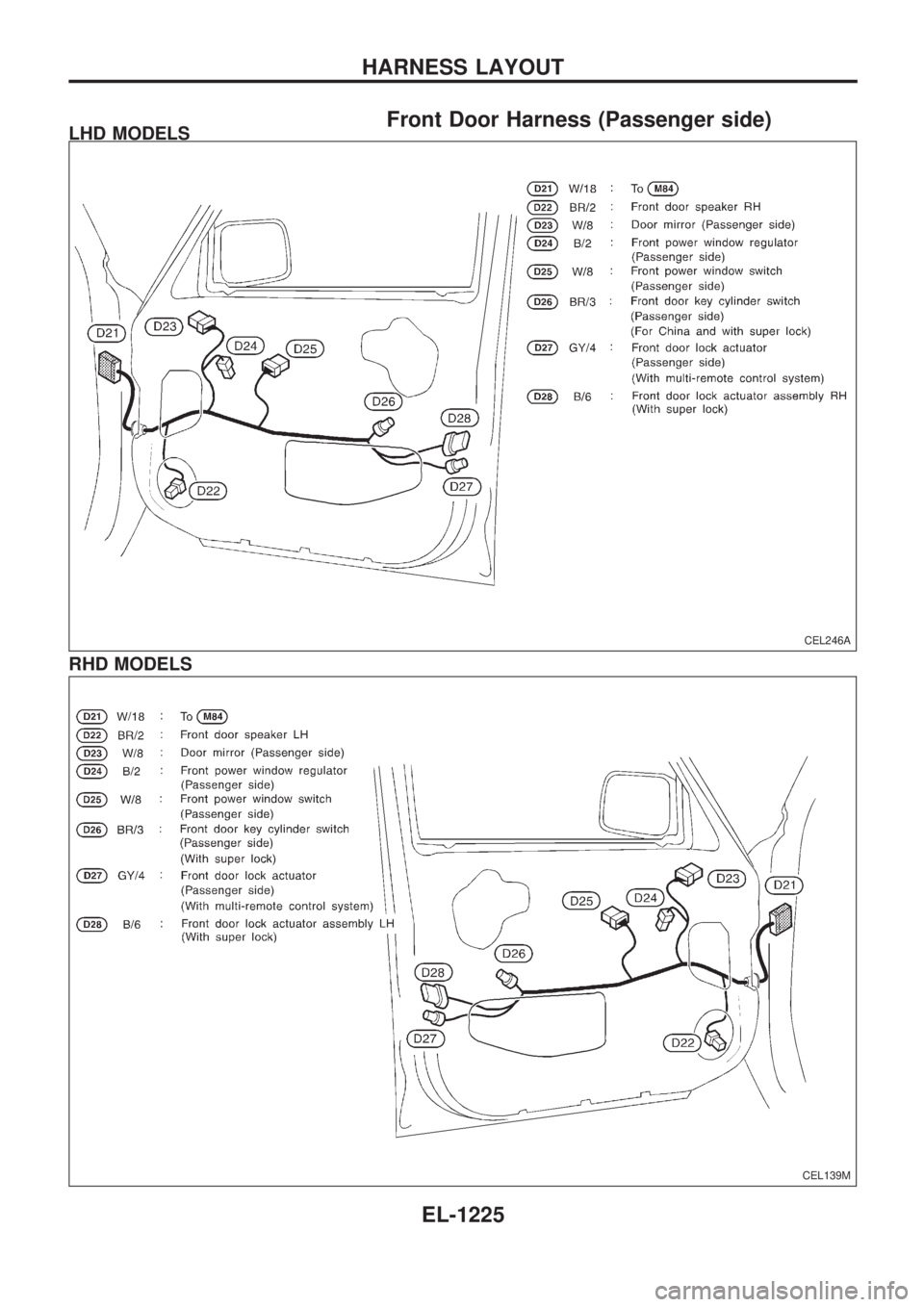

NISSAN PATROL 2000  Electronic Repair Manual Front Door Harness (Passenger side)LHD MODELS
RHD MODELS
CEL246A
CEL139M
HARNESS LAYOUT
EL-1225

Page 736 of 1033

NISSAN PATROL 2000  Electronic Repair Manual Back Door Harness and Rear Window
Defogger Harness
CEL251A
HARNESS LAYOUT
EL-1226
