2000 NISSAN PATROL Electronic Repair Manual

THA043M
TROUBLE DIAGNOSESREAR COOLER

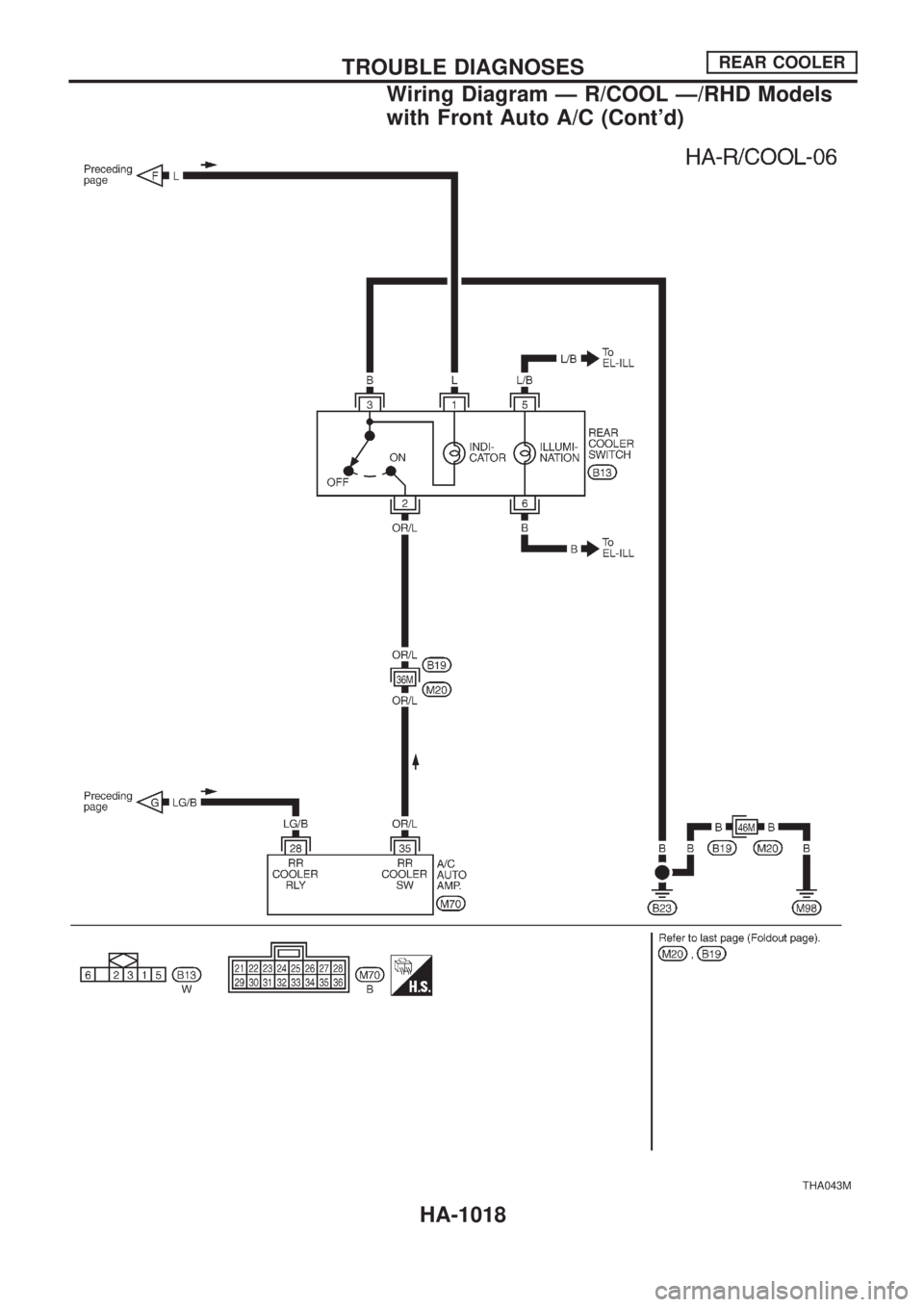

Wiring Diagram Ð R/COOL Ð/RHD Models
with Front Auto A/C (Cont'd)
HA-1018

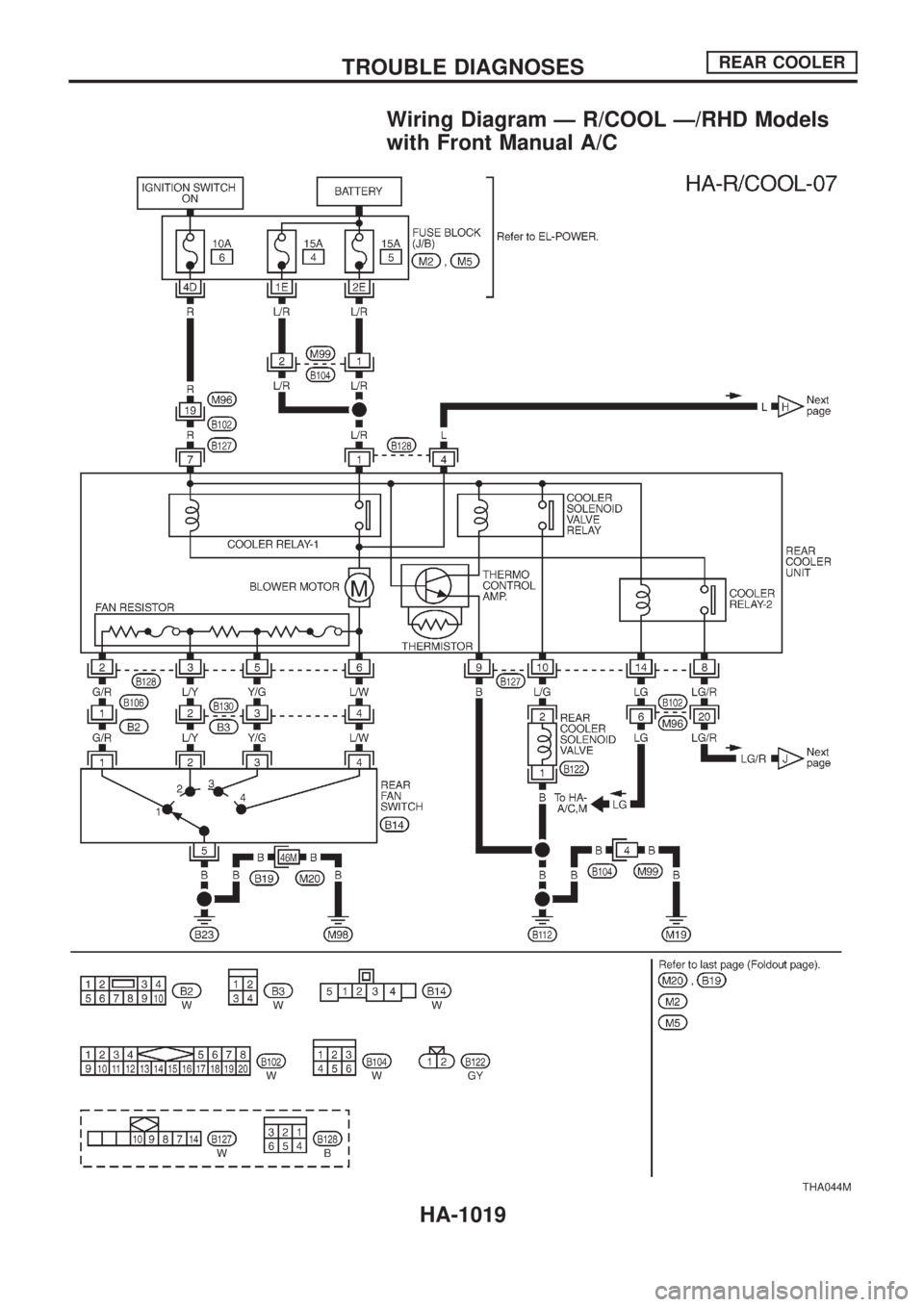

Wiring Diagram Ð R/COOL Ð/RHD Models
with Front Manual A/C
THA044M
TROUBLE DIAGNOSESREAR COOLER
HA-1019

THA045M
TROUBLE DIAGNOSESREAR COOLER

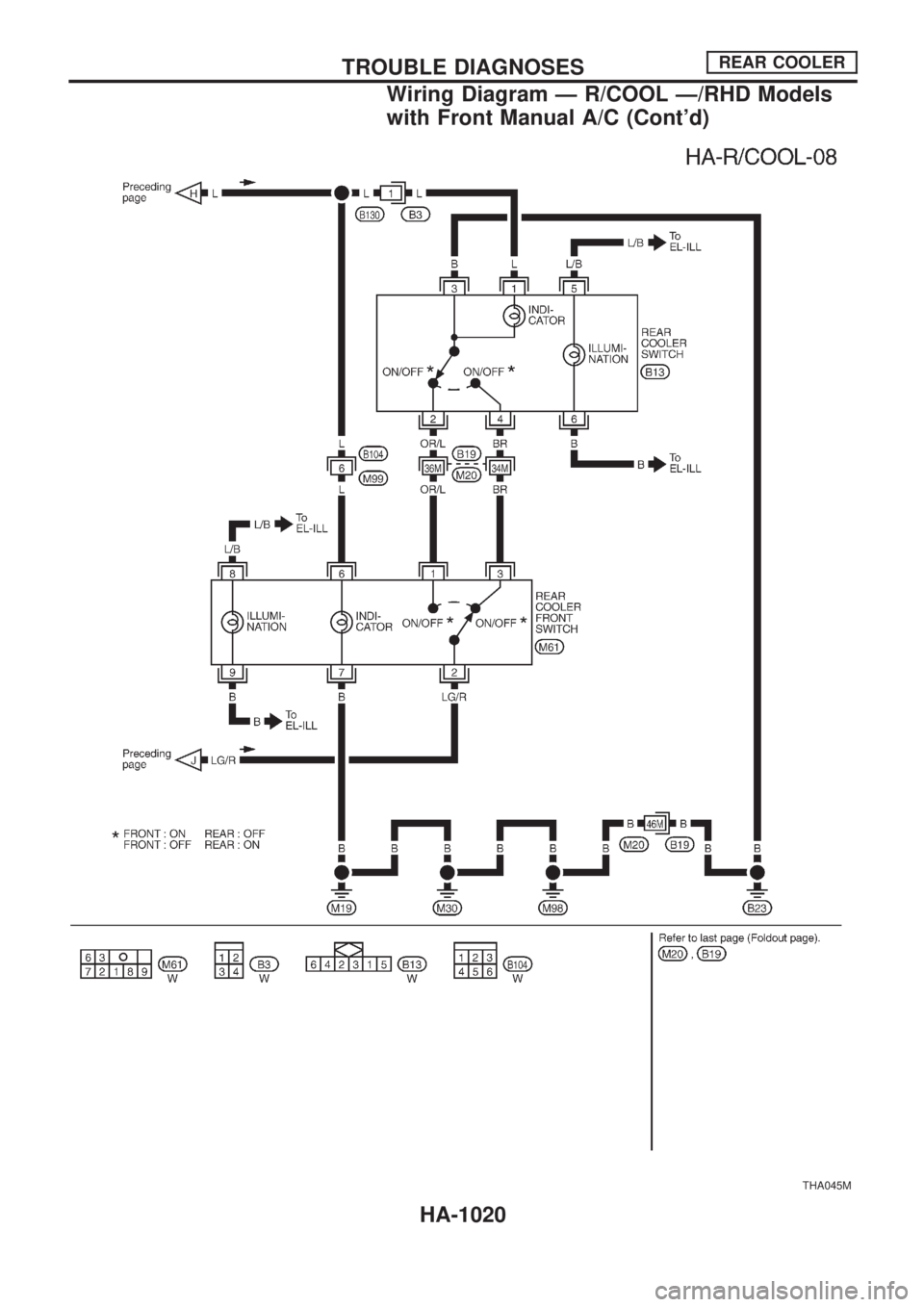

Wiring Diagram Ð R/COOL Ð/RHD Models
with Front Manual A/C (Cont'd)
HA-1020

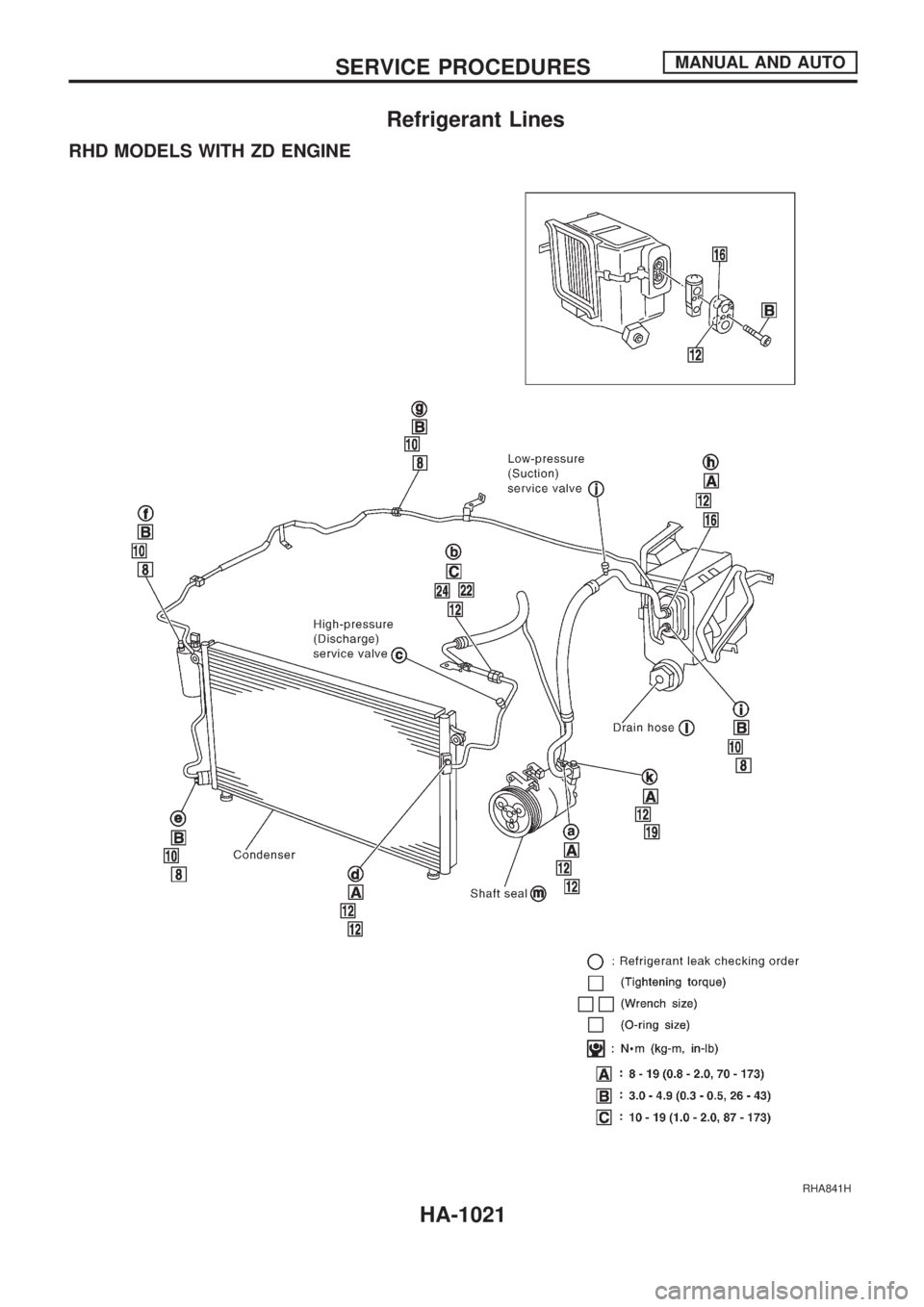

Refrigerant Lines
RHD MODELS WITH ZD ENGINE
RHA841H
SERVICE PROCEDURESMANUAL AND AUTO
HA-1021

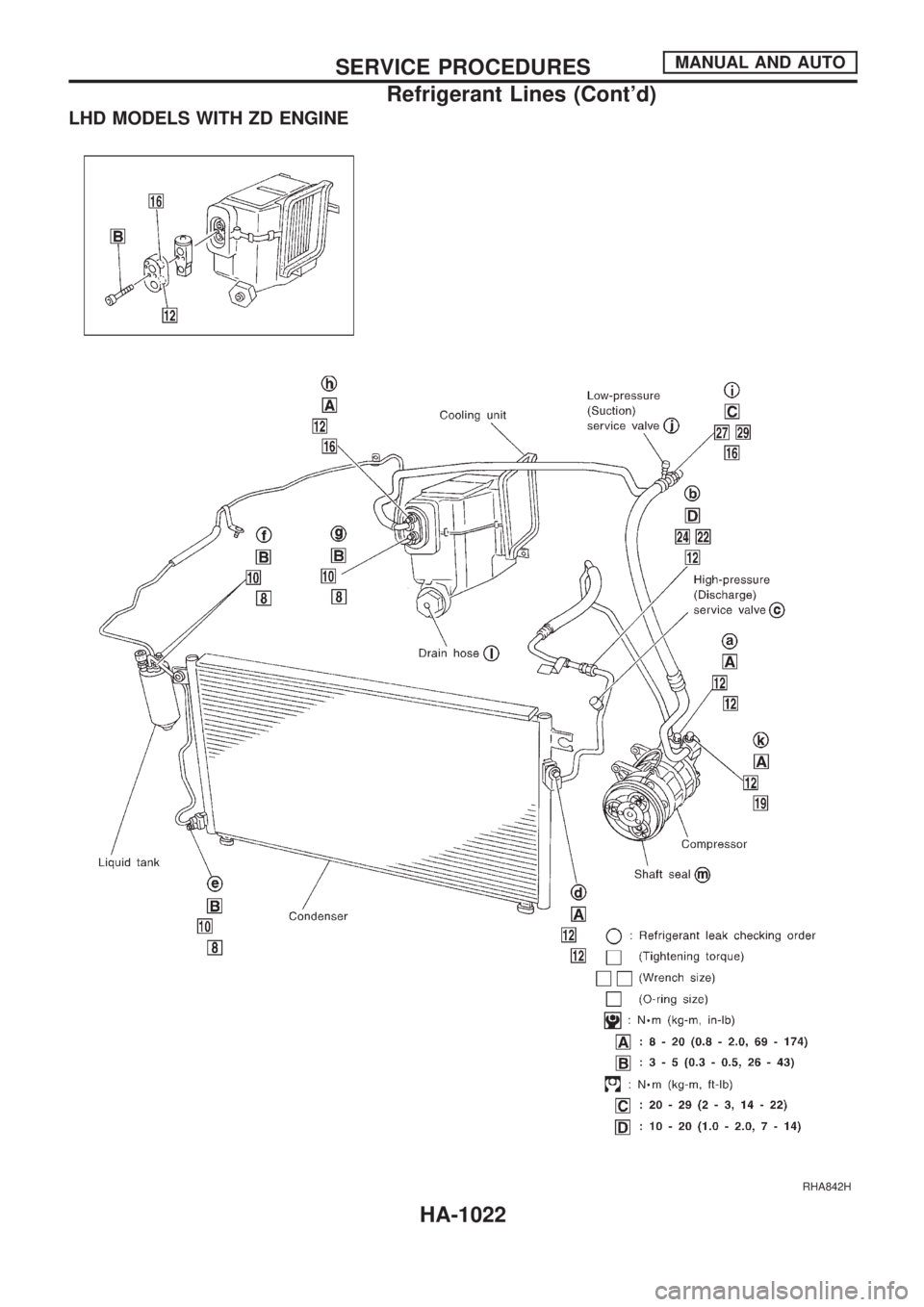

LHD MODELS WITH ZD ENGINE
RHA842H
SERVICE PROCEDURESMANUAL AND AUTO
Refrigerant Lines (Cont'd)
HA-1022

Compressor Mounting
RHA893H
SERVICE PROCEDURESMANUAL AND AUTO
HA-1023
